Extra Machinery

$800.00

SKU: L125-1

← Previous Product Next Product →

DEMO MACHINE ON SPECIAL PRICE NOW.

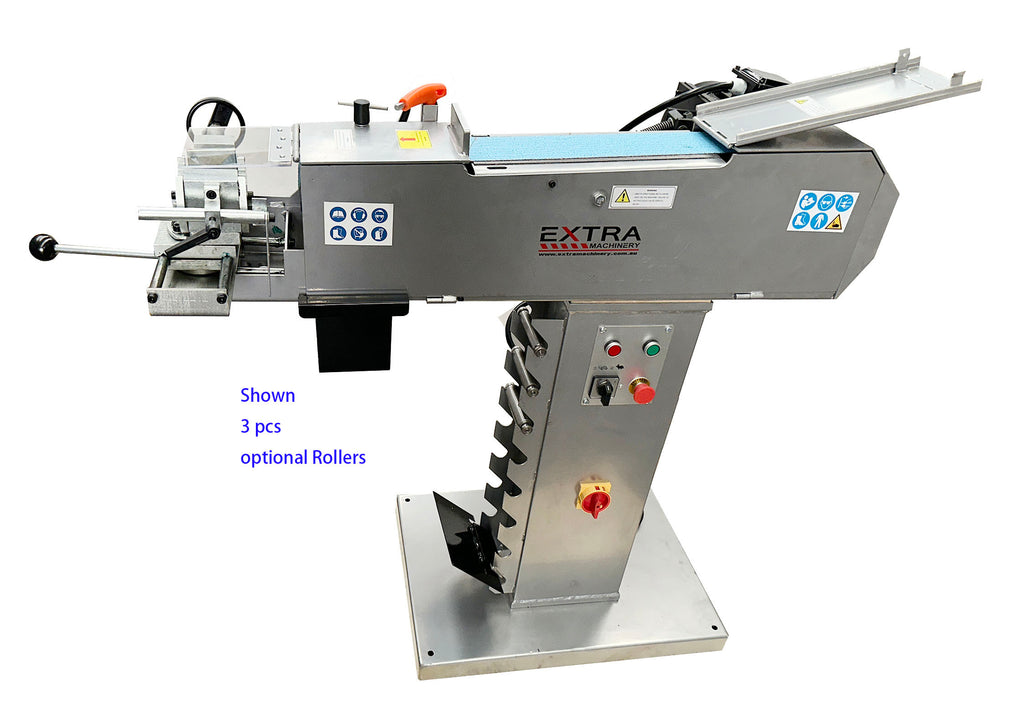

PTN-76  Pipe & Tube Notcher - Linisher

2 Working Station:


Front Notcher including 1pc Roller  38.1mm

Top Platern Grinding

INCLUDE SPECIAL DESIGNED VICE, TILTING 30-90DEGREE, CLAMP ROUND OR SQUARE TUBE OR PIPE

  • Tube notching capacity Ø20-76mm OD

  • NB pipe notching capacity Ø15-65mm

  • Quick action compound vice swivels from 30-90º

  • Speical designed vice jaws for holding round or square material

  • Heavy leadcrew drives the vice, ensures firm holding of workpiece.

  • Wide and clear eye shield

  • 2 speed motor 1400rpm for stainless steel, 2800rpm for steel

  • Graphite pad under top platern to reduce friction

  • Spring balanced clamping device allows for continuous belt tension

  • Quick change of grinding rolls – no tools required

  • Solid pedestal stand with built-in  rack for 7 sets rollers

  • 2 x Ø76mm dust extraction outlets

  • Powerful 3.0kW / 4.0hp, 415V motor with overload protection

  • Including 1pc 2000x100mm Zirconia linishing belt
