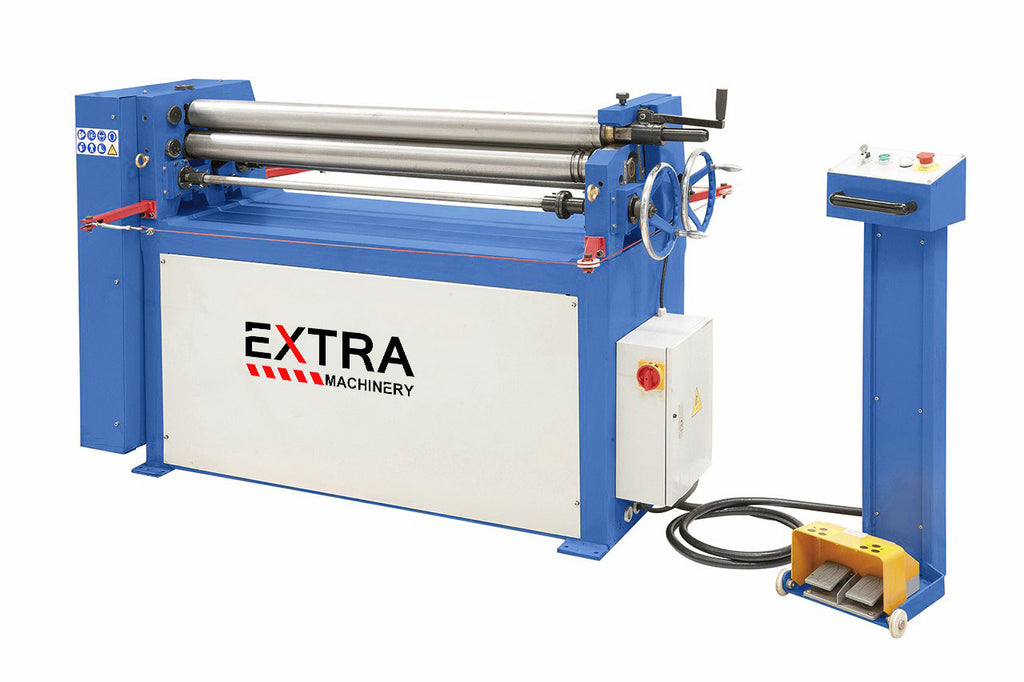

APR-1302 Motorised Plate Curving Rolls Intial Pinch 1300x2.5mm
FEATURES
- 1300 x 2.5mm mild steel capacity (rated hot rolled material of 250MPA)
- 90mm roll diameter for minimum curving diameter of 135mm
- Crowning on rolls for perfect bending result
- Pre-bending function with inial pinch
- Heavy gear reduction gearbox motor drives top & bottom rolls
- Rear curving roll is motoried up/down with digital readout display

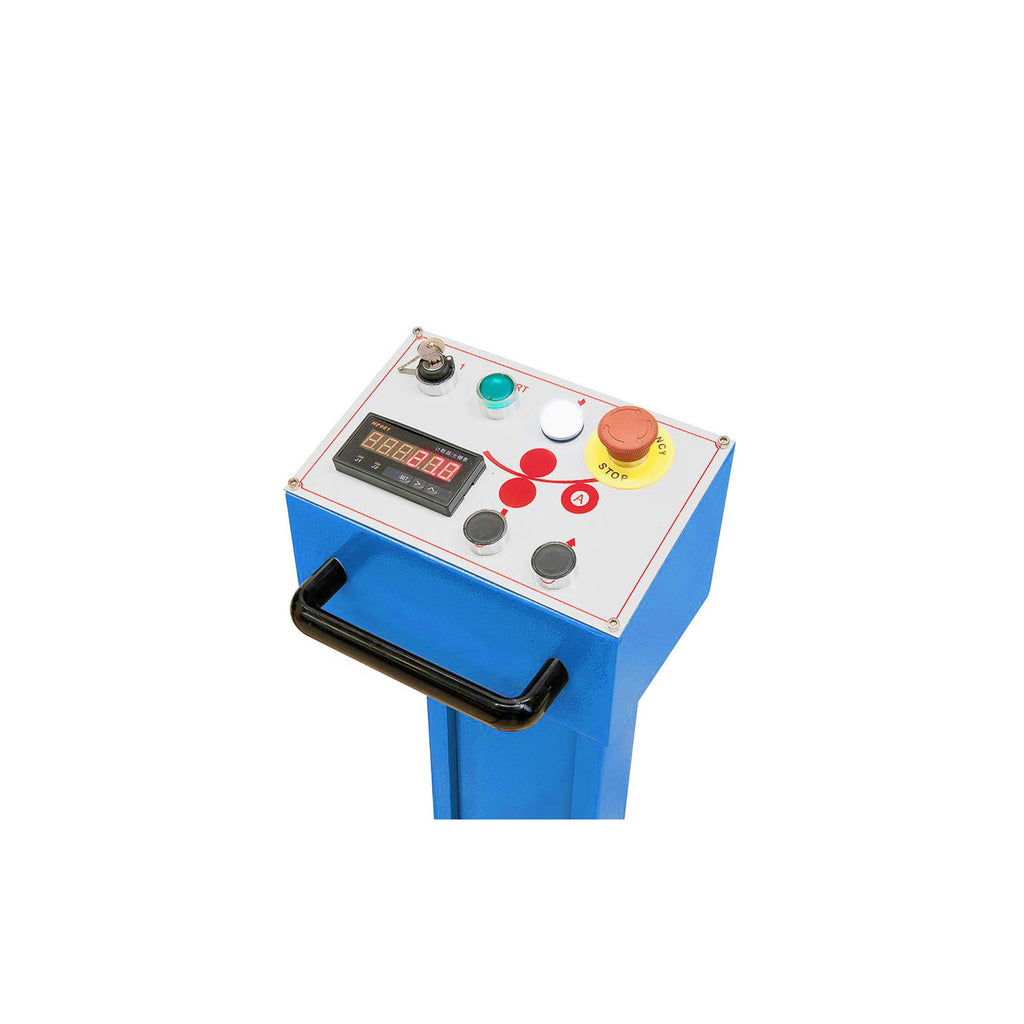

- Movable foot pedal switch with control panel

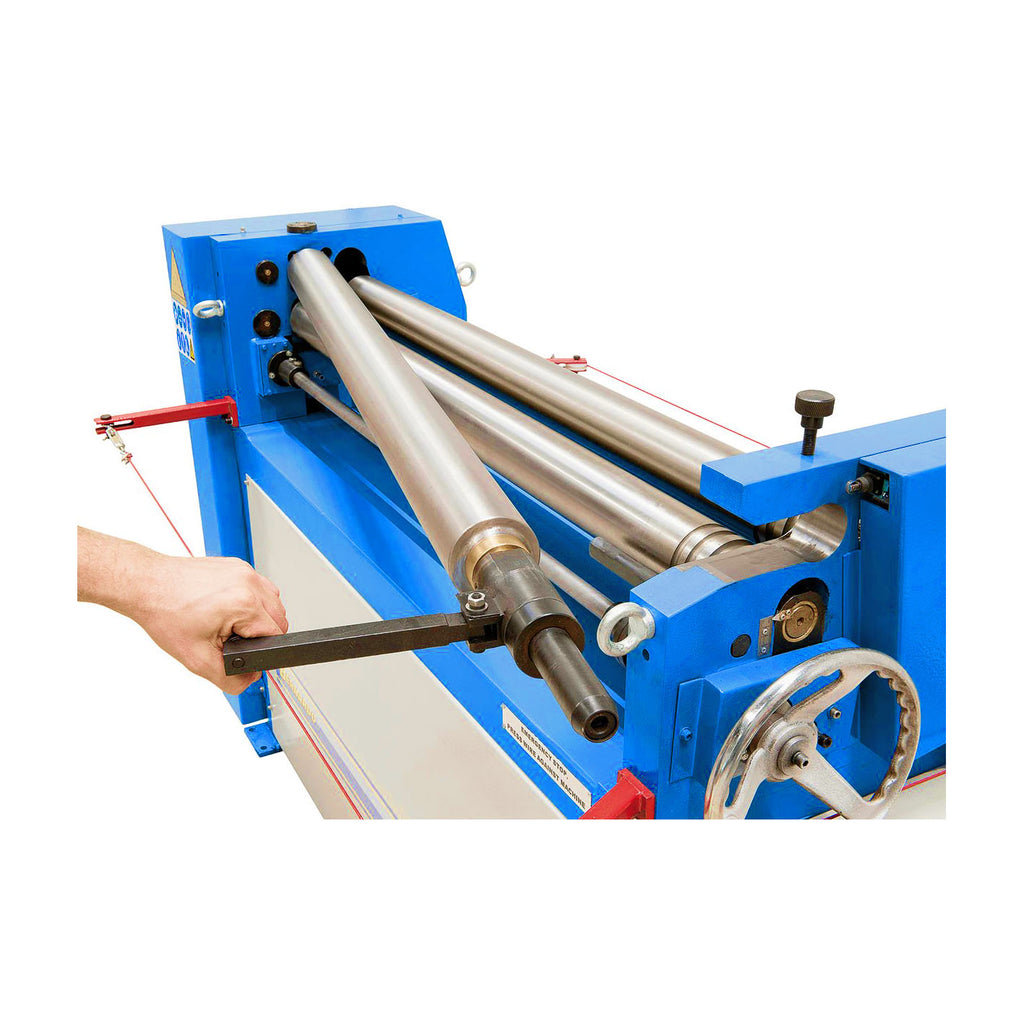

- Top roll can swing out for easy material removing

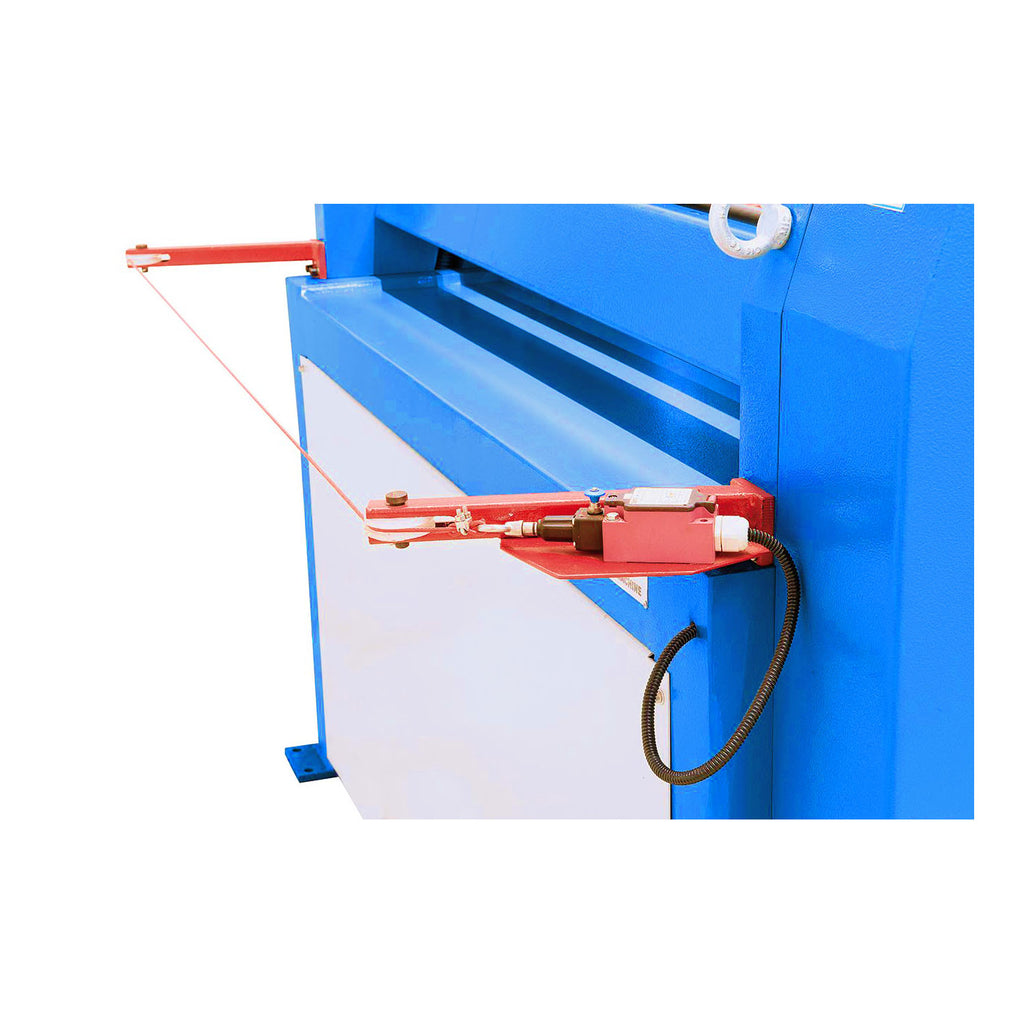

- Interlock safety wire system
- Wiring grooves on rolls provide wire bending function
- Guide roller for cone bending included
| Model | APR-1302 |
| Condition | New |
| Max rolling thickness (mm) | 2.5 |
| Max rolling width (mm) | 1300 |
| Motor power (kw) | 1.1 (1.5HP) 415V-3Phase |
| Roll diameter (mm) | 90 |
| Minimum rolling diameter of plate |
135 |
| Weight (kg) | 700 |
