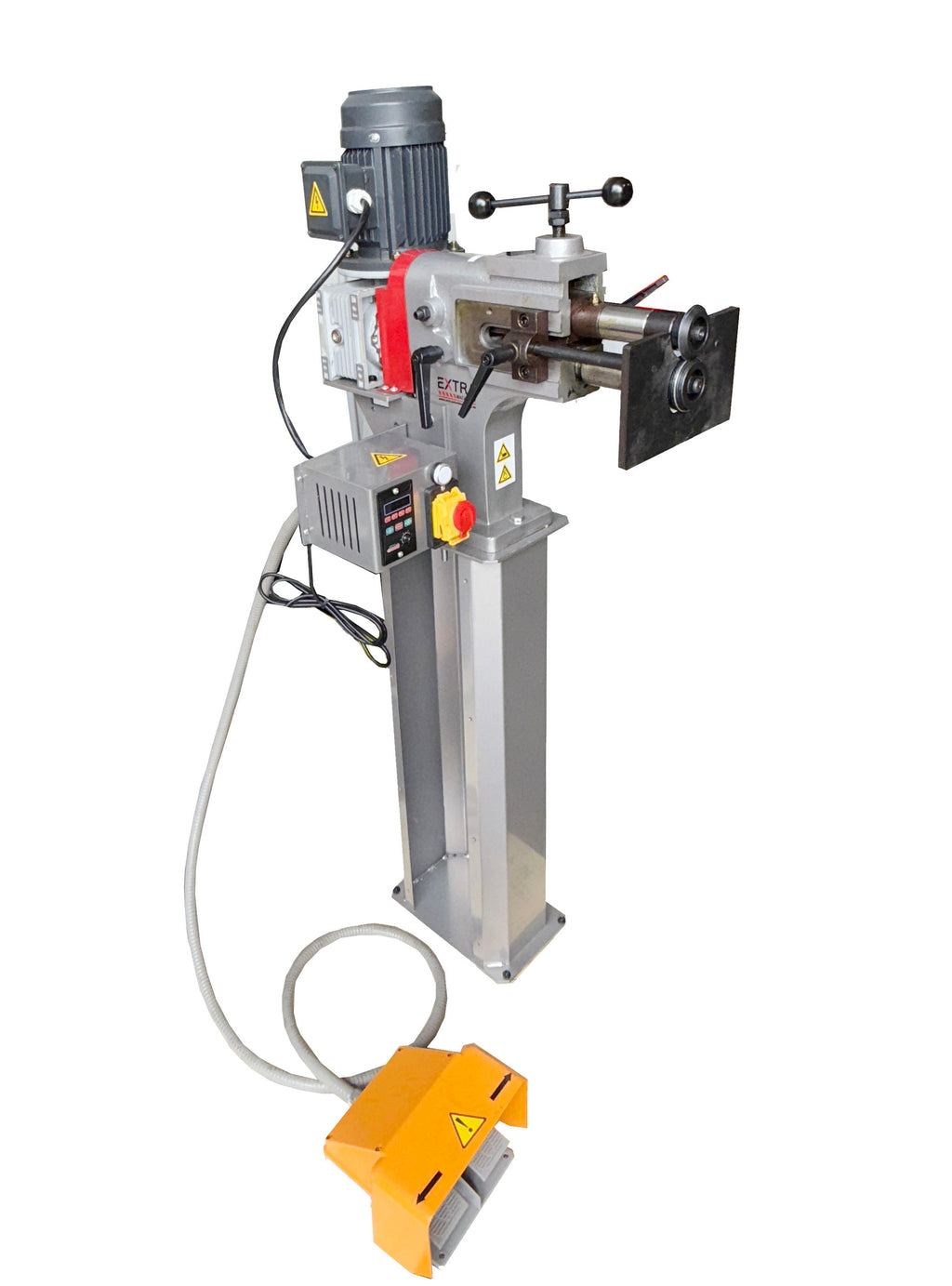

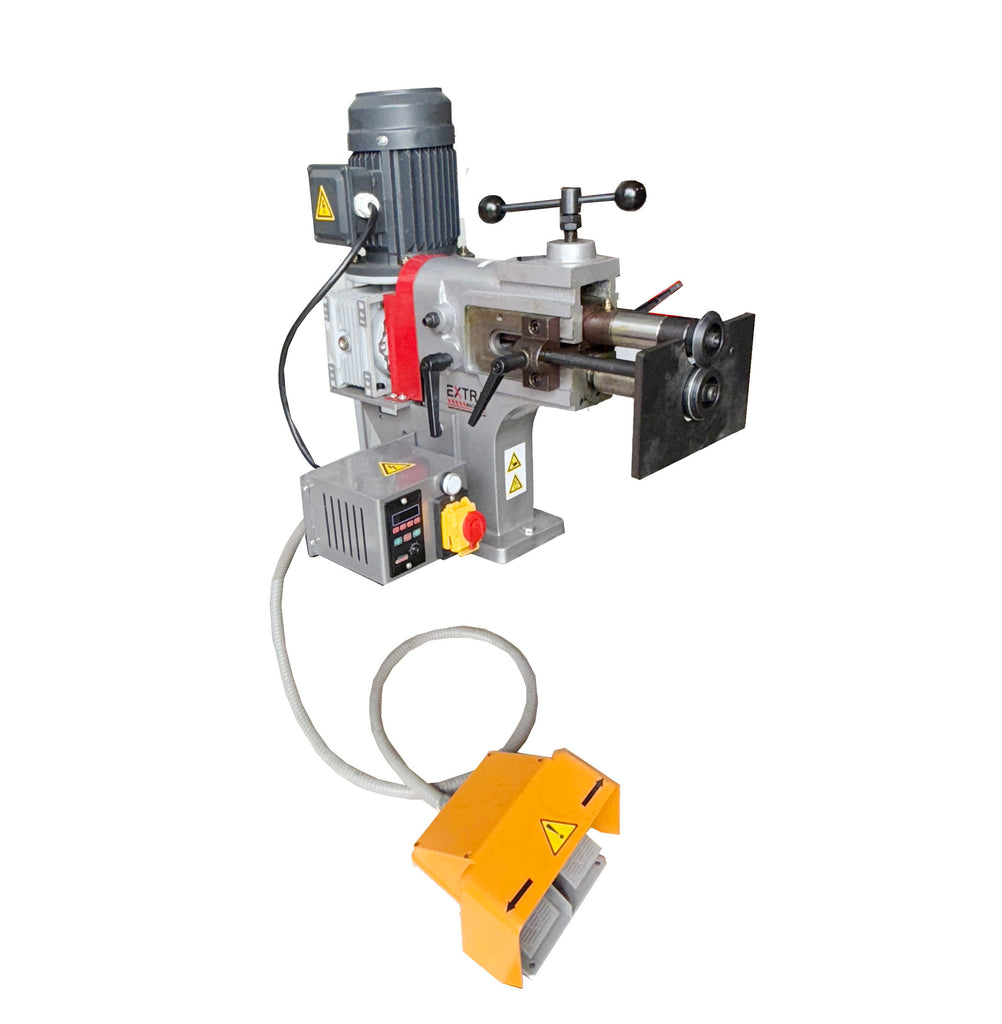

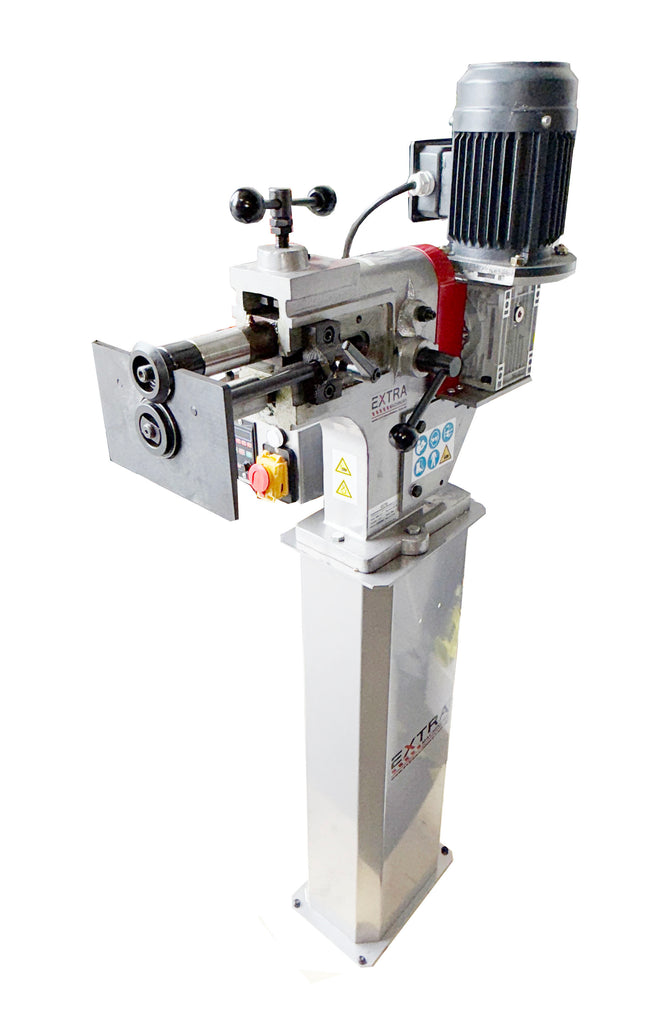

BBM-1.5V W/Pedestal Variable Speed Motorised Swage & Jenny Machine 1.2mm capacity W/12 Pairs (24pcs) Roller Dies

• Heavy duty cast iron machine body to provide good rigidity.
• Adjustable throat depth guide
• Quick cam adjustment of bottom shaft to align the rolls
• Mild steel capacity is rated on hot rolled material with 250MPA
  Mild Steel - Thickness Capacity 1.2 / 18  (mm / Gauge)
  Aluminium - Thickness Capacity 1.5 / 16 (mm / Gauge)
  Throat Depth Maximum 240 mm
  Roll Diameter 62 mm

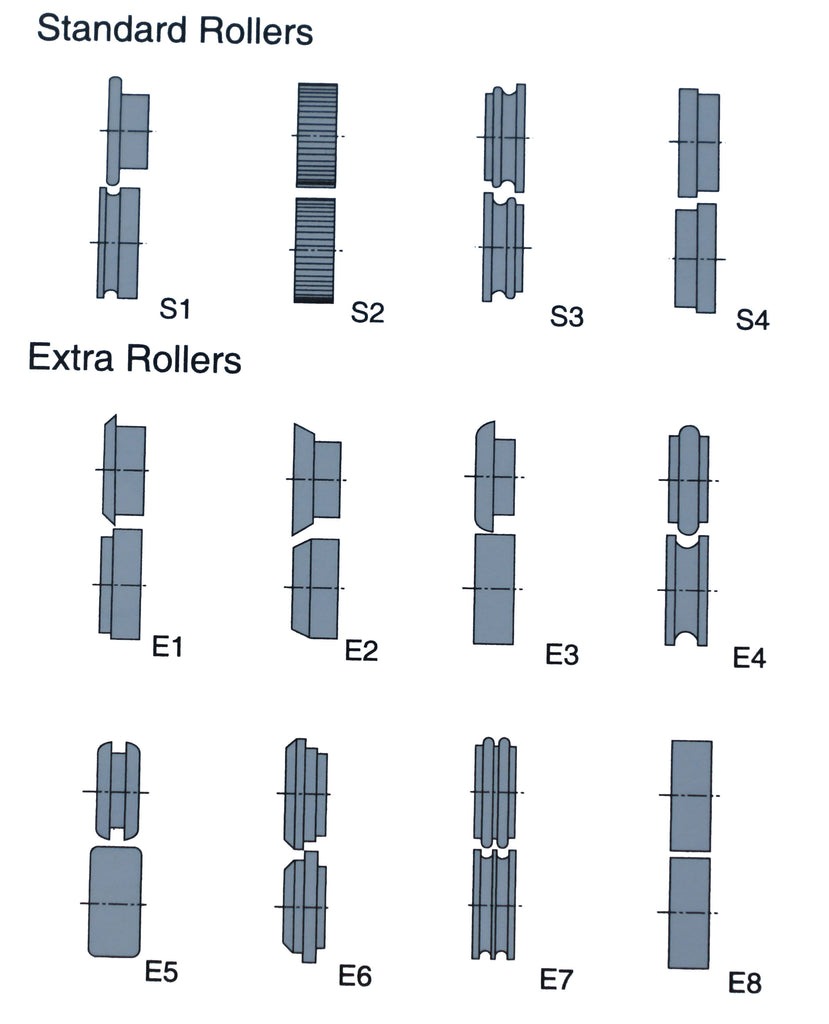

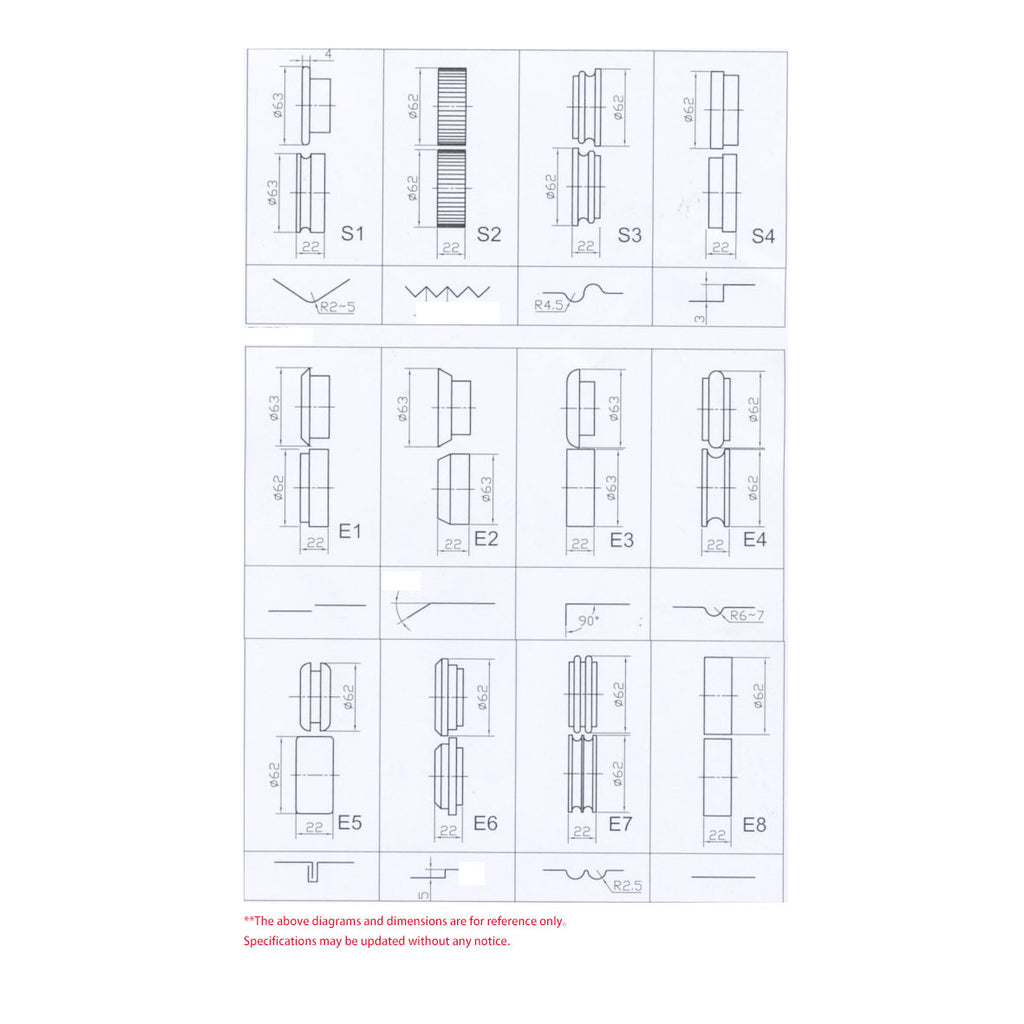

• 8 sets of rolls:
• 1 x S1 Swaging

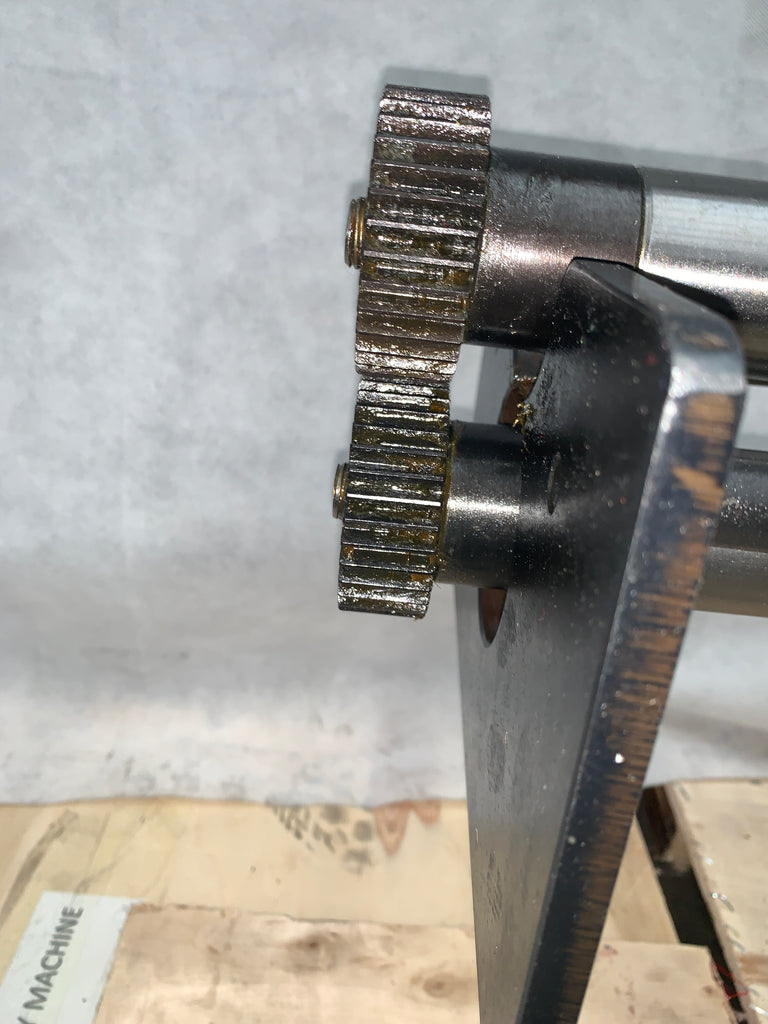

• 1 x S2 Crimping
• 1 x S3 Goose Beading
• 1 x S4 Necking
• 1 x E1 Cutting
• 1 x E2 Bevel Flange
• 1 x E3 Right Angle
• 1 x E4 Wiring
• 1 x E5 Knee Closing
• 1 x E6 Double Seaming
• 1 x E7 Double Beading
• 1 x E8 Chamferring or Flanging

Net Weight  102kg
