HK-45HP NB Pipe & Tube Rolling Machine Incl 10 sets of Roller Dies W/ Hydraulic Down Feed & DRO
HK-45HP- Section & Pipe Bending Machine
Includes Hydraulic Top Roller Adjustment & DRO
(Some photos show manual top roller adjustment)
415V-50HZ, 3 Phase
Incl roller dies to bend NB (Norminal Bore) galvanized water pipe or black pipe,
roller dies for round tube and other profiles such as flat bar, channel, round bar, square bar
The package ncludes

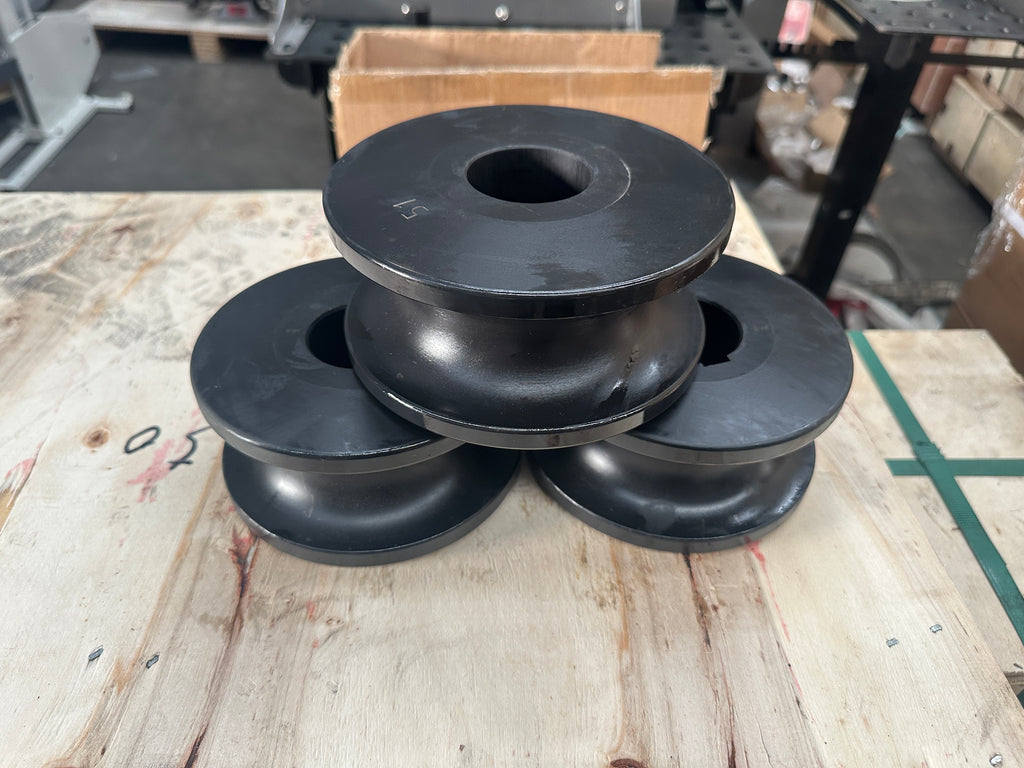

1 set NB Pipe Die NB 20 (26.90mm Outside Diameter)
1 set NB Pipe Die NB 25 (33.70mm Outside Diameter)
1 set NB Pipe Die NB 32 (42.40mm Outside Diameter)
1 set NB Pipe Die NB 40 (48.30mm Outside Diameter)
1 set NB Pipe Die NB 50 (60.30mm Outside Diameter)
1 set Tube Die 1" (25.40mm Outside Diameter)
1 set Tube Die 1-1/4" (31.75mm Outside Diameter)
1 set Tube Die 1-1/2" (38.10mm Outside Diameter)
1 set Tube Die 2" (51.00mm Outside Diameter)
1 set Combination Roller Die For Various Kinds of Profiles such as
flat bar, square bar, round bar channel steel etc.
Features
- Rolls are hardened
- Two rollers drive for better drive power
- 50mm hardened and ground shafts made of Chrome Moly steel
-
Hydraulic top roller moves up/down
with Digital Display - Use in horizontal or vertical working station
- Foot pedal control with emergency stop
- Adjustable Side Guiding Rollers
- Gear driven by motor & gear reduction box
- Standard rolls and guiding rolls are included
| MODEL | HK-45H |
|---|---|
| Driven Rolls | 2 |
| Top Bending Roll Adjustment Type | Hydraulic |
| Roll Diameter | 155mm |
| Flat Bar Edging Capacity (mm)- MS (size / Ø) | 60 x 10mm / 500mm |
| Flat Bar Capacity (mm) - MS (size / Ø) | 100 x 15mm / 450mm |
| Square Bar Solid Capacity (- MS (size / Ø) | 35 x 35mm / 900mm |
| Rectangle Tube Capacity - MS (size / Ø) | 50 x 40 x 3mm / 1200mm* |
| Square Tube Capacity - MS (size / Ø) | 50 x 50 x 3mm / 1700mm* |
| Round Bar Solid Capacity - MS (size / Ø) | Ø35mm / 600mm* |
| Round Tube Capacity - MS (size / Ø) | Ø70 x 2mm / 1000mm |
| Round Pipe Capacity - MS (size / Ø) | Ø2" x 2.9mm / 1000mm |
| Angle Capacity - MS (size / Ø) | 50 x 50 x 5mm / 1000mm |
| Motor Power | 1.5KW /2HP |
| Voltage/Frequency | 415V-50HZ-3PHASE |
| Dimensions (L x W x H) | 760 x 900 x 175mm |
