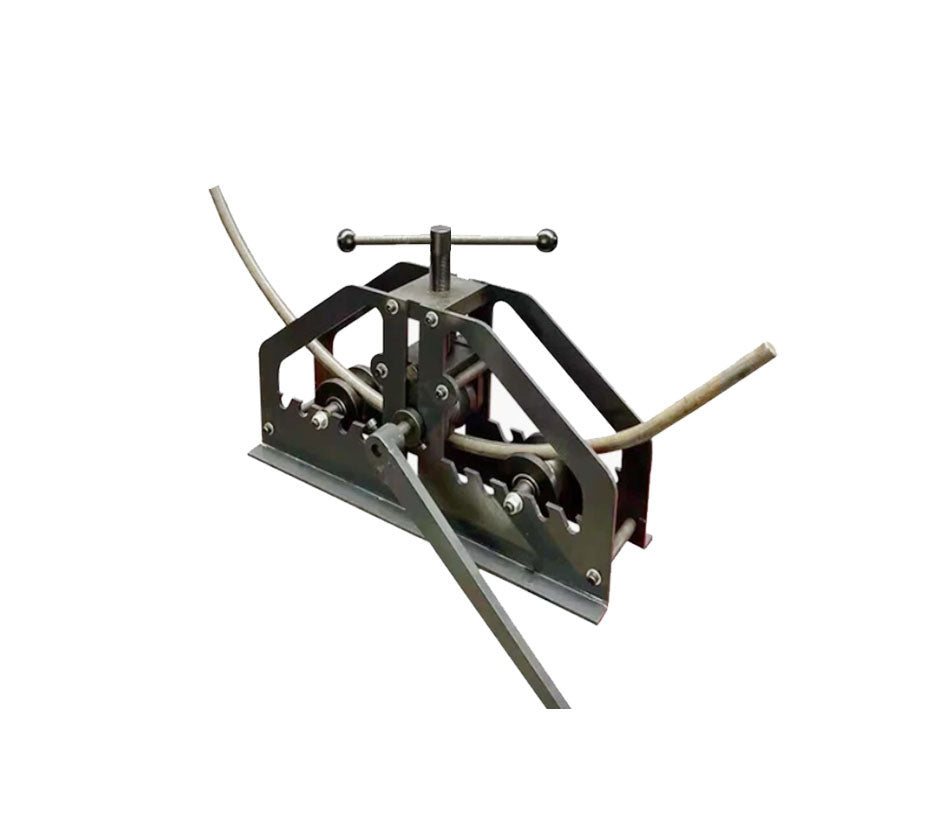

MR-50 Manual Tube Pipe Roller
(some photos show with opitonal rollers which need buy separately)

A versatile portable radius roller that can be used on a benchtop and then stored away.

MR-50 is designed to make radius bends of round tubing, rectangular tubing, square tubing, and pipe.

The quick-change lower wheels have five slotted options in the frame to choose from based on the arc of the bend desired.

The rotary rod raises lowers the upper roller by twisting the lead screw.

Insert your tubing onto the lower wheels and turn the crank to move the workpiece through. Repeat until the desired curve is achieved.

SPECIFICATIONS

• Maximum bending angle 180°
• Round tube capacity: 2"
• Round tube minimum outer radius: Variable
• Square tube capacity: 1/2"
• Square tube minimum outer radius: 20"
• Approximate shipping weight: 25kg

Optional Dies, which need to buy separately (Mild  steel capacity)

• Tube  Outside Diameter 3/4", 1", 1-1/2", 2" (MAX. WALL THICKNESS 2.6MM)
• NB Pipe Die Out side Diameter  NB 20(26.9mm), NB 25 (33.70mm), NB 32 (42.4mm) (MAX WALL THICKNESS 2.6MM)
• Square Tube 1", 1-1/2" (MAX. WALL THICKNESS 2.0MM)
