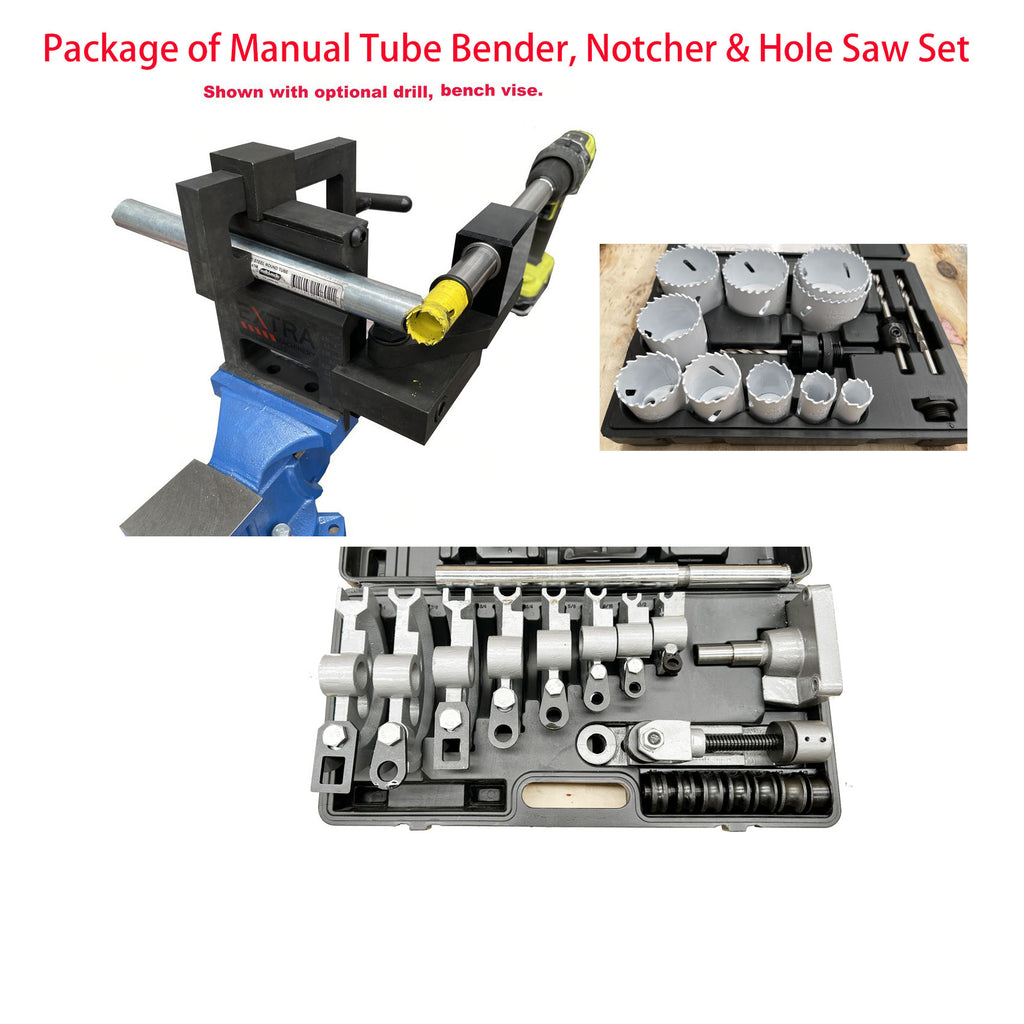

Manual Tube Bender, Tube Notcher & Hole Saw Set
Package includes
One Manual Tube Bender ( Round & Square)

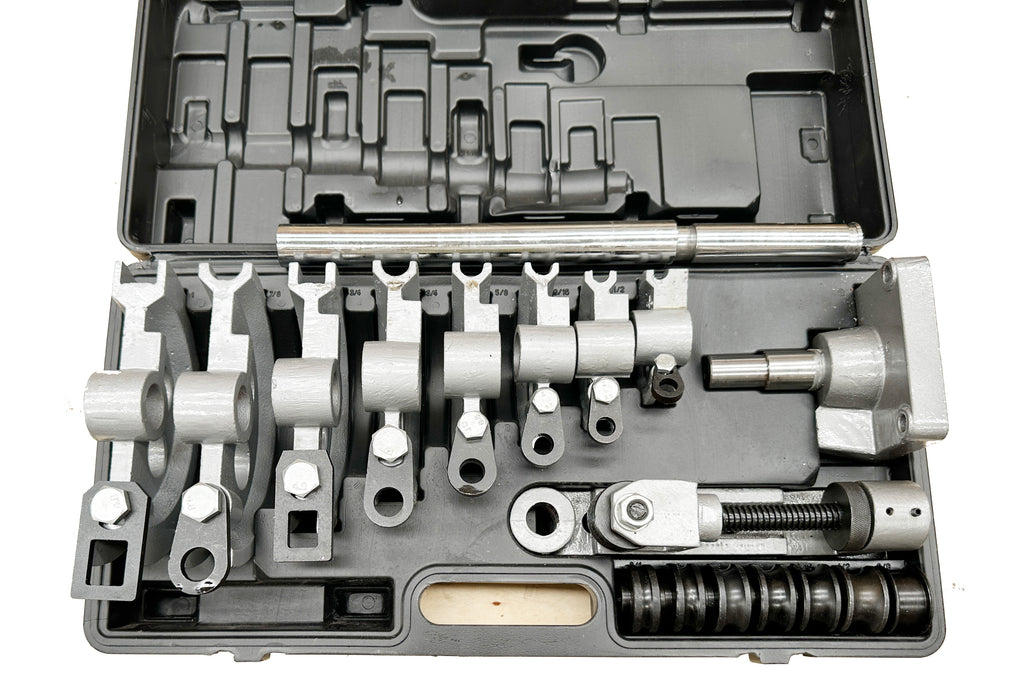

One set of Pipe & Tube Notcher
One set of Bi-Metal Hole Saw Set 19-64mm

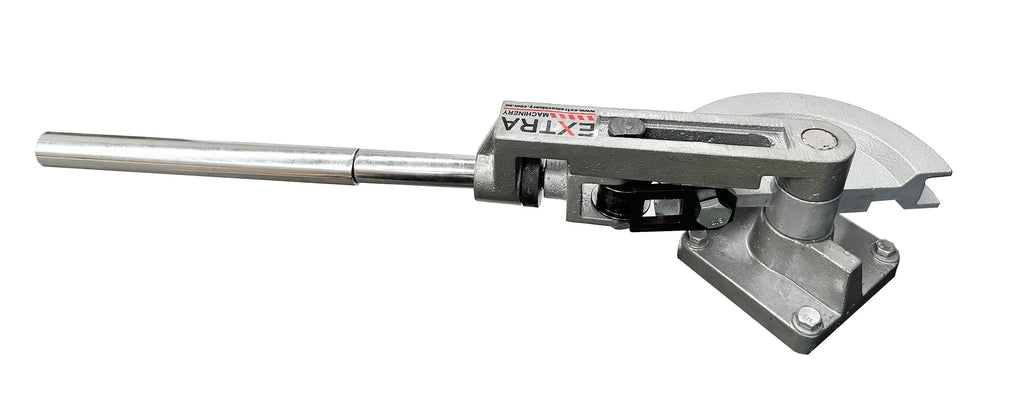

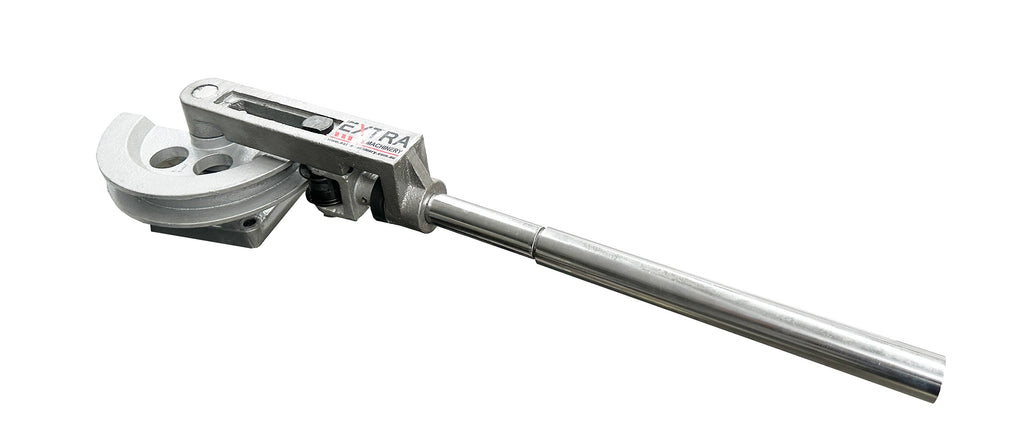

MBRS-26 Manual Tube Bender -Round & Square
FEATURES:
- Cast iron base can be mounted on bench top or clamped into a vice.
-

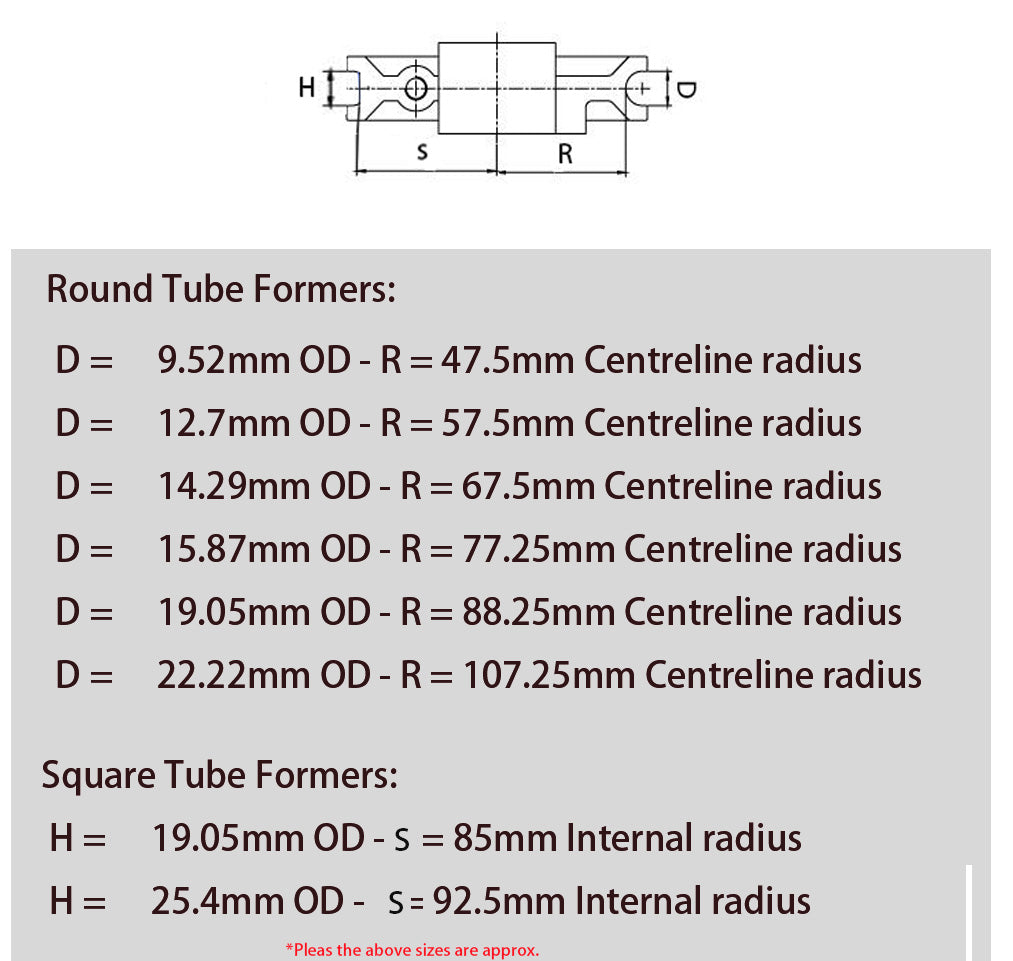

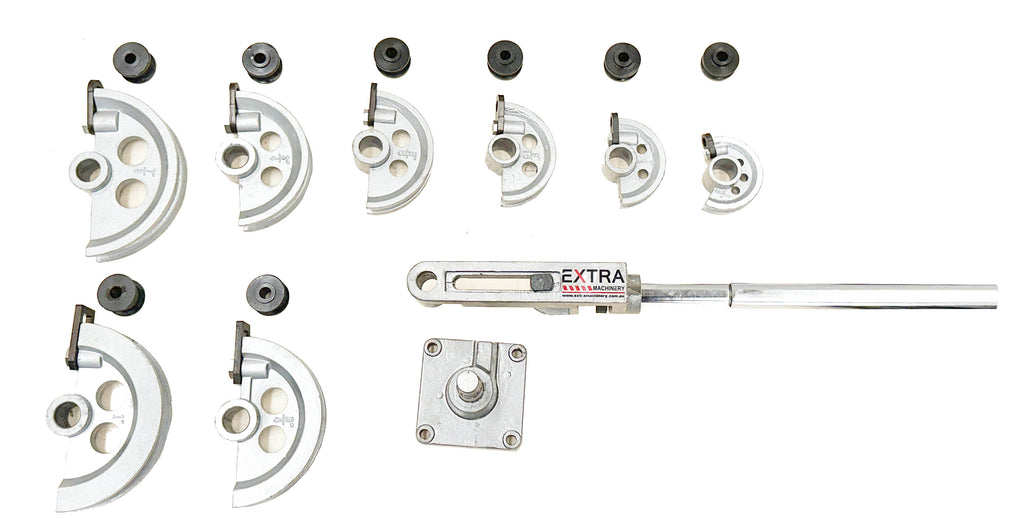

Includes Ø9.52, Ø12.7, Ø14.29, Ø15.87, Ø19.05, Ø22.22mm Round & 19.05 & 25.4mm Square Formers
- Two-piece handle
- Hard plastic carrying case
- Anchor the bender to your bench, insert the appropriate die for your needs, and bend away.
SPECIFICATIONS * c
- Round Tube Capacity: Ø9.52 - Ø22.22mm (6 SIZES)
- Square Tube Capacity: 19.05 & 25.4mm (2 SIZES)
- Maximum Bending Angle: 180°
- Maximum Bending Capacity: 1.2mm 18-Gauge (mild steel)
- Approximate weight: 28kg
Pipe & Tube Notcher
Constructed from solid steel, the easy to use pipe & tube notcher is built to perform accurate notches, time after time.
▶ Create notches in 3/4" to 3" Tube or Ø25 - Ø63.5mm OD pipes
▶ Adjustable up to 50 Degrees
▶ Accepts standard hole saws
▶ Works with any 1/2" drill
▶ Mounts in a vise or on a bench top
You can build anything from a Go Cart to a 3 In exhaust on your hotrod. Use any 1/2 In hand drill to power the Notcher. Accepts all standard hole saws. Adjustable up to 50 degrees with the loosening of one bolt. Adjust to your desired angle with one hand and lock down the bearing block with your other. Easier adjustment than other designs on the market. Vise or bench top mounting.
| MODEL | PNM3 |
|---|---|
| (Type)Machine |
Pipe & Tube
Notcher Attachment
|
| (Type)Notching Cutter | Hole Saw (Optional) |
| (mm)Tube Capacity (OD) - Mild Steel | Ø3/4" to Ø3" |
| (inch / mm)Pipe Capacity (NB) - Mild Steel | Ø25 - Ø63.5 |
| (Degree)Angle Adjustment | 0 - 50° |
| ((mm))Dimensions | 280 x 280 x 160 |
| (kg)Nett Weight | 9.1 |
