SP-20 Workshop Hydraulic Press with 11pc/set Pin Drive Kit 10-30mm
SP-20 - Workshop Hydraulic Press
Frames, Head & Tables are all made from high strength C channel steel.
Frames, Head & Tables are all made from high strength C channel steel.
- Ideal equipment for installing and removing - Bearings, Bushes, Gears, Pulleys etc.
- Quality hydraulic assembly fully rested
- Cylinder slides between uprights
- 20 tonne Pressure
- Include V bending plates
- Include Hydraulic Pressure Gauge
| CAPACITY | RAM STROKE | PRODUCT SIZE(MM) | WORKING RANGE (MM) F1-F2 | BED WIDTH (MM) | AIR PRESSURE | N.W. | G.W. | PACKING SIZE | ||||
| (TON) | (MM) | A | B | C | D | F | E | (Mpa) | (KG) | (KG) | (CM) | |
| 20 | 185 | 738 | 700 | 1515 | 1787 | 100 | 28-988 | 542 | ∕ | 108.5 | 119.5 | 155X28X26 |

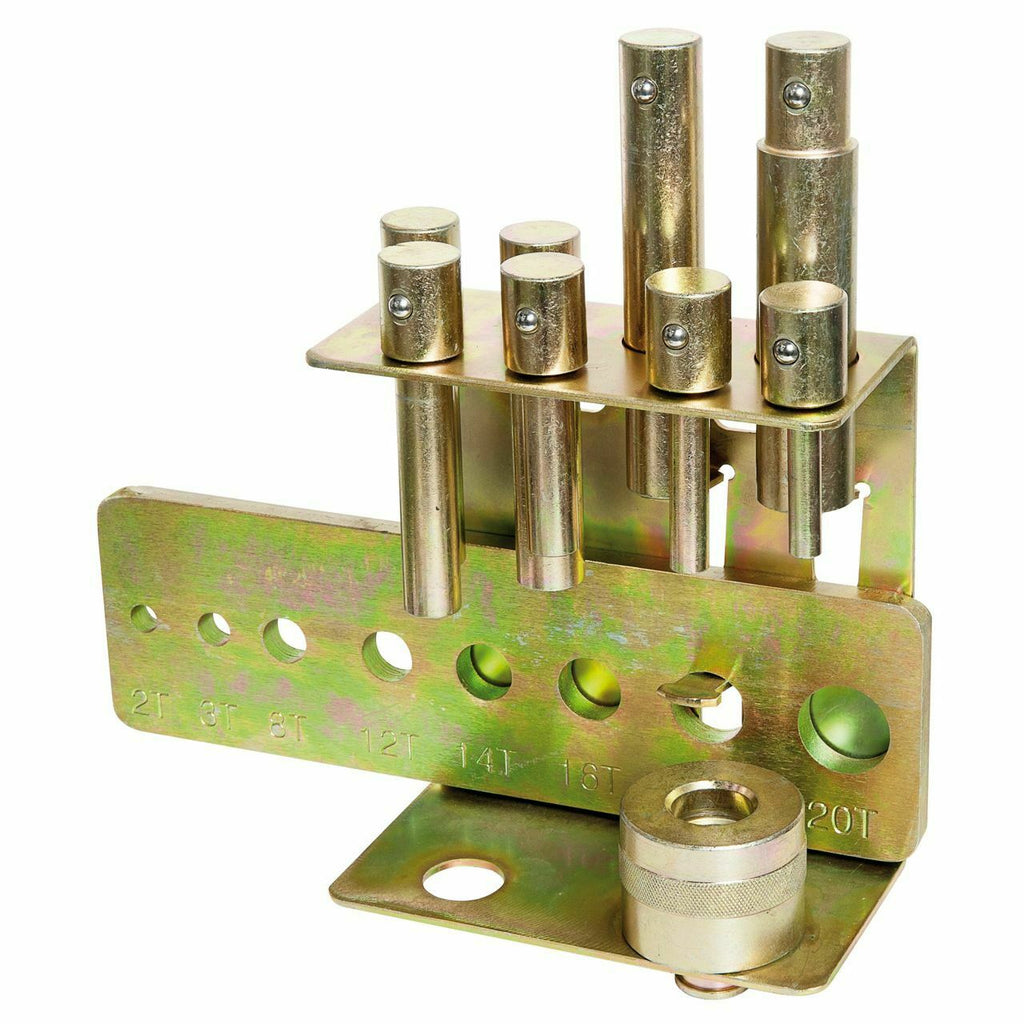

The set of 8 pcs of press pins, rated from 2 - 20 tonne capacity. Zinc plated finishing avoids rust.
Suitable for workshop presses which have a female ram assembly diameter of 25mm and are fixed with a bolt.
Includes adaptor, punch plate capacity gauge & mountable bracket with fixing points.
- 8 steel press pins 10 - 30mm rated 2 tonne to 20 tonne
- Pins have Ø25mm locating head with mounting detent
- Adapter fits onto press ram to hold pins
- Punch plate with capacity gauge
- Storage bracket
*COLOUR MAY VARY DEPENDING BATCH OF PRODUCTION.
