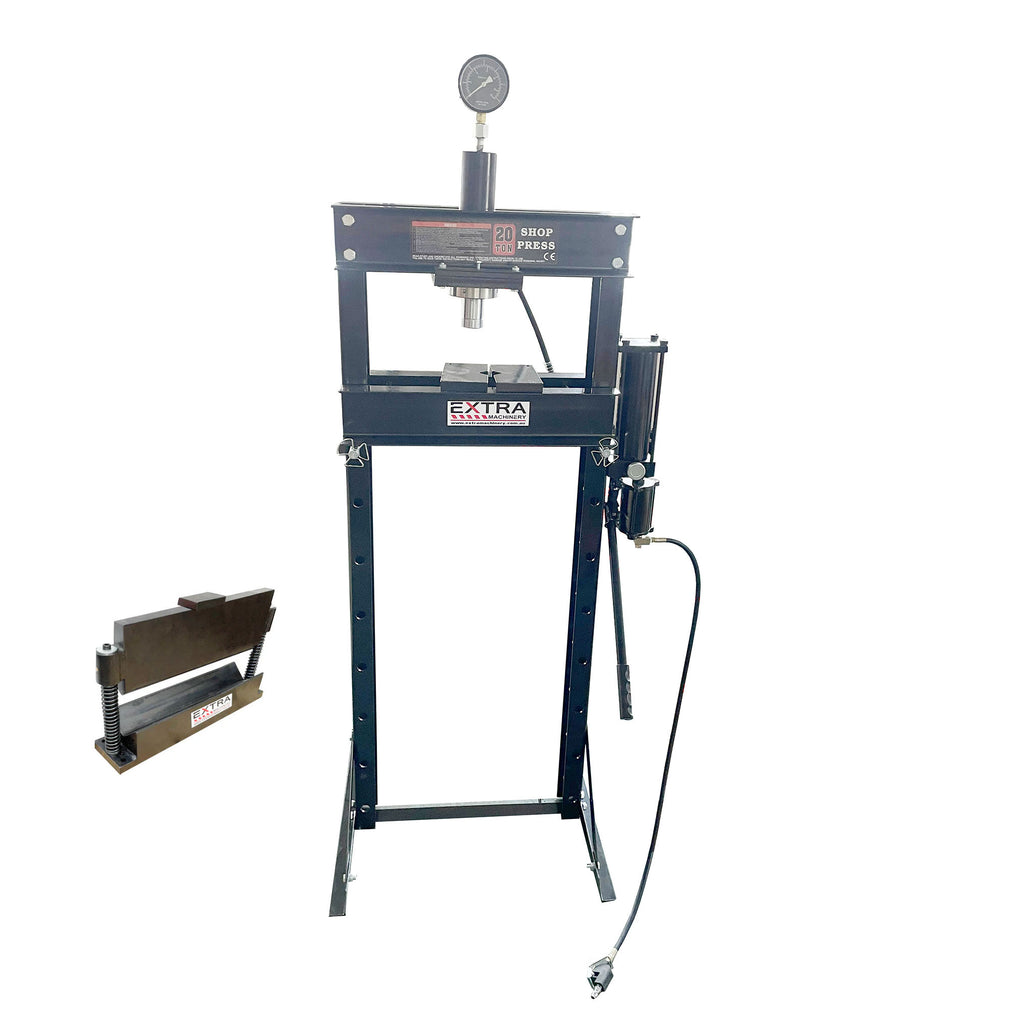

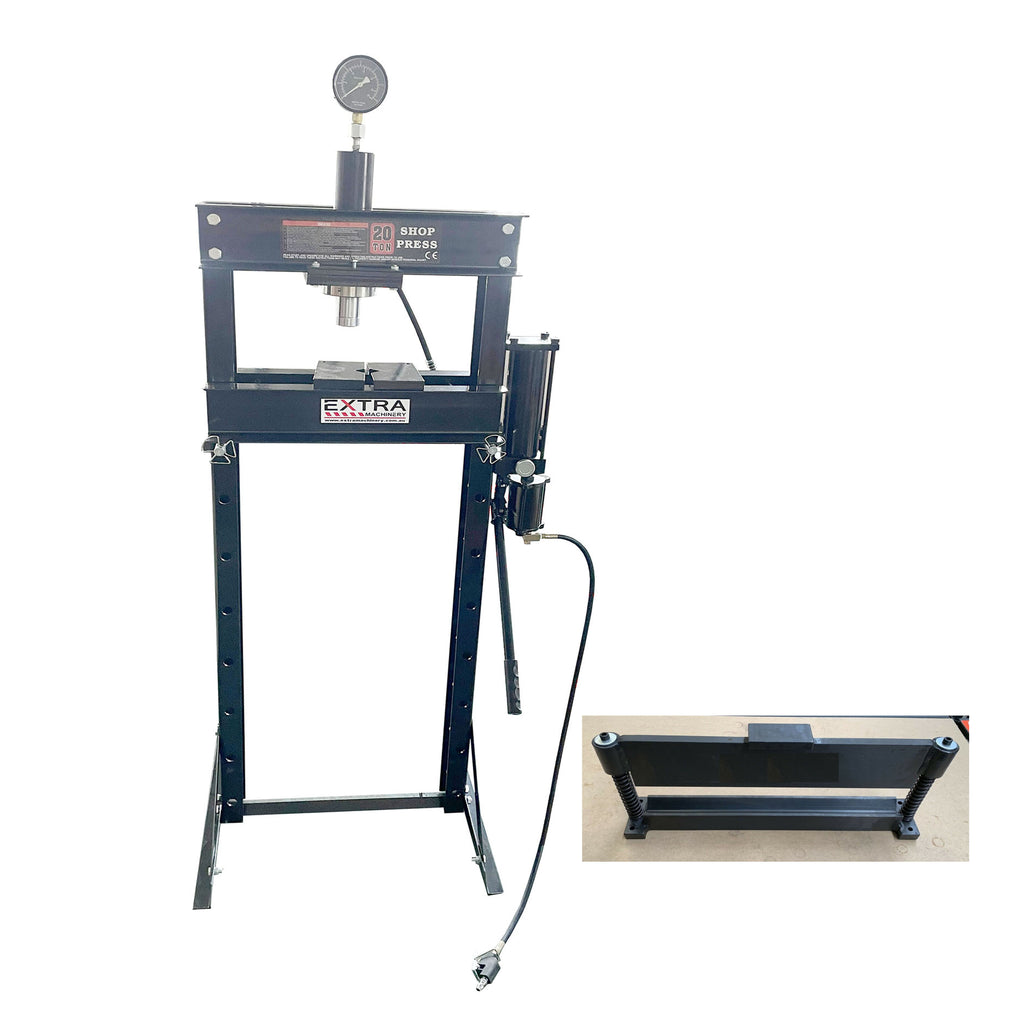

SP-20AL - Workshop Hydraulic & Pneumatic Press - 20 Tonne Sliding Cylinder W/Press Brake Attachment
SP-20AL - Workshop Hydraulic Press Hydraulic & Pneumatic Operated
Frames, Head & Tables are all made from high strength C channel steel.
include PBA-45 press brake attachment 450 x 4mm bending capacity
Frames, Head & Tables are all made from high strength C channel steel.
include PBA-45 press brake attachment 450 x 4mm bending capacity
- Ideal equipment for installing and removing - Bearings, Bushes, Gears, Pulleys etc.
- Pneumatic or Manual Hydraulic Operation
- Cylinder slides between uprights
- Quality hydraulic assembly fully rested
- 20 tonne Pressure
- Include V bending plates
- Include Hydraulic Pressure Gauge
- NOTE: Minimum Air Flow Rate required is 200 liters/minute
|
MACHINE SIZE(MM) |
WORKING RANGE (MM) F1-F2 |
N.W. |
G.W. |
PACKING SIZE |
|||||
|
A |
B |
C |
D |
F |
E |
(KG) |
(KG) |
(CM) |
|
|
690 |
600 |
1575 |
1850 |
90 |
490 |
120-1140 |
85 |
88 |
163X26X25 |
|

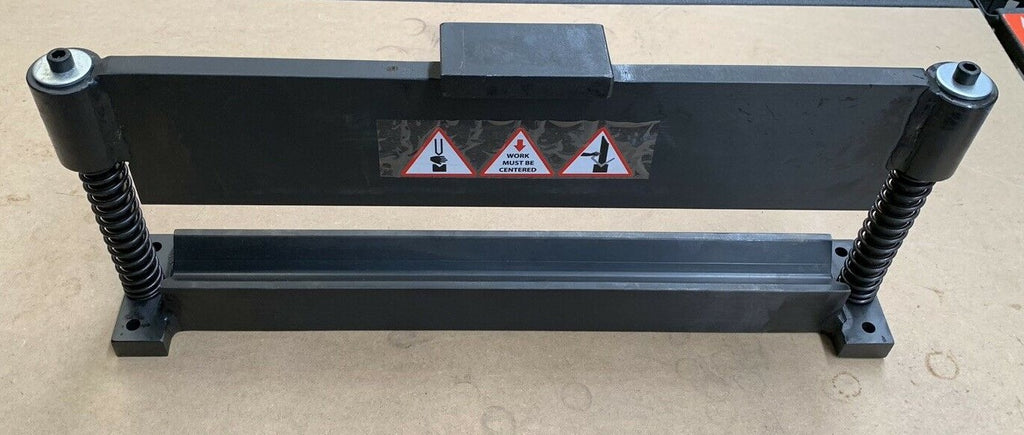

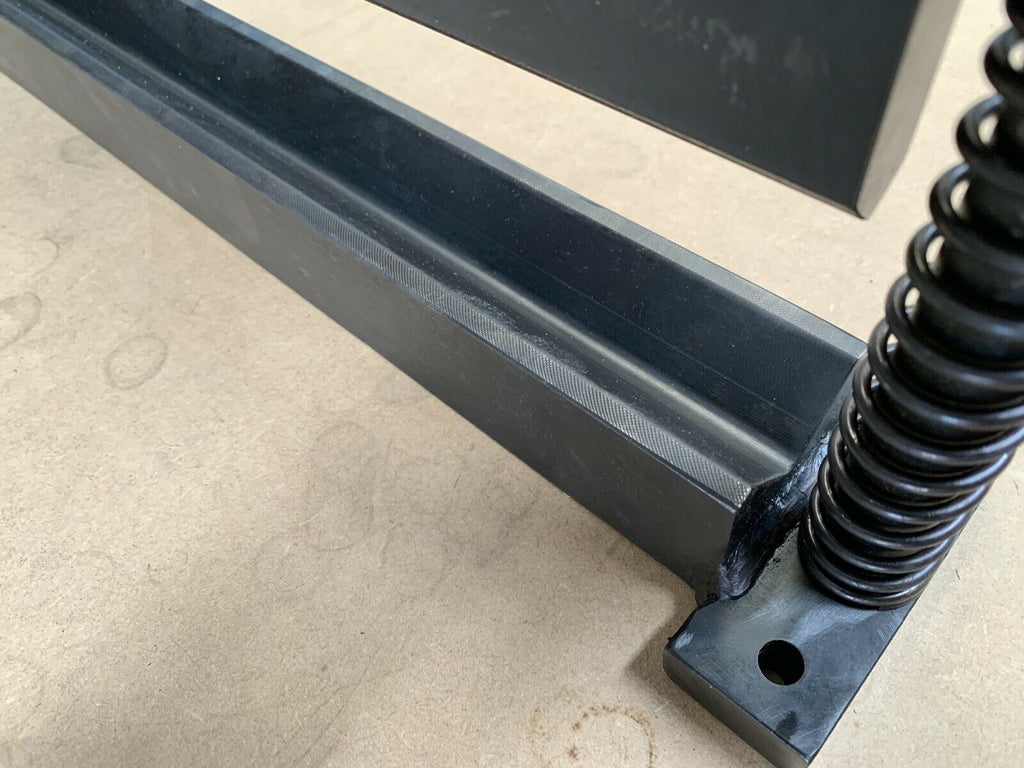

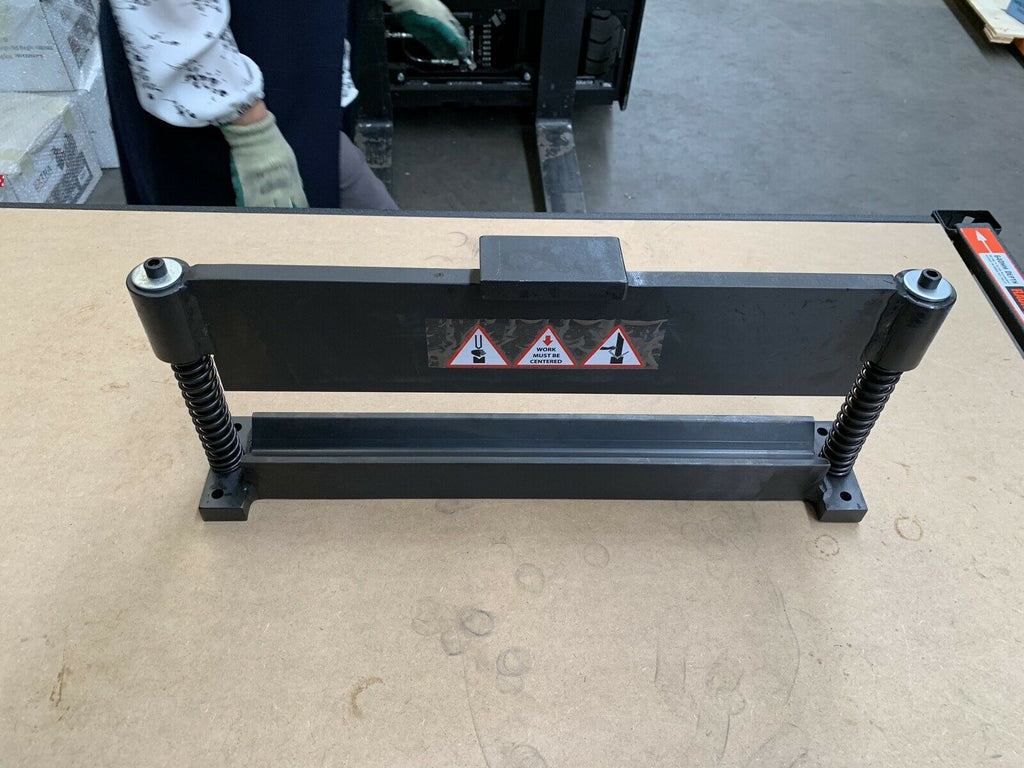

To bend sheet metal or plate stee with your hydraulic press, please choose this press brake attachment .

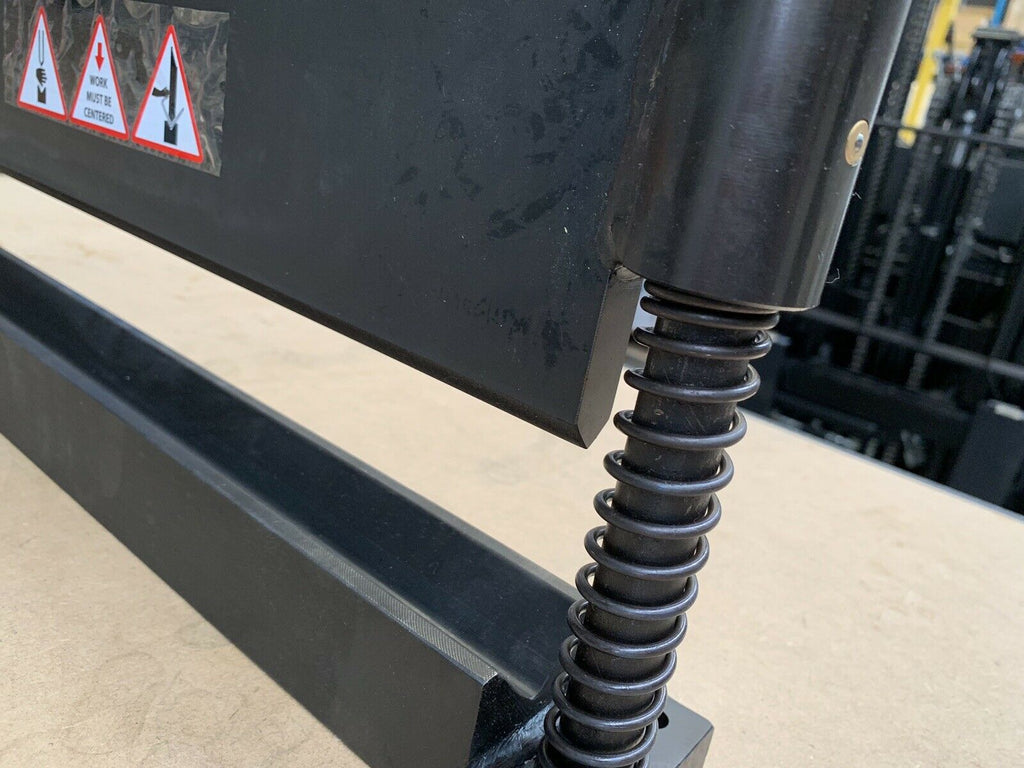

The top die is spring loaded and supported by two guide rods, and will automatically open the tool back to top position once the hydraulic pressure is released
Features
|
