Extra Machinery Pty Ltd

$1,850.00

SKU: W5600P18x

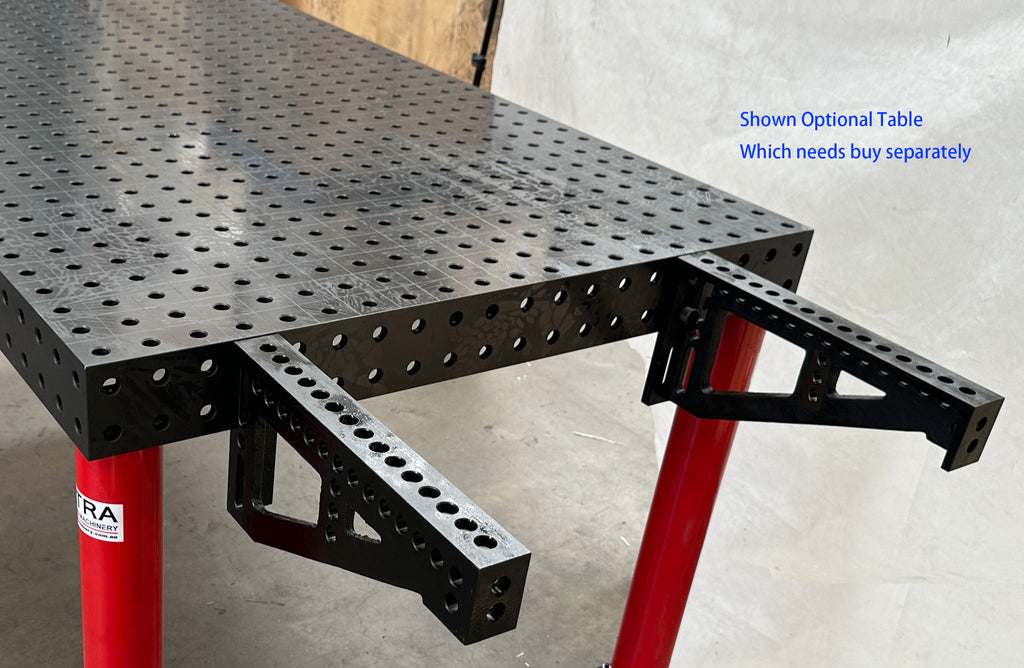

PHOTOS & VIDEO SHOWN OPTIONAL WELD TABLE WHICH NEEDS TO BUY SEPARATELY

 SUITABLE FOR USE WELDING TABLES WITH 16MM HOLES WITH A 50 X 50MM GRID PATTERN
  • Suitable for weld tables from 4mm to 12mm thick
     Optional Adaptor W512 to suit 16mm thick table plate

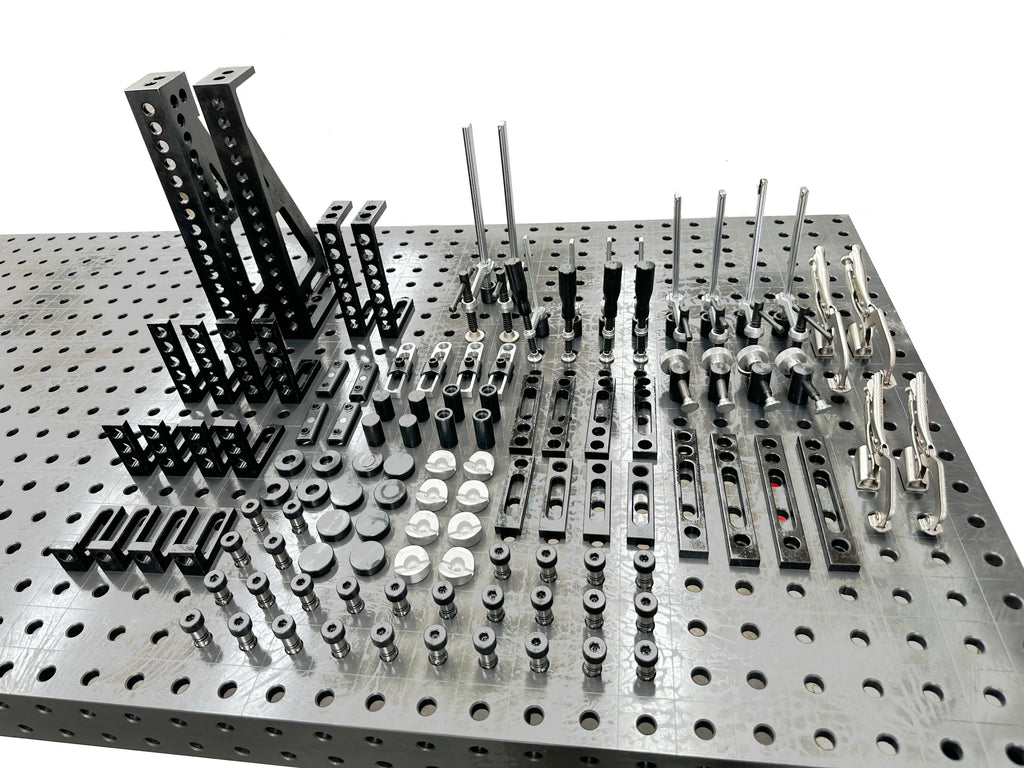

  • 110pc  kit , easy for set up all works in combination with each other to solve many clamping applications
  • Adaptable to suit flat, square & round material
Includes
  • 4 x Weld Clamps 60mm throat w/100mm clamp height
  • 4 x Weld Clamps 80mm throat w/150mm clamp height
  • 2 x Weld Clamps 100mm throat w/200mm clamp height
  • 2 x Quick Hold Down Clamp W540  Clamp Height 60mm, Throat 65mm
  • 2 x Quick Hold Down Clamp  W542  Clamp Height 90mm, Throat 93mm
  • 1 x Angle BSold as a pair – 1 x LH & 1 x RH
  • 4 machined surfaces with a combination of 28mm holes & slots
  • 4 x side clamp 38mm
  • 4 x Insert Stops
  • 4 x Positioning Bars
  • 8 x Round Material Rests
  • 4 x Spacers
  • 4 x Multi-Purpose Riser/Stops
  • 8 x Magnetic Rests
  • 4 x Threaded Adaptors
  • 28 x Ballock Bolts & Spacers
  • 4 x Flat Edge Stop 115mm
  • 4 x Flat Edge Stop 150mm
  • 4 x Flat Edge Stop 190mm
  • 4 x Right Angle Bracket with Slot 90mm & 1 Hole  40mm
  • 4 x Right Angle Bracket with Slot 90mm & 3 Holes 90mm
  • 4 x Right Angle Bracket with Slot 90mm & 5 Holes 140mm
  • 2 x Stop and Clamp Square with 200x100x75mm

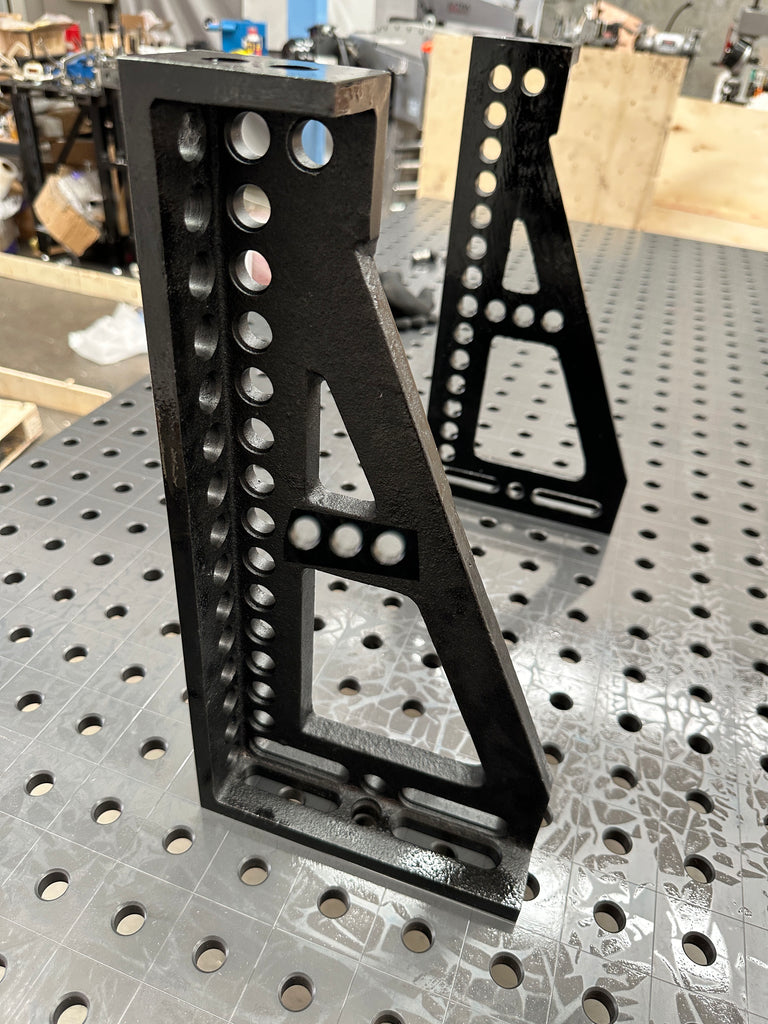

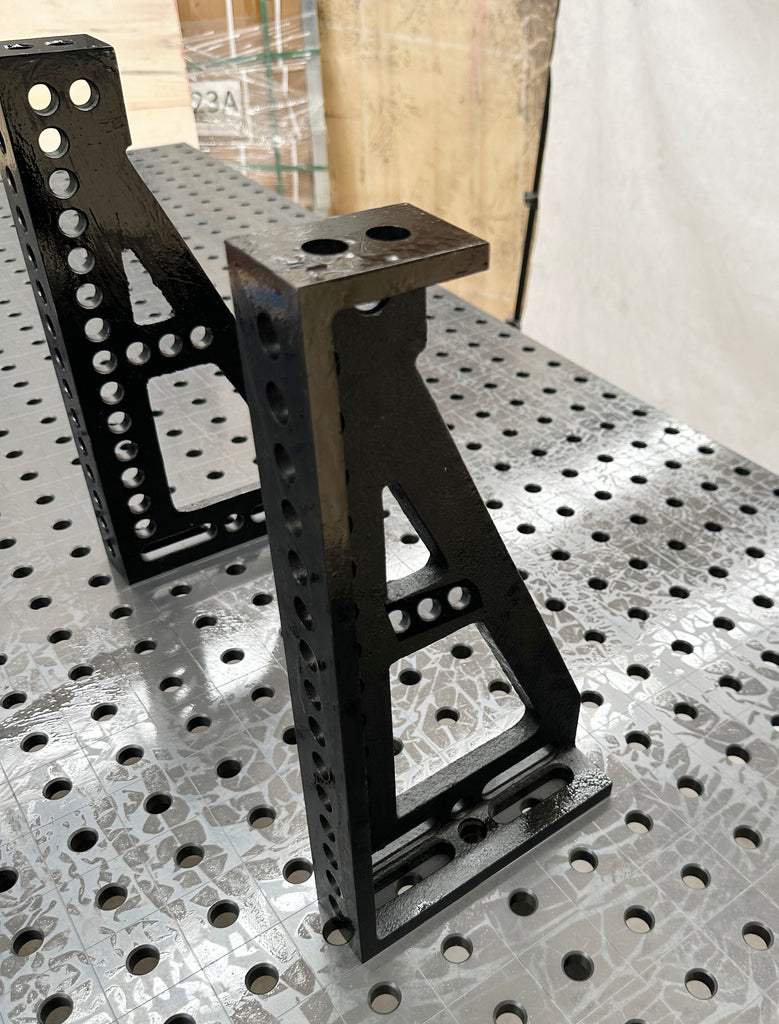

  • 1 x Left Hand Angle Bracket & Square 400x200x100mm
          (4 machined surfaces with a combination of 16mm holes & slots)
  • 1 x Right Hand Angle Bracket & Square 400x200x100mm
          (4 machined surfaces with a combination of 16mm holes & slots)
