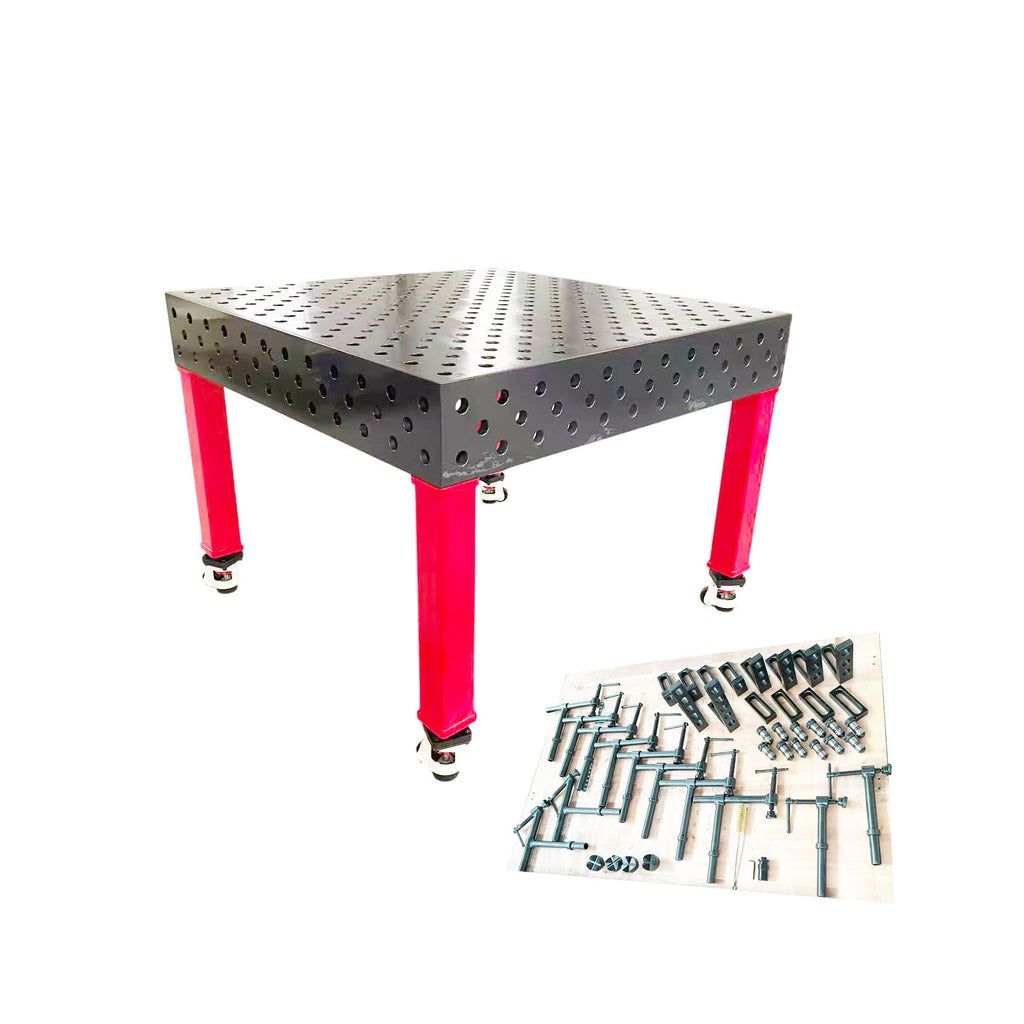

28mm Hole 3D Welding table 1200 x1200 x200mm Nitrided Finish W/44pc Clamp Kit

28mm Hole 3D Welding table 1200 x1200 x200mm Nitrided Finish W/44pc Clamp Kit
28mm Hole 3D Welding table 1200 x1200 x200mm Nitrided Finish W/44pc Clamp Kit 28mm Hole 3D Welding table 1200 x1200 x200mm Nitrided Finish W/44pc Clamp Kit 28mm Hole 3D Welding table 1200 x1200 x200mm Nitrided Finish W/44pc Clamp Kit 28mm Hole 3D Welding table 1200 x1200 x200mm Nitrided Finish W/44pc Clamp Kit 28mm Hole 3D Welding table 1200 x1200 x200mm Nitrided Finish W/44pc Clamp Kit 28mm Hole 3D Welding table 1200 x1200 x200mm Nitrided Finish W/44pc Clamp Kit 28mm Hole 3D Welding table 1200 x1200 x200mm Nitrided Finish W/44pc Clamp Kit 28mm Hole 3D Welding table 1200 x1200 x200mm Nitrided Finish W/44pc Clamp Kit 28mm Hole 3D Welding table 1200 x1200 x200mm Nitrided Finish W/44pc Clamp Kit

Extra Machinery Pty Ltd

$3,590.00

SKU: W08124P

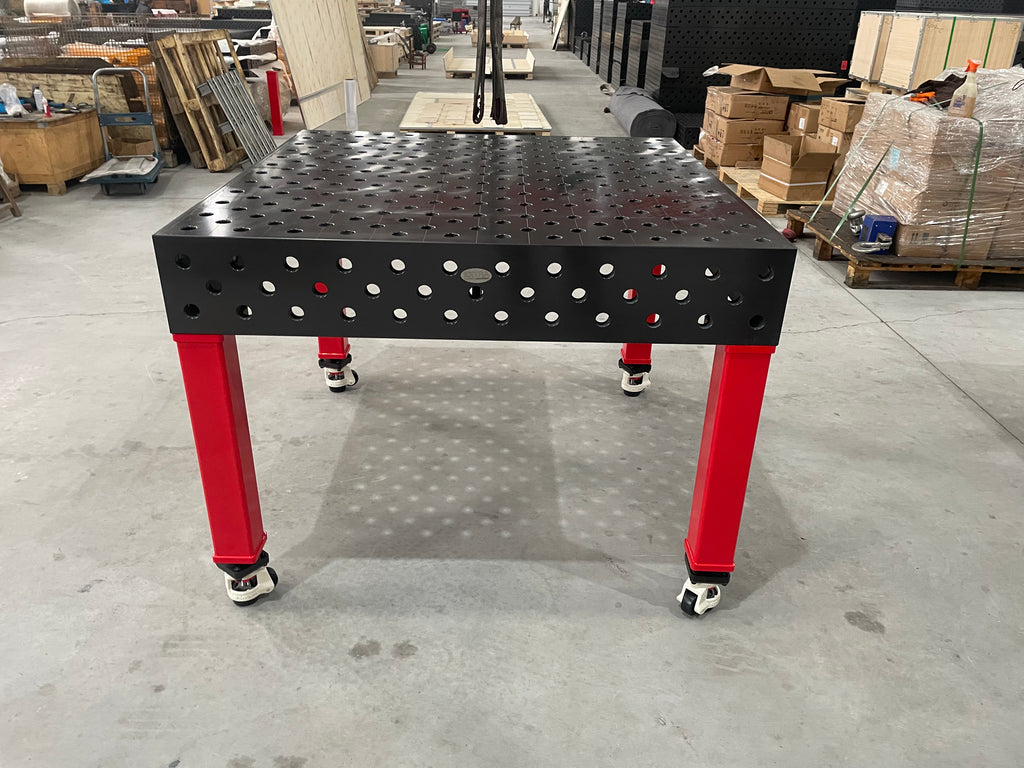

Heavy 3D Welding Table -Nitrided Finish

28mm Hole 5 HOLES W/100x100mm Grid Table Surface & Side

Round corner chamferring on all holes

Laser etched ruler scale

Include one set of 44pc clamp kit
(photo may show some optional clamps or fixtures which need to buy separately)

CNC Machined
High flatness tolerance of +/- 0.1mm over 1m2
25mm Thick Table Plate
1200x1200x200mm
28mm Hole  5 HOLES W/100x100mm Grid  on table top or sides
4 Heavy Duty Legs W/Castors with adjustable height
(SQUARE OR ROUND LEGS ARE SUPPLIED DEPENDING ON DIFFERENT BATCK OF PRODUCTION)
Nitrided finish to increase hardness of table, reducing rusty and welding sticking.

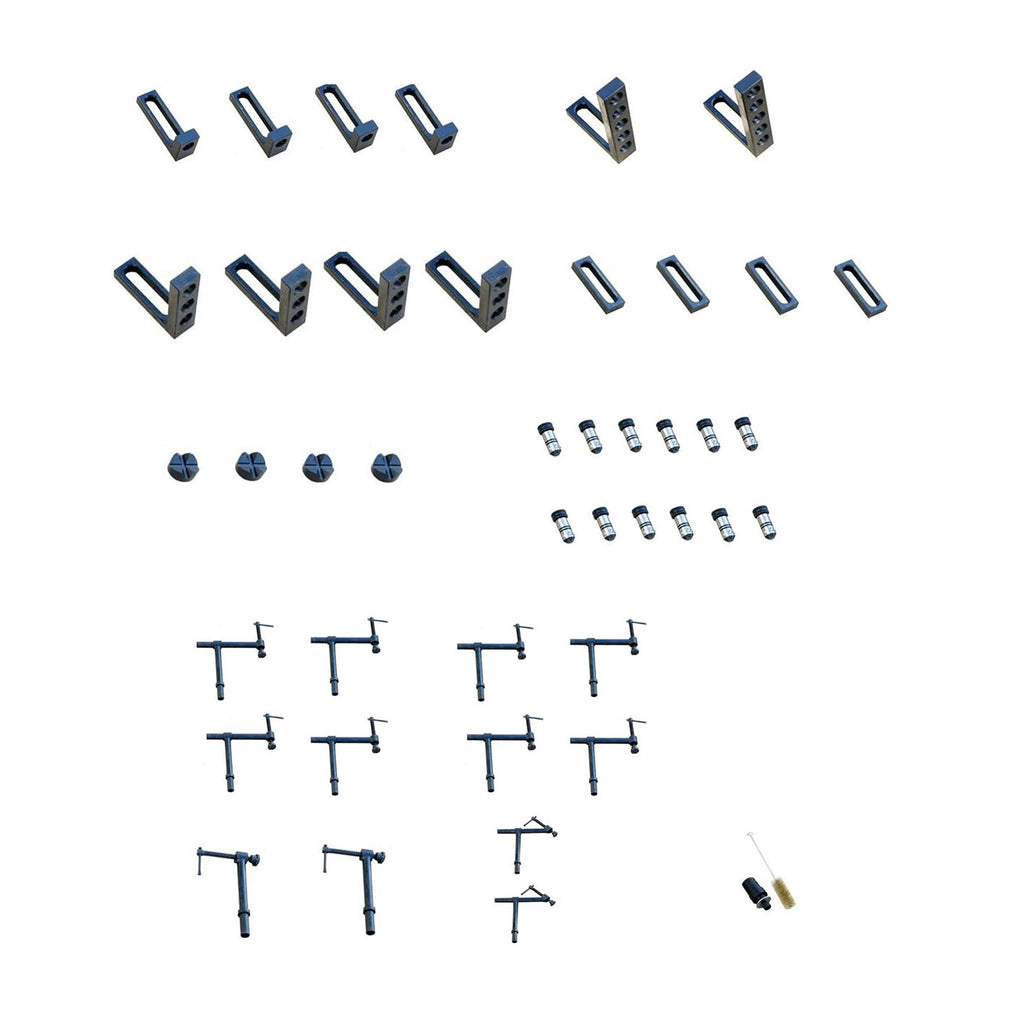

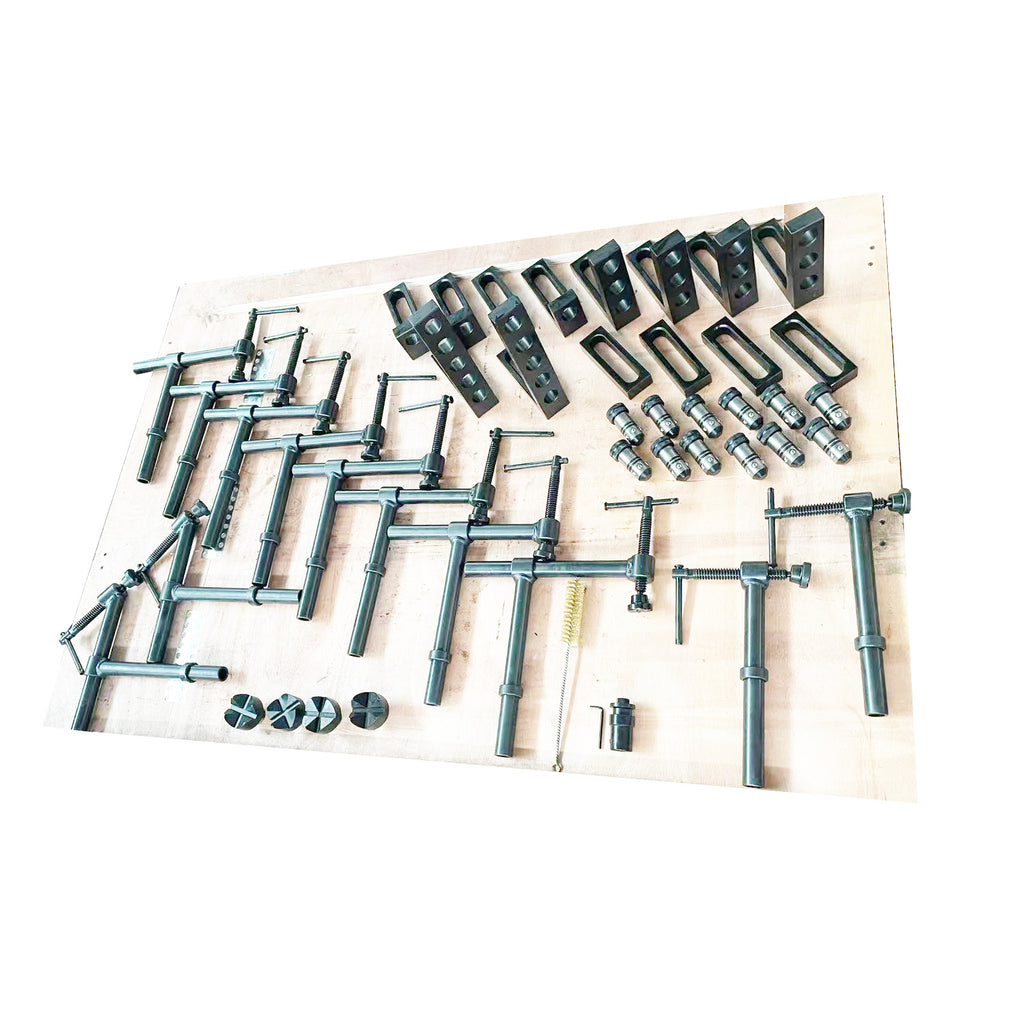

One set of 44pc Clamping Kit (Heavy Steel Fabricated and CNC Machined)
incl
  • 8pcs of 180 Degree 300 x 300 x 200mm Adjustable Clamp with T Handle
  • 2pcs of 45 Degree 300 x 300 x 200mm Adjustable Clamp with T Handle
  • 2pcs of 90 Degree 300 x 200mmAdjustable Clamp with T Handle
  • 4pcs of  Angle Bracket 175 x 75 x 50mm  (1 Hole + 1 Slot)
  • 4pcs of  Angle Bracket 175 x 175 x 50mm (3 Holes + 1 Slot)
  • 2pcs of Angle Bracket 275 x 175 x 50mm  (5 Holes + 1 Slot)
  • 4pcs of Straight Stop150 x 50 x 25mm (1 Slot)
  • 4pcs of  2-V Supports 90 / 120 Degree
  • 12pcs of Ball Lock Pin 28 x 50mm
  • 1pc of Earth Wire Connector
