28mm Hole 3D Welding table 2400 x1200 x200mm Nitrided Finish W/86pc Clamp Kit

28mm Hole 3D Welding table 2400 x1200 x200mm Nitrided Finish W/86pc Clamp Kit
28mm Hole 3D Welding table 2400 x1200 x200mm Nitrided Finish W/86pc Clamp Kit 28mm Hole 3D Welding table 2400 x1200 x200mm Nitrided Finish W/86pc Clamp Kit 28mm Hole 3D Welding table 2400 x1200 x200mm Nitrided Finish W/86pc Clamp Kit 28mm Hole 3D Welding table 2400 x1200 x200mm Nitrided Finish W/86pc Clamp Kit 28mm Hole 3D Welding table 2400 x1200 x200mm Nitrided Finish W/86pc Clamp Kit 28mm Hole 3D Welding table 2400 x1200 x200mm Nitrided Finish W/86pc Clamp Kit 28mm Hole 3D Welding table 2400 x1200 x200mm Nitrided Finish W/86pc Clamp Kit 28mm Hole 3D Welding table 2400 x1200 x200mm Nitrided Finish W/86pc Clamp Kit

Extra Machinery Pty Ltd

$7,400.00

SKU: W08205P

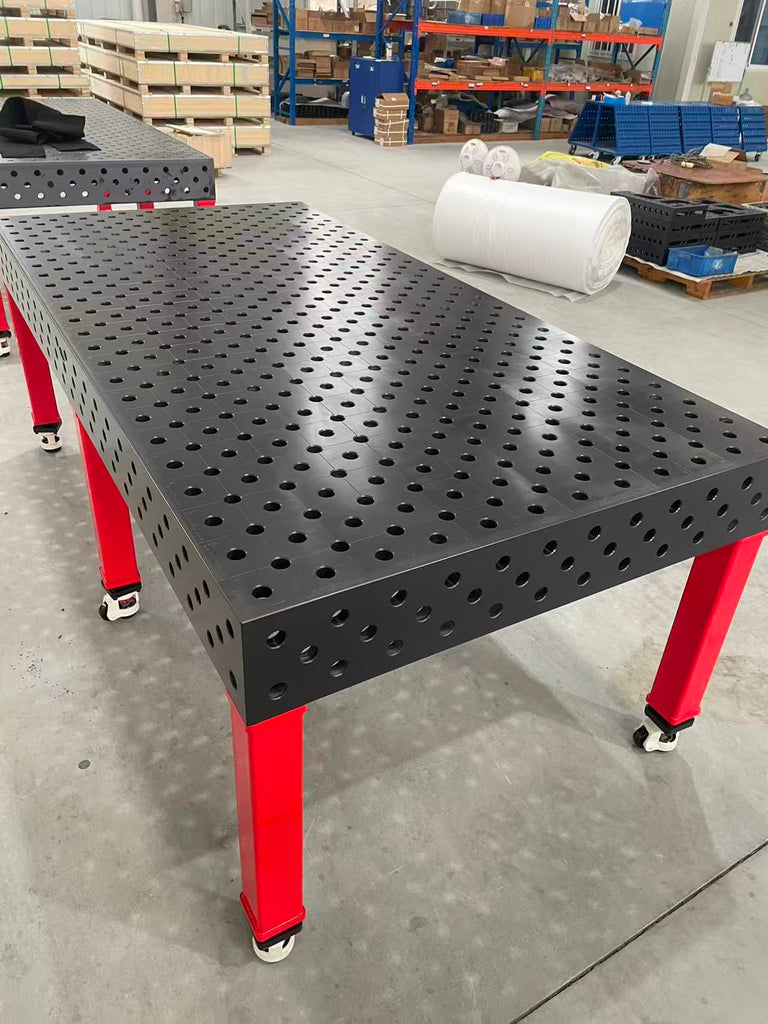

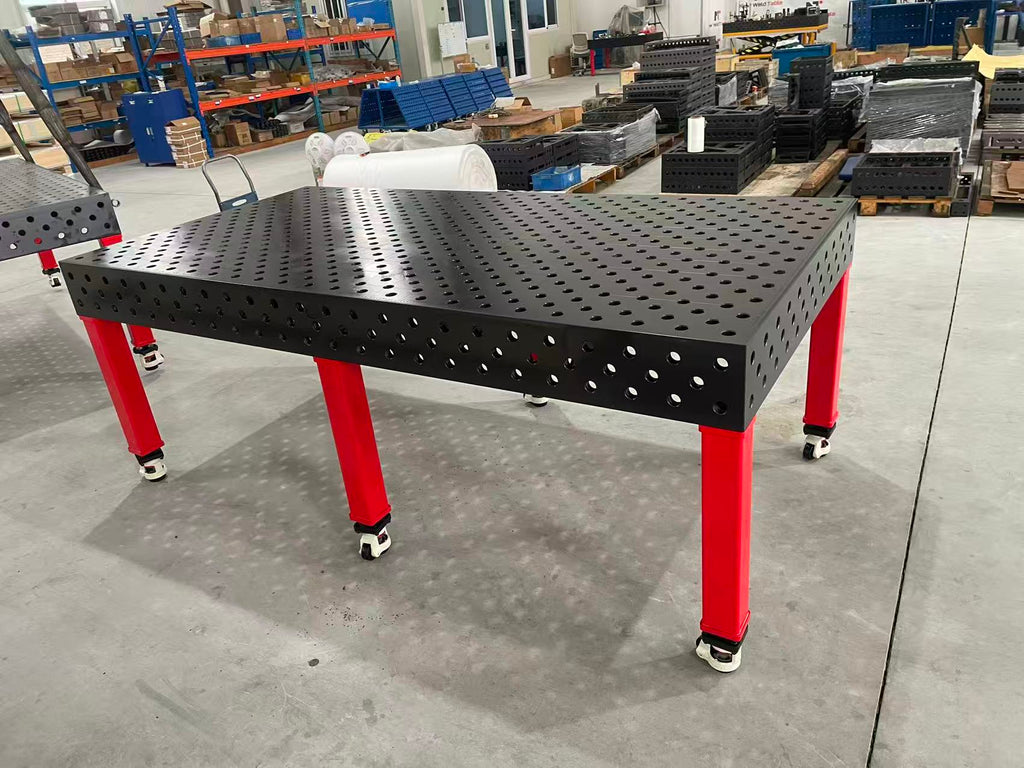

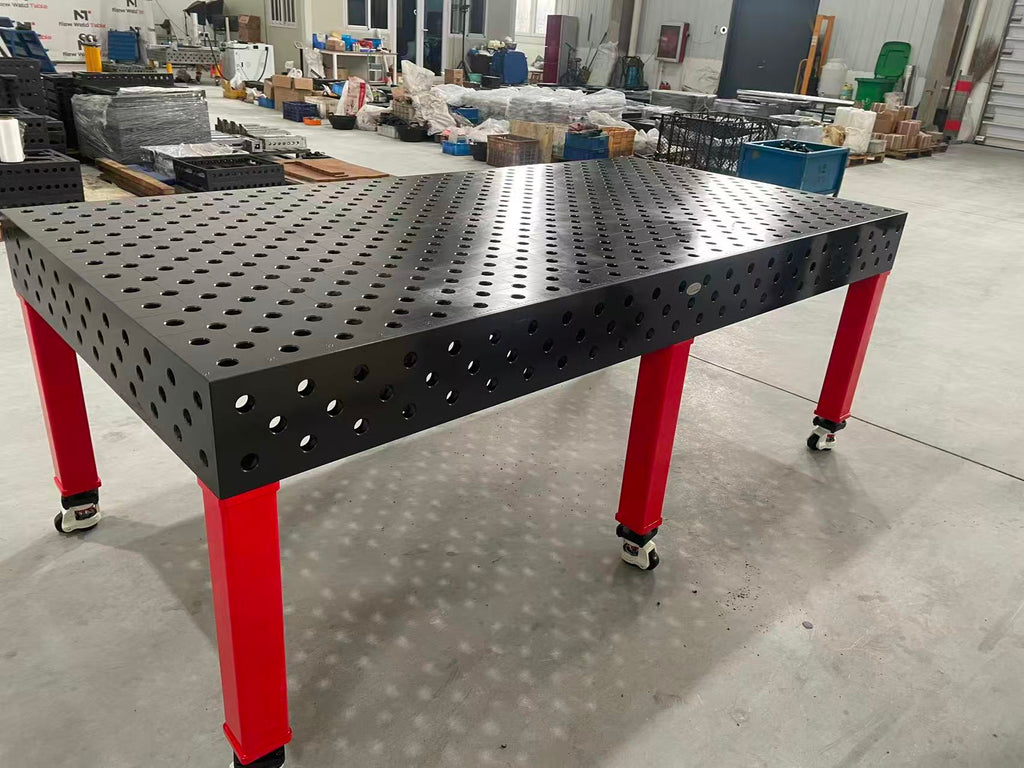

Heavy 3D Welding Table -Nitrided Finish

CNC Machined
High flatness tolerance of +/- 0.1mm over 1m2
25mm Thick Table Plate
2400x1200x200mm

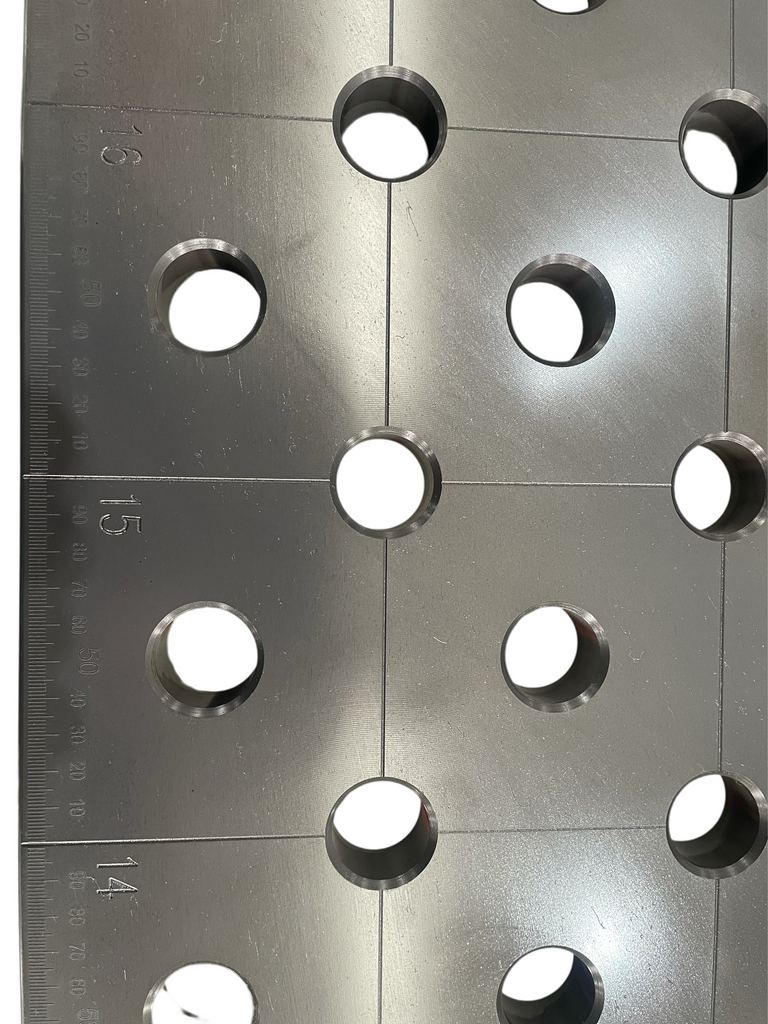

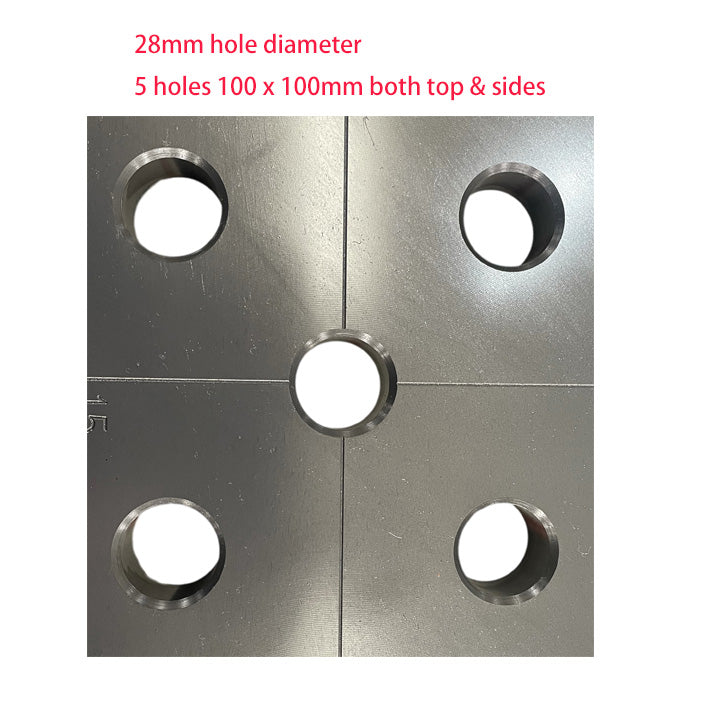

28mm Hole W/100x100mm Grid
4 Heavy Duty Legs W/Castors with adjustable height
Nitrided finish to increase hardness of table, reducing rusty and welding sticking.

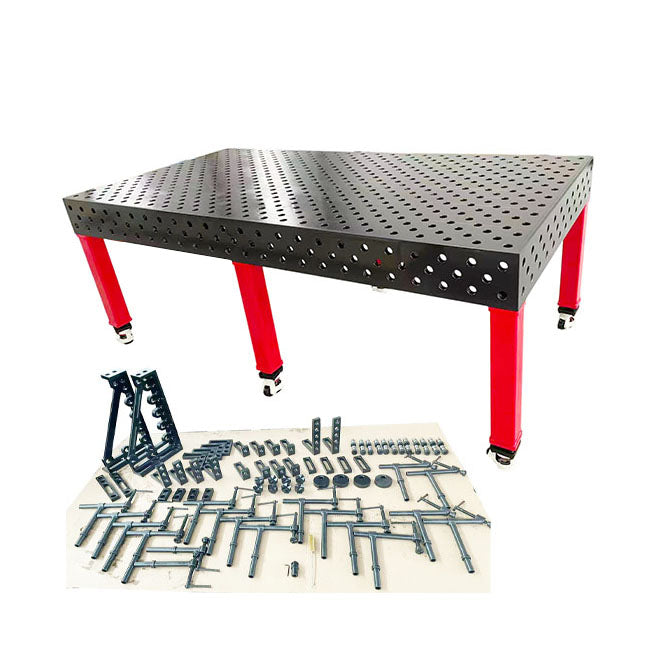

One set of 86pc Clamping Kit (Heavy Steel Fabricated and CNC Machined)
incl
  • 1pc Angle Bracket & Square Left Hand 600X375X95(L) Cast Iron
  • 1pc Angle Bracket & Square Righ Hand 600X375X95(R) Cast Iron
  • 12pcs of 180 Degree 300 x 300 x 200mm Adjustable Clamp with T Handle
  • 4pcs of 45 Degree 300 x 300 x 200mm Adjustable Clamp with T Handle
  • 2pcs of 90 Degree 300 x 200mmAdjustable Clamp with T Handle
  • 8pcs of  Angle Bracket 175 x 75 x 50mm  (1 Hole + 1 Slot)
  • 4pcs of  Angle Bracket 175 x 175 x 50mm (3 Holes + 1 Slot)
  • 2pcs of Angle Bracket 275 x 175 x 50mm  (5 Holes + 1 Slot)
  • 4pcs of Straight Stop100 x 50 x 25mm (2 Holes)
  • 4pcs of Straight Stop150 x 50 x 25mm (1 Slot)
  • 2pcs of Straight stop 300 x 50 x 25mm (3 Holes + 1 Slot)
  • 4pcs of L-Bracket 175 x 175 x 25mm (3 Holes + 1 Slot)
  • 4pcs of Eccentric Pad 75x100x25mm
  • 8pcs of  2-V Supports 90 / 120 Degree
  • 24pcs of Ball Lock Pin 28 x 50mm
  • 1pc of Earth Wire Connector
  • 1pc of Steel Wire Hole Cleaning Brush
