Extra Machinery Pty Ltd

$2,450.00

SKU: W08900P42

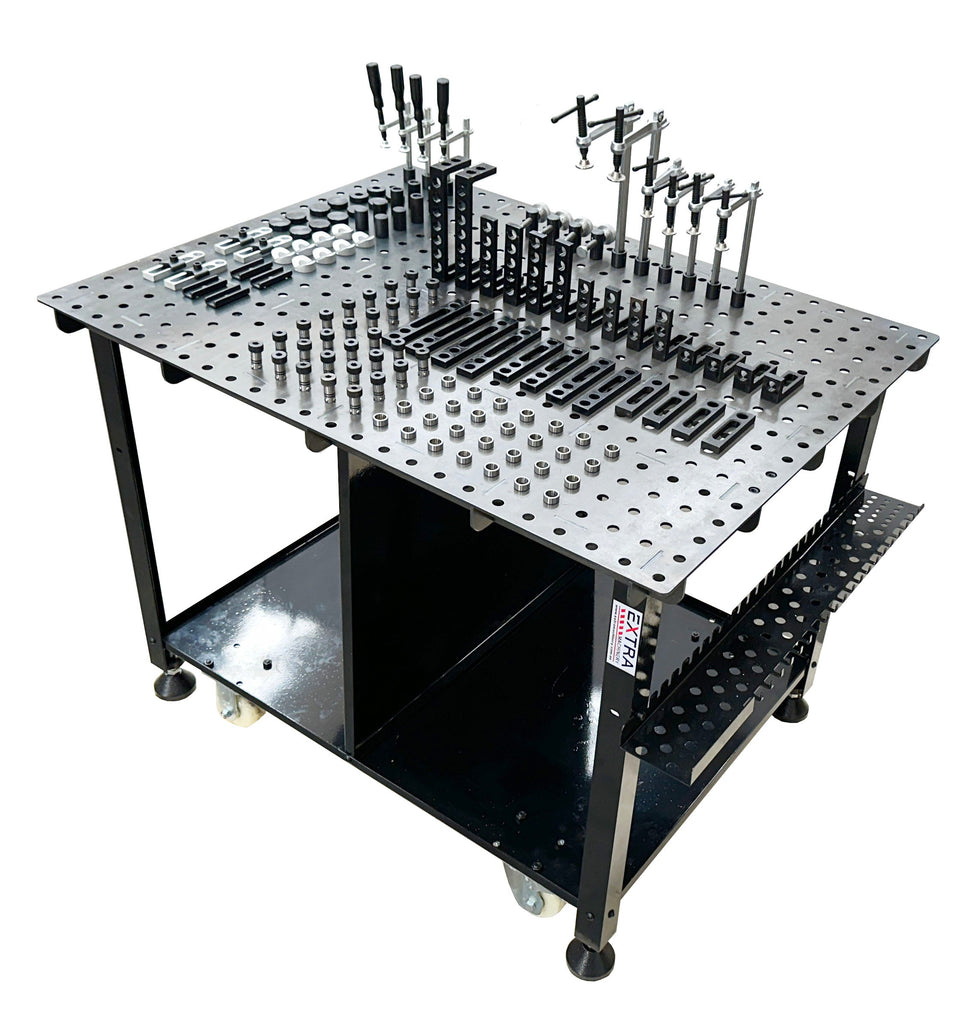

2PCS 1200 X 900MM TABLES WILL PROVIDE MORE COMBINATIONS
YOU CAN DO ANY SMALL JOBS AND MEDIUM JOBS WITH ONE 1200X900MM TABLE, BIG JOBS LIKE EXHAUST PIPE WITH TWO TABLES


The Easiest To Assemble Welding Table Kit , Includes Tab And Slot  Interlock Design (USA) . This Ensures The Good Flatness Of The Table!

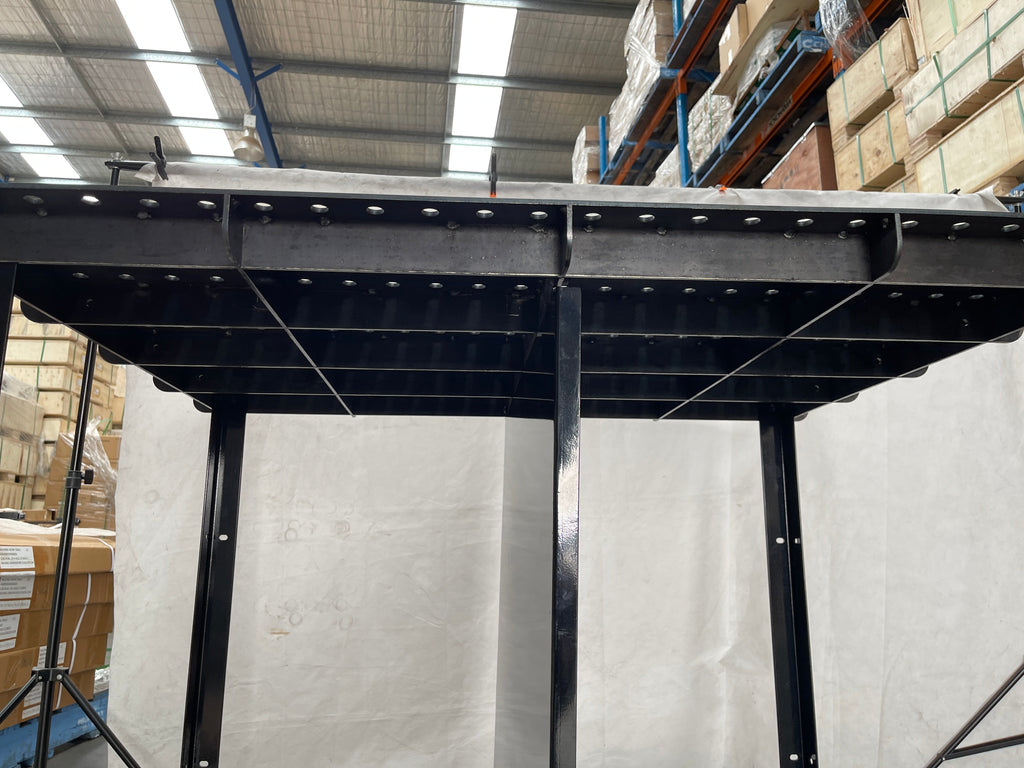

 The Webbing Structure Likes Cast Iron 3D Weld Table,  Giving Supports To Table Top, Minimizing Flex.

No Webbing,  No Flatness.

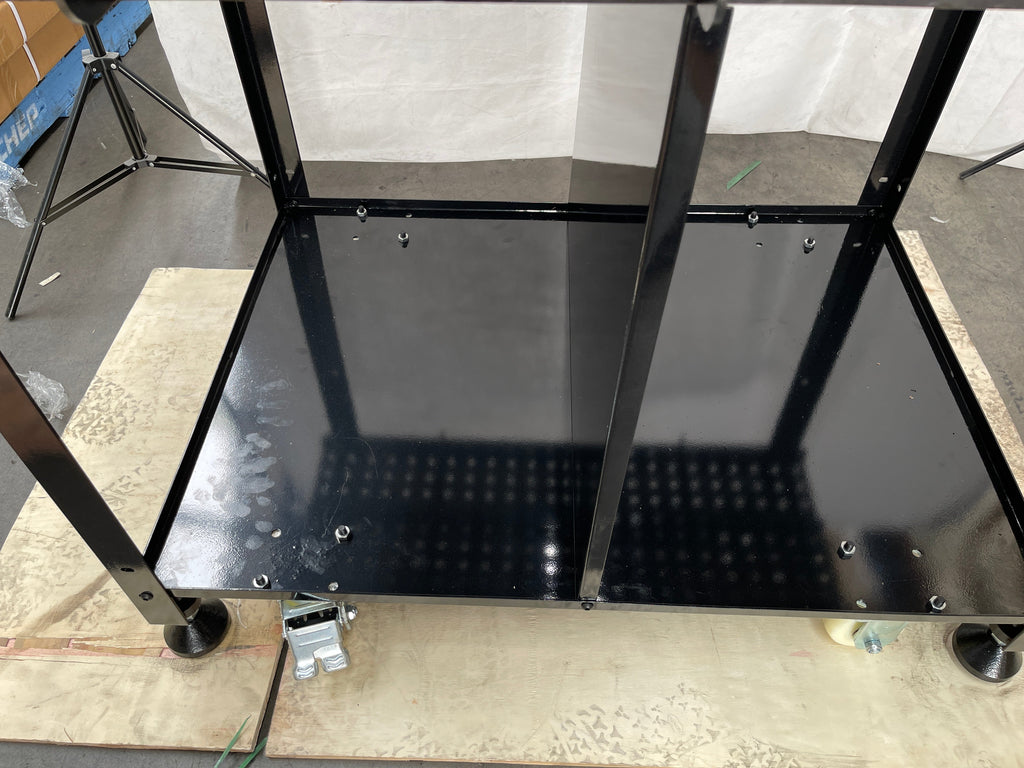

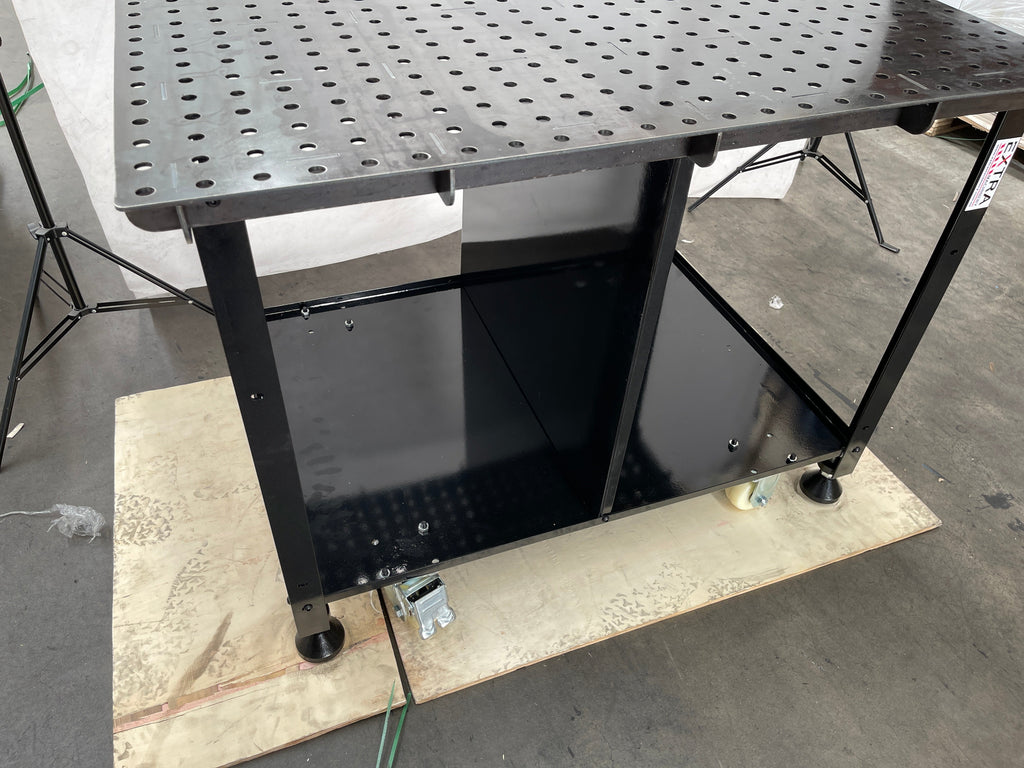

HEAVY BOTTOM TRAY

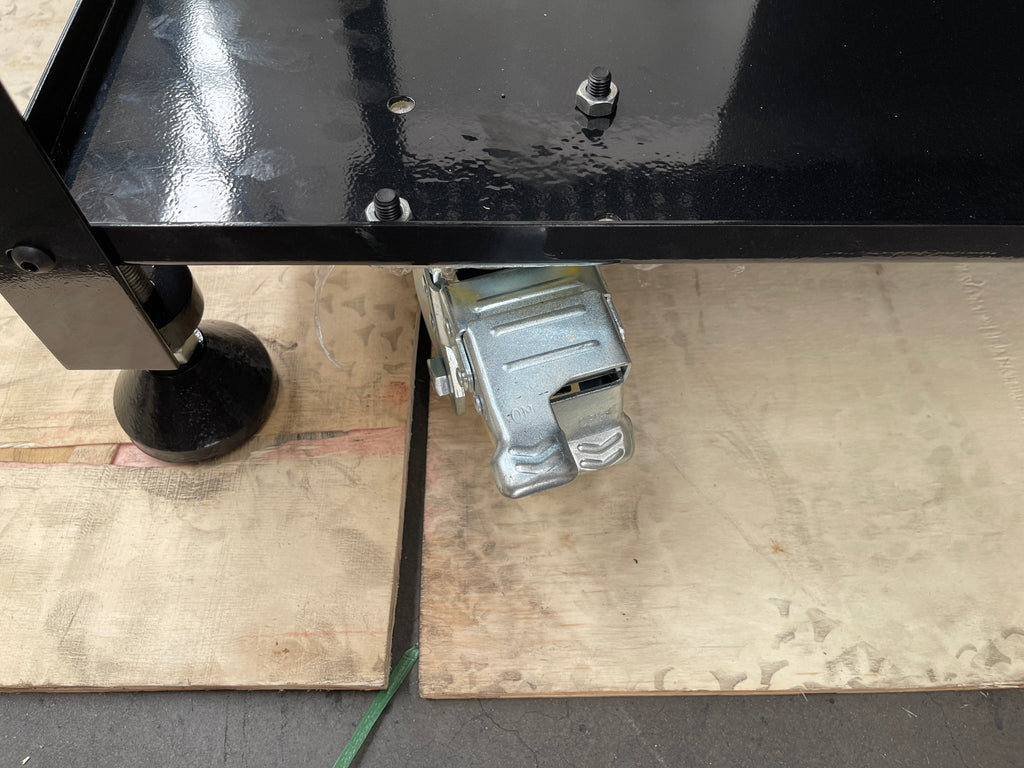

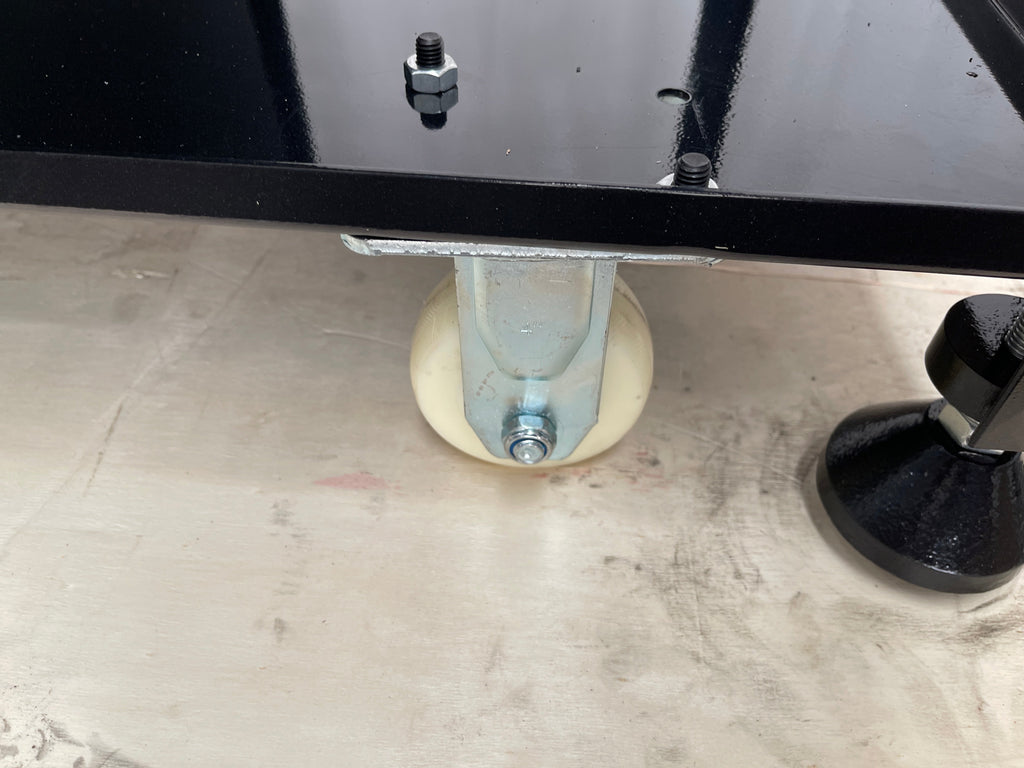

4 CASTORS (2 WITH BRAKES) PROVIDE MOBILITY.

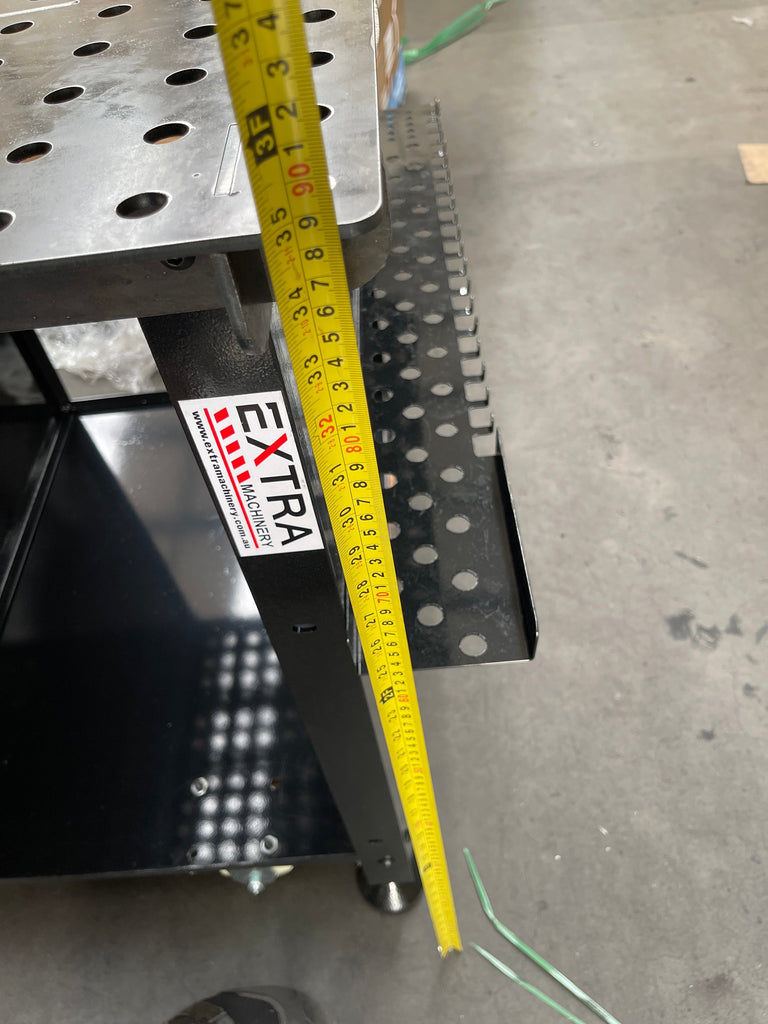

ADJUSTABLE HEIGHT

This Top Comes Professionally Assembled & Welded On The Factory's Heavy Table And Ready To Put To Use! You Only Need To Mount The Legs And The Bottom Trays.

PLEASE NOTE THE COLOUR OF THE LEGS AND THE BOTTOM TRAY MAY BE DIFFERENT FROM THE PHOTOS, MAYBE BLACK POWER COATED.

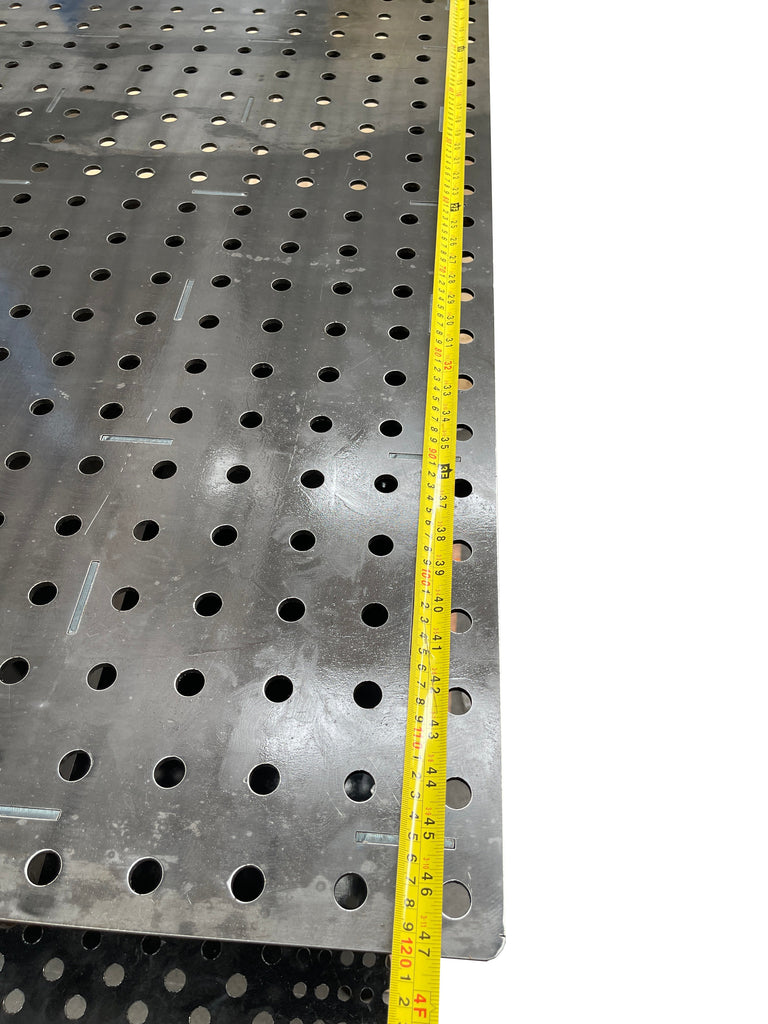

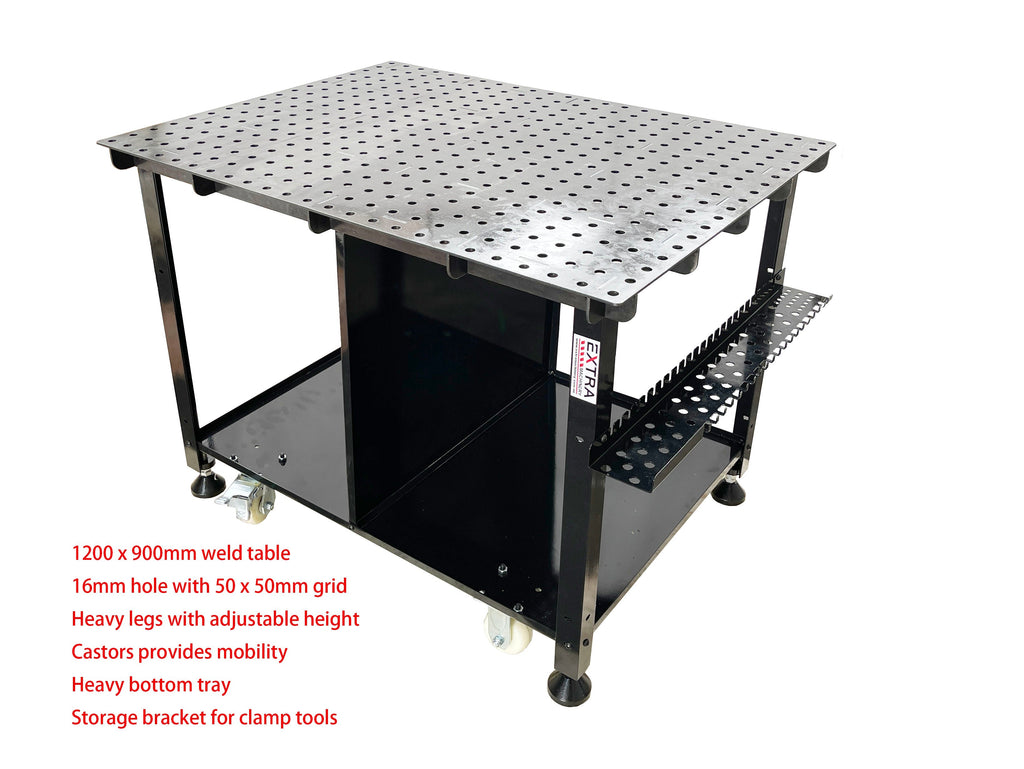

1200 x 900mm table top is the perfect solution for portable welding or confined spaces. Laser cut from 4.75mm (3/16″) A36 steel plate,  This kit includes the same standard 16mm (5/8″) holes as all of our welding tables, meaning you can use a wide range of clamping accessories.

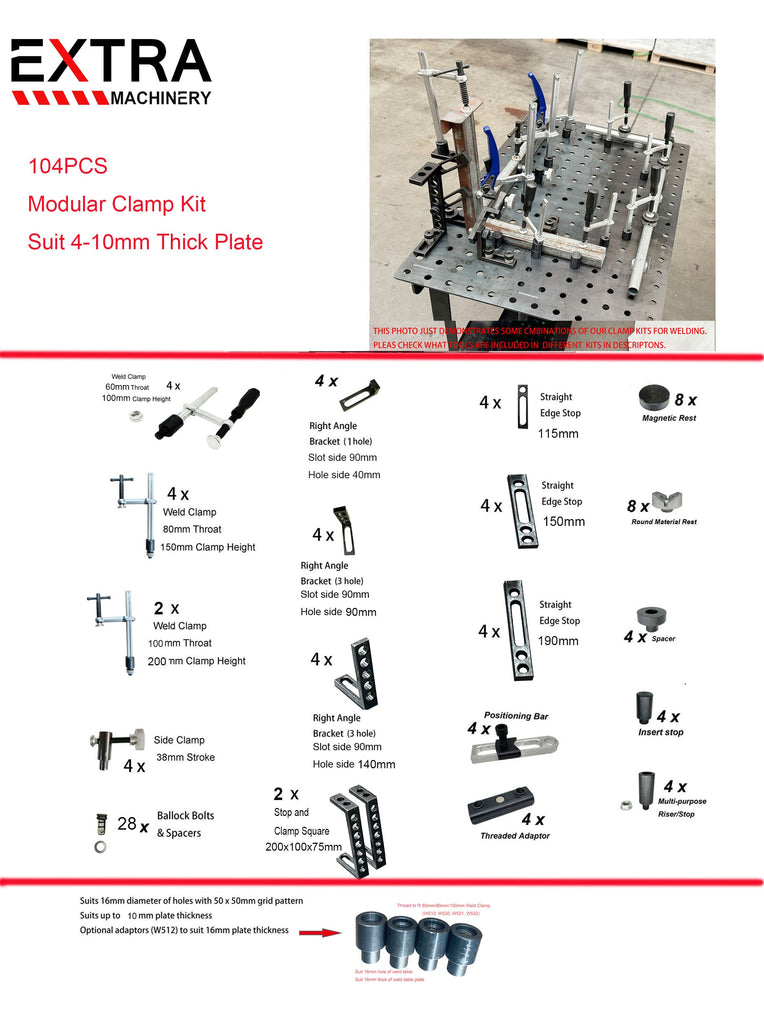

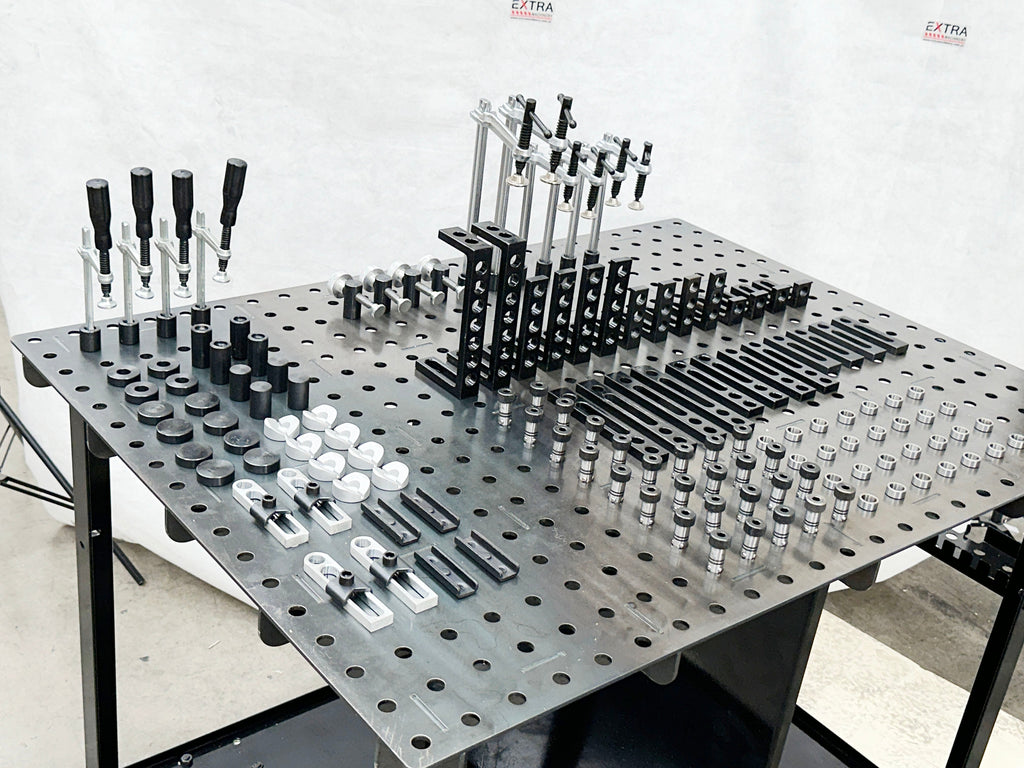

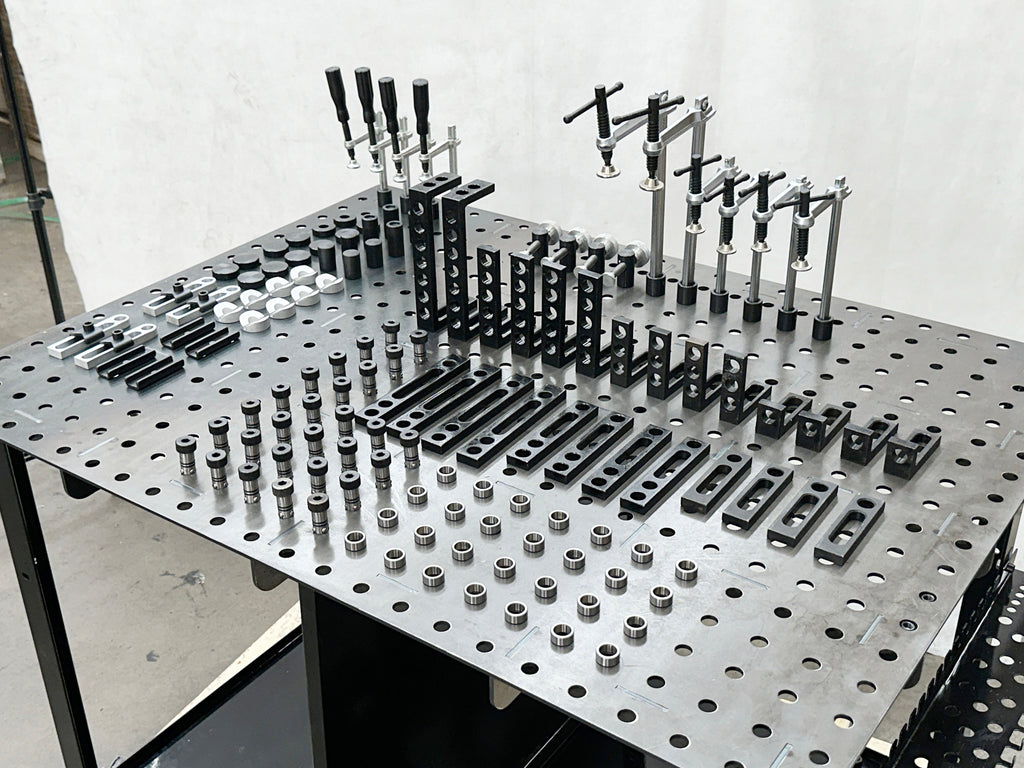

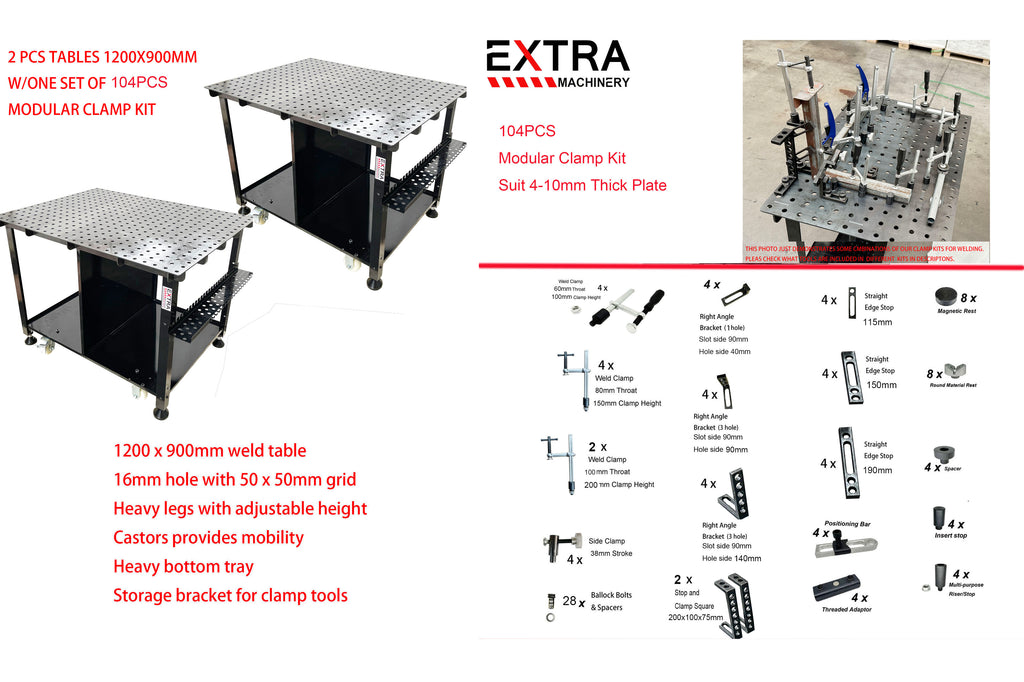

Features
  • Ø16mm holes
  • 4.75mm thick plate
  • 50 x 50mm grid pattern
  • 1200 x 900mm tabletop
  • 50 x 5mm Angle Steel Legs W/Adjustable heights
  • Tool Tray
  • Bottom Tray with castors
  • 4 x Weld Clamps 60mm throat w/100mm clamp height
  • 4 x Weld Clamps 80mm throat w/150mm clamp height
  • 2 x Weld Clamps 100mm throat w/200mm clamp height
  • 4 x side clamp 38mm
  • 4 x Insert Stops
  • 4 x Positioning Bars
  • 8 x Round Material Rests
  • 4 x Spacers
  • 4 x Multi-Purpose Riser/Stops
  • 8 x Magnetic Rests
  • 4 x Threaded Adaptors
  • 28 x Ballock Bolts & Spacers
  • 4 x Flat Edge Stop 115mm
  • 4 x Flat Edge Stop 150mm
  • 4 x Flat Edge Stop 190mm
  • 4 x Right Angle Bracket with Slot 90mm & 1 Hole  40mm
  • 4 x Right Angle Bracket with Slot 90mm & 3 Holes 90mm
  • 4 x Right Angle Bracket with Slot 90mm & 5 Holes 140mm
  • 2 x Stop and Clamp Square with 200x100x75mm
