64 pcs Super Modular Fixture Kit For Weld Table W/ 16mm hole

Extra Machinery Pty Ltd

$1,150.00

SKU: W5600

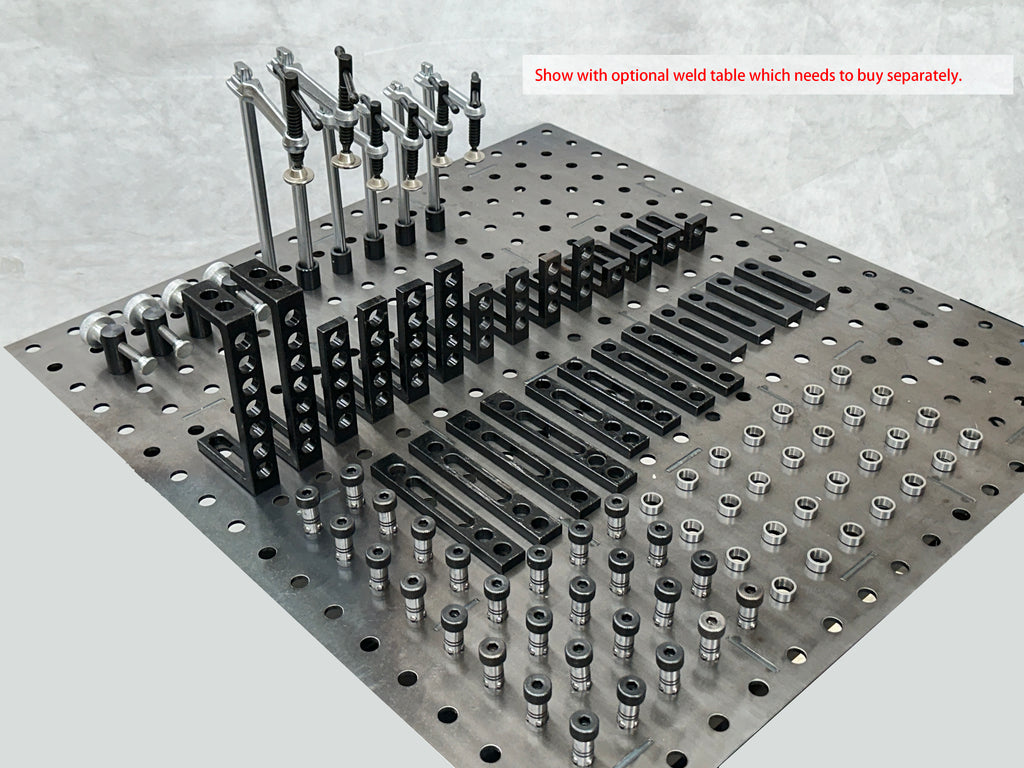

SHOWN OPTIONAL WELD TABLE WHICH NEEDS TO BUY SEPARATELY

 SUITABLE FOR USE WELDING TABLES WITH 16MM HOLES WITH A 50 X 50MM GRID PATTERN
  • Suitable for weld tables from 4mm to 10mm thick
     Optional Adaptor W512 to suit 16mm thick table plate
  • 64pc  kit , easy for set up all works in combination with each other to solve many clamping applications
  • Adaptable to suit flat, square & round material
Includes
  • 4 x Weld Clamps 80mm throat w/150mm clamp height
  • 2 x Weld Clamps 100mm throat w/200mm clamp height
  • 4 x side clamp 38mm
  • 28 x Ballock Bolts & Spacers

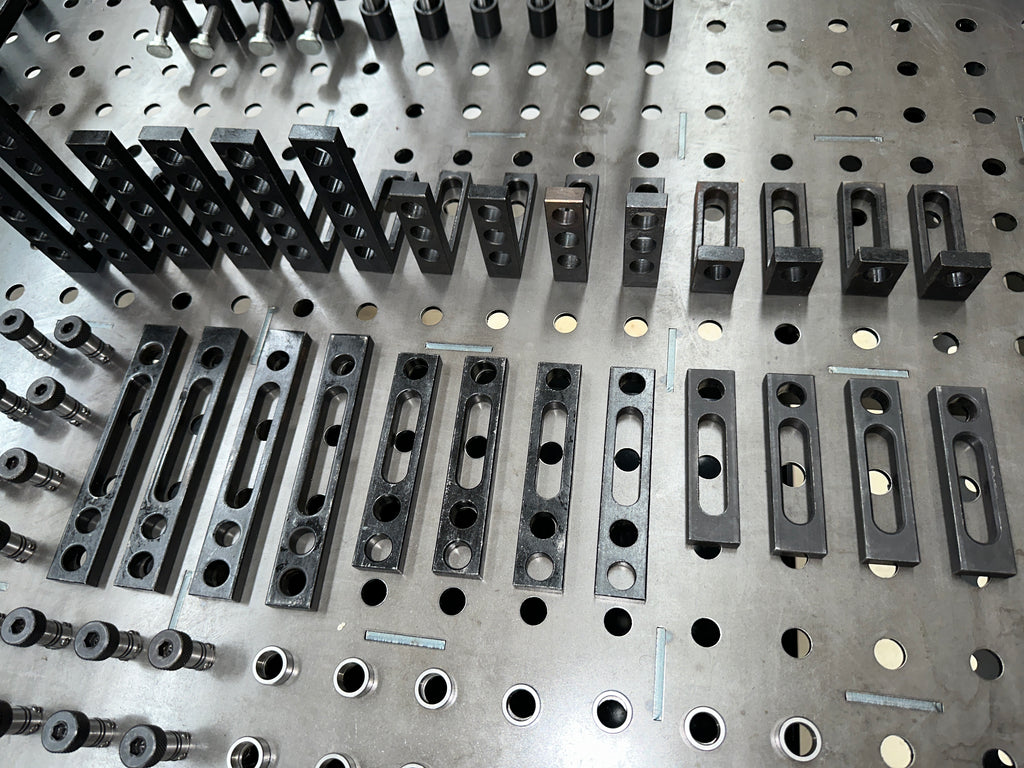

  • 4 x Flat Edge Stop 115mm
  • 4 x Flat Edge Stop 150mm
  • 4 x Flat Edge Stop 190mm
  • 4 x Right Angle Bracket with Slot 90mm & 1 Hole  40mm
  • 4 x Right Angle Bracket with Slot 90mm & 3 Holes 90mm
  • 4 x Right Angle Bracket with Slot 90mm & 5 Holes 140mm
  • 2 x Stop and Clamp Square with 200x100x75mm
