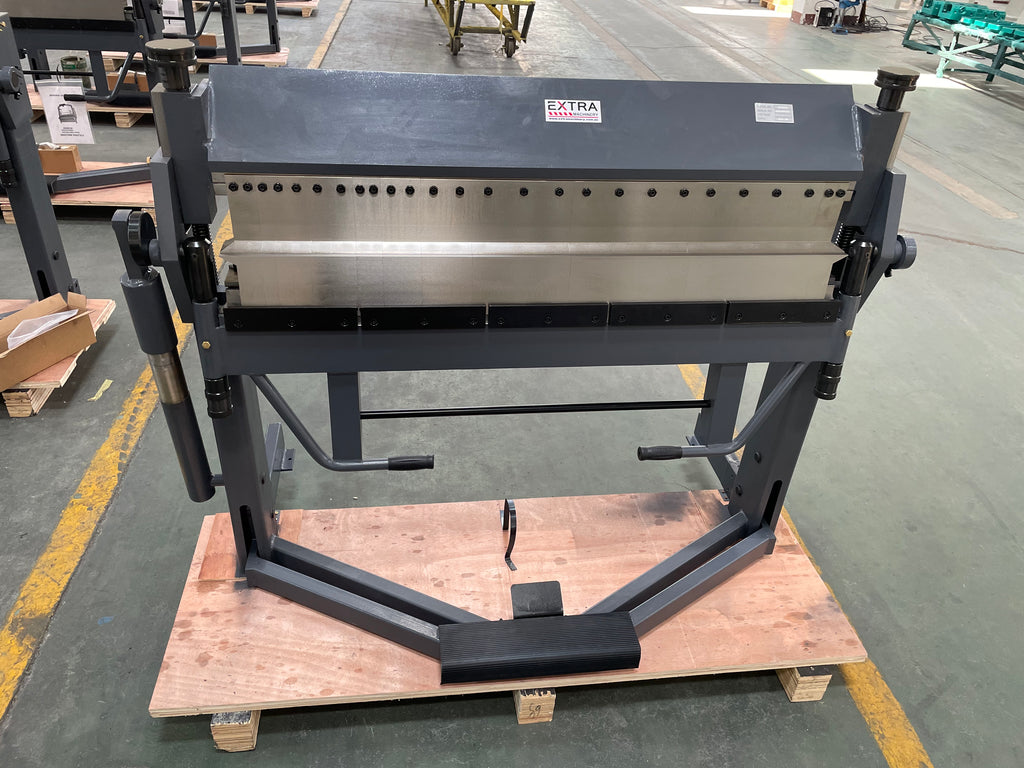

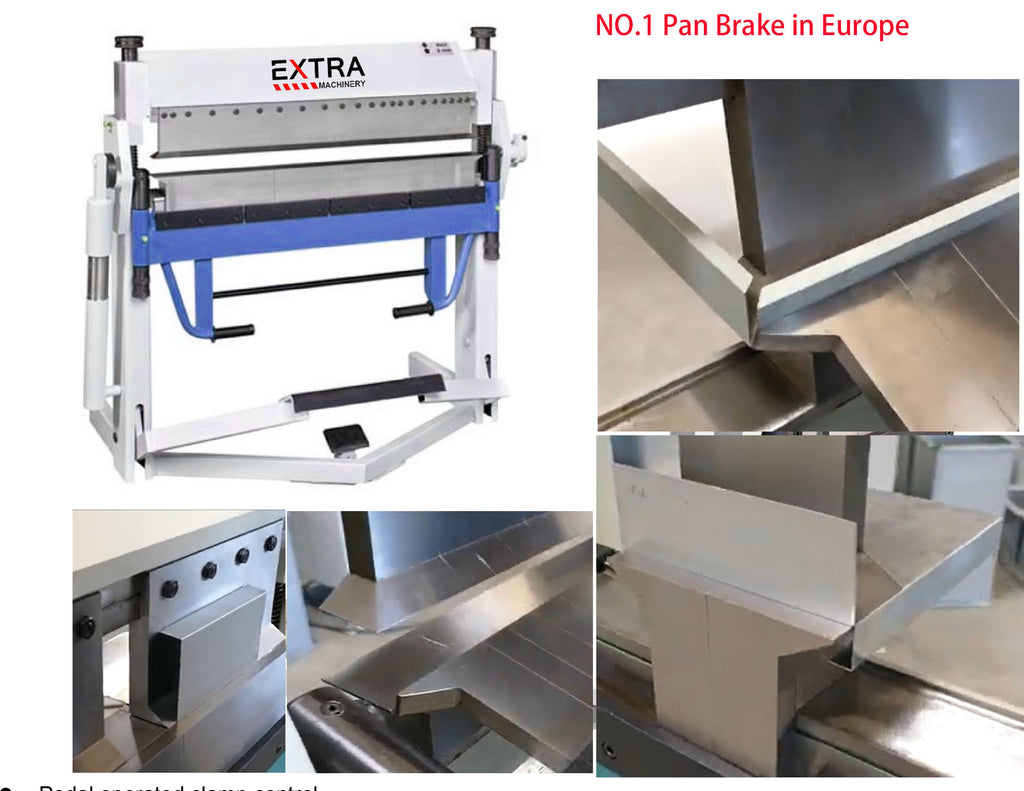

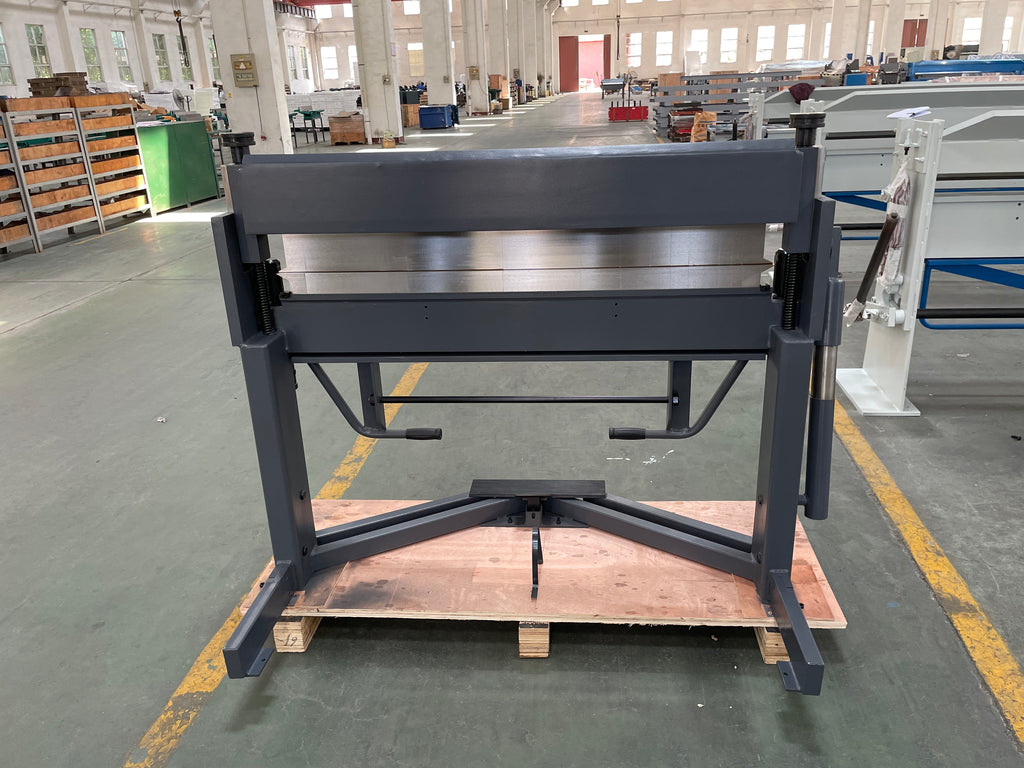

BS-1260SH Manual Pan Brake 2.0 x 1270mm (Denmark Design) Foot Clamping System

Extra Machinery Pty Ltd

$5,000.00

SKU: S259

STOCKS COMING IN 25 SEP
BS-1260SH manual pan brake was designed in 1968 in Thisted Denmark, and  known for being among the most accurate and dependable in Europe.  The Denmark company cooperated with us in 2002 for production of a range of manual pan brakes since 2002.
FEATURES:
  • 1270 x 2.0mm capacity (Mild steel capacity is rated on hot rolled material with 250MPA)
  • Bending angle: 0° – 150°
  • Foot operated clamping keeps both hands free for better control of material
  • Counter-balanced telescope spring makes apron bending effortlessly
  • Segmented clamping fingers, table fingers and bending fingers can bending reversely and complicated profile.
  • Two knurled handles for easy setup of clamp pressure according to different material and thickness
  • Two knurled handles for easy adjustment of bending radius according to different material and thickness
  • Adjustable angle stop for repetitive bends

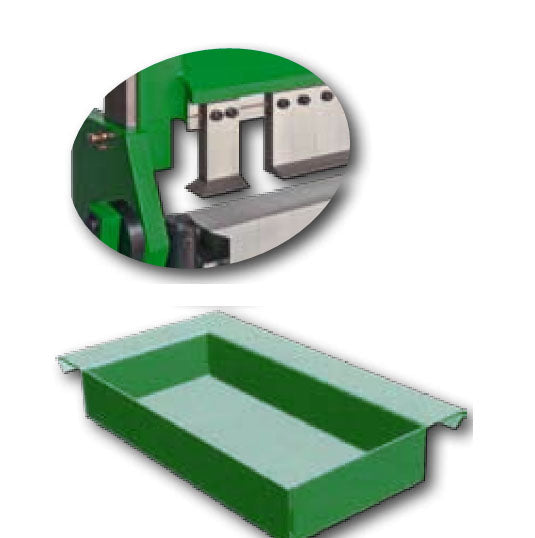

  • Interchangeable finger segments for wide variety of box & pan sizes
    Max box or pan depth is up to 100mm




 ***colour may vary subject to different batch of production.
