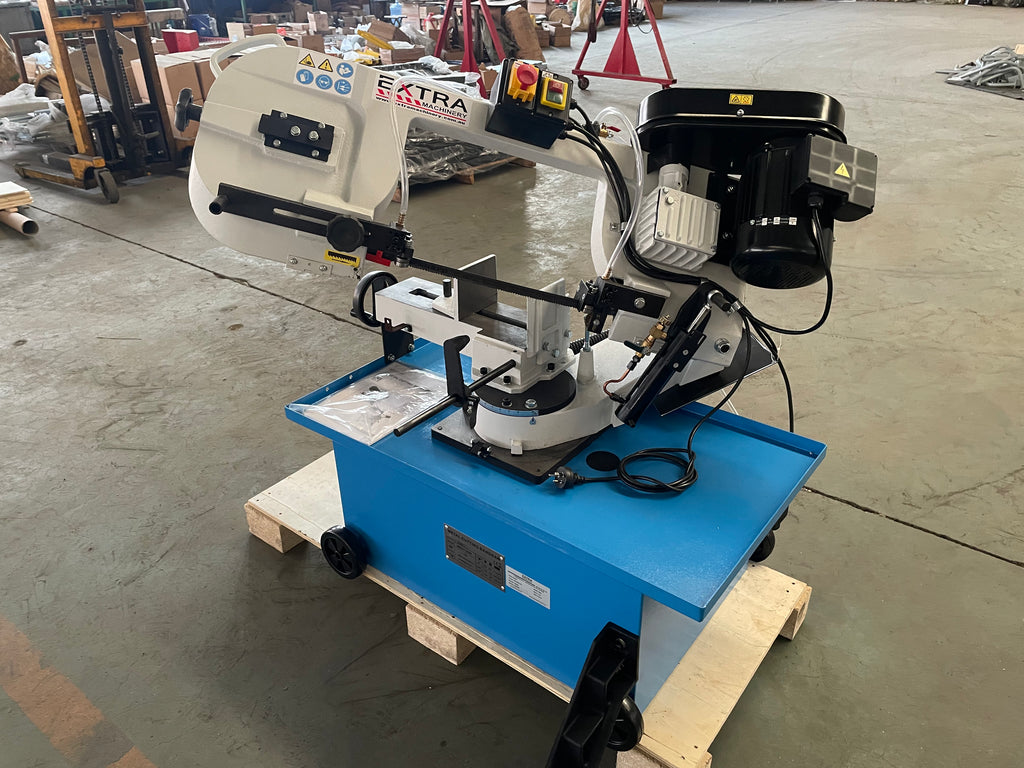

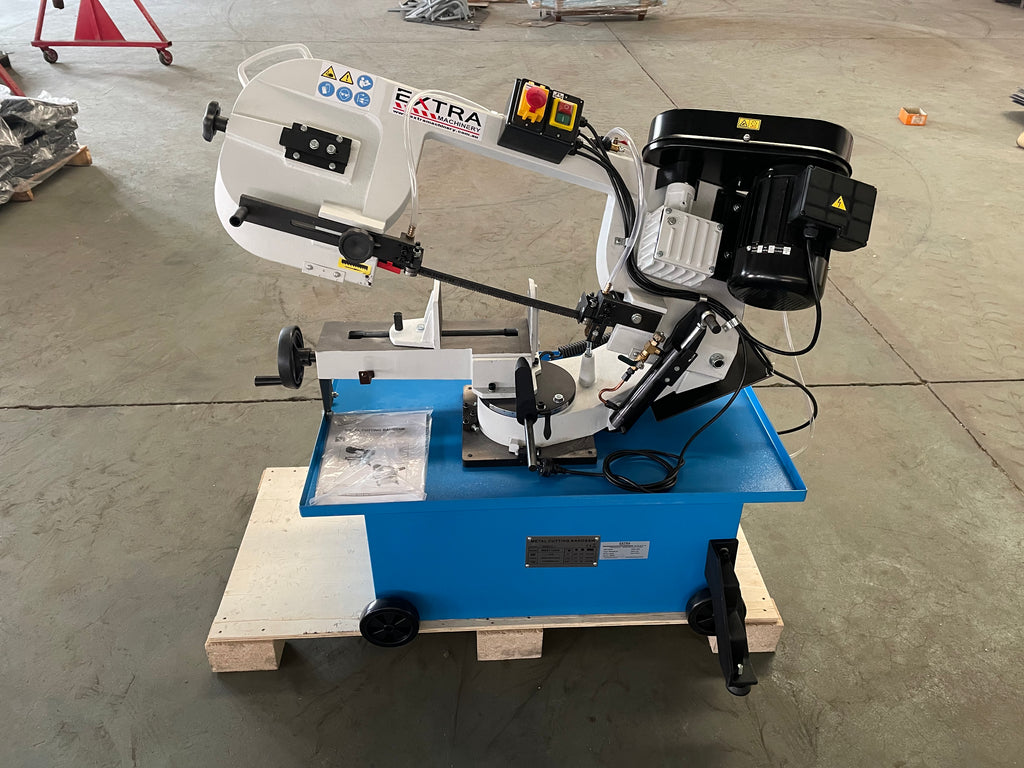

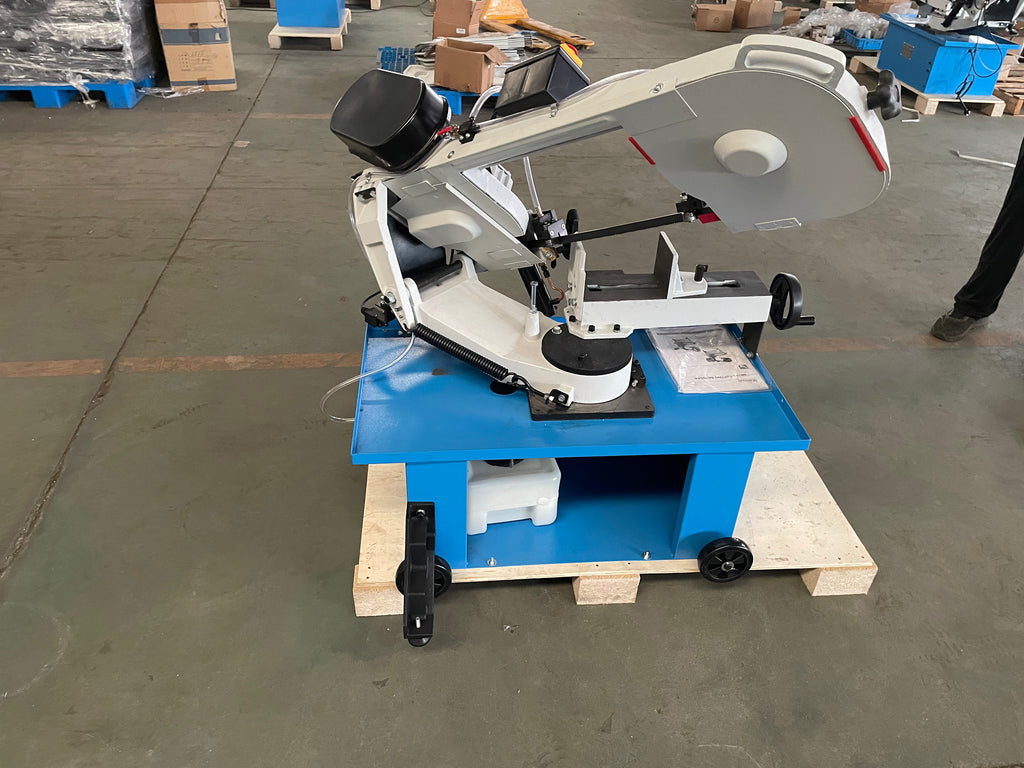

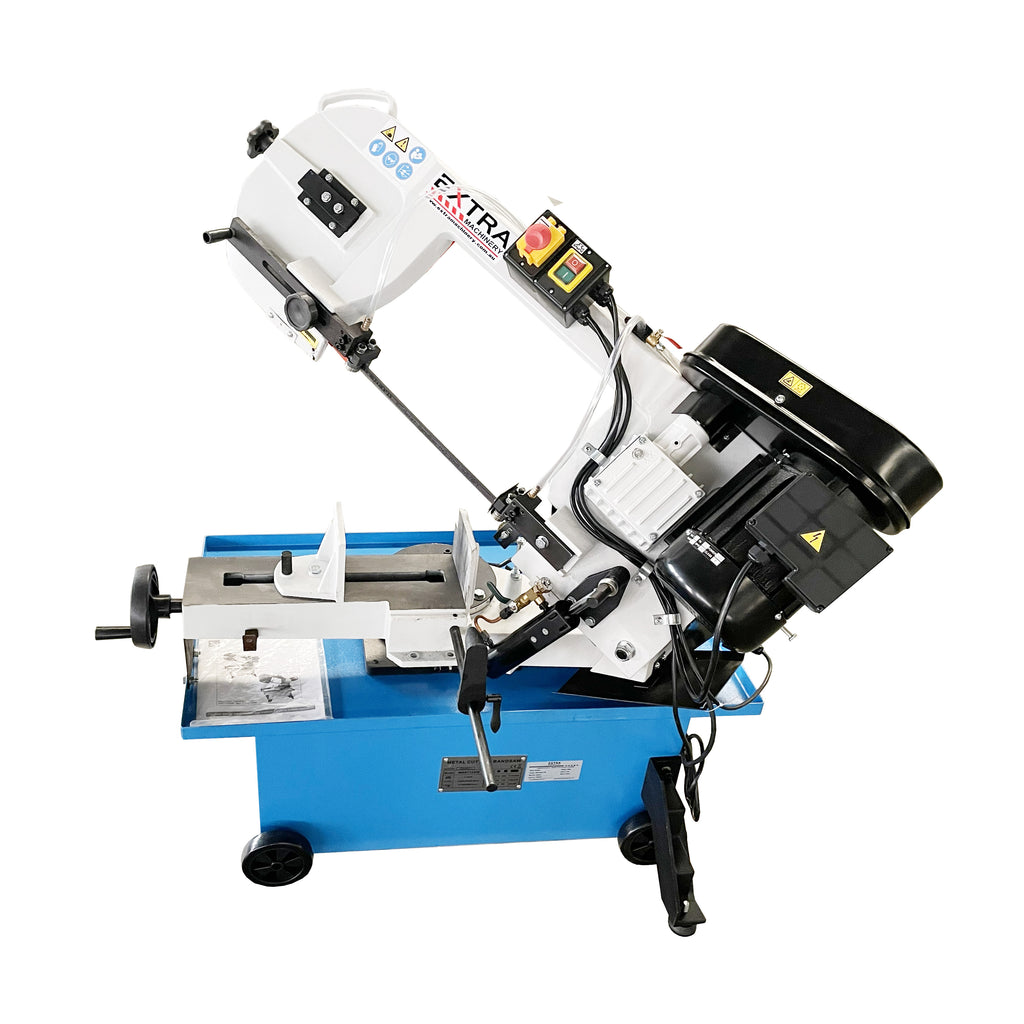

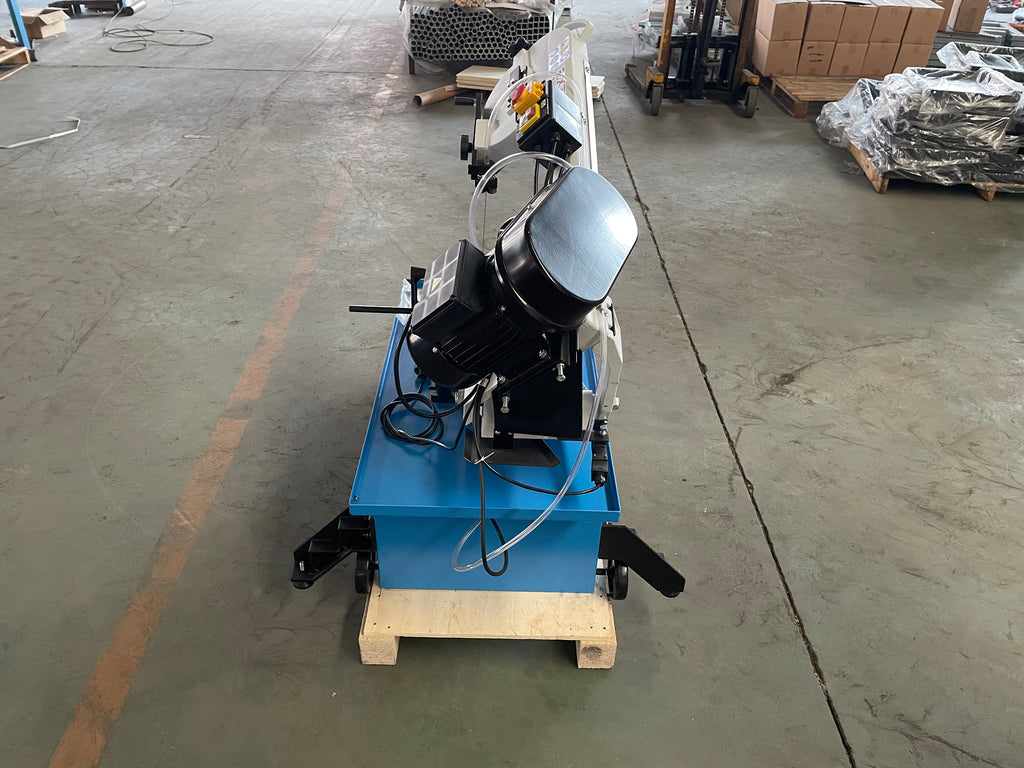

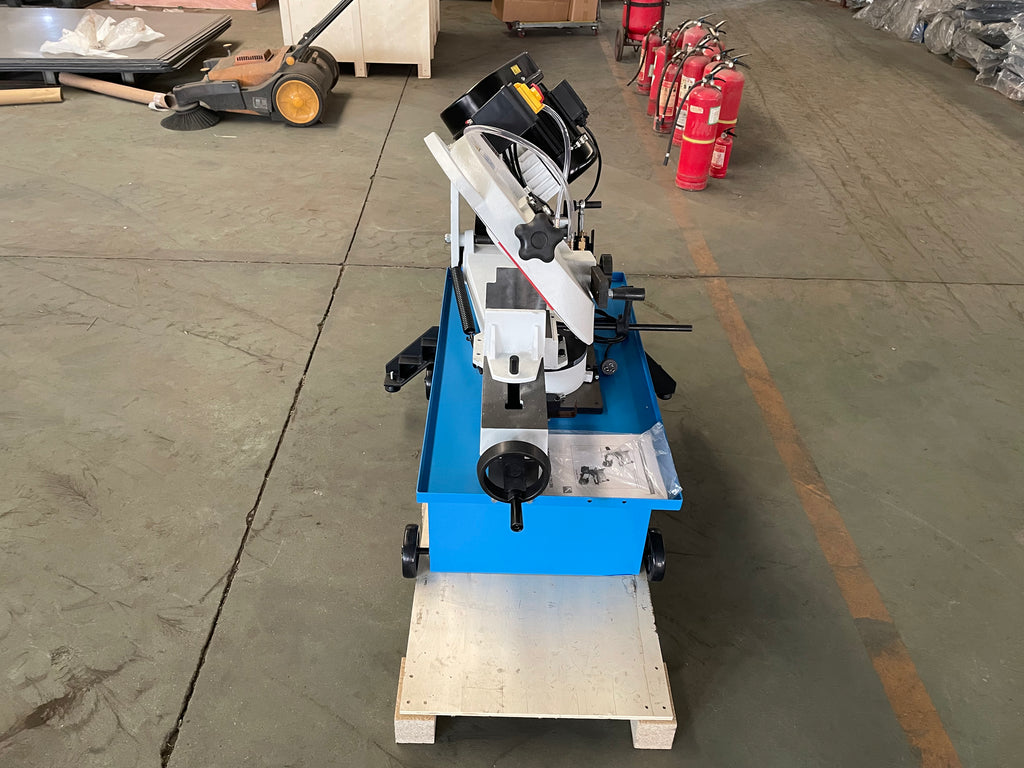

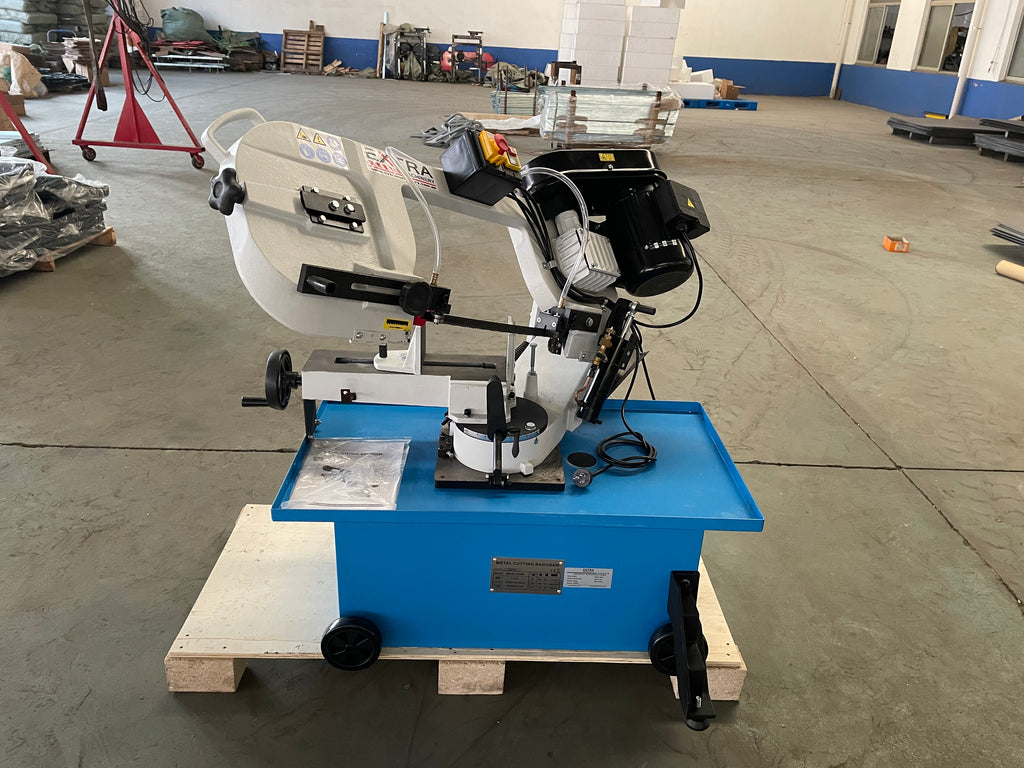

BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree

BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree
BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree BS-8R Metal Cutting Band Saw 215 x 205mm Rectangular Capacity -Dual Mitre Cut 45 Degree

Extra Machinery Pty Ltd

$1,600.00

SKU: S505

STOCKS COMMING IN MIDDLE NOV 2025

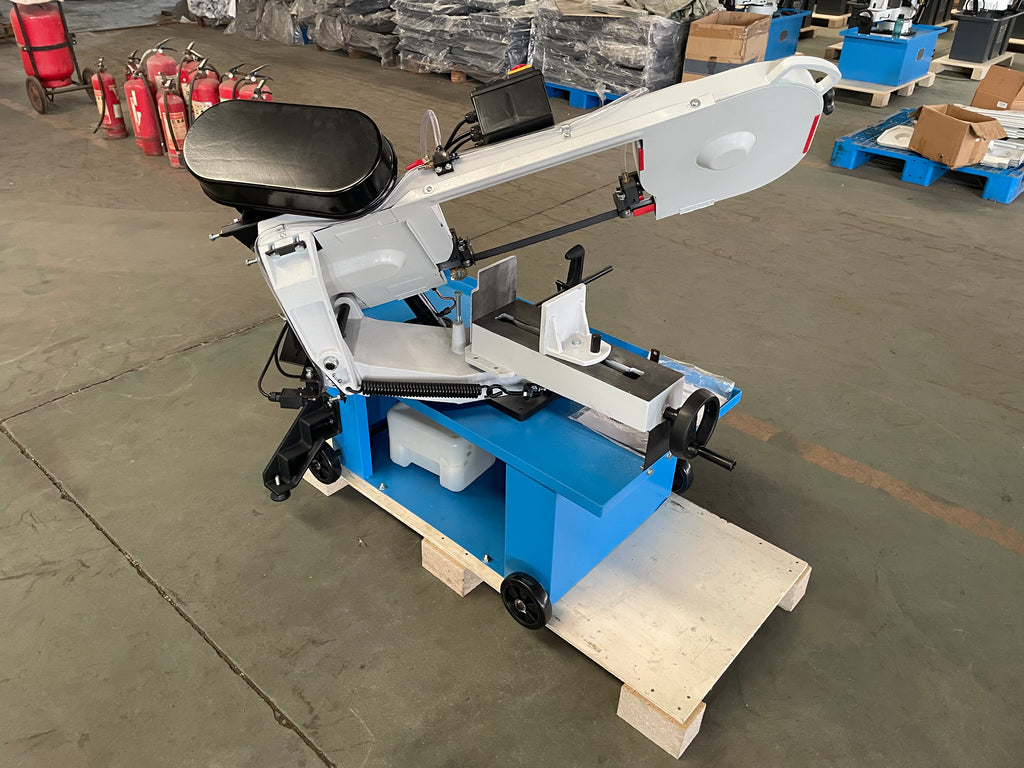

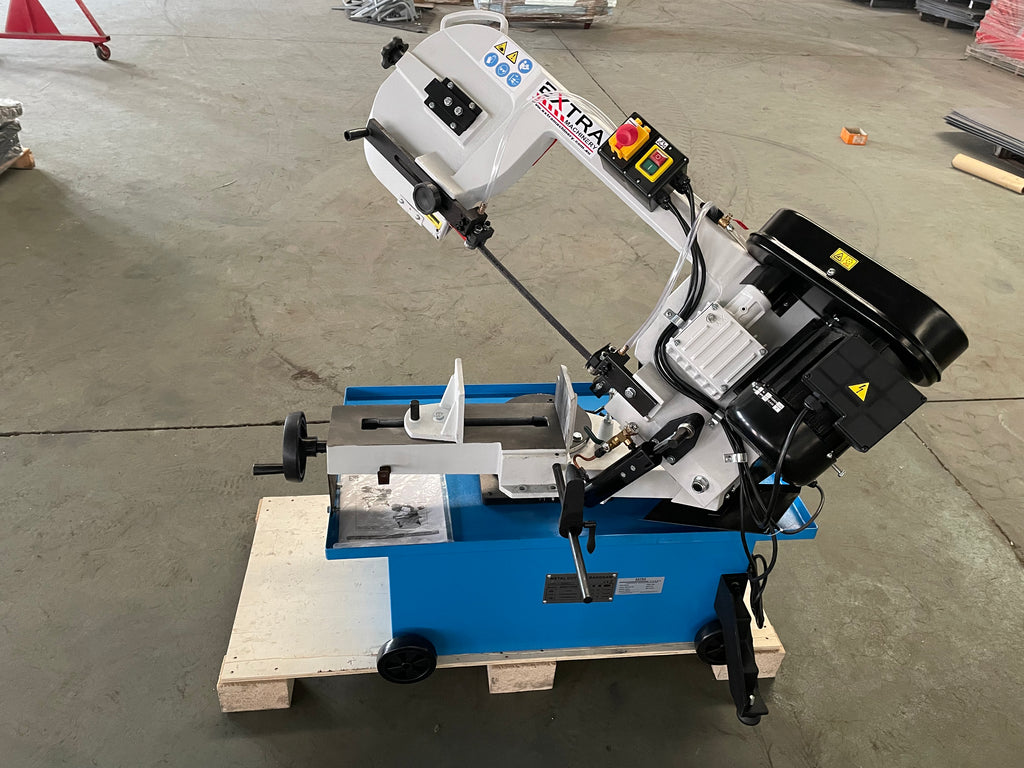

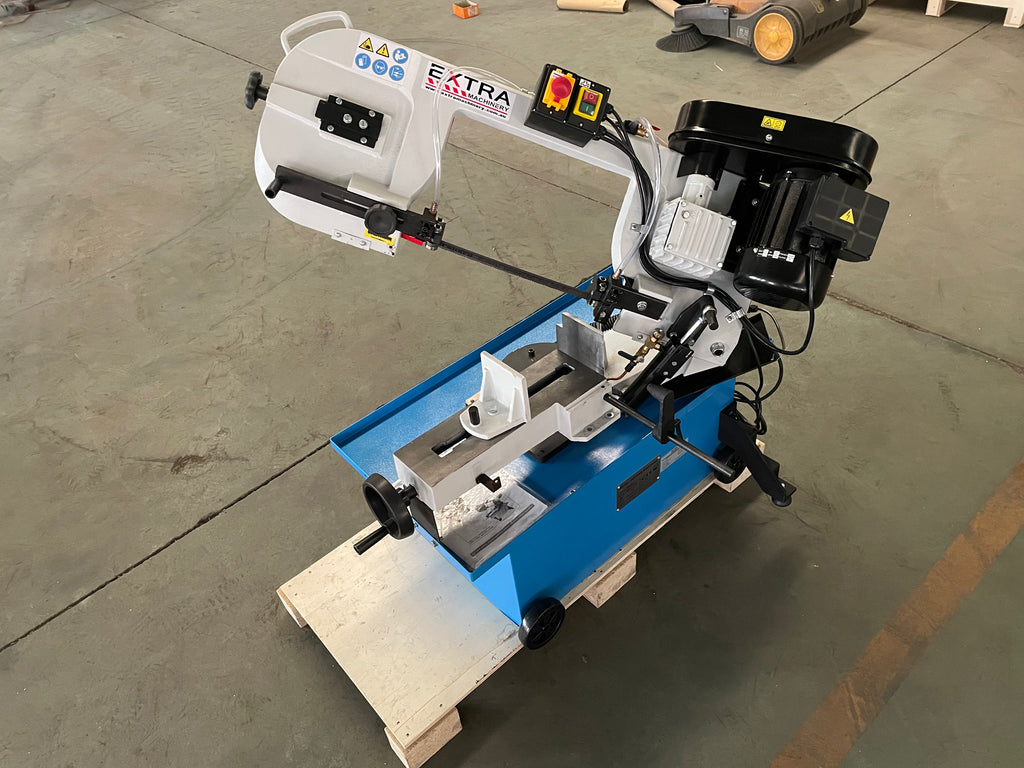

Our metal bandsaws are made by the biggest manufacturer in the world, which OEM for Mac, Femi and many other top brands.   Quality casting parts,  CNC machined parts guarantee modular assembling and high quality of the complete machines.

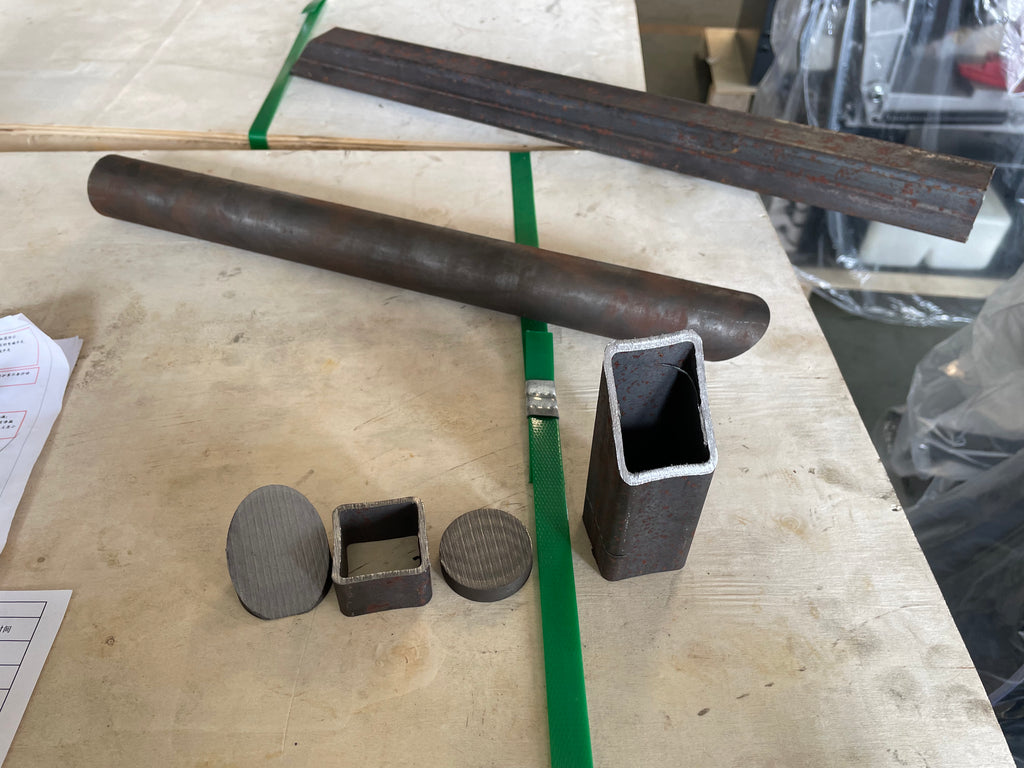

  • 205mm diameter round capacity
  • 215 x 205mm (W x H) rectangular capacity

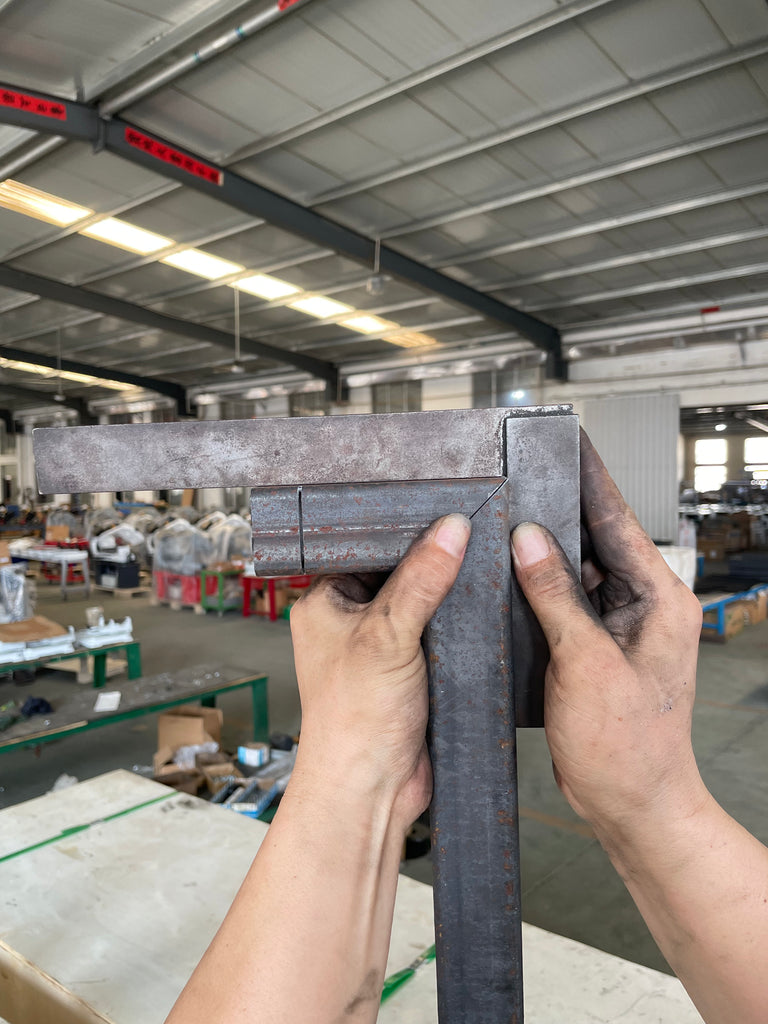

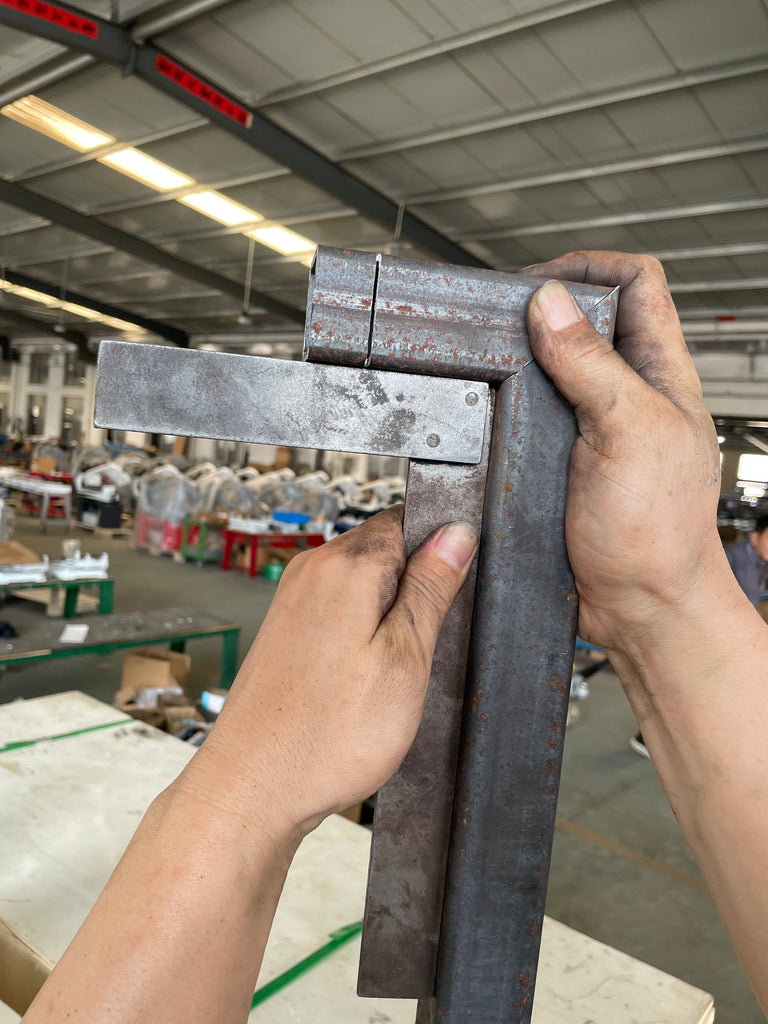

  • Dual Mitre cutting up to 45º  with swivelling head bow
  • Hydraulic down feed with adjustable feed rate suitable for multi-applications
  • Auto cutting stop with a limit switch
  • Quick material clamping lever
  • Material length stop is adjustable for repeat cutting
  • Built in coolant system with flow control valve
  • 1.5HP 240V Single Phase Motor With 10amp 3-pin plug

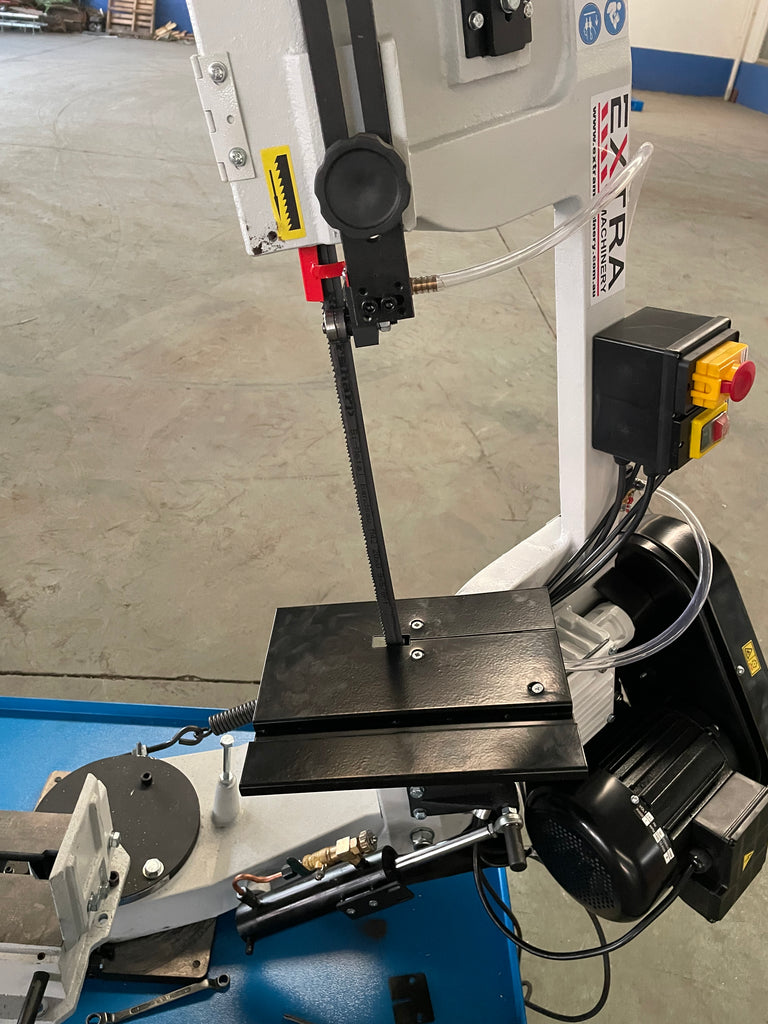

  • Blade guide rollers are adjustable
  • Wire wheel brush is fitted to clean blade at cutting
  • 4 steps of belt pulley provides 4 cutting speed 22-33-45-65MPM

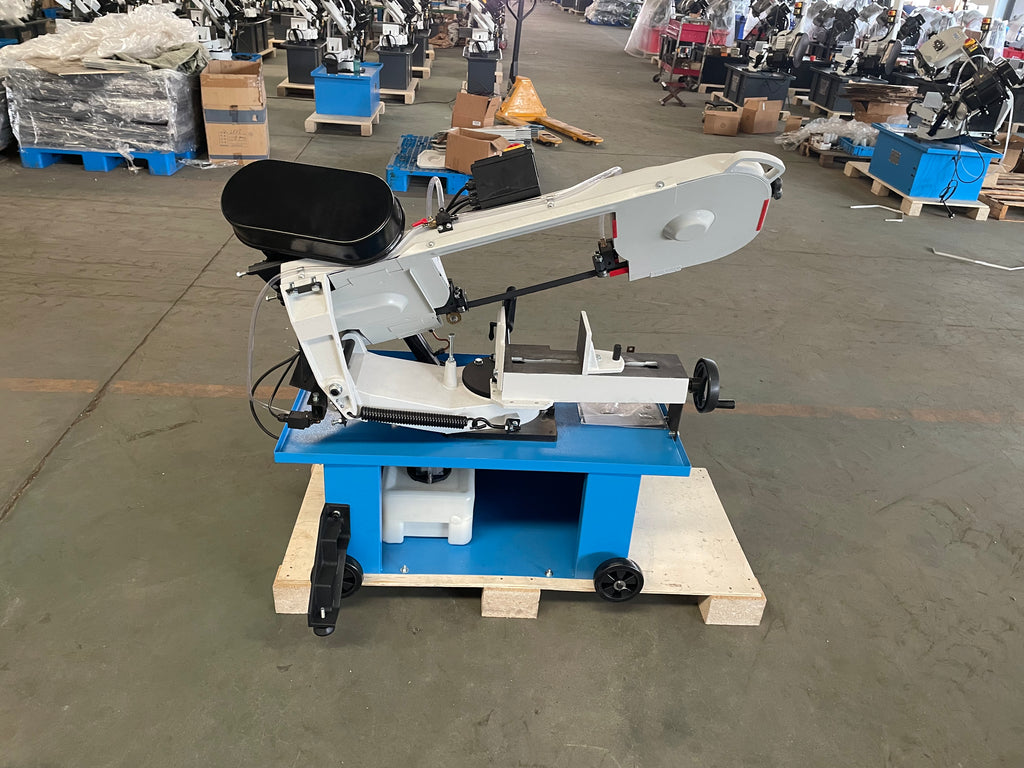

  • Moves on wheels for portability.

Model

BS-8R

Capacity

Circular @ 90°

205mm



Rectangular @90°

215 x 205mm



Circular @45° Left

150mm



Rectangular @45° Left

100 x 200mm



Circular @45° Right

140mm



Rectangular @45° Right

140 x 90mm

Blade speed

@50Hz

22-33-45-65 MPM







Blade size

20x0.9x2360mm

Motor power

 1.1KW 1.5HP(1PH)

Drive

V-belt

Packing size

129x73x115cm

N.W./G.W.

185/238 kg
