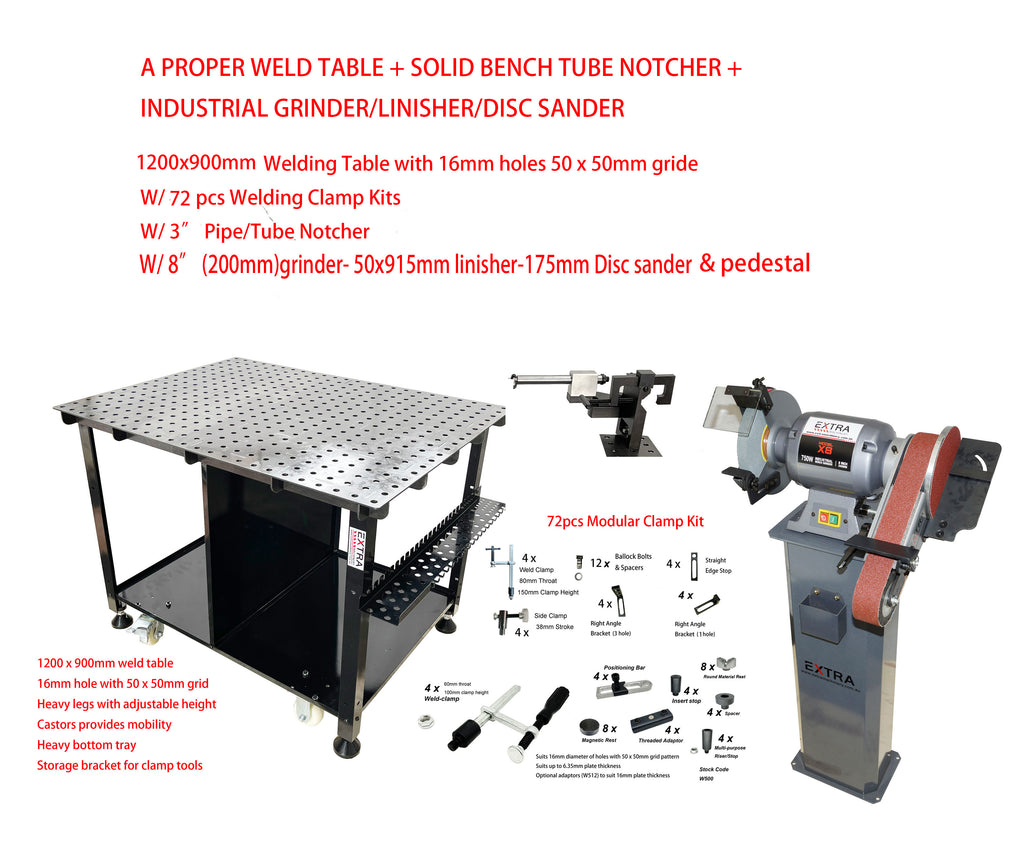

Welding table 1200 x 900mm W/72pcs Clamping Kits & Pipe & Tube Notcher & Industrial Grinder/Linisher
|

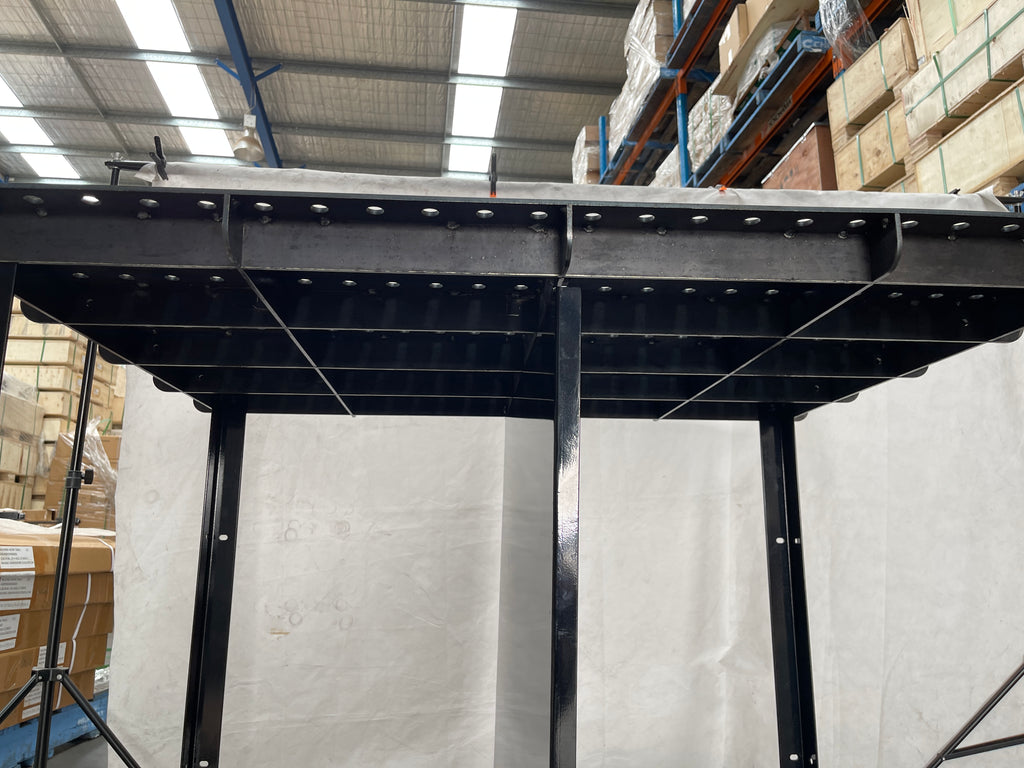

Get Pipe & Tube Notcher, Welding Clamping Tools & Welding Table, Industrial Grinder/Linisher as one Package. Tab And Slot Interlock Webbing Design (USA) . This Ensures The Good Flatness Of The Table, Avoids Flex At Clamping! |

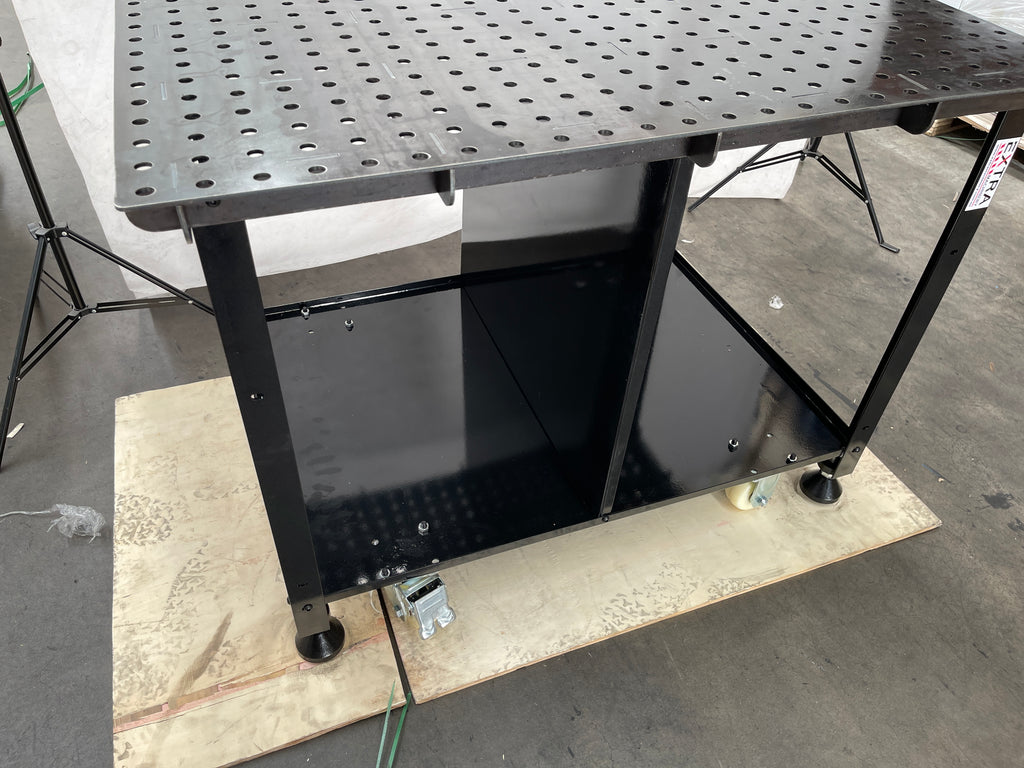

The Easiest To Assemble Welding Table Kit , Includes Tab And Slot Interlock Design (USA) . This Ensures The Good Flatness Of The Table! This Top Comes Professionally Assembled & Welded On The Factory's Heavy Table And Ready To Put To Use! You Only Need To Mount The Legs And The Bottom Trays.

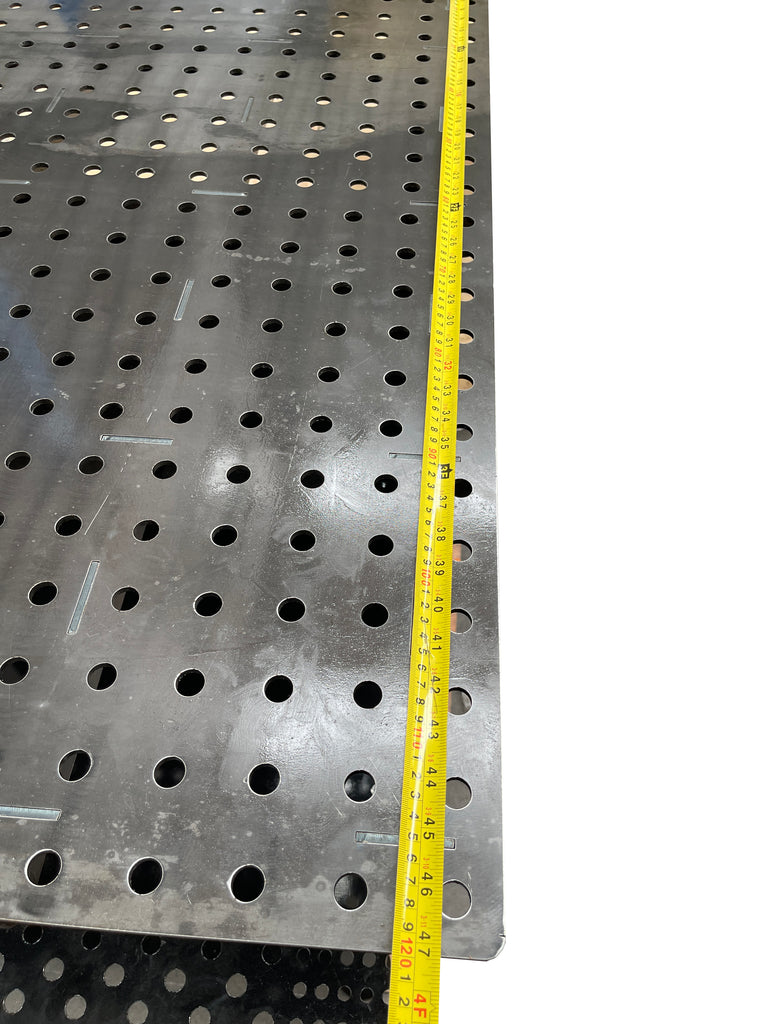

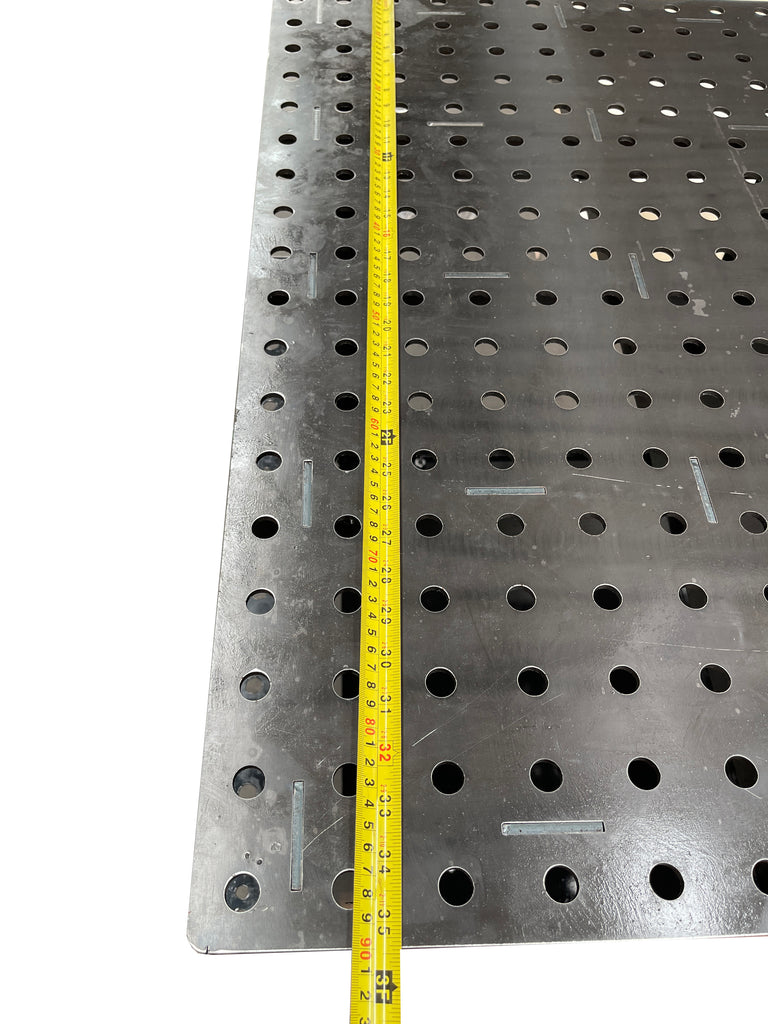

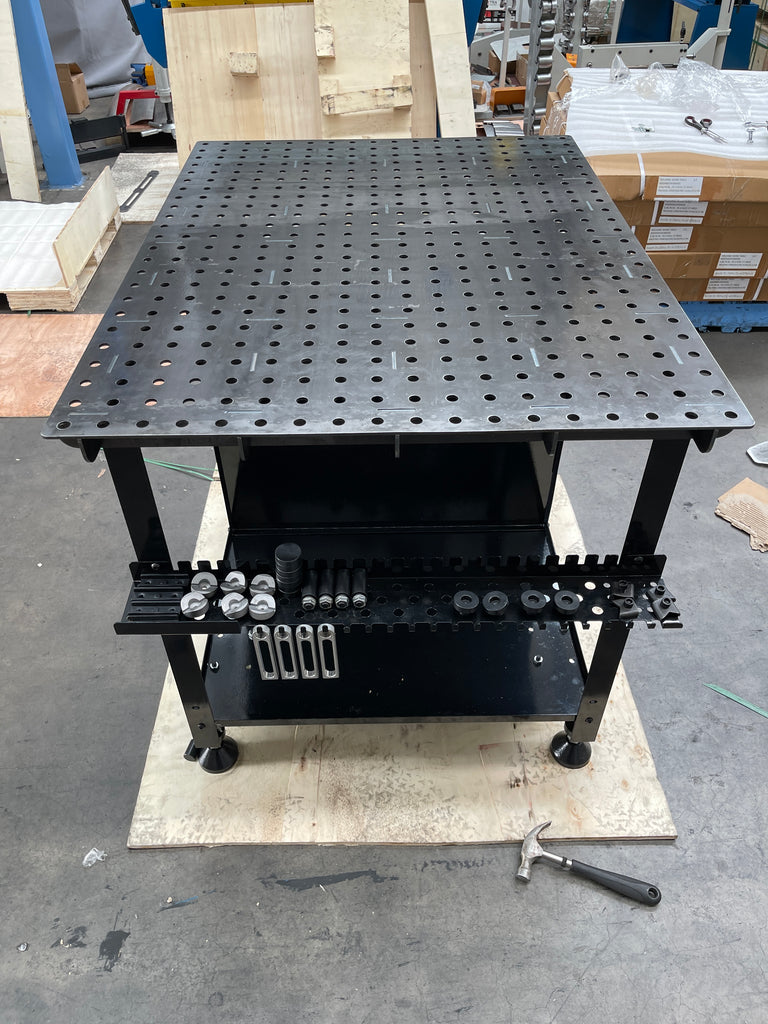

1200 x 900mm table top is the perfect solution for portable welding or confined spaces. Laser cut from 4.75mm (3/16″) A36 steel plate, This kit includes the same standard 16mm (5/8″) holes as all of our welding tables, meaning you can use a wide range of clamping accessories.
Features
- Ø16mm holes
- 4.75mm thick plate
- 50 x 50mm grid pattern
- 1200 x 900mm tabletop

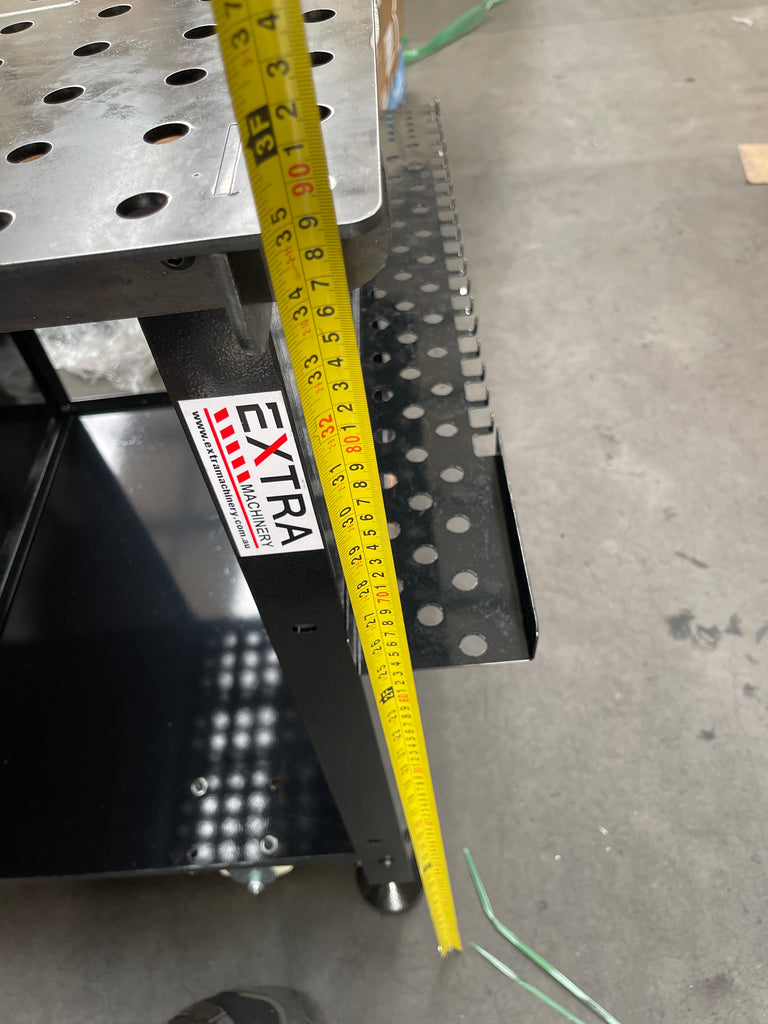

- 50 x 5mm Angle Steel Legs W/Adjustable heights
- Tool Tray

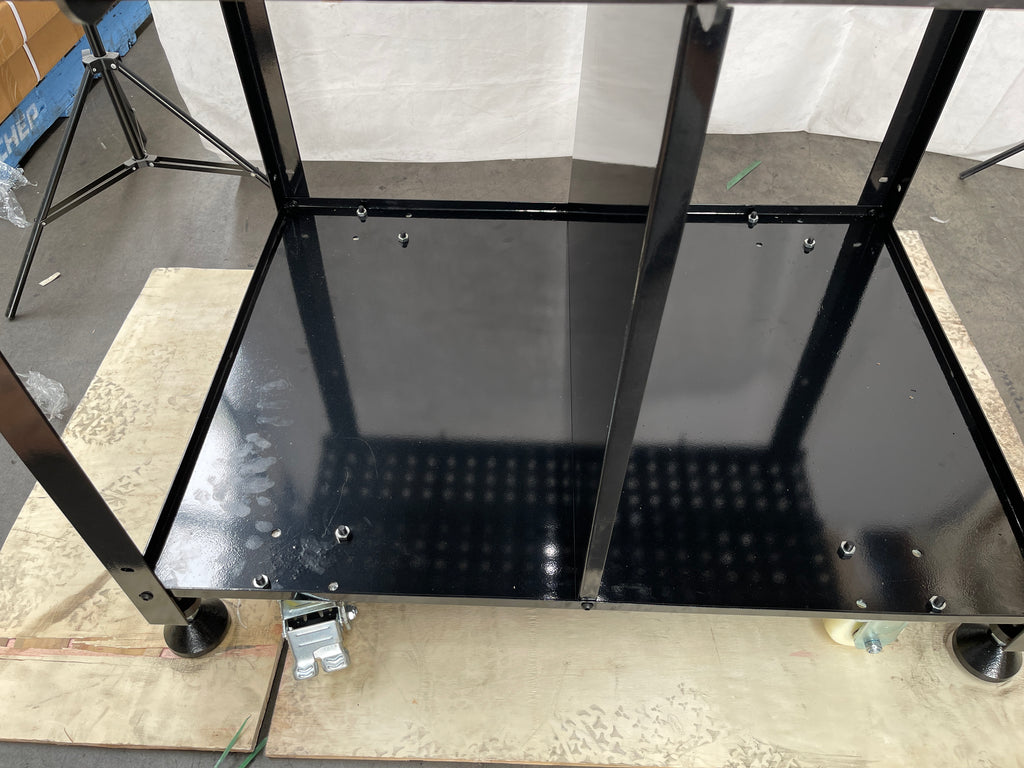

- Bottom Tray with castors

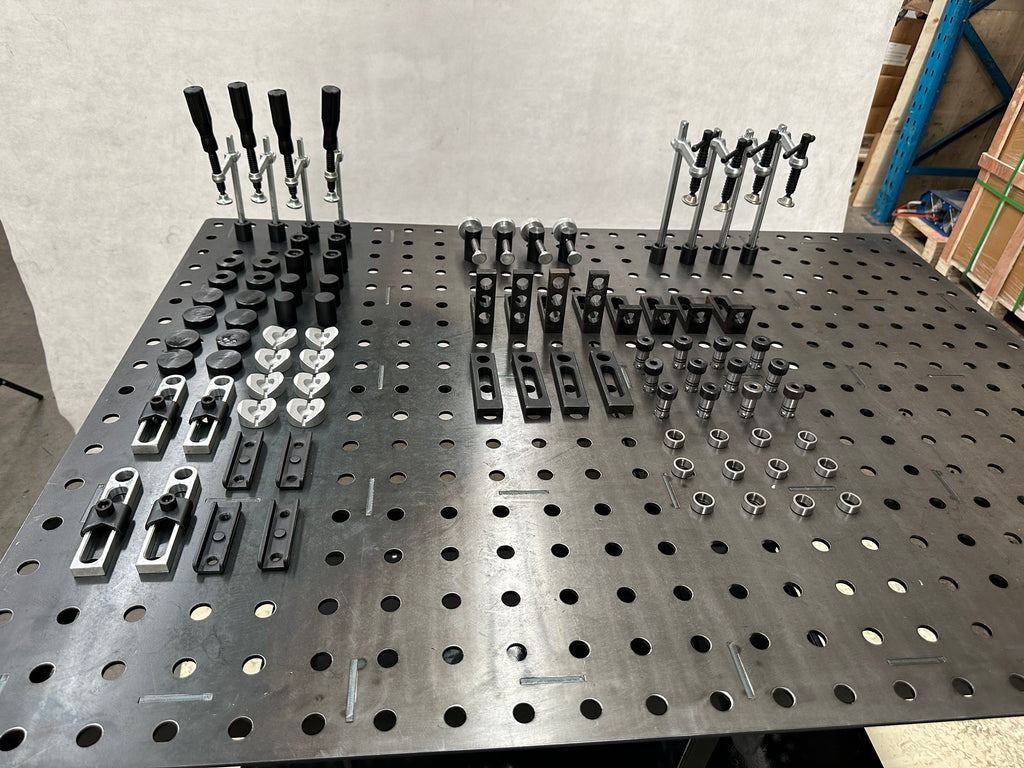

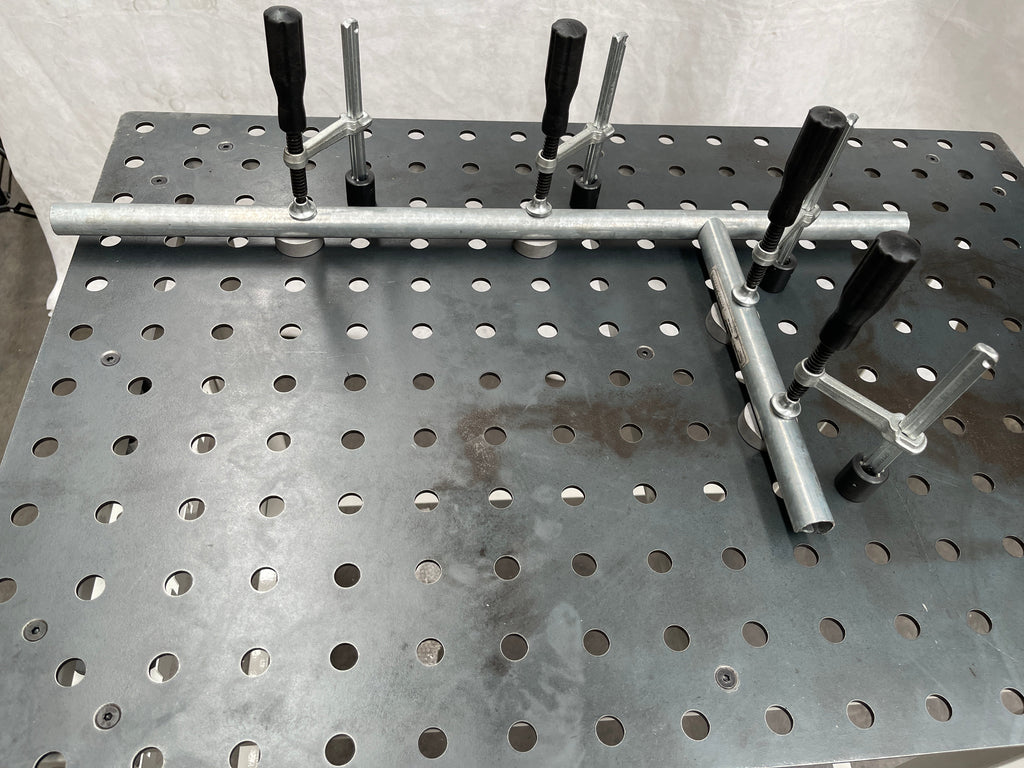

- 4 x Weld Clamps 60mm throat w/100mm clamp height
- 4 x Weld Clamps 80mm throat w/150mm clamp height
- 4 x side clamp 38mm
- 4 x Insert Stops
- 4 x Positioning Bars
- 8 x Round Material Rests
- 4 x Spacers
- 4 x Multi-Purpose Riser/Stops
- 8 x Magnetic Rests
- 4 x Threaded Adaptors
- 12 x Ballock Bolts & Spacers
- 4 x Flat Edge Stop
- 4 x Right Angle Bracket with Slot & 1 Hole
- 4 x Right Angle Bracket with Slot & 3 Holes

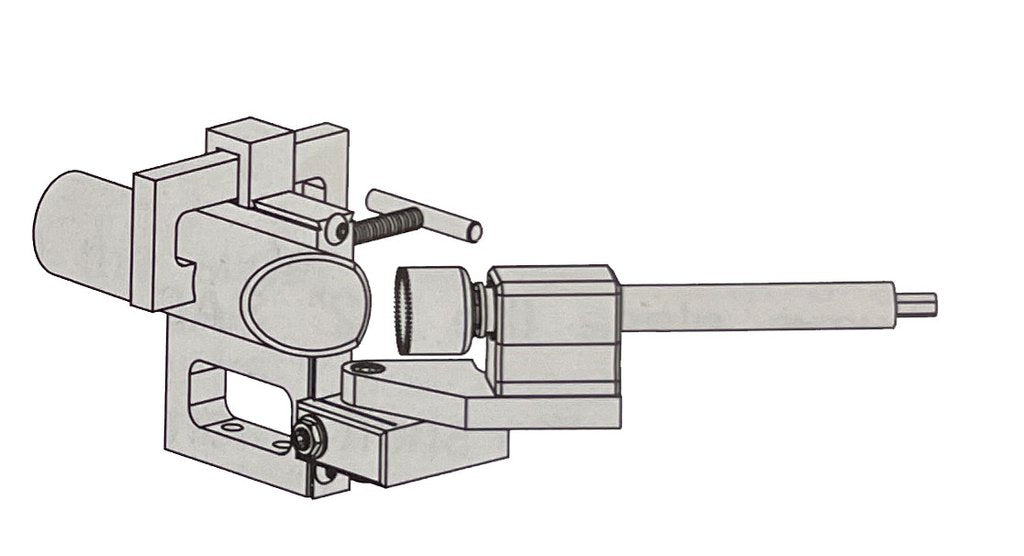

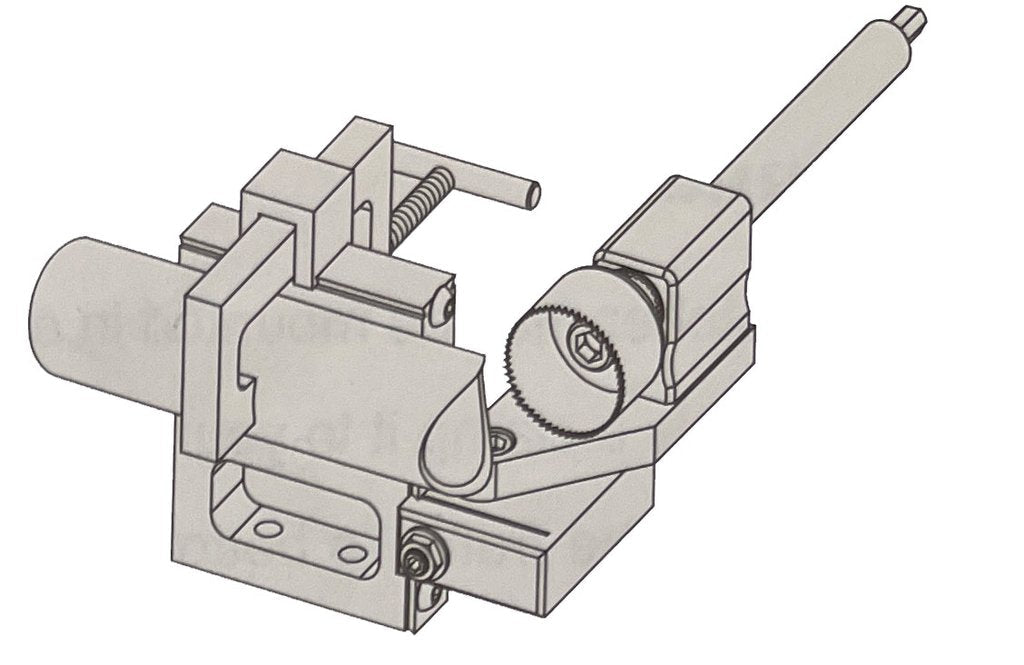

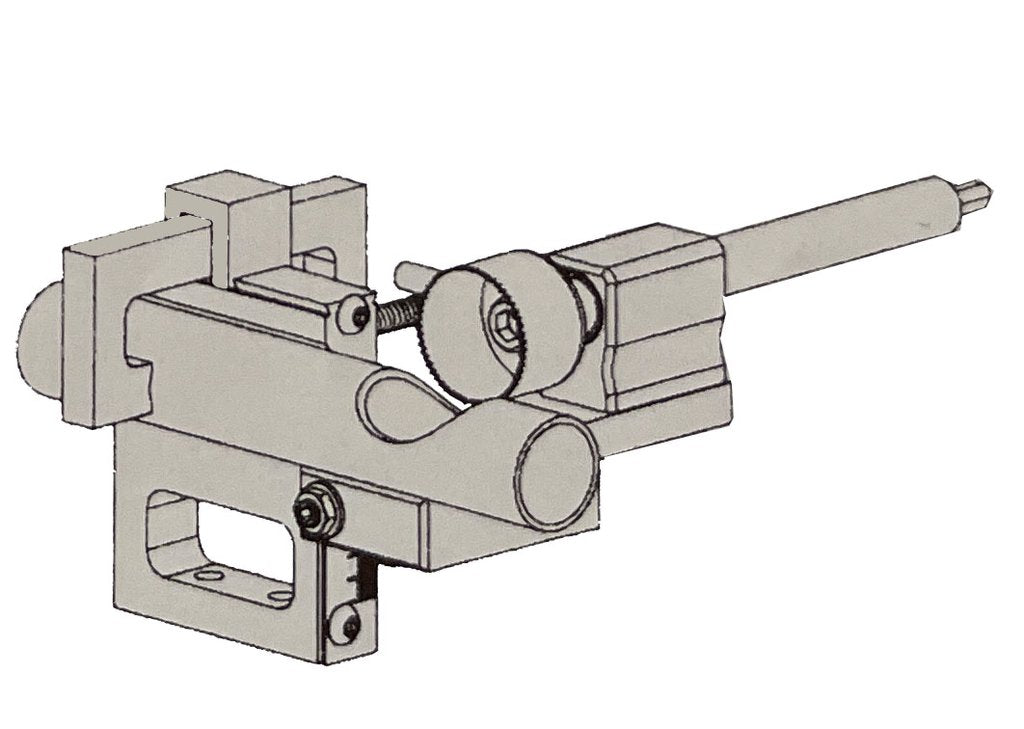

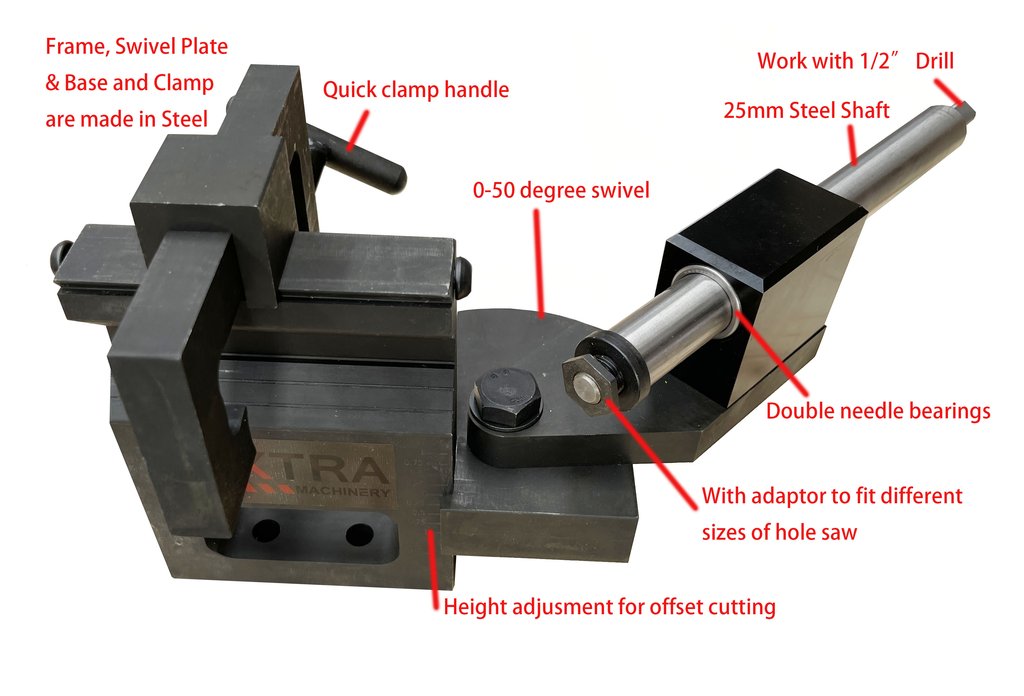

PIPE NOTCHER MODELPNM3
Constructed from solid steel, the easy to use pipe & tube notcher is built to perform accurate notches, time after time.

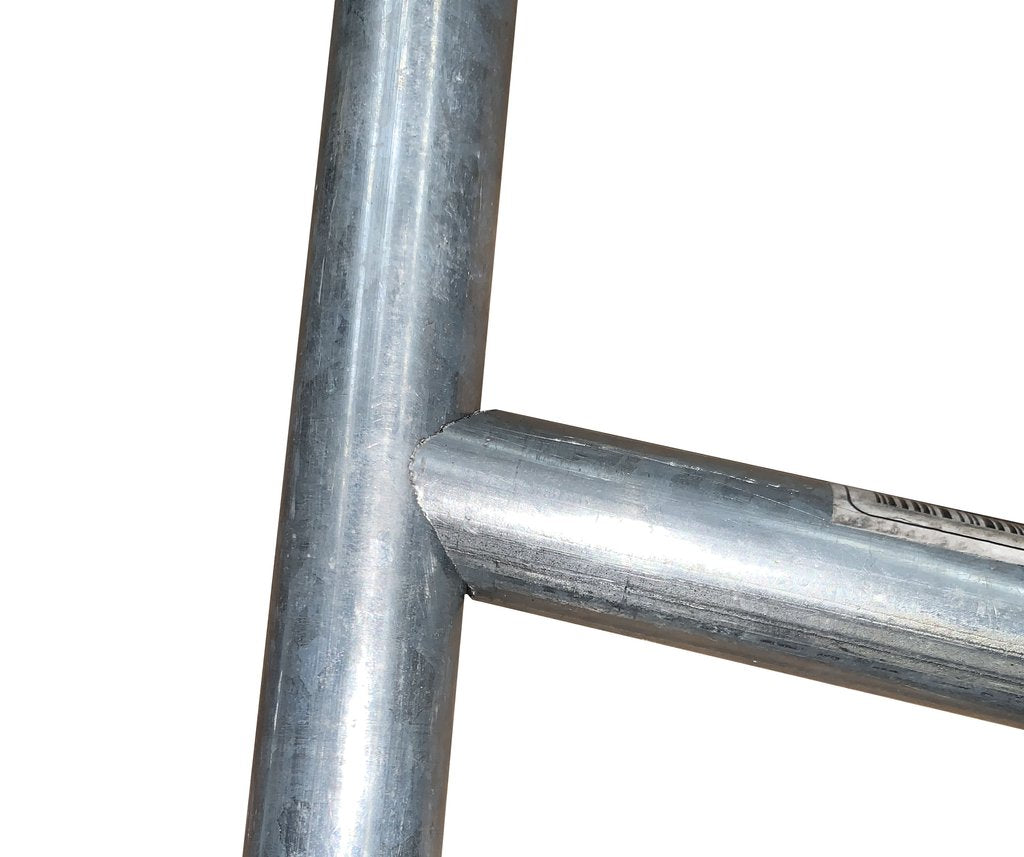

▶ Create notches in 3/4" to 3" Tube or Ø25 - Ø63.5mm OD pipes
▶ Adjustable up to 50 Degrees

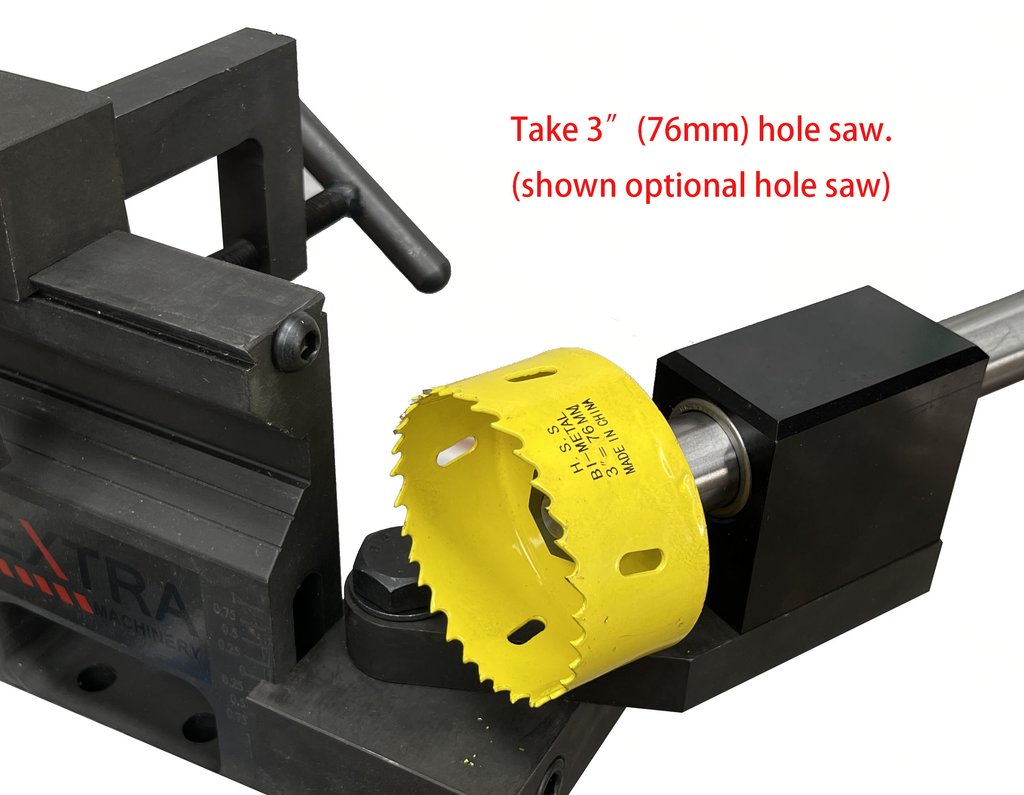

▶ Accepts standard hole saws
▶ Works with any 1/2" drill

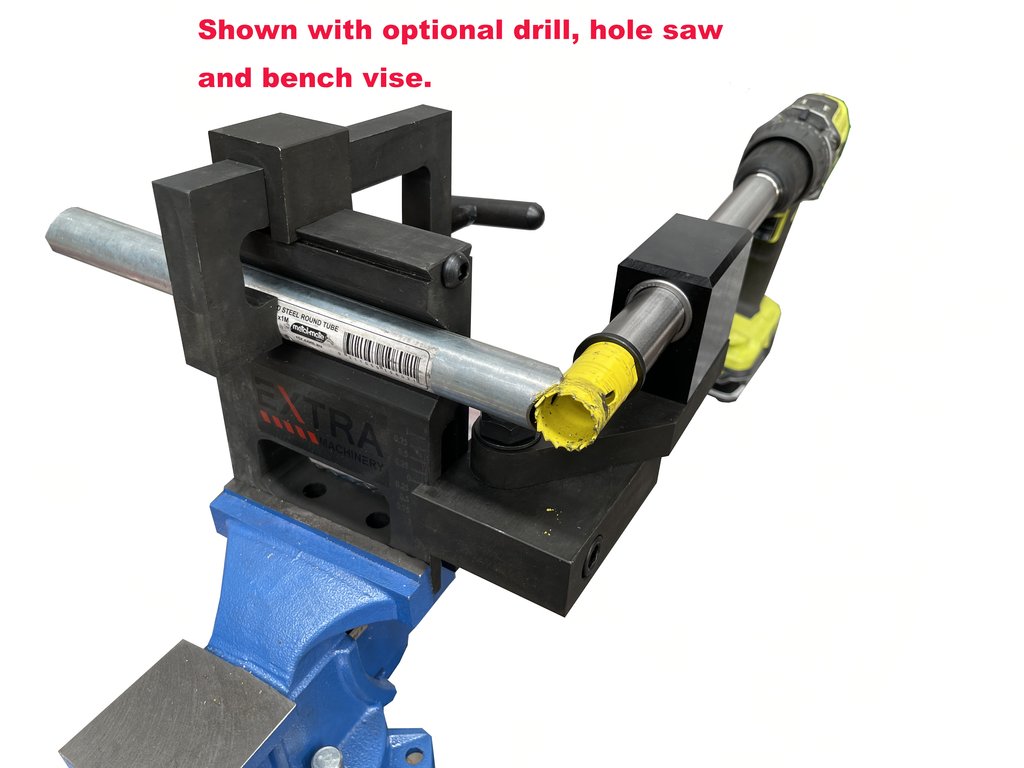

▶ Mounts in a vise or on a bench top
You can build anything from a Go Cart to a 3 In exhaust on your hotrod. Use any 1/2 In hand drill to power the Notcher. Accepts all standard hole saws. Adjustable up to 50 degrees with the loosening of one bolt. Adjust to your desired angle with one hand and lock down the bearing block with your other. Easier adjustment than other designs on the market. Vise or bench top mounting.
(Type)MachinePipe & TubeNotcher Attachment(Type)Notching CutterHole Saw (Optional)(mm)Tube Capacity (OD) - Mild SteelØ25 - Ø63.5(inch / mm)Pipe Capacity (NB) - Mild SteelØ3"(Degree)Angle Adjustment0 - 50°((mm))Dimensions280 x 280 x 160(kg)Nett Weight9.1

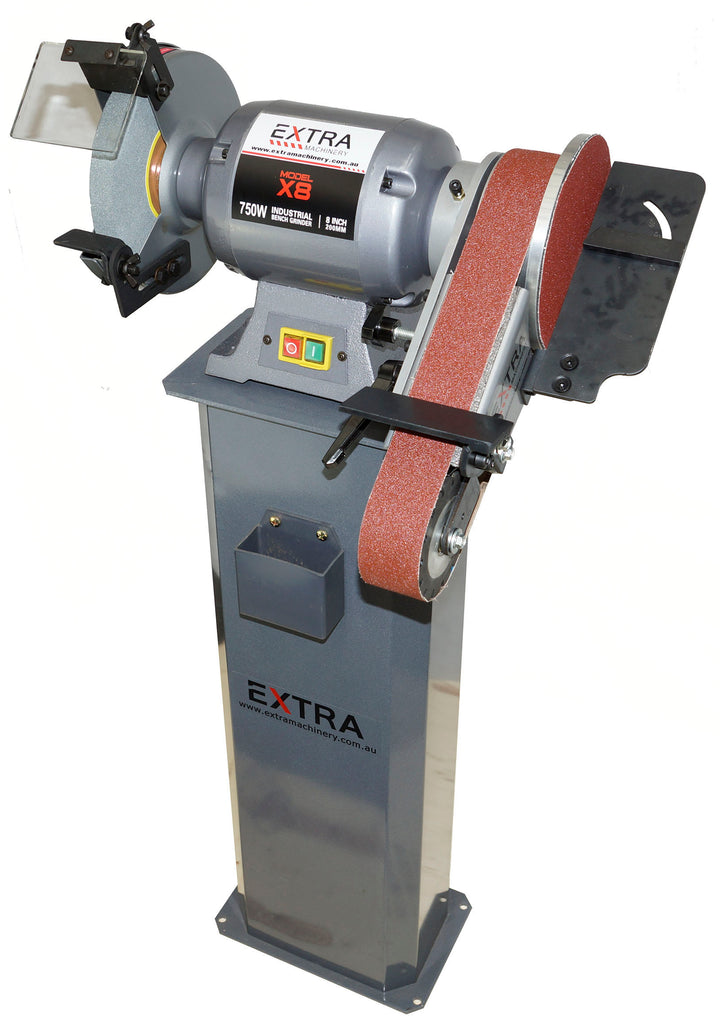

Industrial bench grinder/linisher
Include heavy duty 820mm pedestal stand with water tray
200mm x 25mm grinding wheel
2880rpm spindle speed
Cast iron body and base for good rigidity
Rubber feet to avoid vibration
True 1HP (750W) motor power

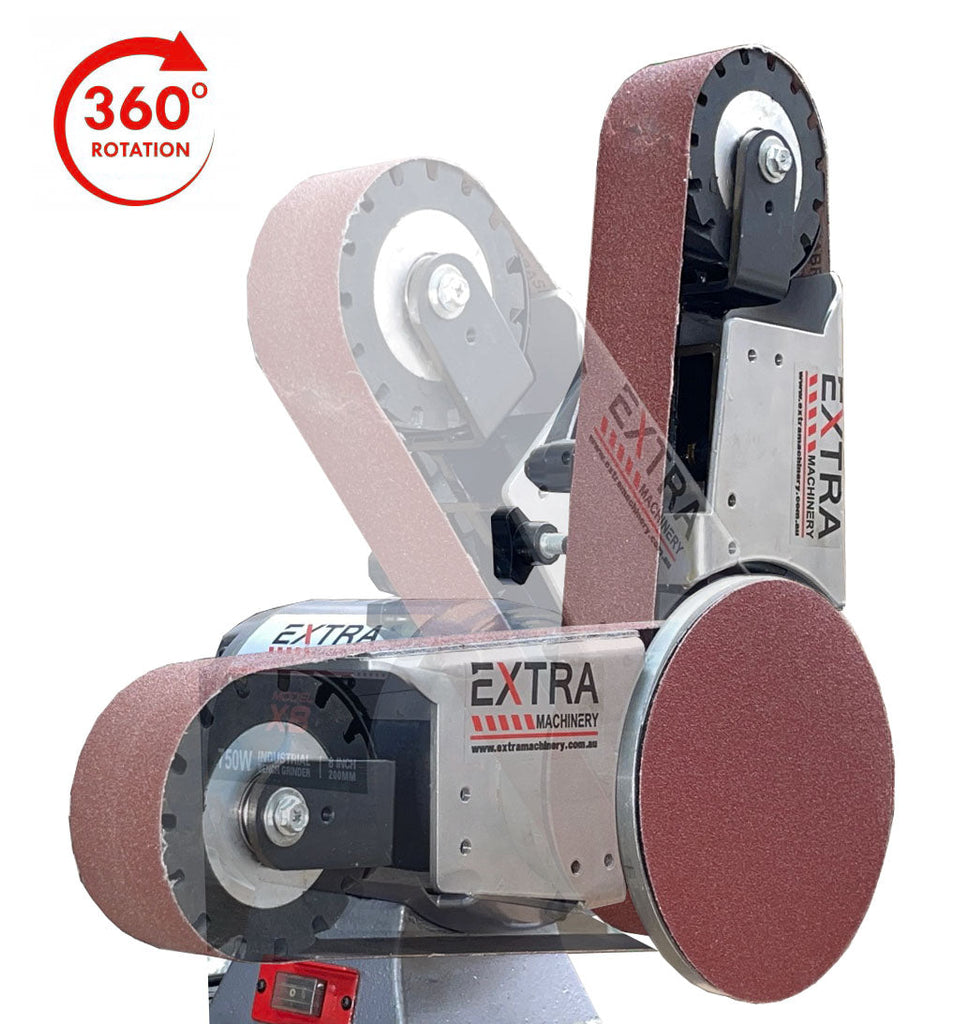

Denmark Designed 50x915mm linisher (Swivel 0-360 degree)
Belt speed 1250m/min.
175mm disc sander with hook & loop back sticker
Mitre table is included as standard

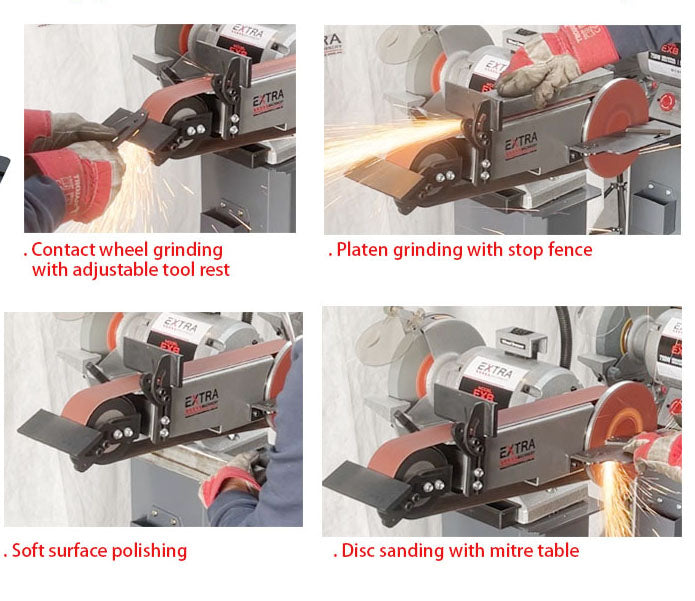

Front Tool Rest is include as standard, Adjustable 0-45 degree which can be used as top stop fence for platen grinding
Dust Proof, NVR Industrial ON/OFF Switch for more safety
Quick cam changing belt at seconds
Easy adjustment of belt tracking with lock but
Double yoke support of rubber contact wheel
