D50 LCD Digital Readout & 3 axis Linear Scales Kit (220mm x 1 + 470mm x 1 + 670mm x 1) for Mill

D50 LCD Digital Readout & 3 axis Linear Scales Kit (220mm x 1 + 470mm x 1 + 670mm x 1) for Mill
D50 LCD Digital Readout & 3 axis Linear Scales Kit (220mm x 1 + 470mm x 1 + 670mm x 1) for Mill D50 LCD Digital Readout & 3 axis Linear Scales Kit (220mm x 1 + 470mm x 1 + 670mm x 1) for Mill D50 LCD Digital Readout & 3 axis Linear Scales Kit (220mm x 1 + 470mm x 1 + 670mm x 1) for Mill D50 LCD Digital Readout & 3 axis Linear Scales Kit (220mm x 1 + 470mm x 1 + 670mm x 1) for Mill D50 LCD Digital Readout & 3 axis Linear Scales Kit (220mm x 1 + 470mm x 1 + 670mm x 1) for Mill D50 LCD Digital Readout & 3 axis Linear Scales Kit (220mm x 1 + 470mm x 1 + 670mm x 1) for Mill

Extra Machinery Pty Ltd

$350.00

SKU: D50K

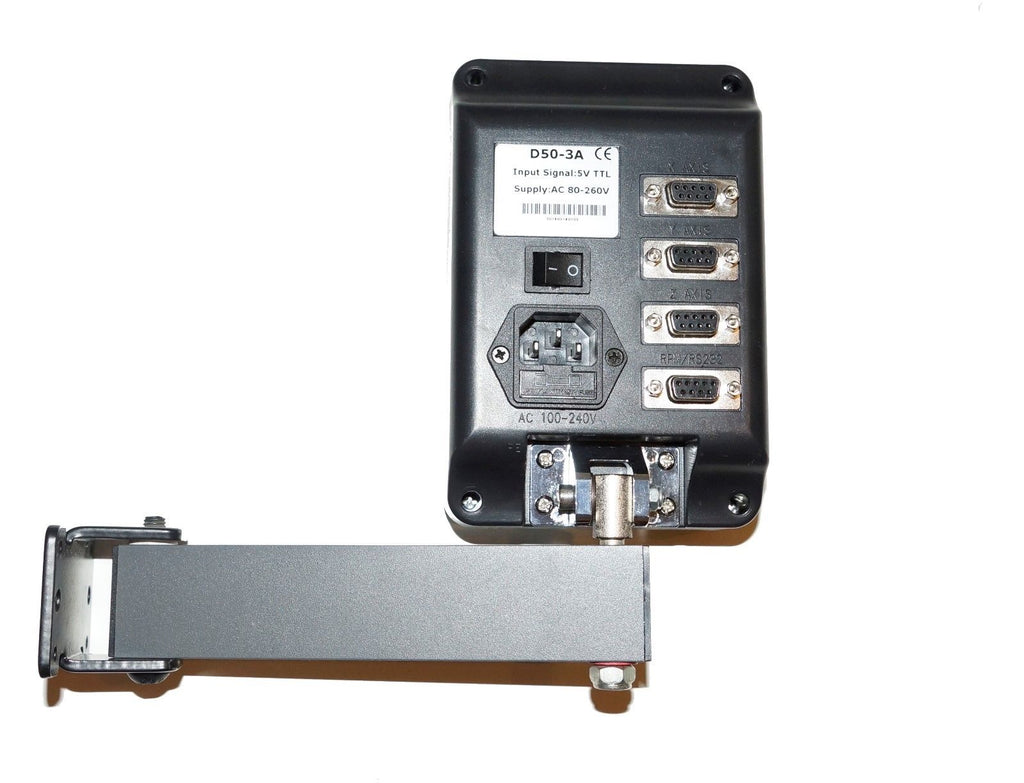

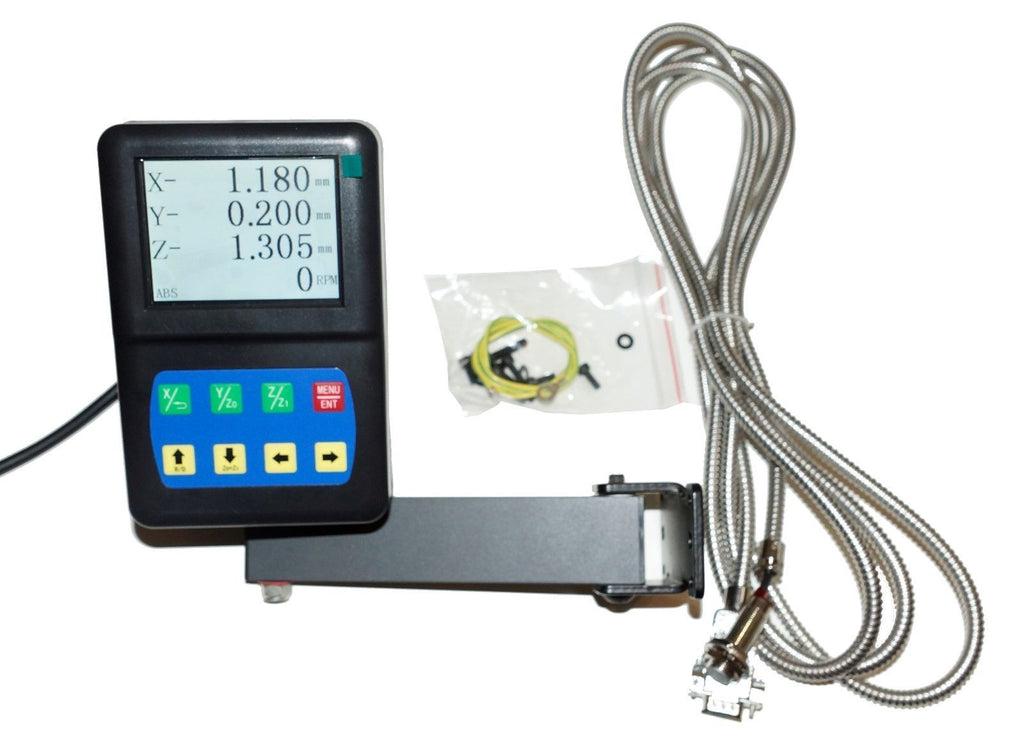

LCD SCREEN ,  SPINDLE RPM DISPLAY, INCLUDES SPEED SENSOR AND THE CABLE. AUSTALIA APPROVED 3-PIN 240V PLUG

You can select functions for lathe or mill inside the system.

Features of DRO

Functions :
You can select functions for lathe or mill or grinder
Zeroing ,Data Recovery
Input Coordinate
Metric /British Units
Power off memory function
Encoder setting

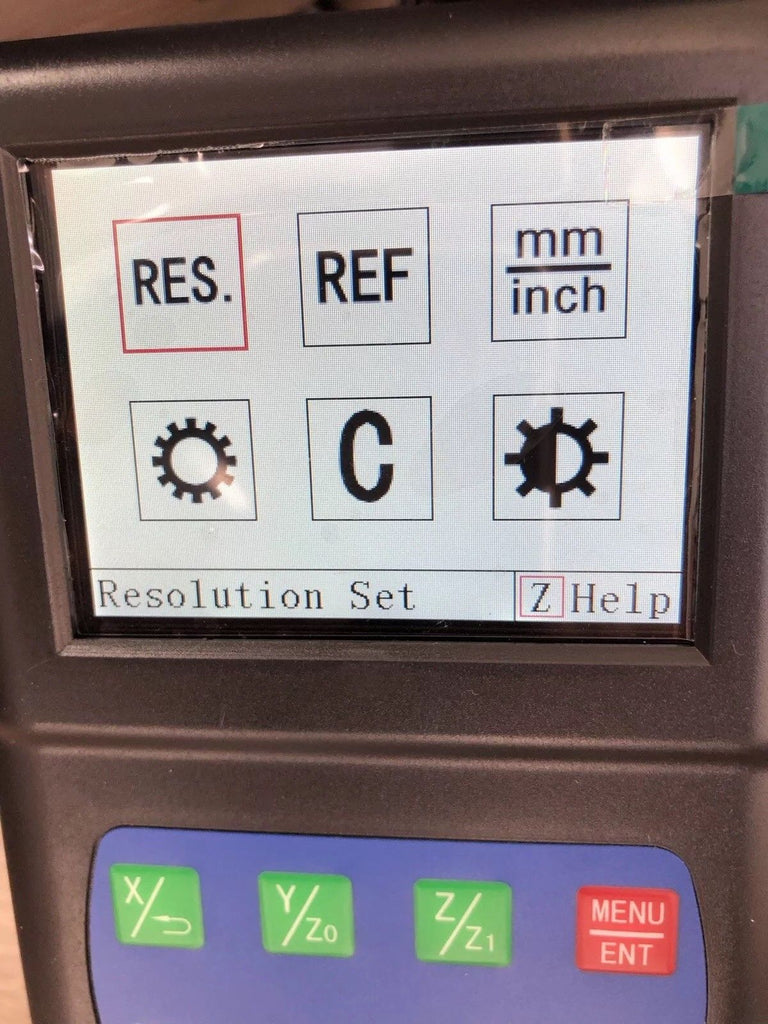

Resolution setting
Linear compensation
Counting Direction setting
ABS/INC Coordinate
1/2 Function
PLD functions
Radius / Diameter conversion
Y+Z function

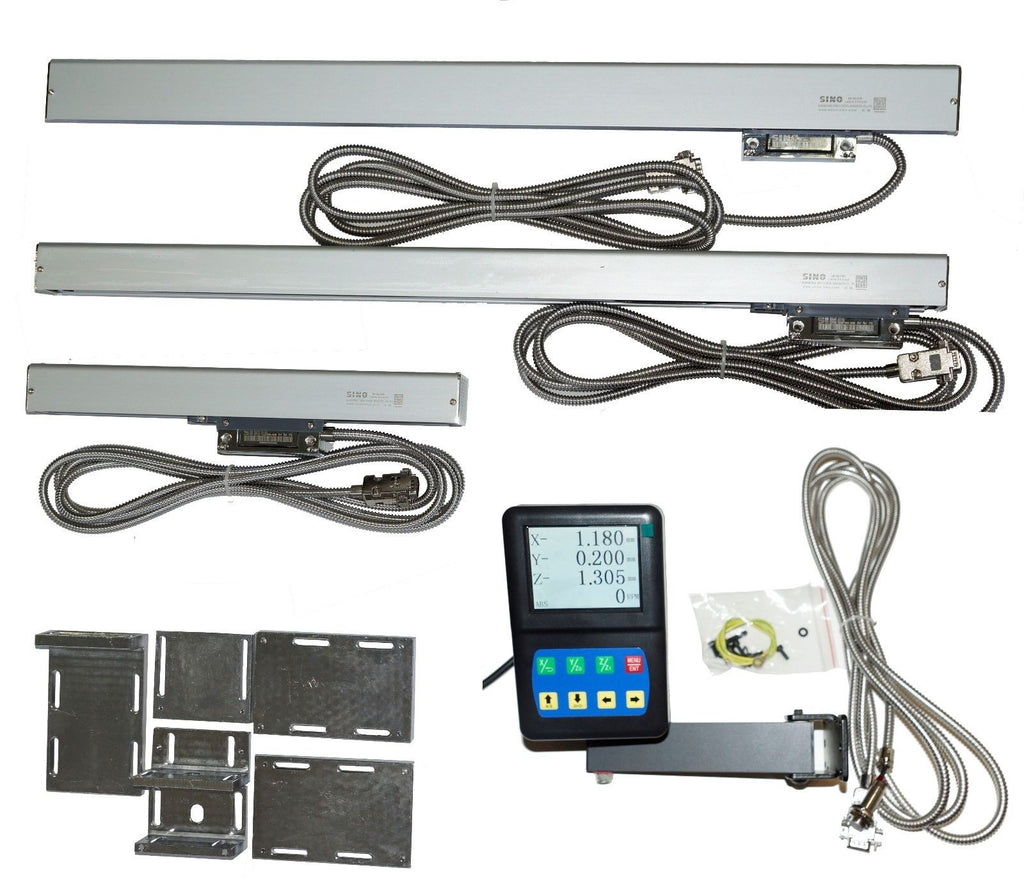

Features of linear scales

5µm scale resolution

Double seals design for better protection.

100% laser calibration

Extruded aluminum scale body

3m connection cable with 9 pin plug connection

Japanese NSK bearings are used on the scale slides for high precision and long life

Includes covers and screw

Section size of MK-300 scale is 25 x 34mm
1pc x Travel length: 220mm, Mounting Length 330mm

1pc x Travel length: 470mm, Mounting Length 580mm

1pc x Travel length: 670mm, Mounting Length 780mm
