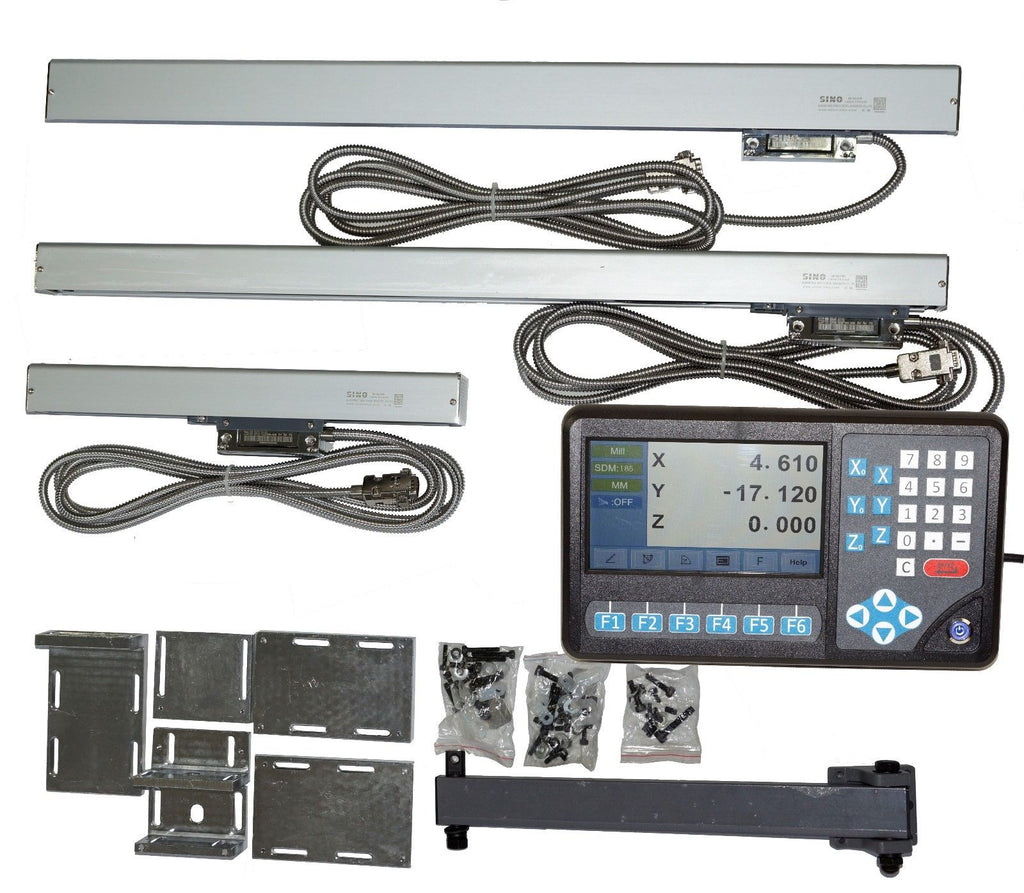

D80 LCD Digital Readout & Linear Scales Kit (470mm x 1, 670mm x 1, 920mm x 1)

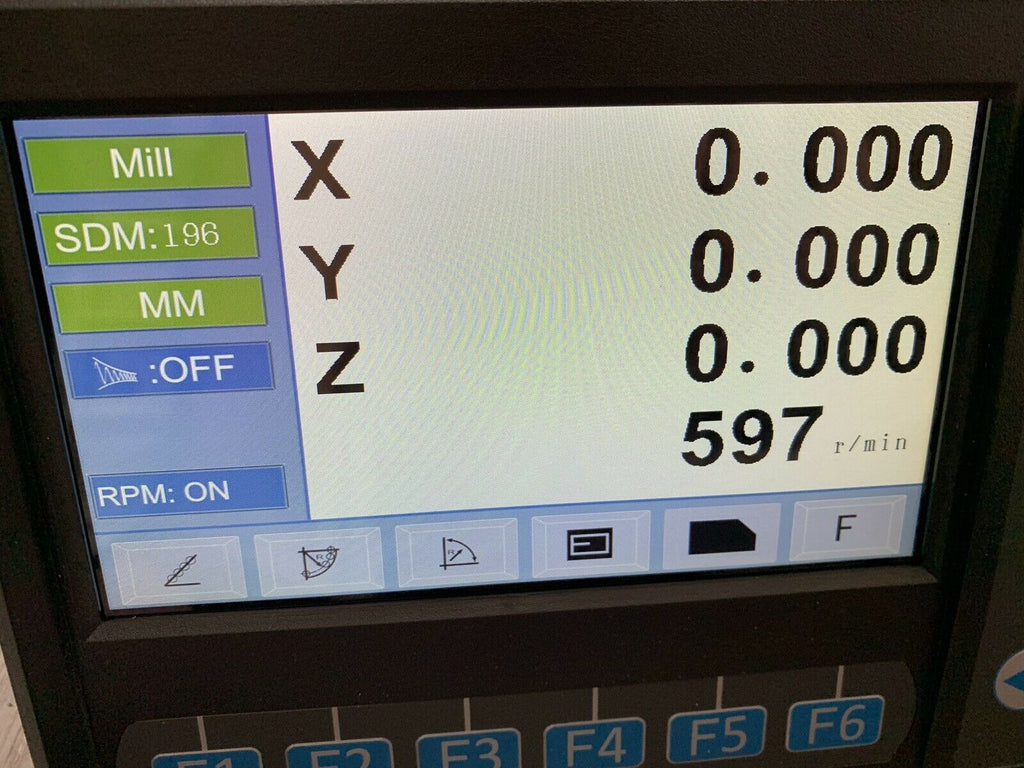

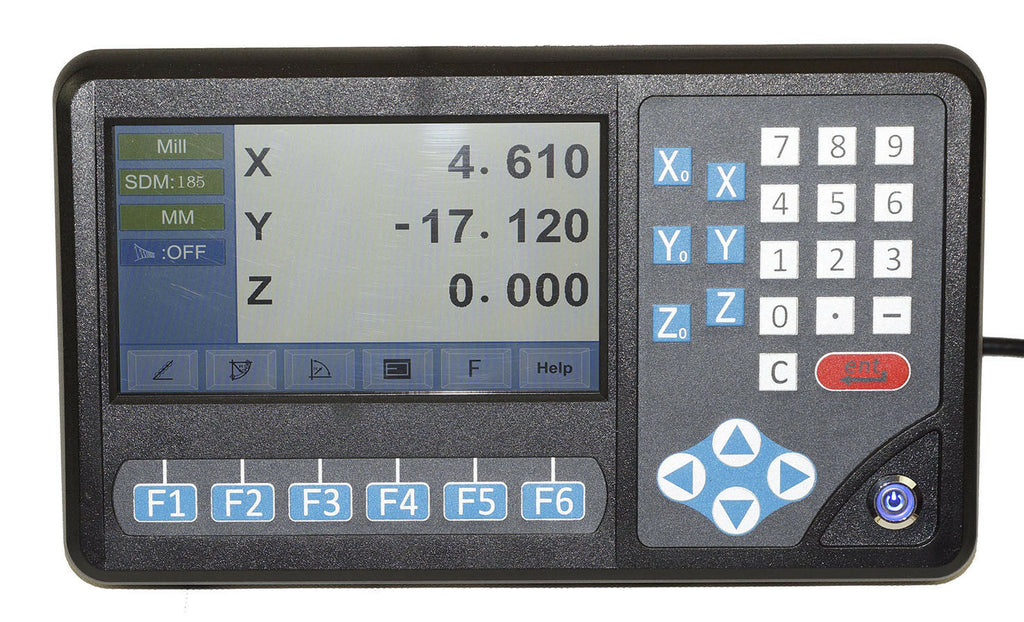

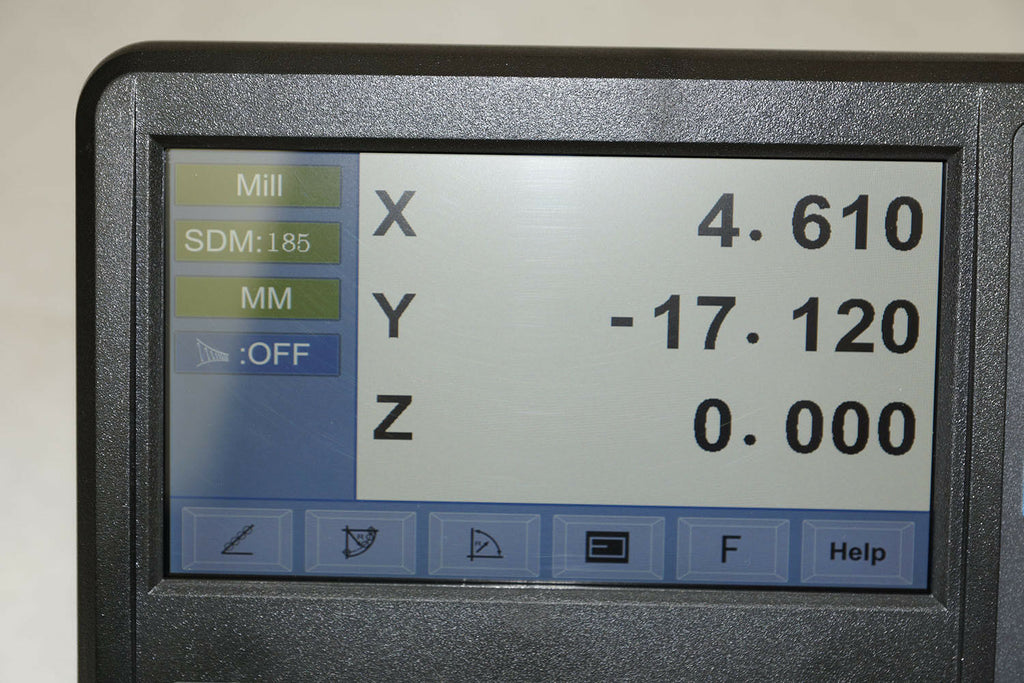

BIG LCD SCREEN ,  STORAGE & PREVIEW OF DRAWINGS, TOOL LOCATION TRACK, SPINDLE RPM DISPLAY, INCLUDES SPEED SENSOR AND THE CABLE. AUSTALIA APPROVED 3-PIN 240V PLUG

You can select functions for lathe or mill or grinder inside the system.  Electronic operation instructions are stored inside the DRO.

Features of DRO

Basic Functions :
You can select functions for lathe or mill or grinder
Zeroing ,Data Recovery
Input Coordinate
Metric /British Units
Power off memory function
Encoder setting
Resolution setting
Linear compensation
Counting Direction setting

Processing Functions :

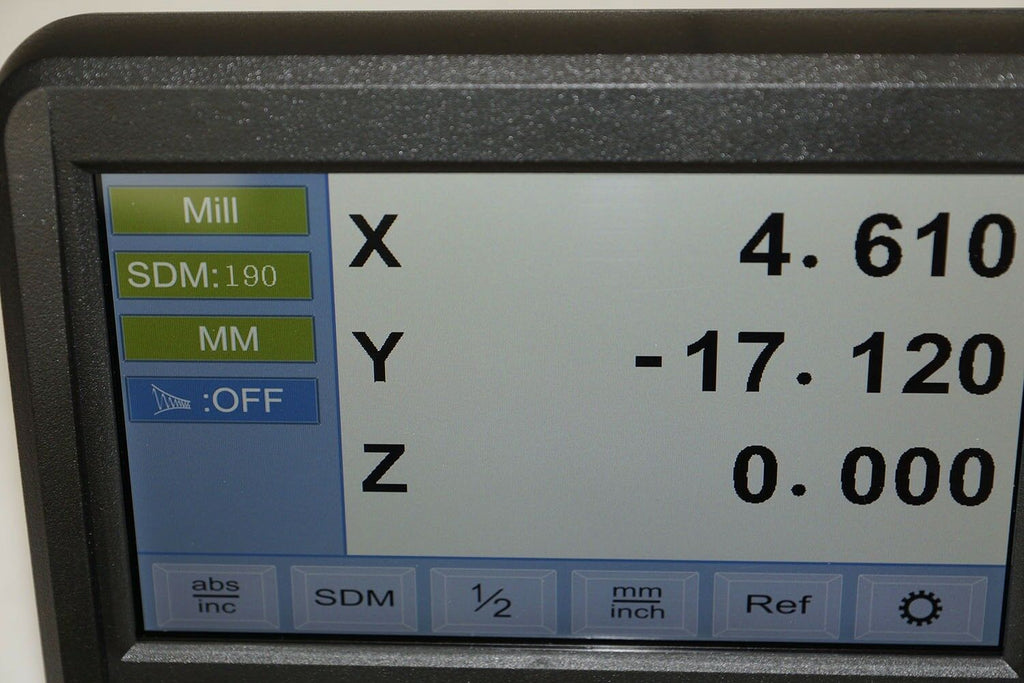

ABS/INC Coordinate
200 sets SDM Coordinate
REF
Calculator
None-Linear compensation
1/2 Function
Sleeping function
Tools offsets

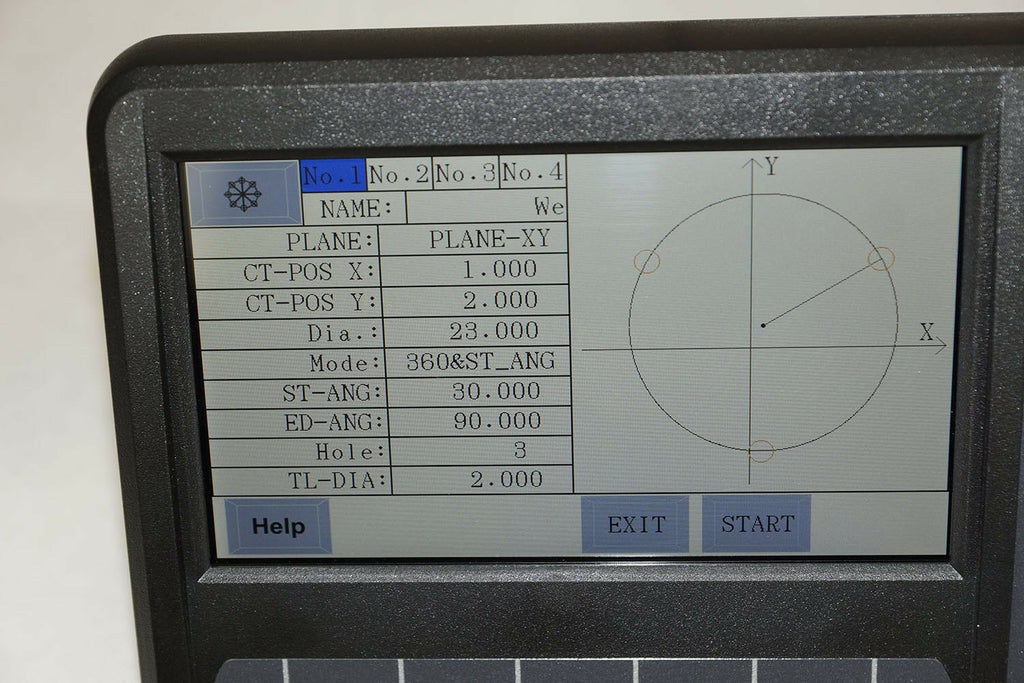

PLD functions
Simple R function

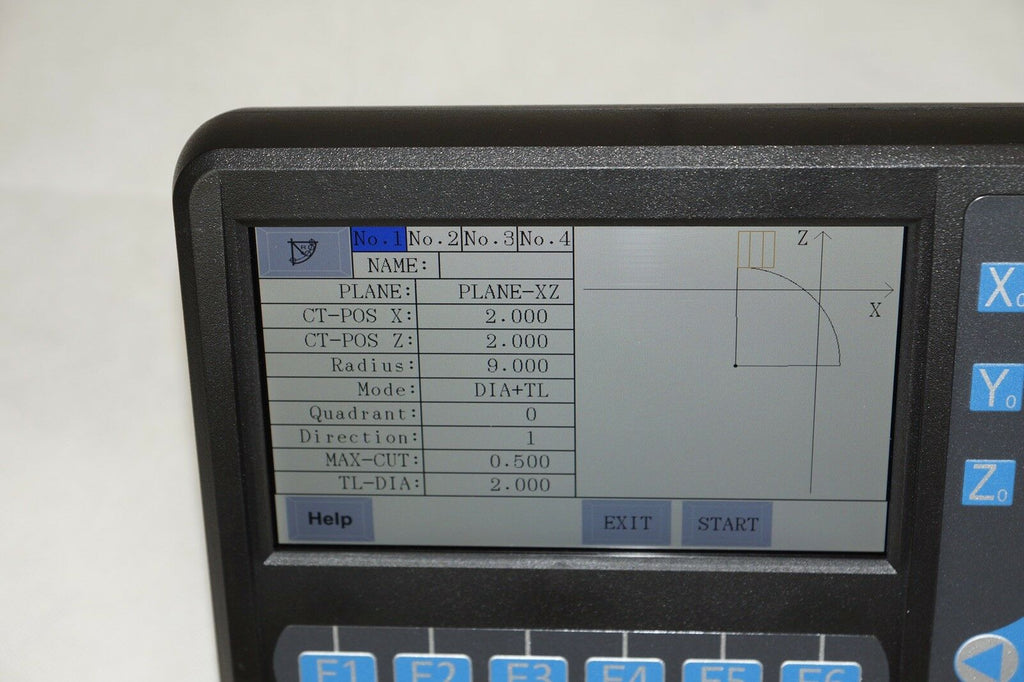

Smooth R function
Rectangle Chambering Function
Taper Measuring
Radius / Diameter conversion
Y+Z function
Digital Filtering Function

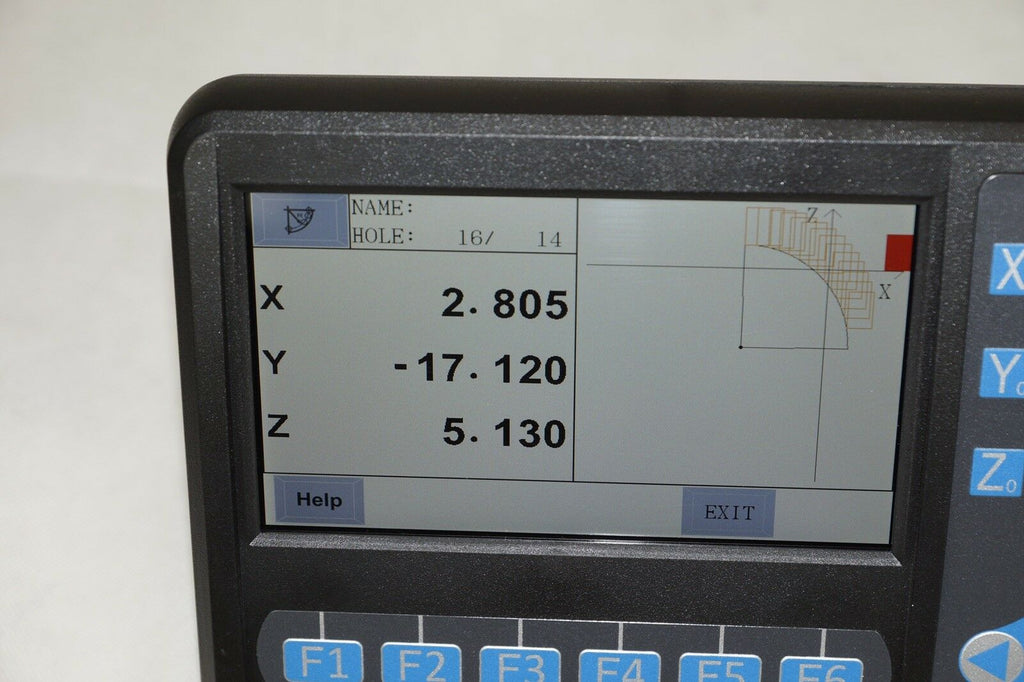

Preview Drawing function

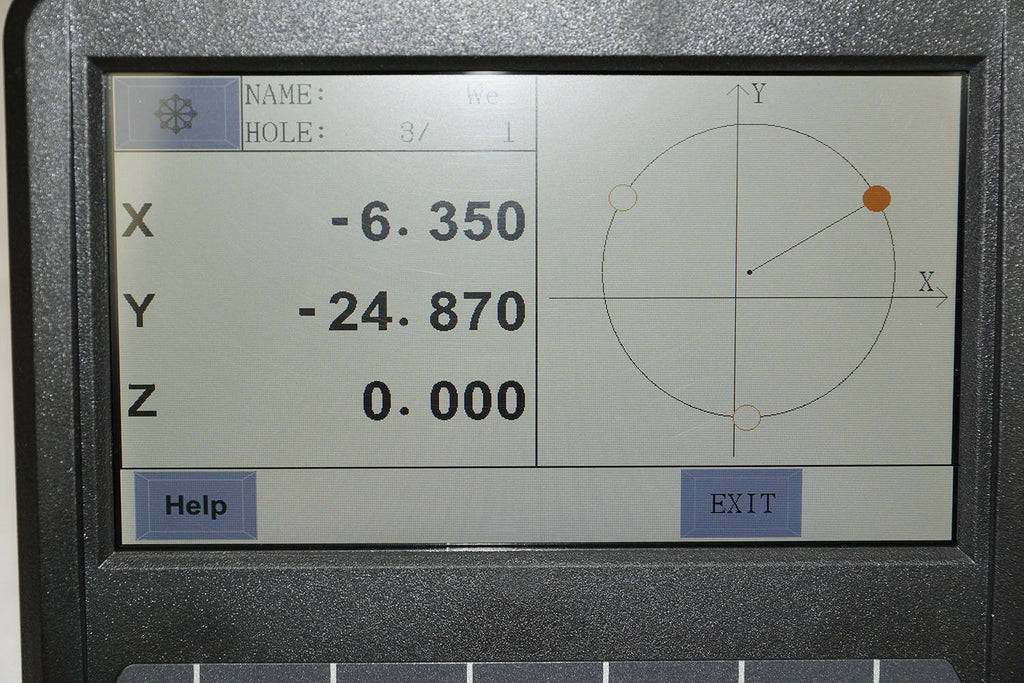

Tool location displaying
Axis summing (same direction )

Features of linear scales

5µm scale resolution

Double seals design for better protection.

100% laser calibration

Extruded aluminum scale body

3m connection cable with 9 pin plug connection

Japanese NSK bearings are used on the scale slides for high precision and long life

Includes covers and screw

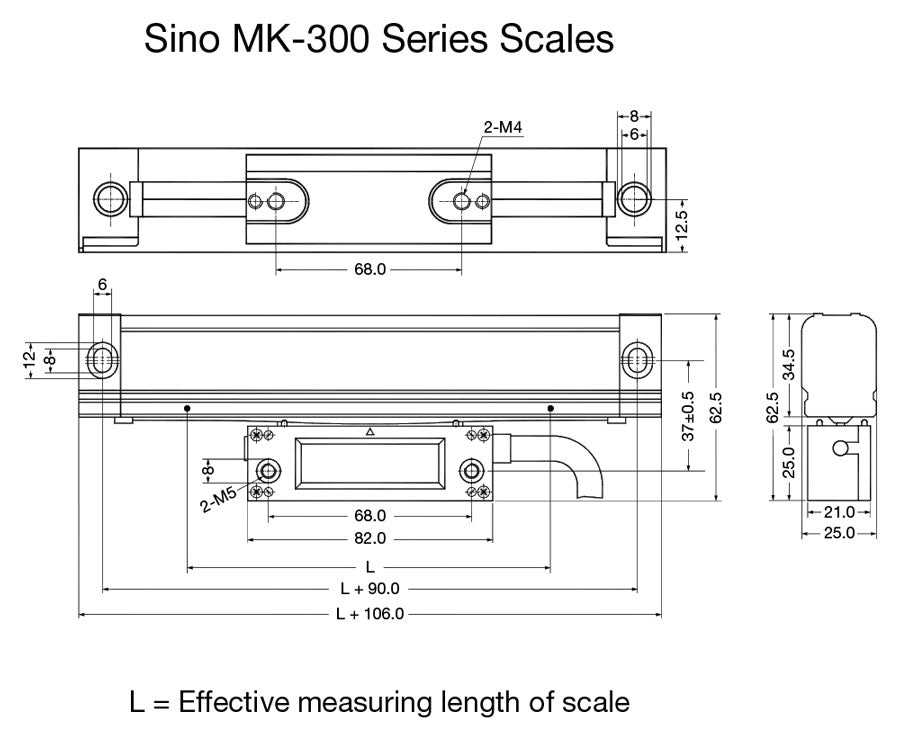

Section size of MK-300 scale is 25 x 34mm
1pc travel length: 470mm, mounting length 580mm

1pc travel length: 670mm, mounting length 780mm

1pc travel length: 920mm, mounting length 1030mm
