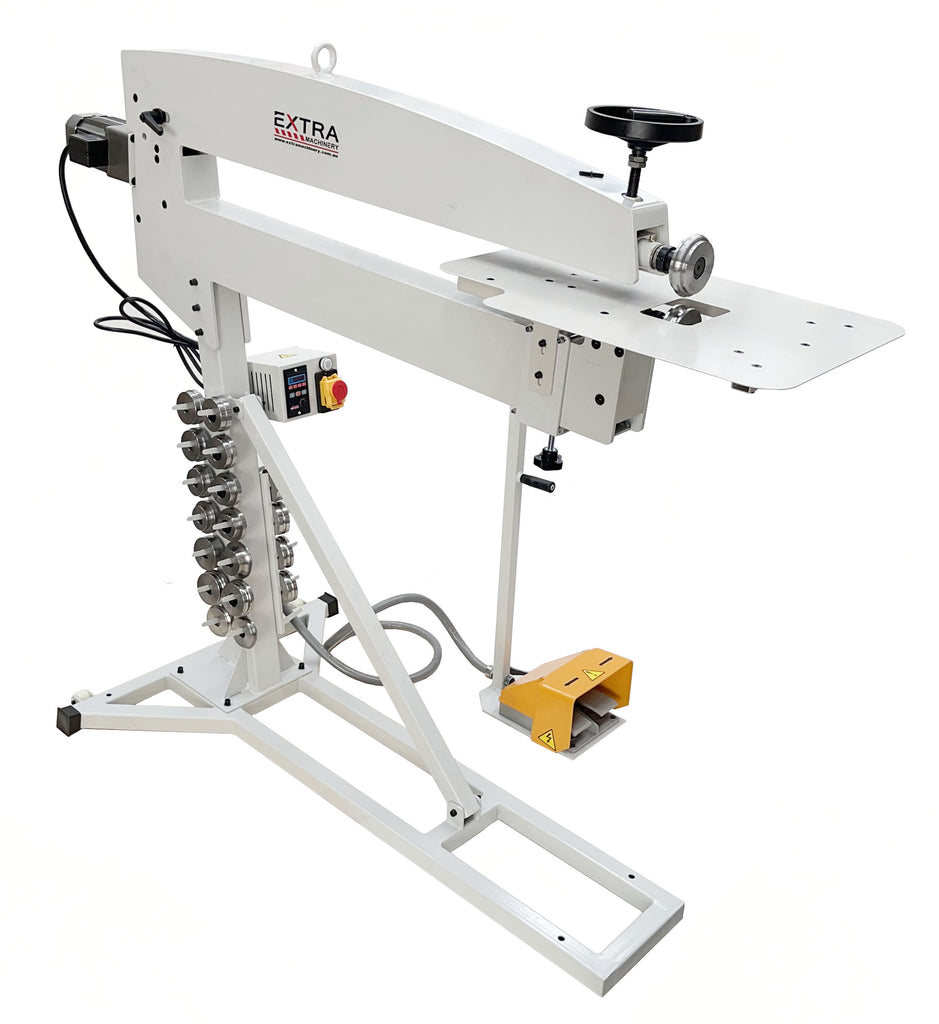

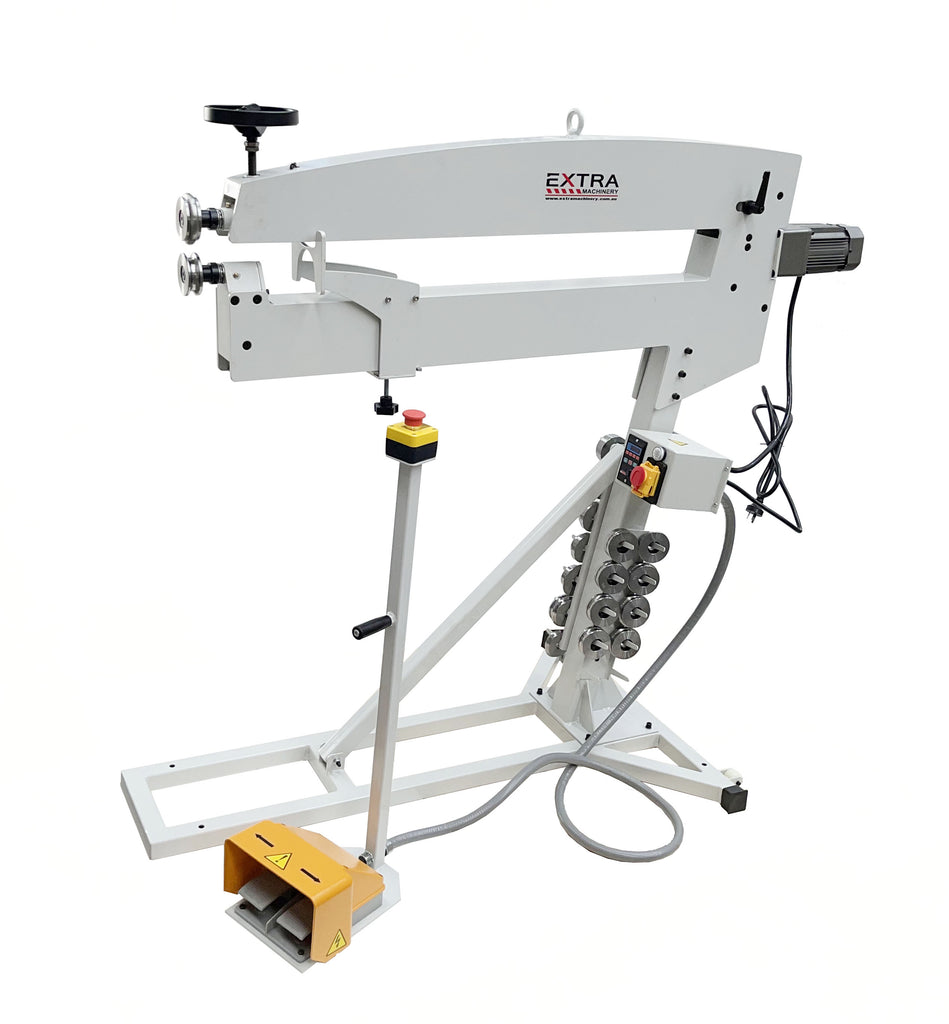

DELUXE EB-1070 Motorised Bead Roller 1.2mm Capacity 1070mm Throat (PACKAGE KIT)

Extra Machinery Pty Ltd

$1,700.00

SKU: EB1070D

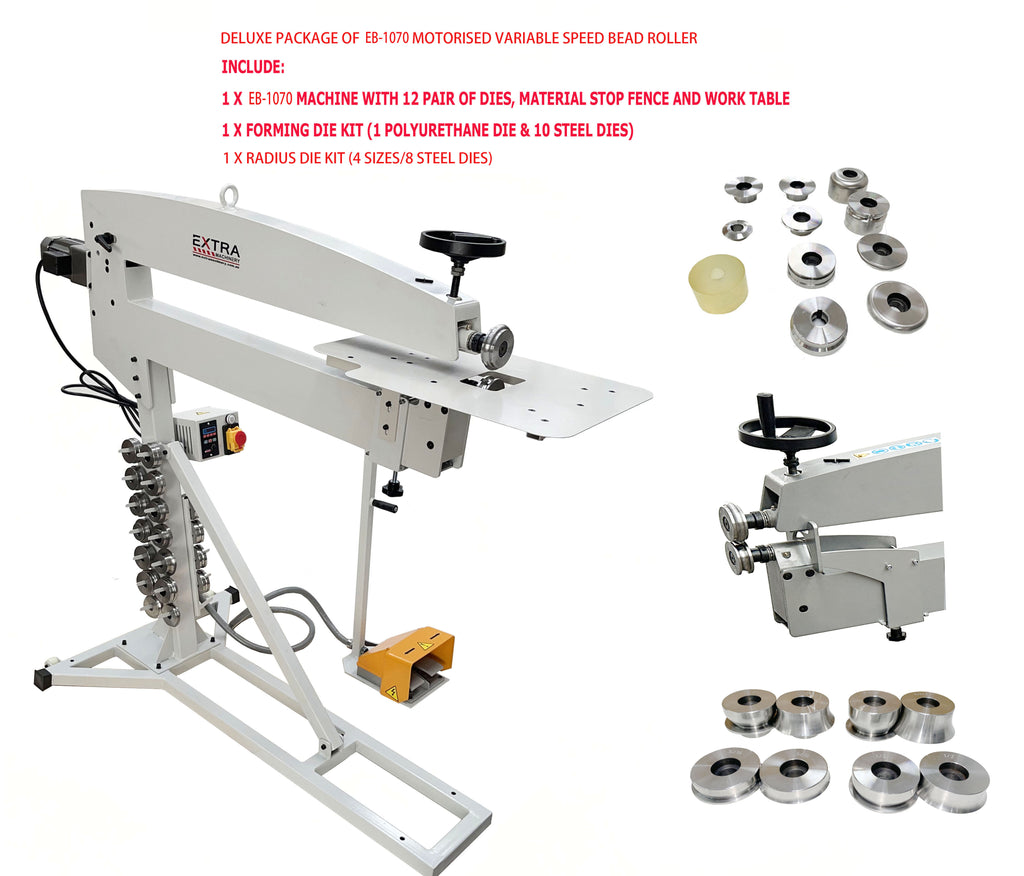

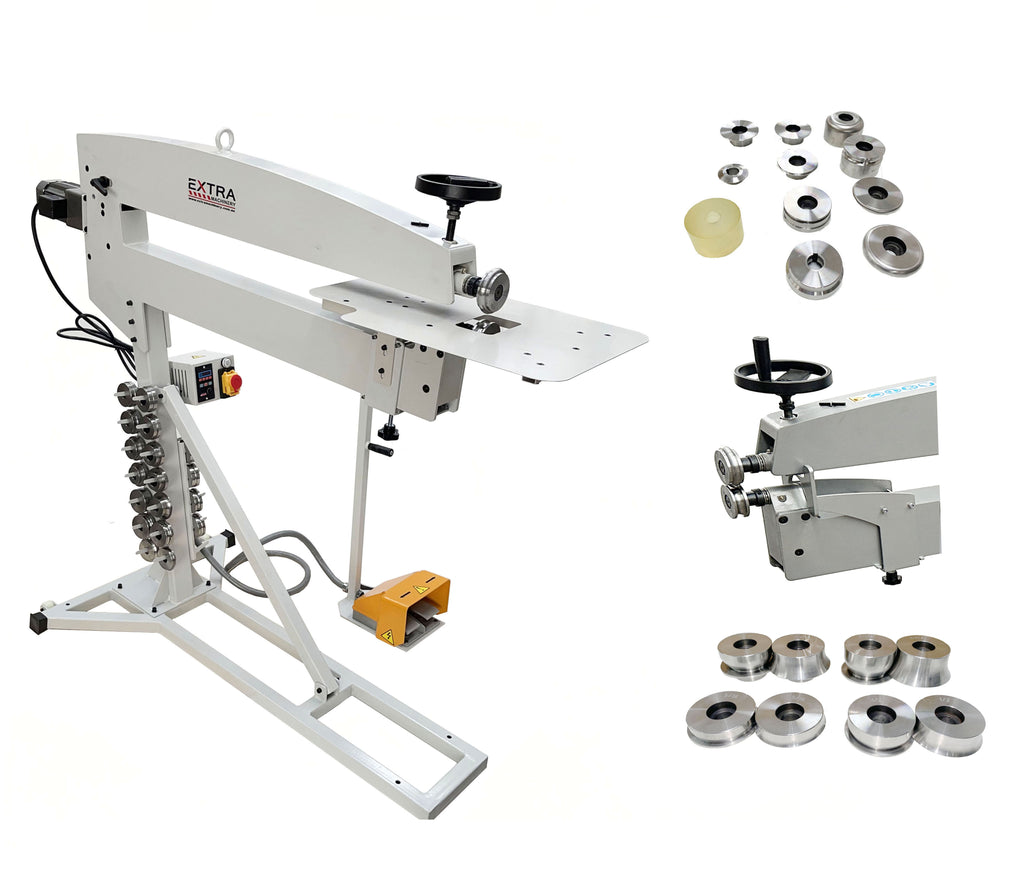

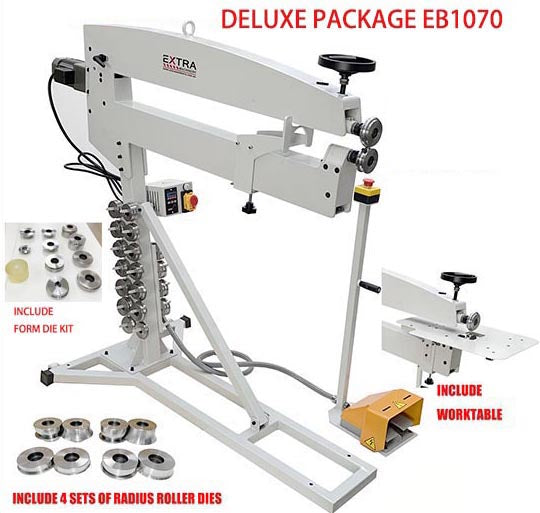

NEW PACKAGE KIT INCLUDES FORMING DIE KITS AND 4 SETS OF RADIUS ROLLER DIES & WORK TABLE (NET WEIGHT 178KG)

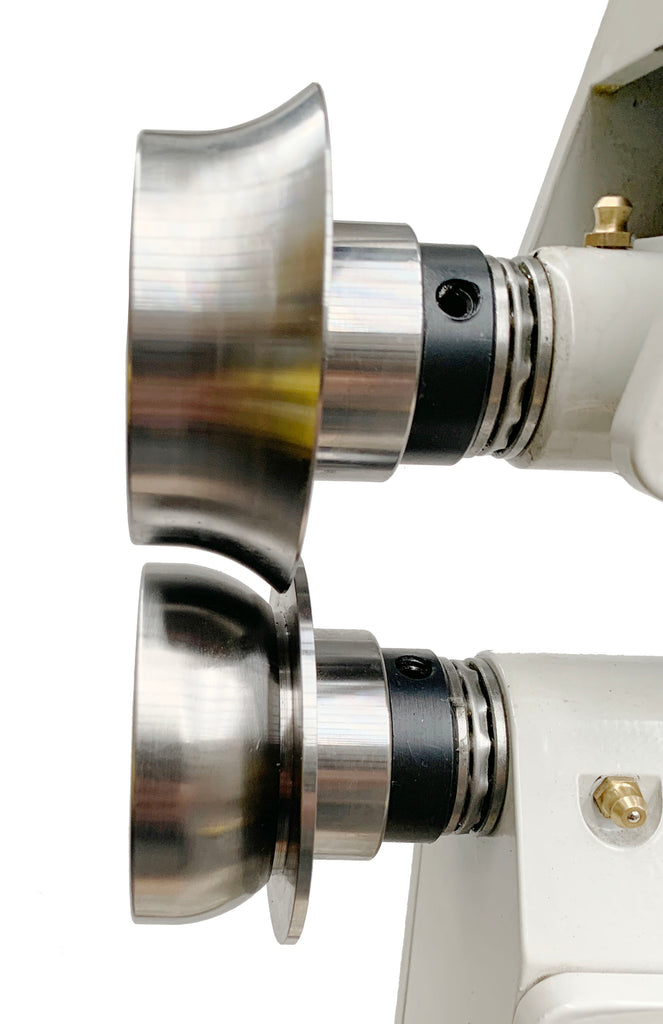

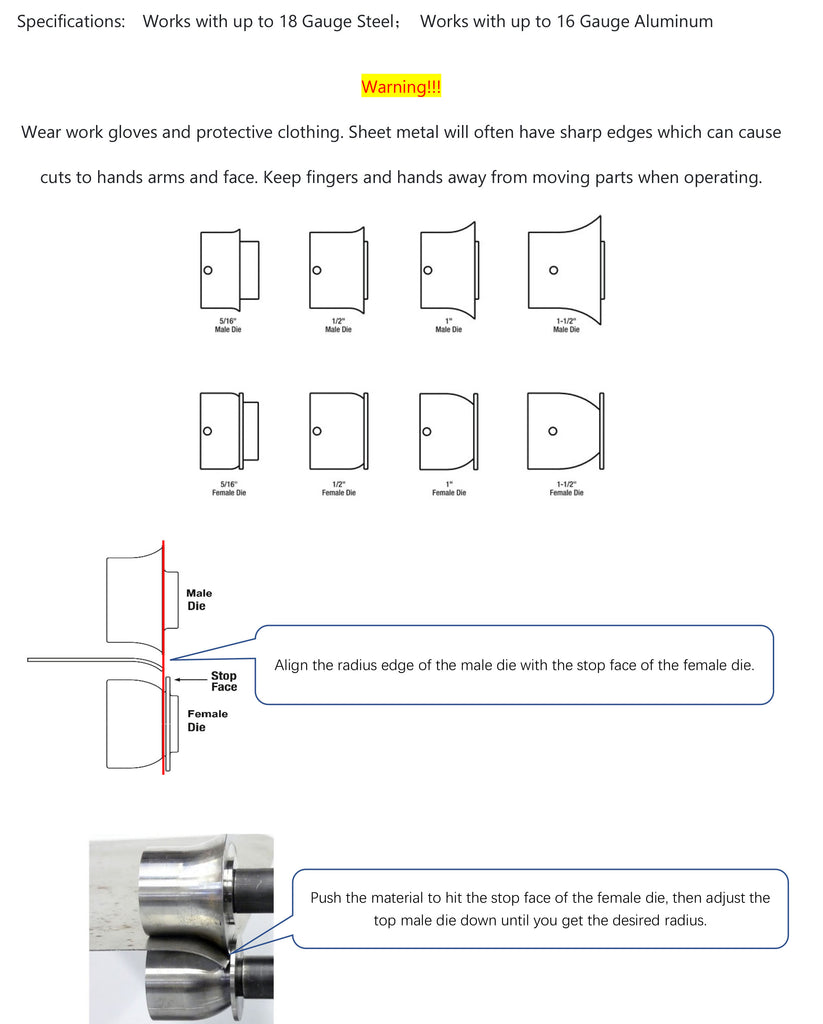

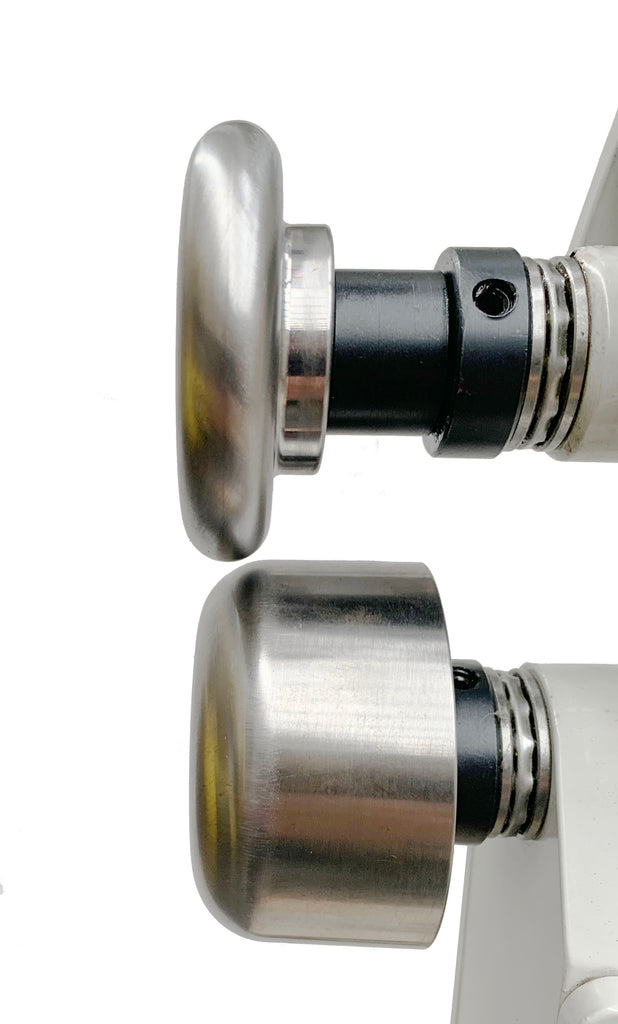

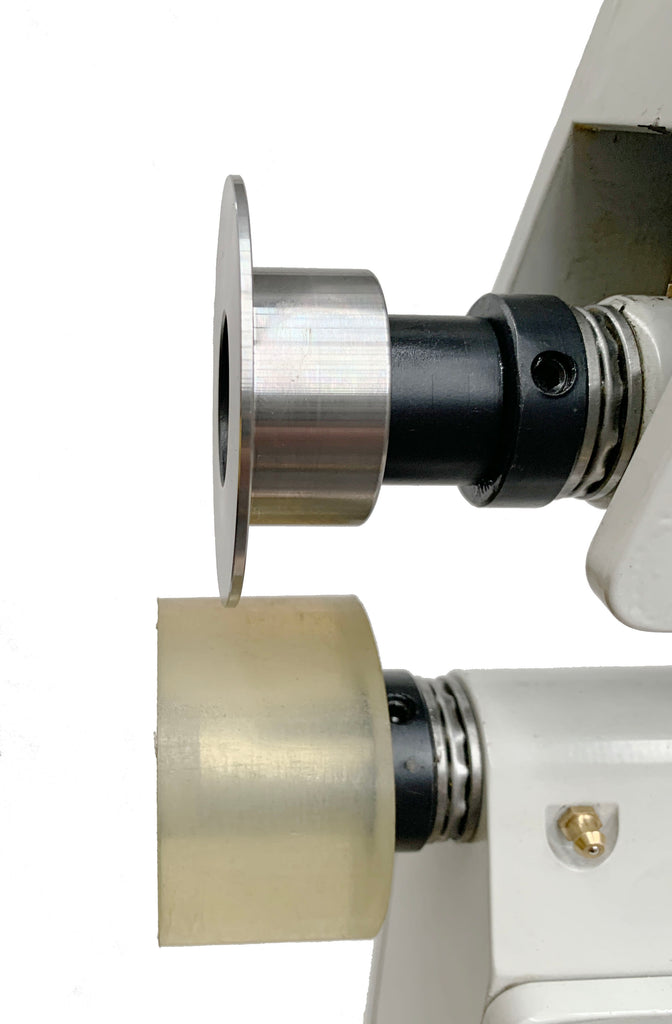

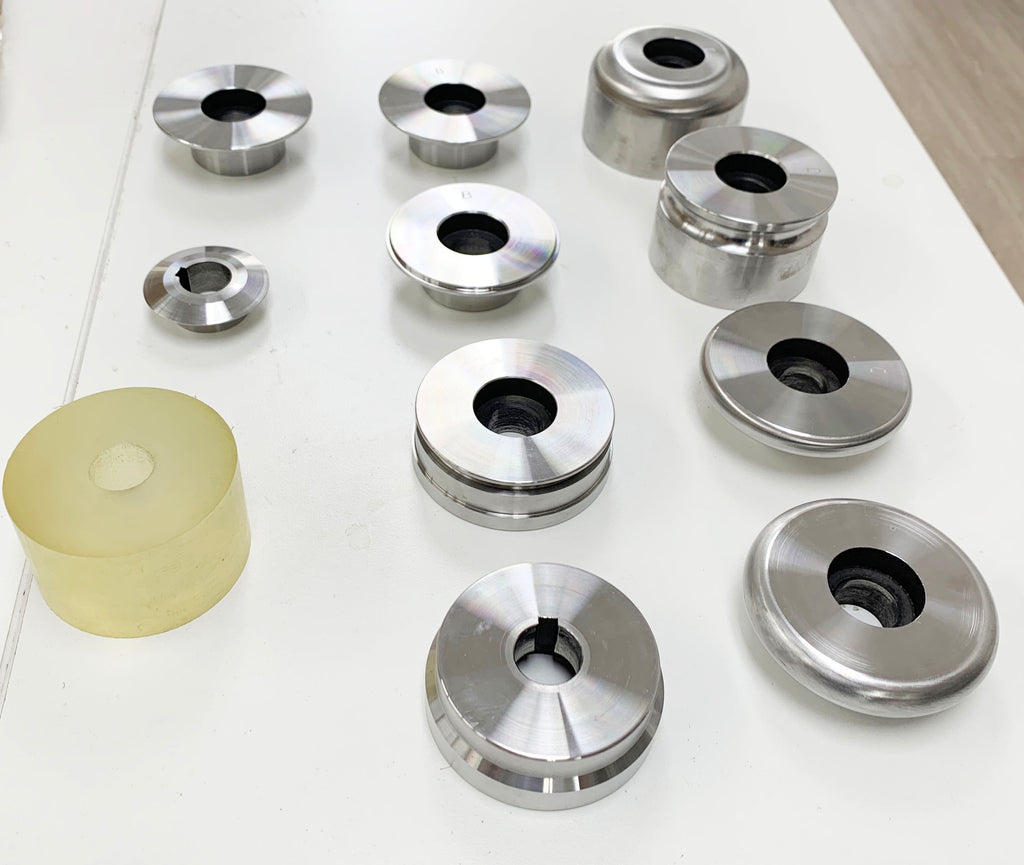

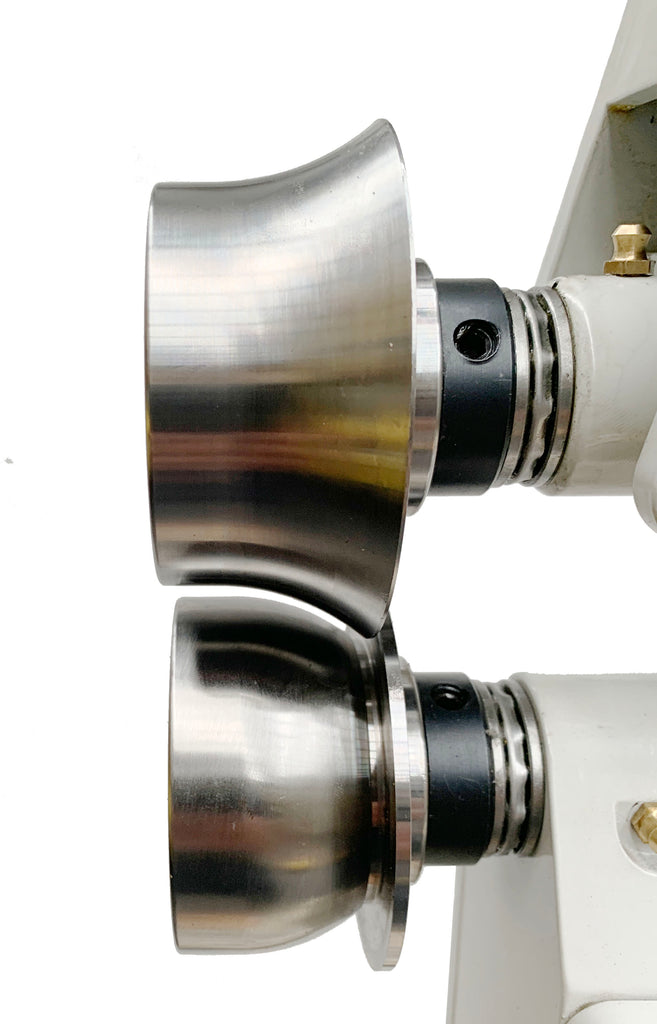

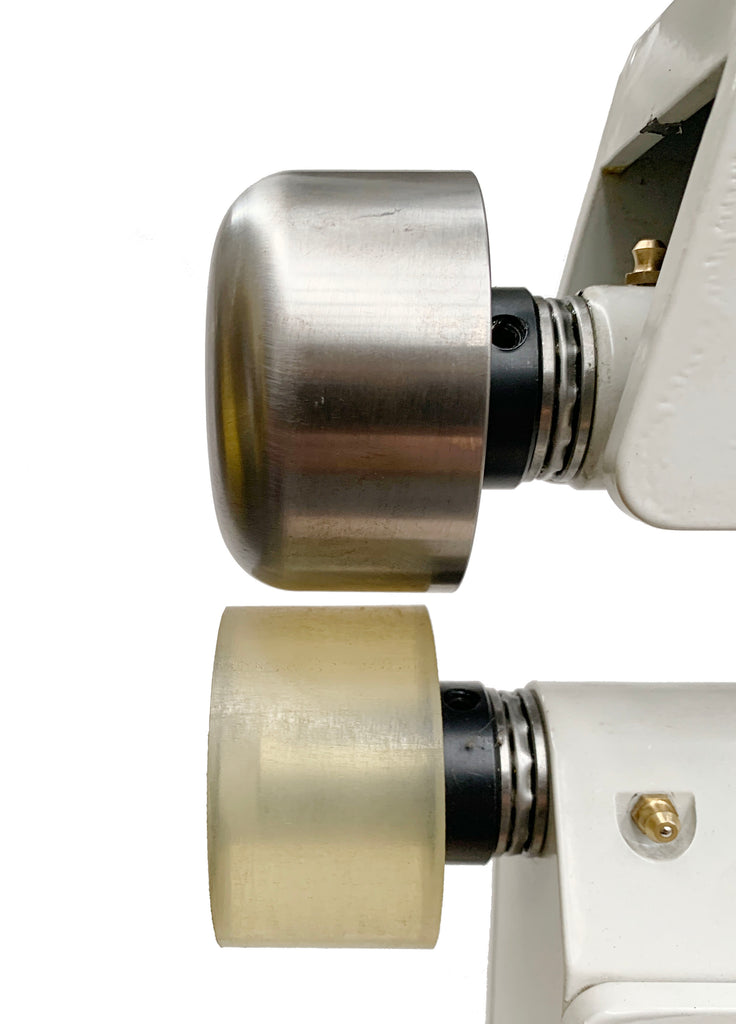

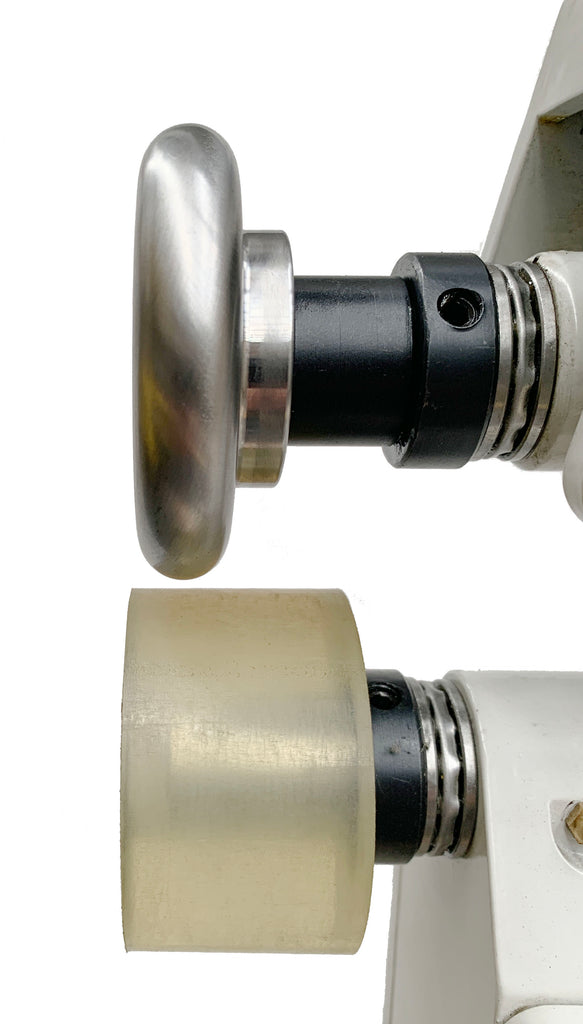

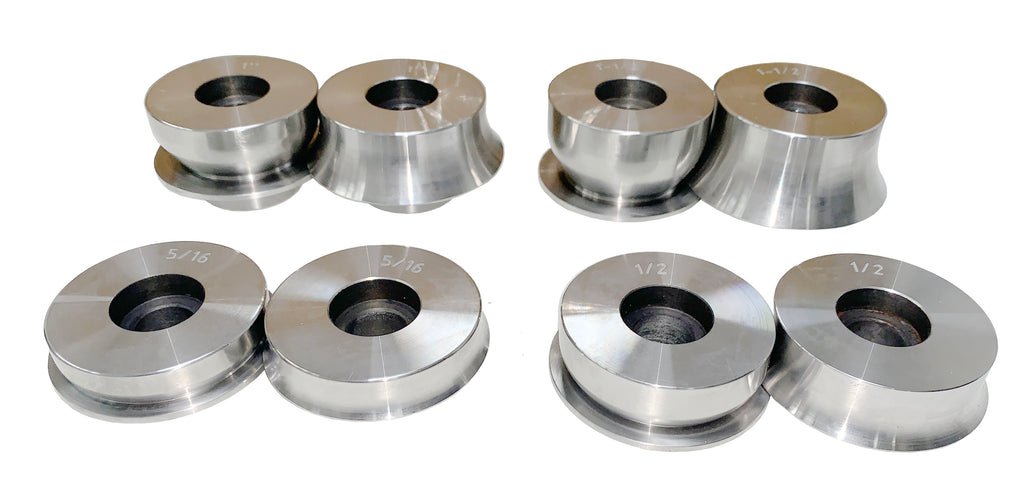

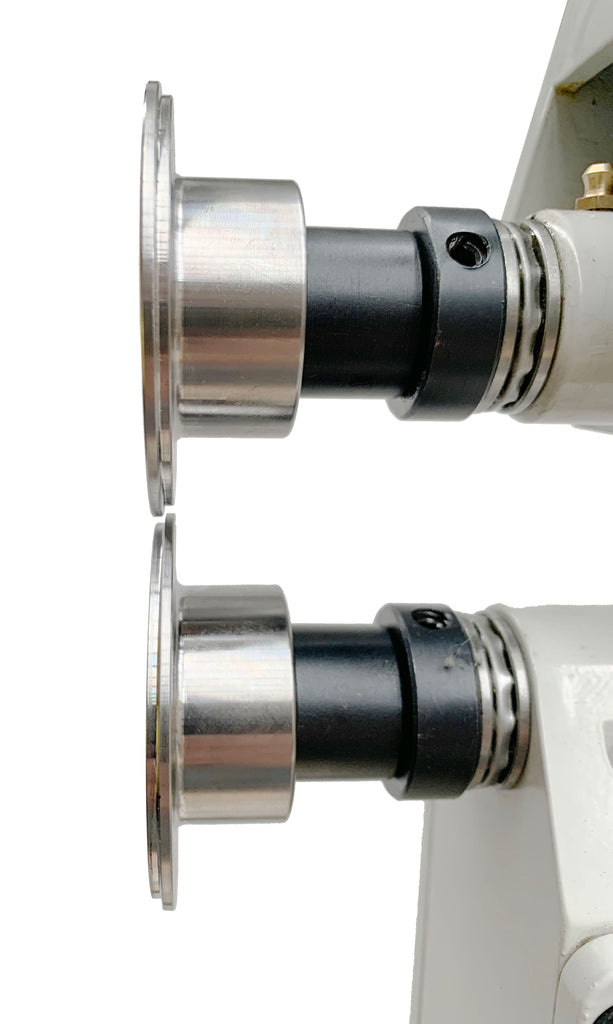

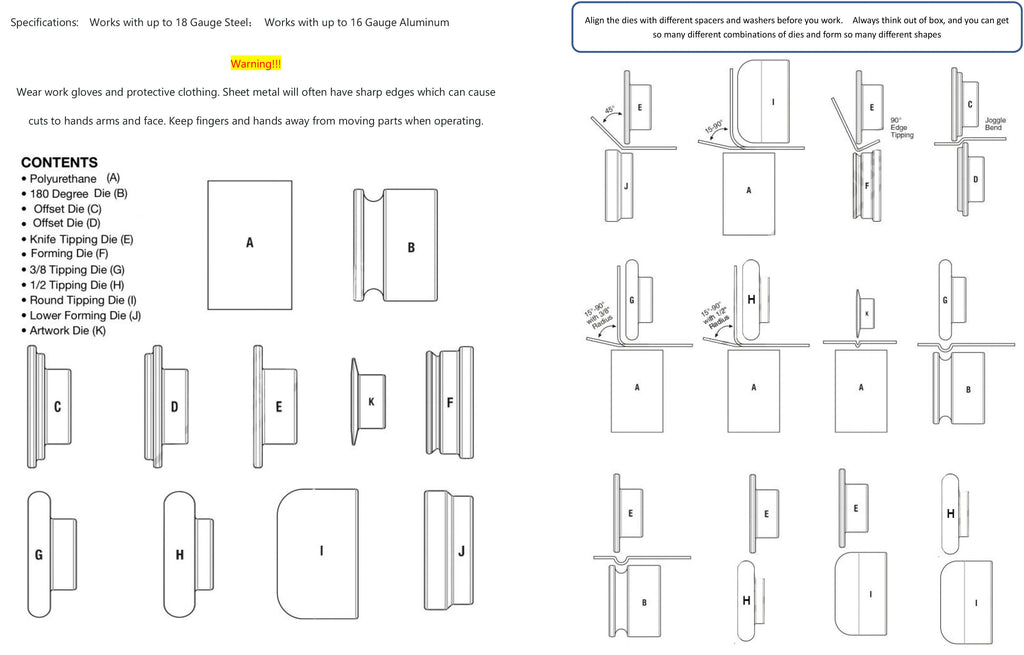

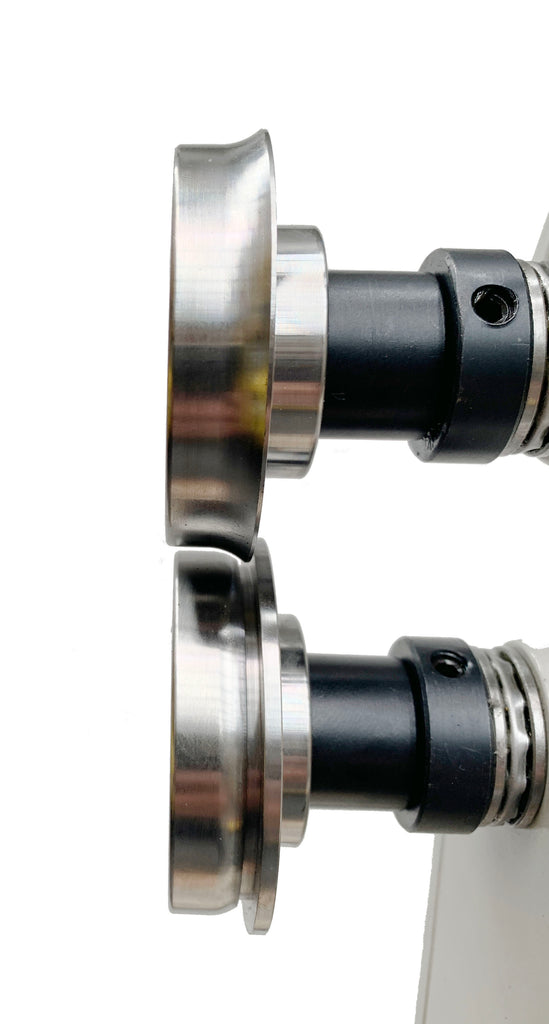

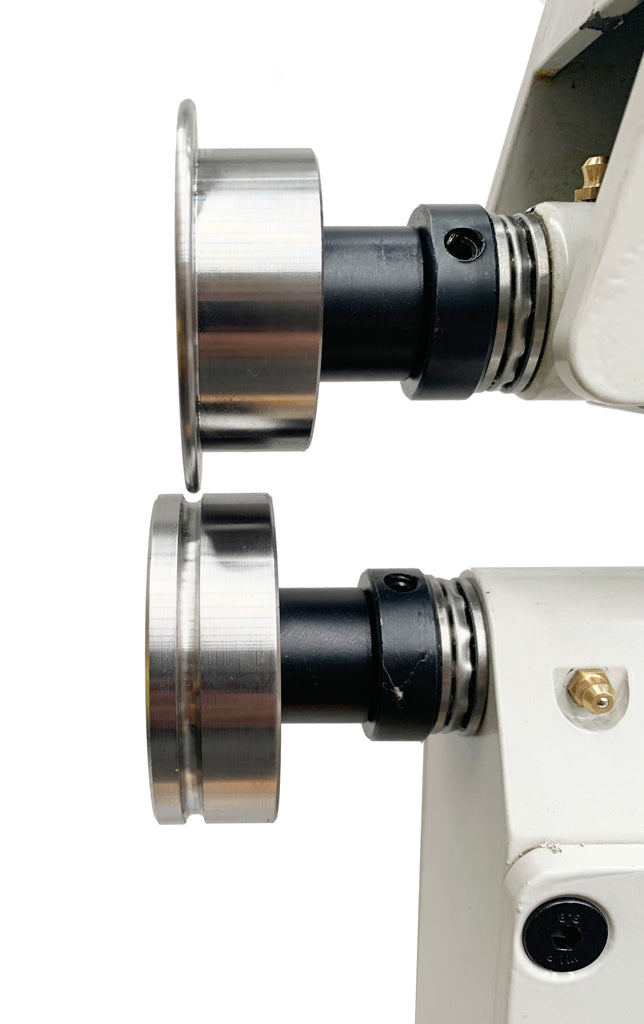

EB1070 Bead Roller +F6331E Forming Kit dies +F6332E Radius Dies

  •  Maximum bending capacity 1.2mm mild steel
  •  1070mm throat depth, and 2140mm panel can be  processed from roller centre
  •  Motorised roller shafts with gear reduction box

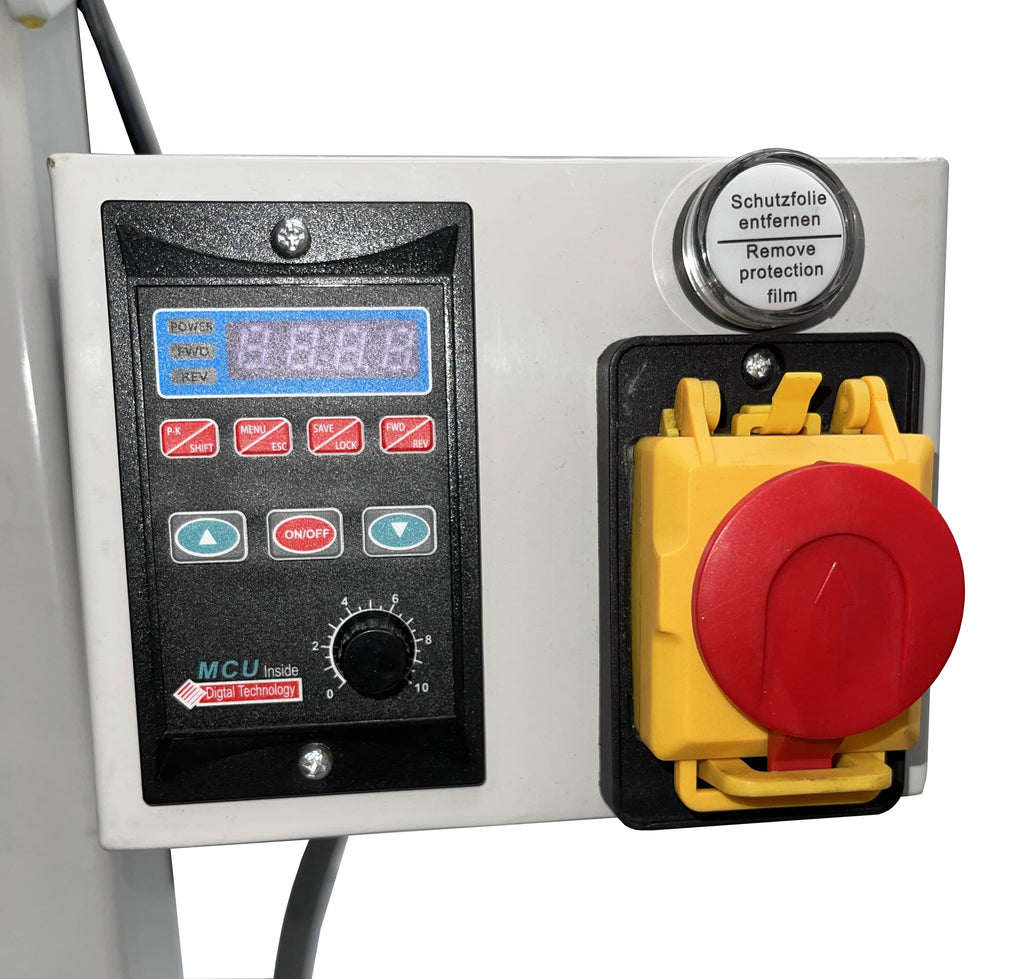

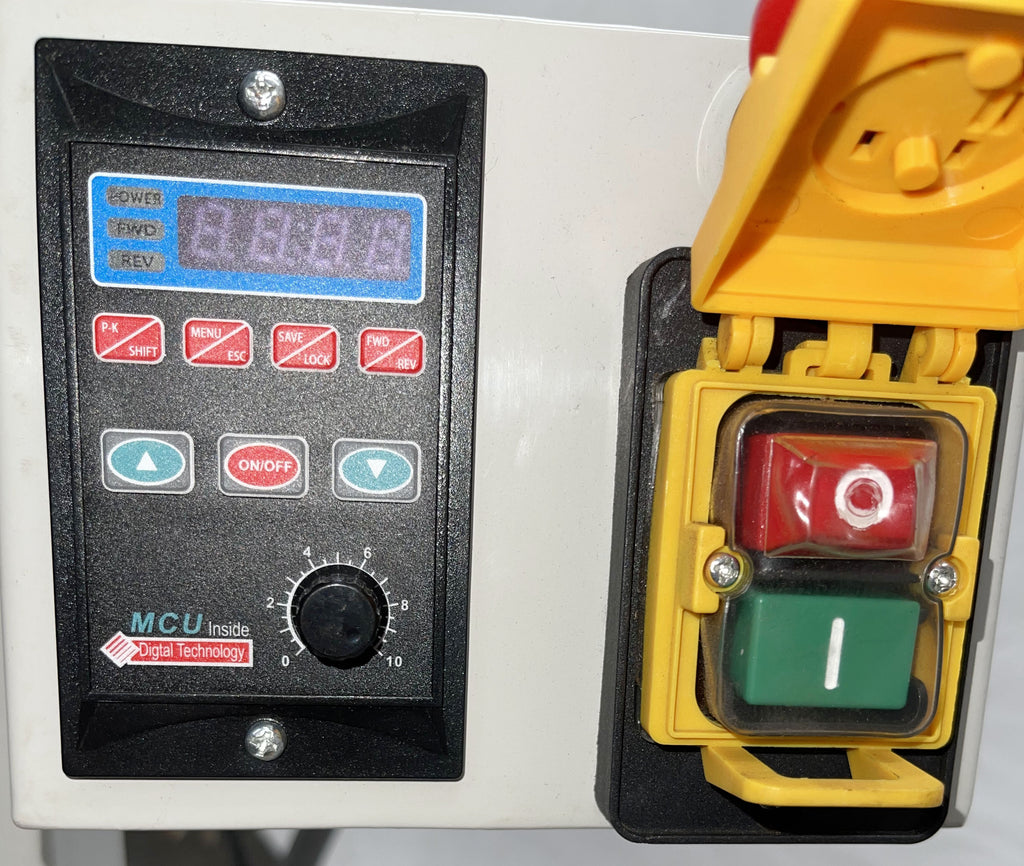

  •  240V single phase motor with variable speed control
  •  Foot pedal switches to control forward/reverse running.
  •  105mm distance between top & bottom roller supports
  •   Top shaft moves forward/backward to align the centre lines of top/bottom rollers
  •   Big hand wheel adjusts the depth of top roller.

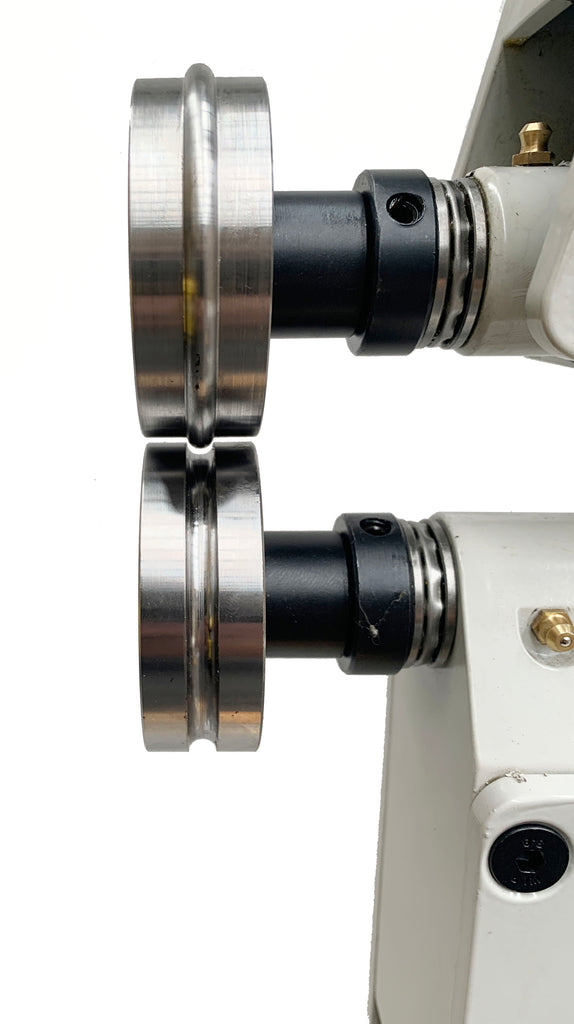

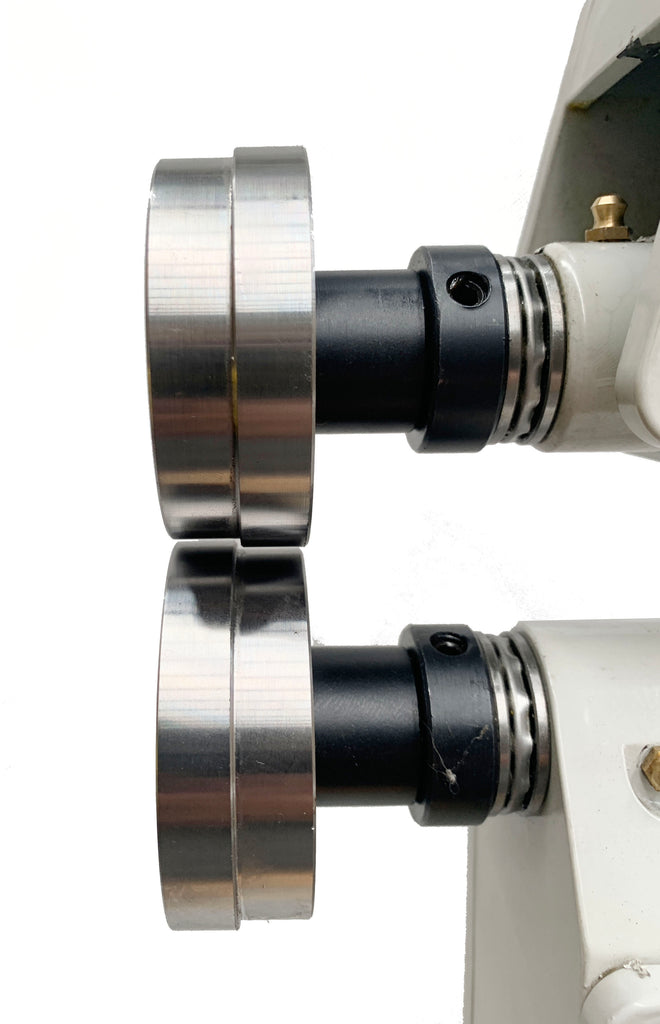

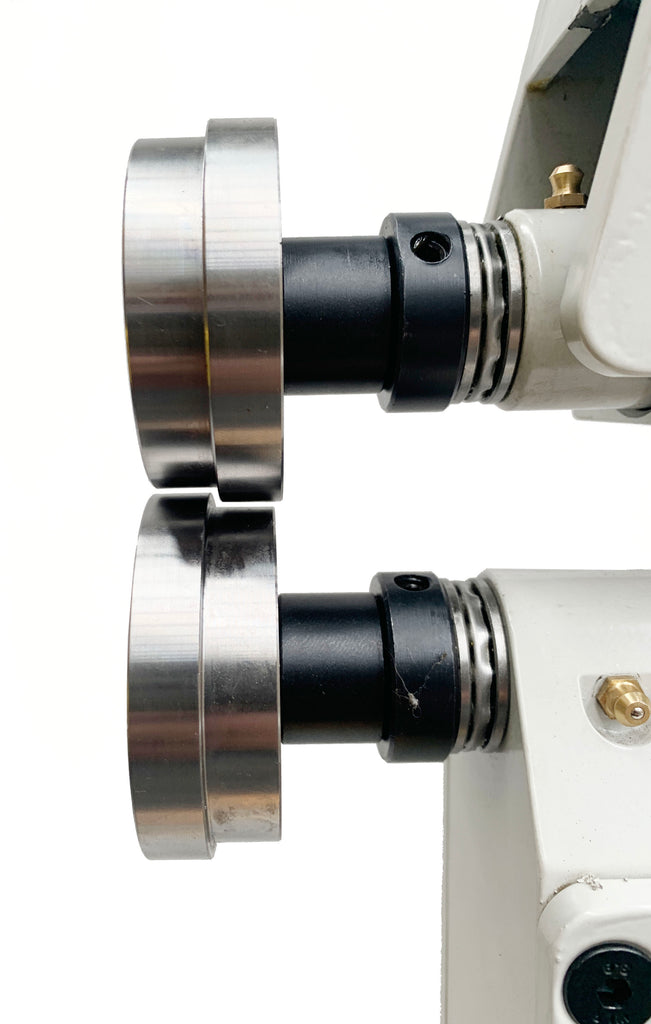

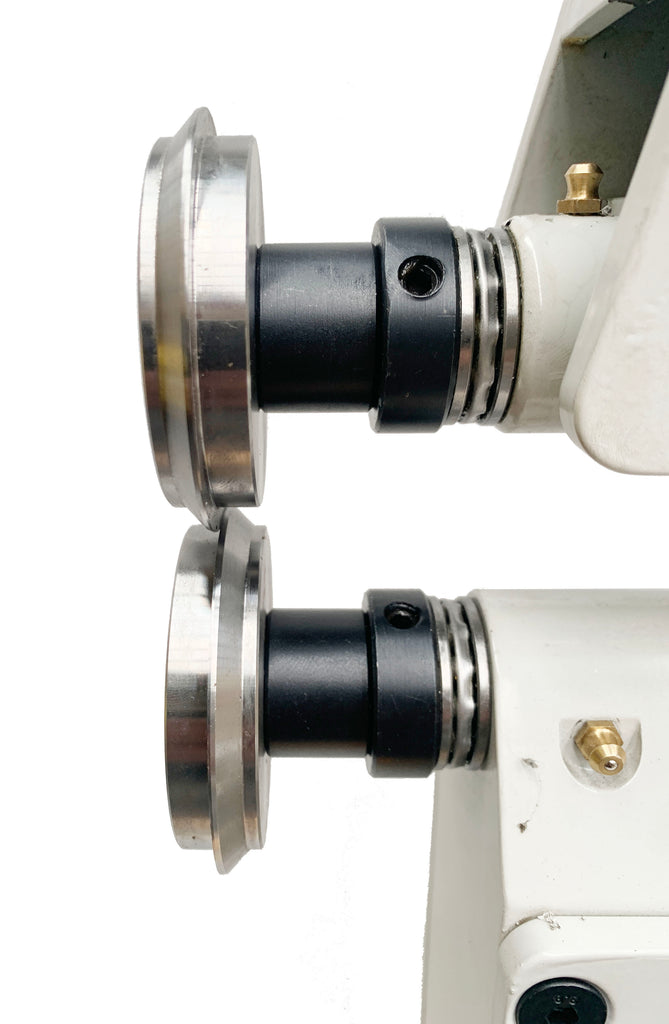

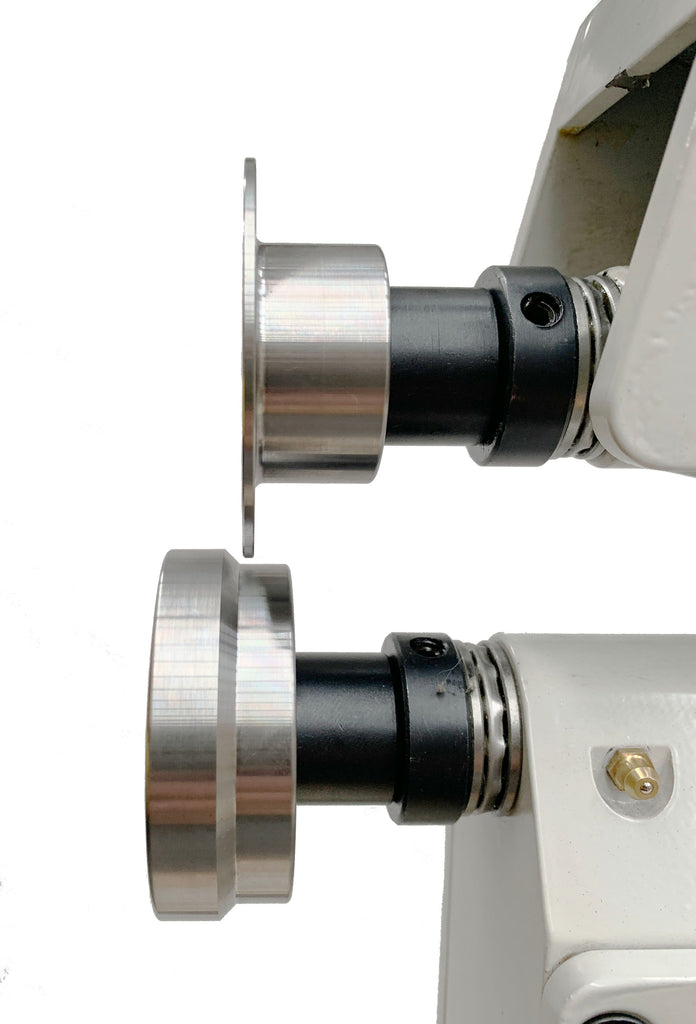

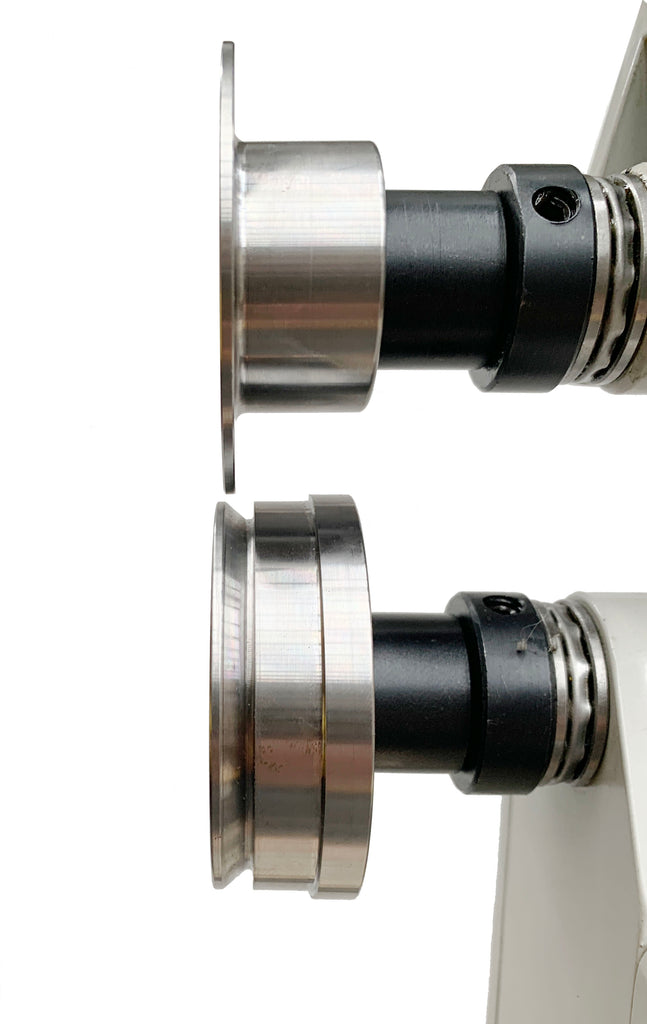

  •   All rollers are hardened, and keyway mounted

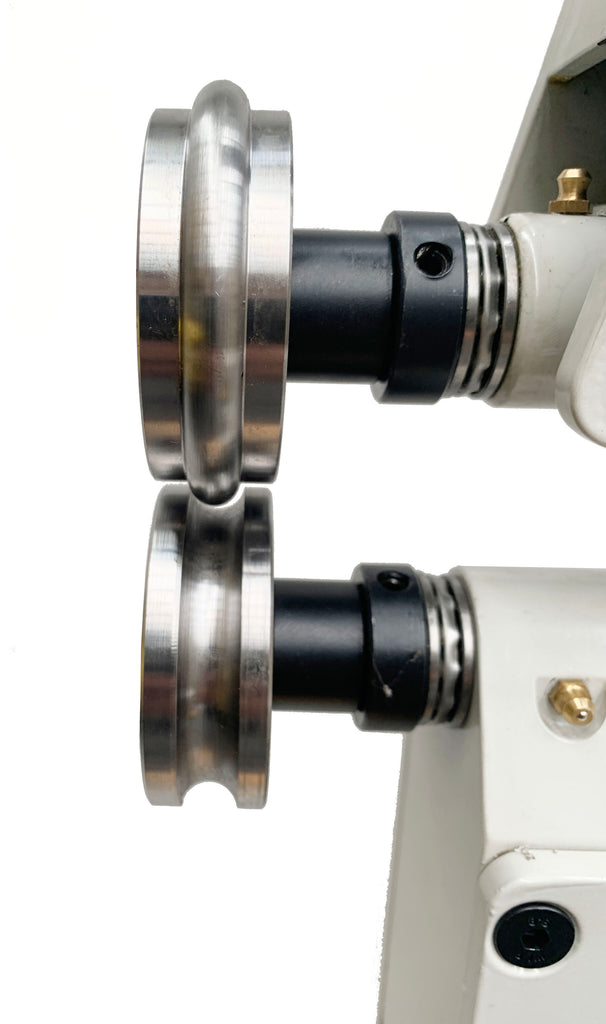

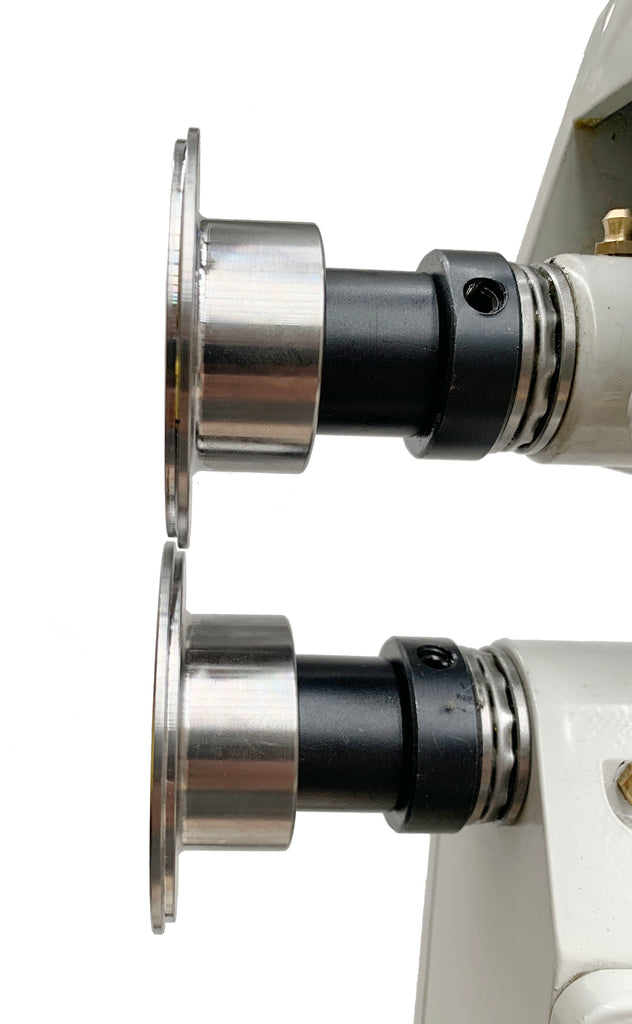

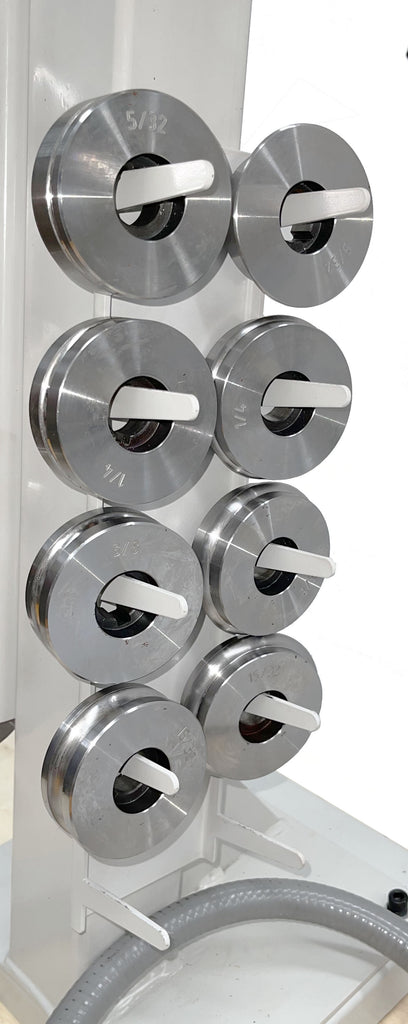

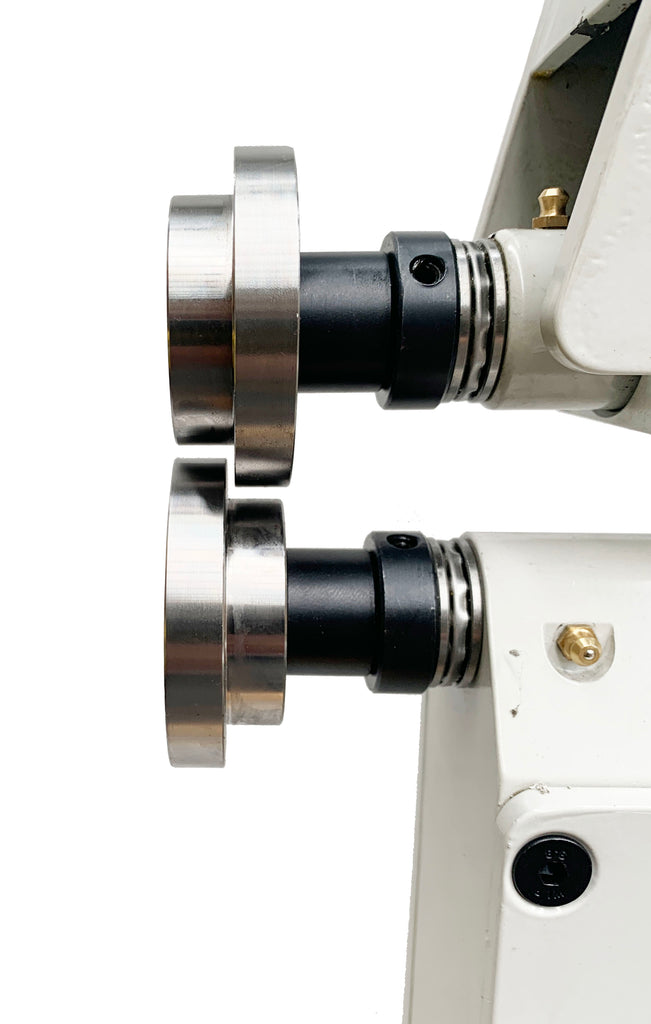

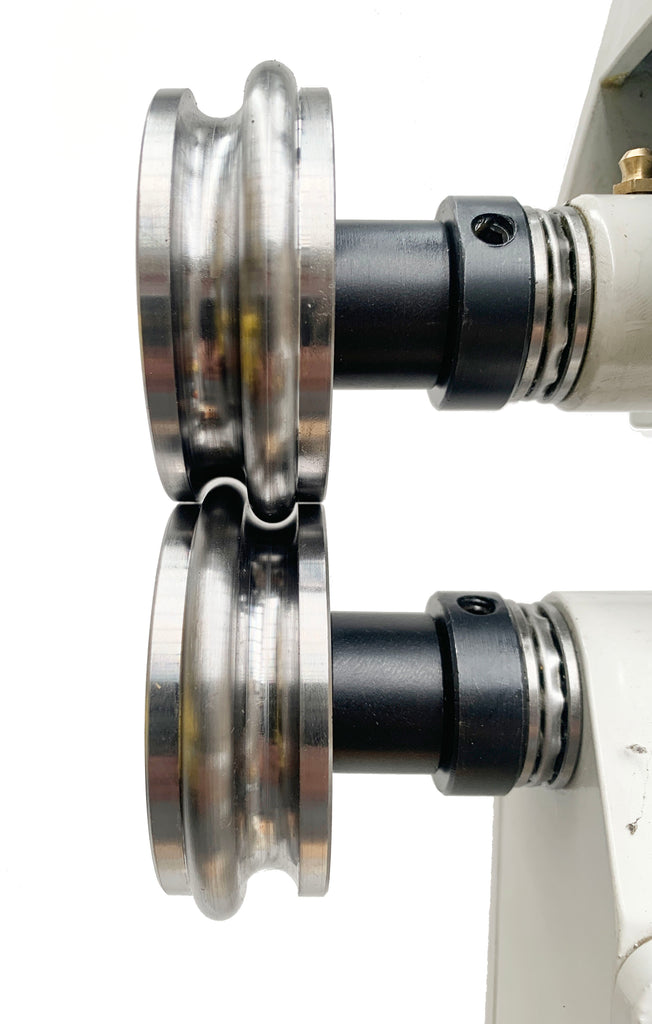

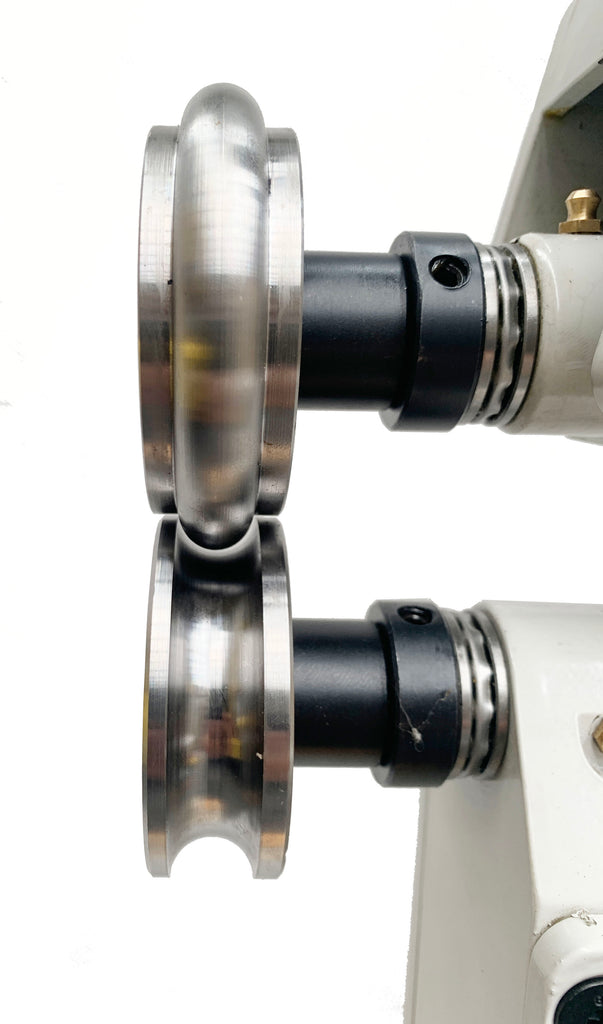

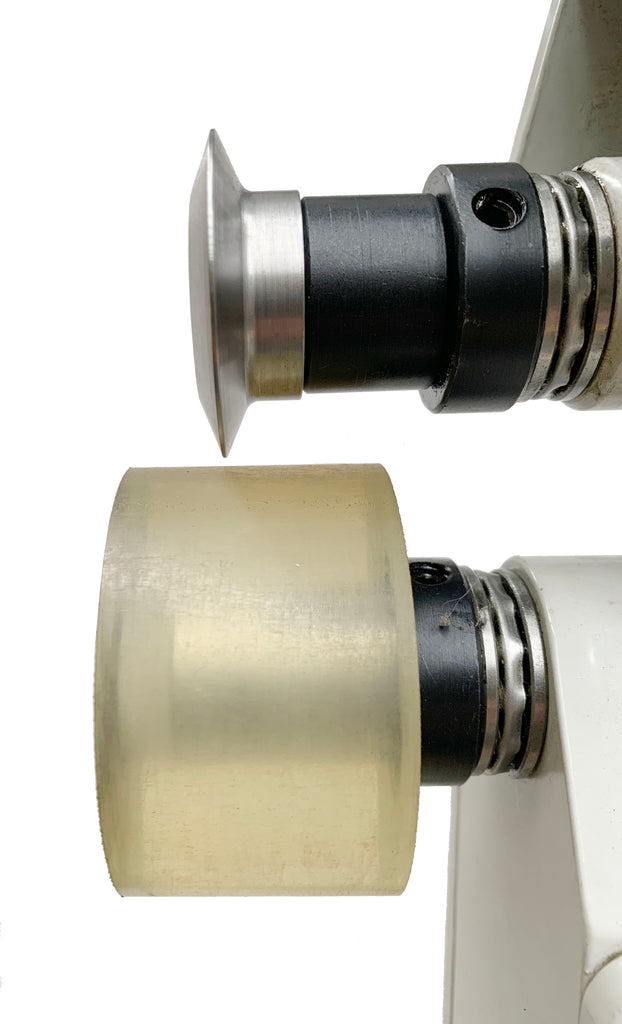

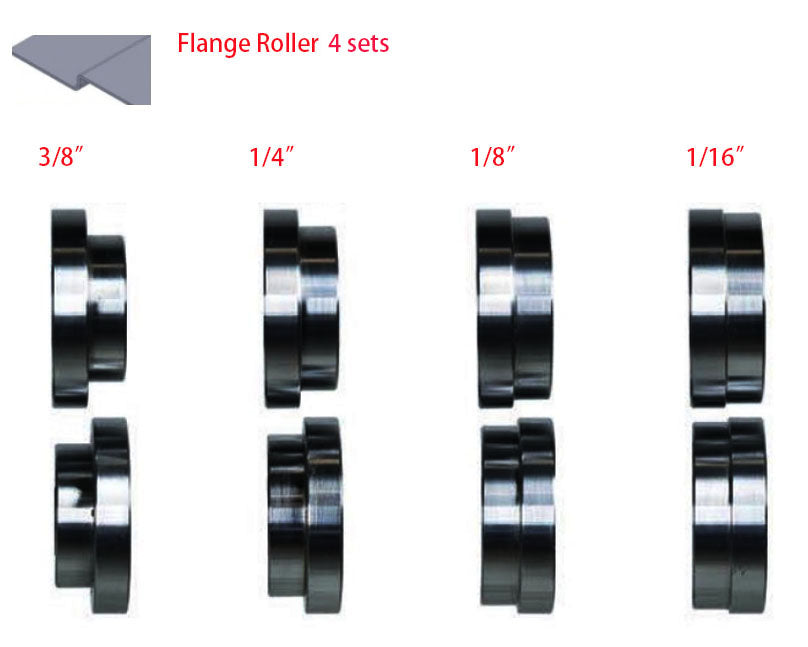

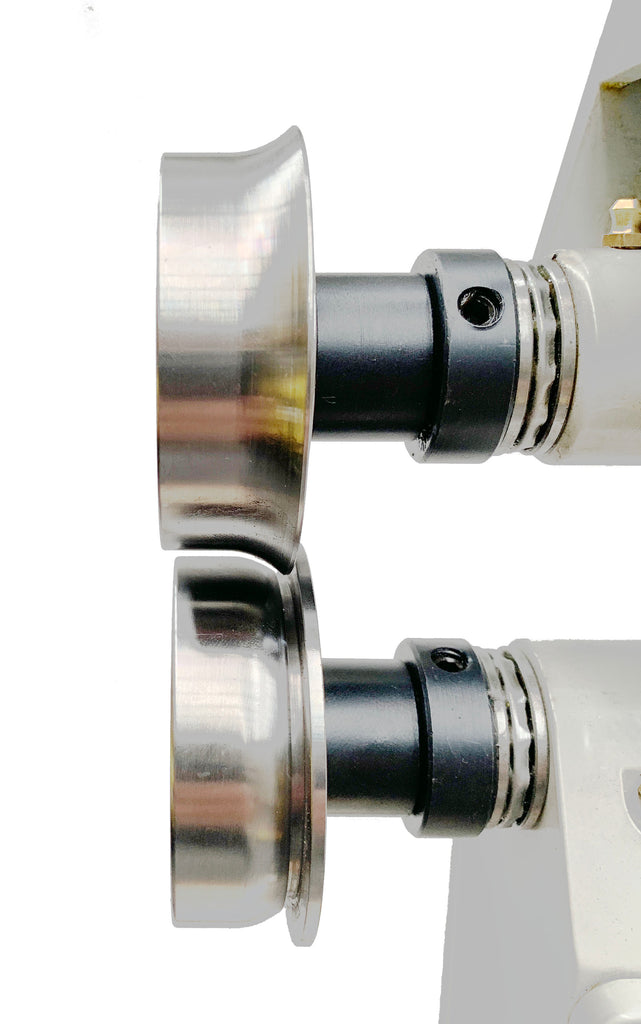

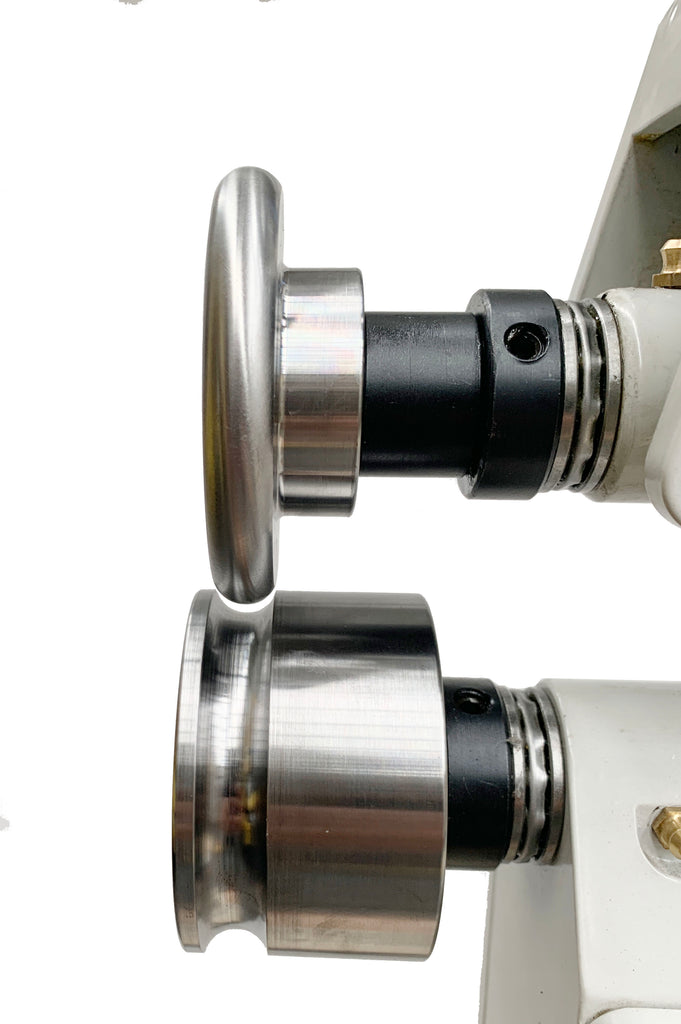

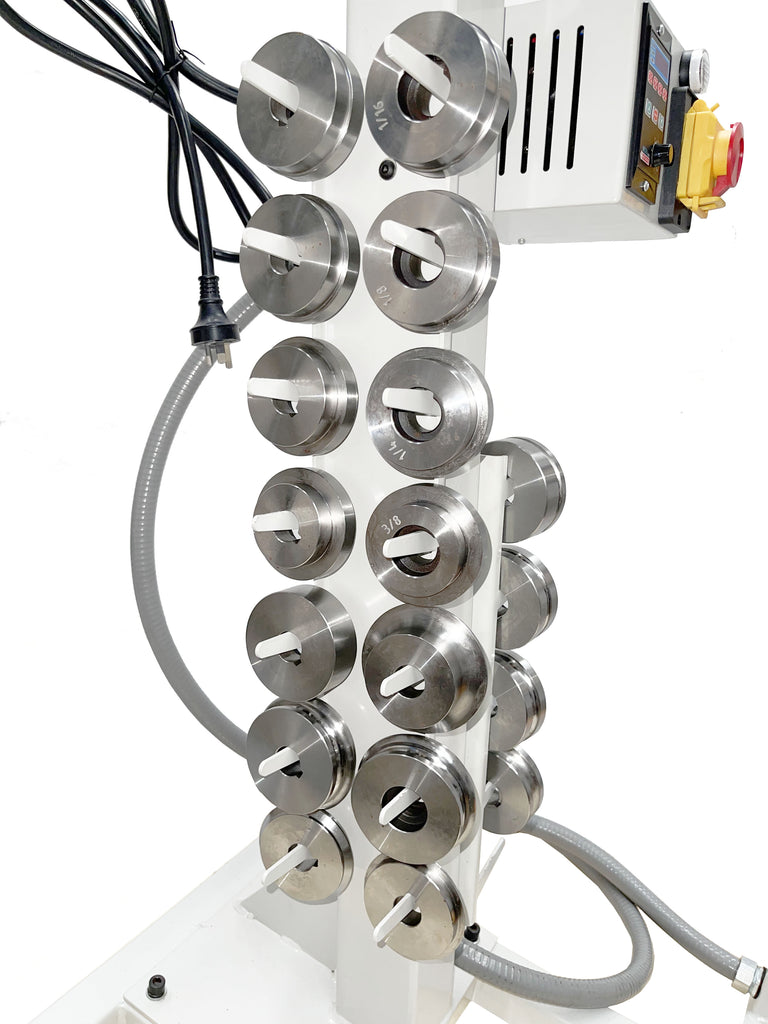

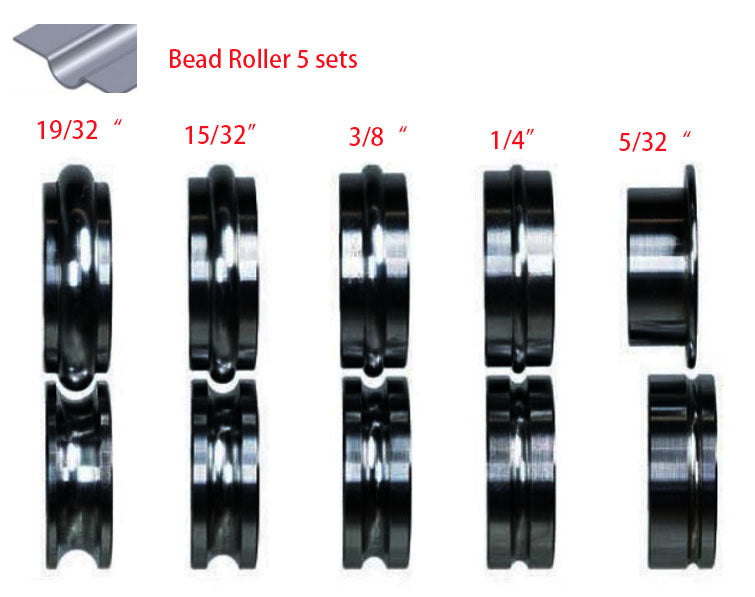

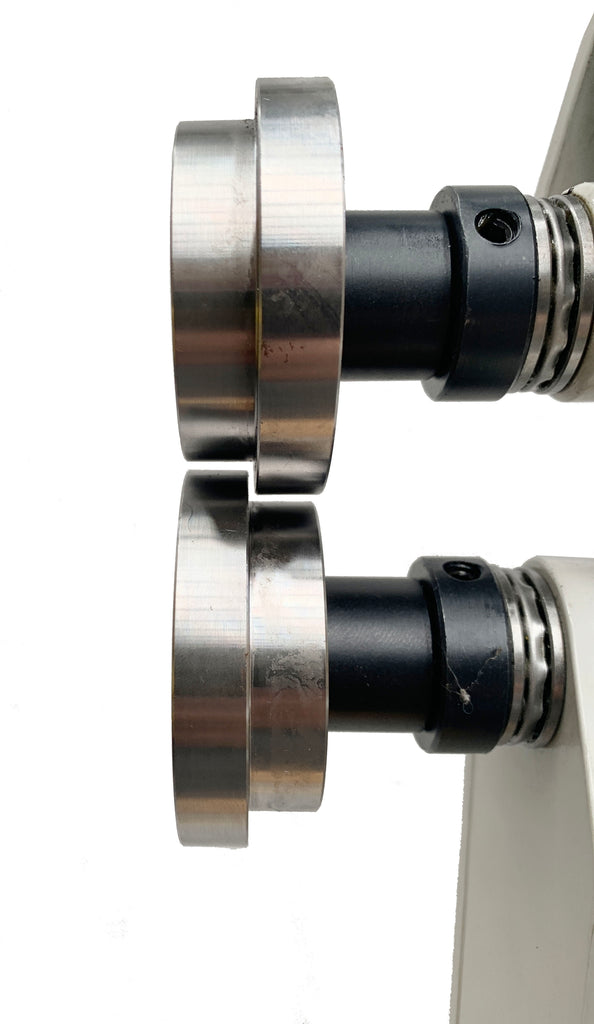

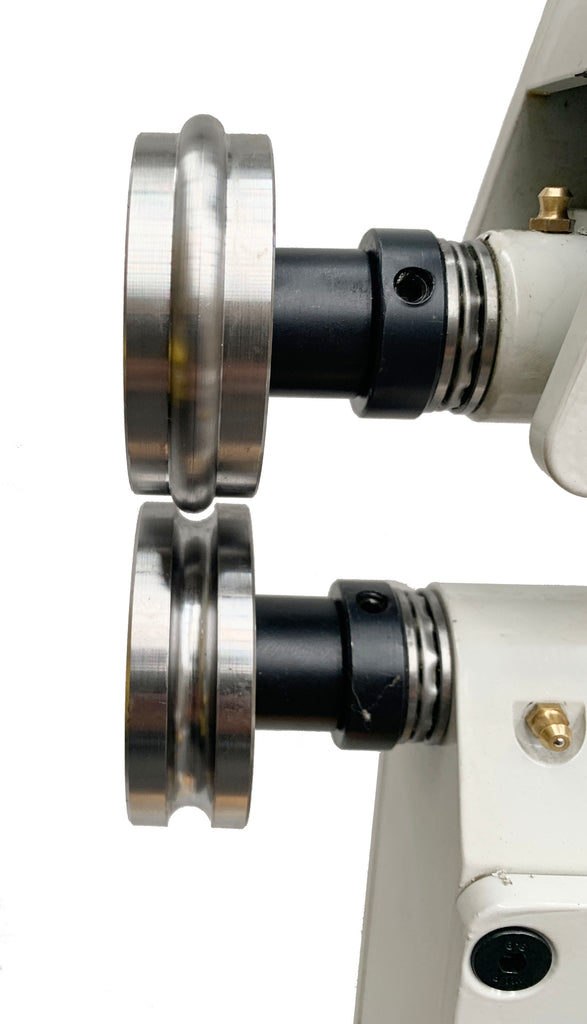

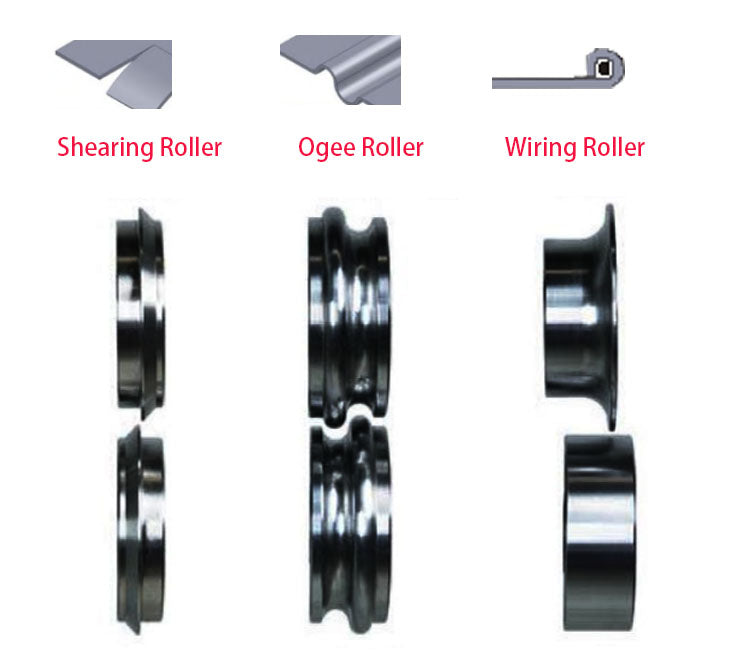

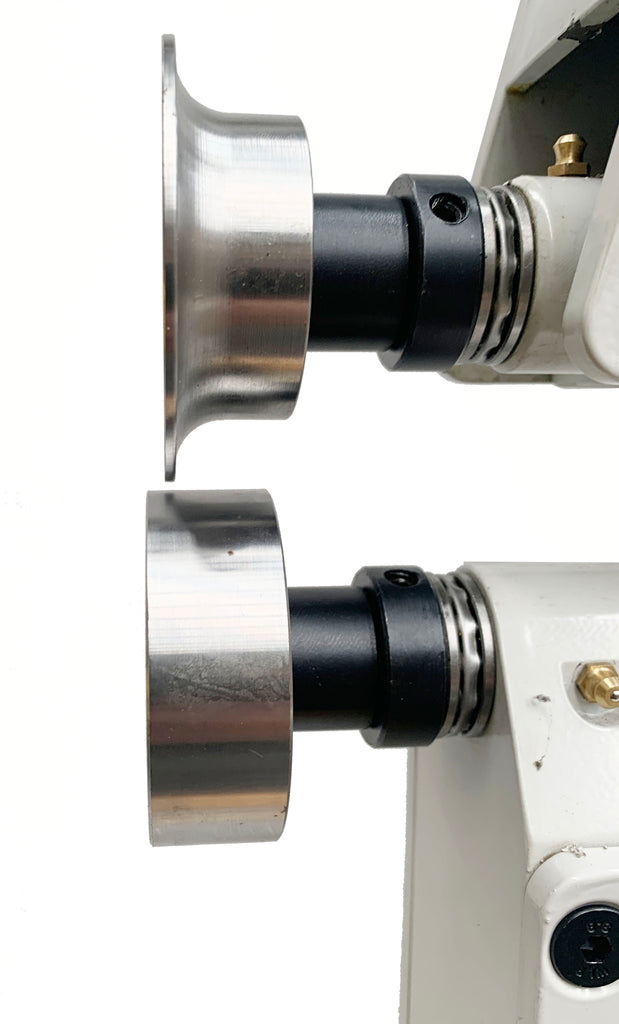

  •   Include 12 sets rollers as standard
  •   Two roller wheels are fitted on the base for easily moving the machine
  •   Include material stop fence
