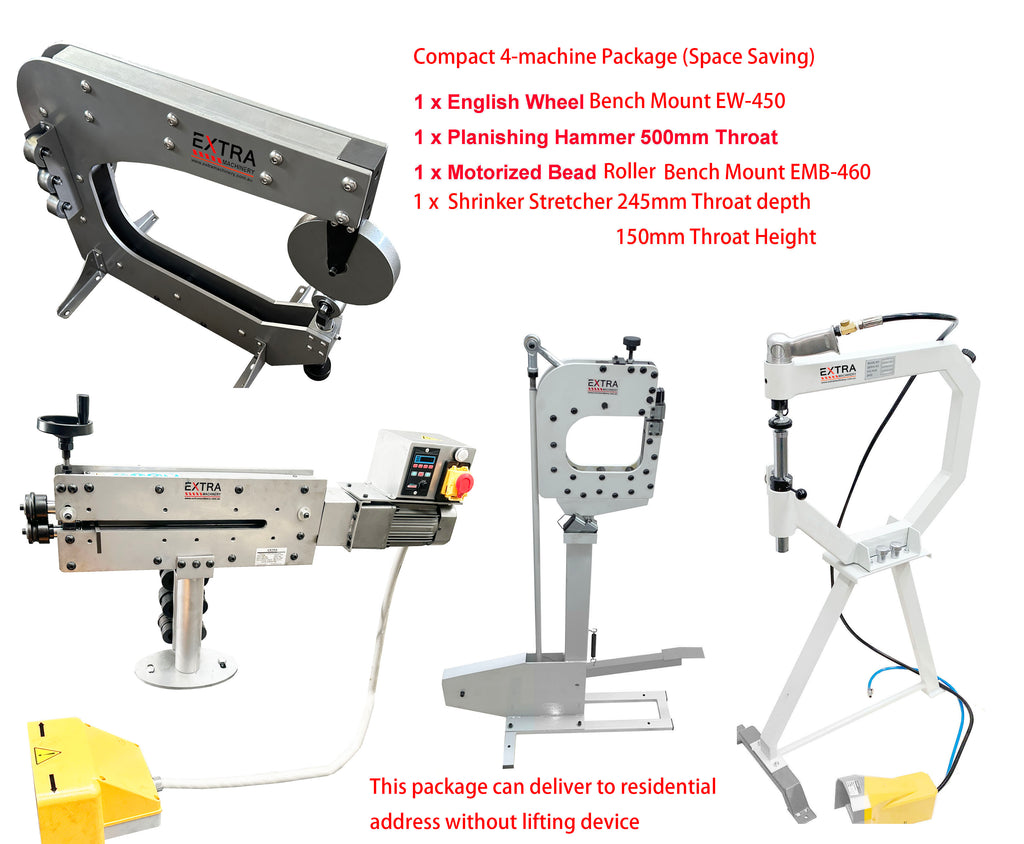

Compact 4-machine Package of English Wheel EW-450 & Planishing Hammer PH-51 & Motorized Bead Roller EMB-460 & Shrinker-stretcher
COMPACT 4-MACHINE INCLUDES ONE BENCH ENGLISH WHEEL AND BENCH MOTORIZED BEAD ROLLER , SPACE SAVING.
FLAT FREIGHT COVERS DELIVERY TO ANY ADDRESS WITHOUT LIFTING DEVICE.
4 MACHINES ARE SOLD AT ONE PACKAGE.EW-450 ENGLISH WHEEL EMB-460 MOTORISED BEAD ROLLER PH-51 PLANISHING HAMMER SS-16F SHRINKER/STRETCHER |

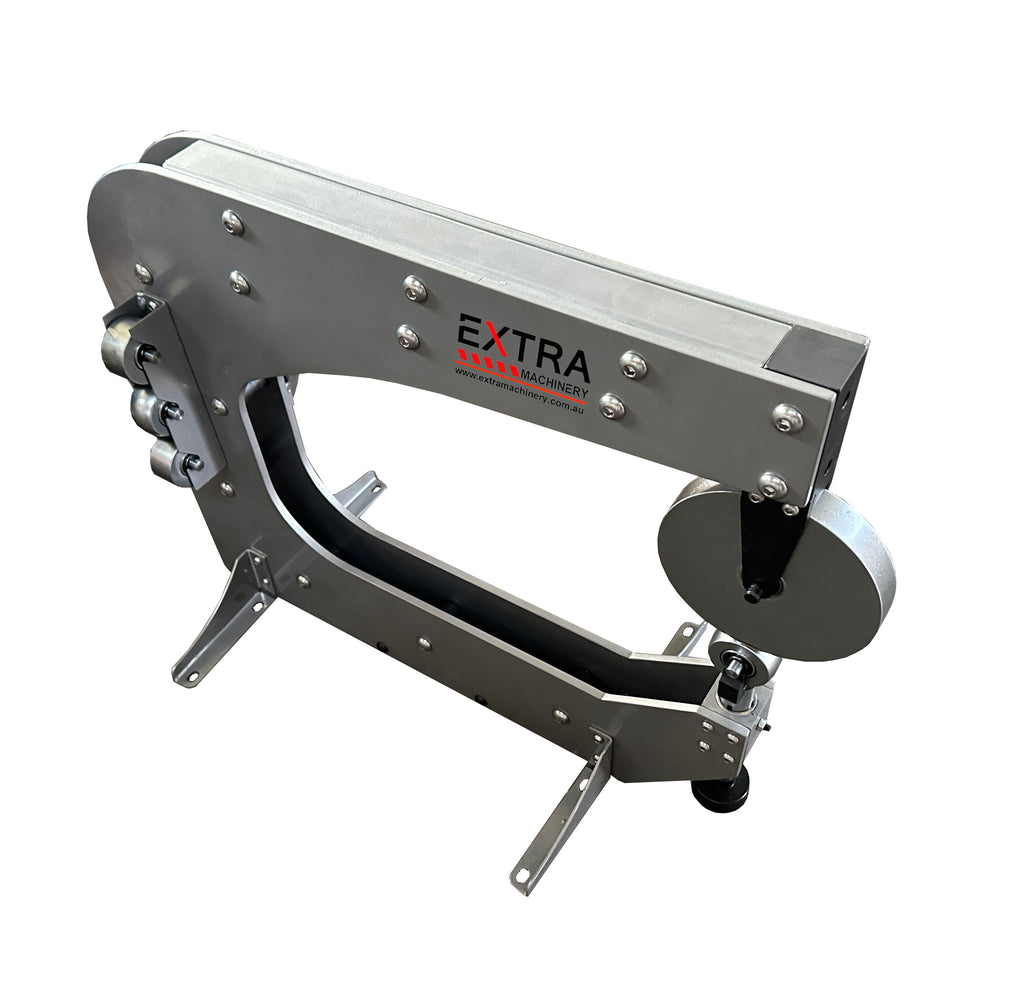

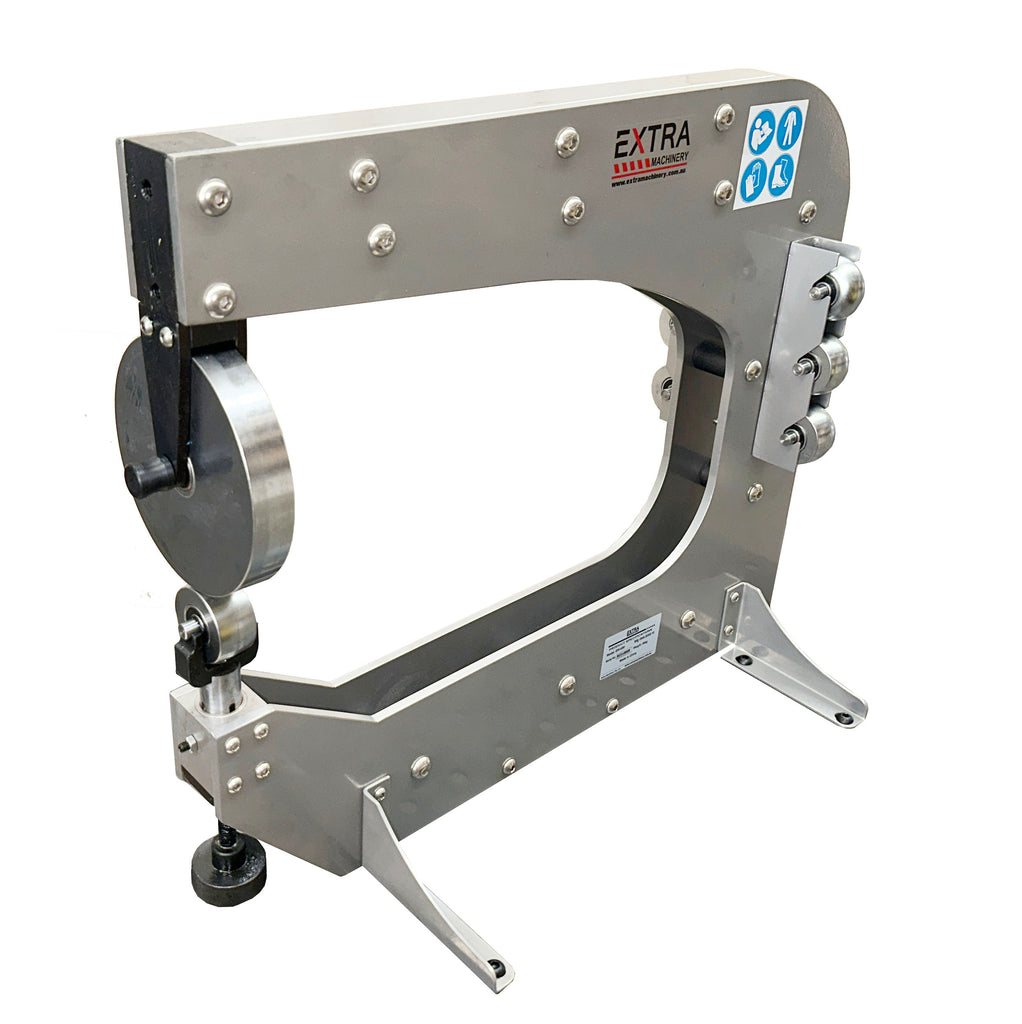

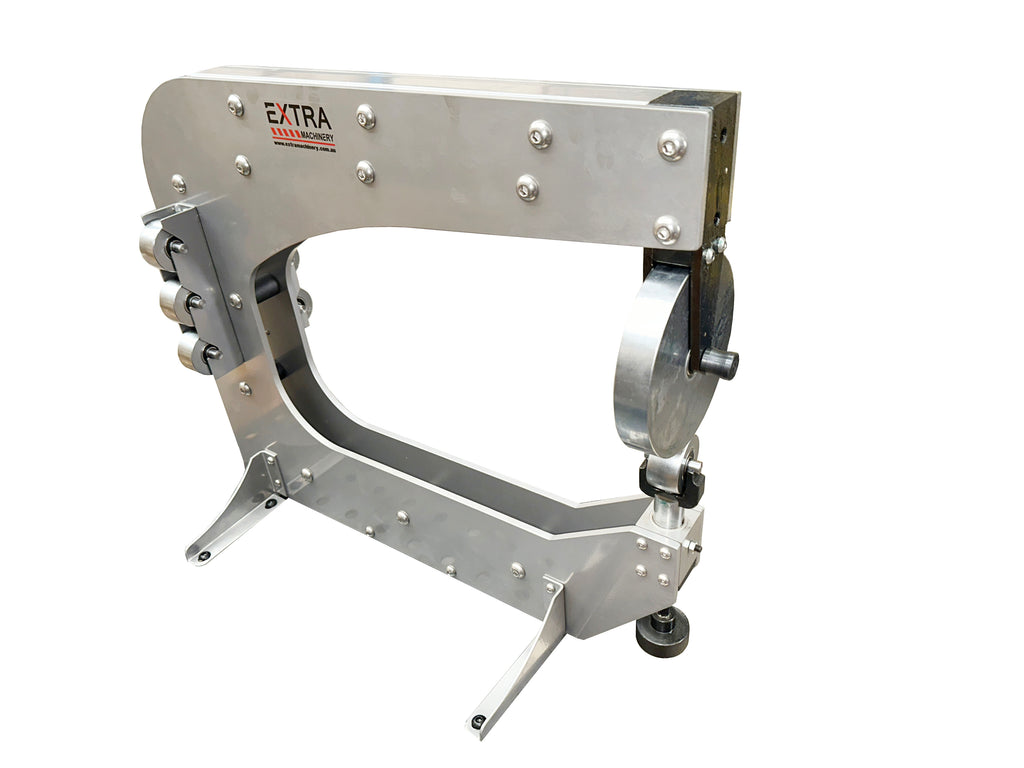

EW-450 ENGLISH WHEEL
ENGLISH WHEEL IS DESIGNED TO FORM SMOOTH CURVES FROM FLAT SHEETS OF METAL. THEY ARE MAINLY USED IN CAR, MOTORCYCLE, AVIATION AND RACING CAR CONSTRUCTION OR RESTORATION WHERE SHEET METAL PANELS NEED TO HAVE COMPOUND CURVES FORMED.
- Heavy duty Bill Structure W/ 8mm thick side plates
- Strengthened Head Frame Ensure 1.2mm Capacity
- Bench Mounted or Clamped By Bench Vice. Easy Storage After Use.
- 450mm throat depth
- 1.2mm Capacity Mild Steel
- Top Roller Wheel and Bottom Anvils are Hardened For Long Life
- Top Roller Wheel Ø146 x 25.4mm wide, Easy to Approach An Edeg Of Small or Narrow Jobs
- Upper wheel
- Both Upper Wheel & Bottom Anvils can be used in 90 degree directions.

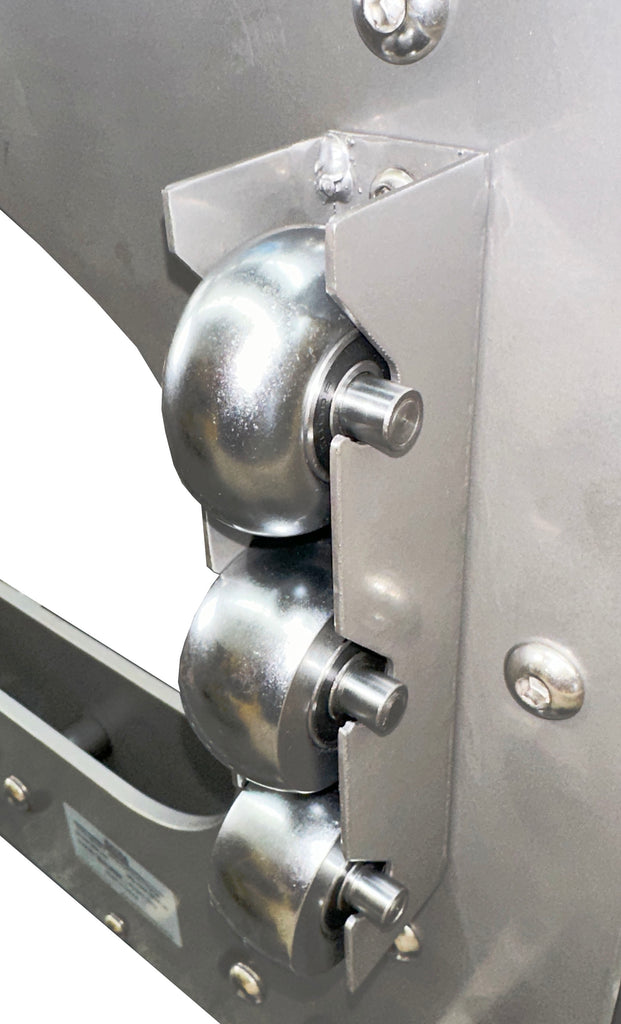

- 7 lower anvils (all 24.5mm wide) in the following radius:
12.7mm (1/2")
25.4mm (1")
38.1mm (1-1/2")
63.5mm (2-1/2")
127.0mm (5“）
228.60mm (9")
304.80mm (12")

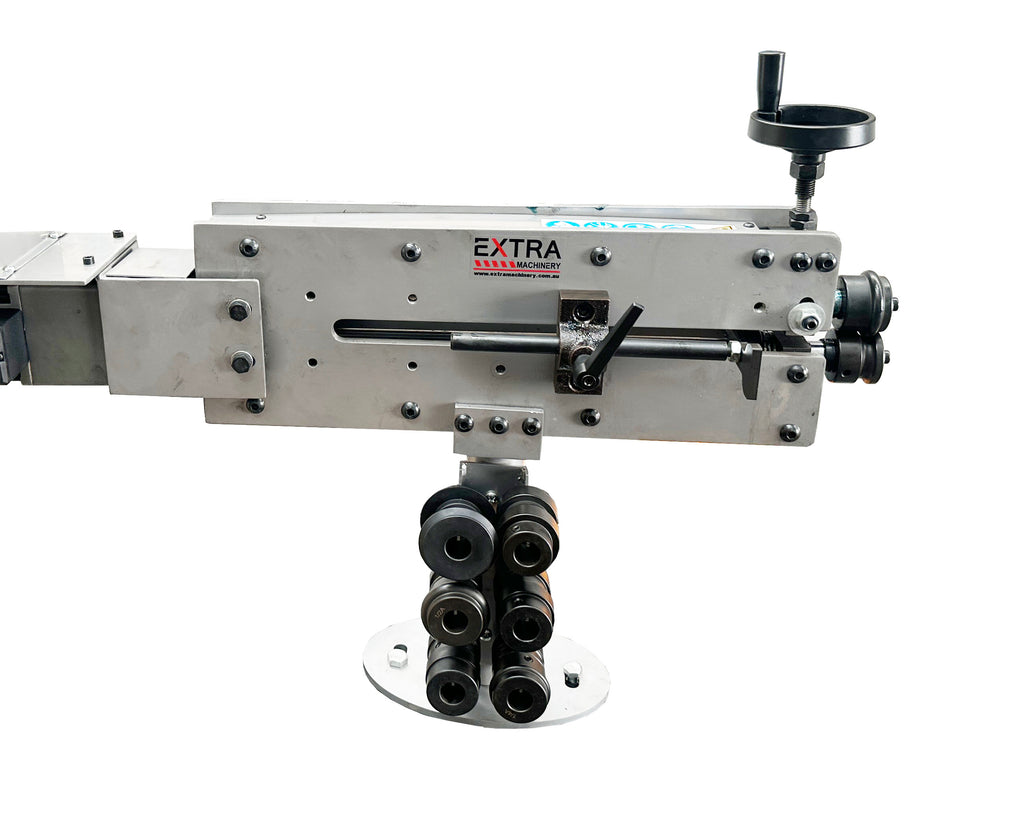

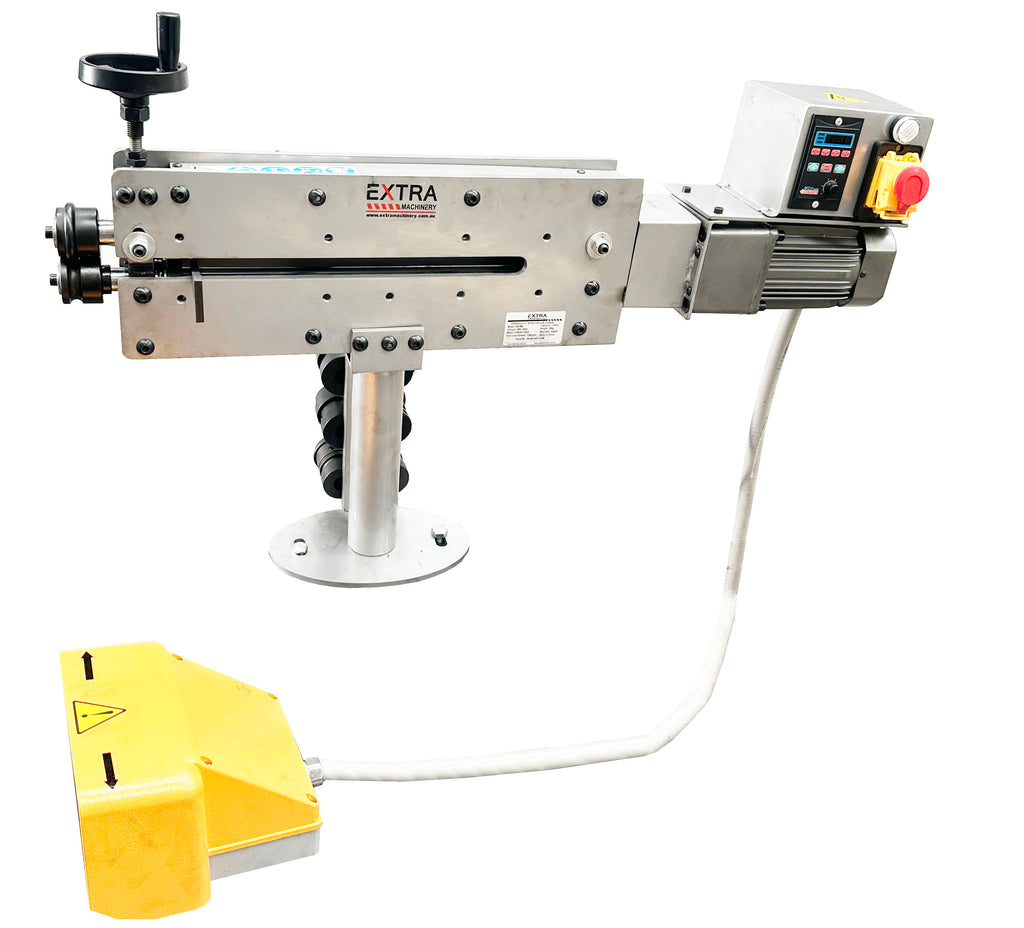

EMB-460 MOTORISED VARIABLE SPEED BEAD ROLLER-BENCH MOUNTING
HOME DELIVERY
- Post & base mounting
- Double frames for good rigidity, avoid flexing.
- 460mm throat depth to the centre of the roller, and 920mm panel can be processed from roller centre
- Motorized roller shafts with gear reduction box

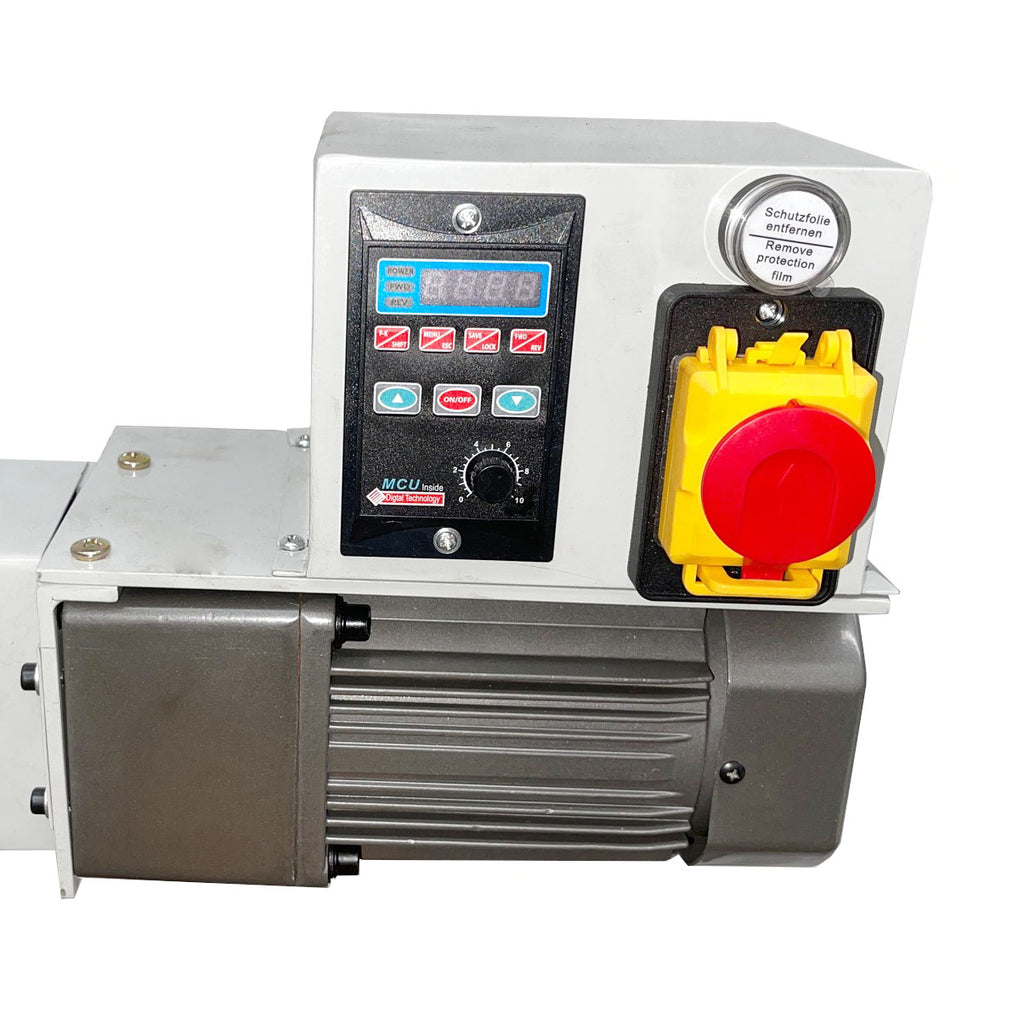

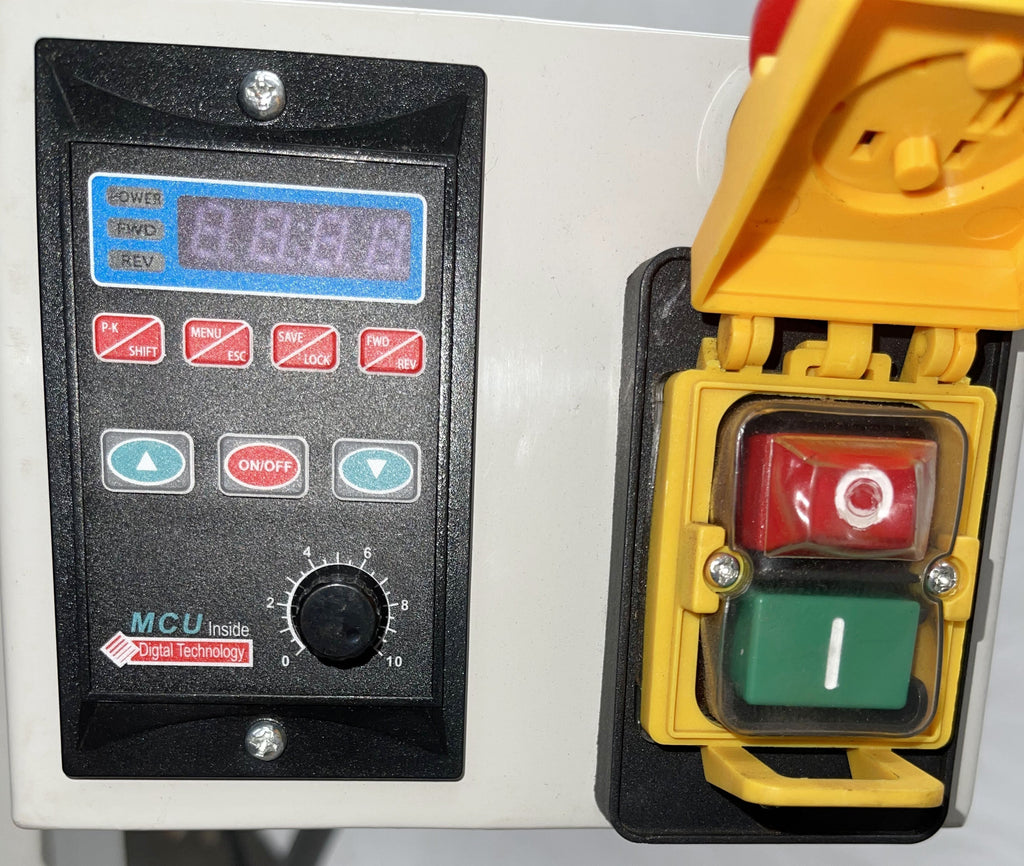

- 0.25kW / 0.33hp, 240V variable speed motor with reduction gearbox
- Movable foot switches to control forward/reverse running.
- Big hand wheel adjusts the depth of top roller.
- All rollers are hardened, black oxide finish for long life

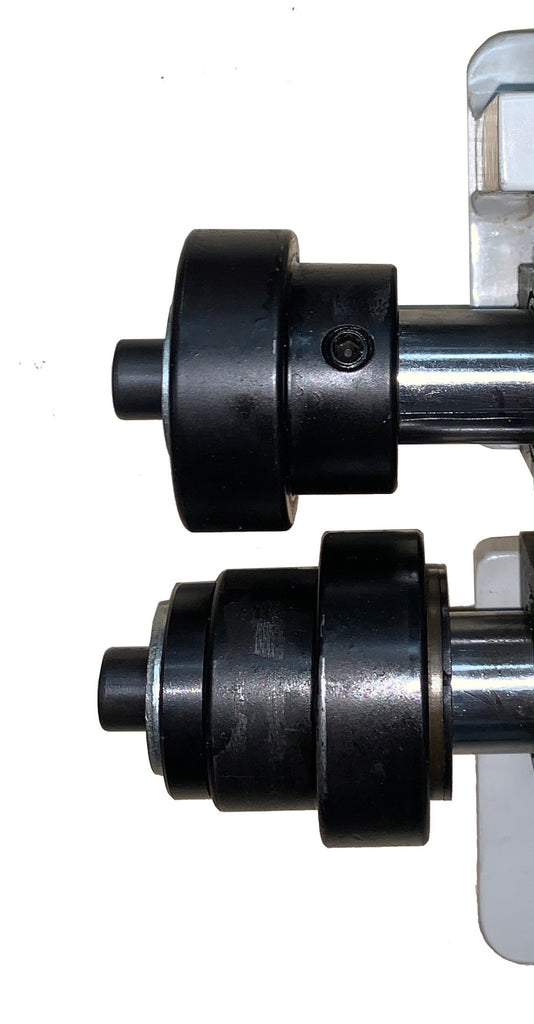

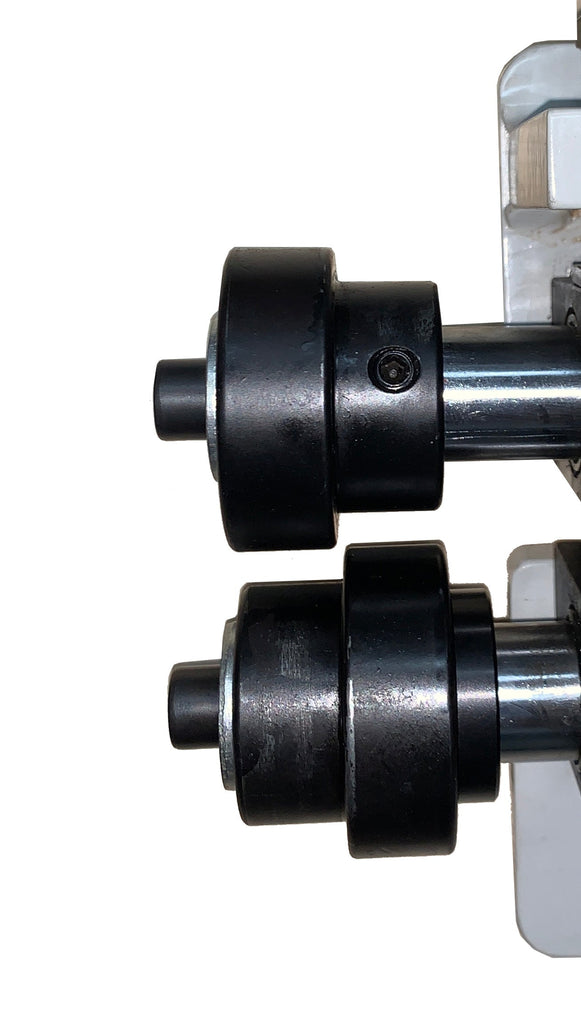

- Include 7 sets rollers as standard, one shearing roll, 3 sizes of beading roll, 3 sizes of step rolls

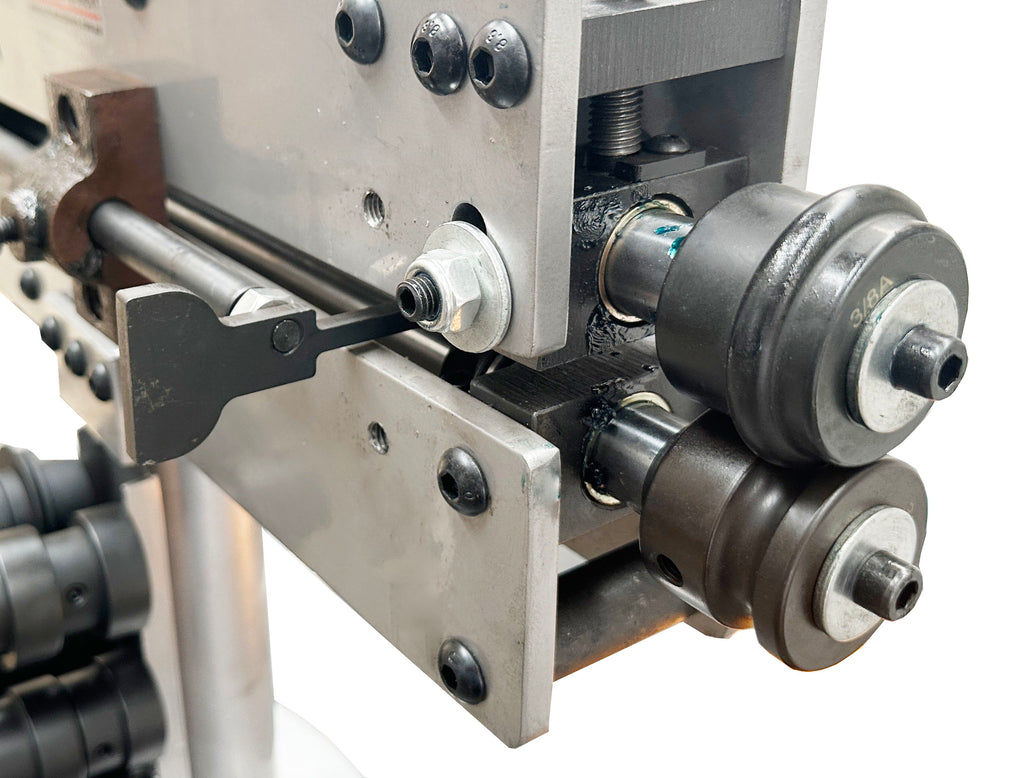

- Include material stop fence
- 25mm drive-shafts are supported in quality bronze bearing bushes that are self-lubricated, no need of any grease
- Ø22mm spigot for mounting rollers
- 1.2mm mild steel capacity for bead & flange rolls
- 1.0mm mild steel capacity for shearing rolls
- HARDENED ROLLS AND BLACK OXIDED FOR LONG LIFE.
INCLUDES

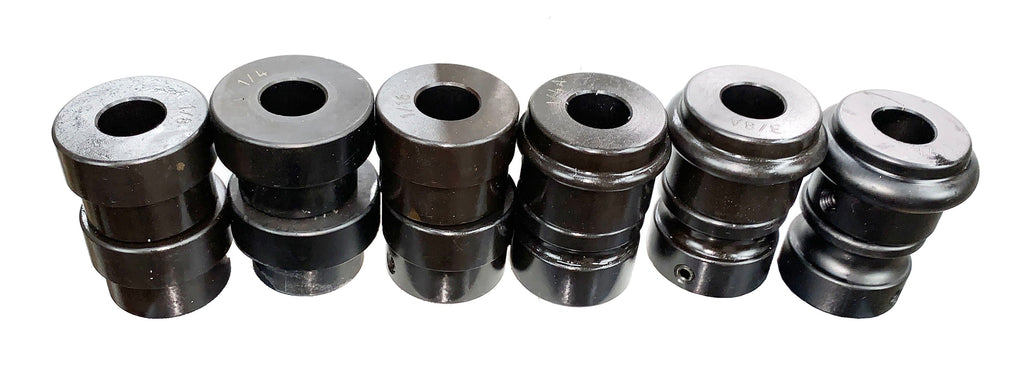

- 7 Sets of rolls with Ø22mm bore:
- 1/4" (6.35mm) single bead roll set
- 3/8" (9.5mm) single bead roll set
- 1/2" (12.7mm) single bead roll set
- 1/16" (1.6mm) flange roll set
- 1/8" (3.2mm) flange roll set
- 1/4" (6.35mm) flange roll set

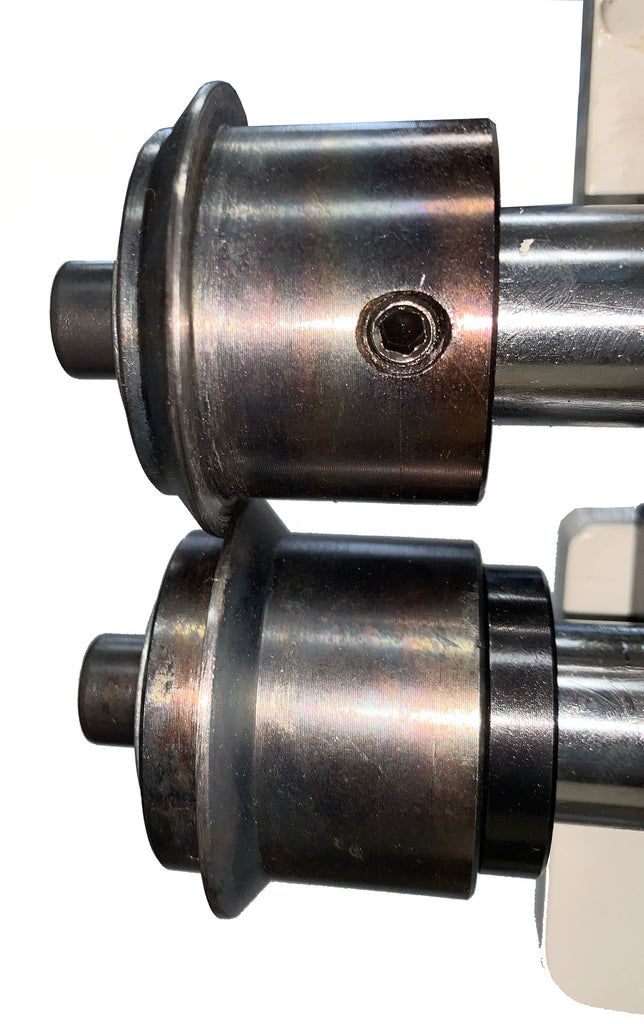

- Shearing roll set
- Stop Fence

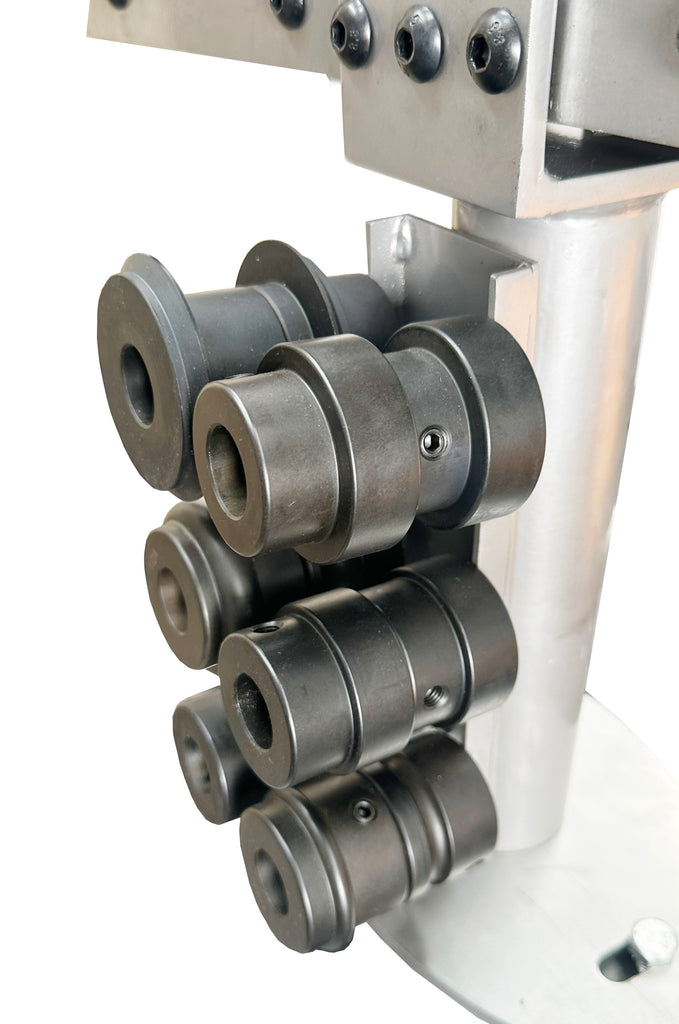

- Rack to storage of rollers

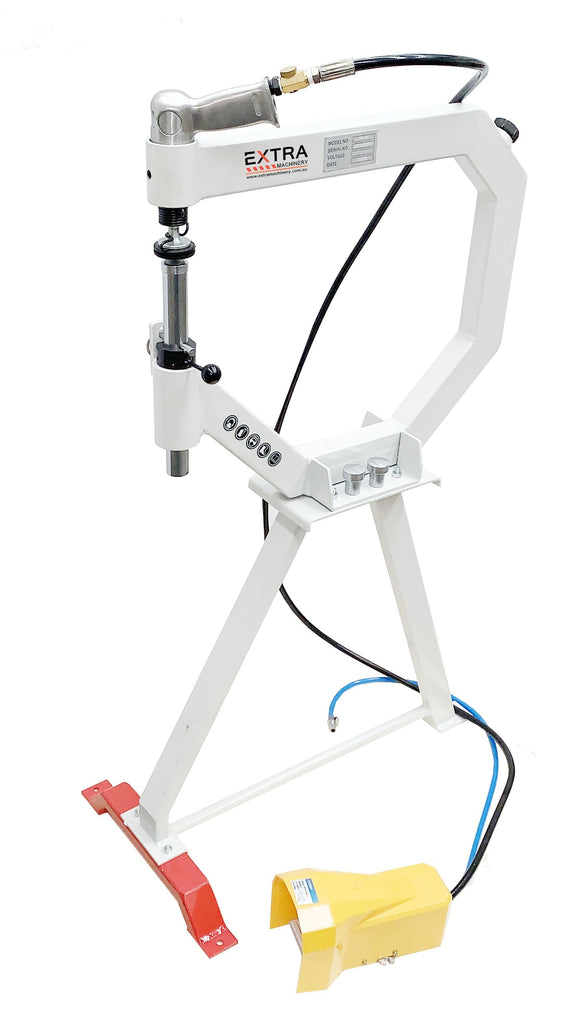

PLANISHING HAMMER IS USED TO SMOOTH LARGE AREAS OF METAL IN METAL FABRICATION AND RESTORATION, FOR EXAMPLE CUSTOM MOTORCYCLE GAS TANK AND FENDER MANUFACTURING, STREET ROD BODIES, PATCH PANELS FOR AUTO RESTORATION, REPAIR AND METAL SCULPTING.
- Sturdy Steel fabricated frame

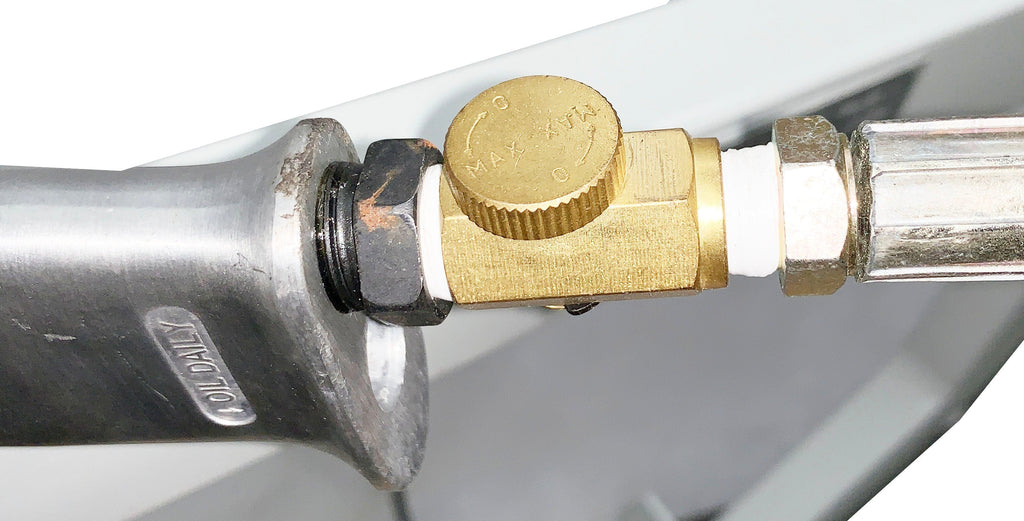

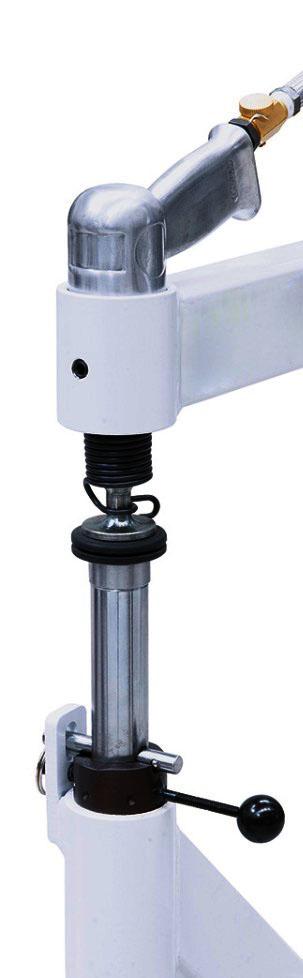

- Heavy duty aircraft gun for power head, with adjustment control of the intensity from 875-1350 blows per min.
- Quick release of the lower shaft to accept panels with high flanges.

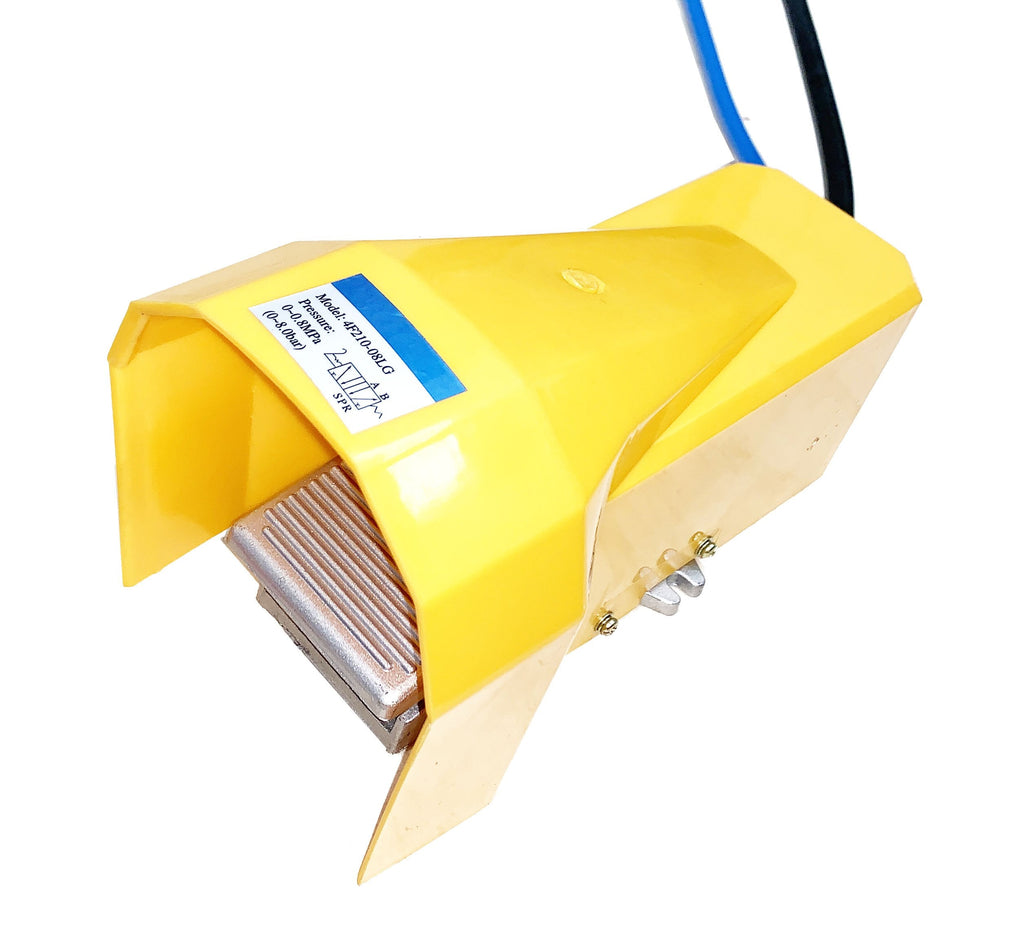

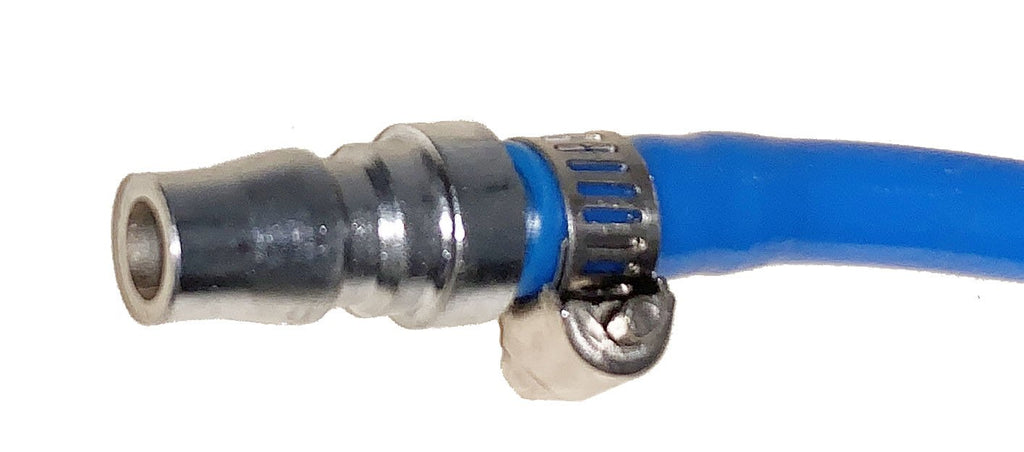

- Foot control starts and stops the hammering while being hooked up to compressed air.

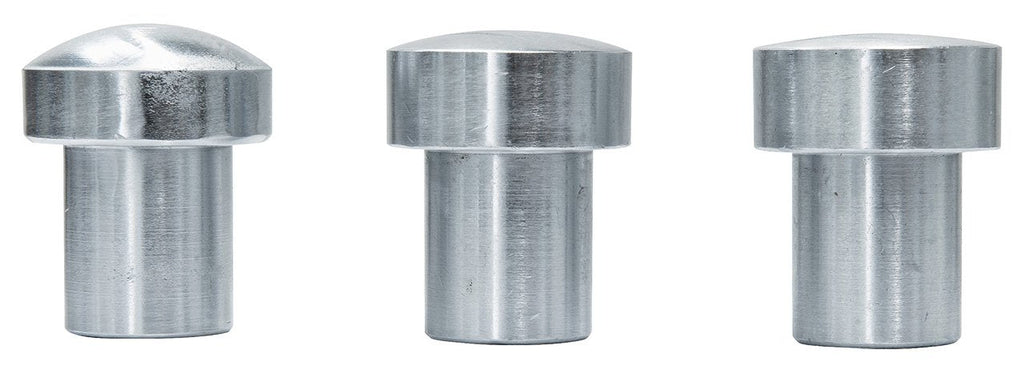

- Includes Ø32mm flat top die, 25, 50 and 76mm radius anvils.
- 500mm throat capacity
- 1.2mm mild steel capacity
- 50 - 100PSI pressure
- Overall height 1220mm
- The footprint of the machine is 750mm x 350mm

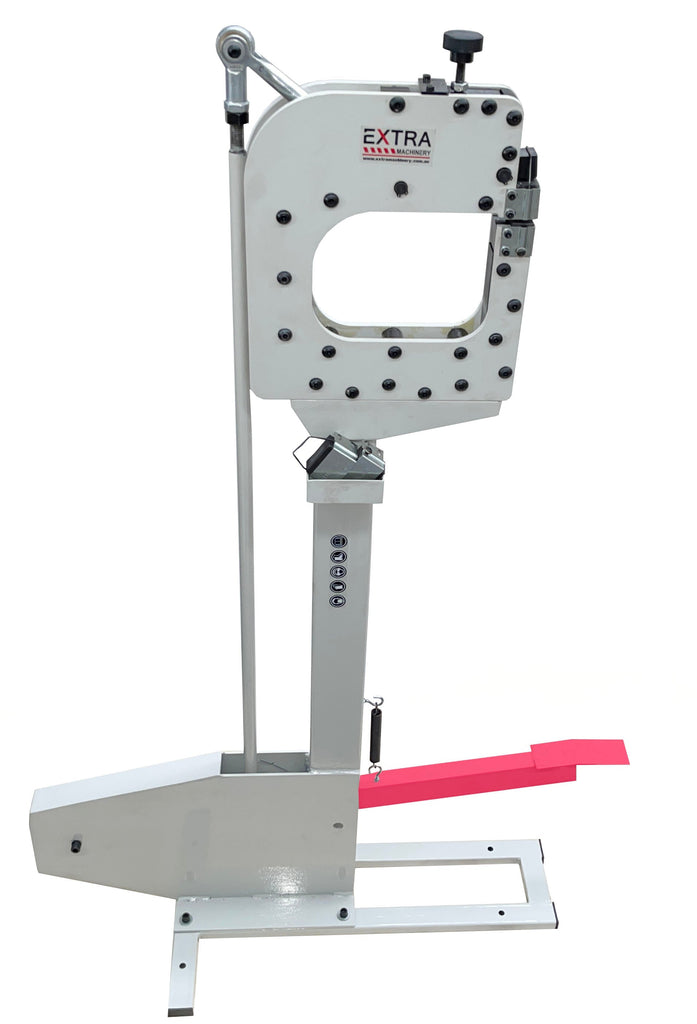

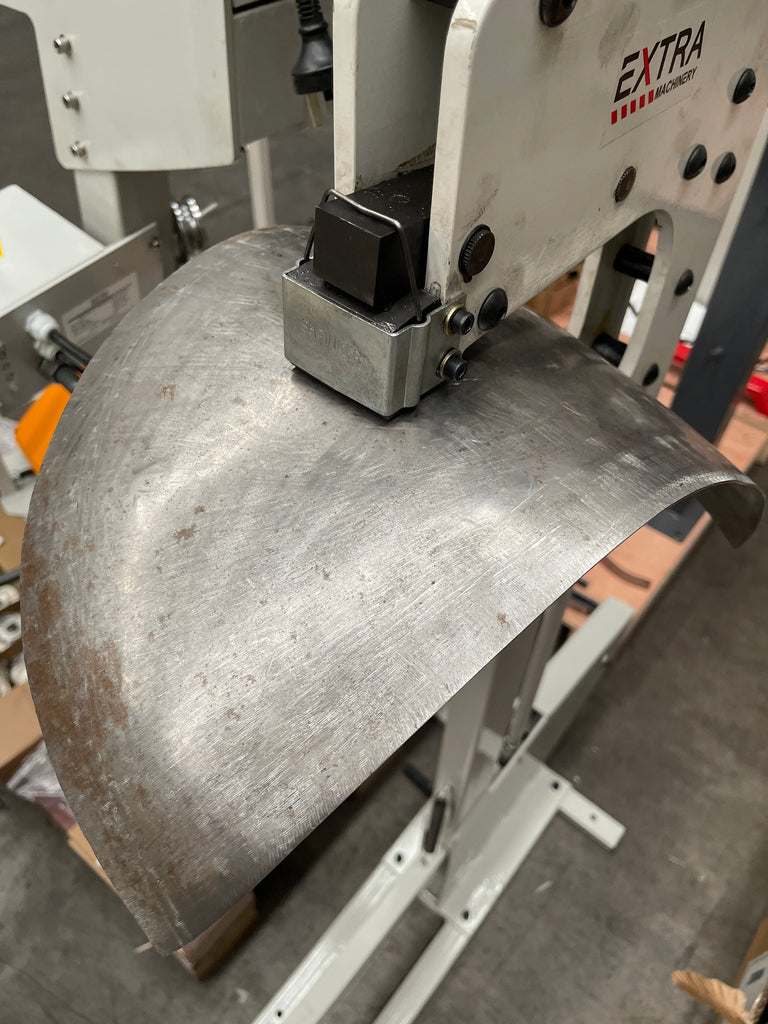

SS-16F Deep Jaw Shrinker Stretcher is designed for heavy-duty commercial use and features an extra-deep, 9” (245mm) throat depth & 6" (150mm) throat height to allow working large pieces and panels.
FEATURES:
- Strong Billet Structure,Net Weight (Appox) 47kg
- 9" throat for bigger jobs
- 6" throat height
- Shrink or stretch up to 16-gauge mild steel
- Hardened-steel jaws
- Foot operated to save your hands to hold the material
- Adjustable stroke knob to control consistent shrinking and stretching

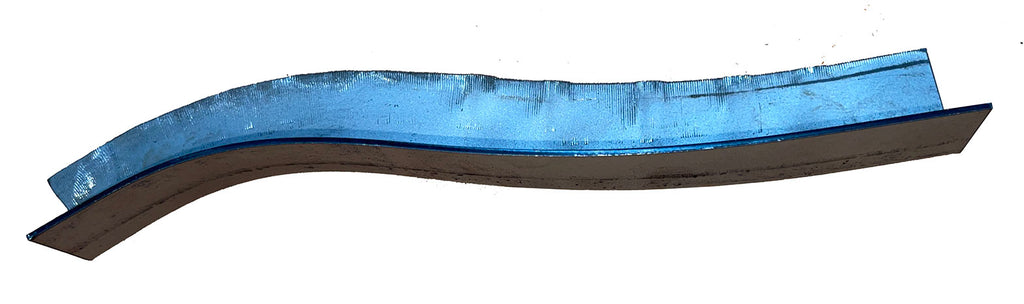

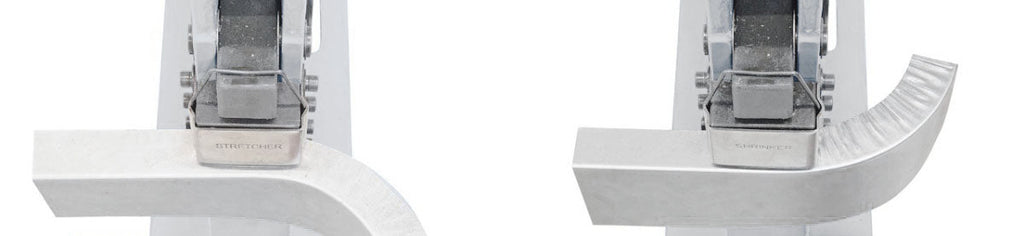

SHRINK AND STRETCH METAL

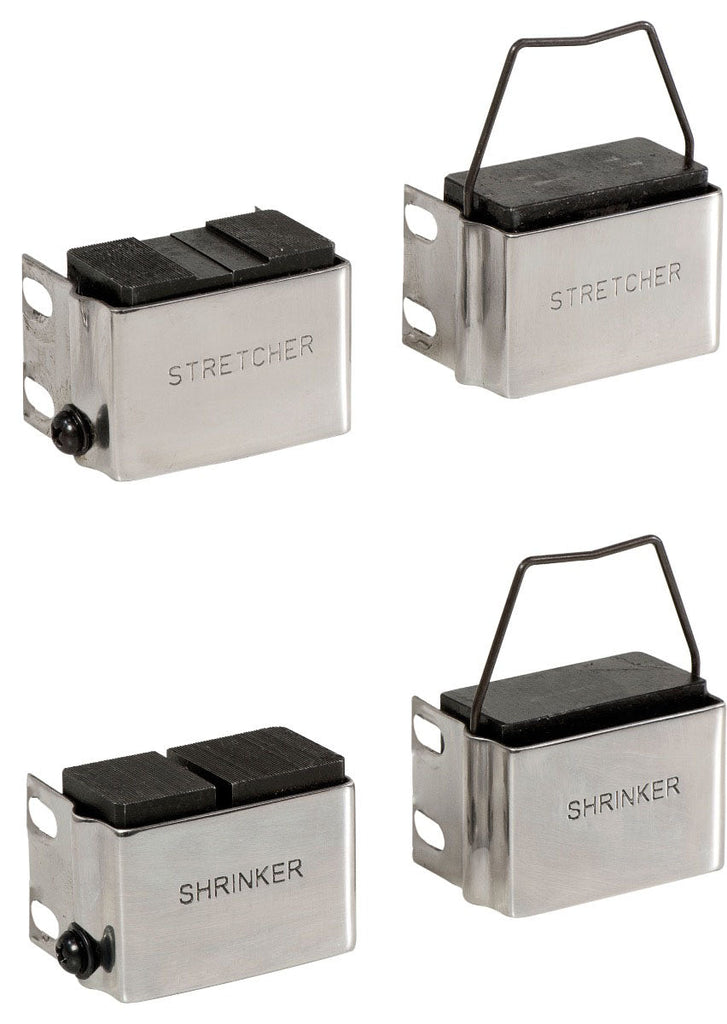

Shrinking jaws contract metal to create inside curves; stretcher jaws expand metal to create outside curves. Use both to create distinctive shapes and designs, or recreate original shapes on your project vehicle.
