Extra Machinery Pty Ltd

$1,030.00

SKU: S6300DT

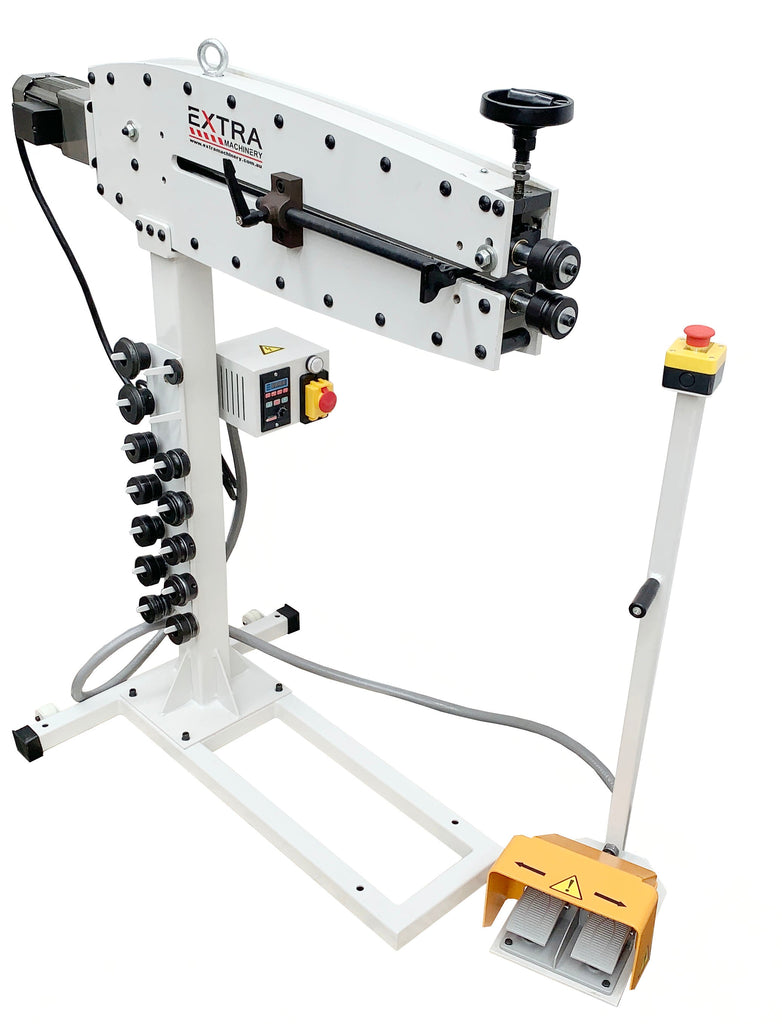

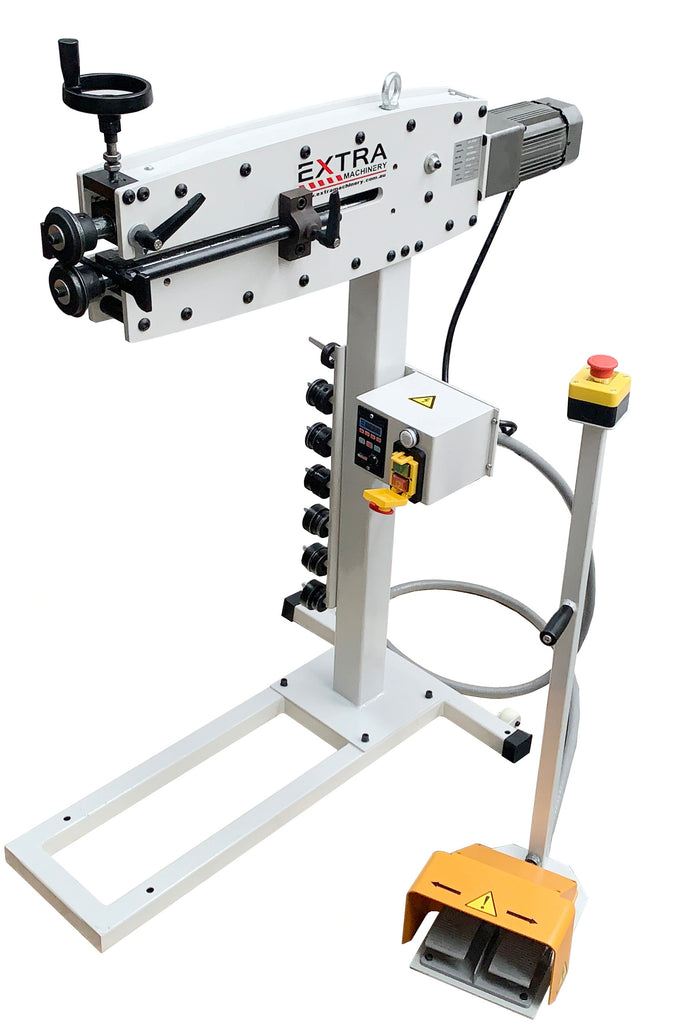

PLEASE NOTE THE PHOTOS OF EB-680 ARE USED.

  • Doulbe frames for good rigidity, avoid flexing.
  • 500mm throat depth to the centre of the roller, and 1000mm panel can be  processed from roller centre
  •  Motorised roller shafts with gear reduction box

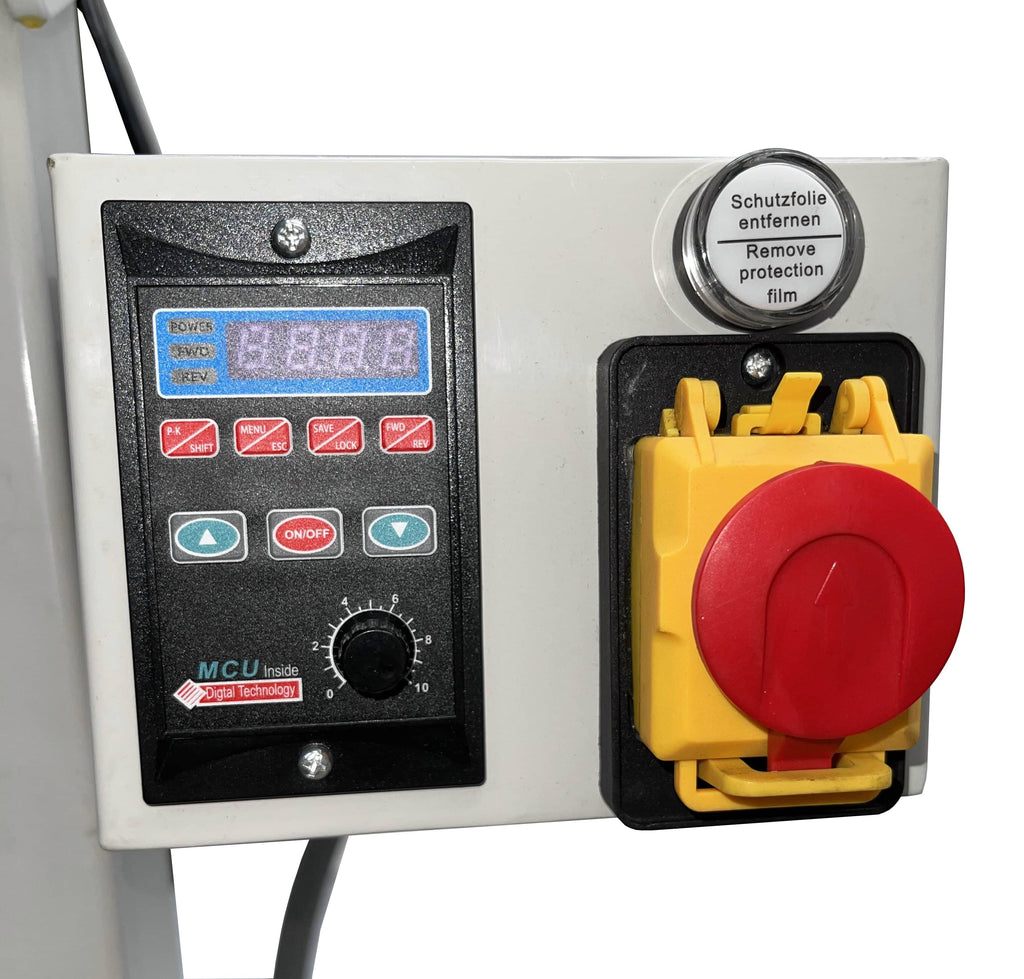

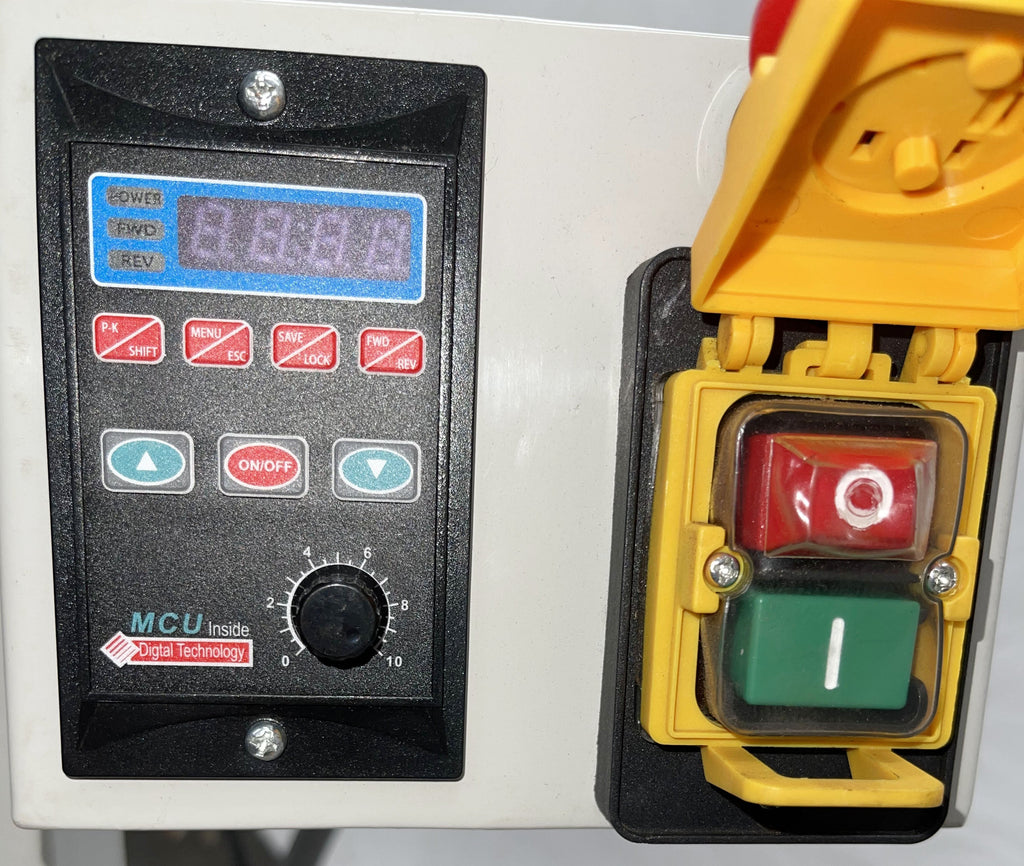

  •  0.25kW / 0.33hp, 240V variable speed motor with reduction gearbox
  •  Foot pedal switches to control forward/reverse running.
  •  Big hand wheel adjusts the depth of top roller.
  •  All rollers are hardened, black oxide finish for long life
  •  Include 7 sets rollers as standard,  one shearing roll, 3 sizes of beading roll, 3 sizes of step rolls
  • Two roller wheels are fitted on the base for easily moving the machine

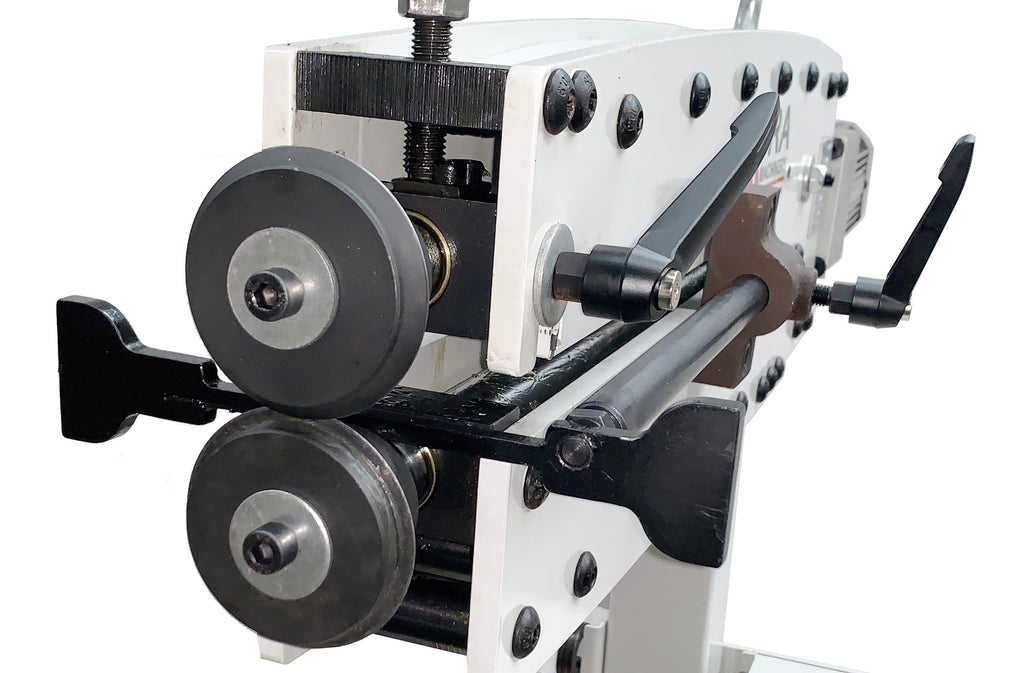

  • Include material stop fence
  •  25mm drive-shafts are supported in quality bronze bearing bushes that are self-lubricated, no need of any grease

  1.2mm mild steel capacity for bead & flange rolls

  • 1.0mm mild steel capacity for shearing rolls
  • HARDENED ROLLS AND BLACK OXIDED FOR LONG LIFE.
  • Post & base for bench mounting.
  • Ø25mm drive shafts
  • Ø22mm spigot for mounting rollers
  • Gear driven system

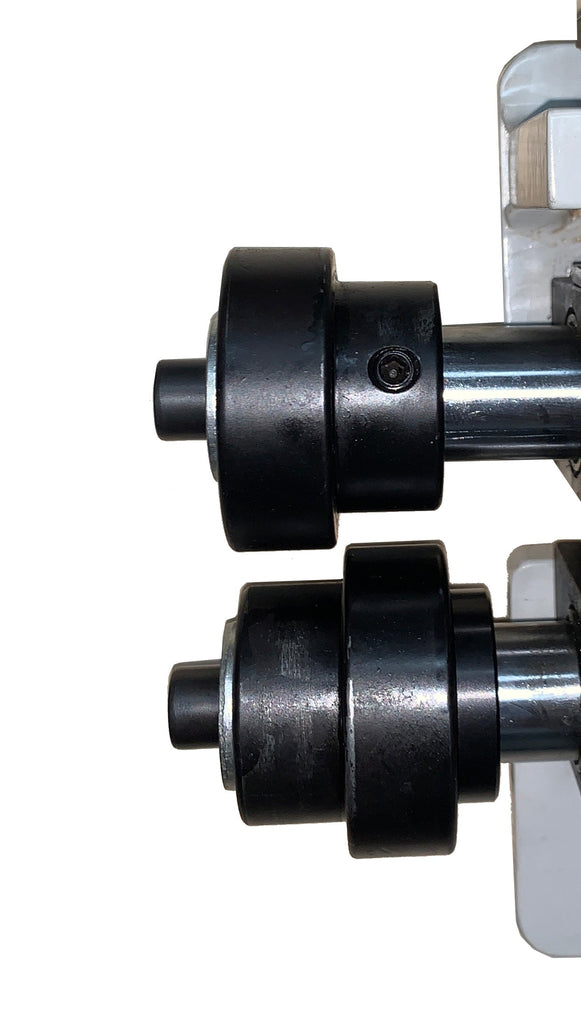

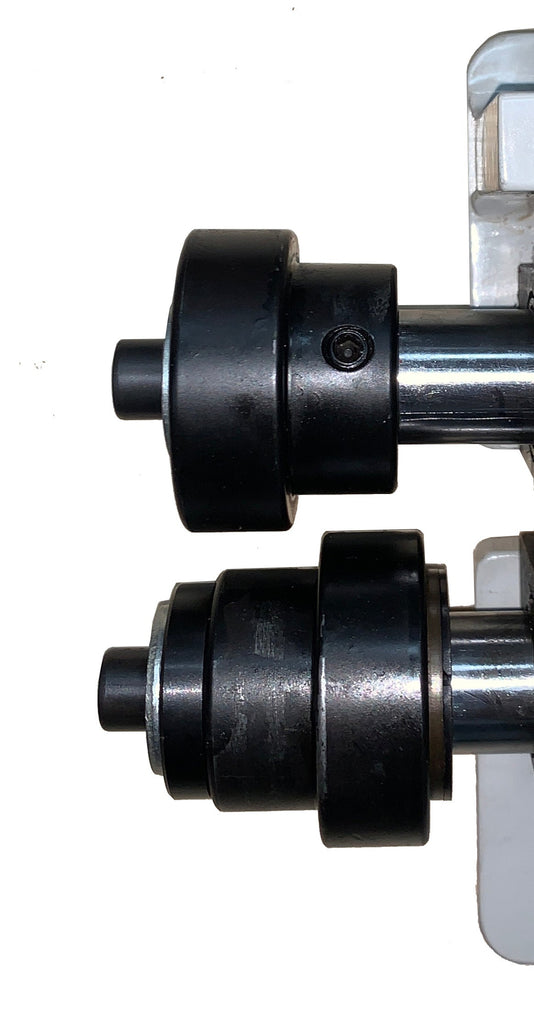

  • Standard Rolls

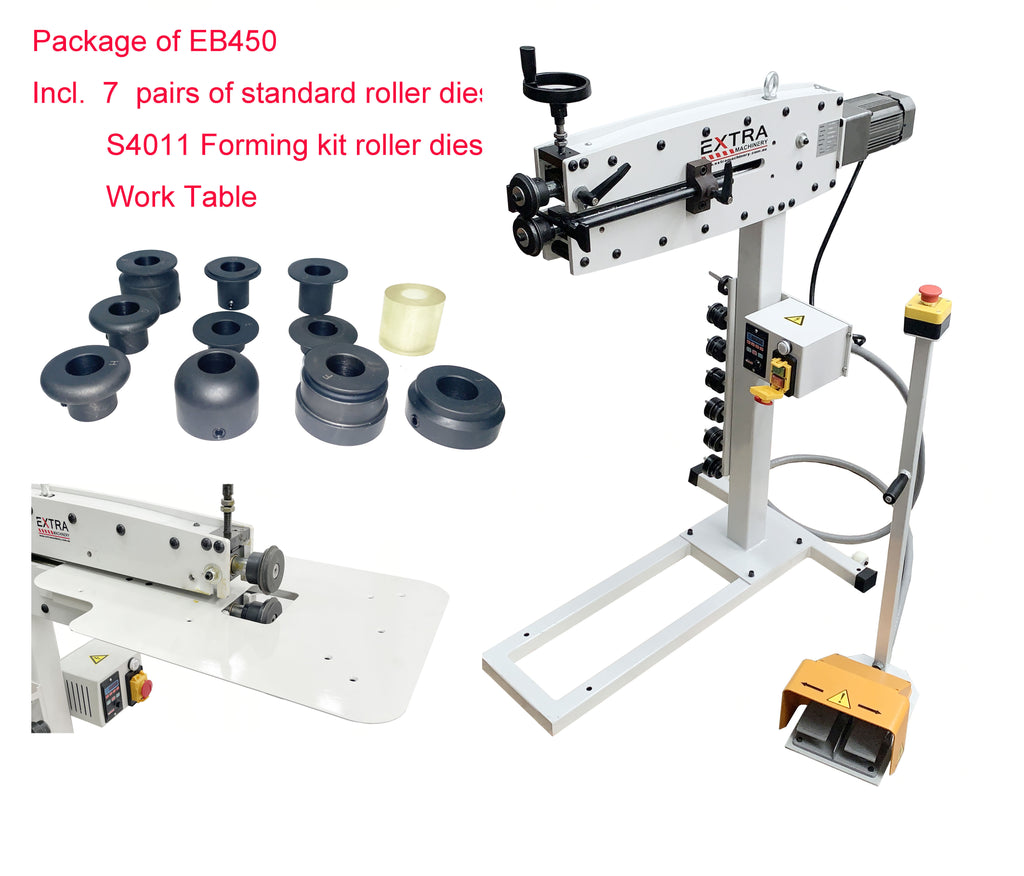

    Includes

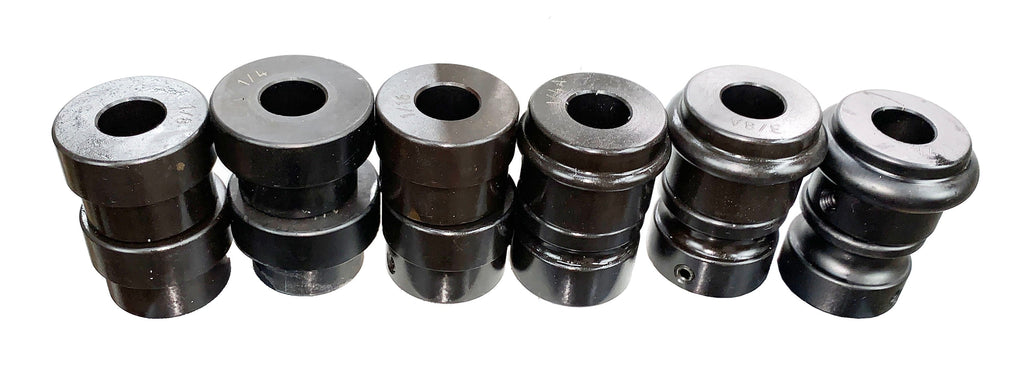

    • 7 Sets of rolls with Ø22mm bore:

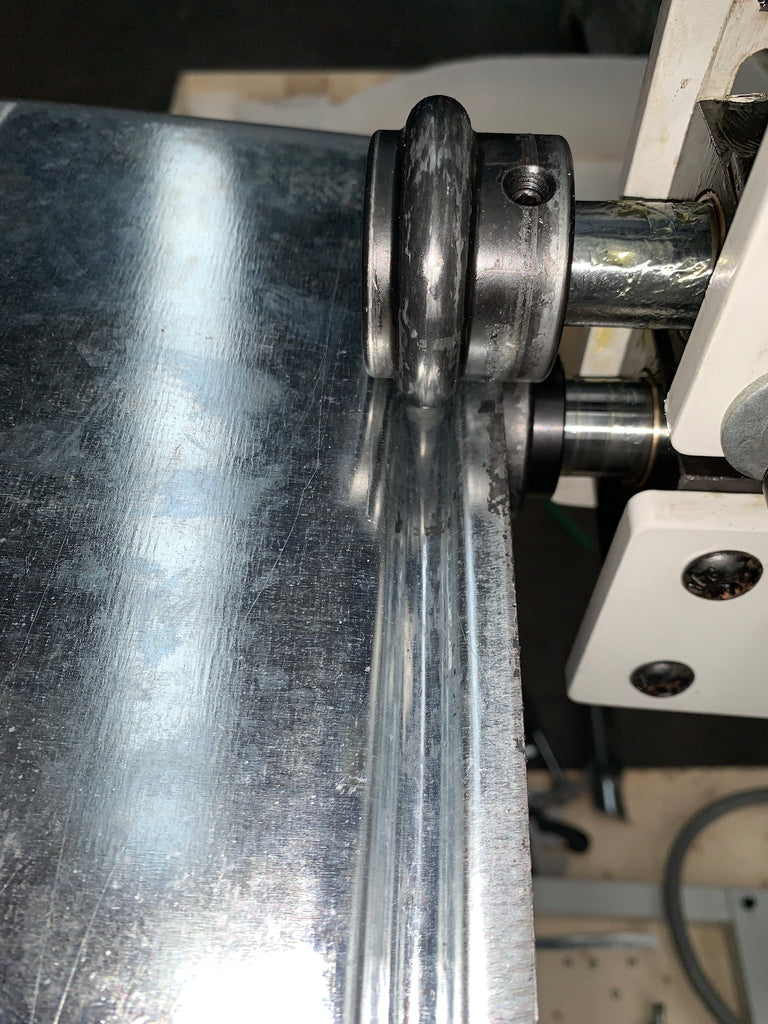

    • 1/4" (6.35mm) single bead roll set
    • 3/8" (9.5mm) single bead roll set
    • 1/2" (12.7mm) single bead roll set
    • 1/16" (1.6mm) flange roll set
    • 1/8" (3.2mm) flange roll set
    • 1/4" (6.35mm) flange roll set

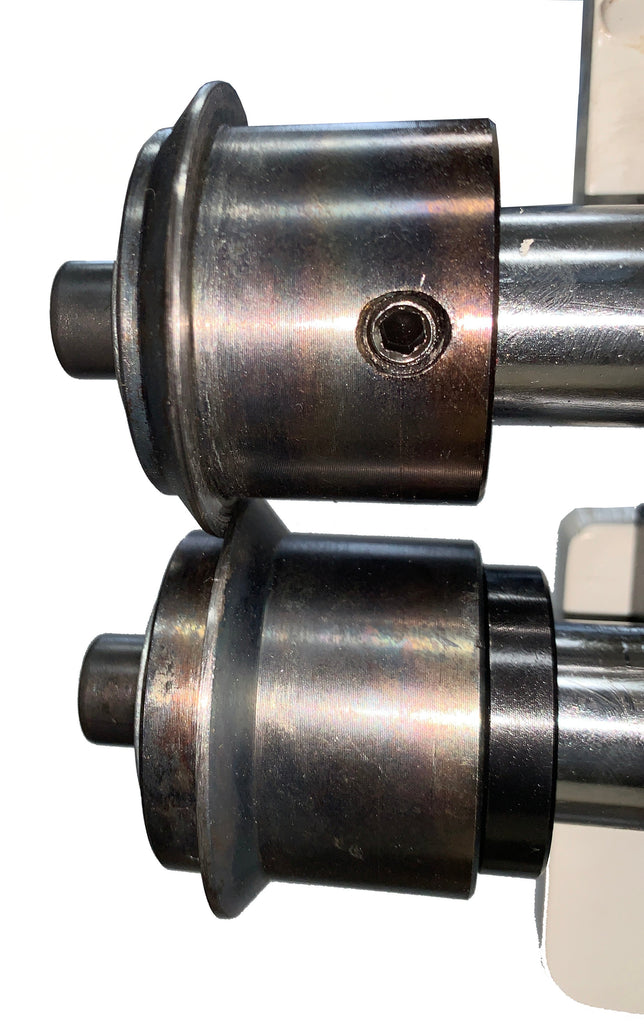

    • Shearing roll set

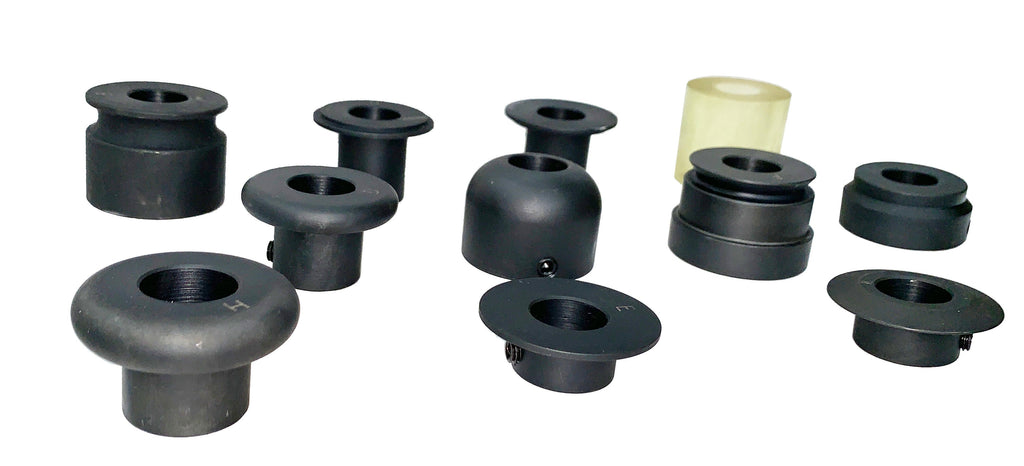

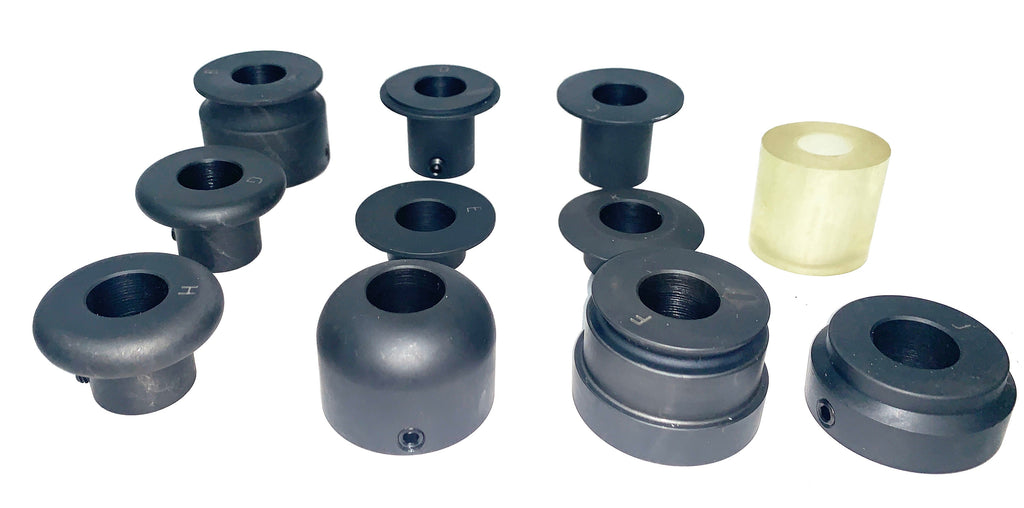

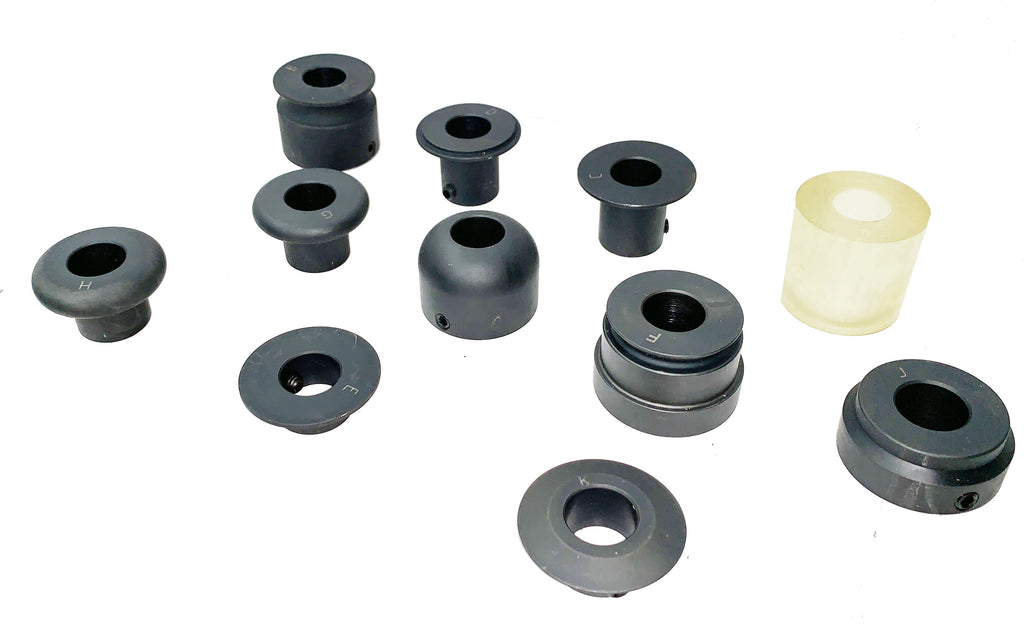

Features of Forming Kit (10pcs Steel Roll & 1 Poly）

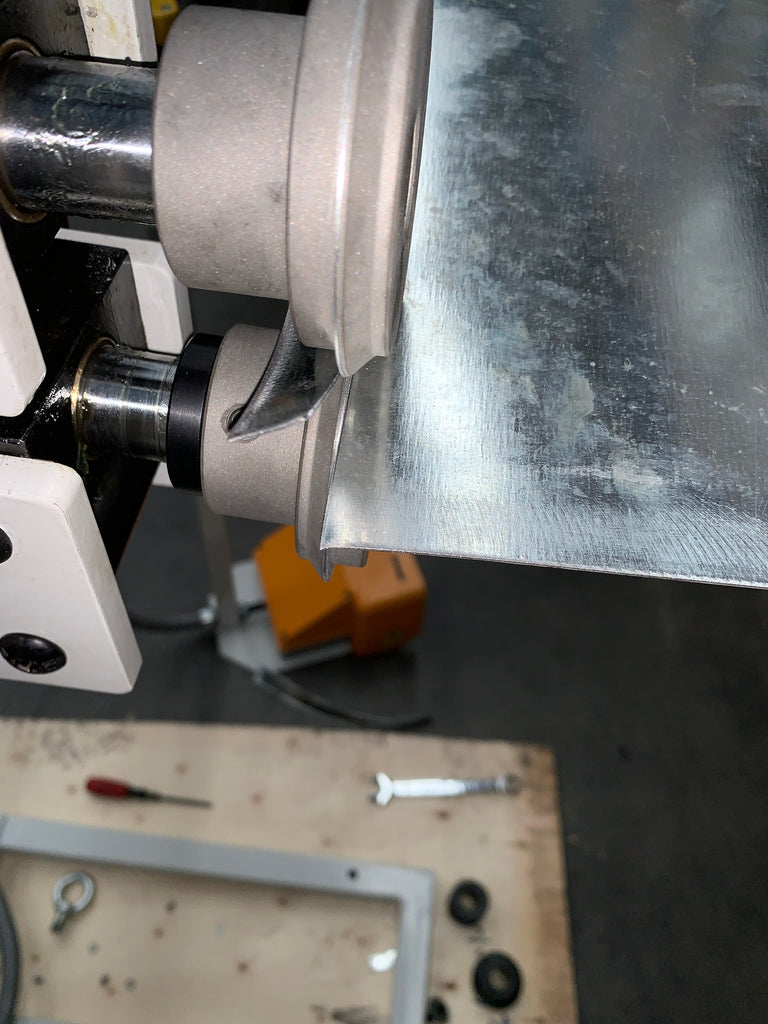

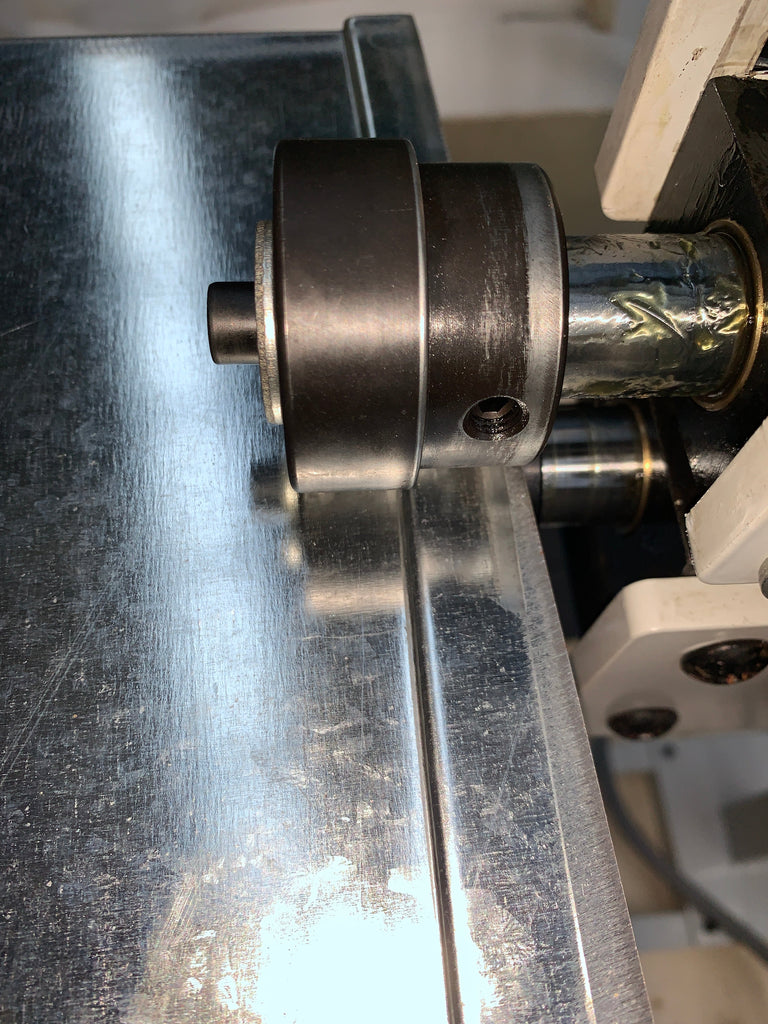

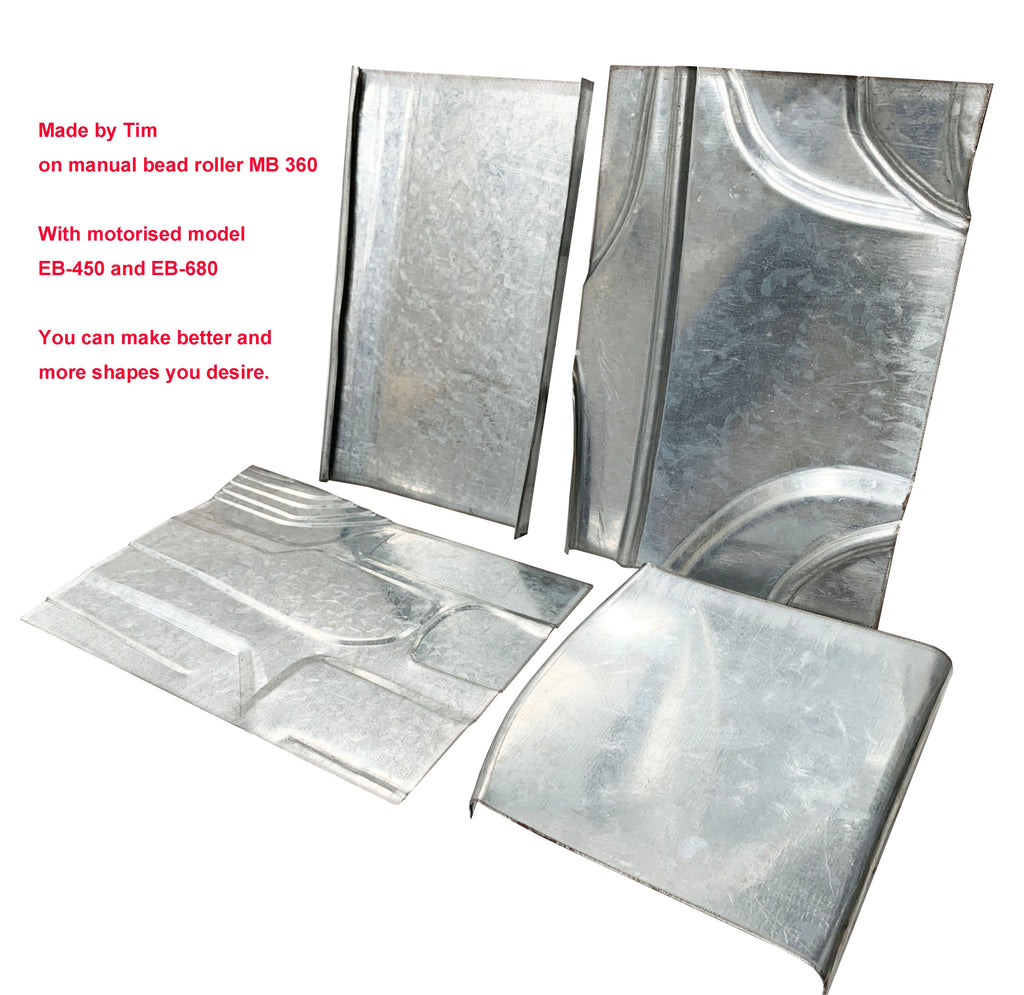

  • With these dies you can create offset flanges, contours,
  • deep channels, and style lines. This kit also includes a polyurethane lower wheel,which can be used with a variety of upper dies.
  • 10 x dies made from steel & Hardened up to 40 HRC,  black oxide coating to avoid rust and for long life.
  • 1 x roller made from polyurethane

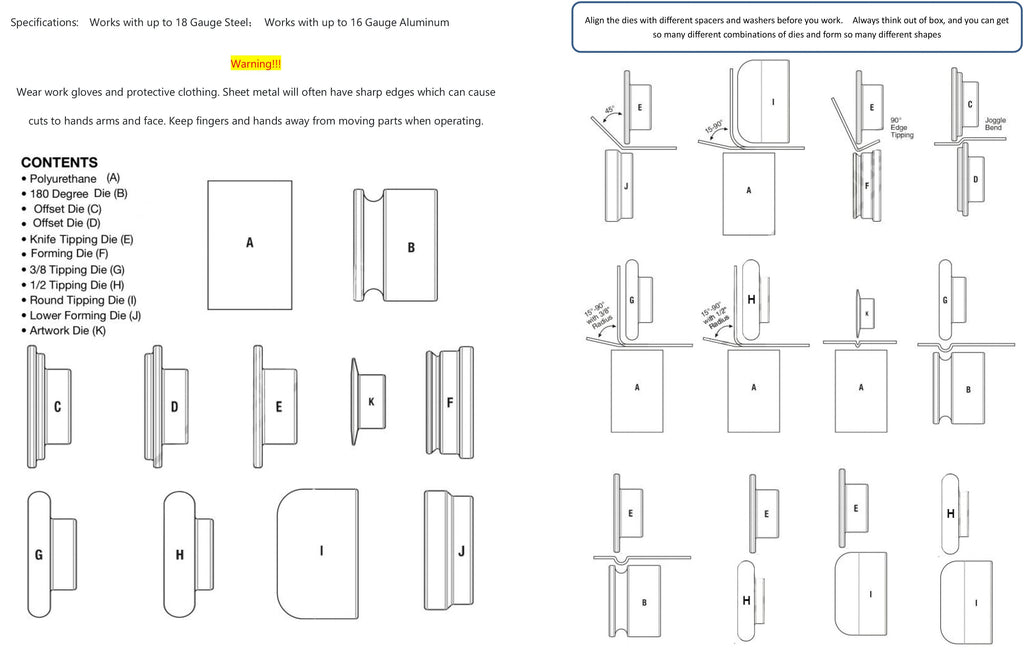

Includes

  • 1 x Inside offset die
  • 1 x Outside offset die
  • 1 x knife edge tipping die
  • 1 x Lower edge forming die
  • 1 x 3/8" tipping die
  • 1 x 1/2" tipping die
  • 1 x Round tipping die
  • 1 x lower forming die
  • 1 x 180 degree lower die
  • 1 x Artwork die
  • 1 x Polyurethane lower die
