EB-910 Motorised Bead Roller & EW-940A English Wheel & Planishing Hammer PH-51 & Shrinker-stretcher

Extra Machinery Pty Ltd

$2,600.00

SKU: S910P

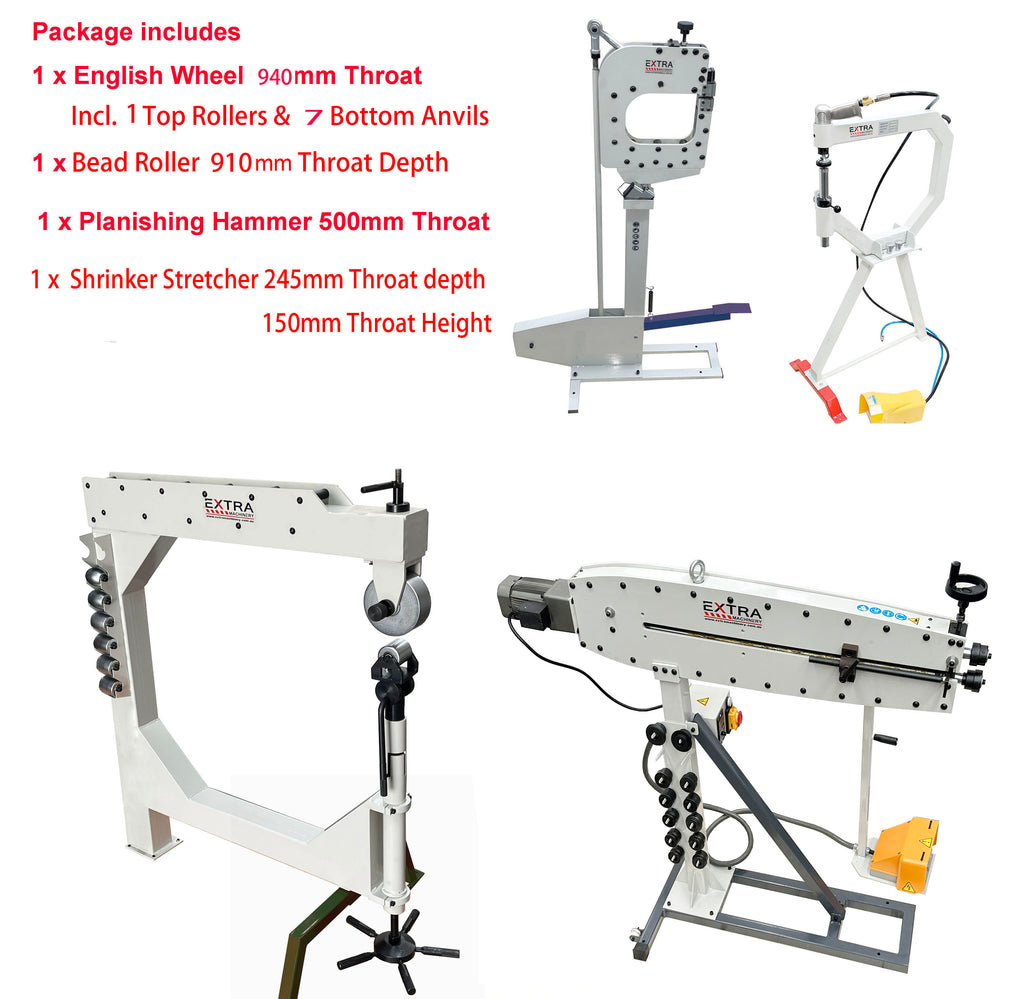

4 MACHINES ARE SOLD AT ONE PACKAGE.

(SKU S646A + SKU S647 + SKU EB910 + SKU S643)





ENGLISH WHEEL IS DESIGNED TO FORM SMOOTH CURVES FROM FLAT SHEETS OF METAL. THEY ARE MAINLY USED IN CAR, MOTORCYCLE, AVIATION AND RACING CAR CONSTRUCTION OR RESTORATION WHERE SHEET METAL PANELS NEED TO HAVE COMPOUND CURVES FORMED.

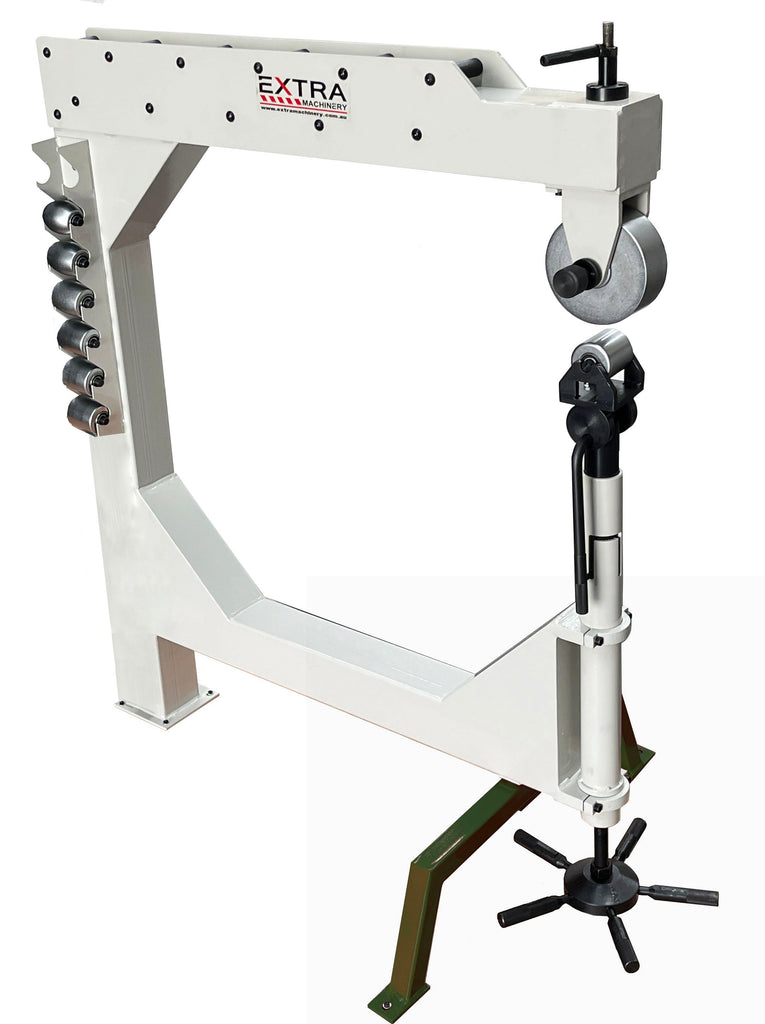

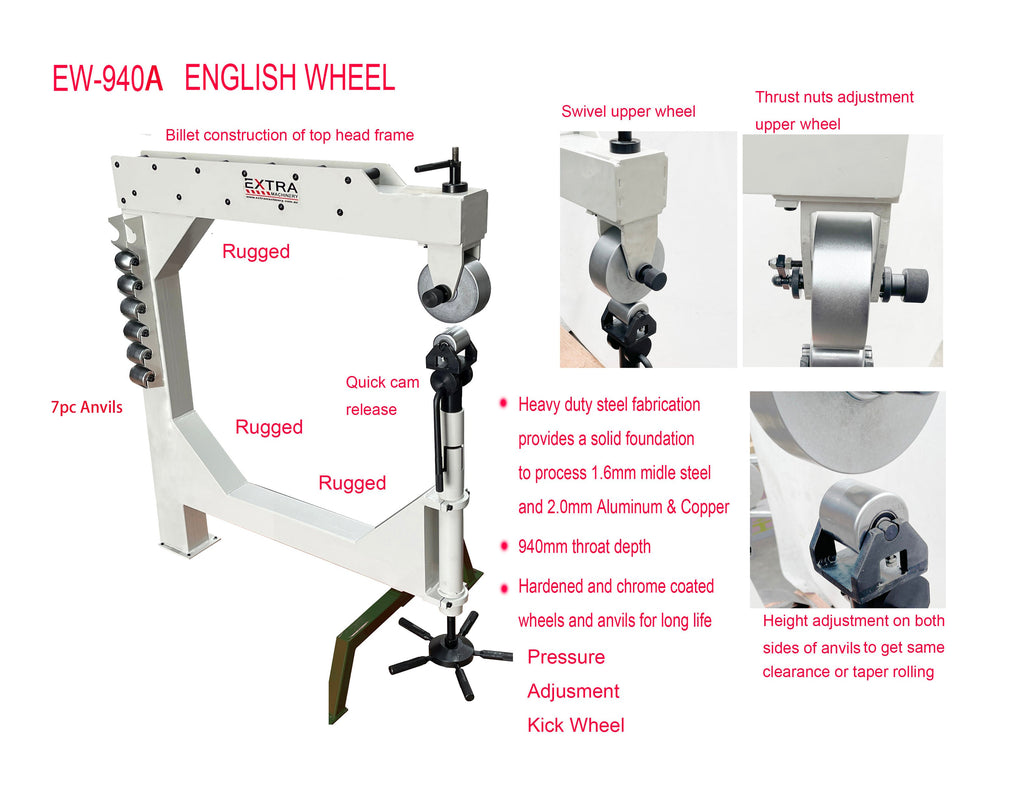

 EW-940A

  • 1.6mm (16 gauge) mild steel capacity.
  • 940mm throat depth can handle almost any project.

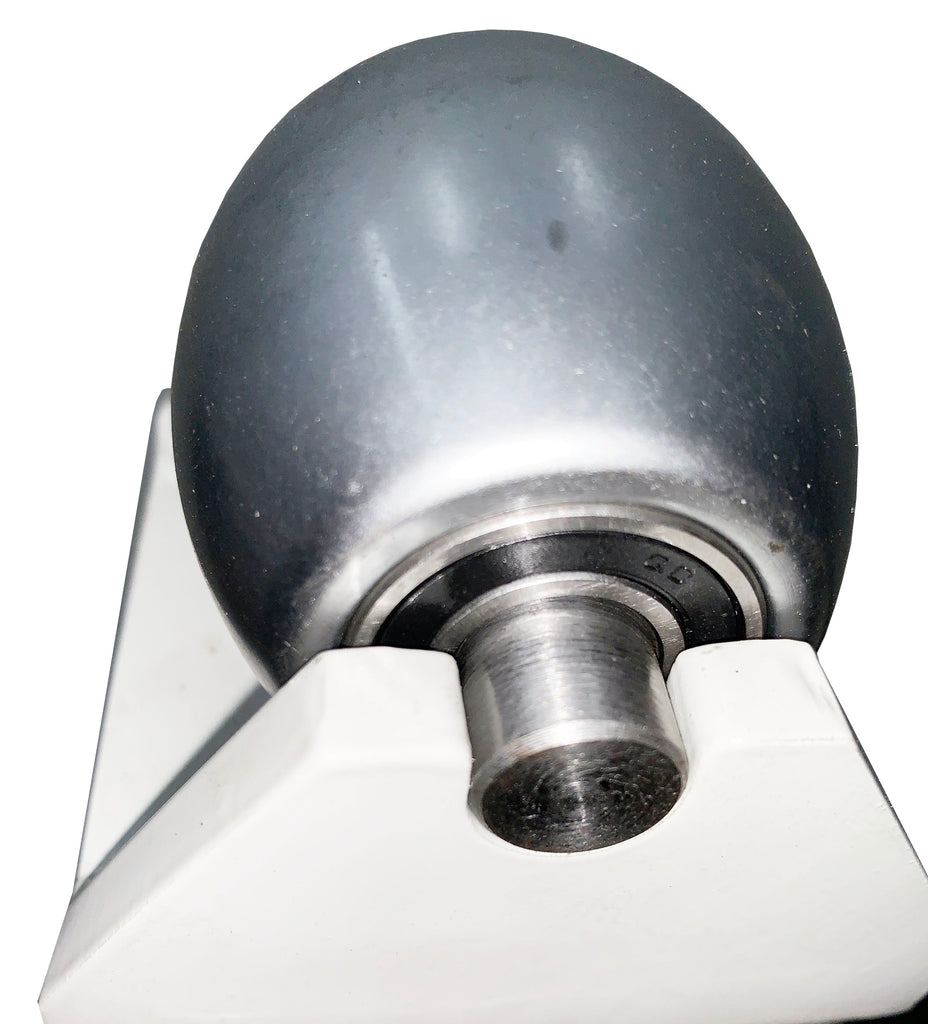

  • Comes with 1 upper wheels (152mm x 57mm).

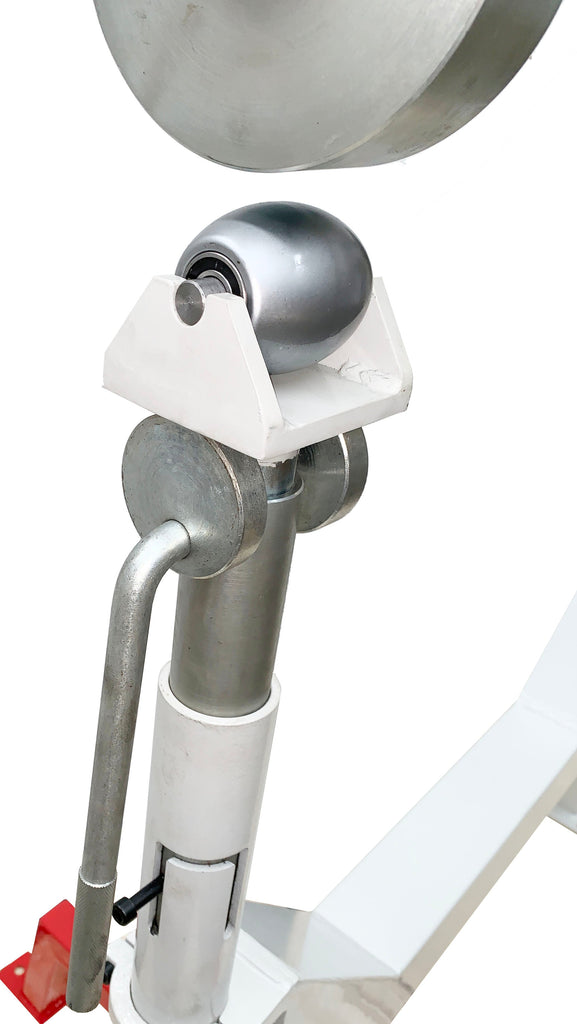

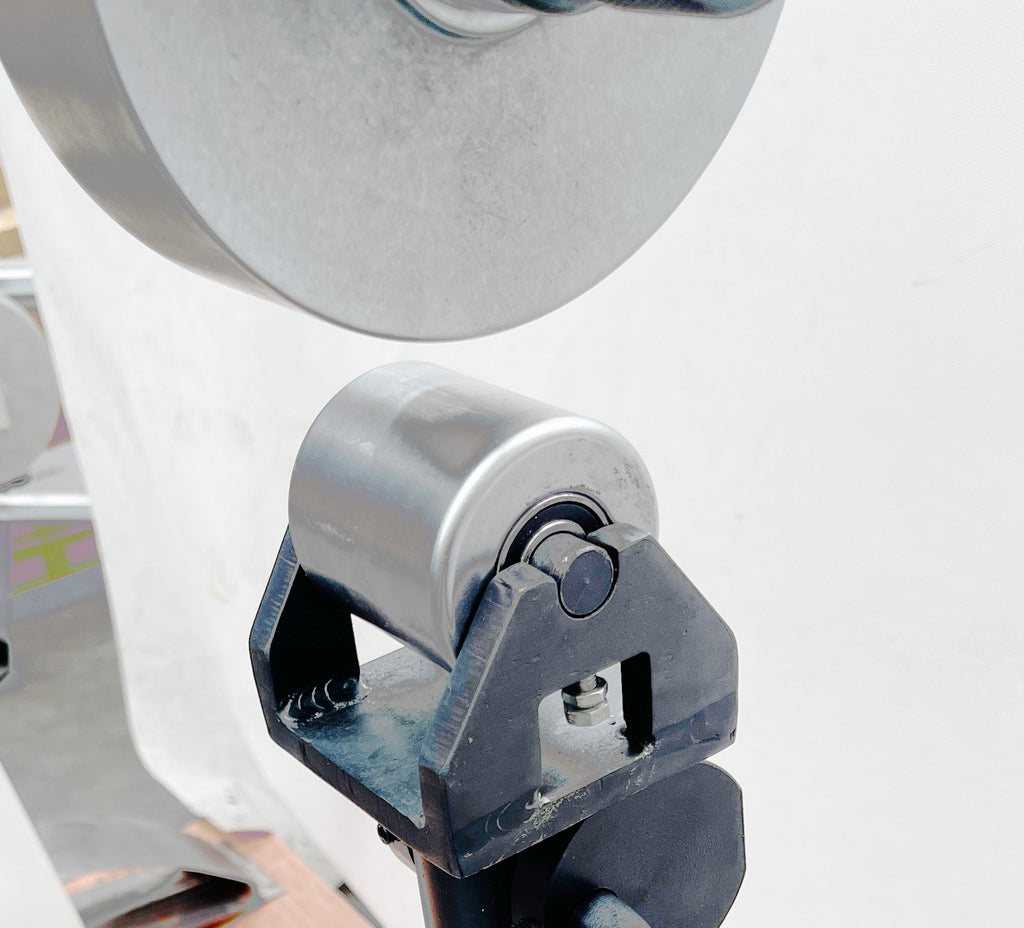

  • 7 hardened bottom anvils (70mm wide):
    Radius anvils:  Flat, 50.8, 101.6, 152.4, 203.2, 304.8, 609.6
  • BILLET STRUCTURE OF HEAD WITH 8MM PLATE

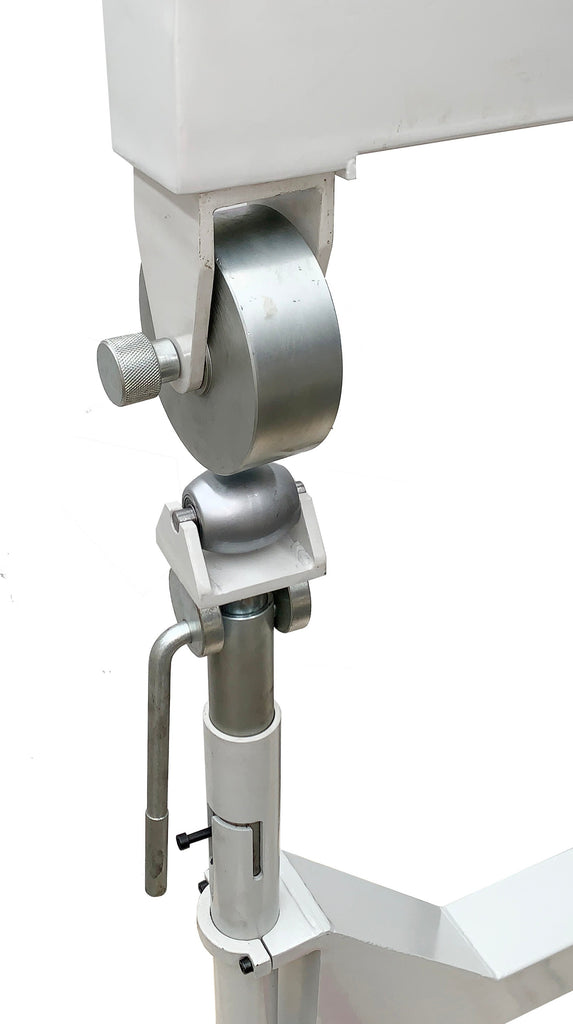

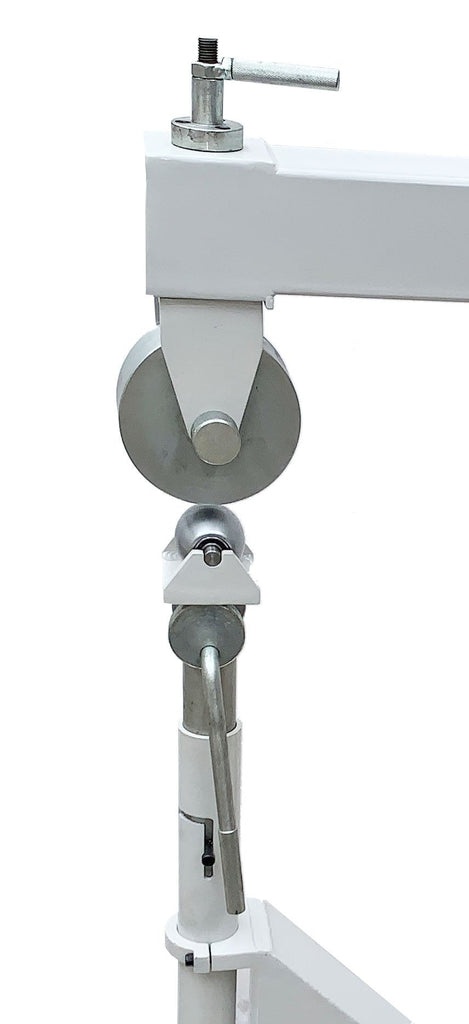

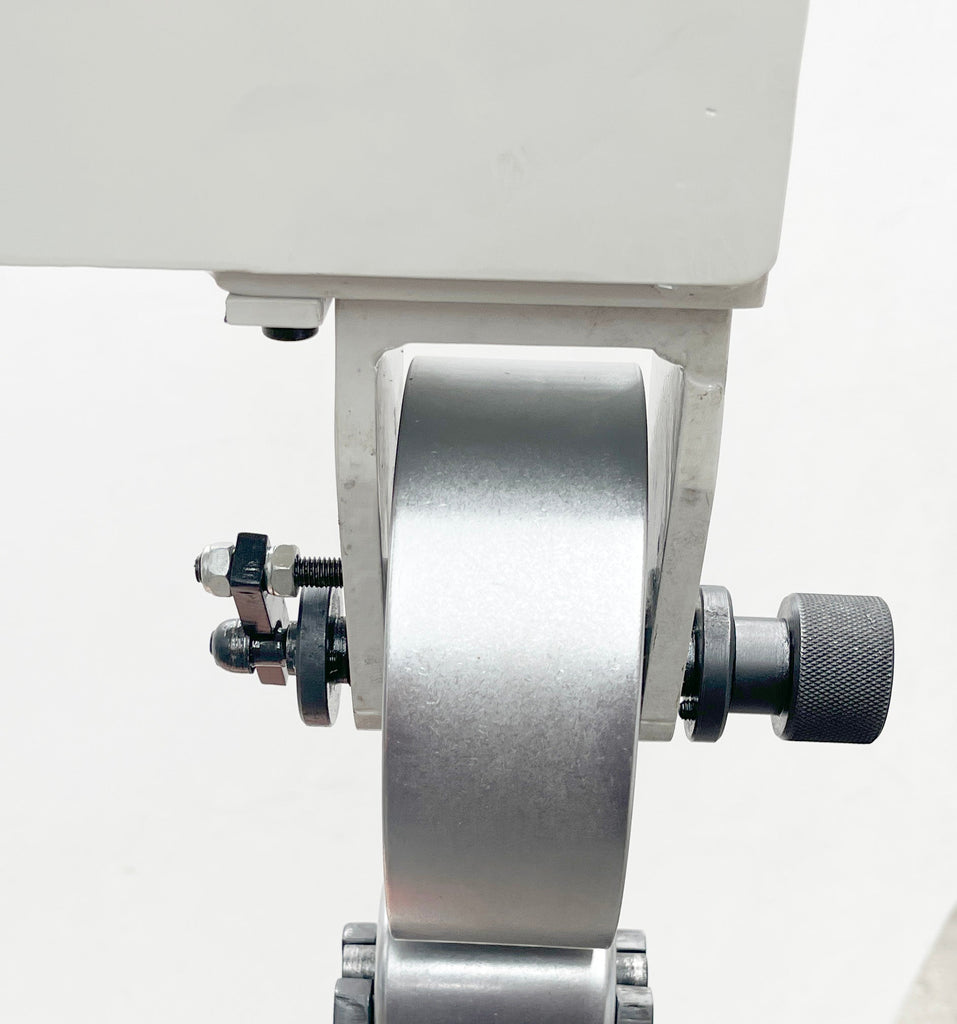

  • LEFT/RIGHT ADJUSTMENT OF TOP ROLLER TO ALIGN WITH DIFFERENT BOTTOM ANVILS SUCH AS EDGING, BEADING.
  • UP/DOWN ADJUSTMENT OF BOTTOM ANVILS TO GET THE SAME GAP ON BOTH SIDES
  • CNC MACHINED PARTS FOR BOTTOM ANVIL LIFTING ASSEMBLY TO GURANTEE THE MINIMUM BACKLASH.
  • CHROME COATED TOP ROLLERS & BOTTOM ANVILS FOR RUST PROOF & LONG LIFE.
  •
    • Upper wheels and lower anvils use sealed bearings.
    • Swivel head lets you either push material directly into the throat or at a 90° to it.
    • Quick-release cam allows you to release the panel without changing tension.
    • Adjust the tension via the kick tensioner wheel.
    • Heavy tube construction with heavy rugged welding

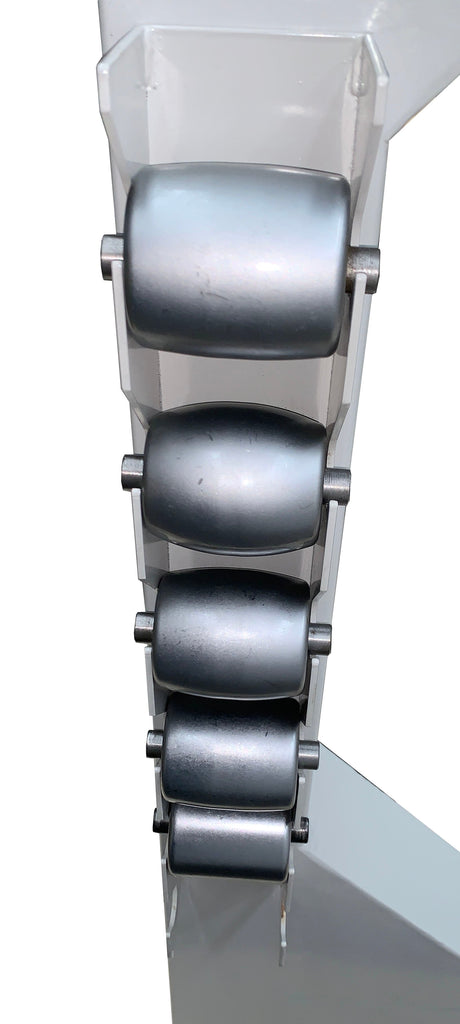

    • Wheel racks on the side of the machine gives you a convenient place to put your rolls.

    Recommended for: Restoration or bodywork on autos, planes, cycles, and much more.

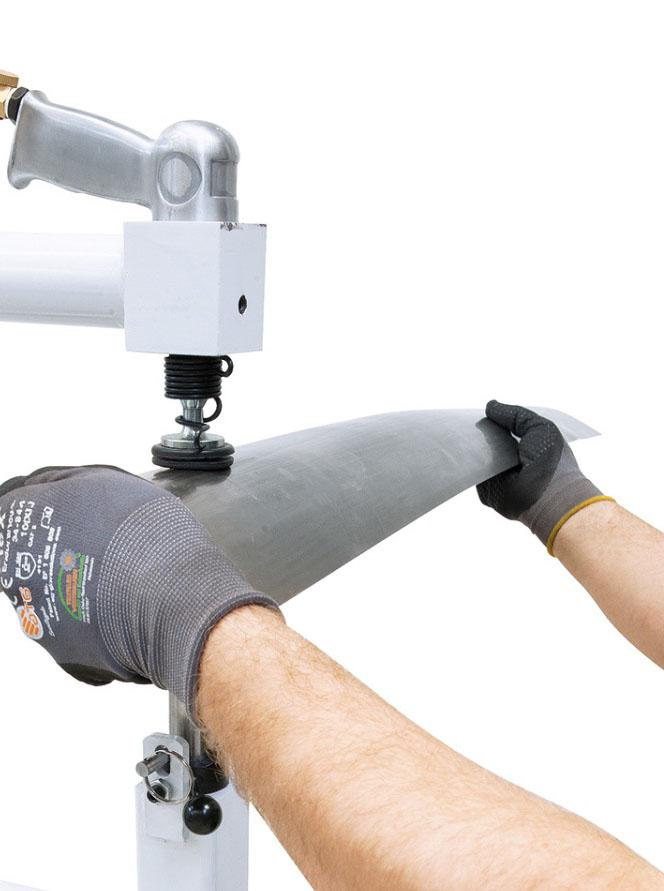

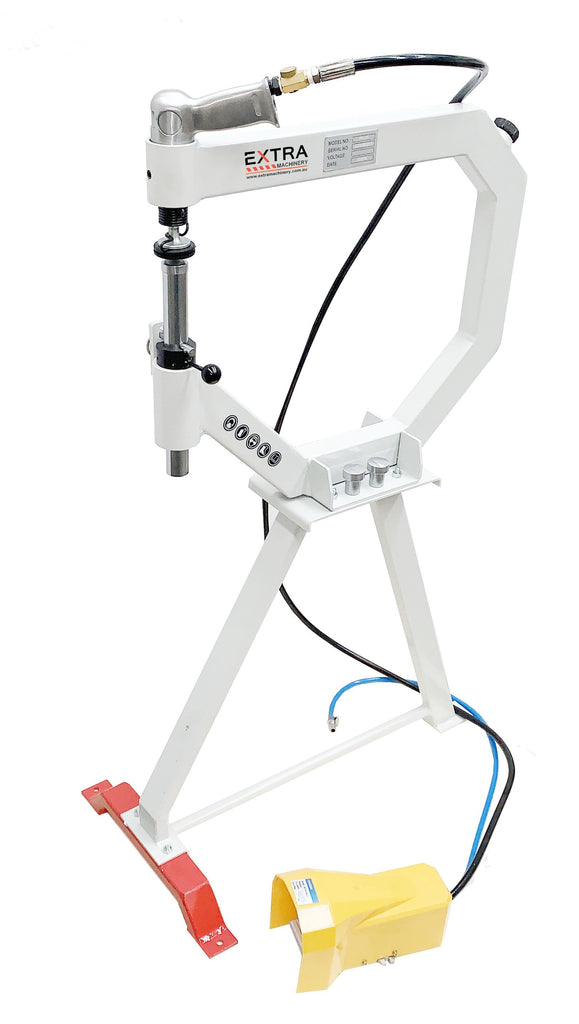

    PLANISHING HAMMER  IS USED  TO SMOOTH LARGE AREAS OF METAL IN METAL FABRICATION AND RESTORATION, FOR EXAMPLE CUSTOM MOTORCYCLE GAS TANK AND FENDER MANUFACTURING, STREET ROD BODIES, PATCH PANELS FOR AUTO RESTORATION, REPAIR AND METAL SCULPTING.



    • Sturdy Steel fabricated frame

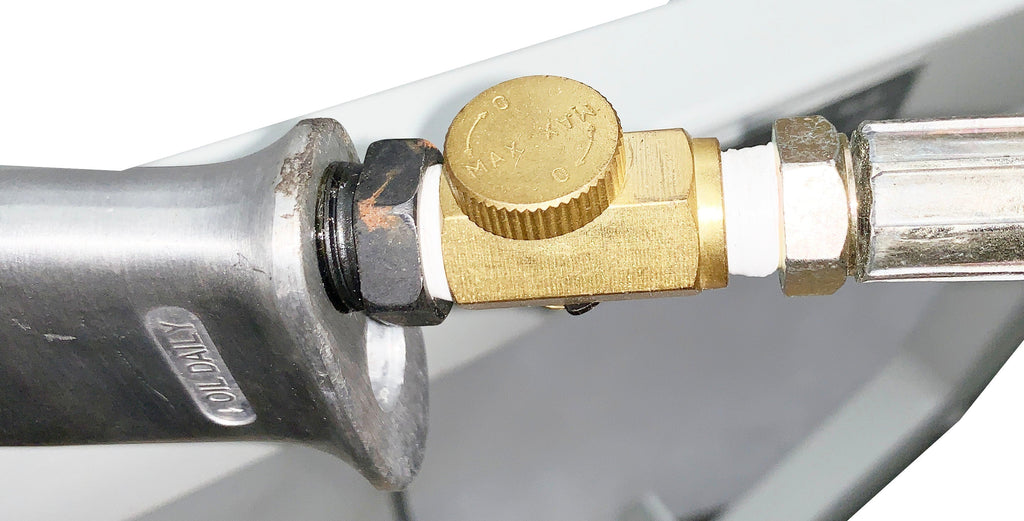

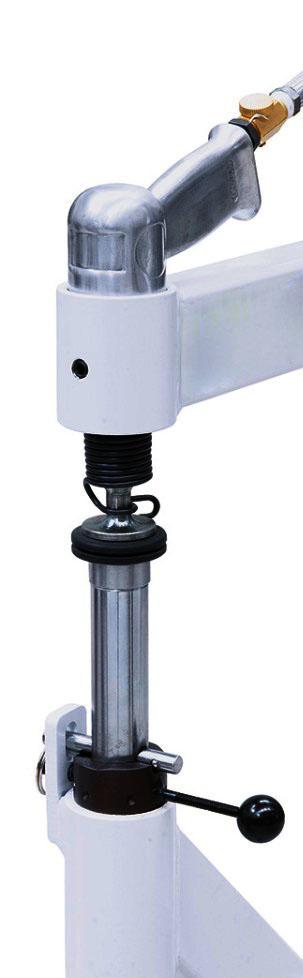

    • Heavy duty aircraft gun for power head, with adjustment control of the intensity from 875-1350 blows per min.
    • Quick release of the lower shaft to accept panels with high flanges.

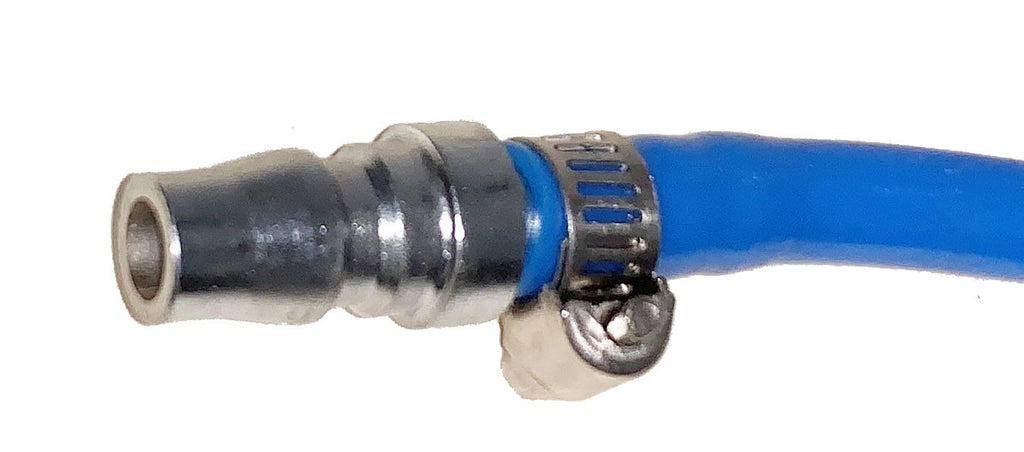

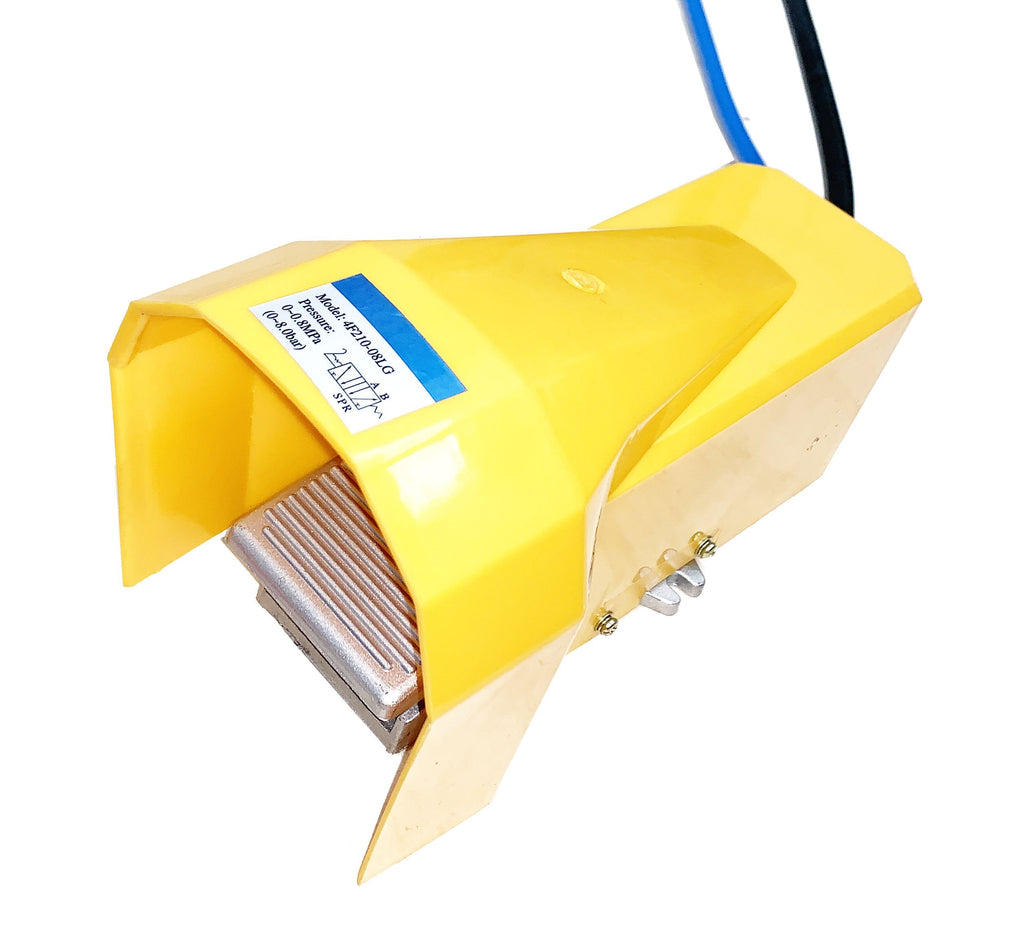

    • Foot control starts and stops the hammering while being hooked up to compressed air.

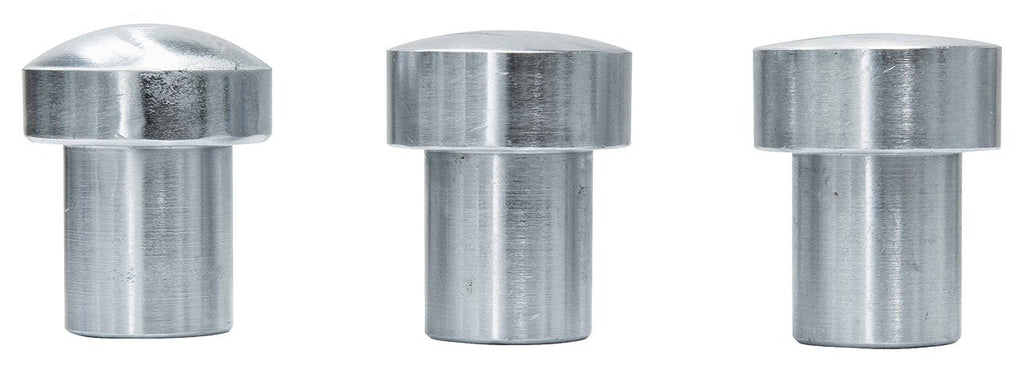

    • Includes Ø32mm flat top die, 25, 50 and 76mm radius anvils.
    • 500mm throat capacity
    • 1.2mm mild steel capacity
    • 50 - 100PSI pressure
    • Overall height 1220mm
    • The footprint of the machine is 750mm x 350mm

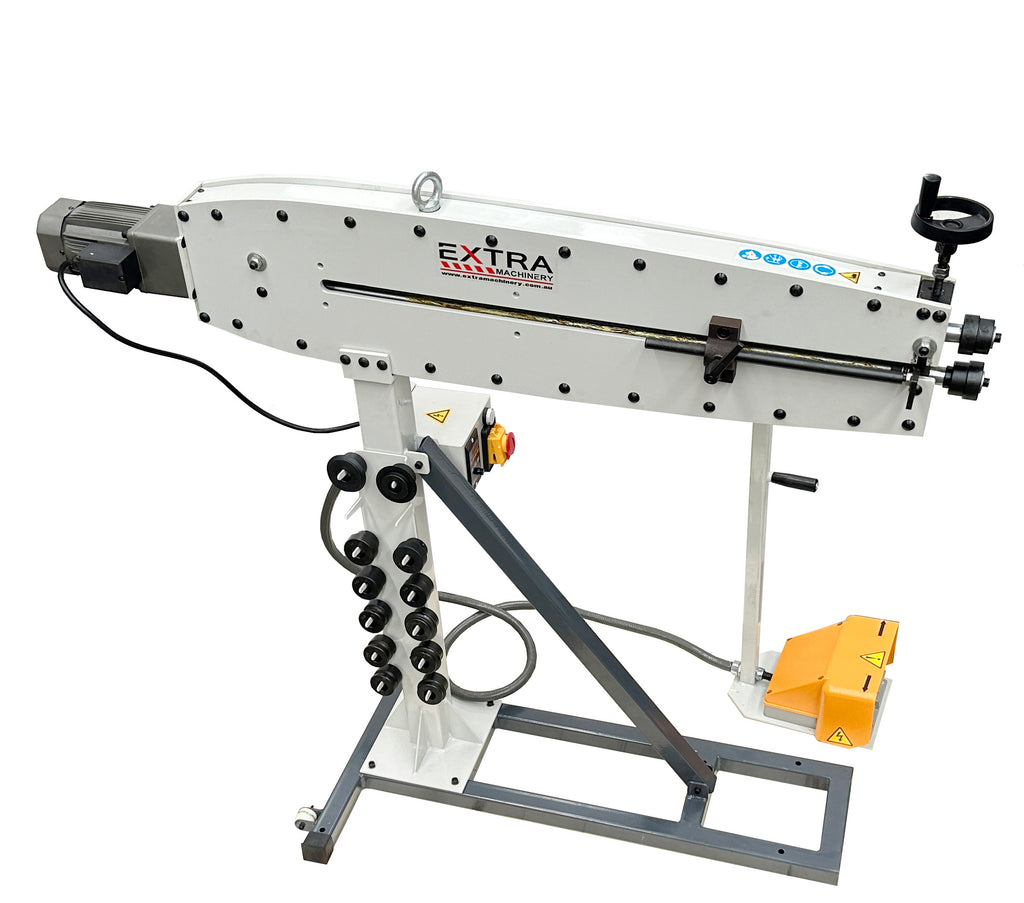

     MOTORISED BEAD ROLLER EB1070 W/VARIABLE SPEED

     MAXIMUM BENDING CAPACITY 1.2MM MILD STEEL  (NET WEIGHT 150KG) INCLUDE FORMING DIE KITS & RADIUS DIE KITS

    •  910mm throat depth, and 1820mm panel can be  processed from roller centre
    •  Motorised roller shafts with gear reduction box

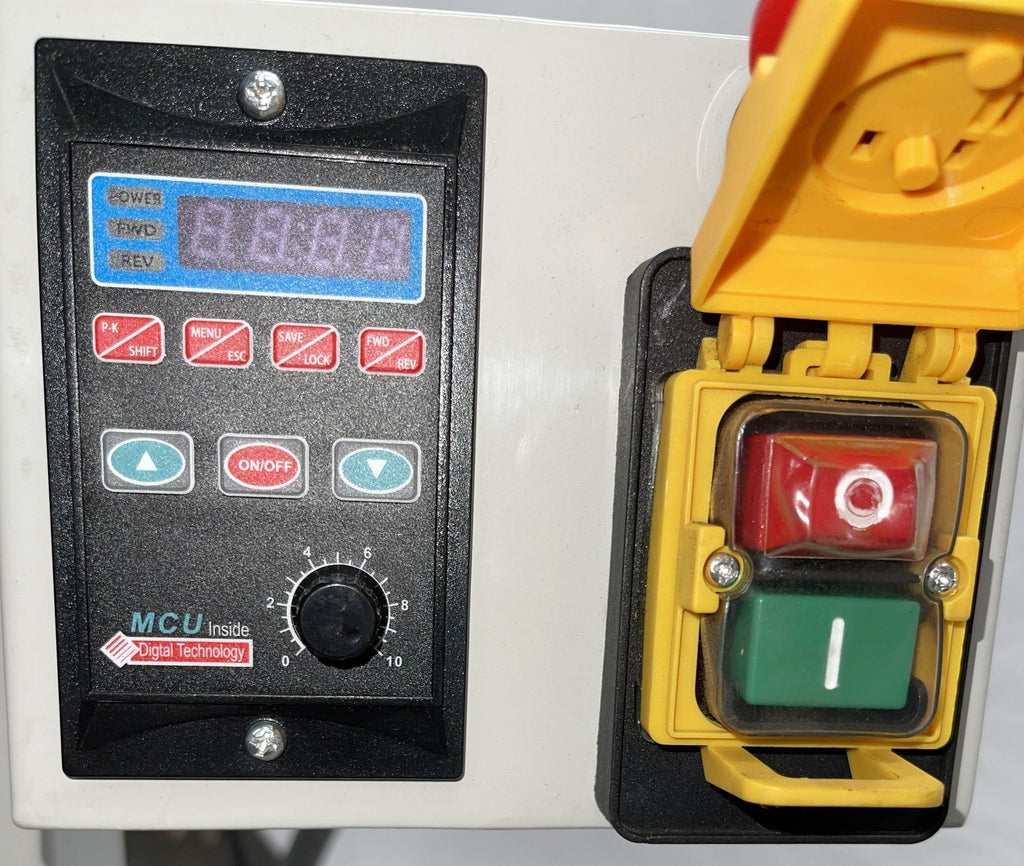

    •  240V single phase motor with variable speed control
    •  Foot pedal switches to control forward/reverse running.
    •   Top shaft moves forward/backward to align the centre lines of top/bottom rollers
    •   Big hand wheel adjusts the depth of top roller.

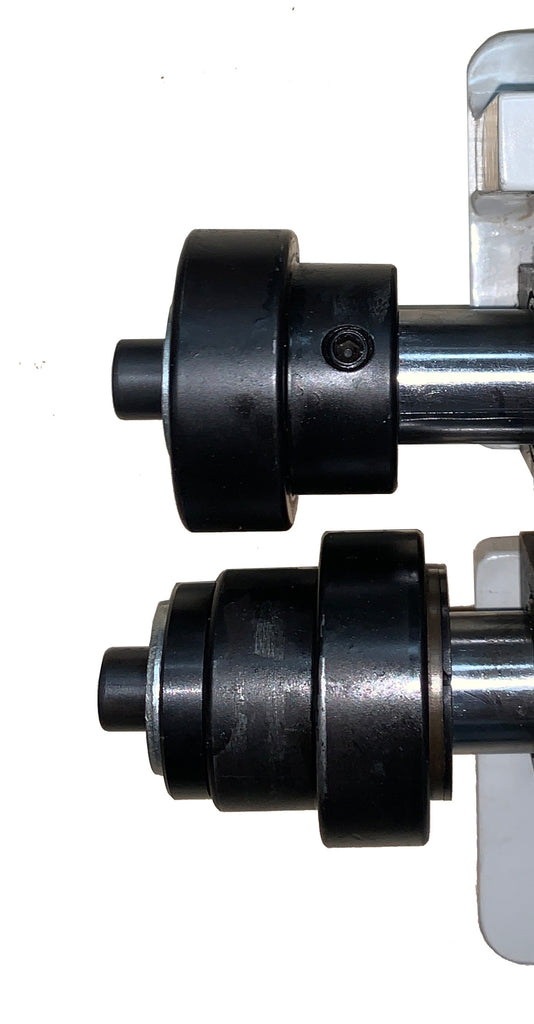

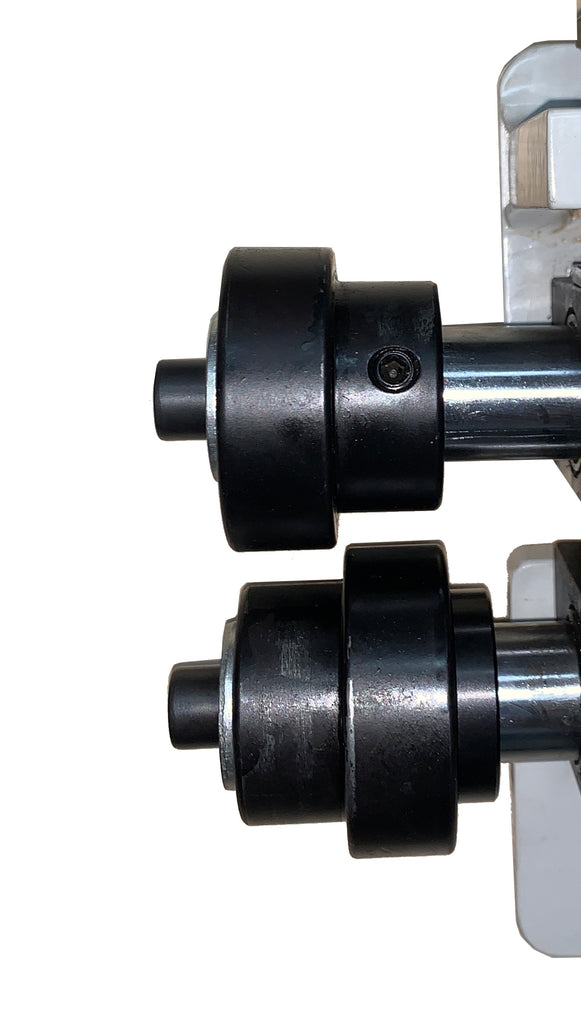

    •   All rollers are hardened, and keyway mounted

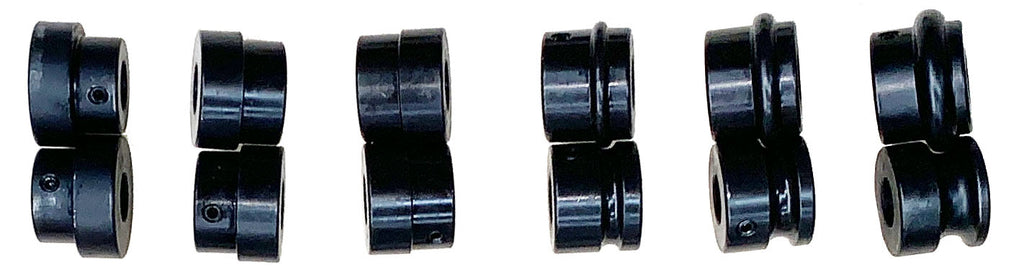

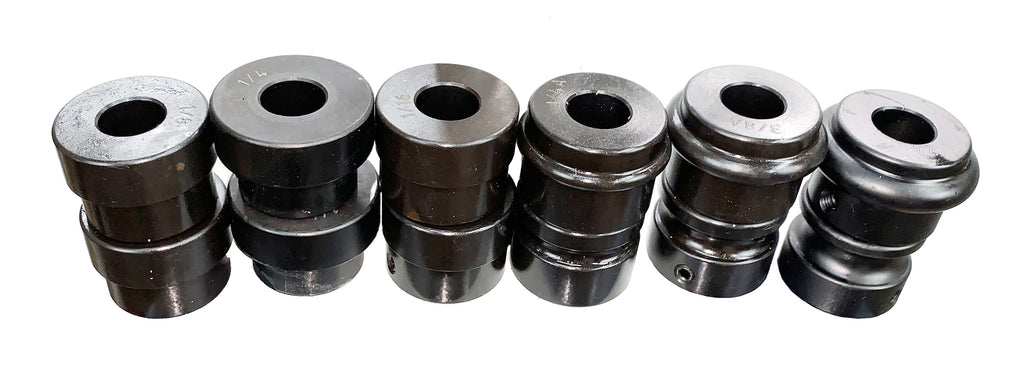

    •   Include 7 sets rollers as standard

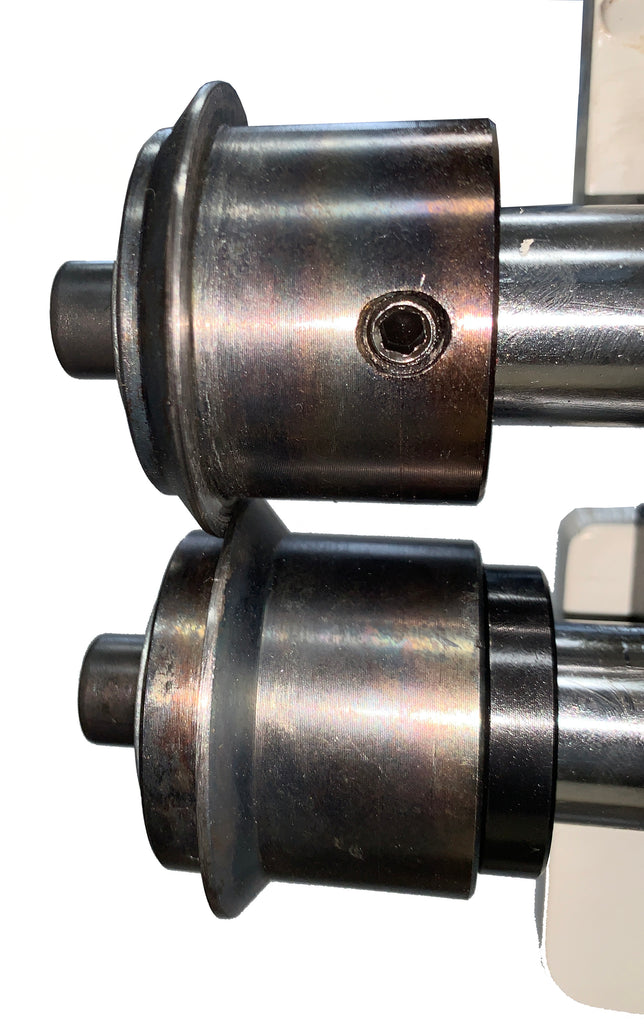

        One set of Shearings, 3 sizes of stepping and 3 sizes of beading
    •   Two roller wheels are fitted on the base for easily moving the machine
    •   Include material stop fence  for long workpiece

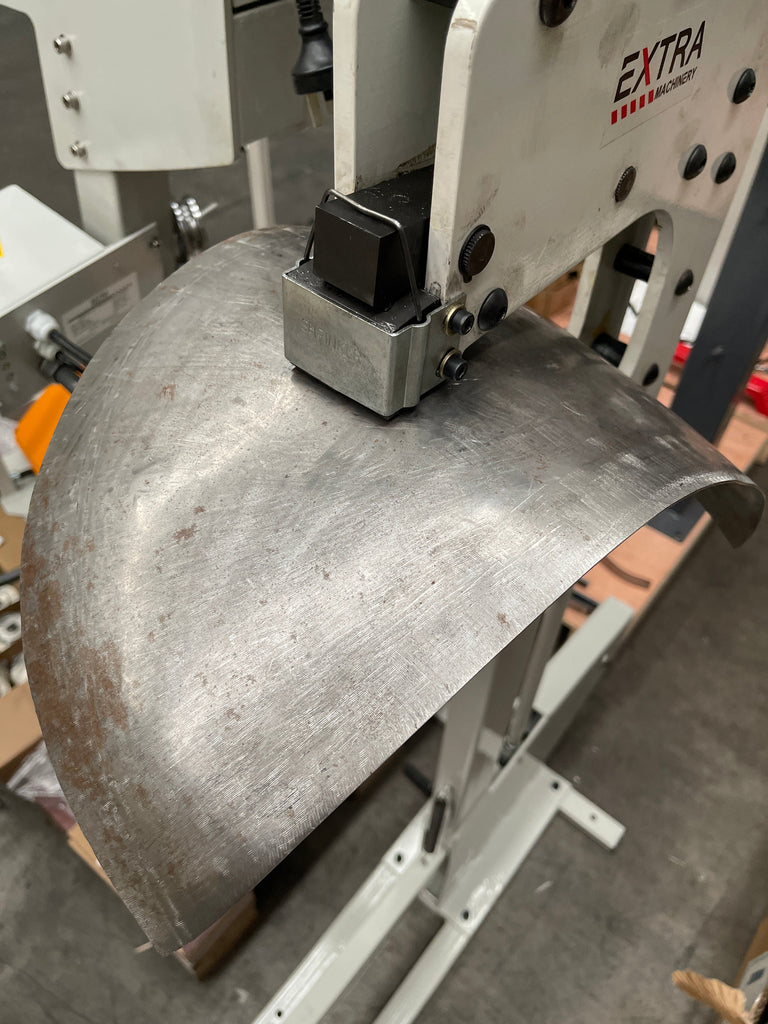

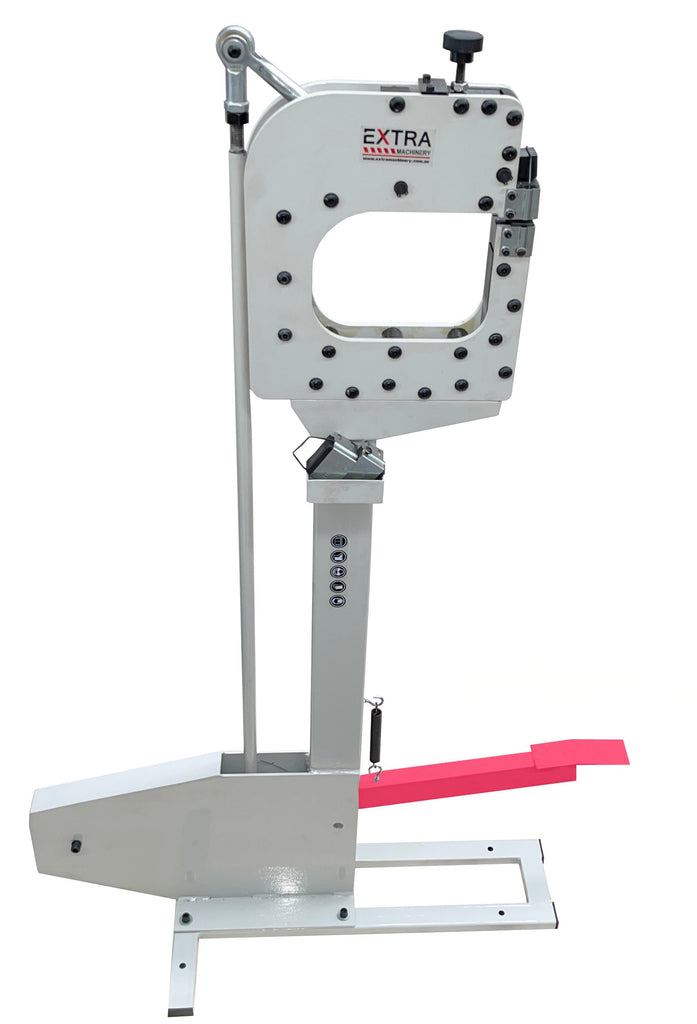

    SS-16F Deep Jaw Shrinker Stretcher is designed for heavy-duty commercial use and features an extra-deep, 9” (245mm) throat depth & 6" (150mm) throat height to allow working large pieces and panels.

    FEATURES:

    • Strong Billet Structure,Net Weight (Appox) 47kg
    • 9" throat for bigger jobs
    • 6" throat height
    • Shrink or stretch up to 16-gauge mild steel
    • Hardened-steel jaws
    • Foot operated to save your hands to hold the material
    • Adjustable stroke knob to control consistent shrinking and stretching

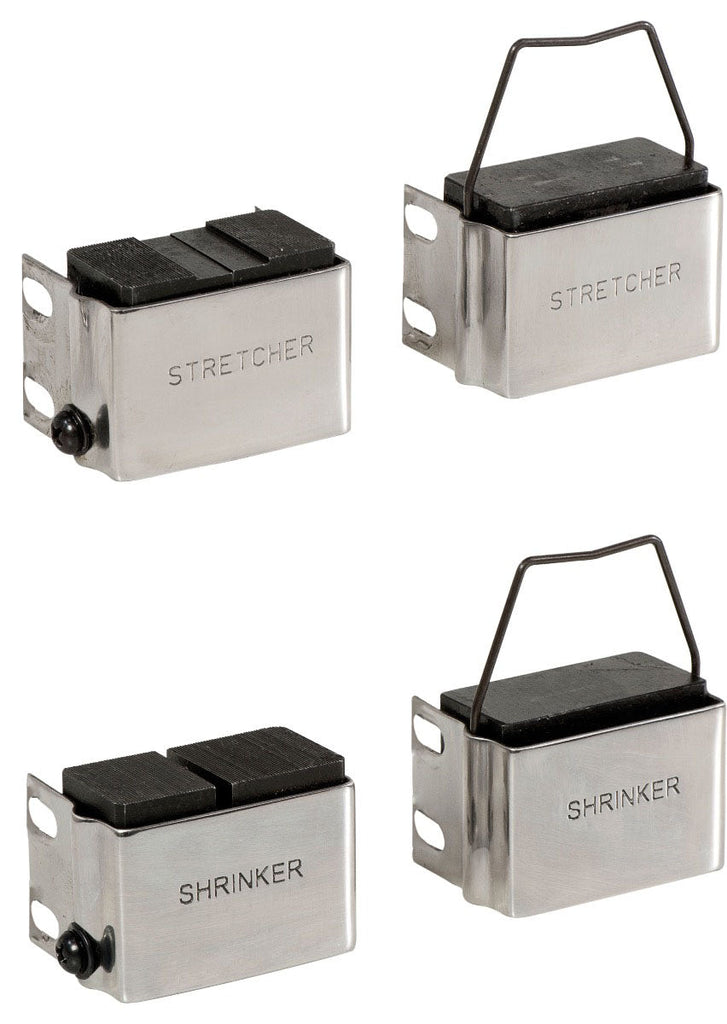

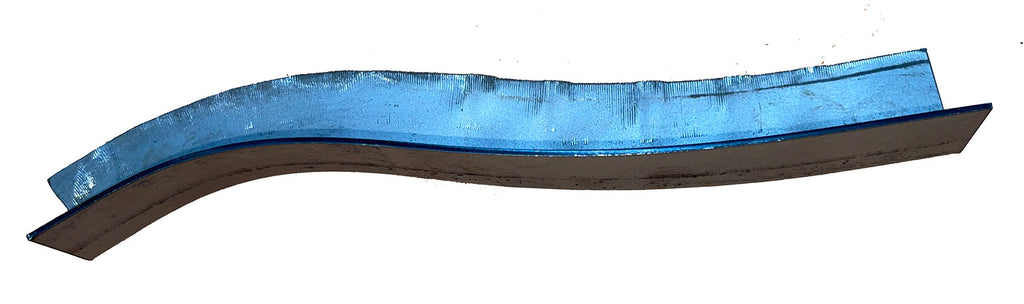

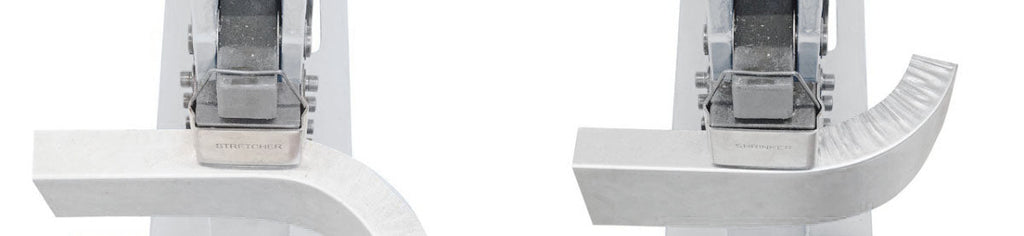

    SHRINK AND STRETCH METAL

    Shrinking jaws contract metal to create inside curves; stretcher jaws expand metal to create outside curves. Use both to create distinctive shapes and designs, or recreate original shapes on your project vehicle.
