NEW!!!!

MORE NEW FEATURES ARE INLCUDED

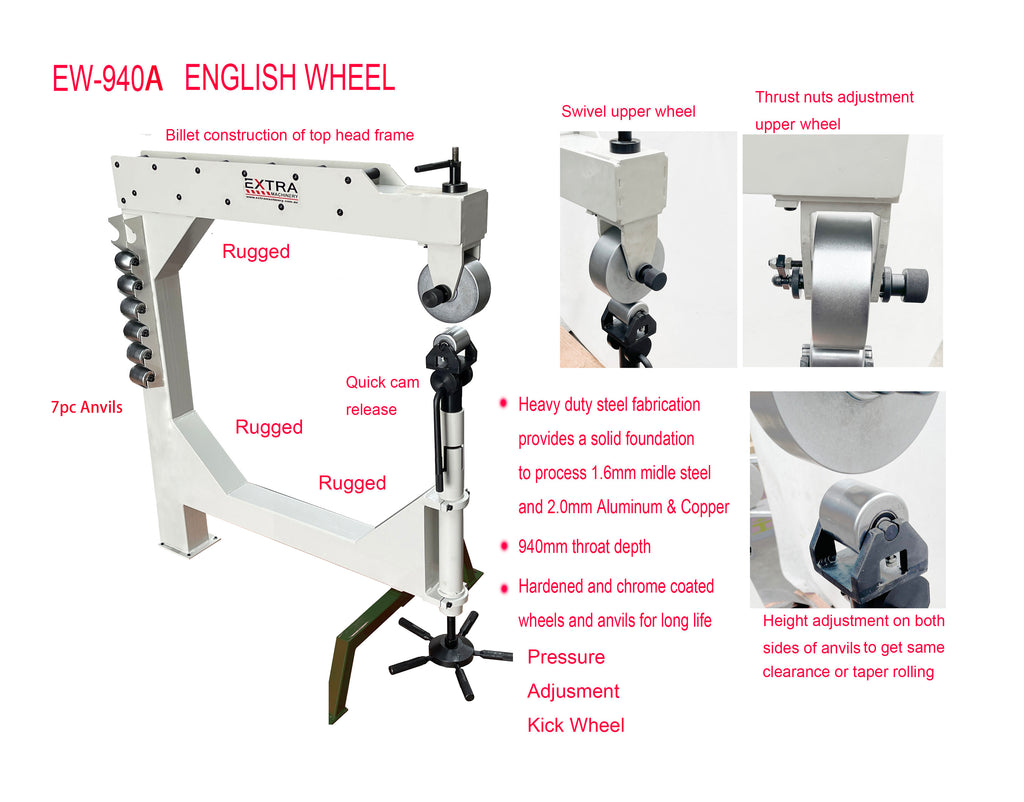

BILLET STRUCTURE OF HEAD WITH 8MM PLATE

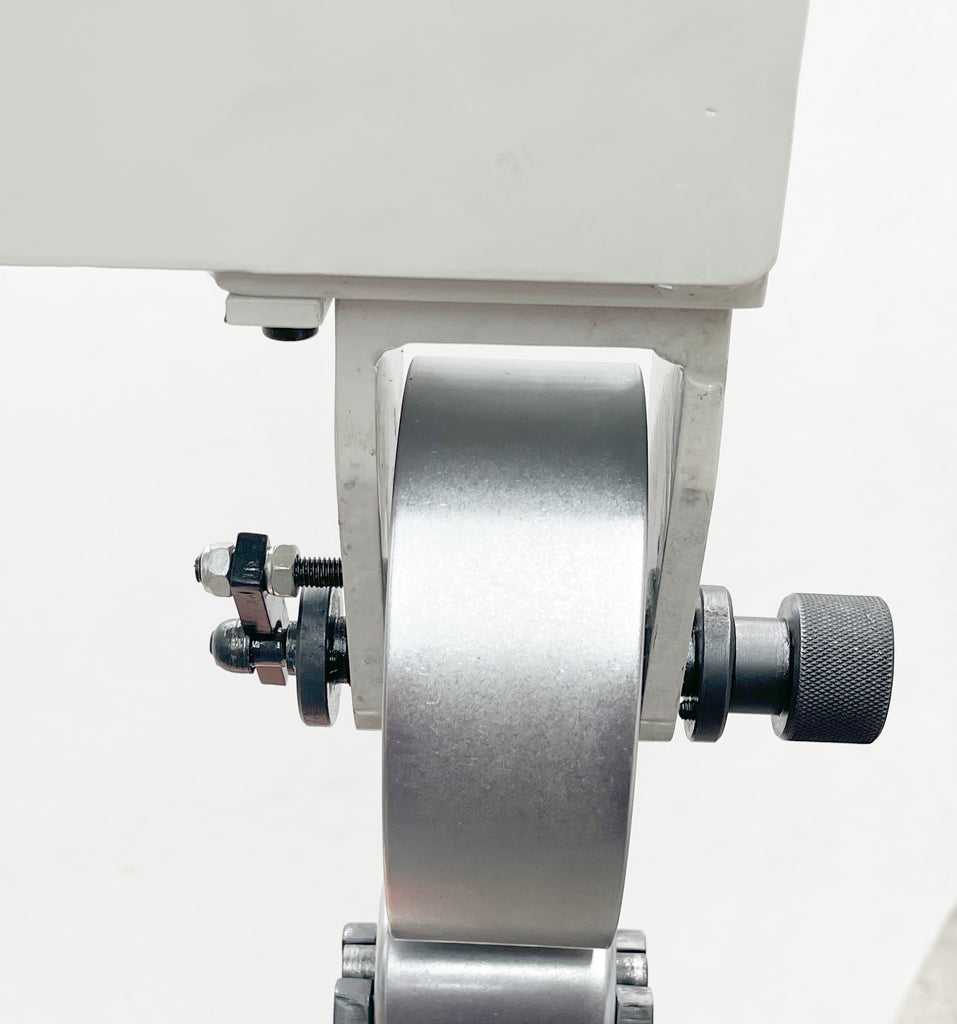

LEFT/RIGHT ADJUSTMENT OF TOP ROLLER TO ALIGN WITH DIFFERENT BOTTOM ANVILS SUCH AS EDGING, BEADING.

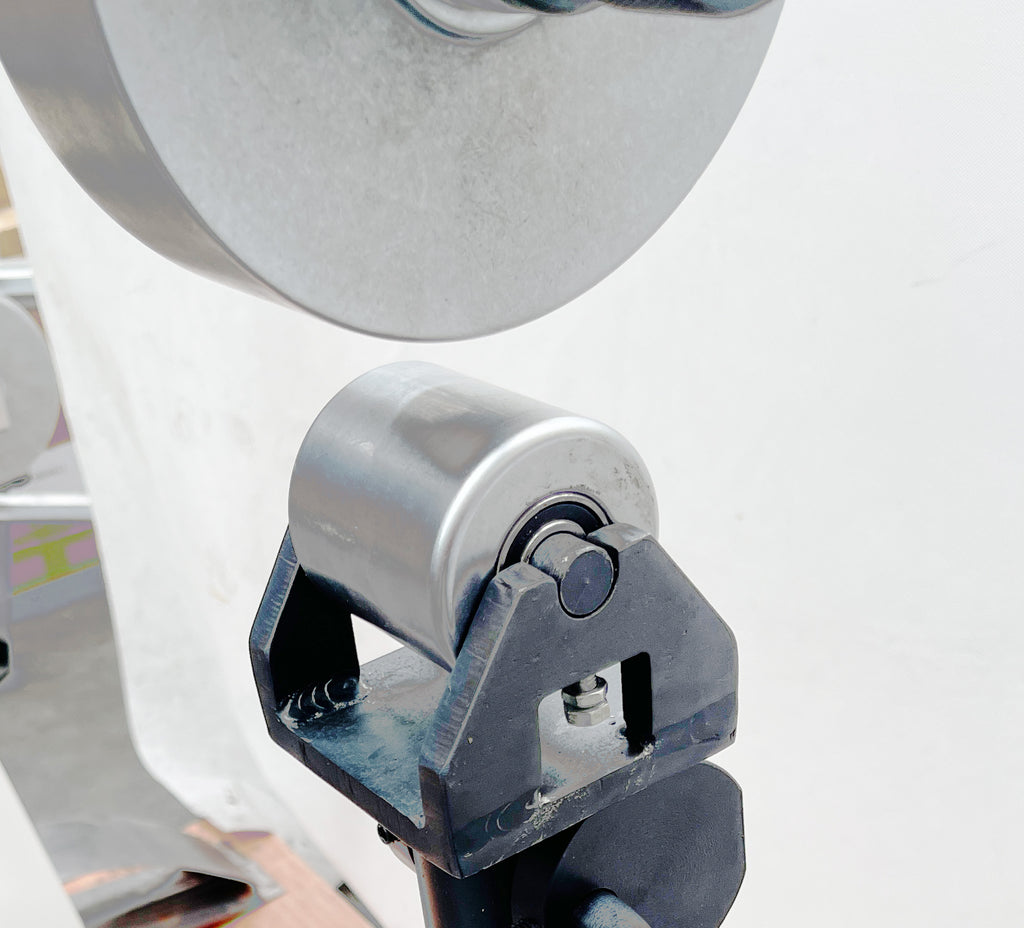

UP/DOWN ADJUSTMENT OF BOTTOM ANVILS TO GET THE SAME GAP ON BOTH SIDES

CNC MACHINED PARTS FOR BOTTOM ANVIL LIFTING ASSEMBLY TO GURANTEE THE MINIMUM BACKLASH.

CHROME COATED TOP ROLLERS & BOTTOM ANVILS FOR RUST PROOF & LONG LIFE.

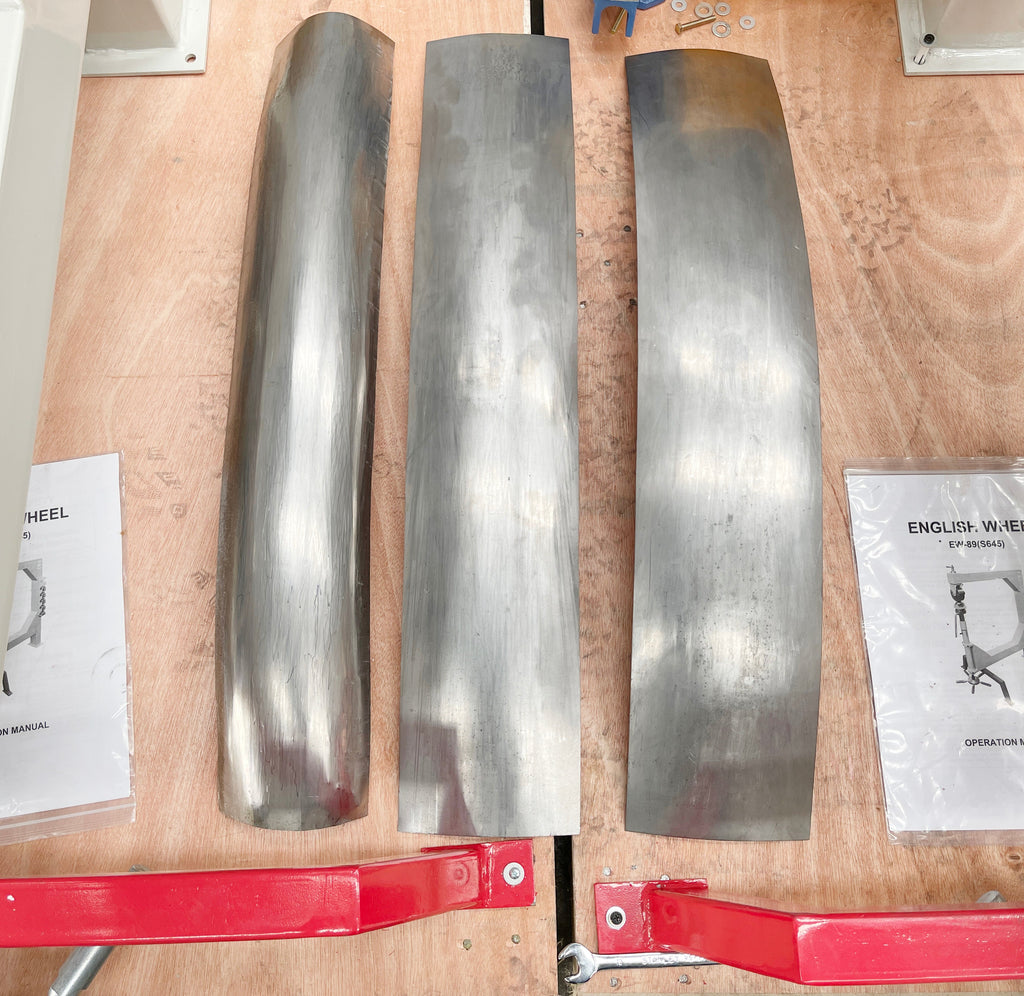

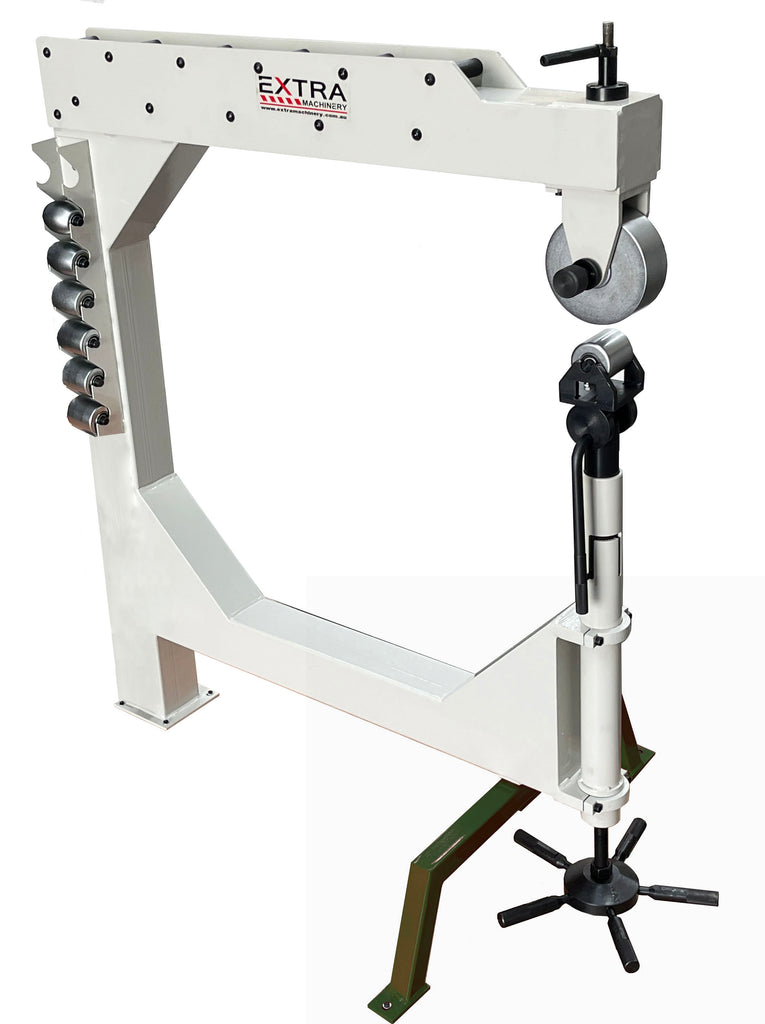

English wheel is designed to form smooth curves from flat sheets of metal. They are mainly used in car, motorcycle, aviation and racing car construction or restoration where sheet metal panels need to have compound curves formed.

• 1.6mm (16 gauge) mild steel capacity.
• 940mm throat depth can handle almost any project.
• 1 upper wheel (152mm x 57mm).
• 7 hardened bottom anvils (70mm wide):
  Radius anvils:  Flat, 50.8, 101.6, 152.4, 203.2, 304.8, 609.6


• You can roll beads as well as form metal on this English wheel.
• upper wheels and lower anvils use sealed bearings.

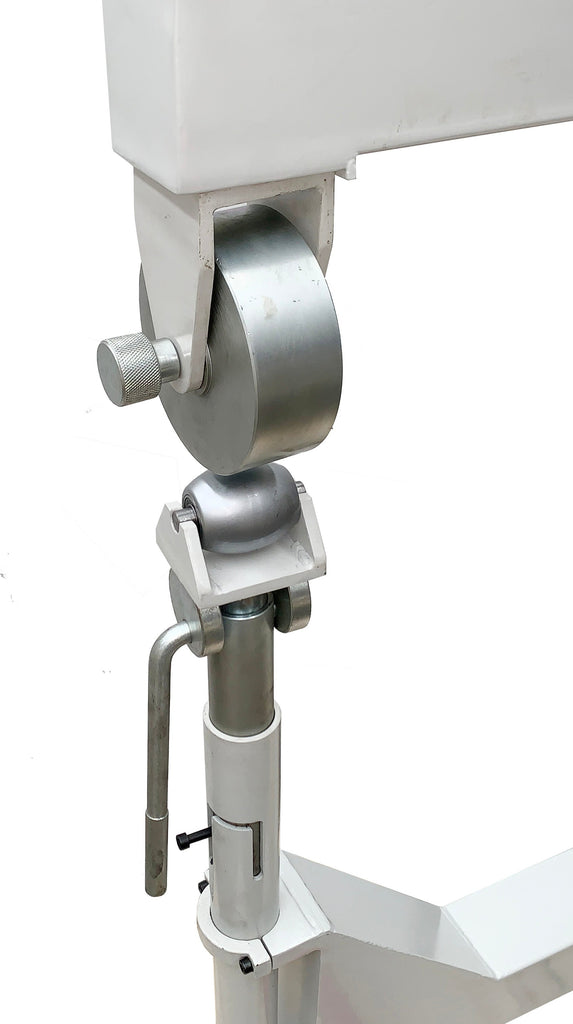

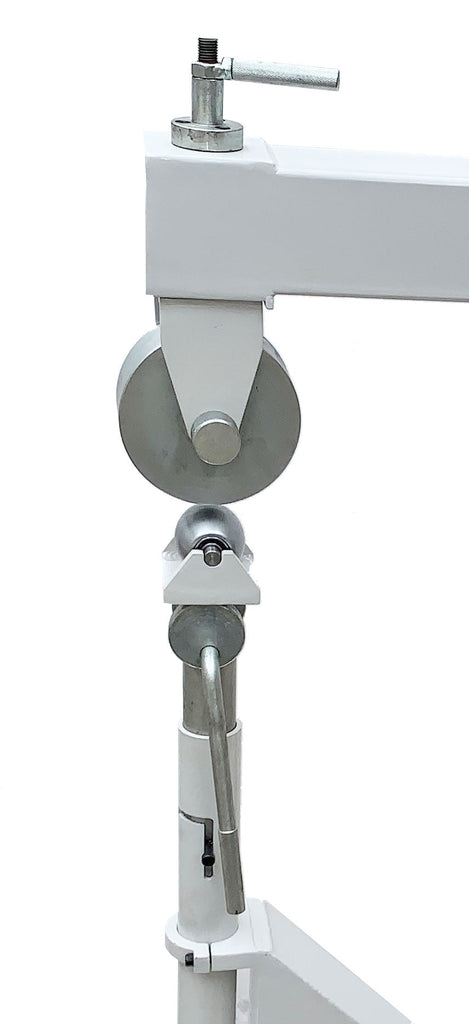

• Swivel head lets you either push material directly into the throat or at a 90° to it.
• Quick-release cam allows you to release the panel without changing tension.
• Adjust the tension via the kick tensioner wheel.
• Heavy tube construction with heavy rugged welding
• Wheel racks on the side of the machine gives you a convenient place to put your rolls.

Recommended for: Restoration or bodywork on autos, planes, cycles, and much more.

SPECIFICATIONS

* specifications & photos & machine colour subject to change without notice.
