Dulex Package III EW-940A English Wheel & Planishing Hammer PH-51 & Motorized Bead Roller EB-680 & Shrinker-stretcher

Extra Machinery Pty Ltd

$2,450.00

SKU: S60038DX

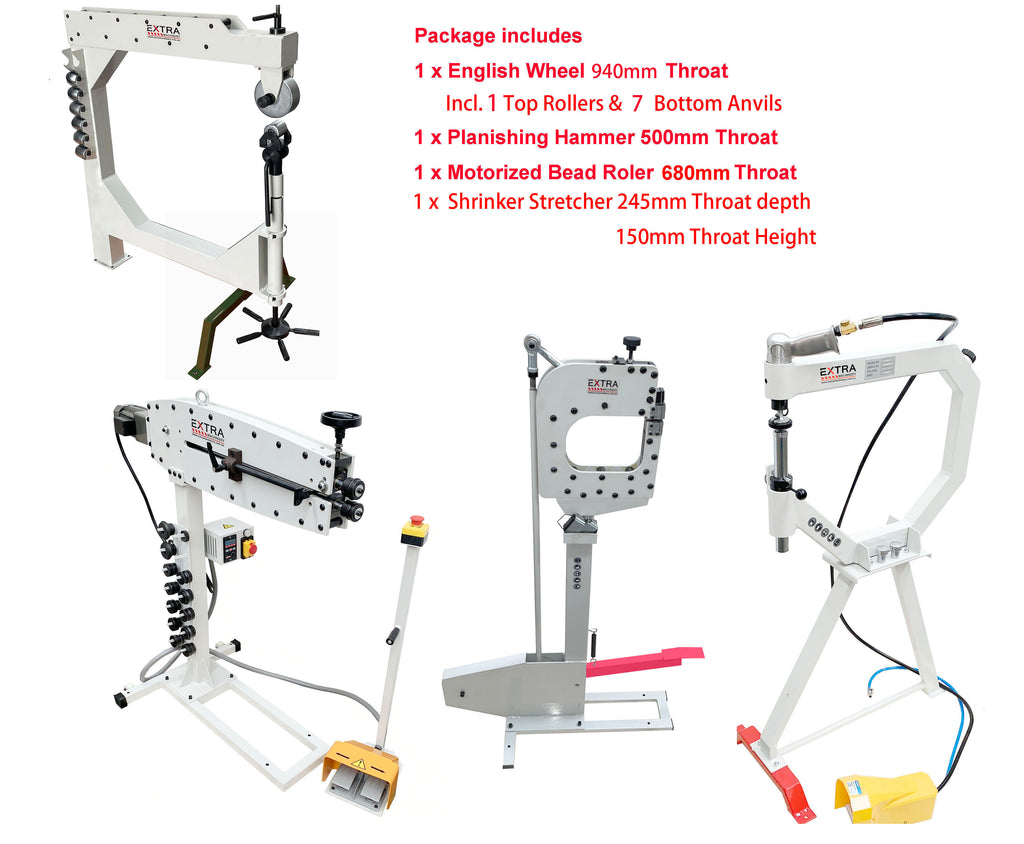

4 MACHINES ARE SOLD AT ONE PACKAGE.

(SKU S646A + SKU S647 + SKU S635 + SKU S643)


HEAVY DUTY STEEL FABRICATED MACHINE

NEW!!!!



MORE NEW FEATURES ARE INLCUDED

BILLET STRUCTURE OF HEAD WITH 8MM PLATE

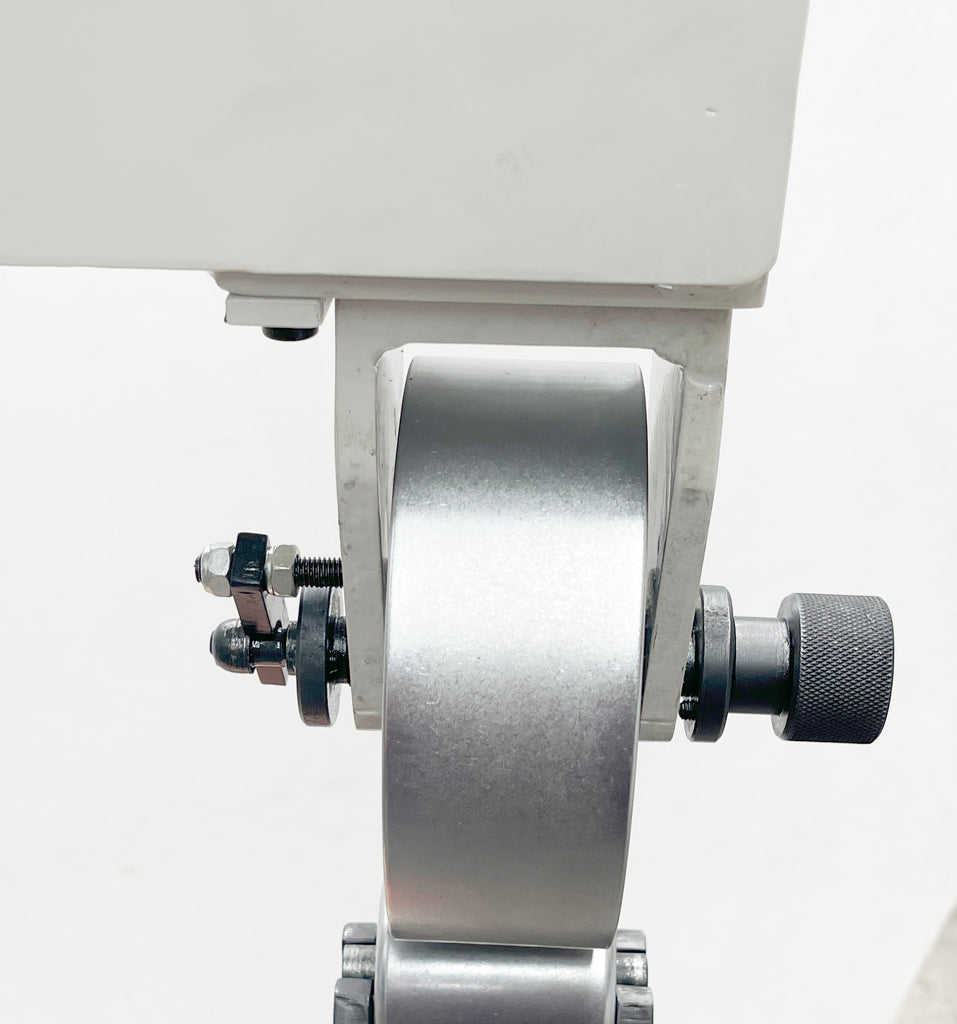

LEFT/RIGHT ADJUSTMENT OF TOP ROLLER TO ALIGN WITH DIFFERENT BOTTOM ANVILS SUCH AS EDGING, BEADING.

UP/DOWN ADJUSTMENT OF BOTTOM ANVILS TO GET THE SAME GAP ON BOTH SIDES

CNC MACHINED PARTS FOR BOTTOM ANVIL LIFTING ASSEMBLY TO GURANTEE THE MINIMUM BACKLASH.

CHROME COATED TOP ROLLERS & BOTTOM ANVILS FOR RUST PROOF & LONG LIFE.


940MM THROAT
1.6MM FOR MILD STEEL AND 2MM FOR COPPER AND ALUMINIUM.

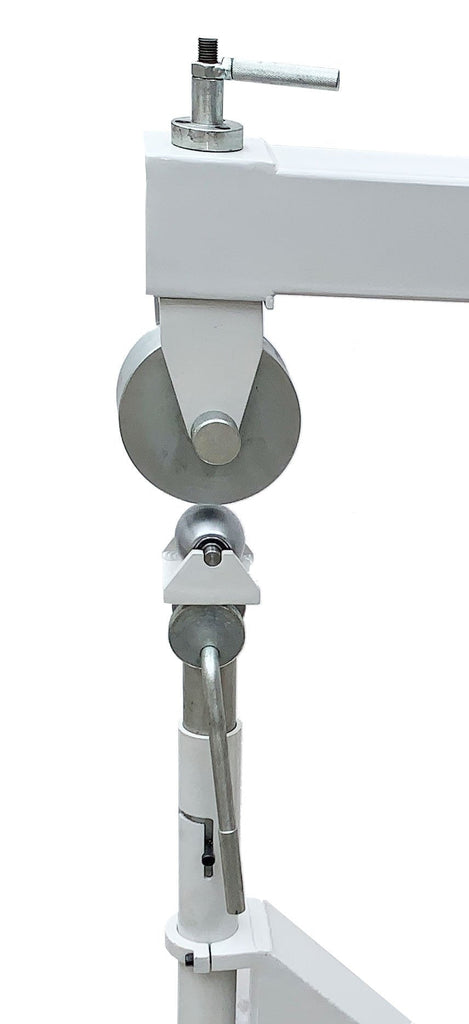

SWIVEL TOP ROLLER HEAD 0 - 90º ,

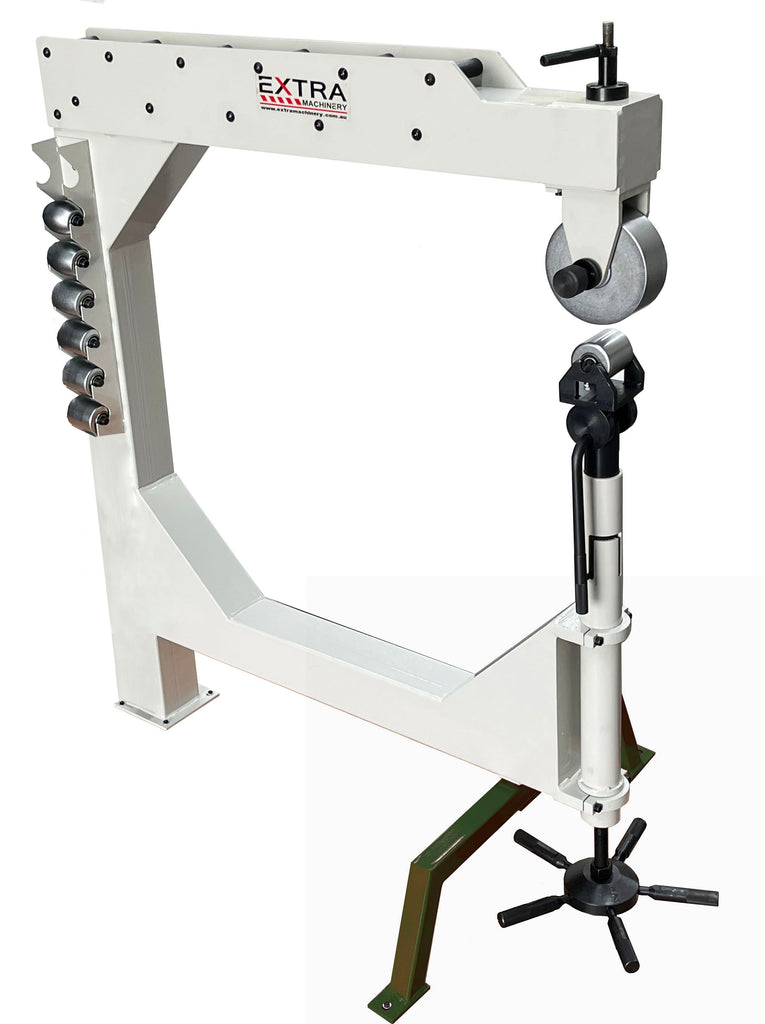

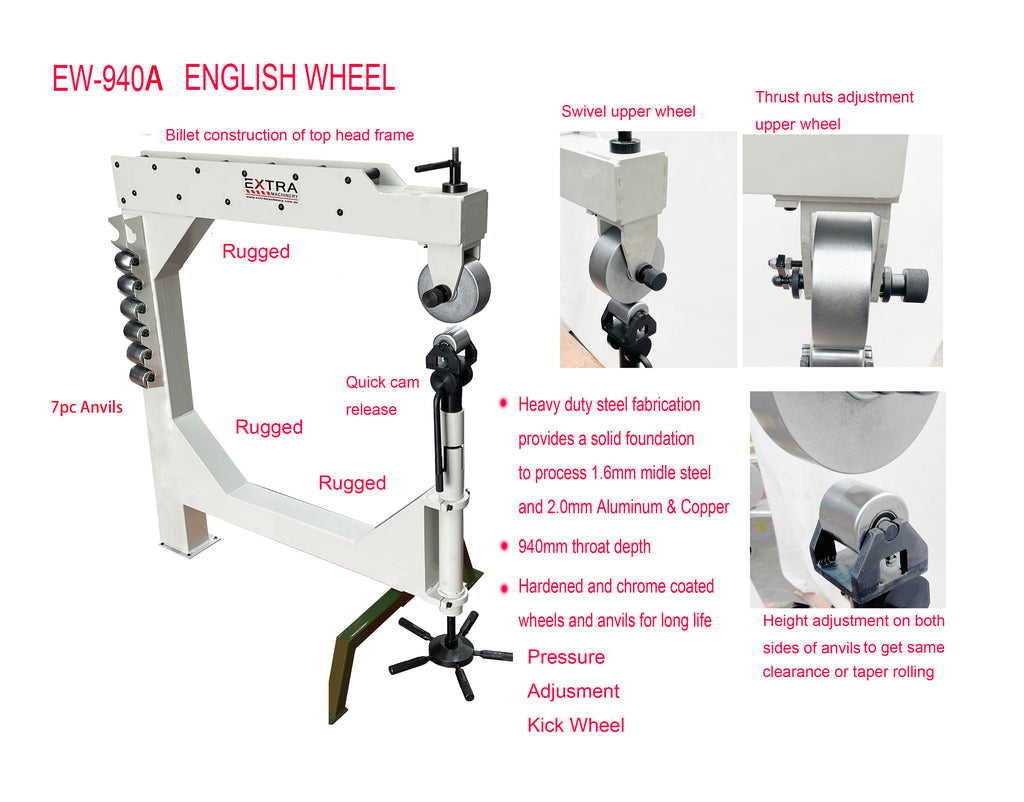

Not all English wheels are the same. A 940mm throat depth and box tubing frame make our EW-940A stand out from competing models. We include 7PC  bottom anvils and 1PC upper wheels.

  • 1.6mm (16 gauge) mild steel capacity.

  • 940mm throat depth can handle almost any project.

  • Comes with 1 upper wheel (152mm x 57mm).

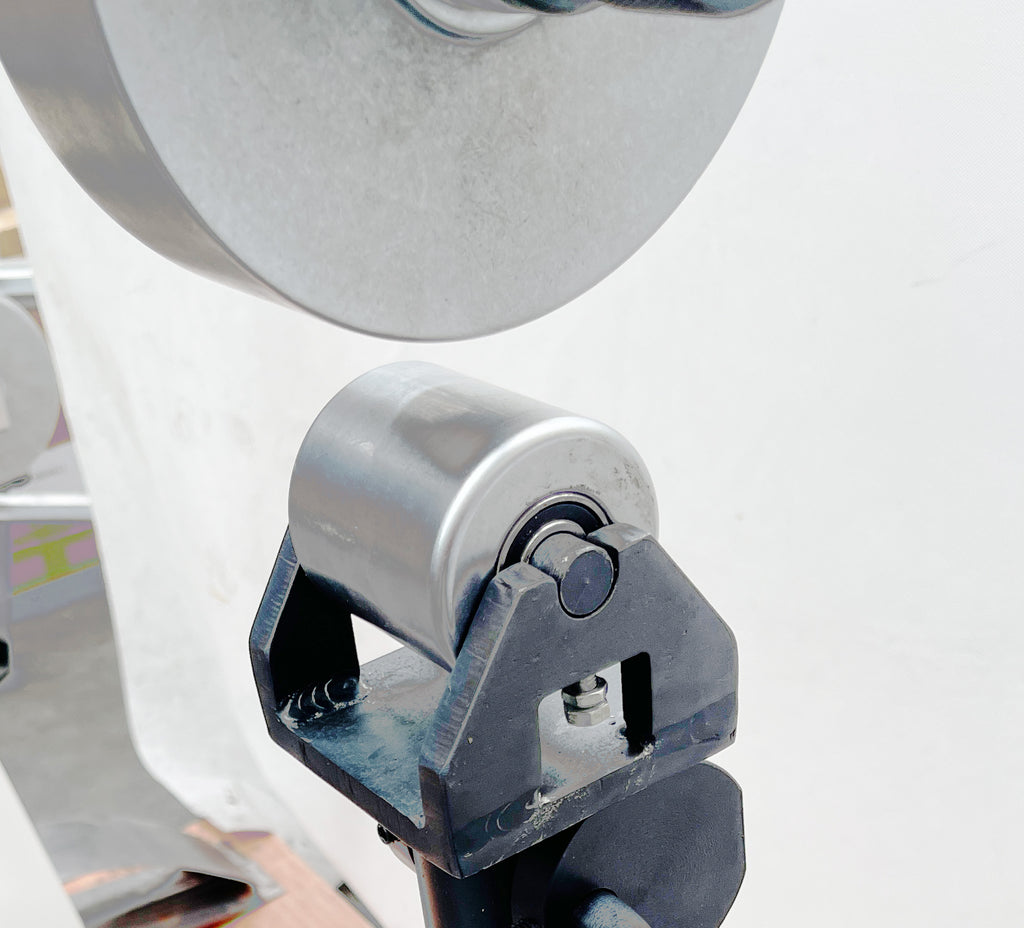

  • 7 hardened bottom anvils (70mm wide):

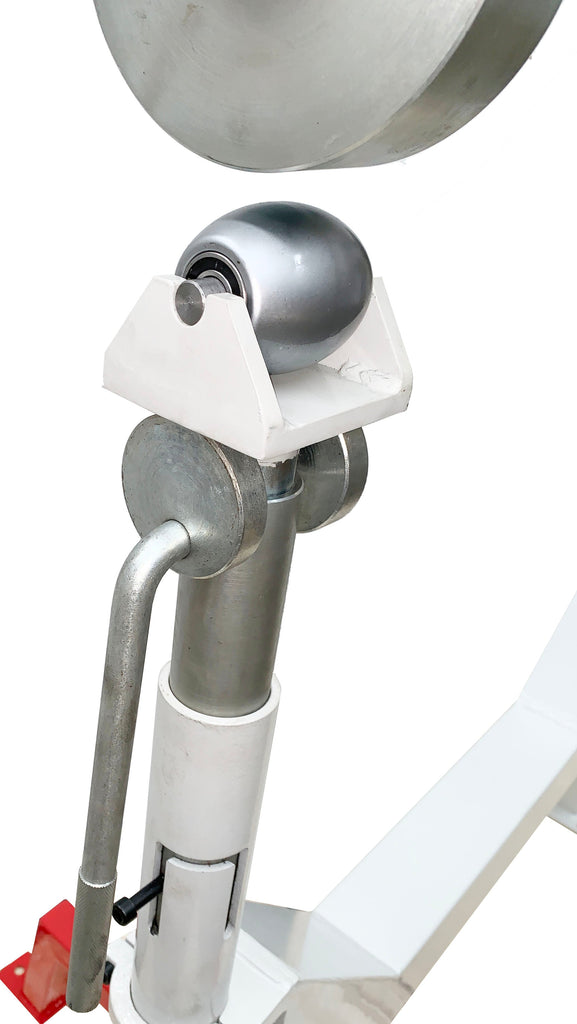

    •  Radius anvils:  Flat, 50.8, 101.6, 152.4, 203.2, 304.8, 609.6,

  • Upper wheels and lower anvils use sealed bearings.

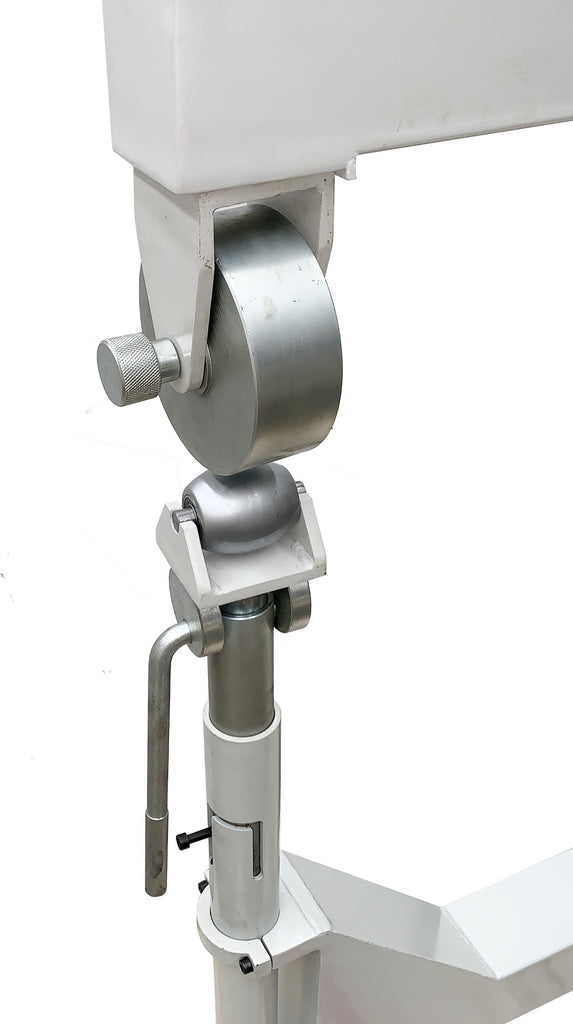

  • Swivel head lets you either push material directly into the throat or at a 90° to it.

  • Quick-release cam allows you to release the panel without changing tension.

  • Adjust the tension via the kick tensioner wheel.

  • Heavy tube construction with heavy rugged welding

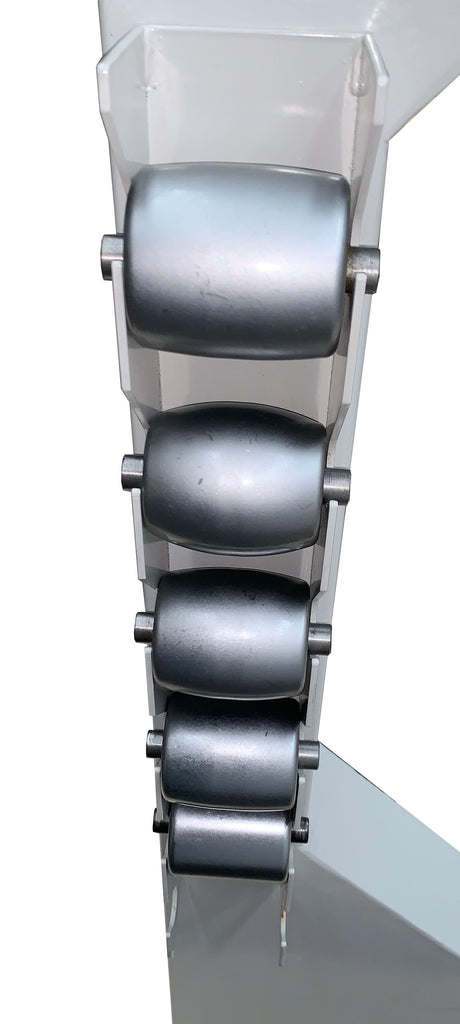

  • Wheel racks on the side of the machine gives you a convenient place to put your rolls.

Recommended for: Restoration or bodywork on autos, planes, cycles, and much more.



PLANISHING HAMMER  IS USED  TO SMOOTH LARGE AREAS OF METAL IN METAL FABRICATION AND RESTORATION, FOR EXAMPLE CUSTOM MOTORCYCLE GAS TANK AND FENDER MANUFACTURING, STREET ROD BODIES, PATCH PANELS FOR AUTO RESTORATION, REPAIR AND METAL SCULPTING.



  • Sturdy Steel fabricated frame
  • Heavy duty aircraft gun for power head, with adjustment control of the intensity from 875-1350 blows per min.
  • Quick release of the lower shaft to accept panels with high flanges.
  • Foot control starts and stops the hammering while being hooked up to compressed air.
  • Includes Ø32mm flat top die, 25, 50 and 76mm radius anvils.
  • 500mm throat capacity
  • 1.2mm mild steel capacity
  • 50 - 100PSI pressure
  • Overall height 1220mm
  • The footprint of the machine is 750mm x 350mm

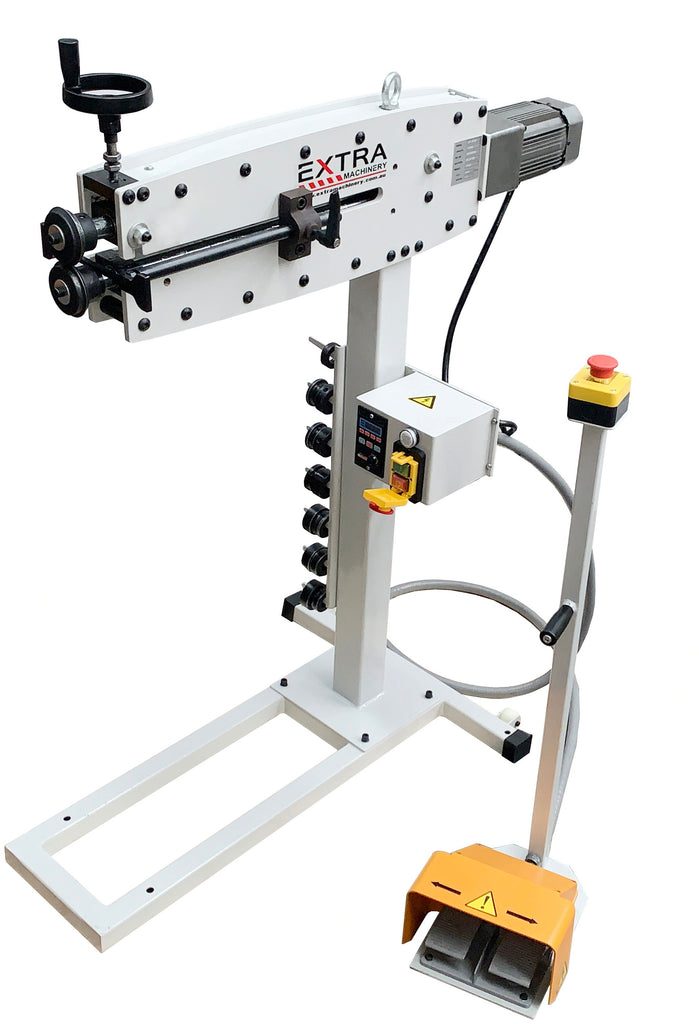

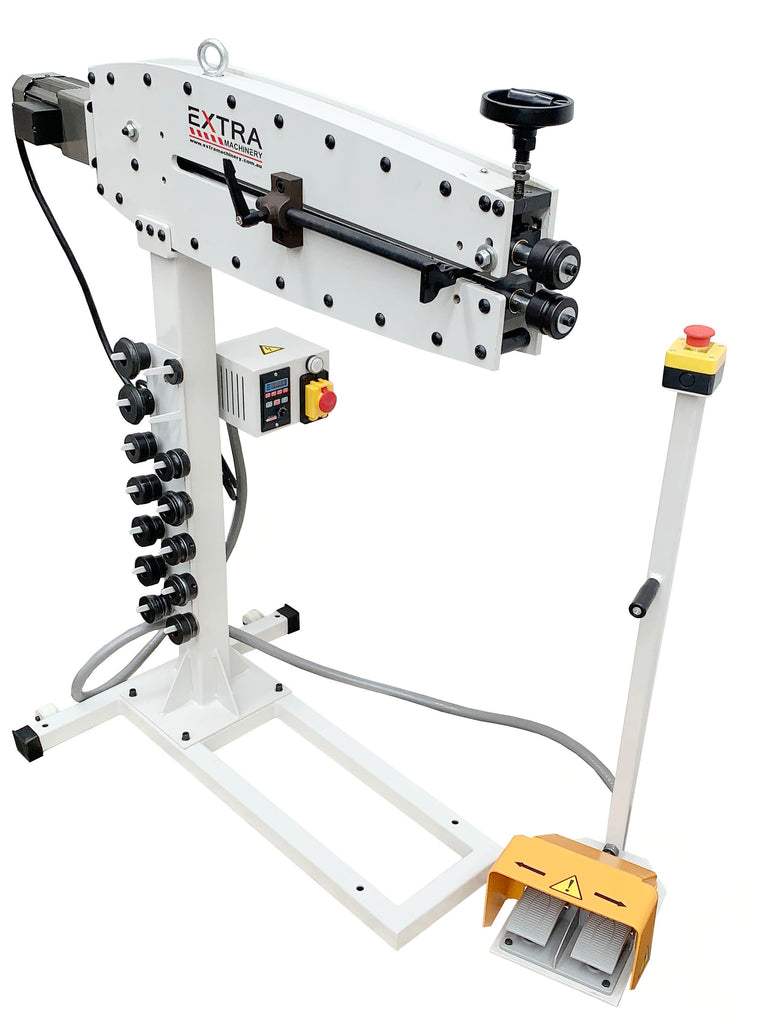

 EB-680 MOTORISED BEAD ROLLER

  • Doulbe frames for good rigidity, avoid flexing.
  • 680mm throat depth to the centre of the roller, and 1360mm panel can be  processed from roller centre
  •  Motorised roller shafts with gear reduction box
  •  0.25kW / 0.33hp, 240V variable speed motor with reduction gearbox
  •  Foot pedal switches to control forward/reverse running.

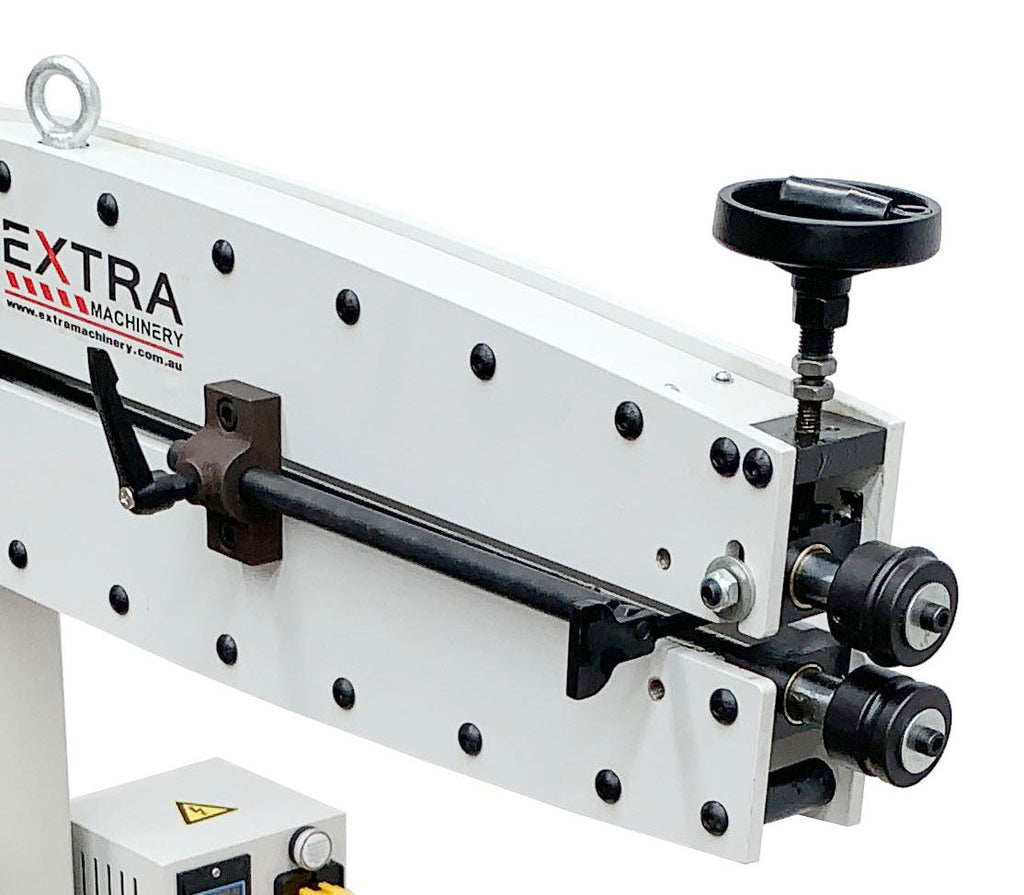

  •  Big hand wheel adjusts the depth of top roller.
  •  All rollers are hardened, black oxide finish for long life
  •  Include 7 sets rollers as standard,  one shearing roll, 3 sizes of beading roll, 3 sizes of step rolls
  • Two roller wheels are fitted on the base for easily moving the machine
  • Include material stop fence
  •  25mm drive-shafts are supported in quality bronze bearing bushes that are self-lubricated, no need of any grease

  1.2mm mild steel capacity for bead & flange rolls

  • 1.0mm mild steel capacity for shearing rolls
  • HARDENED ROLLS AND BLACK OXIDED FOR LONG LIFE.
  • Post & base for bench mounting.
  • Ø25mm drive shafts
  • Ø22mm spigot for mounting rollers
  • Gear driven system
  • Standard Rolls
    INCLUDES
    • 7 Sets of rolls with Ø22mm bore:
    • 1/4" (6.35mm) single bead roll set
    • 3/8" (9.5mm) single bead roll set
    • 1/2" (12.7mm) single bead roll set
    • 1/16" (1.6mm) flange roll set
    • 1/8" (3.2mm) flange roll set
    • 1/4" (6.35mm) flange roll set
    • Shearing roll set

SS-16F Deep Jaw Shrinker Stretcher is designed for heavy-duty commercial use and features an extra-deep, 9” (245mm) throat depth & 6" (150mm) throat height to allow working large pieces and panels.

FEATURES:

  • Strong Billet Structure,Net Weight (Appox) 47kg
  • 9" throat for bigger jobs
  • 6" throat height
  • Shrink or stretch up to 16-gauge mild steel
  • Hardened-steel jaws
  • Foot operated to save your hands to hold the material
  • Adjustable stroke knob to control consistent shrinking and stretching

SHRINK AND STRETCH METAL

Shrinking jaws contract metal to create inside curves; stretcher jaws expand metal to create outside curves. Use both to create distinctive shapes and designs, or recreate original shapes on your project vehicle.
