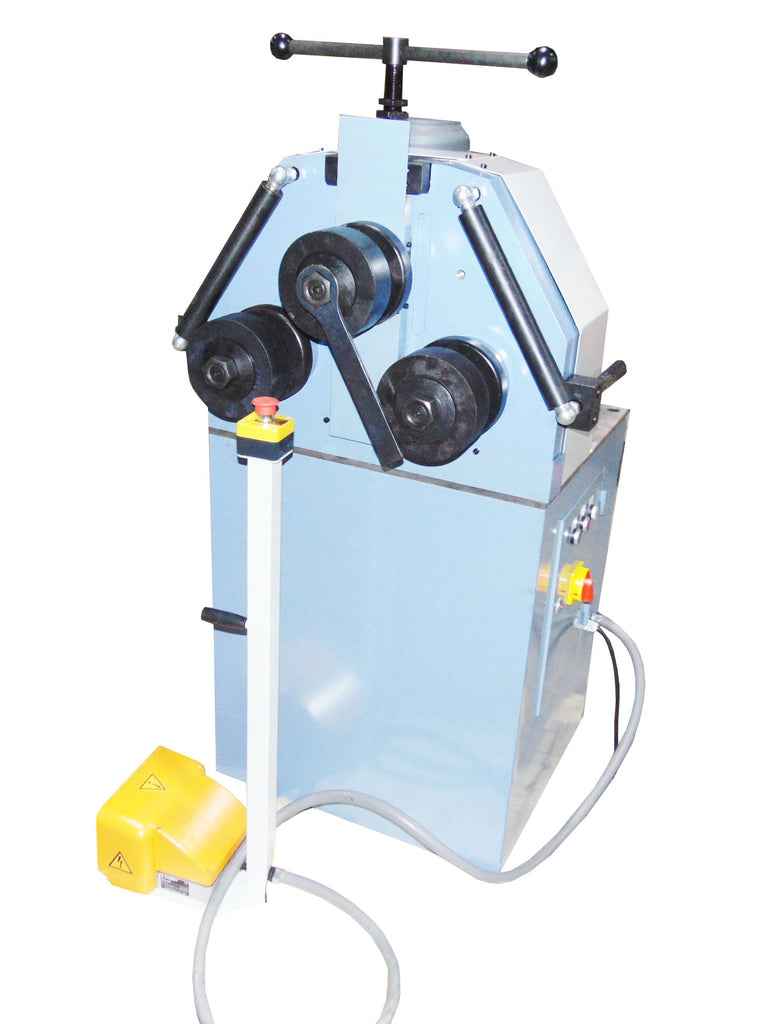

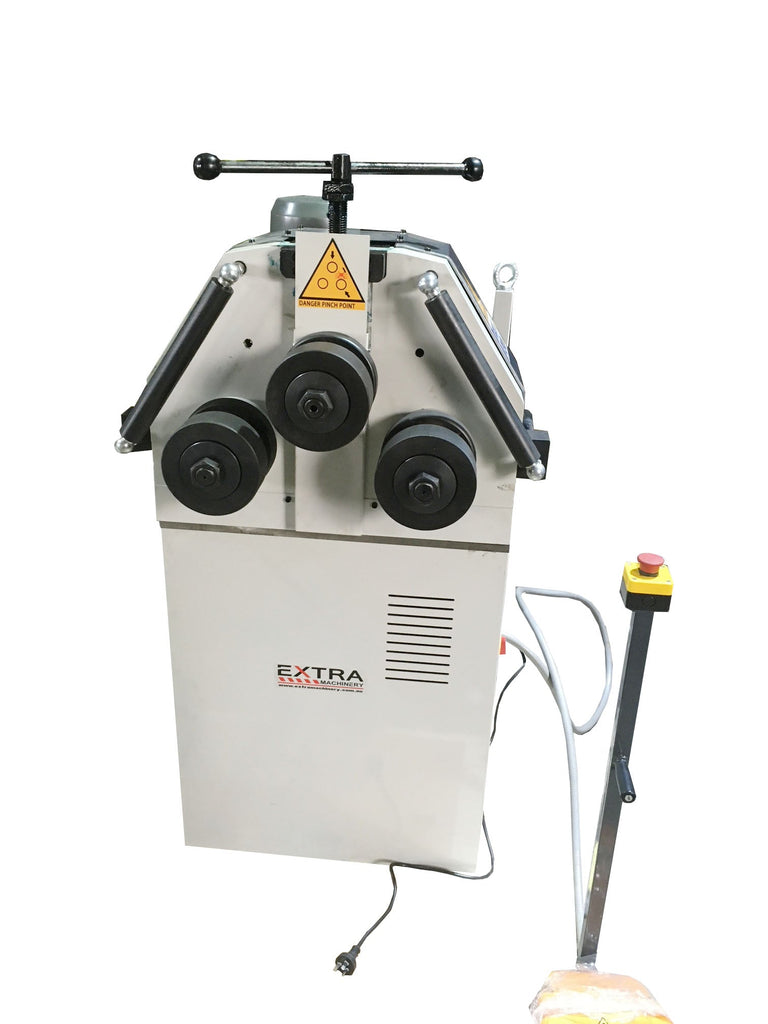

HK-45P Section & Pipe/Tube Bending Machine W/4 sets of Pipe/Tube Roller Dies
HK-45P- Section & Pipe Bending Machine
-
Including standard rolls for various kinds of profiles
and 4 sets of pipe/tuber rolls as below
NB 25 (33.70mm OD), NB 32 (42.40mm OD),
TUBE 31.70mm OD, TUBE 51.0mm OD
240V-50HZ, Single Phase, 10Amp Plug, Variable speed control
Features
- Rolls are hardened
- Two rollers drive for better drive power
- 50mm hardened and ground shafts
-
Manual bending roller moves up/down
- Use in horizontal or vertical working station

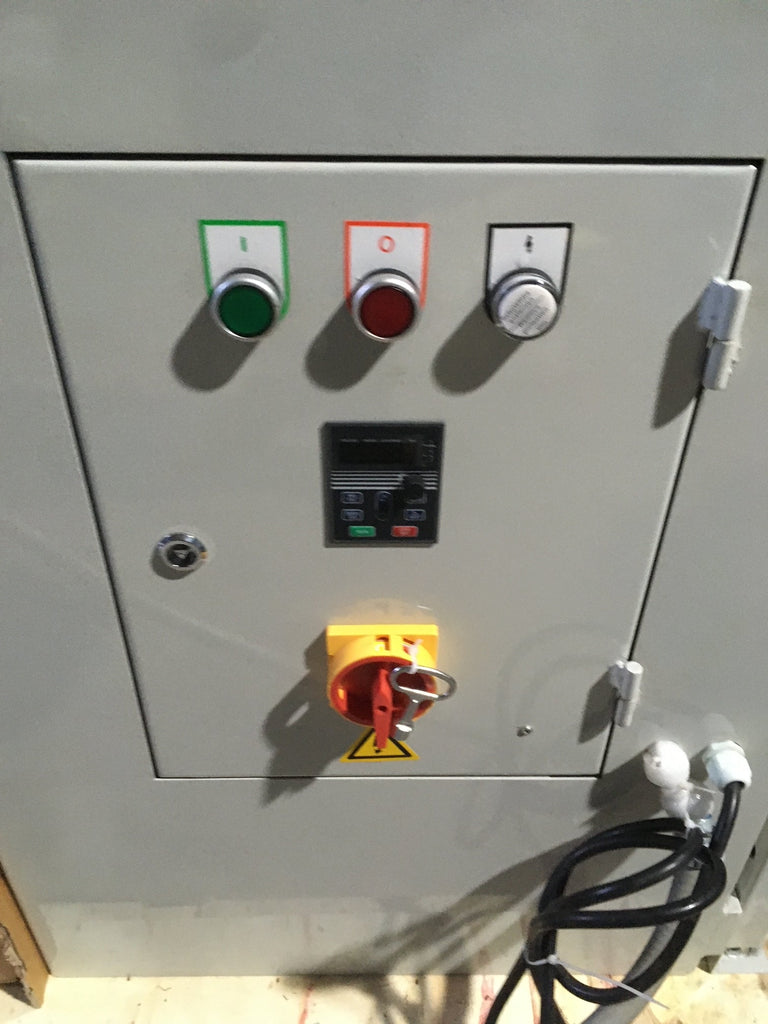

- Foot pedal control with emergency stop

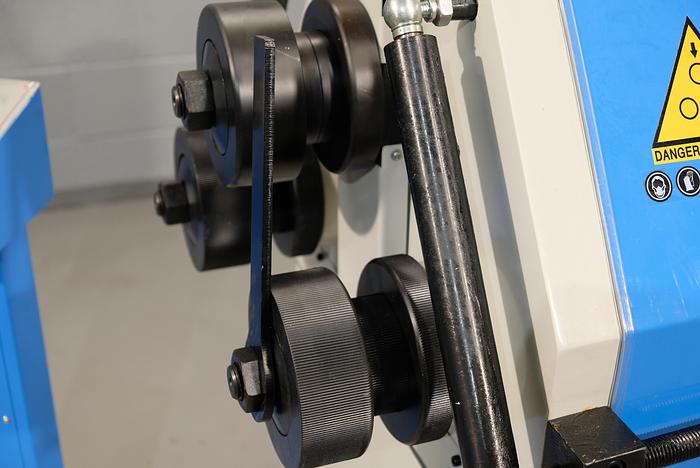

- Adjustable Side Guiding Rollers
- Gear driven by motor & gear reduction box
- Standard rolls and guiding rolls are included
- Set of standard rolls for bending various kinds of profiles
-

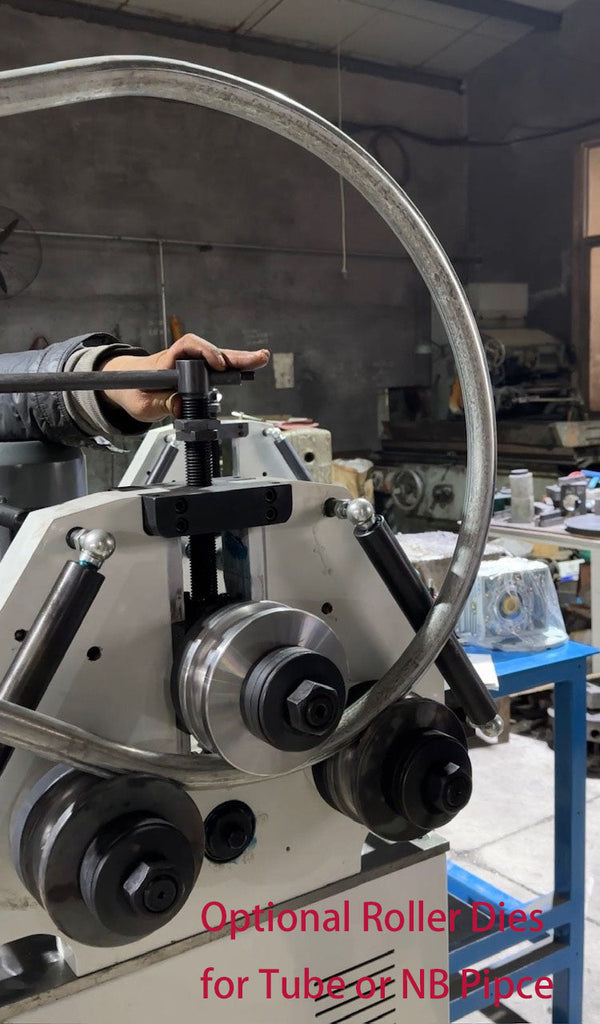

Including 4 sets of pipe/tuber rolls as below
NB 25 (33.70mm OD), NB 32 (42.40mm OD),
TUBE 31.70mm OD, TUBE 51.0mm OD - * means need special roller dies
| MODEL | HK-45 |
|---|---|
| Driven Rolls | 2 |
| Top Bending Roll Adjustment Type | Manual |
| Roll Diameter | 155mm |
| Flat Bar Edging Capacity (mm)- MS (size / Ø) | 60 x 10mm / 500mm |
| Flat Bar Capacity (mm) - MS (size / Ø) | 100 x 15mm / 450mm |
| Square Bar Solid Capacity (- MS (size / Ø) | 35 x 35mm / 900mm |
| Rectangle Tube Capacity - MS (size / Ø) | 50 x 40 x 3mm / 1200mm* |
| Square Tube Capacity - MS (size / Ø) | 50 x 50 x 3mm / 1700mm* |
| Round Bar Solid Capacity - MS (size / Ø) | Ø35mm / 600mm* |
| Round Tube Capacity - MS (size / Ø) | Ø70 x 2mm / 1000mm* |
| Round Pipe Capacity - MS (size / Ø) | Ø2" x 2.9mm / 1000mm* |
| Angle Capacity - MS (size / Ø) | 50 x 50 x 5mm / 1000mm* |
| Motor Power | 1.5KW /2HP |
| Voltage/Frequency | 240V-50HZ |
| Dimensions (L x W x H) | 760 x 900 x 1550mm |
