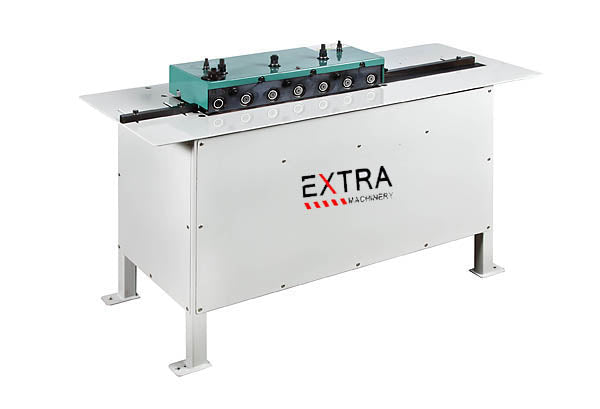

Lock Seamer SM-16 Incl. 7 forming stations With Pitsburg Roll & Double Seam Type L

Lock Seamer SM-16 Incl. 7 forming stations With Pitsburg Roll & Double Seam Type L
Lock Seamer SM-16 Incl. 7 forming stations With Pitsburg Roll & Double Seam Type L Lock Seamer SM-16 Incl. 7 forming stations With Pitsburg Roll & Double Seam Type L Lock Seamer SM-16 Incl. 7 forming stations With Pitsburg Roll & Double Seam Type L Lock Seamer SM-16 Incl. 7 forming stations With Pitsburg Roll & Double Seam Type L Lock Seamer SM-16 Incl. 7 forming stations With Pitsburg Roll & Double Seam Type L Lock Seamer SM-16 Incl. 7 forming stations With Pitsburg Roll & Double Seam Type L

Extra Machinery

$4,950.00

SKU: S656

STOCKS ARE COMING END SEP 2026

Video is the machine with 5 forming stations

The machine has 2 WORKING STATIONS and includes PITTSBURGH ROLL AND DOUBLE SEAM ROLL TYPE L    Variable speed control

The Pittsburgh Lock revolutionized the Industry and is still used today for its strength and ease in assembling duct work. Pittsburgh roll formers has 7 forming stations with 2 forming positions. One inboard forming position realizes the Pittsburgh lock and one auxiliary, or, outboard forming position, has the capability of forming different profiles depending on optional auxiliary rolls added.

Model

SM-16

Capacity

0.5-1.25mm

Pocket Depth Pittsburg

12.7mm

Speed(m/min)

Variable Speed

Motor

2.2KW 240V

N.W.

250kg

***RIGHT ANGLE AND DRIVE CLEAT ROLL ARE OPTIONAL ON SPECIAL REQUEST.
