Lock Seamer SM-16N Incl. 7 forming stations With Right Angle Roller & Drive Cleat Roller

Lock Seamer SM-16N Incl. 7 forming stations With Right Angle Roller & Drive Cleat Roller
Lock Seamer SM-16N Incl. 7 forming stations With Right Angle Roller & Drive Cleat Roller Lock Seamer SM-16N Incl. 7 forming stations With Right Angle Roller & Drive Cleat Roller Lock Seamer SM-16N Incl. 7 forming stations With Right Angle Roller & Drive Cleat Roller Lock Seamer SM-16N Incl. 7 forming stations With Right Angle Roller & Drive Cleat Roller Lock Seamer SM-16N Incl. 7 forming stations With Right Angle Roller & Drive Cleat Roller Lock Seamer SM-16N Incl. 7 forming stations With Right Angle Roller & Drive Cleat Roller

Extra Machinery

$4,950.00

SKU: S656N

STOCKS ARE COMING END SEP 2026

Video is the machine with 5 forming stations

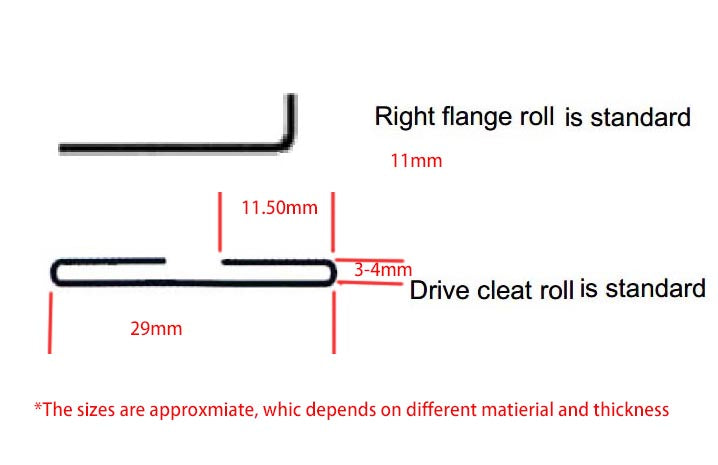

The machine has 2 WORKING STATIONS and includes Right Angle Roll for 11mm Flange and Drive Cleat    Variable speed control

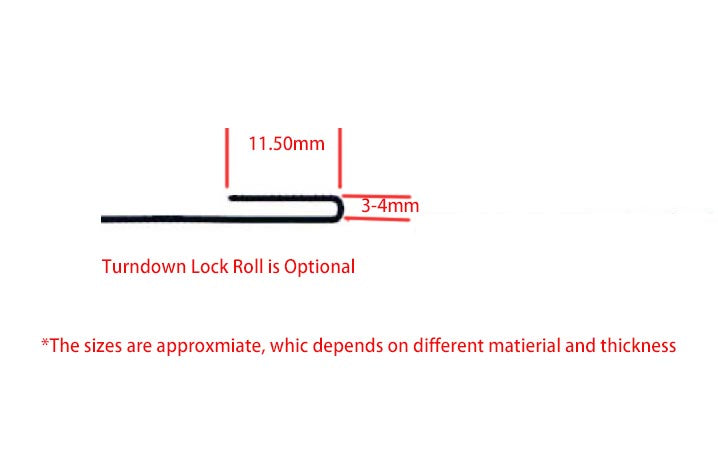

Turndown Lock Roll 11mm is optional

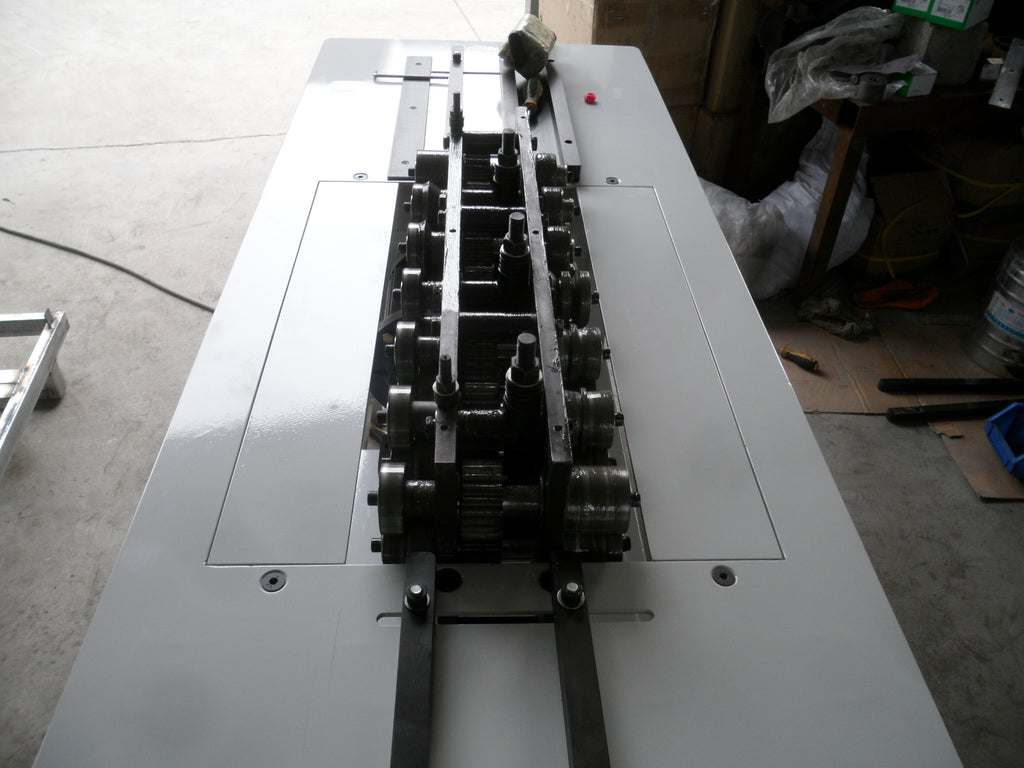

The Pittsburgh Lock revolutionized the Industry and is still used today for its strength and ease in assembling duct work. Pittsburgh roll formers has 7 forming stations with 2 forming positions. Two outboard forming positions, have the capability of forming different profiles depending on optional auxiliary rolls added.

Model

SM-16N

Capacity Material thickness

0.5-1.25mm



Speed(m/min)

Variable Speed

Motor

2.2KW 240V

N.W.

250kg
