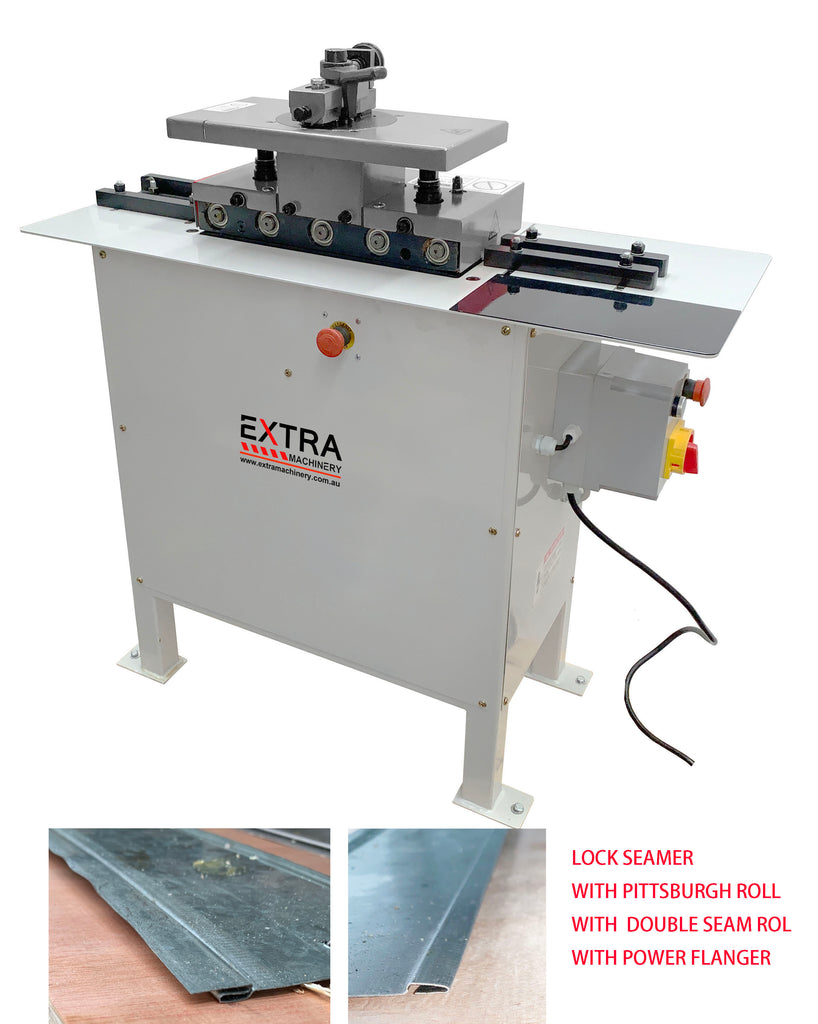

Lock Seamer SM-20 Incl. 5 forming stations and auto guide power flanger

Extra Machinery

$4,250.00

SKU: S838

STOCKS COMMING IN END FEB

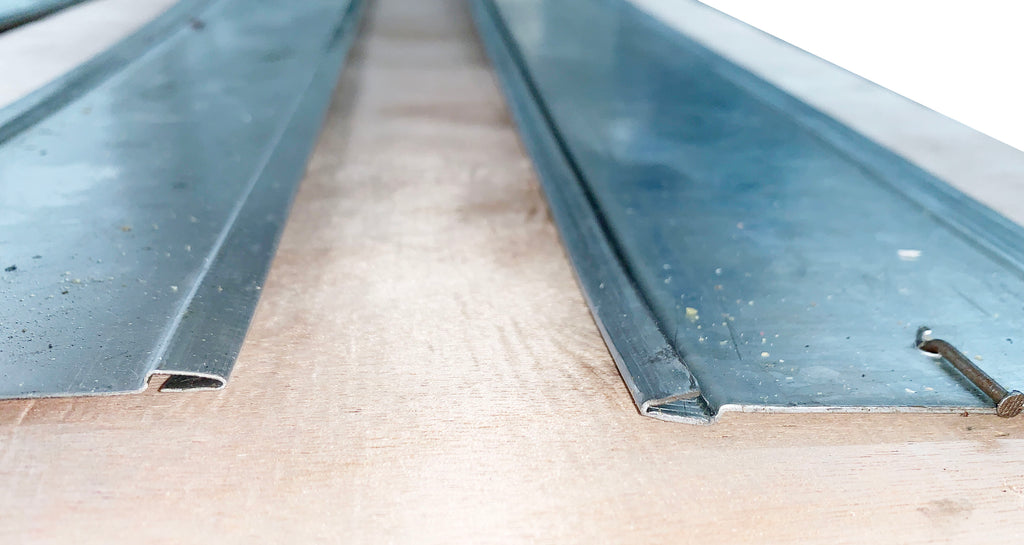

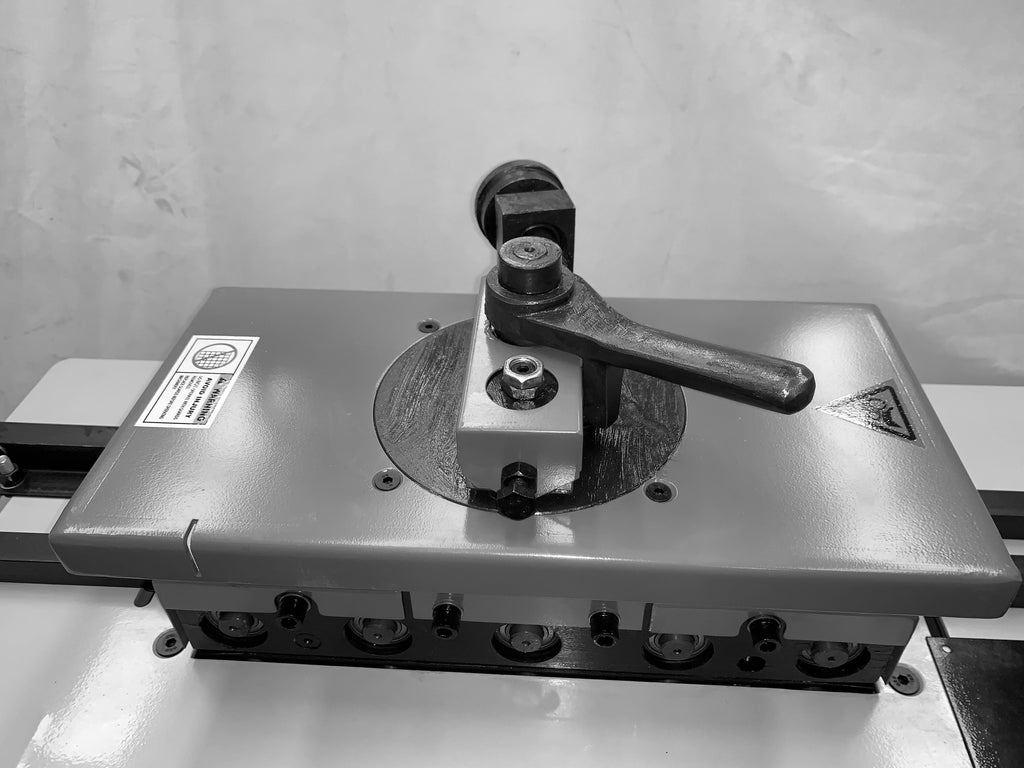

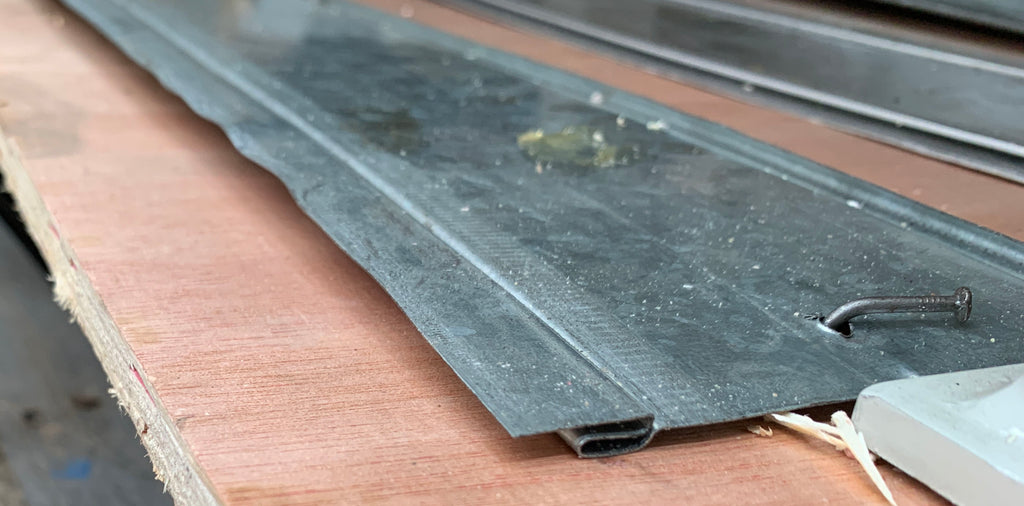

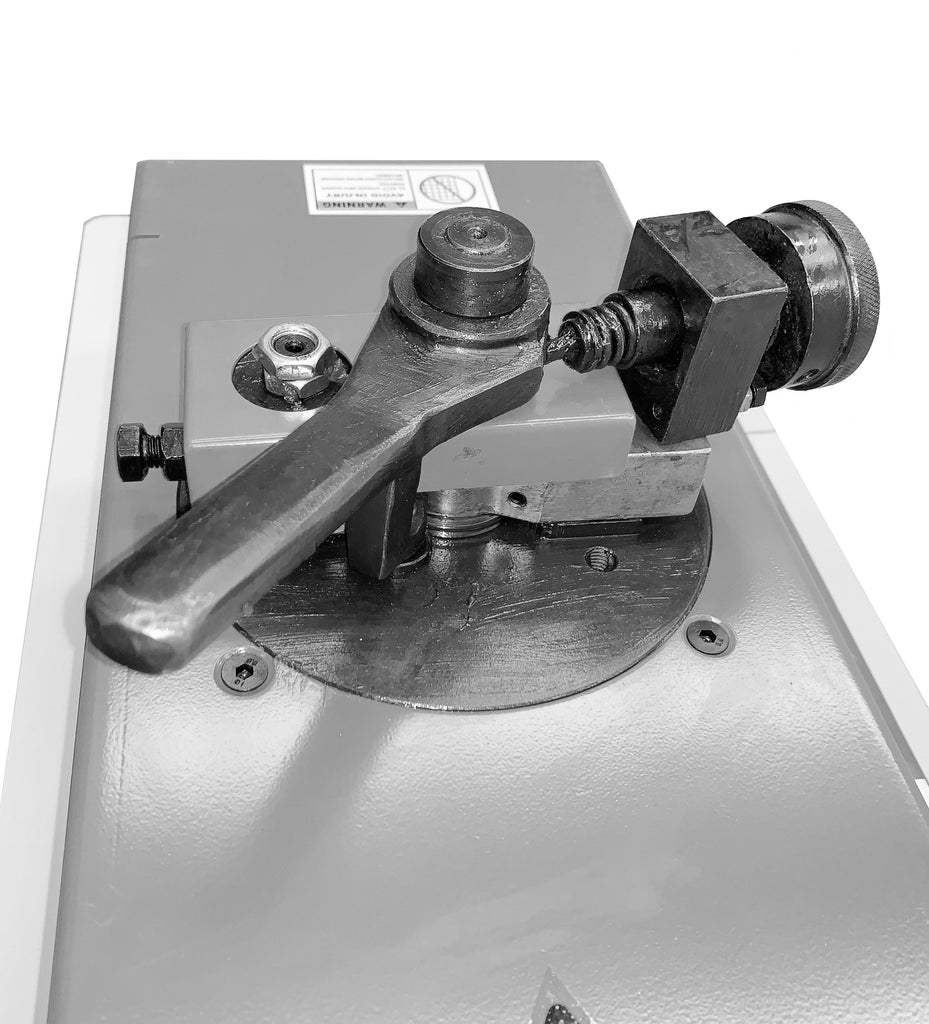

The Pittsburgh Lock revolutionized the Industry and is still used today for its strength and ease in assembling duct work. Pittsburgh roll formers has 7 or 5 forming stations with 2 forming positions. One inboard forming position realizes the Pittsburgh lock and one auxiliary, or, outboard forming position, has the capability of forming different profiles depending on optional auxiliary rolls added. The Auto guide power flange device automatically follows shapes during forming of the flange 5.5mm

Model

SM-20

Capacity

0.5-1.0mm

Pocket Depth

7.9mm

Speed(m/min)

10

Motor

1.1KW 240V

N.W.

130kg

PITTSBURGH ROLL AND DOUBLE SEAM ROLL COME AS STANDARD ROLLS.
