Deluxe Package of TB-3 Manual Tube & Pipe Bender Race Package Incl 6 sizes of dies 120 Degree

Extra Machinery

$2,300.00

SKU: S7126S

SUPER PACKAGE, FLAT FREIGHT COVERS HOME DELIVERY

TB-3 is a mechanical bender targeted at race car builders who wanted an affordable bender which still produced high quality bends

RUGGED ALL STEEL CONSTRUCTION

LARGE CAPACITY - max. 2" OD tube dies.

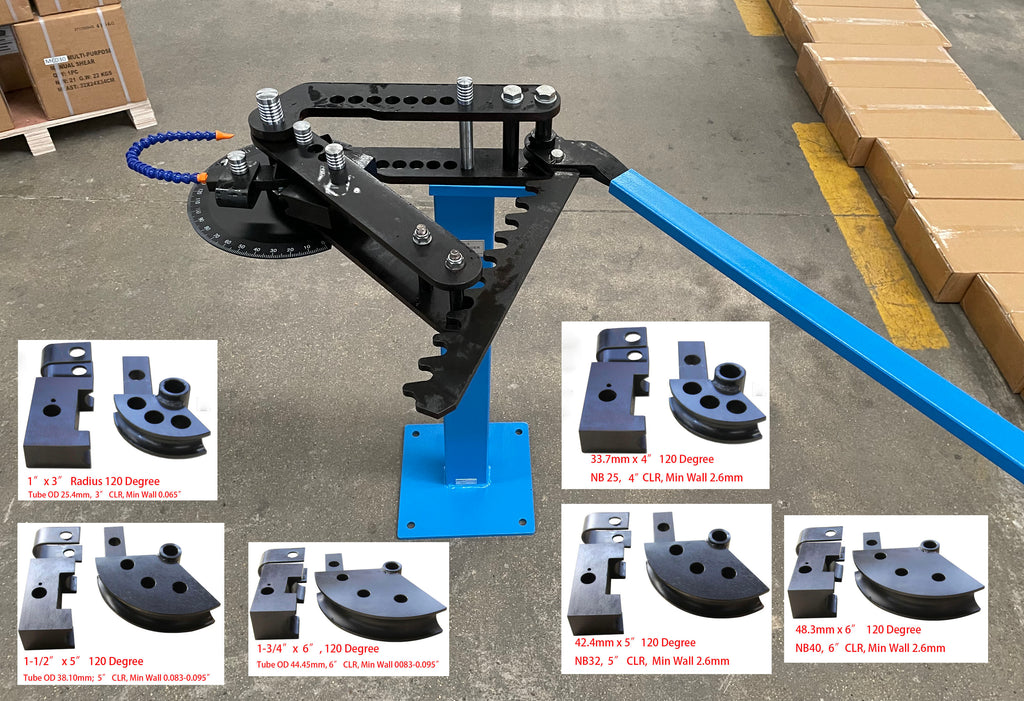

INCL 120 DEGREE TUBE BENDING DIES

1"(OD 25.4mm) X 3";

1-1/2"(OD 38.1mm) X 5";

1-3/4" (OD 44.45mm) X 6"

OD 33.7mm X 4";  NB 25

OD 42.4mm X 5";  NB 32

OD 48.3mm) X 6" NB 40



EASY OPERATION - TB-3 uses a high-ratio ratchet mechanism to allow you to bend larger tubing sizes comfortably without assistance. Dies can be changed in under 30 seconds. Bend times are typically in the 30-60 second range for 1" O.D. and above tubing using the ratchet mechanism.

DEGREE POINTER - Standard  on TB-3 is a quick adjust degree indicator plate. Simply loosen the lower nut, rotate the degree wheel to zero degrees and using finger force only, tighten in position.

    NEWLY DESIGNED FOLLOW BARS - made from aluminum material to prevent scratching of expensive material. and easy for tube/pipe sliding into dies.
