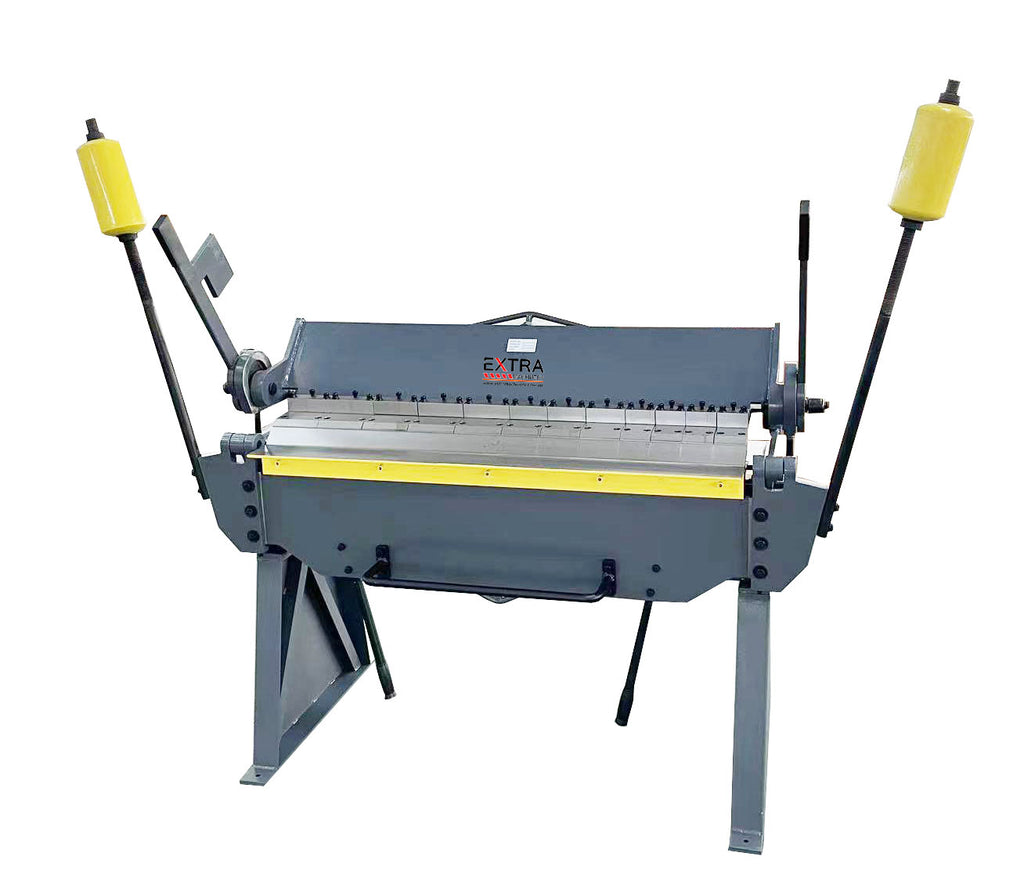

PB-48 Manual Pan Brake 2.5 x 1220mm
PB-48 manual pan brake was designed 50 years ago in USA , and known for being among the most accurate and dependable in the industry. Our PB-48 manual brakes are made in an ISO 9001 factory, and Robot Welded. The best seller in USA .
- 1220 x 2.5 mm capacity （Mild steel capacity is rated on hot rolled material with 250MPA）
- Bending angle: 0° – 135°
-

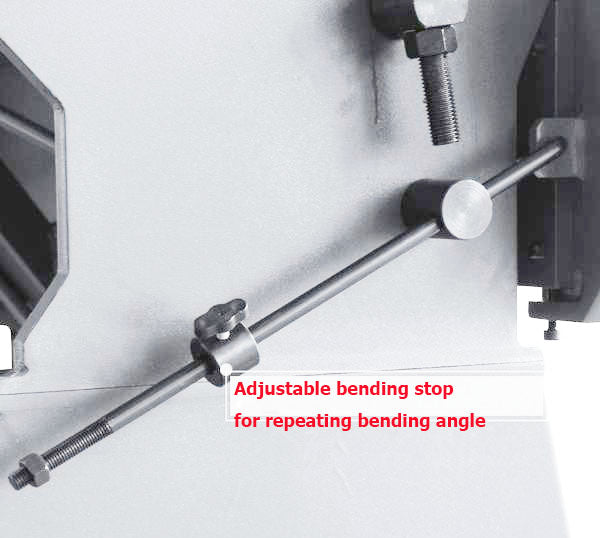

Adjustable angle stop for repetitive bends
- All steel construction; heavy truss rods and braces provide strength and rigidity.

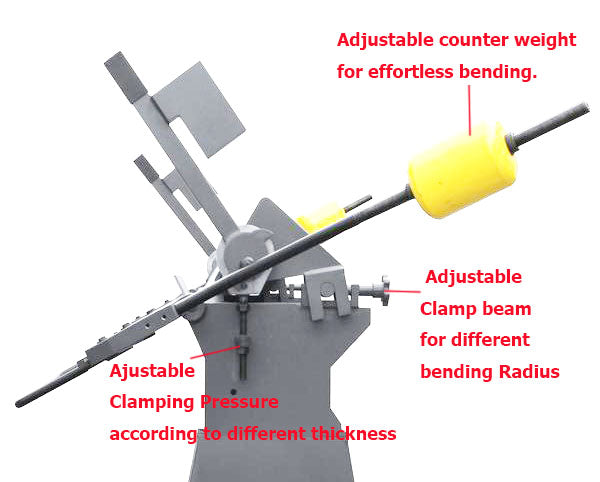

- Adjustable clamping pressure to avoid any crush of the material
- Adjustable bending radius
- Adjustable balance counterweight for ease of operation and bending.

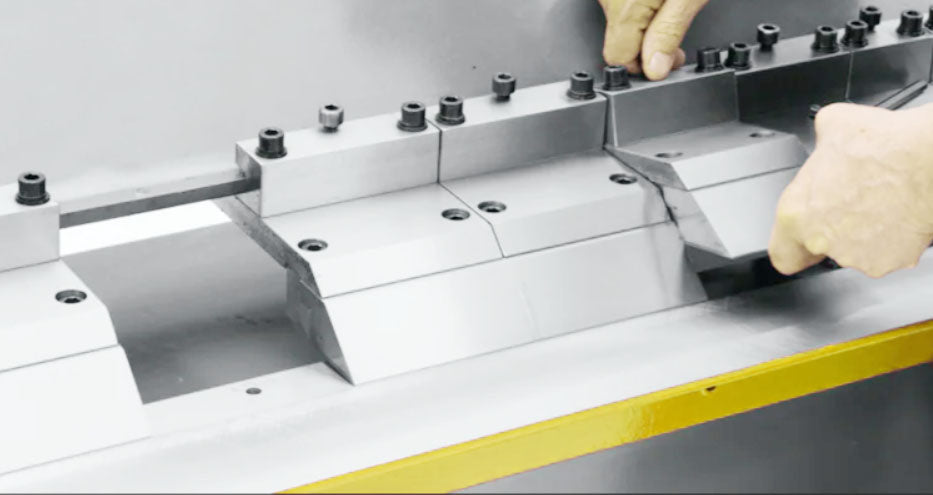

- 3-layer structure of clamp fingers are designed to provide heavy-duty forming capability without flex, along with the flexibility of removable 150mm (6-inch) box depth.

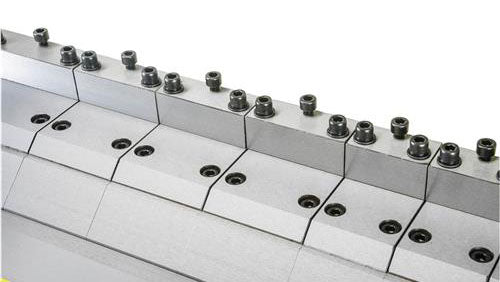

- Segmented bending blade – ideal for box section bending

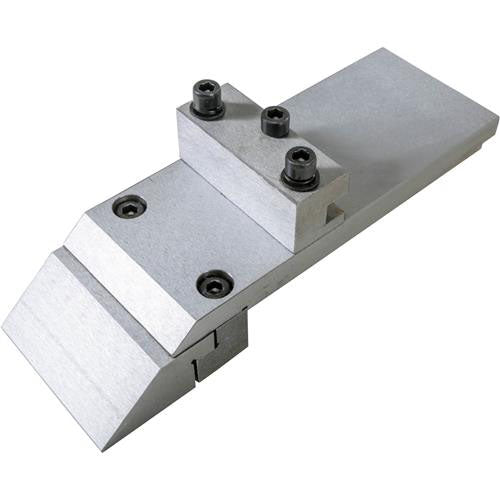

- Interchangeable finger segments for wide variety of box & pan sizes
- Shipping: 175 x 75 x 94 cm (513 kg Nett / 575 kg)
***colour may vary subject to different batch of production.
