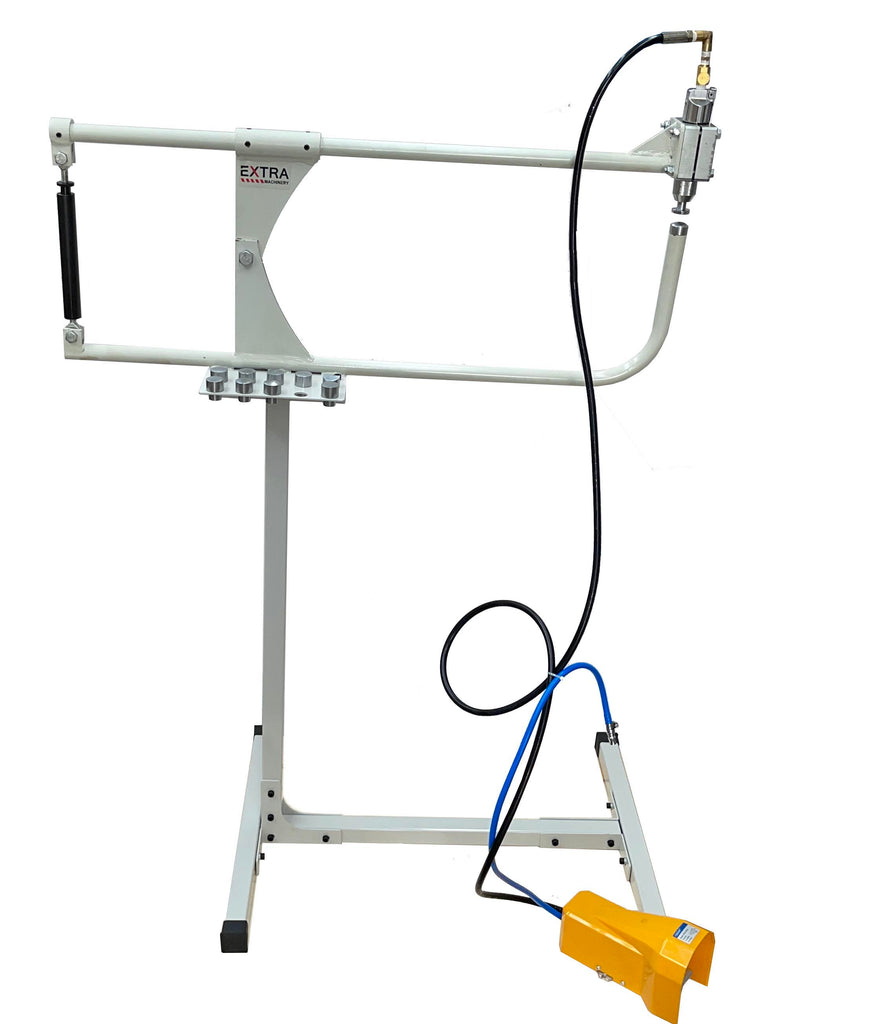

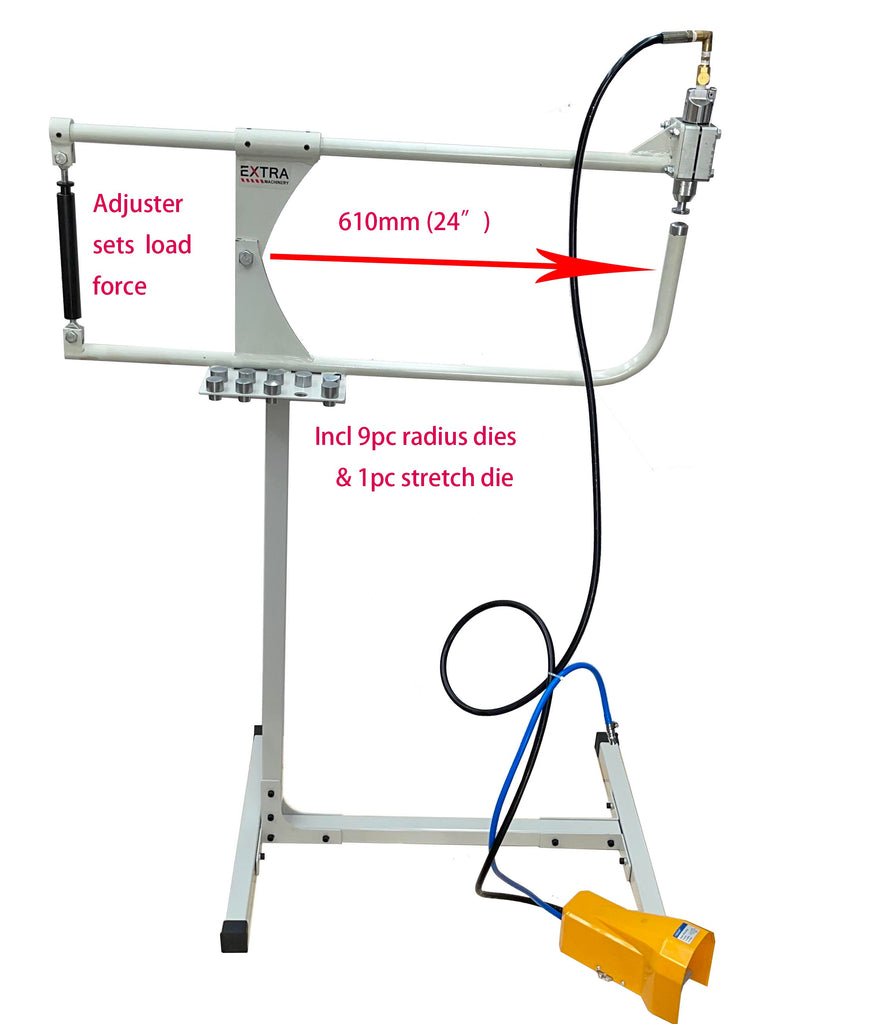

PH-61 - Pneumatic Planishing Hammer 1.2mm Capacity 610mm Throat

Extra Machinery Pty Ltd

$600.00

SKU: S649

Planishing Hammer  is used  to smooth large areas of metal in metal fabrication and restoration, for example custom motorcycle gas tank and fender manufacturing, street rod bodies, patch panels for auto restoration, repair and metal sculpting.

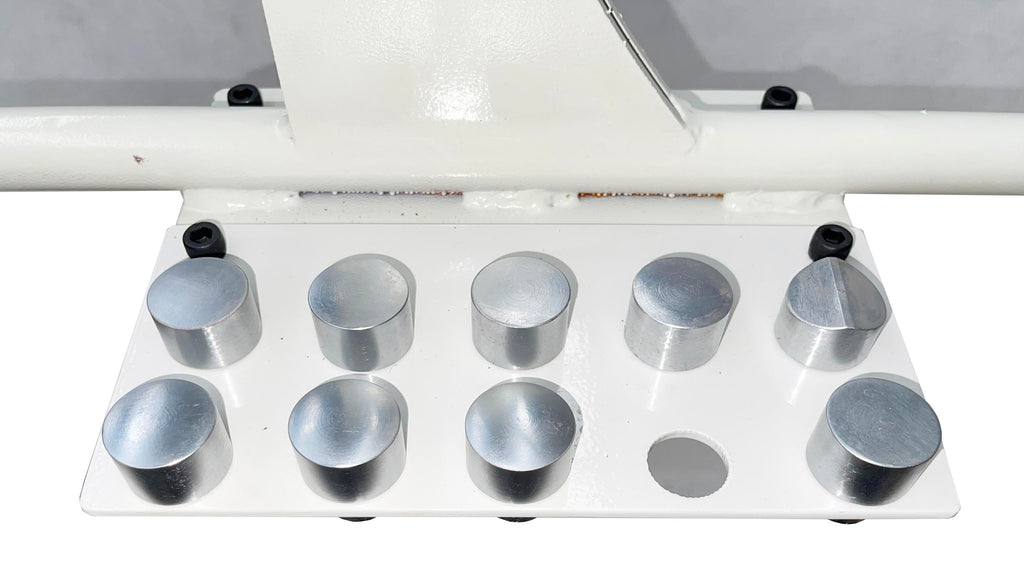

  • 9 Radius Steel Anvils & 1 Stretch Anvil Included
  • 4600 Hits Per Minute @ 90 PSI

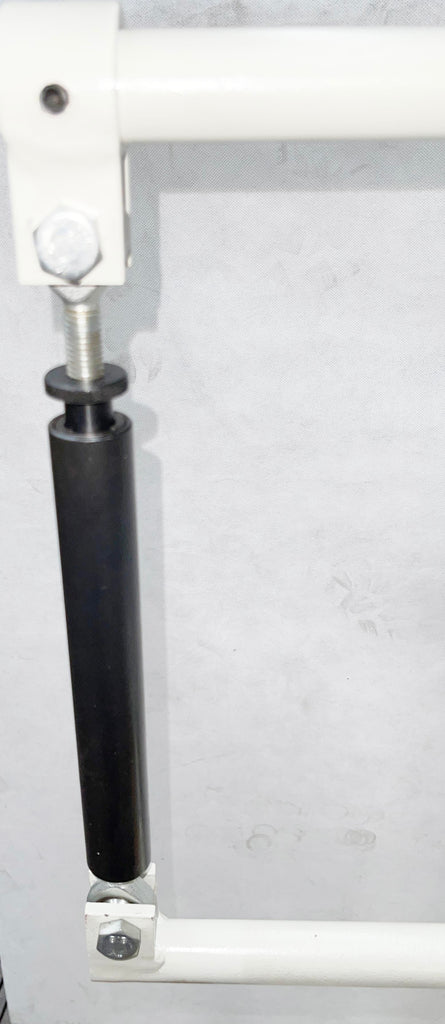

  • Adjuster Sets Load Force and makes Anvil Changes Easy
  • Air Consumption 20 Cfm

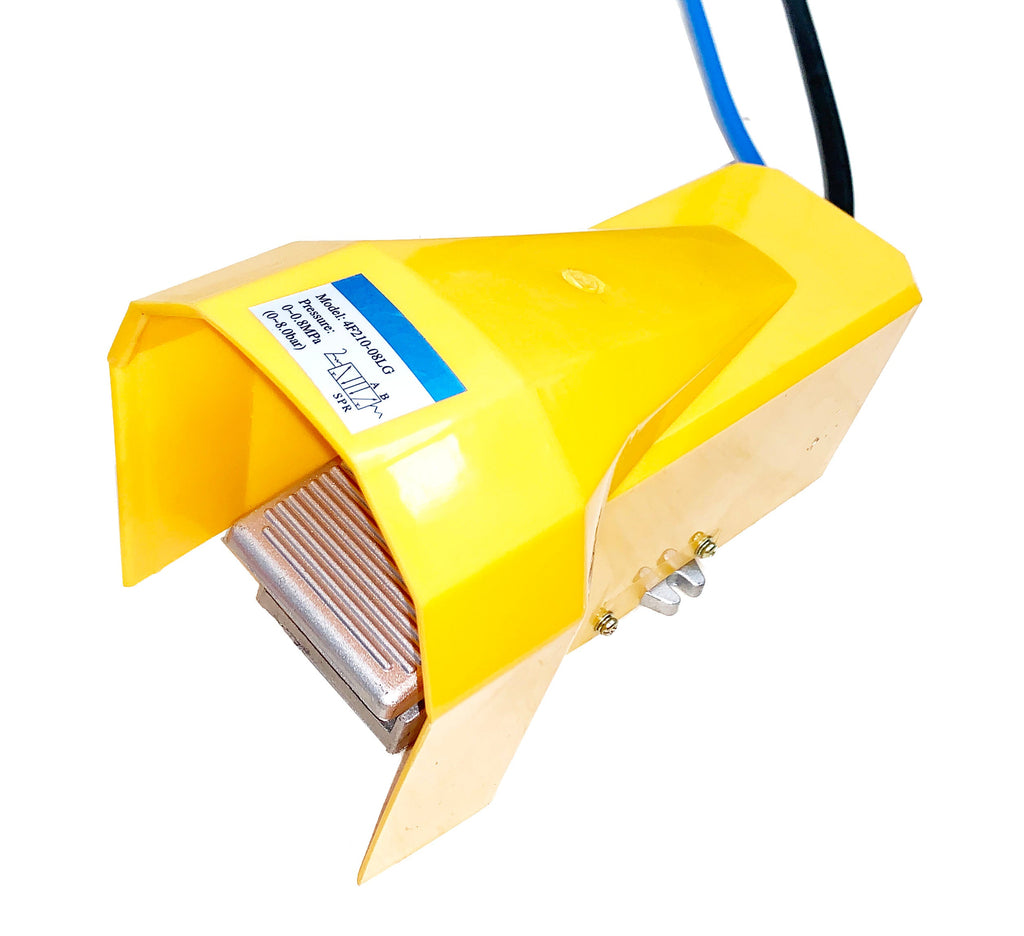

  • Foot Pedal Control for Hands Free Operation
  • Billet aluminum hammer mounting block eliminates all slippage

Throat Depth:

600mm

Maximum Thickness:

1.2mm Mild Steel

Top Die:

1

Lower Dies (x 10):

3/4″ Radius

1 1/2″ Radius

2″ Radius

3″ Radius

4″ Radius

6″ Radius

8″ Radius

12″ Radius

Flat

Stretcher

Hammer Speed:

1800 – 4600 BPM

Air Pressure:

90 – 120 PSI

Air Supply:

8.8 CFM

Head Opening:

20mm
