Pipe & Tube Notcher

Extra Machinery Pty Ltd

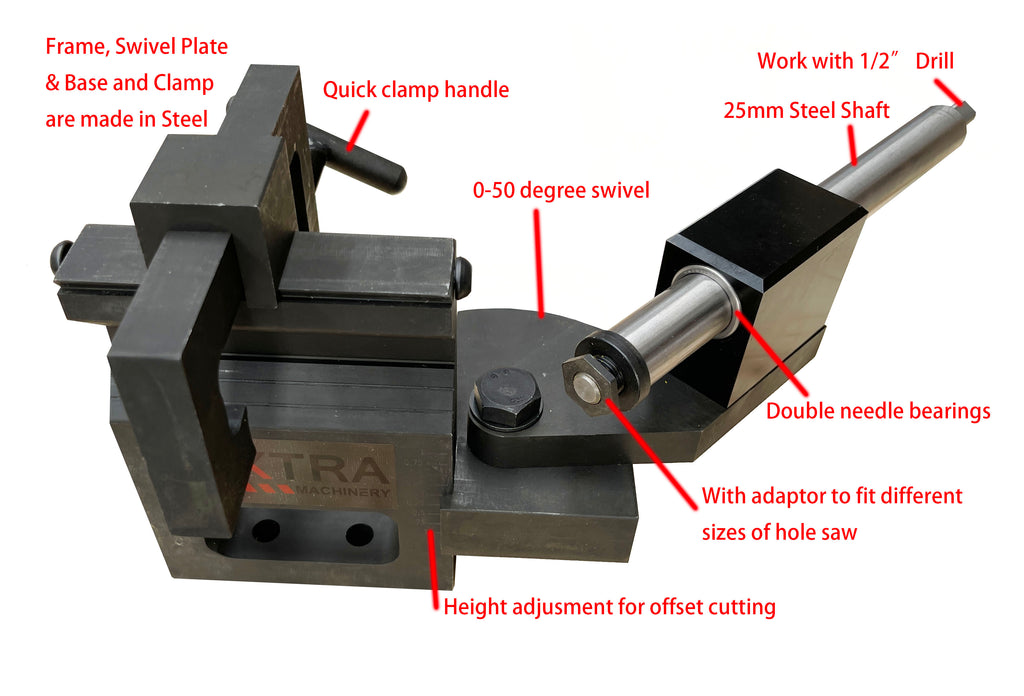

Constructed from solid steel, the easy to use pipe & tube notcher is built to perform accurate notches, time after time.

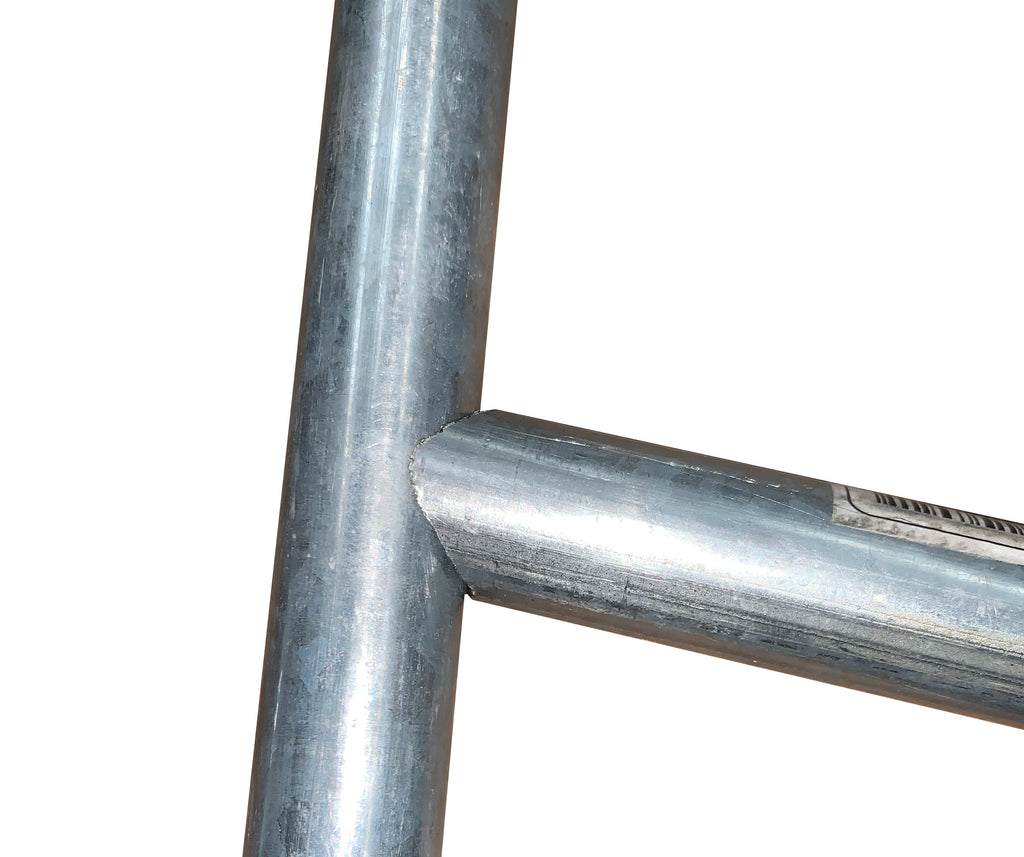

▶   Create notches in 3/4" to 3" Tube or Ø25 - Ø63.5mm OD pipes

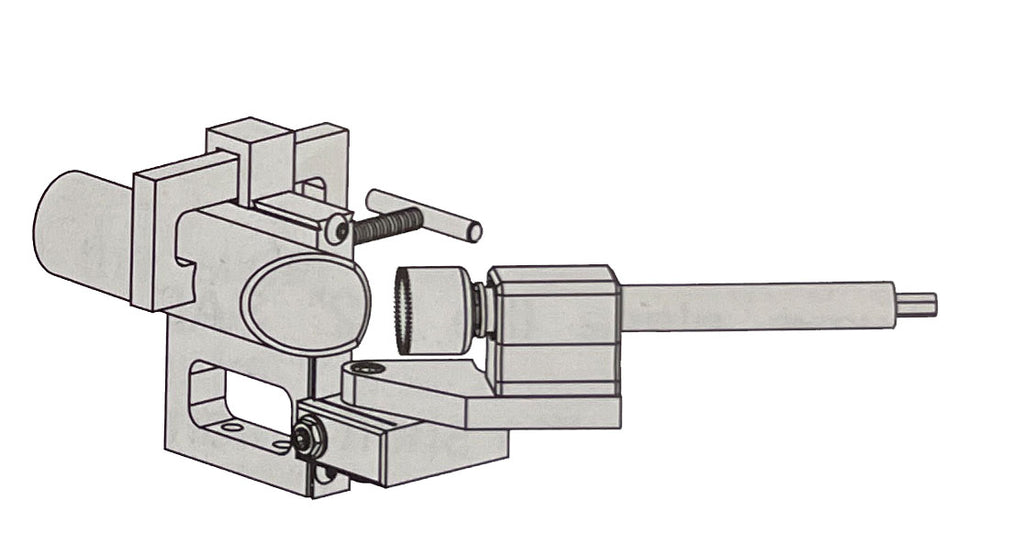

▶   Adjustable up to 50 Degrees

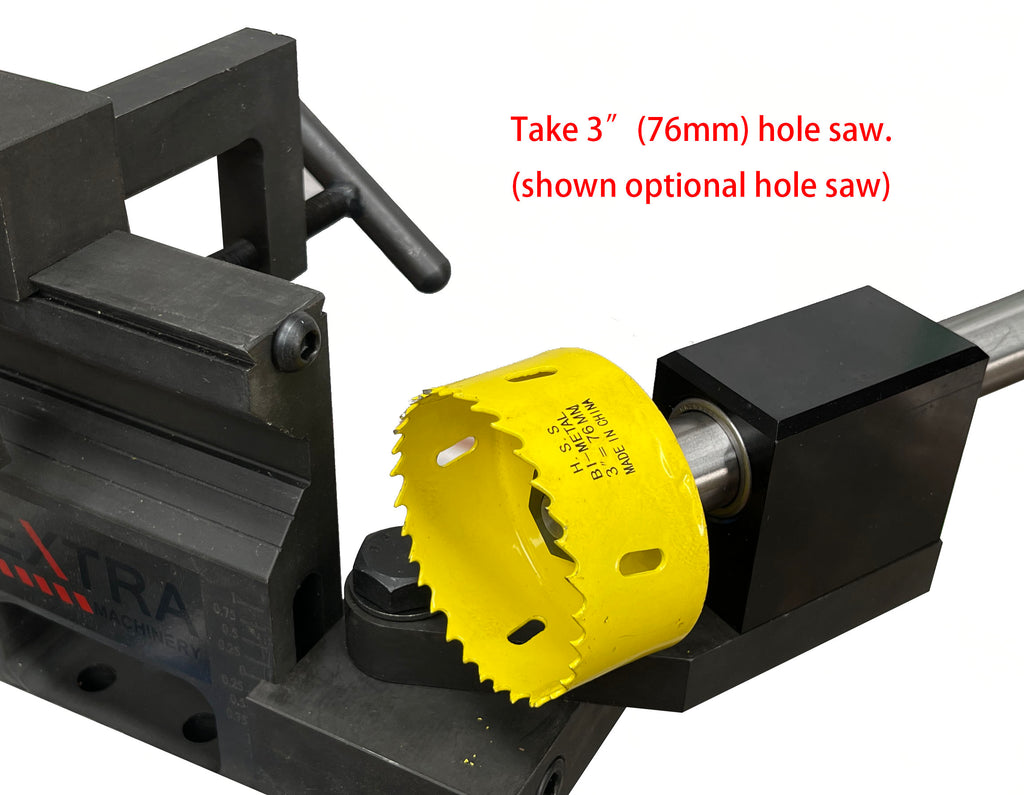

▶   Accepts standard hole saws
▶   Works with any 1/2" drill

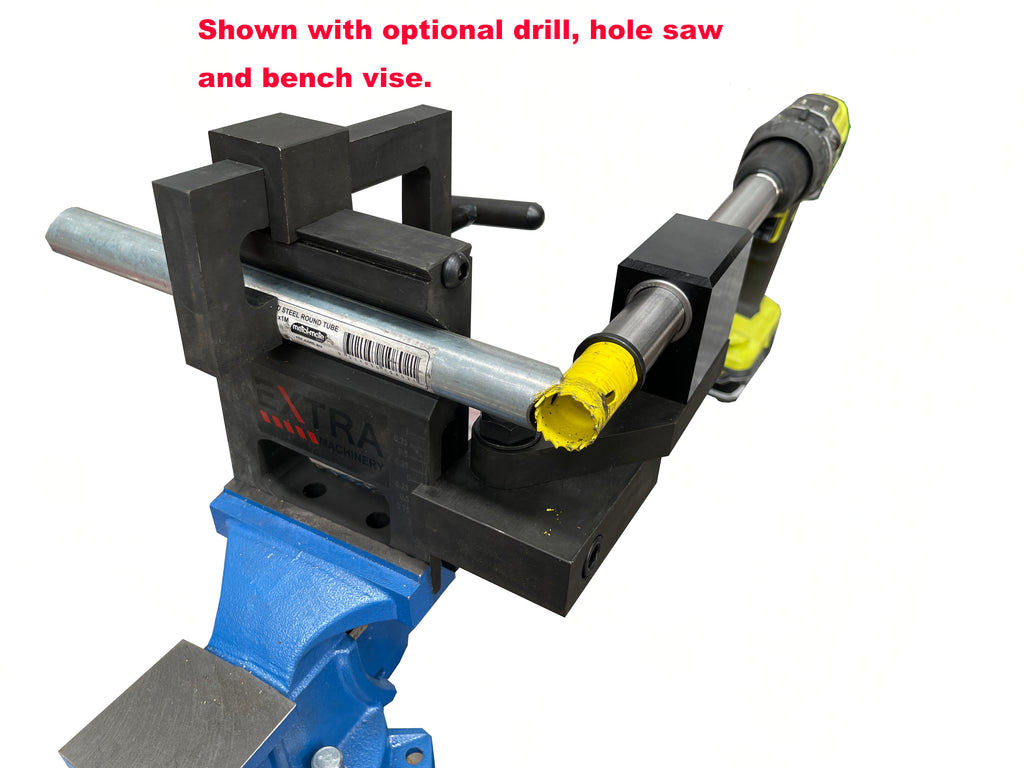

▶   Mounts in a vise or on a bench top

You can build anything from a Go Cart to a 3 In exhaust on your hotrod. Use any 1/2 In hand drill to power the  Notcher. Accepts all standard hole saws. Adjustable up to 50 degrees with the loosening of one bolt. Adjust to your desired angle with one hand and lock down the bearing block with your other. Easier adjustment than other designs on the market. Vise or bench top mounting.


Pipe & Tube
Notcher Attachment
(Type)Notching Cutter Hole Saw (Optional)
(mm)Tube Capacity (OD) - Mild Steel Ø3/4" to Ø3"
(inch / mm)Pipe Capacity (NB) - Mild Steel Ø25 - Ø63.5

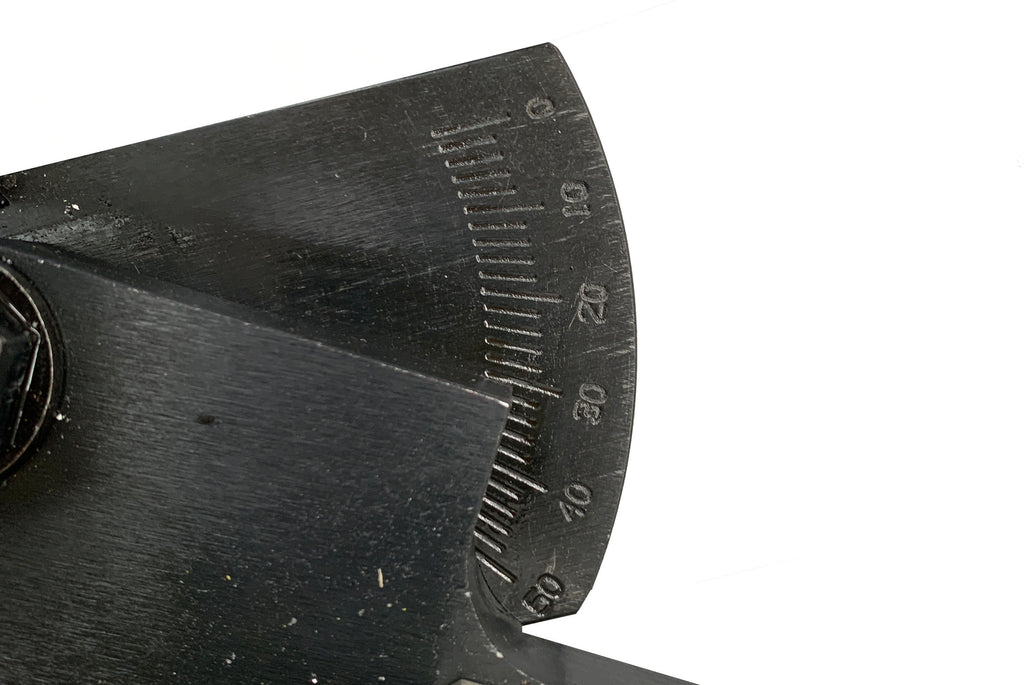

(Degree)Angle Adjustment 0 - 50°
((mm))Dimensions 280 x 280 x 160
(kg)Nett Weight 9.1
