PTN-2001 Pipe & Tube Notcher – Linisher 3 Working Stations Incl 11pc Rollers 3PHASE 2 SPEED MOTOR

Extra Machinery

$1,800.00

SKU: L128

NEW STOCKS AVAILABLE NOW

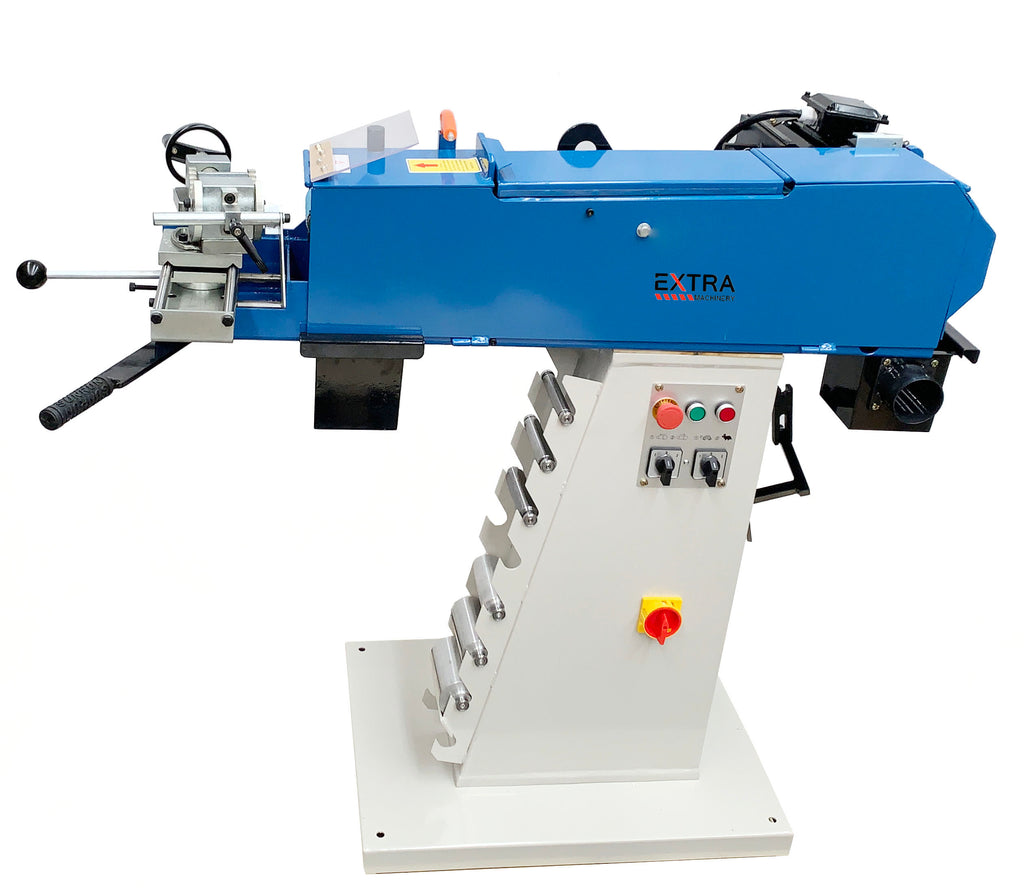

PTN-2001 Pipe & Tube Notcher - Linisher

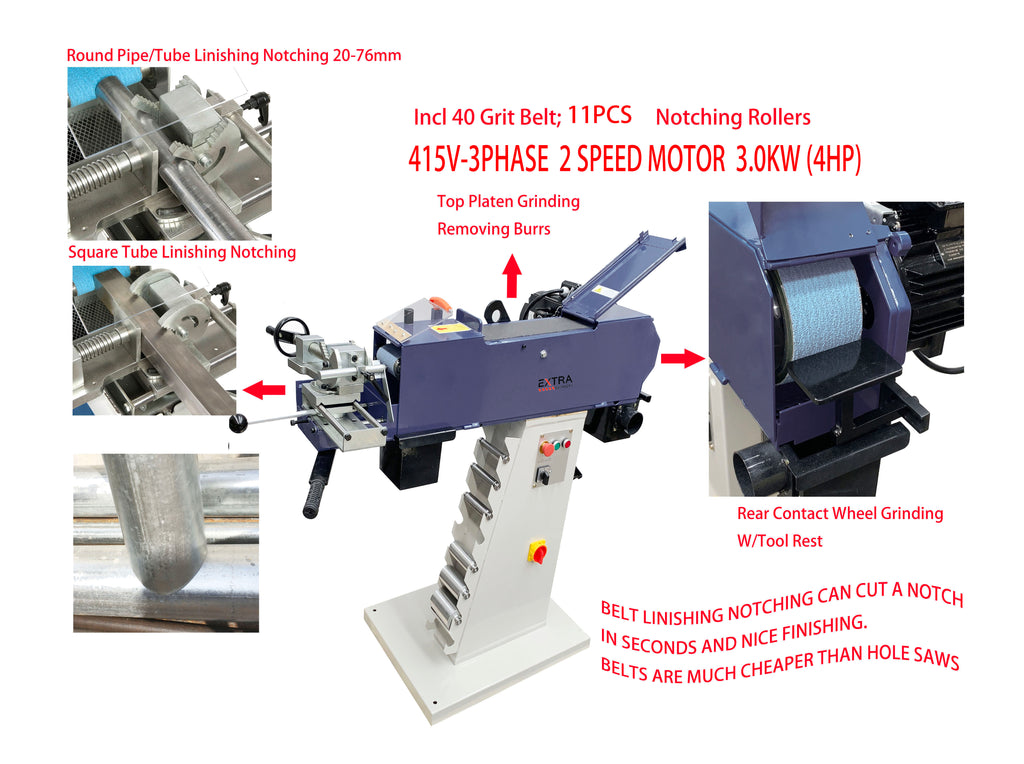

3 Working Stations:


Front Notcher including 11pc Rollers

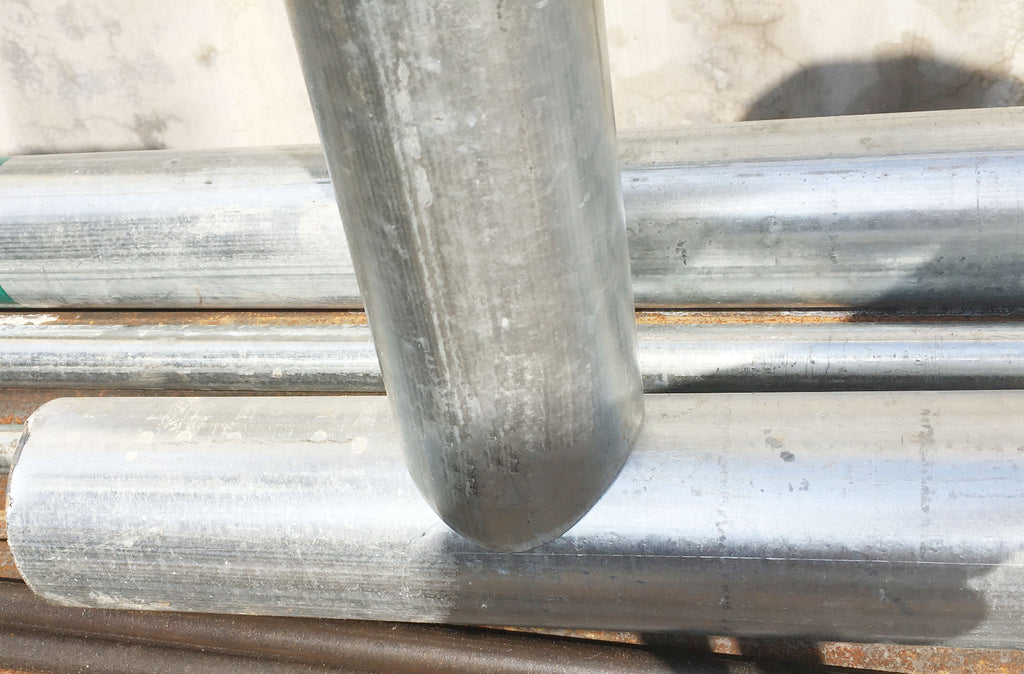

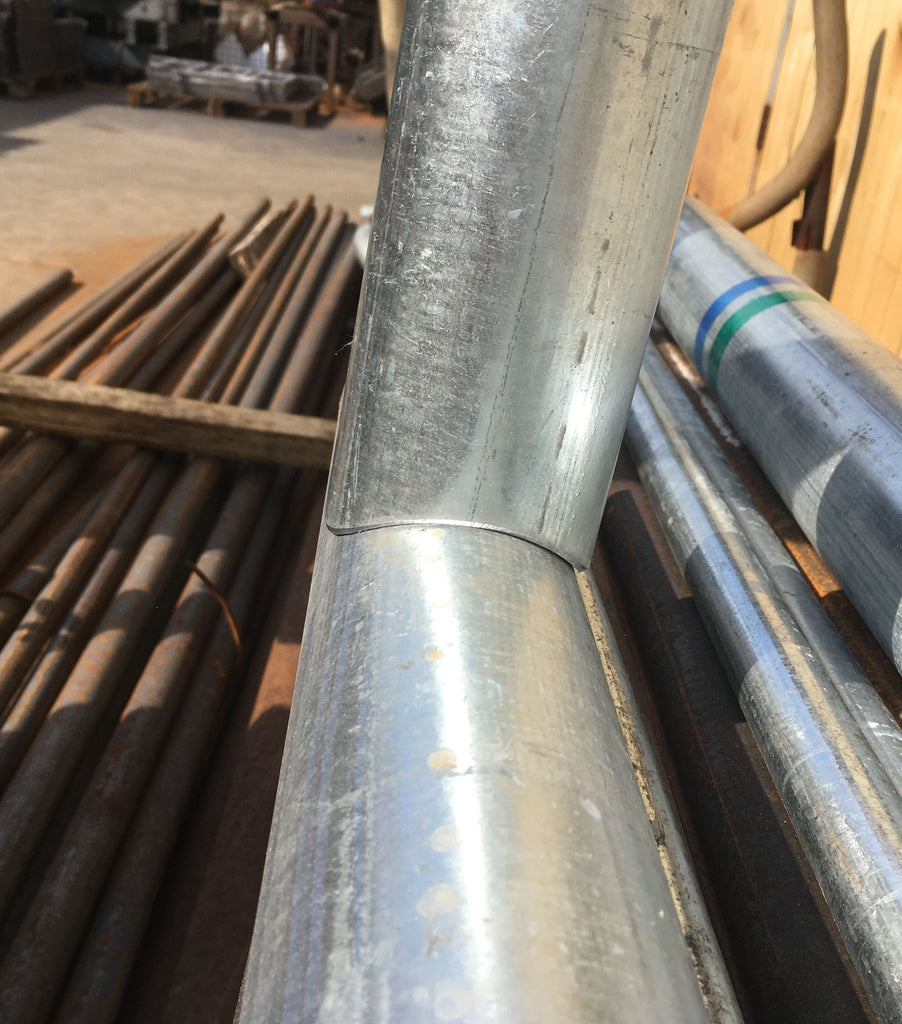

NB Pipe Notching or Precision Tube Notching

20mm, 26mm, 32mm,  38.1mm, 42mm,44.4mm,48mm, 50.8mm, 60mm, 63.5mm, 76mm

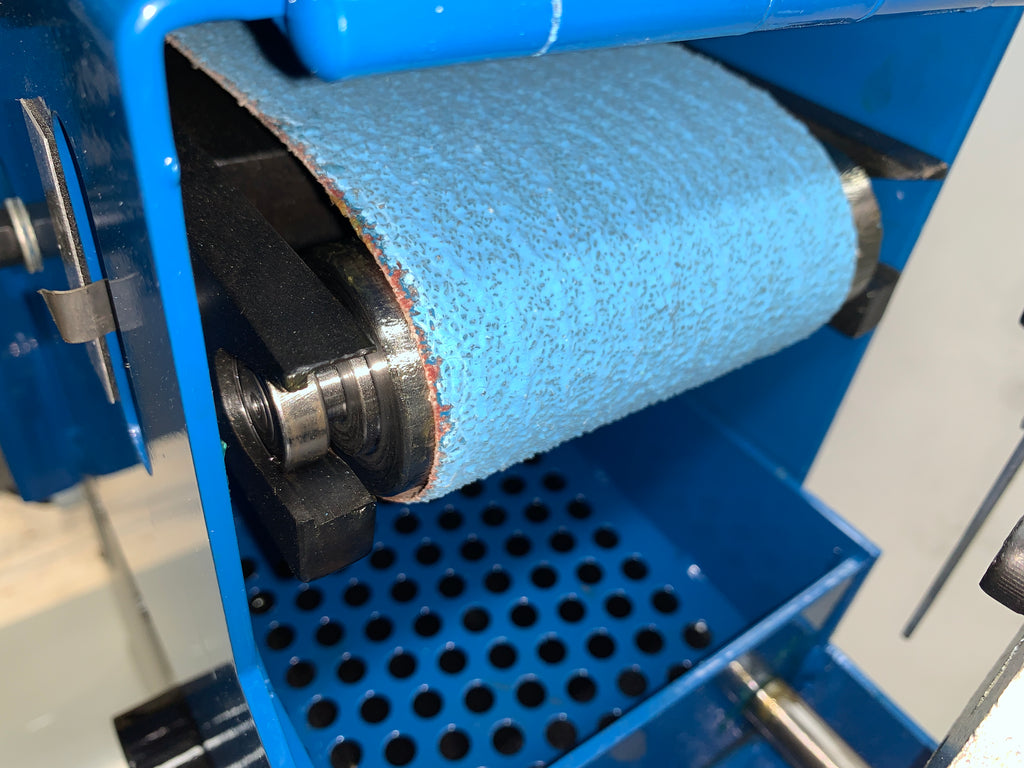

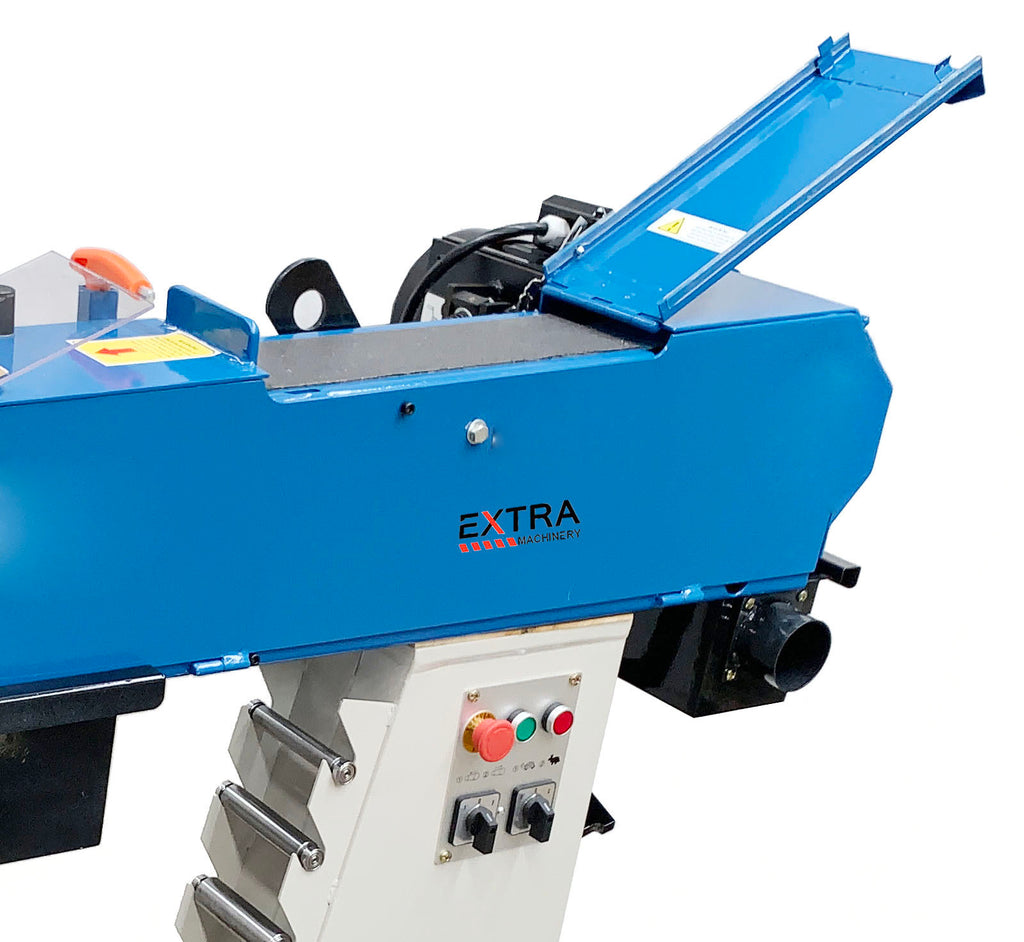

Top Platern Grinding

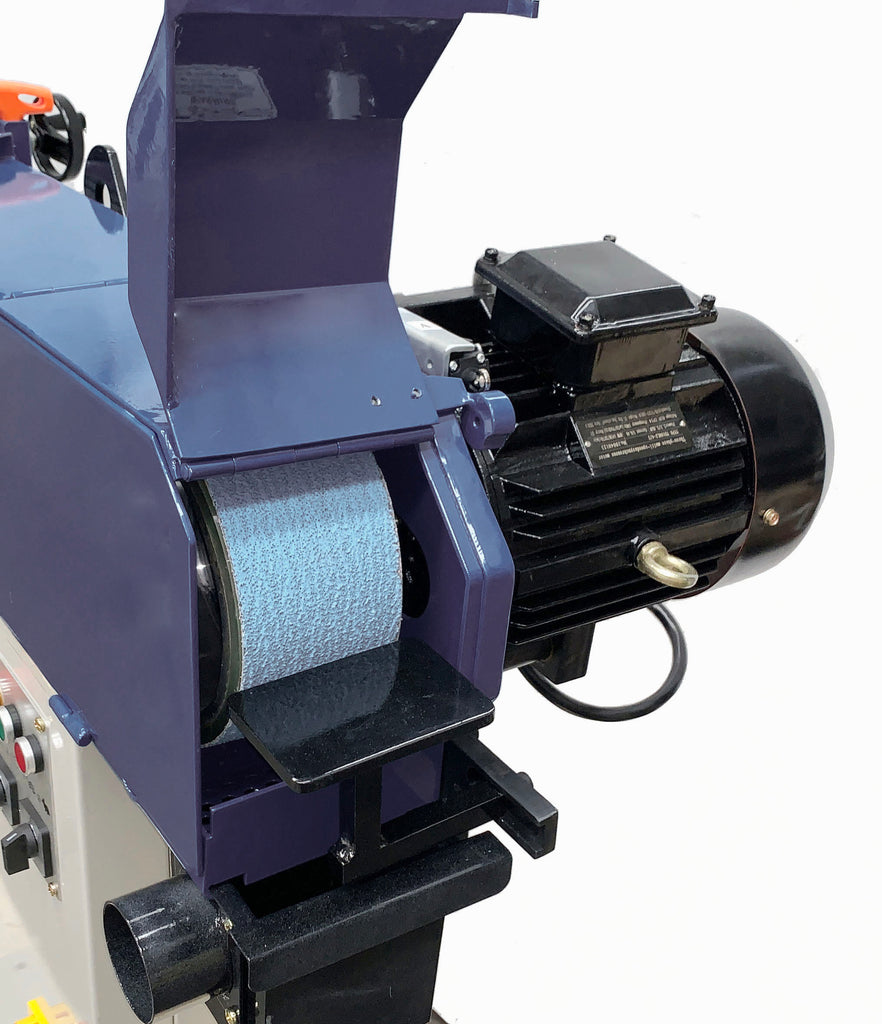

Rear 200mm Rubber Contact Wheel Grinding W/Tool Rest

INCLUDE SPECIAL DESIGNED VICE, TILTING 30-90DEGREE, CLAMP ROUND OR SQUARE TUBE OR PIPE

  • Tube notching capacity Ø20-76mm OD

  • NB pipe notching capacity Ø15-65mm

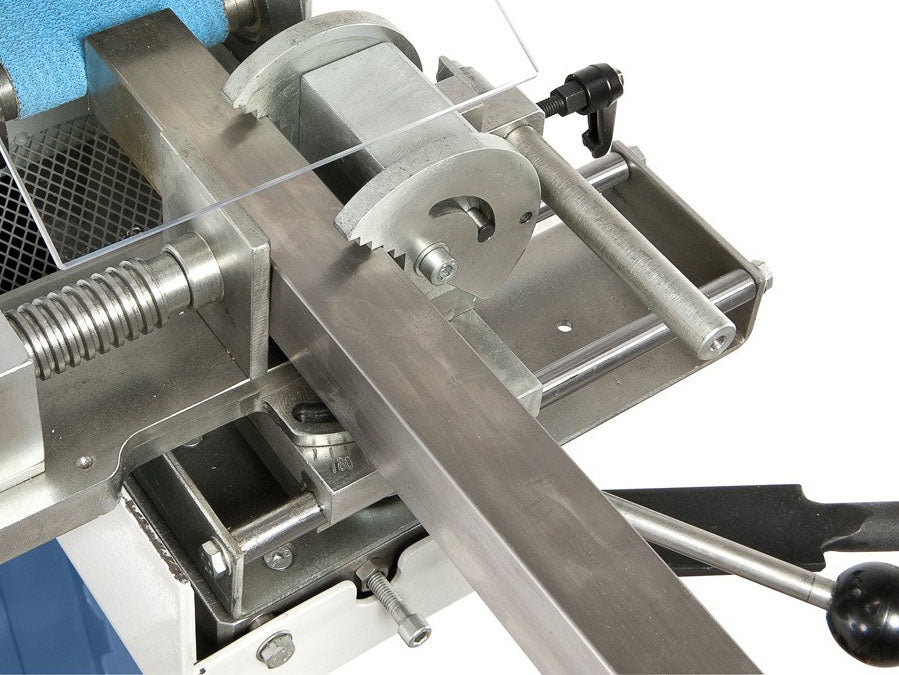

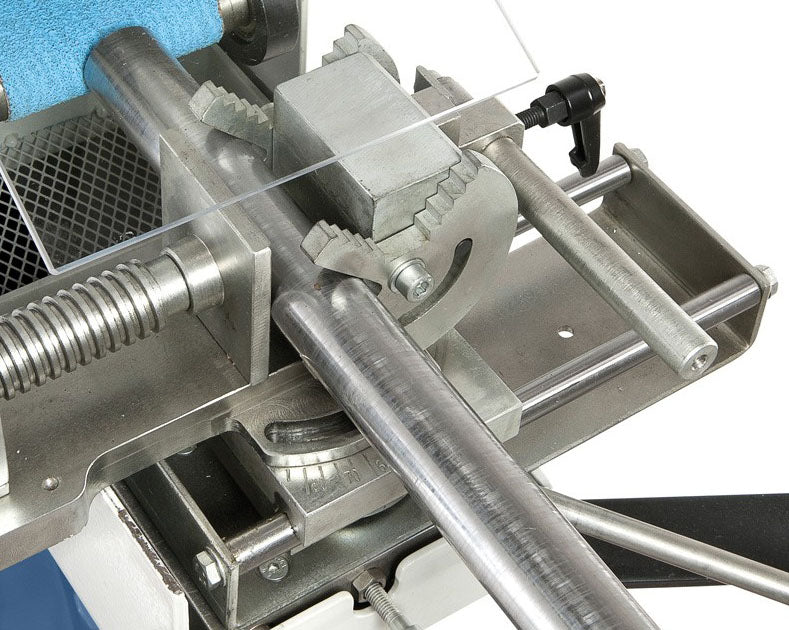

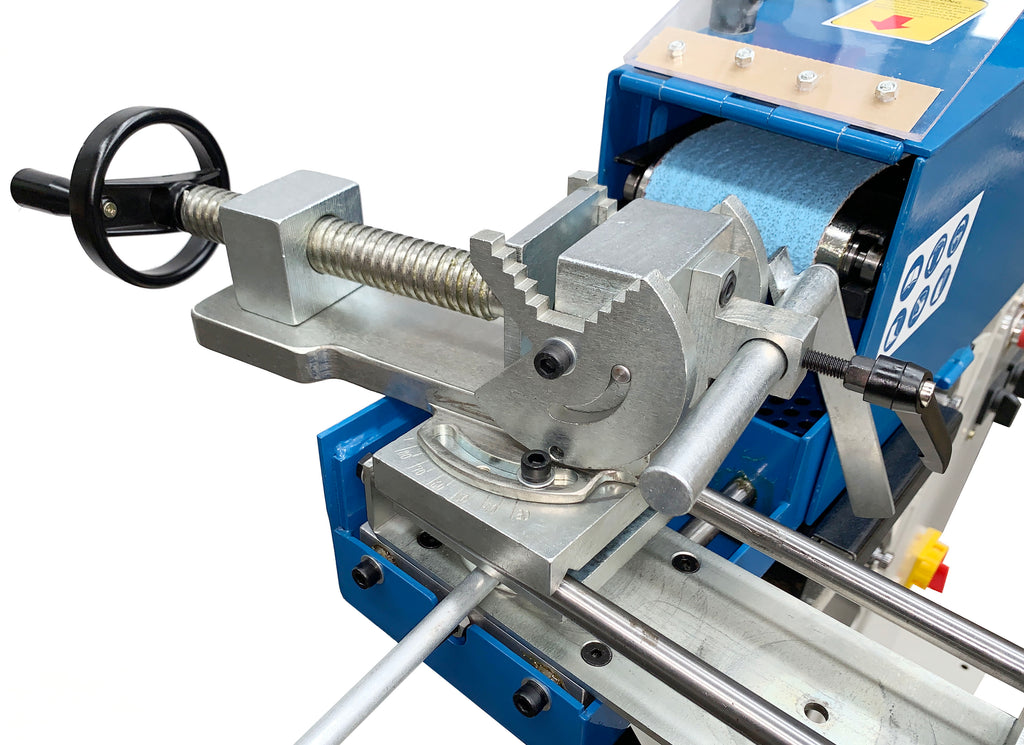

  • Quick action compound vice swivels from 30-90º

  • Speical designed vice jaws for holding round or square material

  • Heavy leadcrew drives the vice, ensures firm holding of workpiece.

  • Wide and clear eye shield

  • 2 speed motor 1400rpm for stainless steel, 2800rpm for steel

  • Graphite pad under top platern to reduce friction

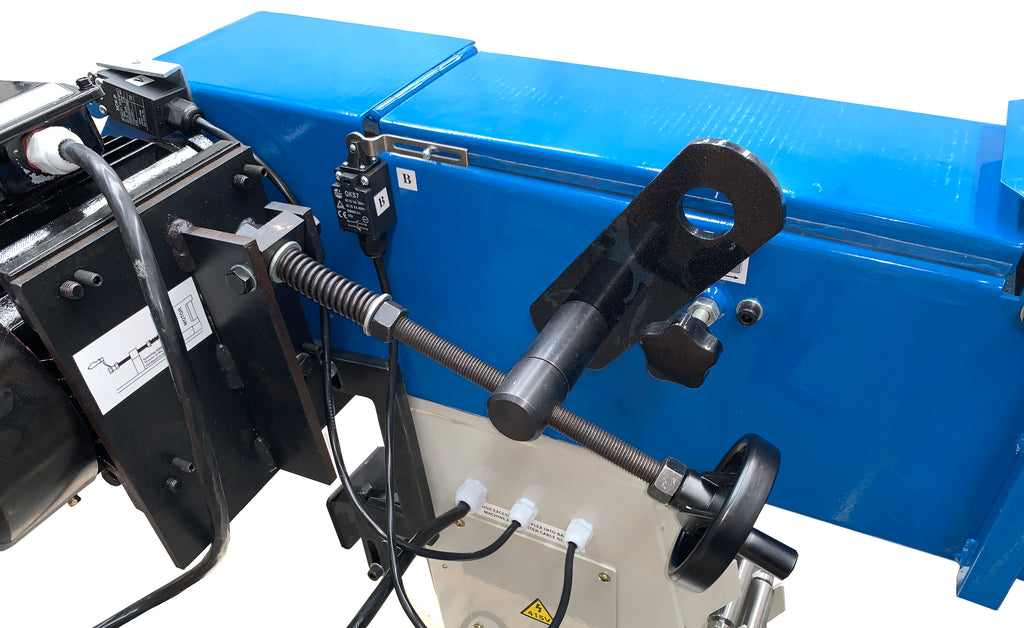

  • Spring balanced clamping device allows for continuous belt tension

  • Quick change of grinding rolls – no tools required

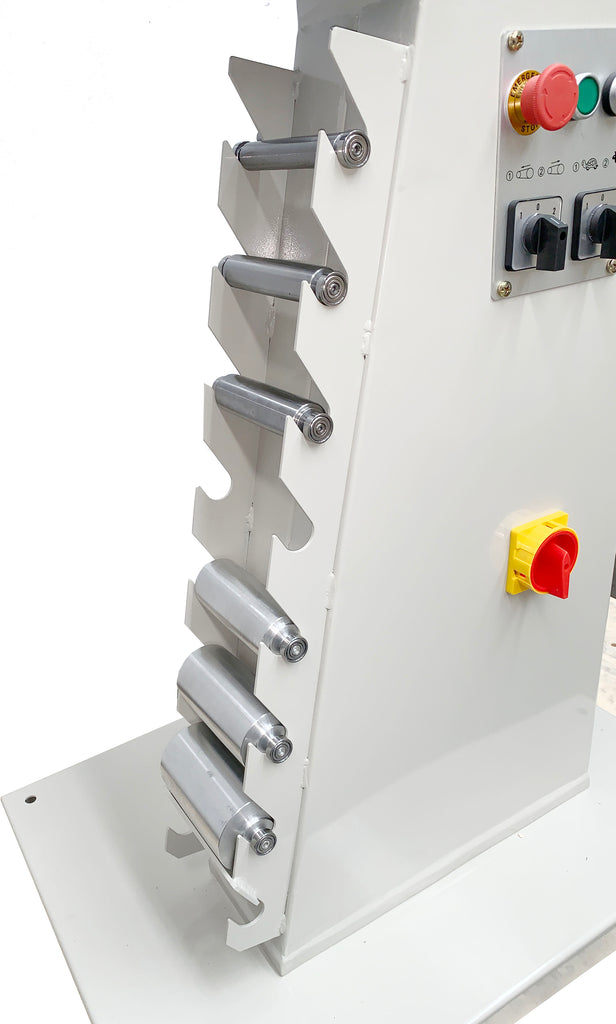

  • Solid pedestal stand with built-in  rack for 7 sets rollers

  • 2 x Ø76mm dust extraction outlets

  • Powerful 3.0kW / 4.0hp, 415V motor with overload protection

  • Including 1pc 2000x100mm Zirconia linishing belt
