Extra Machinery

$1,650.00

SKU: L126


PLEASE NOTE CONTROL PANEL MAY VARY ON SINGLE PHASE MACHINE.

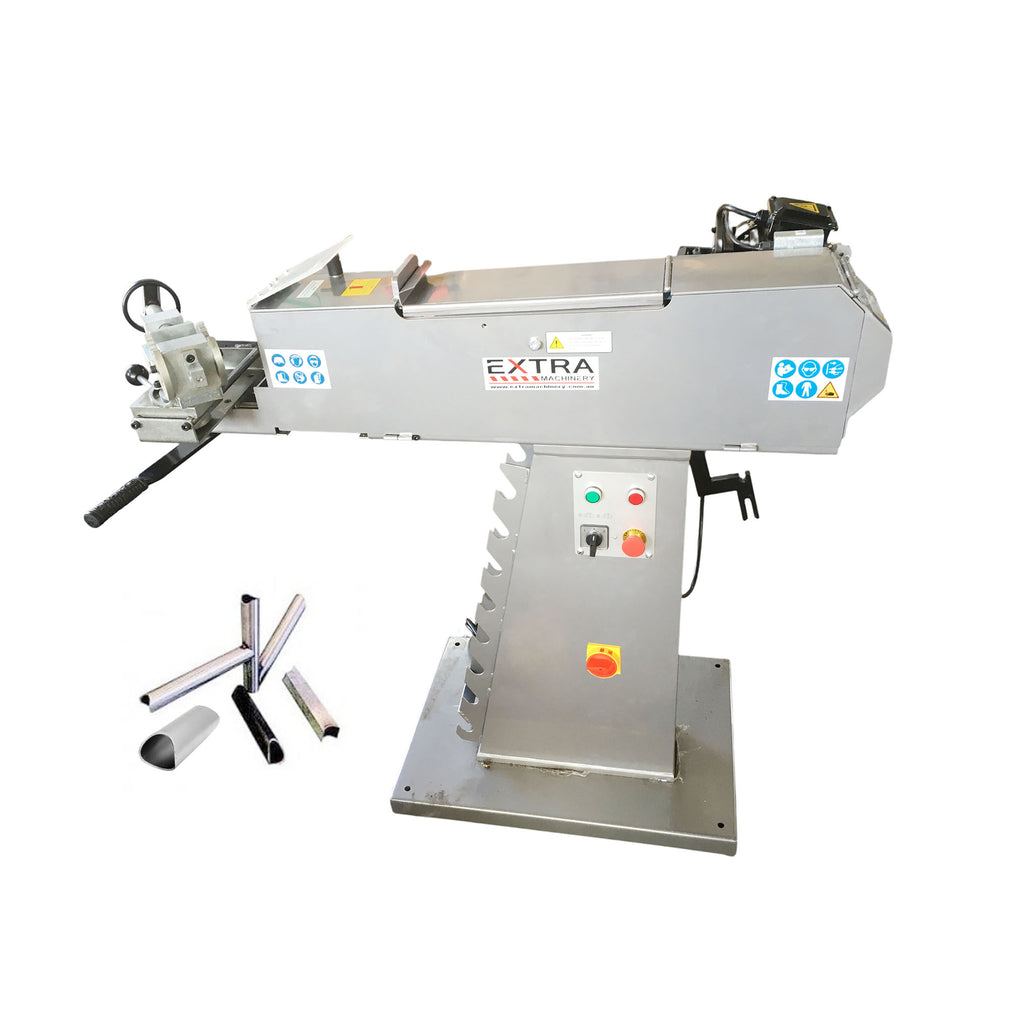

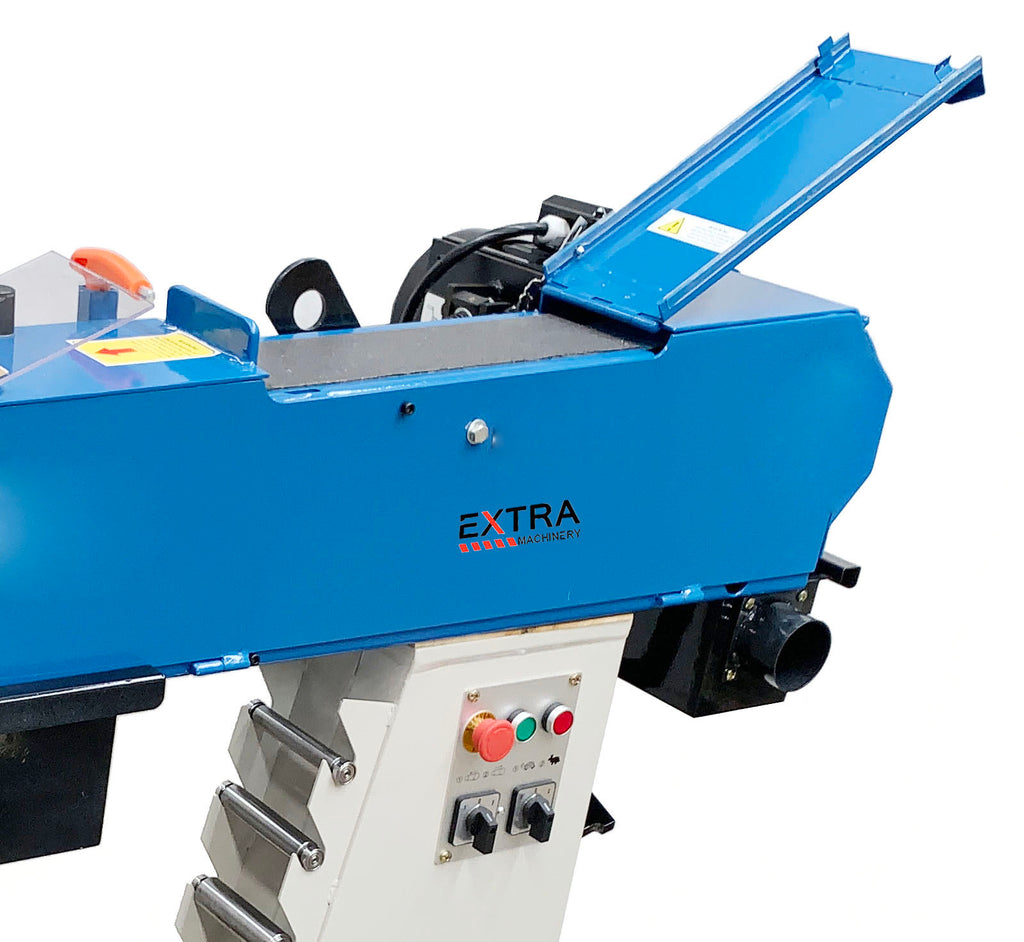

PHOTOS SHOW 3 PHASE MACHINE WITH 2 SPEED MOTOR WITH HIGH/LOW SWITCH

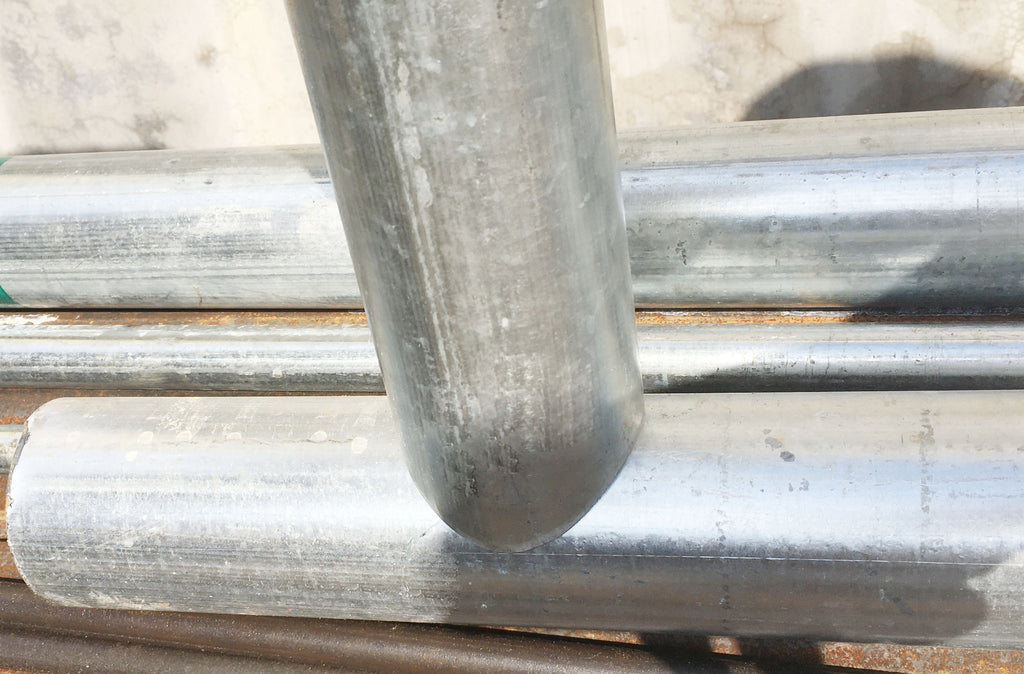

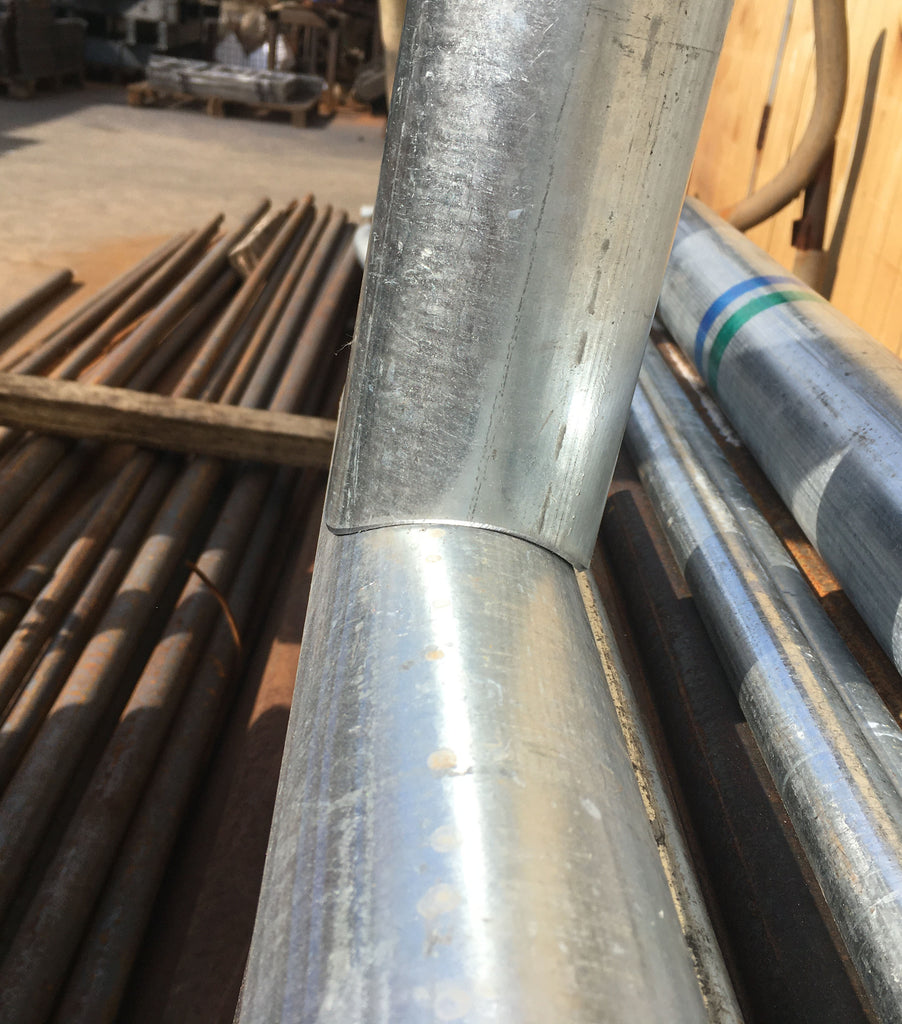

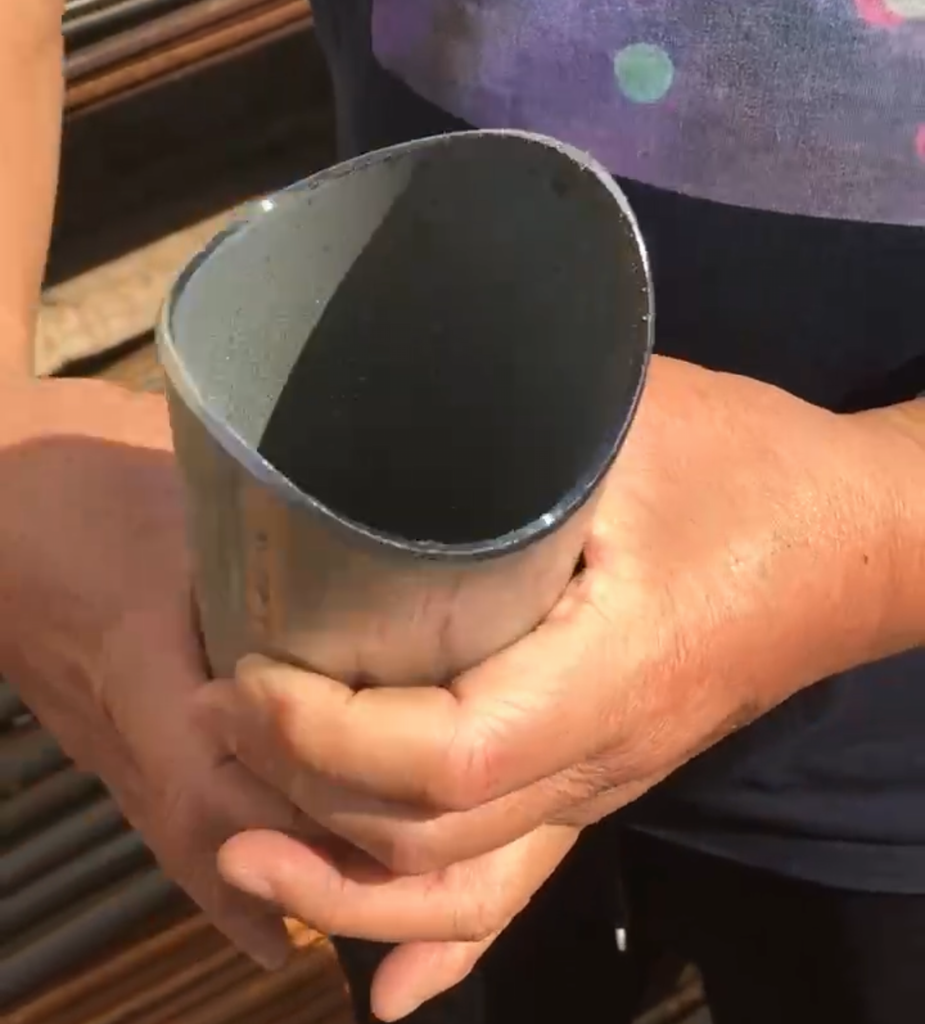

NB Pipe Notching or Precision Tube Notching

20mm, 26mm, 32mm,  42mm,48mm, 60mm, 76mm

 Pipe & Tube Notcher - Linisher

DESIGNED IN HOLLAND FOR YEARS.
Ø20 - 76mm OD Tube & Ø15 - 65mm NB Pipe

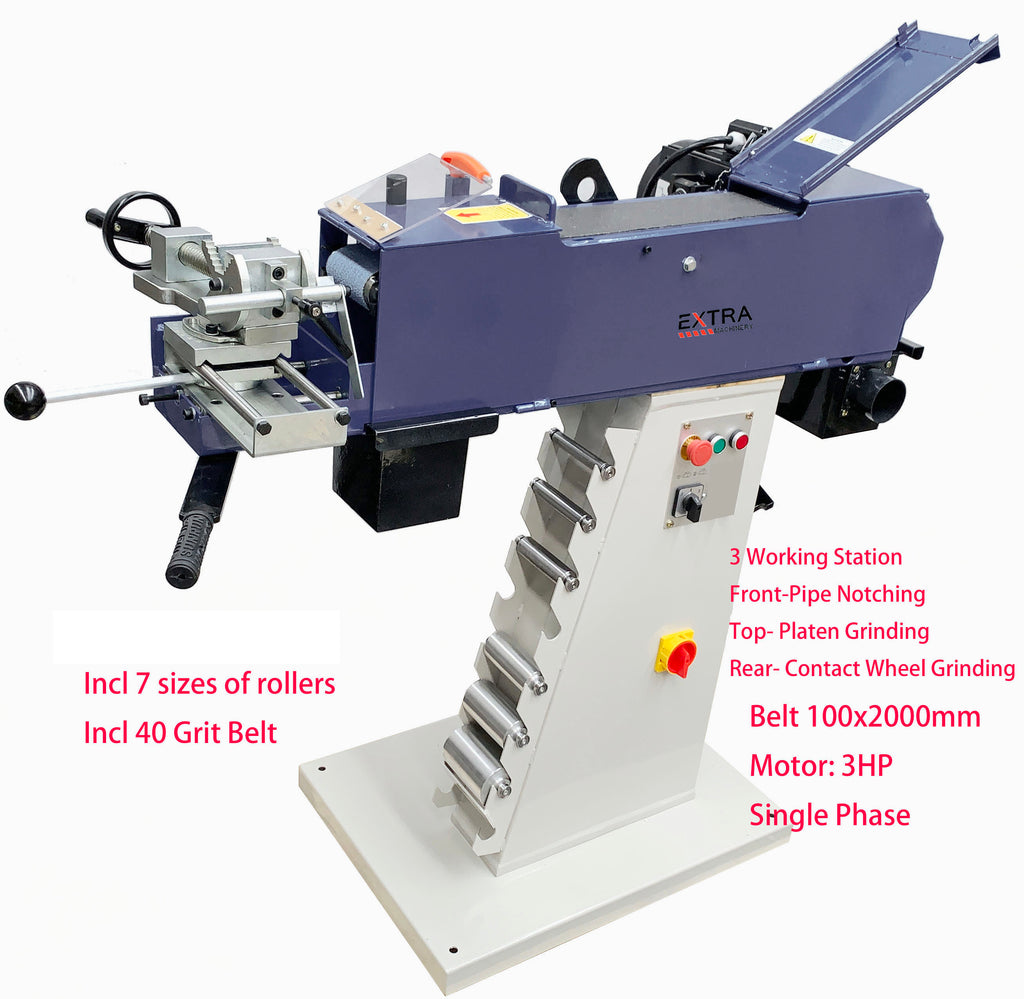

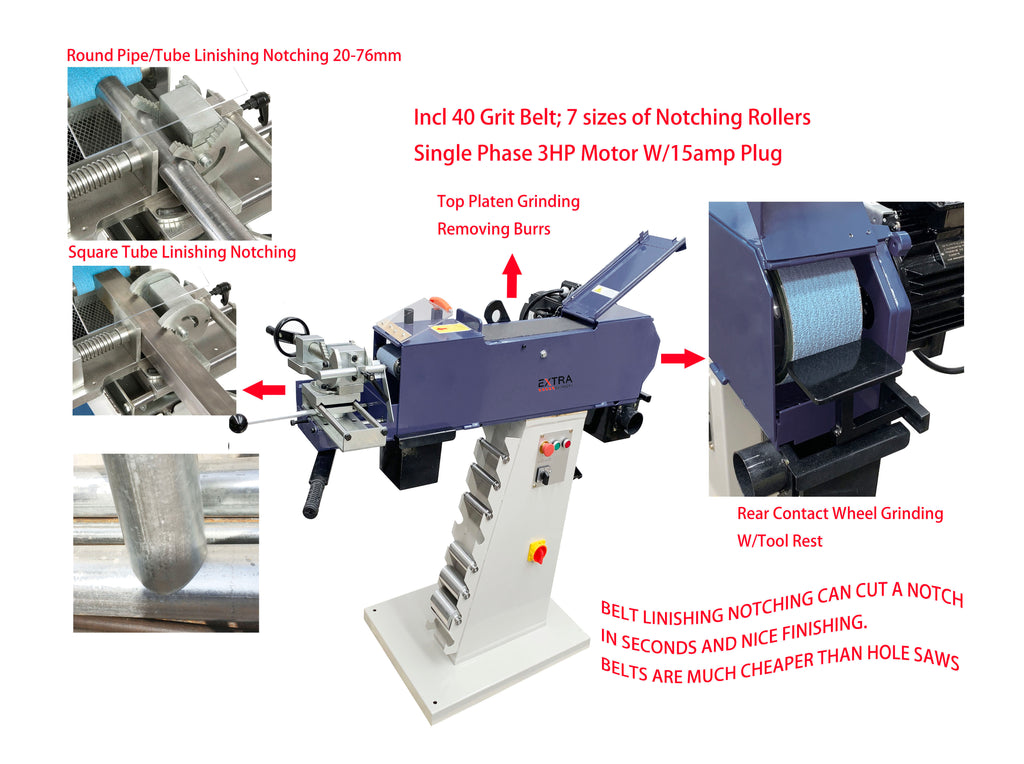

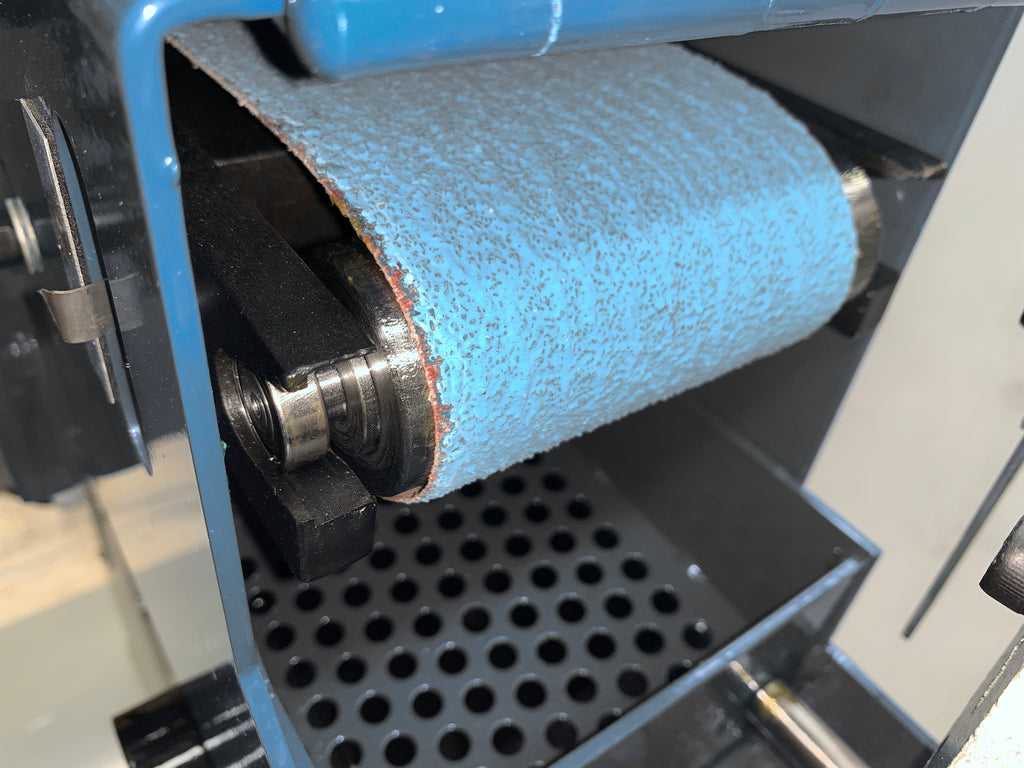

3 Working Station:  Front Notcher, Top Platern Grinding,  Rear Contact Wheel Grinding

Tube Capacity (OD) - Mild Steel

20 - 76mm

Pipe Capacity (NB) - Mild Steel

15 - 65mm

Belt Size

100 x 2000mm

Belt Speed

2800rpm

Motor Power

2.2KW

Voltage

240V-50ZH- Single phase W/15Amp Plug






  • Tube notching capacity Ø20-76mm OD
  • NB pipe notching capacity Ø15-65mm

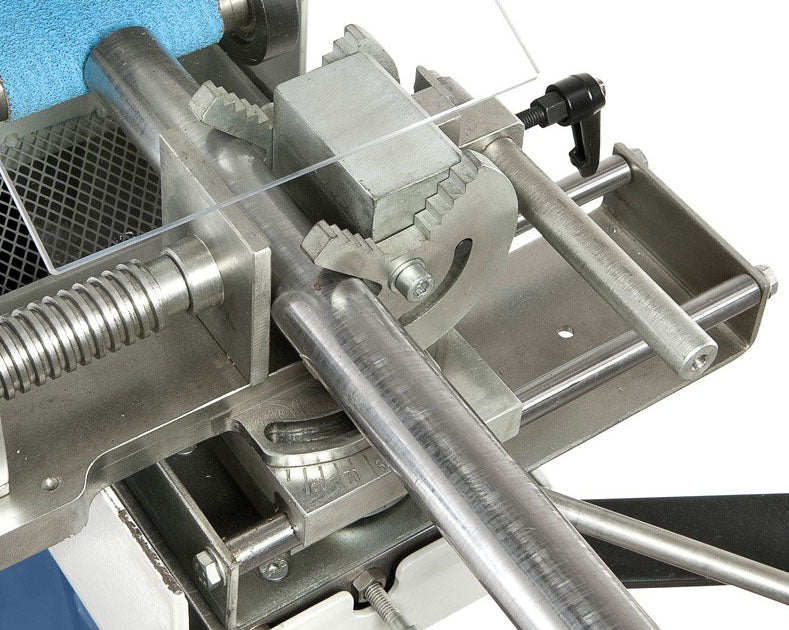

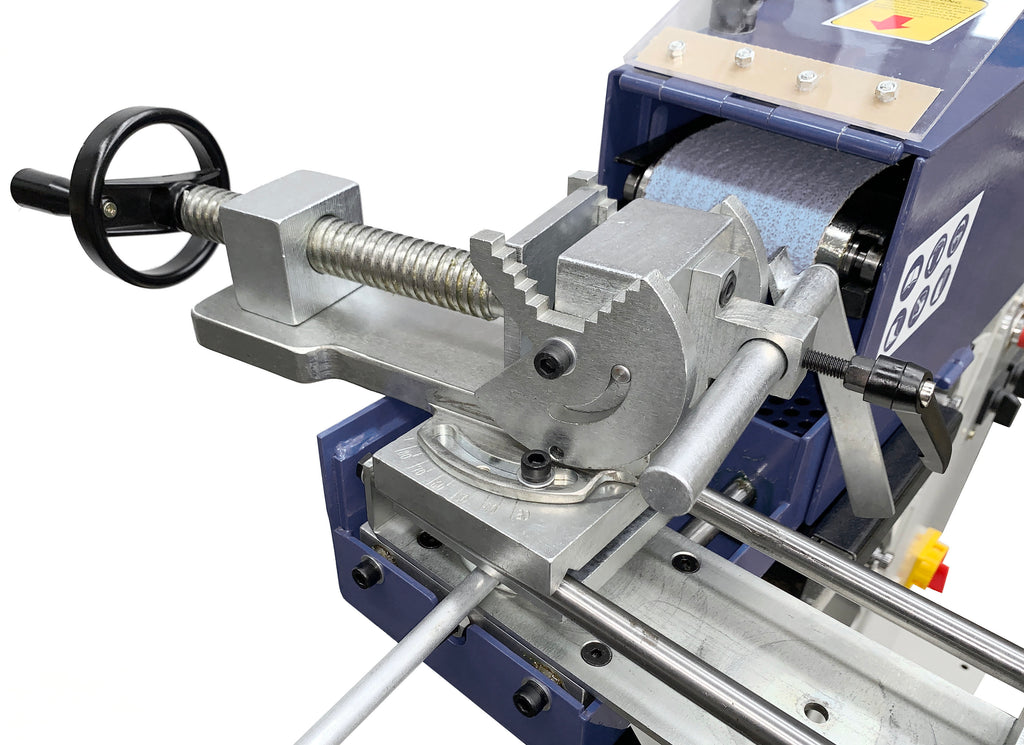

  • Quick action compound vice swivels from 30-90º

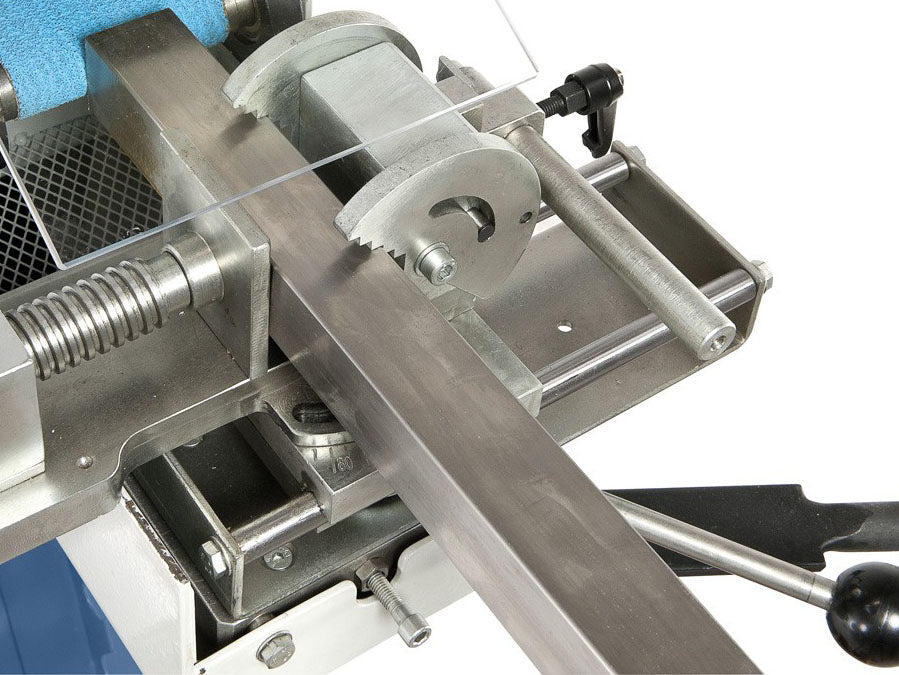

  • Speical designed vice jaws for holding round or square material
  • Heavy leadcrew drives the vice, ensures firm holding of workpiece.
  • Wide and clear eye shield
  • Graphite pad under top platern to reduce friction

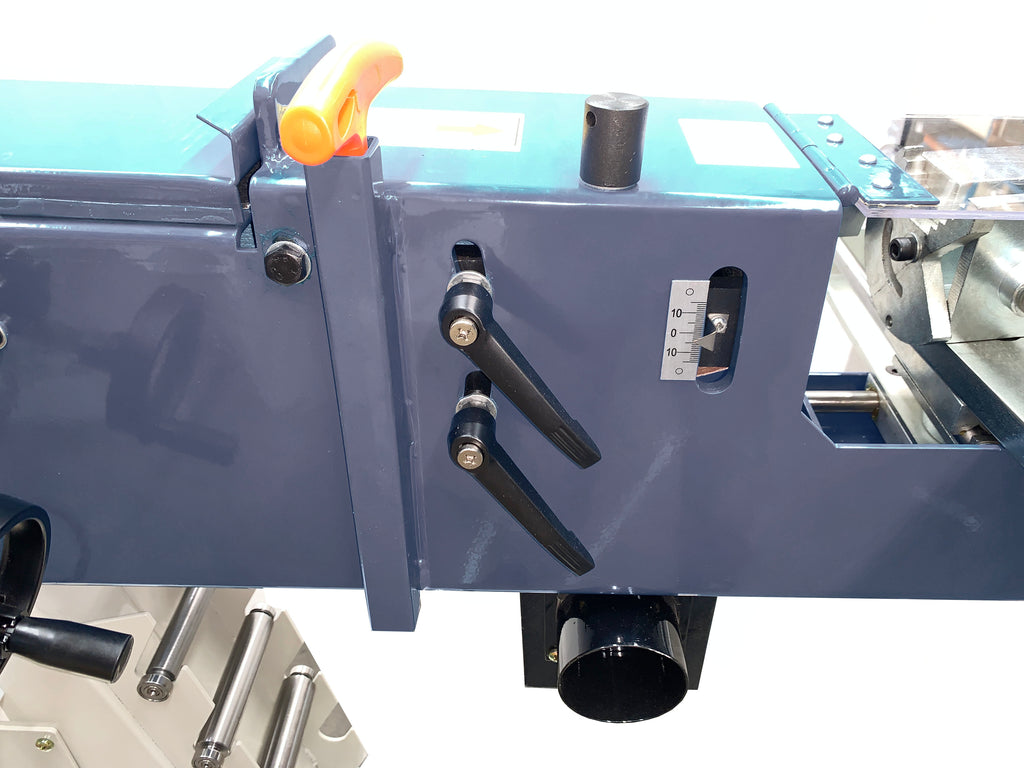

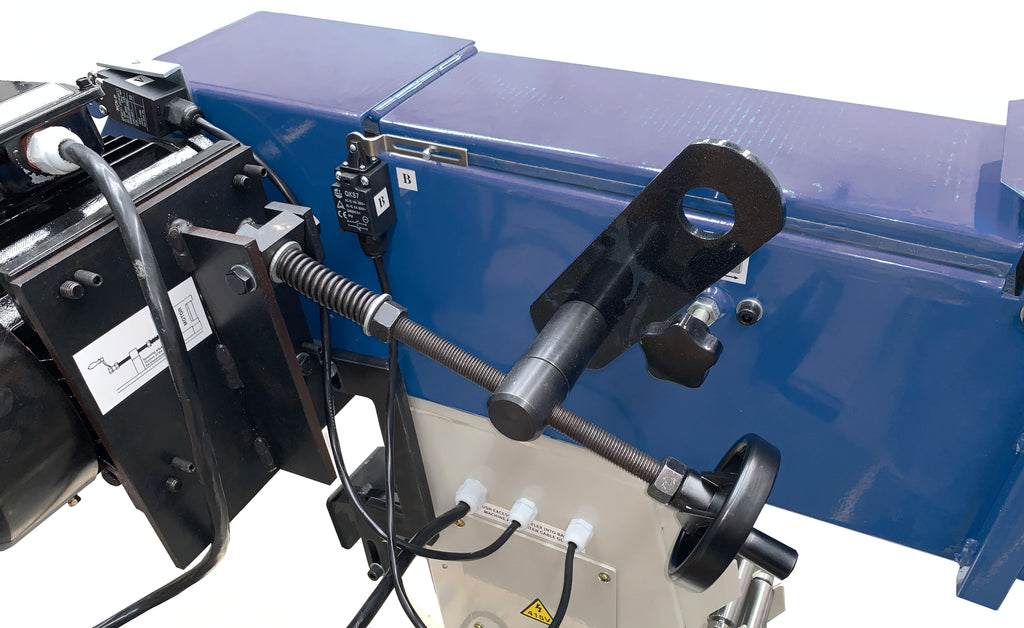

  • Spring balanced clamping device allows for continuous belt tension
  • Quick change of grinding rolls – no tools required

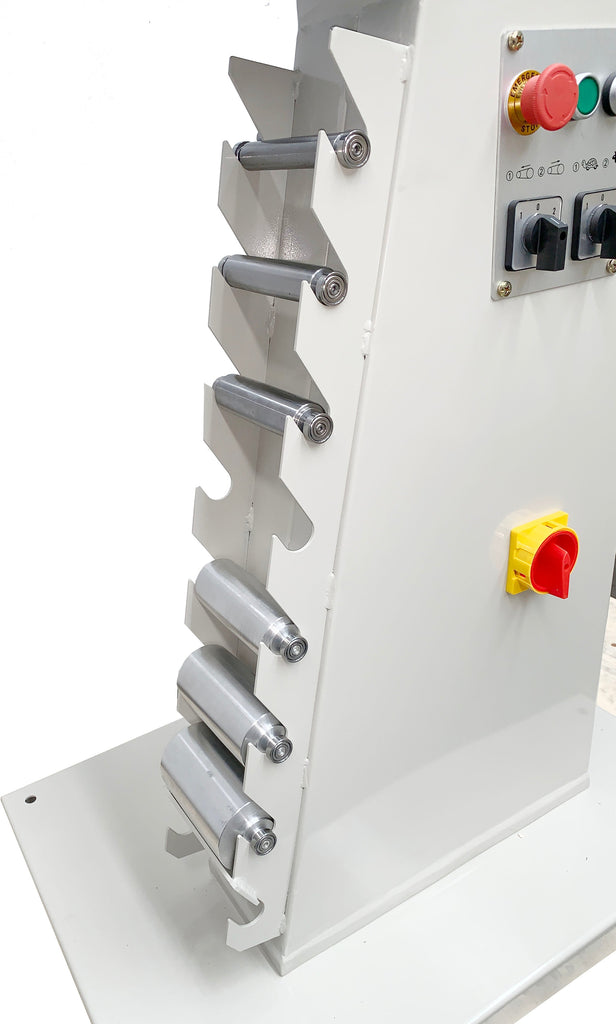

  • Solid pedestal stand with built-in  rack for 7 sets rollers
  • 2 x Ø76mm dust extraction outlets

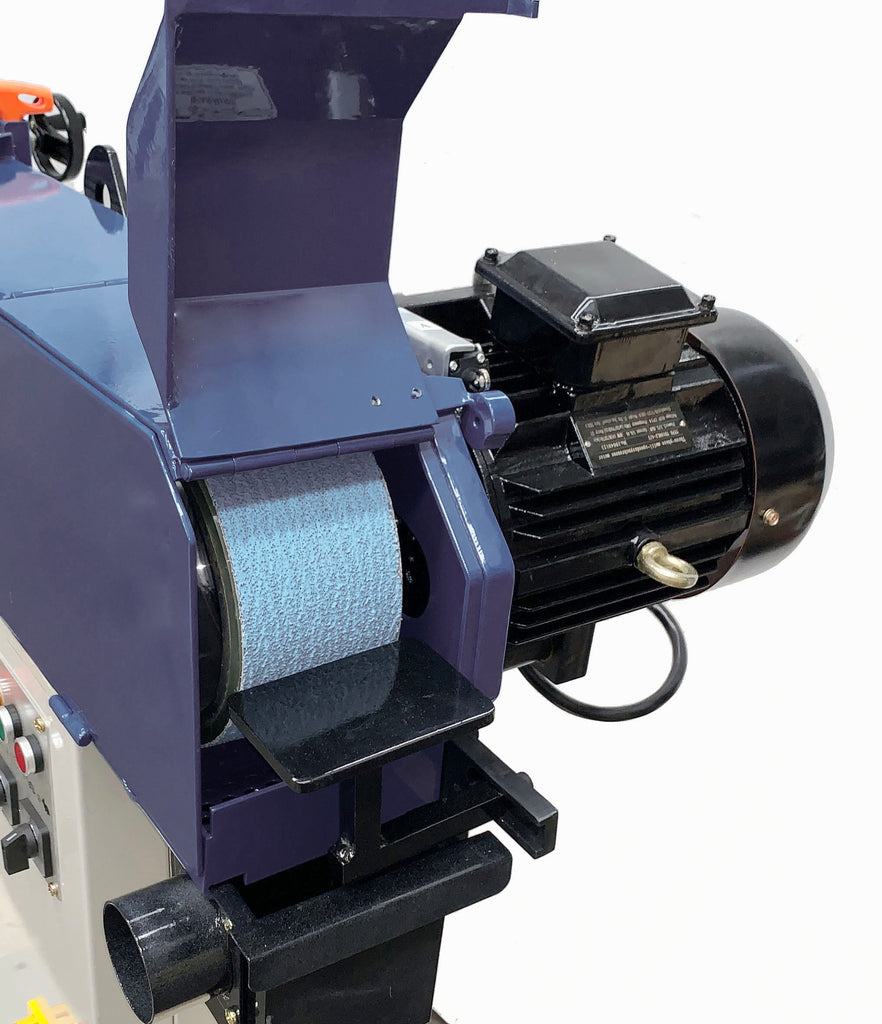

  • Powerful 3hp, 240V motor with overload protection
  • Includes 7 sizes of  roller  & 1 x linishing belt
