Extra Machinery Pty Ltd

$2,990.00

SKU: S279

STOCKS COMING IN END NOV 2024.

This model of motorised bending roll is  from European designs and includes the features

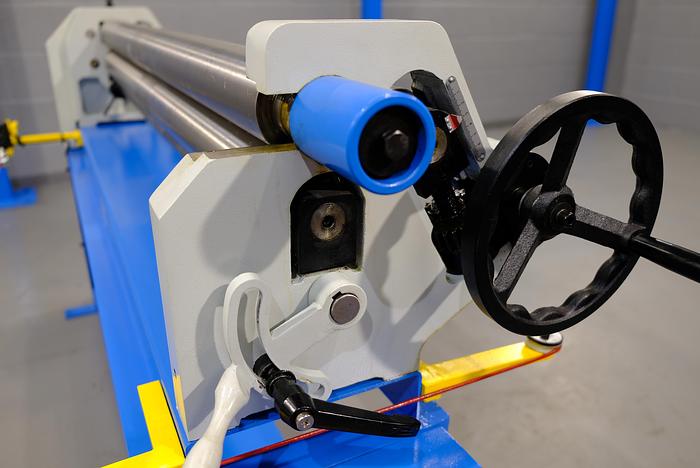

***Single hand wheel with a Cam type system to adjust both sides of the bottom roller simultaneously to pinch different material thickness,

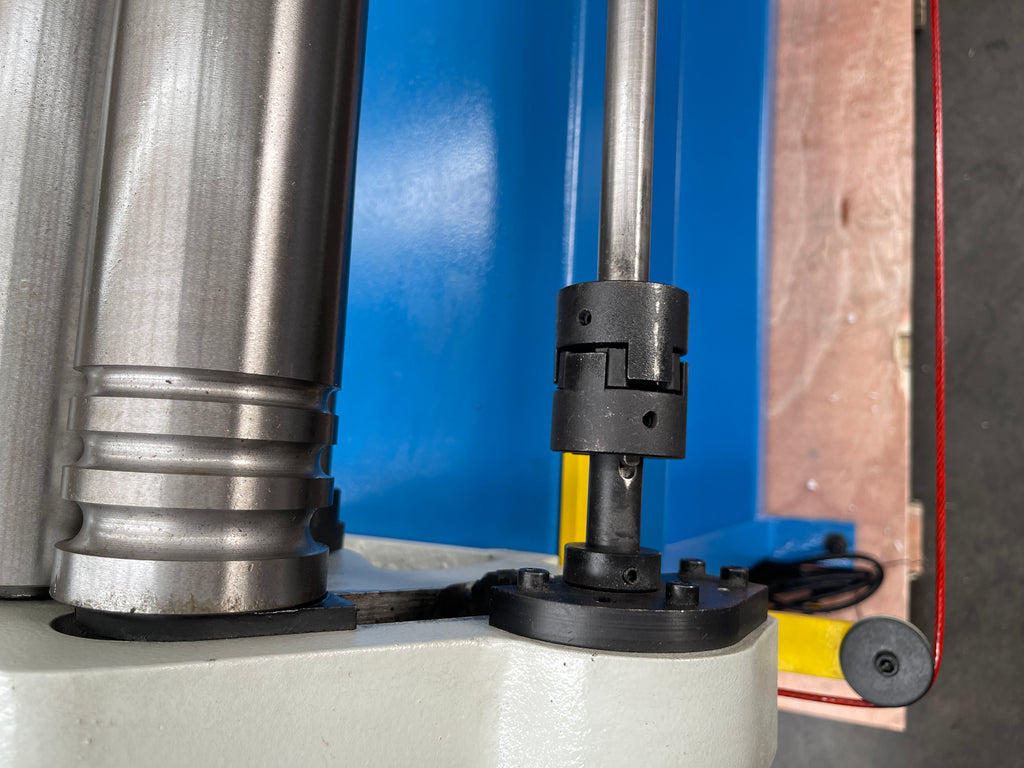

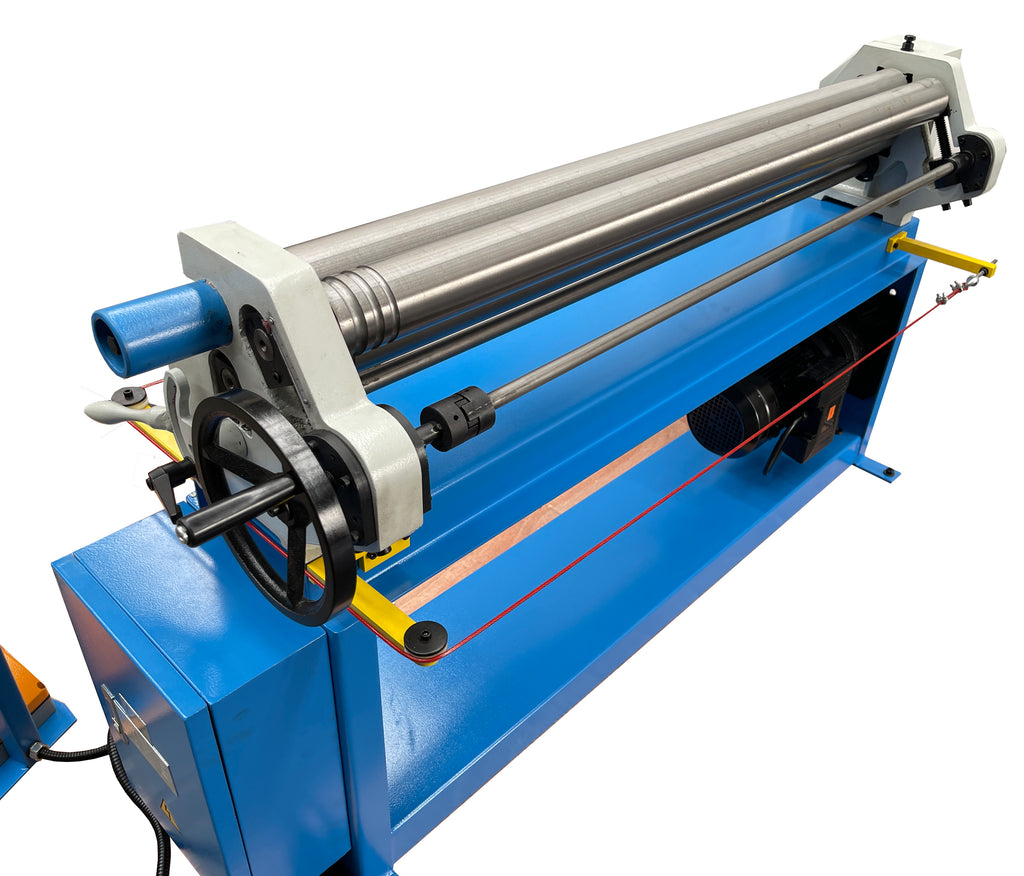

***Single hand wheel with worm gears to adjust the rear roller simultaneously that simply makes curving sheet metal very easy.

Description

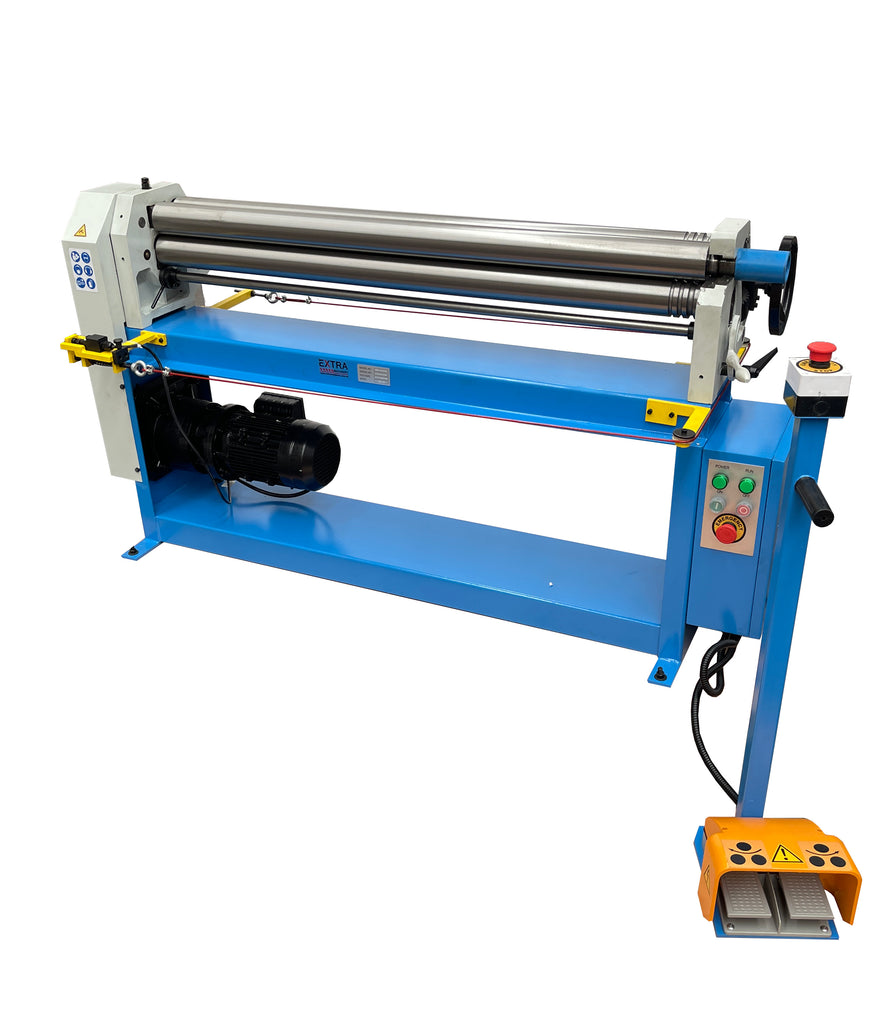

    • Asymmetrical roll bending machine with 3rolls
    • High strength steel rolls 75mm dia.
    • Fixed top roller, adjustable lower and rear rollers

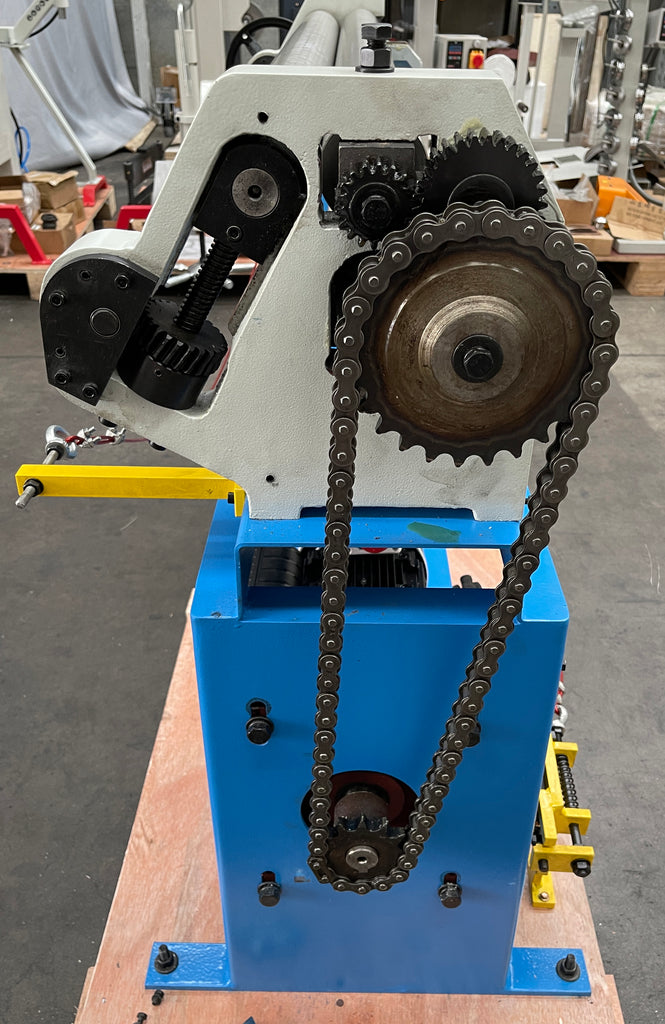

    • Worm gear and motor for pre-bending
    • Standard wire bending groove

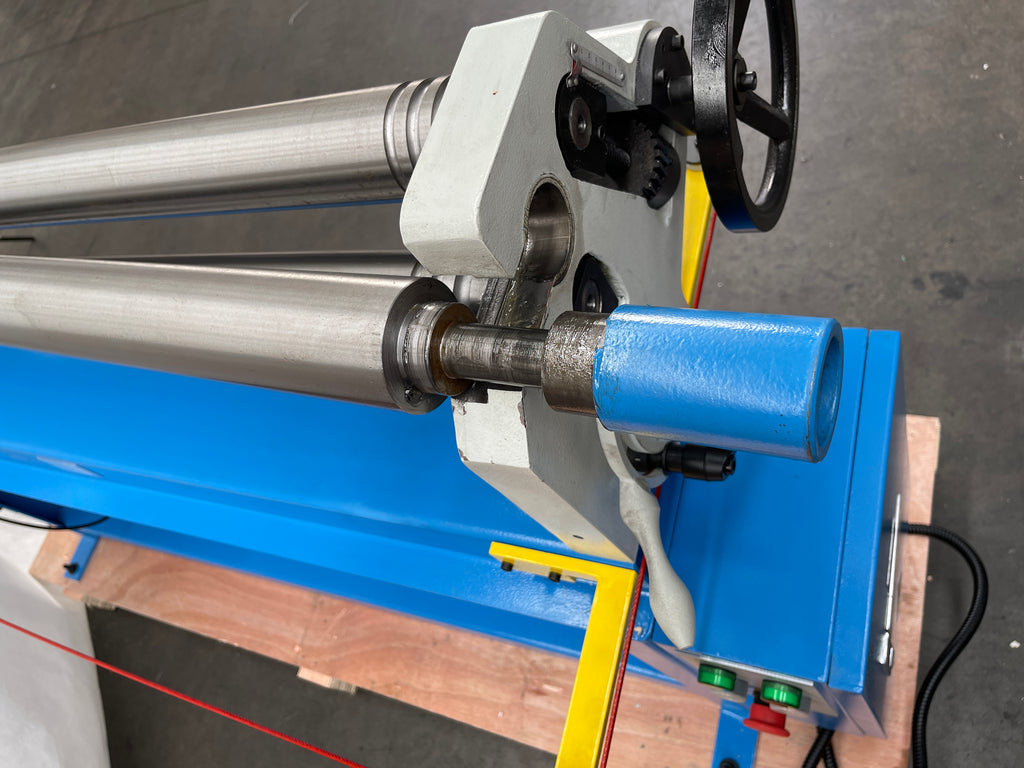

    • Top roll swings out across cam lock

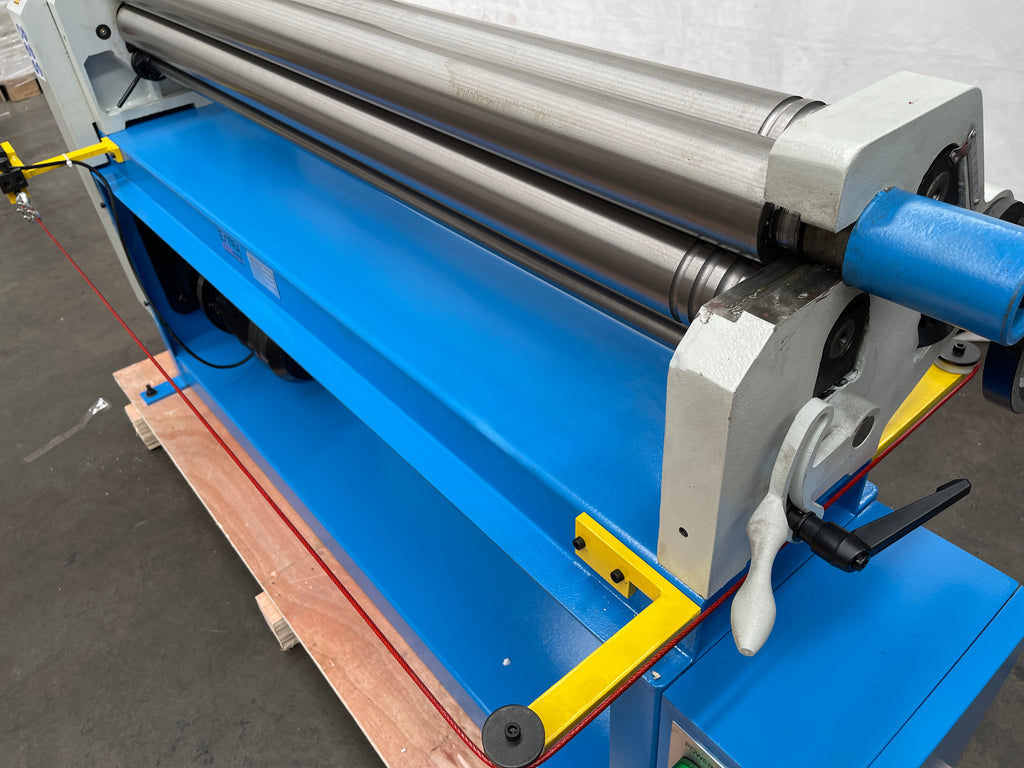

    • Emergency Stop wires

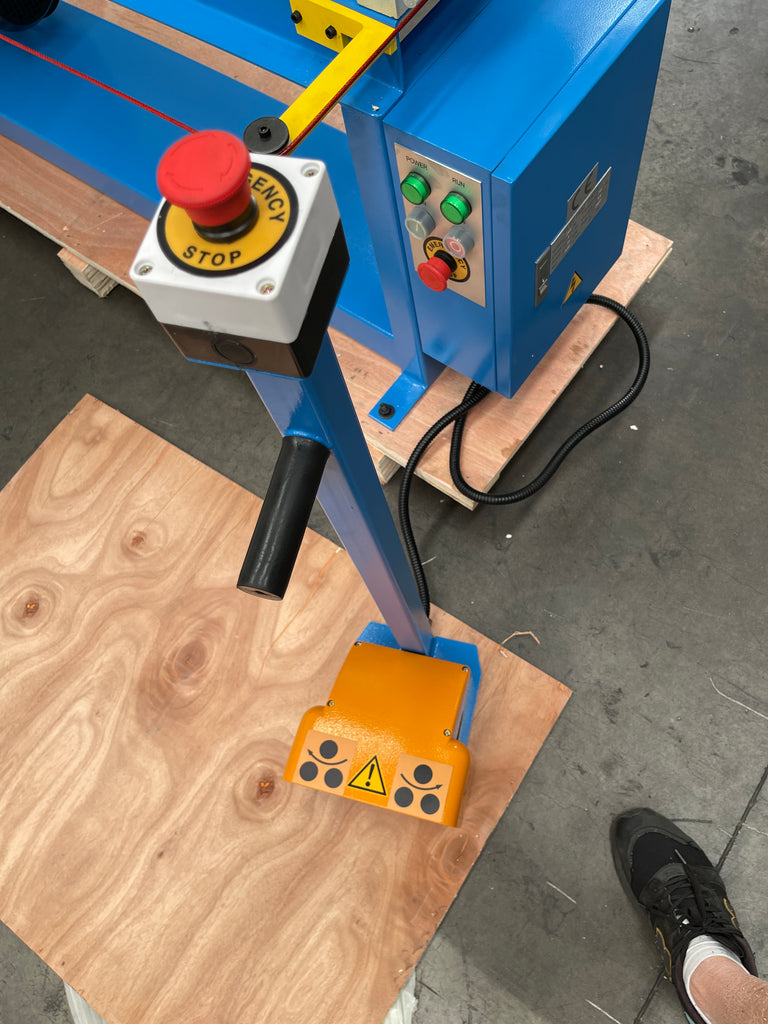

    • Foot pedal control

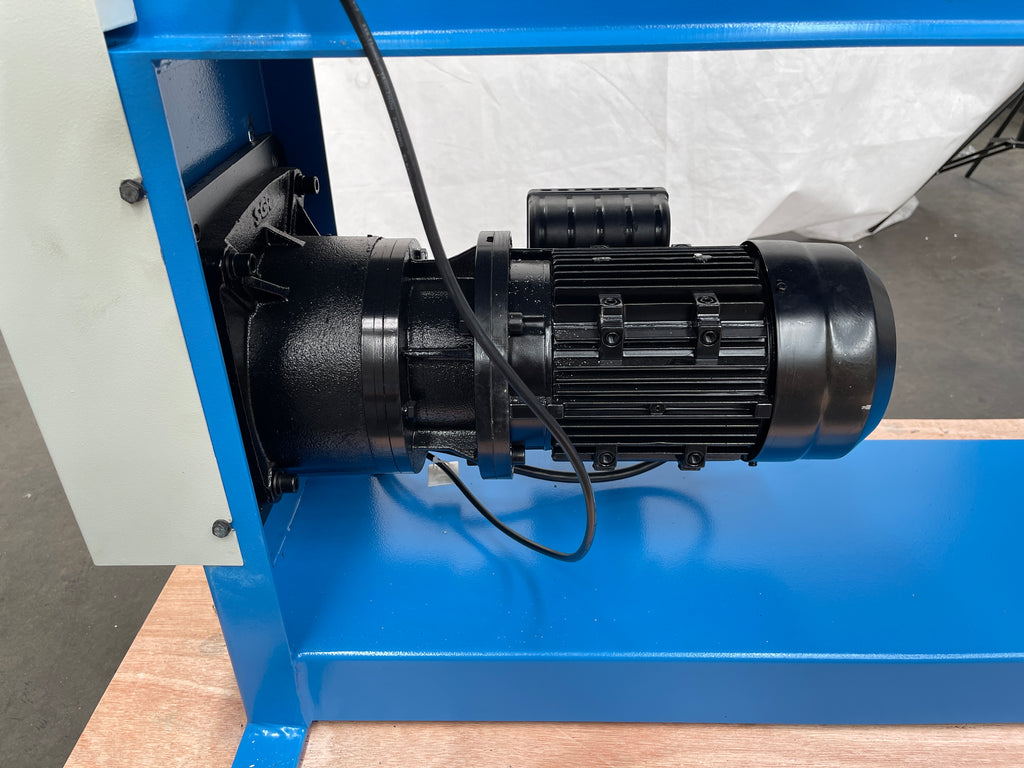

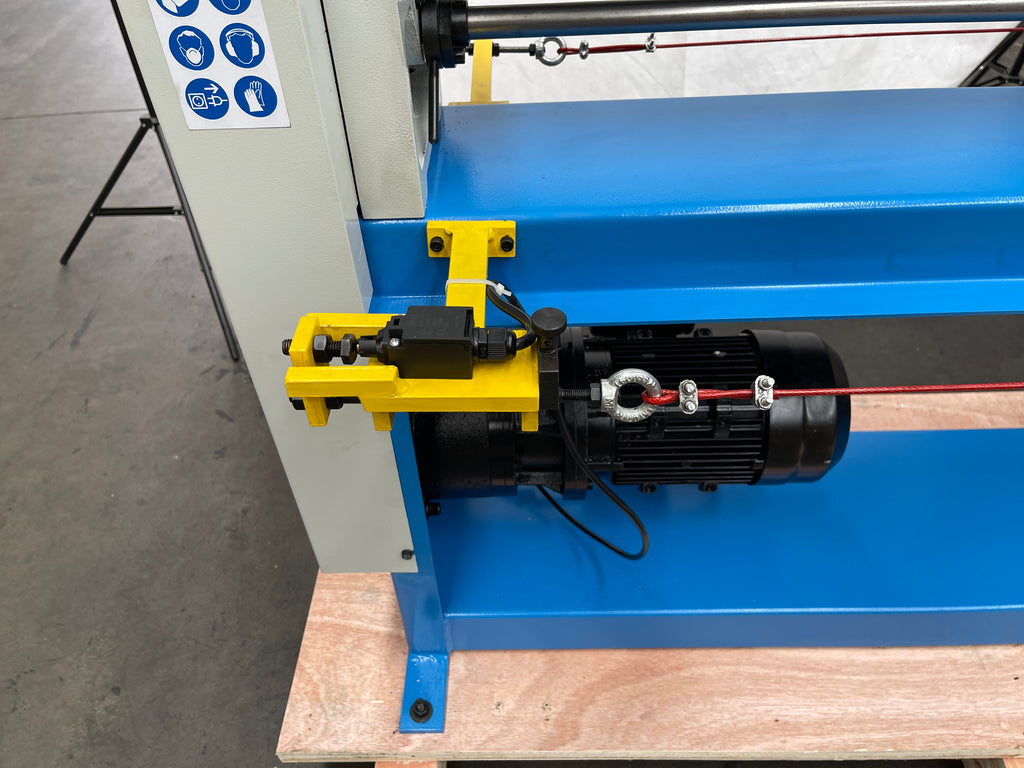

    • 1.1KW (1.5HP) 240V single phase motor

  • Mild steel capacity is rated on hot rolled material with 250MPA

    Model APR-1300X1.6
    Condition New
    Max rolling thickness (mm) 1.6
    Max rolling width (mm) 1300
    Motor power (kw) 1.1  (240V-50HZ)
    Packing dimension (cm) 190X55x115
    Shipping weight (kg)
    		 410
