RPS-76 Pipe & Tube Notcher – Linisher 3 Working Stations 240V Single Phase W/11 rollers

RPS-76 Pipe & Tube Notcher – Linisher 3 Working Stations 240V Single Phase W/11 rollers
RPS-76 Pipe & Tube Notcher – Linisher 3 Working Stations 240V Single Phase W/11 rollers RPS-76 Pipe & Tube Notcher – Linisher 3 Working Stations 240V Single Phase W/11 rollers RPS-76 Pipe & Tube Notcher – Linisher 3 Working Stations 240V Single Phase W/11 rollers RPS-76 Pipe & Tube Notcher – Linisher 3 Working Stations 240V Single Phase W/11 rollers RPS-76 Pipe & Tube Notcher – Linisher 3 Working Stations 240V Single Phase W/11 rollers RPS-76 Pipe & Tube Notcher – Linisher 3 Working Stations 240V Single Phase W/11 rollers RPS-76 Pipe & Tube Notcher – Linisher 3 Working Stations 240V Single Phase W/11 rollers RPS-76 Pipe & Tube Notcher – Linisher 3 Working Stations 240V Single Phase W/11 rollers RPS-76 Pipe & Tube Notcher – Linisher 3 Working Stations 240V Single Phase W/11 rollers RPS-76 Pipe & Tube Notcher – Linisher 3 Working Stations 240V Single Phase W/11 rollers RPS-76 Pipe & Tube Notcher – Linisher 3 Working Stations 240V Single Phase W/11 rollers RPS-76 Pipe & Tube Notcher – Linisher 3 Working Stations 240V Single Phase W/11 rollers RPS-76 Pipe & Tube Notcher – Linisher 3 Working Stations 240V Single Phase W/11 rollers RPS-76 Pipe & Tube Notcher – Linisher 3 Working Stations 240V Single Phase W/11 rollers

Extra Machinery

$1,600.00

SKU: L12611


PLEASE NOTE CONTROL PANEL MAY VARY ON SINGLE PHASE MACHINE.

PHOTOS SHOW 3 PHASE MACHINE WITH 2 SPEED MOTOR WITH HIGH/LOW SWITCH

NB Pipe Notching or Precision Tube Notching

20mm, 26mm, 32mm,  38.1mm, 42mm,44.4mm,48mm, 50.8mm, 60mm, 63.5mm, 76mm

 Pipe & Tube Notcher - Linisher

DESIGNED IN HOLLAND FOR YEARS.
Ø20 - 76mm OD Tube & Ø15 - 65mm NB Pipe

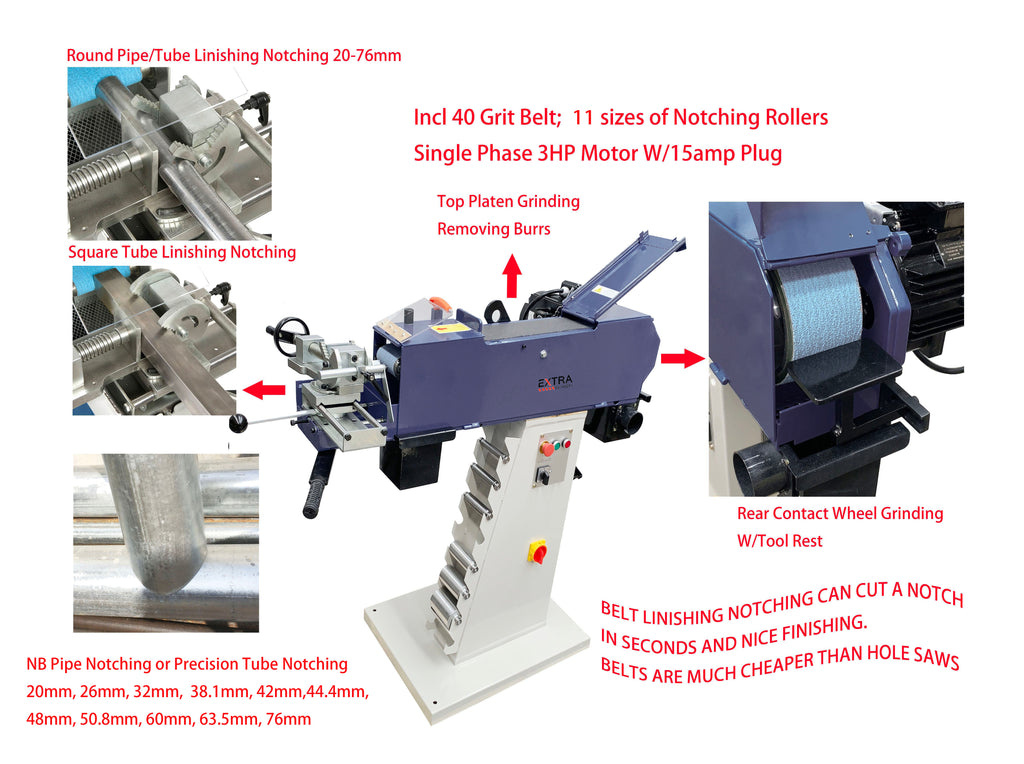

3 Working Station:  Front Notcher, Top Platern Grinding,  Rear Contact Wheel Grinding

Tube Capacity (OD) - Mild Steel

20 - 76mm

Pipe Capacity (NB) - Mild Steel

15 - 65mm

Belt Size

100 x 2000mm

Belt Speed

2800rpm

Motor Power

2.2KW

Voltage

240V-50ZH- Single phase W/15Amp Plug






  • Tube notching capacity Ø20-76mm OD
  • NB pipe notching capacity Ø15-65mm
  • Quick action compound vice swivels from 30-90º
  • Speical designed vice jaws for holding round or square material
  • Heavy leadcrew drives the vice, ensures firm holding of workpiece.
  • Wide and clear eye shield
  • Graphite pad under top platern to reduce friction
  • Spring balanced clamping device allows for continuous belt tension
  • Quick change of grinding rolls – no tools required
  • Solid pedestal stand with built-in  rack for 11 sets rollers
  • 2 x Ø76mm dust extraction outlets
  • Powerful 3HP, 240V motor with overload protection
  • Includes 11 sizes of  roller  & 1 x linishing belt
