Extra Machinery Pty Ltd

$550.00

SKU: P42017

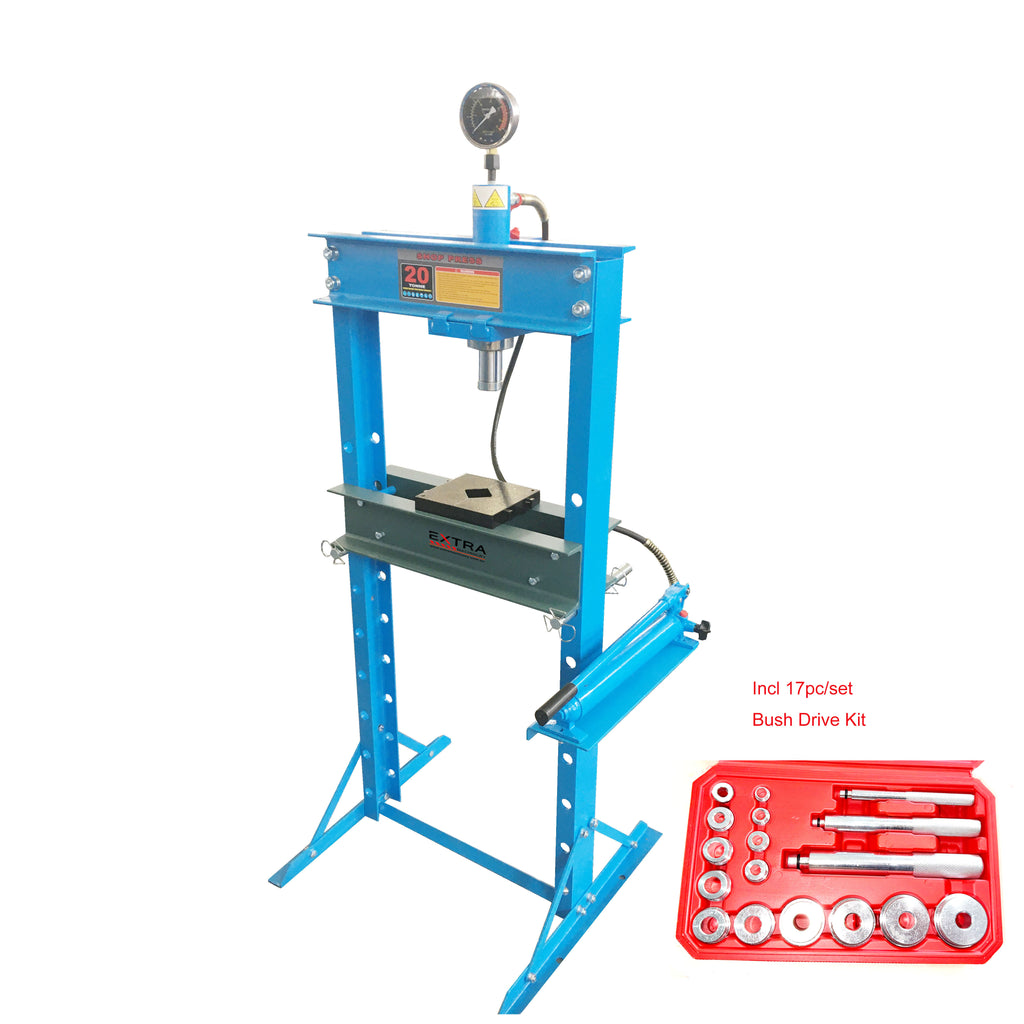

SP-20 - Workshop Hydraulic Press
            Frames, Head & Tables are all made from high strength C channel steel.

  • Ideal equipment for installing and removing - Bearings, Bushes, Gears, Pulleys etc.
  • Quality hydraulic assembly fully rested
  • Cylinder slides between uprights
  • 20 tonne Pressure
  • Include V bending plates
  • Include Hydraulic Pressure Gauge



CAPACITY RAM STROKE PRODUCT SIZE(MM) WORKING RANGE (MM) F1-F2 BED WIDTH (MM)              AIR PRESSURE N.W. G.W. PACKING SIZE
(TON)  (MM) A B C D F  E (Mpa)  (KG) (KG) (CM)
20 185 738 700 1515 1787 100 28-988 542 ∕ 108.5 119.5 155X28X26





This 17pc kit is made of of aluminium, which won't wear or damage the bushings or change any tolerance.  it easy for you to install and/or remove bushings from 10-42mm diameter on various vehicles such as cars, tractors, trucks, motors etc.

Incl:
14 sizes of Discs (Diameter),
10-12mm,
12-14mm,
14-16mm,
15-17mm,
16-18mm,
18-20mm
20-22mm
22-24mm
25-27mm
28-30mm
30-34mm
32-36mm
35-40mm
38-42mm

3 sizes of extension shaft
115mm
140mm
160mm
