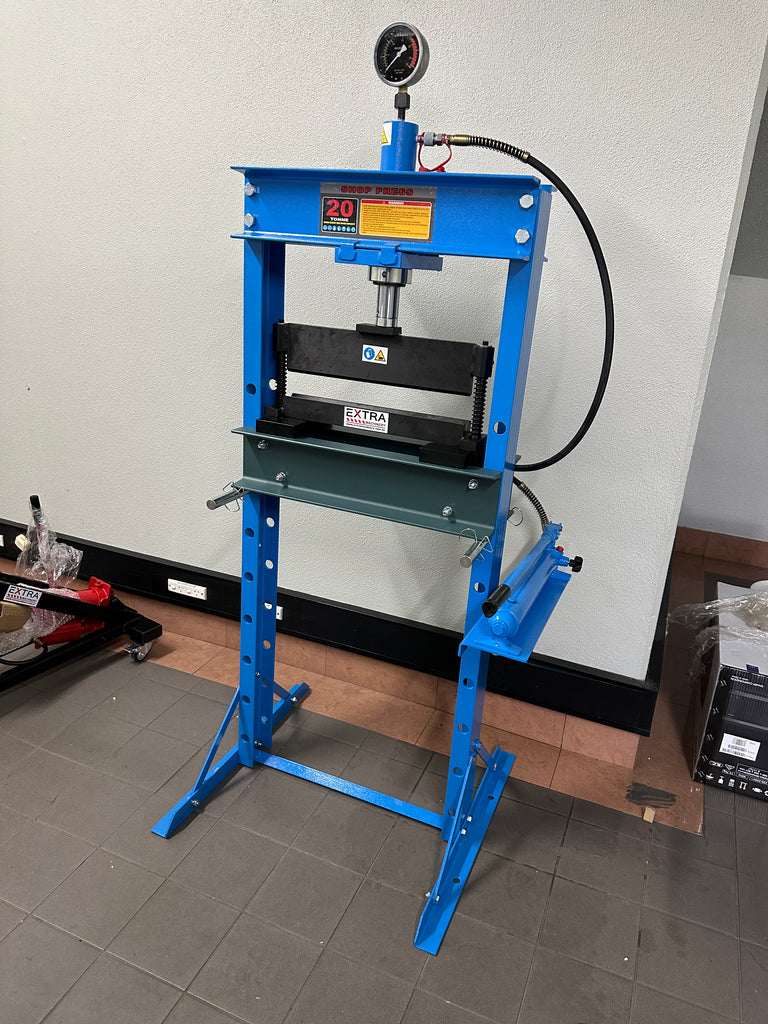

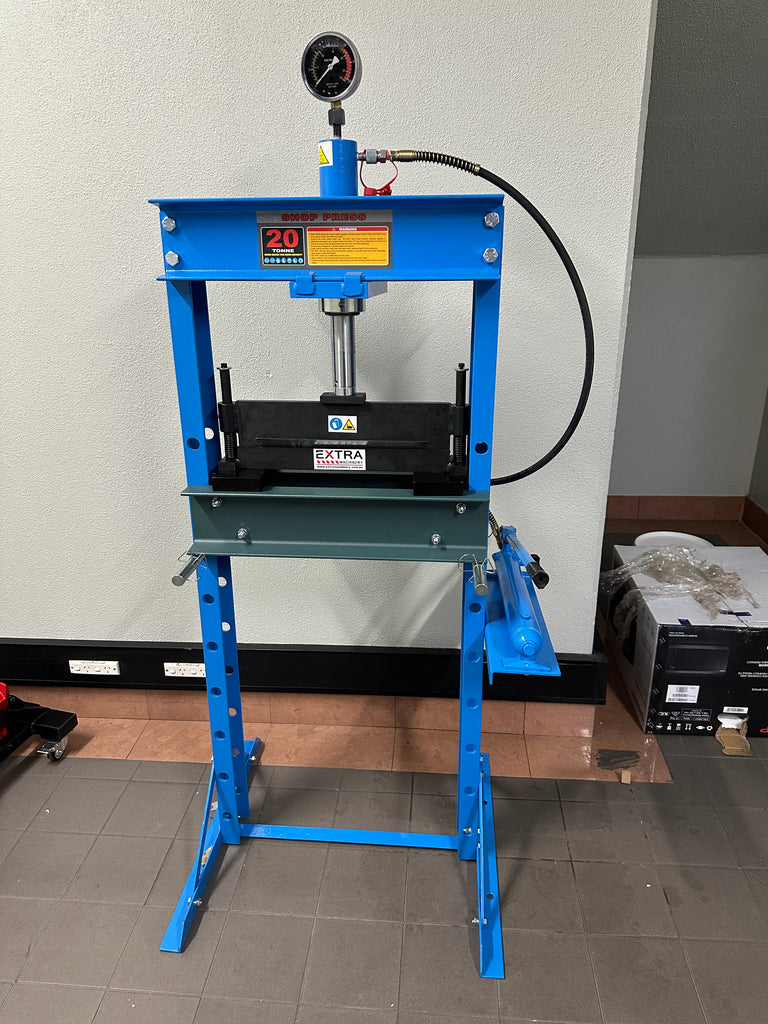

SP-20 Workshop Hydraulic Press W/Press Brake Attachment
SP-20 - Workshop Hydraulic Press +
PBA 45 Press Brake Attachment
Frames, Head & Tables are all made from high strength C channel steel.
- Ideal equipment for installing and removing - Bearings, Bushes, Gears, Pulleys etc.
- Quality hydraulic assembly fully rested
- Cylinder slides between uprights
- 20 tonne Pressure
- Include V bending plates
- Include Hydraulic Pressure Gauge
| CAPACITY | RAM STROKE | PRODUCT SIZE(MM) | WORKING RANGE (MM) F1-F2 | BED WIDTH (MM) | AIR PRESSURE | N.W. | G.W. | PACKING SIZE | ||||
| (TON) | (MM) | A | B | C | D | F | E | (Mpa) | (KG) | (KG) | (CM) | |
| 20 | 185 | 738 | 700 | 1515 | 1787 | 100 | 28-988 | 542 | ∕ | 108.5 | 119.5 | 155X28X26 |
To bend sheet metal or plate stee with your hydraulic press, please choose this press brake attachment .

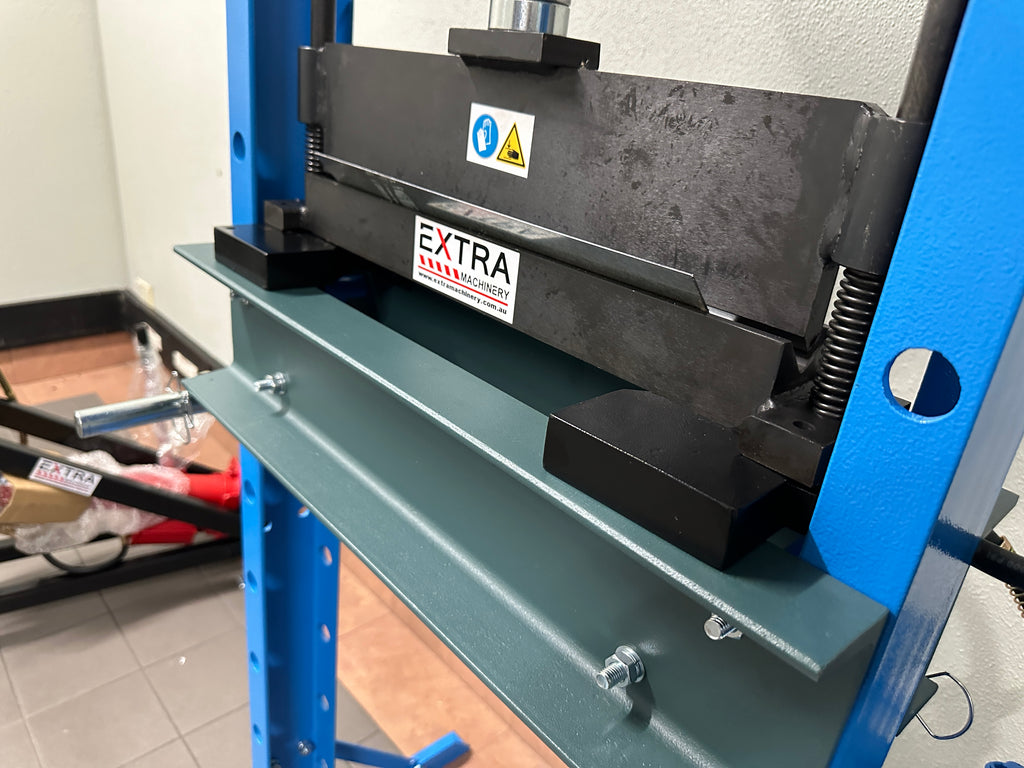

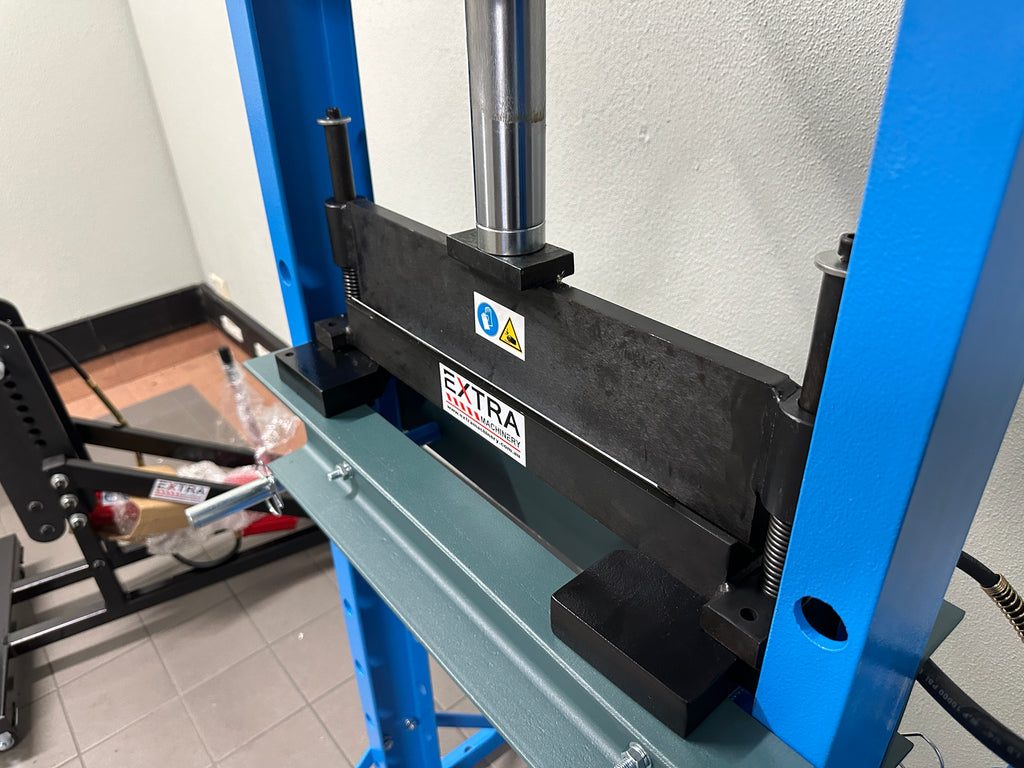

The top die is spring loaded and supported by two guide rods, and will automatically open the tool back to top position once the hydraulic pressure is released
Features
- Fabricated steel construction
- 450mm bending length
- 40mm wide vee block die
- 50mm open height
- Top die with return springs & guide rods
- Overall Dimensions:
- 530 x 85 x 225mm (LxWxH)
