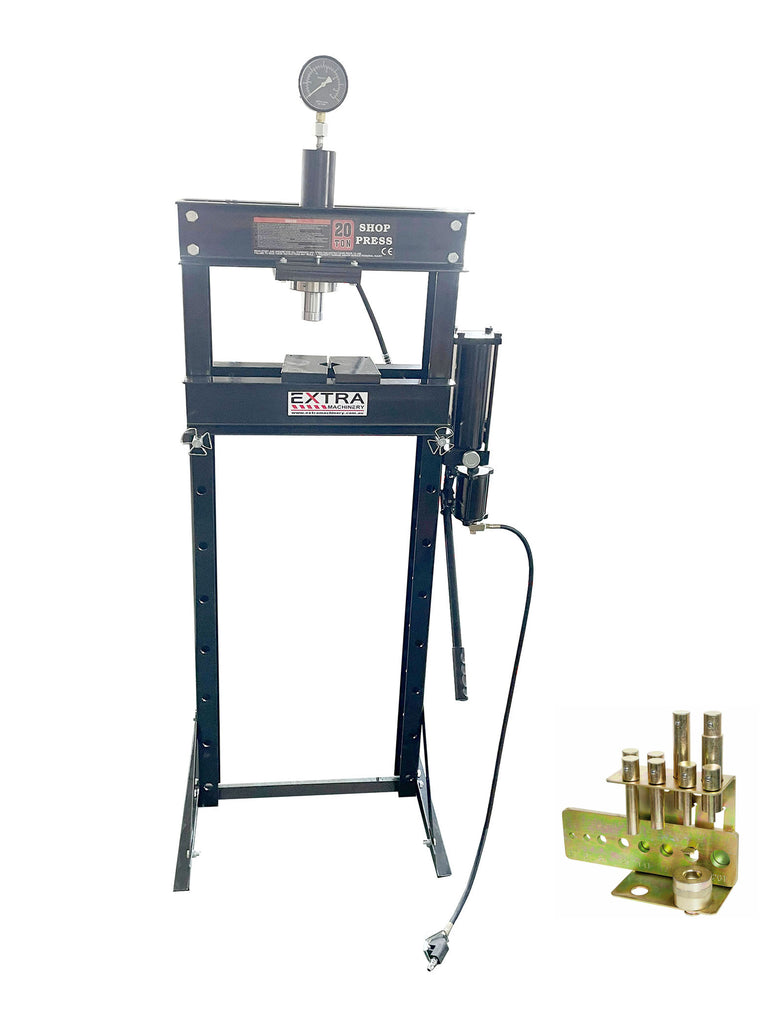

SP-20AL Workshop Hydraulic Press with 11pc/set Pin Drive Kit 10-30mm

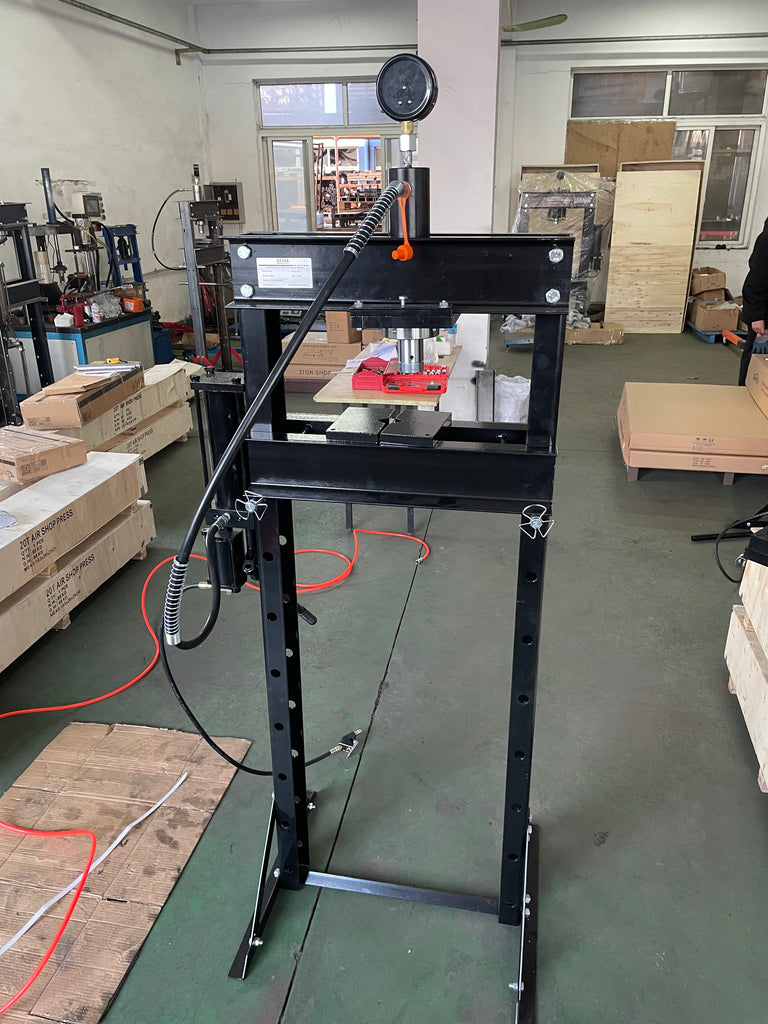

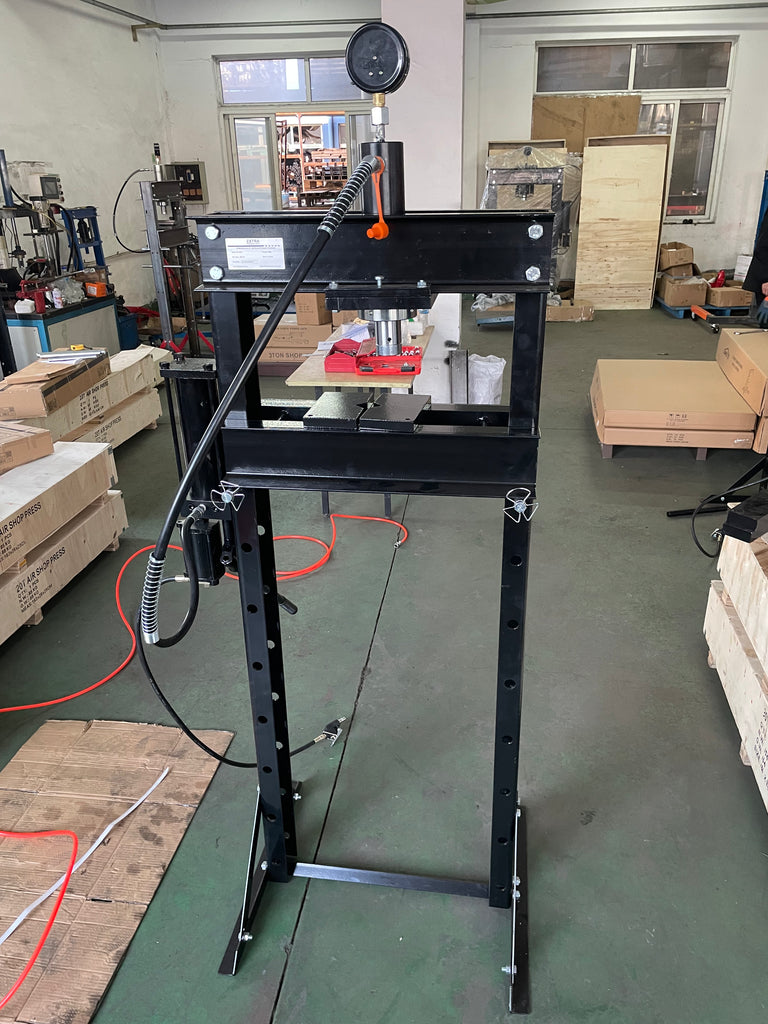

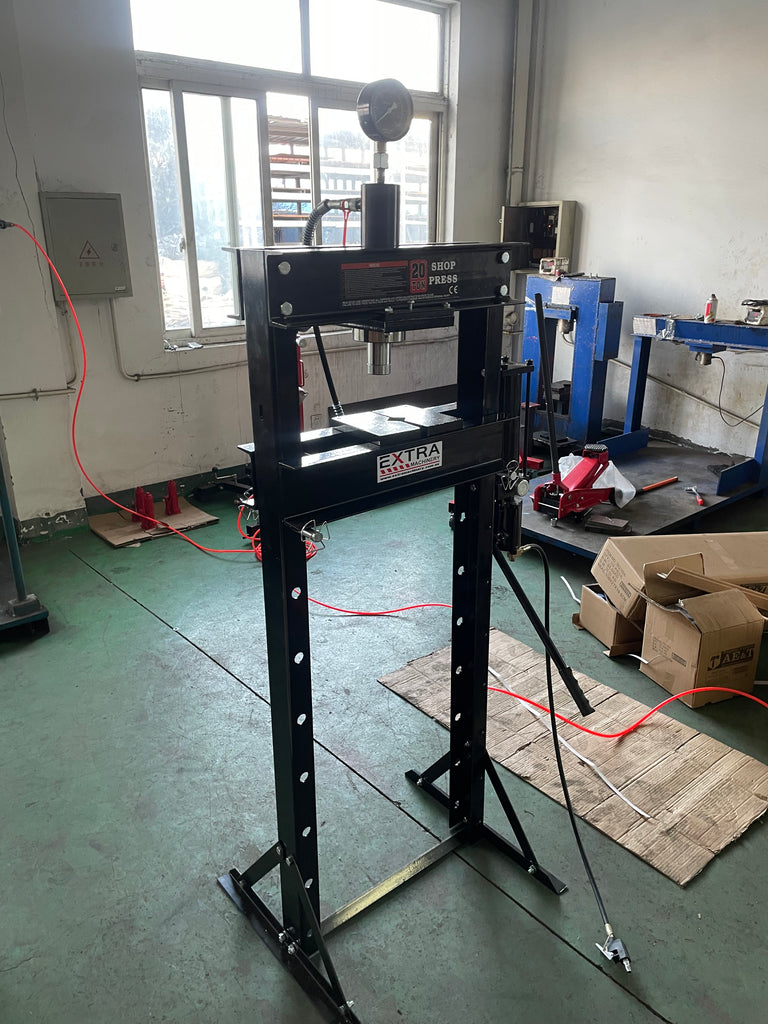

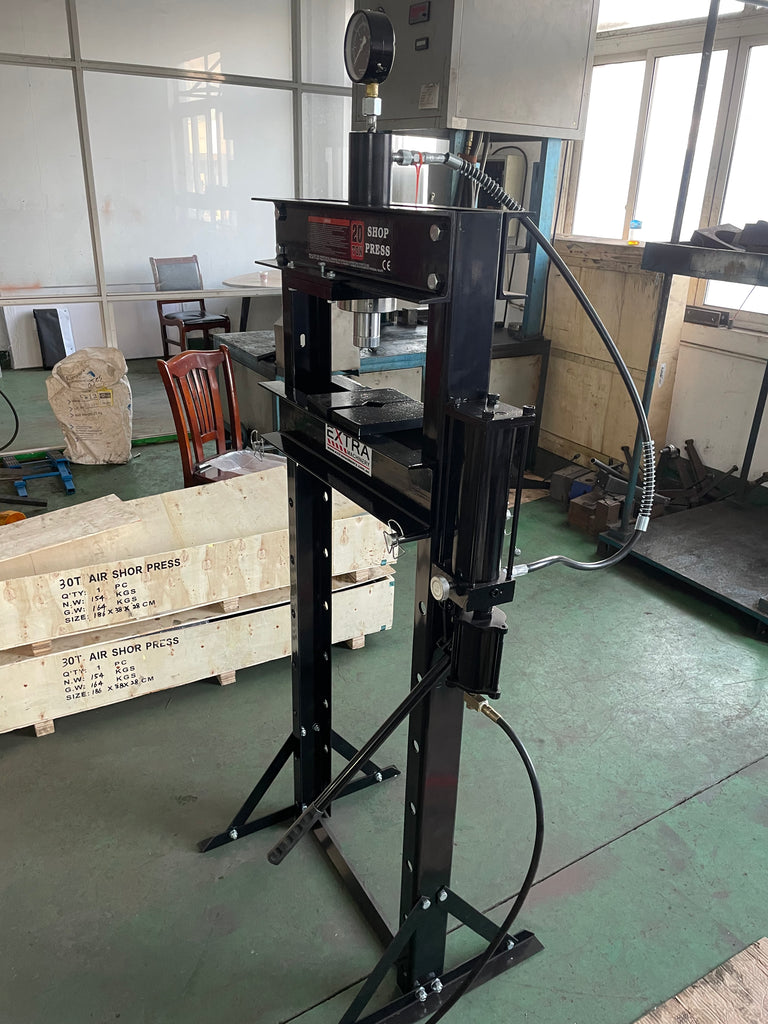

SP-20AL - Workshop Hydraulic Press Hydraulic & Pneumatic Operated
Frames, Head & Tables are all made from high strength C channel steel.
Frames, Head & Tables are all made from high strength C channel steel.
- Ideal equipment for installing and removing - Bearings, Bushes, Gears, Pulleys etc.
- Pneumatic or Manual Hydraulic Operation
- Cylinder slides between uprights
- Quality hydraulic assembly fully rested
- 20 tonne Pressure
- Include V bending plates
- Include Hydraulic Pressure Gauge
- NOTE: Minimum Air Flow Rate required is 200 liters/minute
|
MACHINE SIZE(MM) |
WORKING RANGE (MM) F1-F2 |
N.W. |
G.W. |
PACKING SIZE |
|||||
|
A |
B |
C |
D |
F |
E |
(KG) |
(KG) |
(CM) |
|
|
690 |
600 |
1575 |
1850 |
90 |
490 |
120-1140 |
85 |
88 |
163X26X25 |
The set of 8 pcs of press pins, rated from 2 - 20 tonne capacity. Zinc plated finishing avoids rust.
Suitable for workshop presses which have a female ram assembly diameter of 25mm and are fixed with a bolt.
Includes adaptor, punch plate capacity gauge & mountable bracket with fixing points.
- 8 steel press pins 10 - 30mm rated 2 tonne to 20 tonne
- Pins have Ø25mm locating head with mounting detent
- Adapter fits onto press ram to hold pins
- Punch plate with capacity gauge
- Storage bracket
*COLOUR MAY VARY DEPENDING BATCH OF PRODUCTION.
