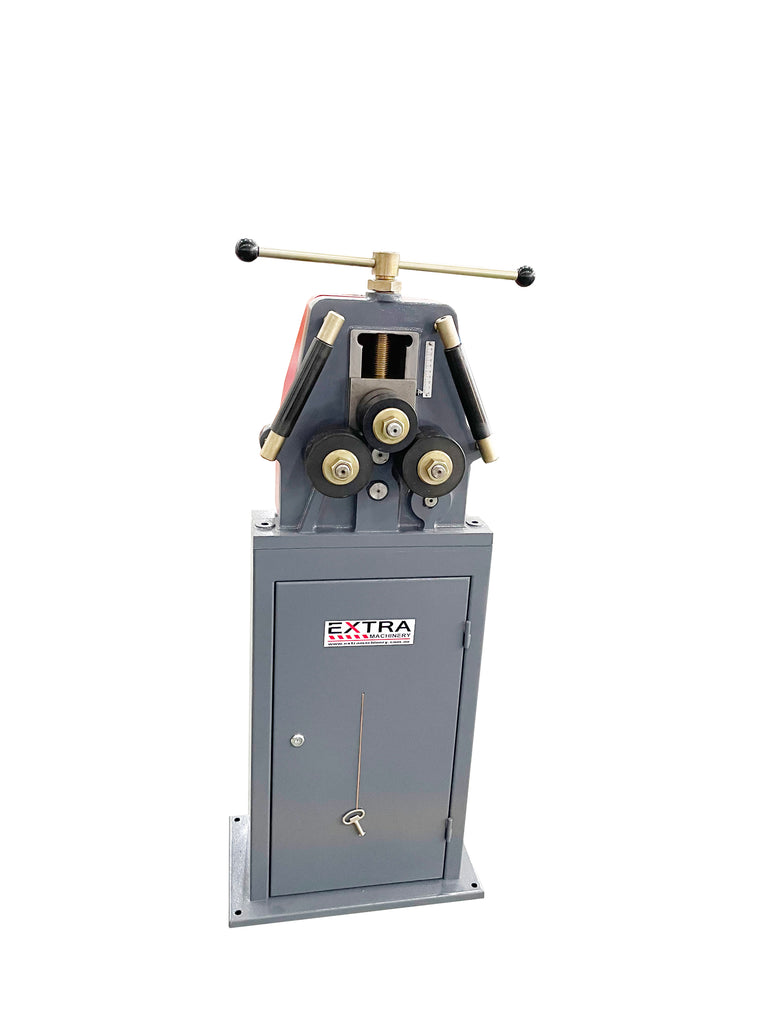

SR-28- Manual Section & Tube Rolling Machine
SR-28- Manual Section & Tube Rolling Machine
- 50 x 10mm Flat Bar Capacity
- Rigid Cast Iron Frame Bolted on Heavy Fabricated Stand
- Heat Treated Drive Shaft Dia. 30mm
- Gear Driven Rolls
- Include Standard Rolls for Flat Bar and Angle Steel

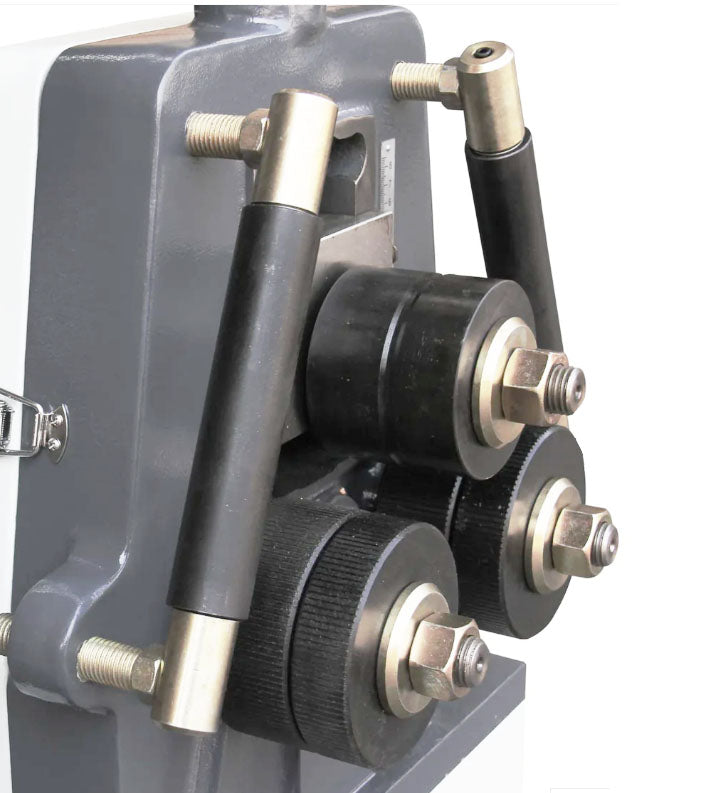

- Hardened Top Roll dia. 98mm, Hardened Bottom Rolls dia 118mm
- Knurled Bottom Rolls for Powerful Grip On Material
- Manual Screw Handle Moves Top Roller Up/down
- Side Material Support Guide Rolls Are Adjustable

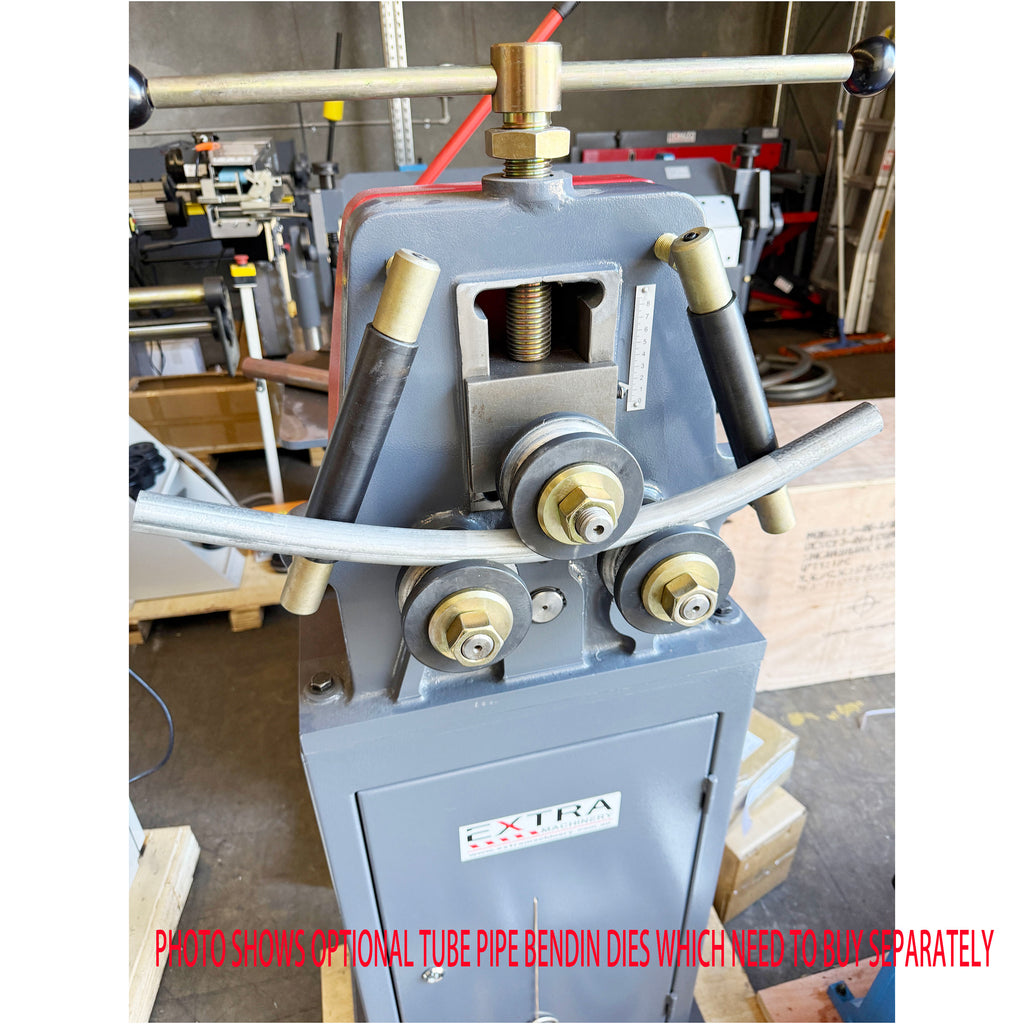

- *Optional dies are required to roll round bar, round pipe/tube
- Flat Bar Edge Capacity(mm) - MS (size / Ø)30 x 10 / 500 - (20 x 5 / 190)
- Flat Bar Capacity(mm) - MS (size / Ø) 50 x 10 / 400 - (20 x 5 / 160)
- Square Solid Bar Capacity(mm) - MS (size / Ø) 20 x 20 / 500 - (10 x 10 / 160)
