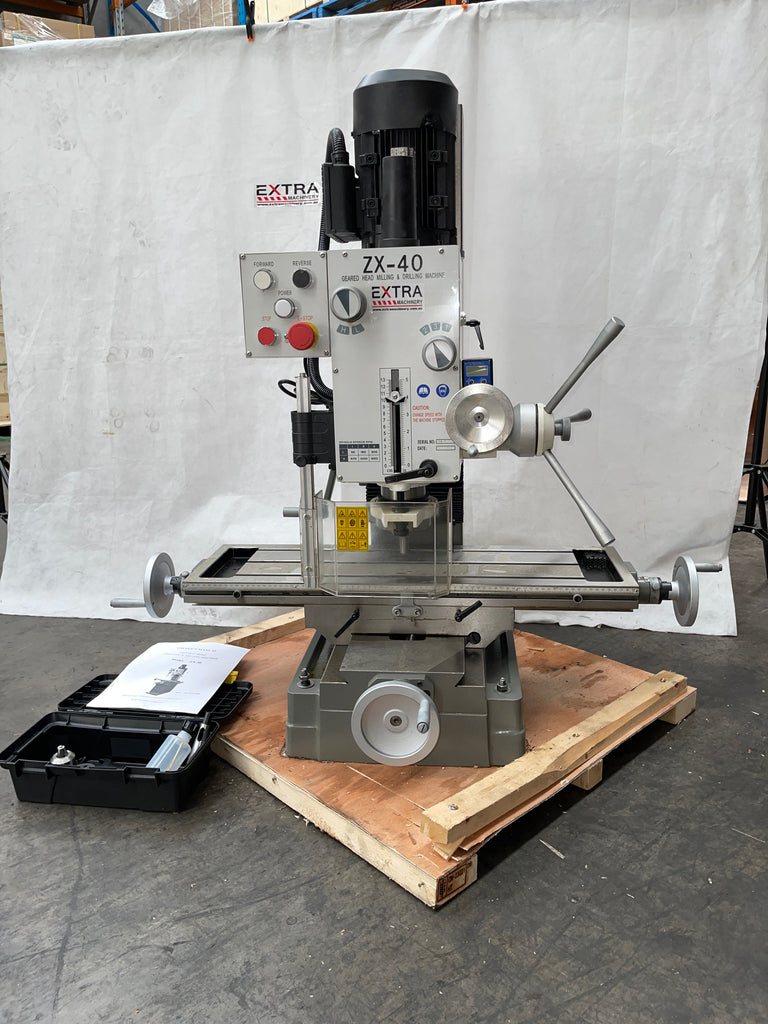

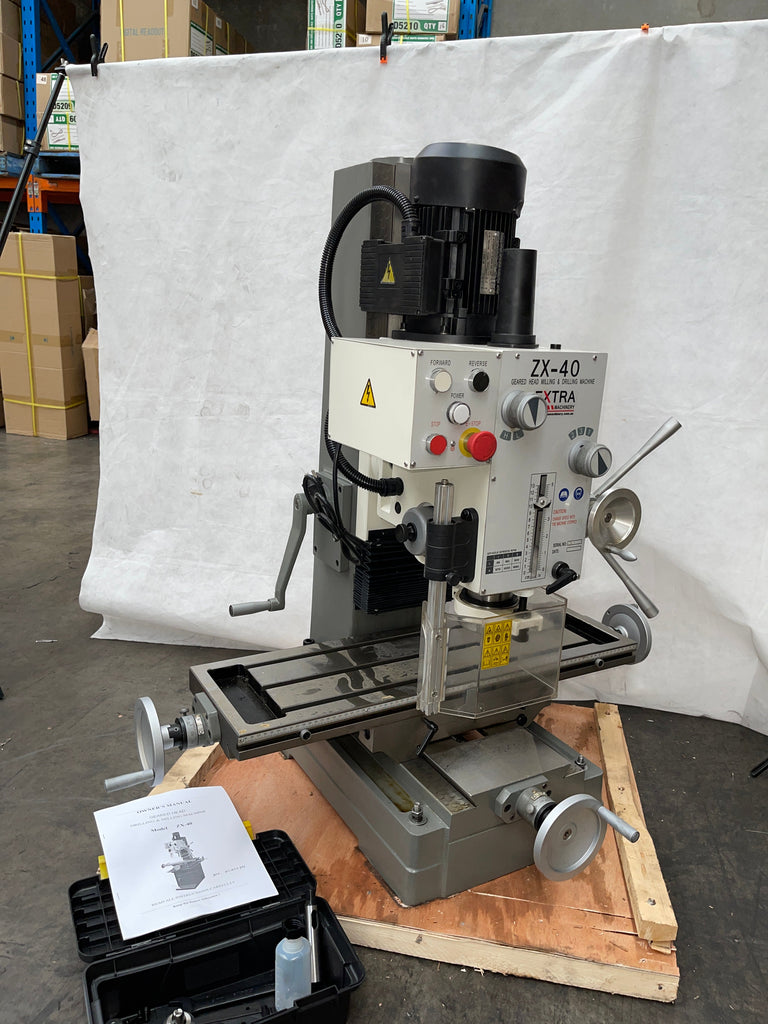

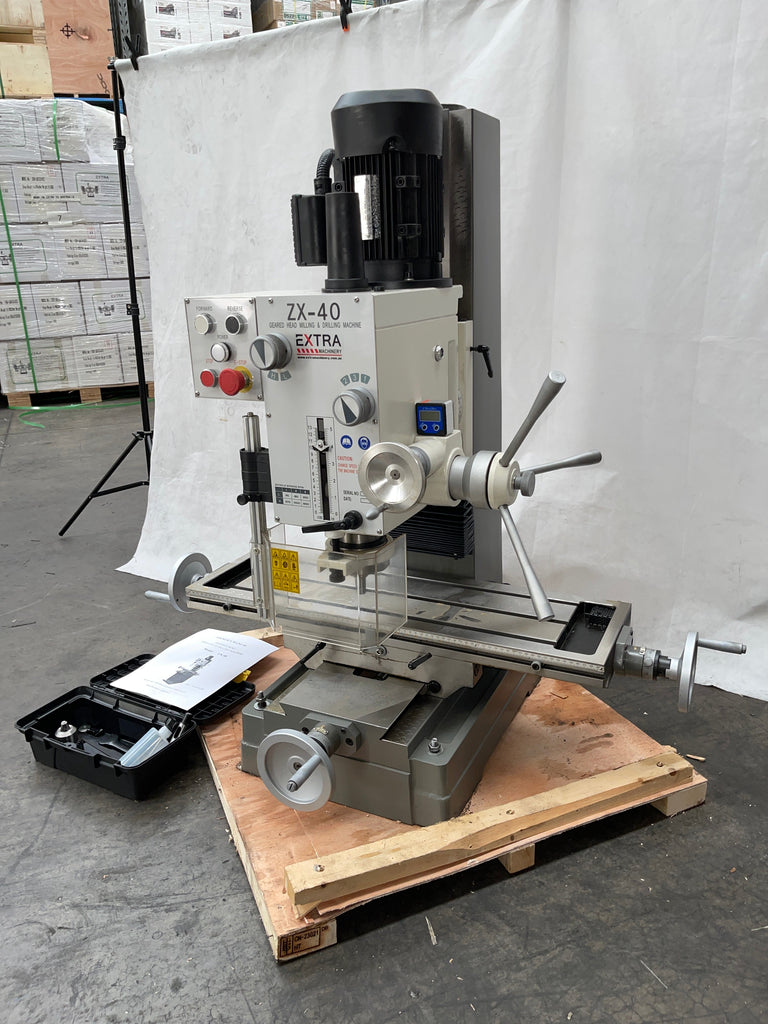

SUPER PACKAGE III ZX-40 Mill Drill & STAND & TOOL KITS, 3AXIS DRO & POWER FEED- Geared & Tilting Head with 800 x 240mm table

Extra Machinery Pty Ltd

$3,800.00

SKU: M123APIS

Features

    • Table size 800 x 240mm  with T-slots
    • Powerful 1.5kw/2HP-240V Single phase gear driven head
    • 6 steps of spindle speeds 95-1650rpm
    • Morse Taper No. 3  spindle with 75mm quill diameter

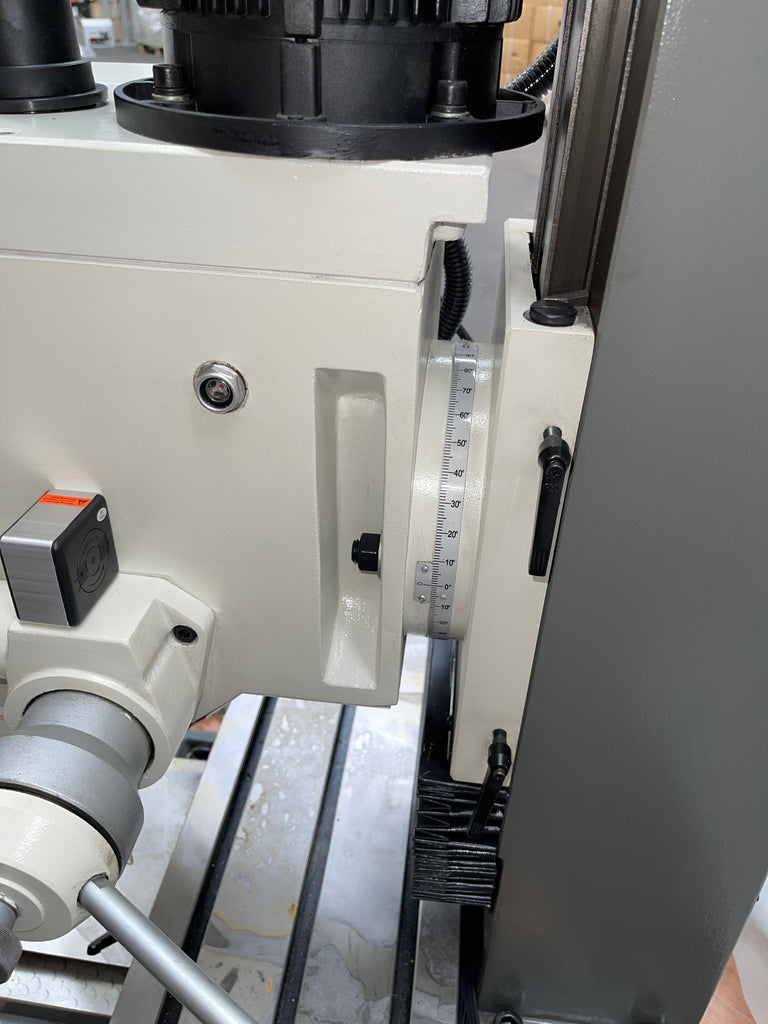

    • Mill head tilts to ±90º from vertical with digital bevel box display

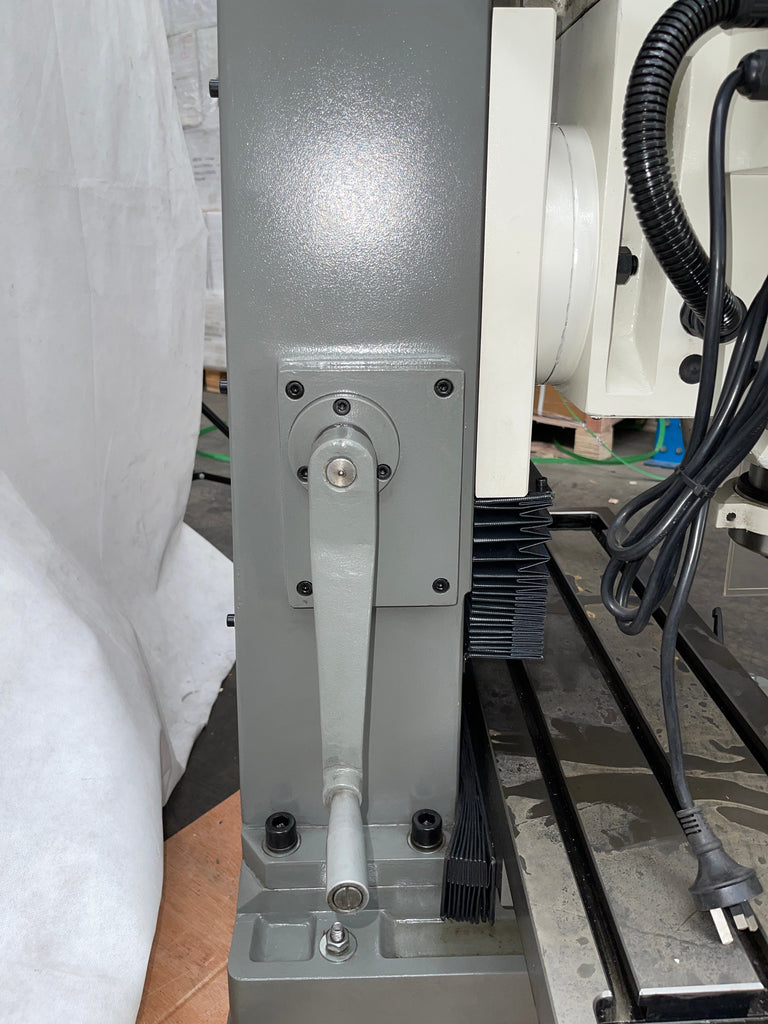

    • Dovetail Square column with crank handle to move vertical Z-Axis
    • Adjustable leadscrew nuts eliminating backlash
    • Adjustable table stops with table locks

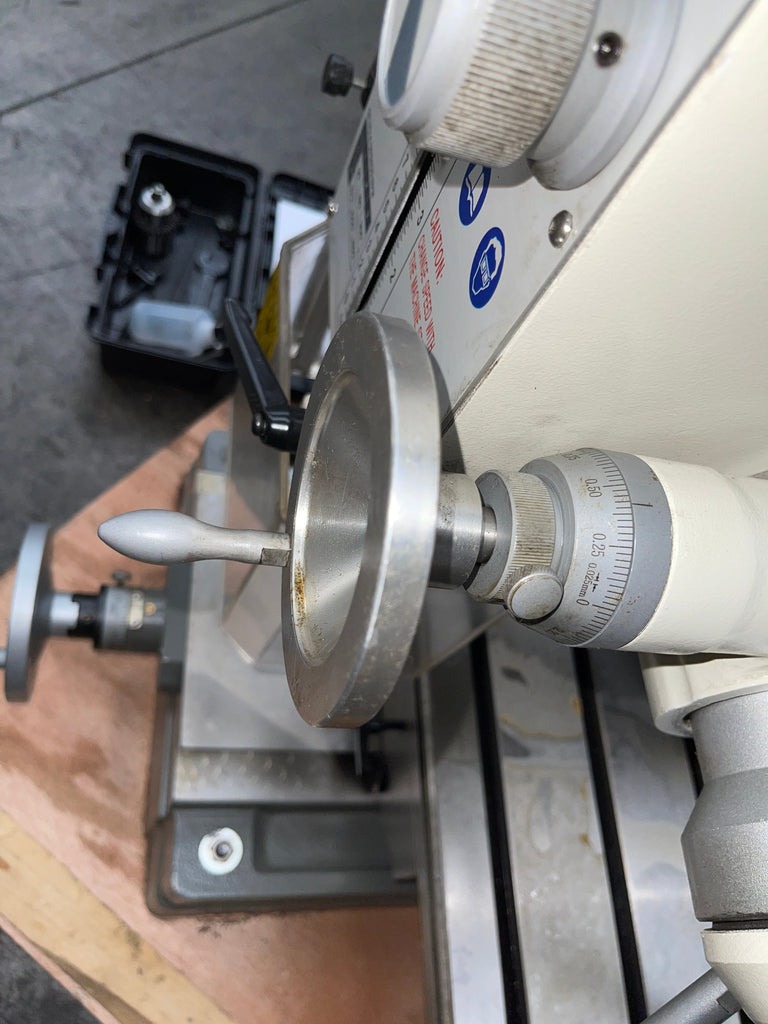

    • Fine down feed handwheel operating quill feed with adjustable stop

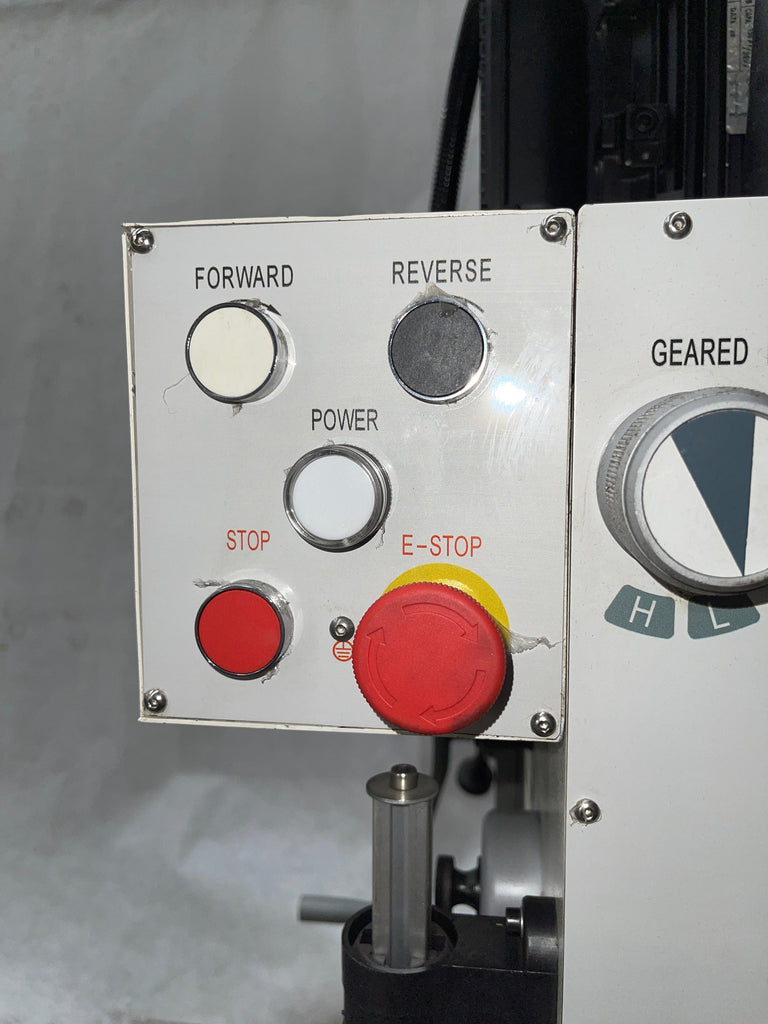

    • Forward and reverse spindle running

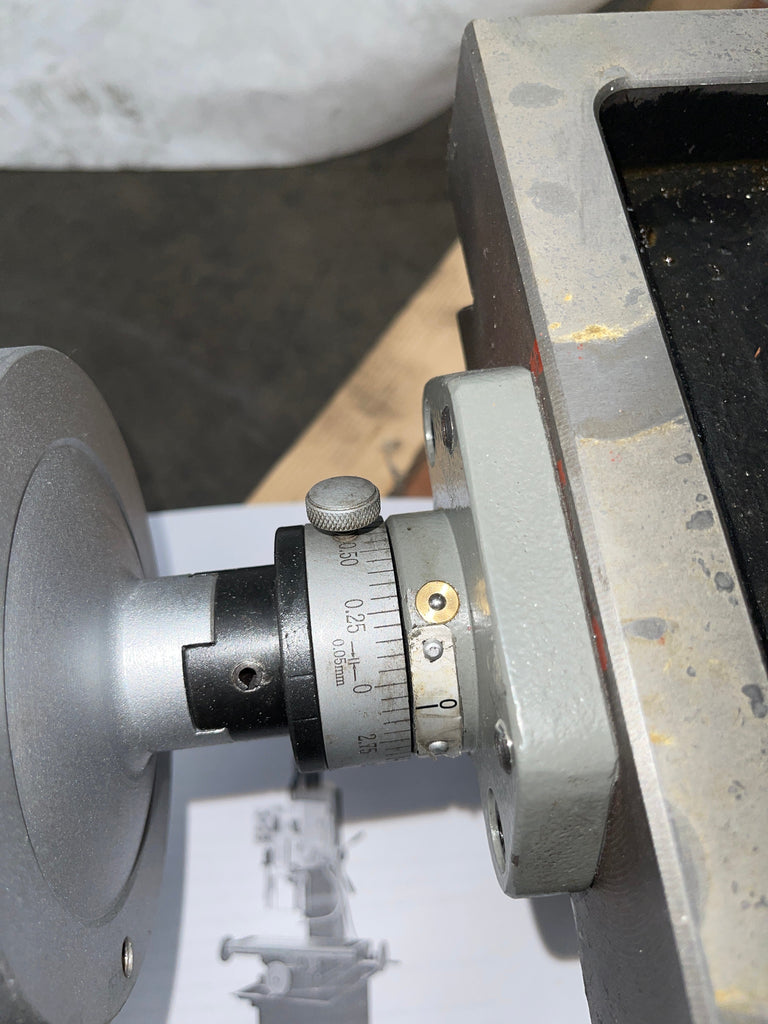

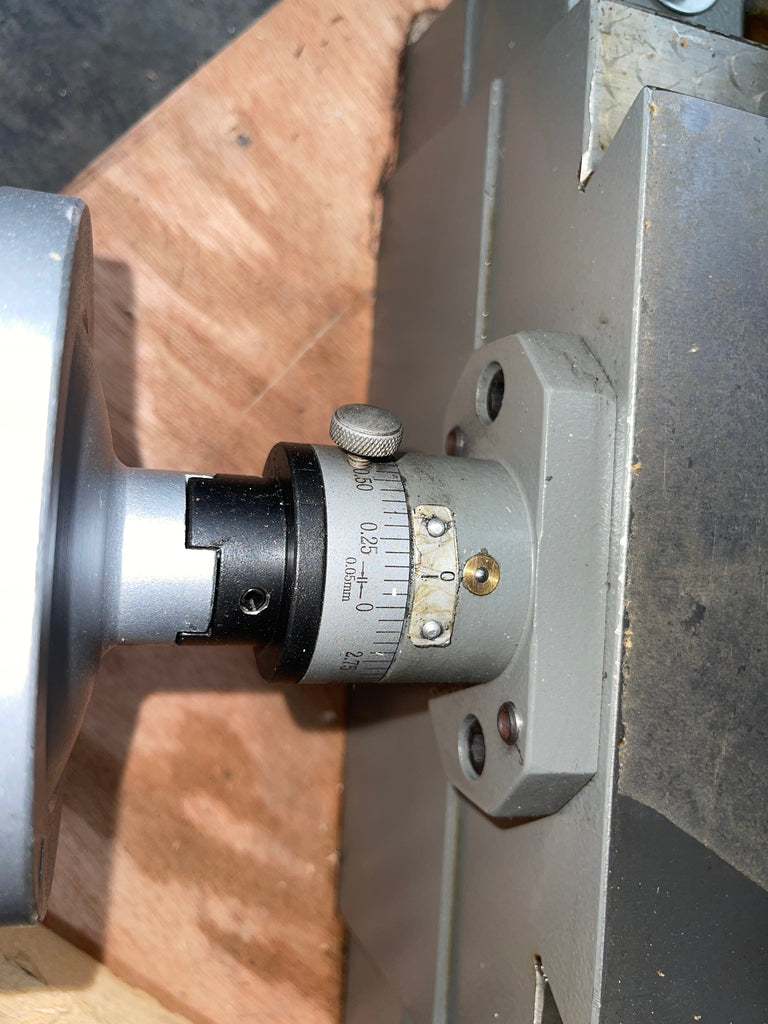

    • Metric dial graduations @ 0.05mm

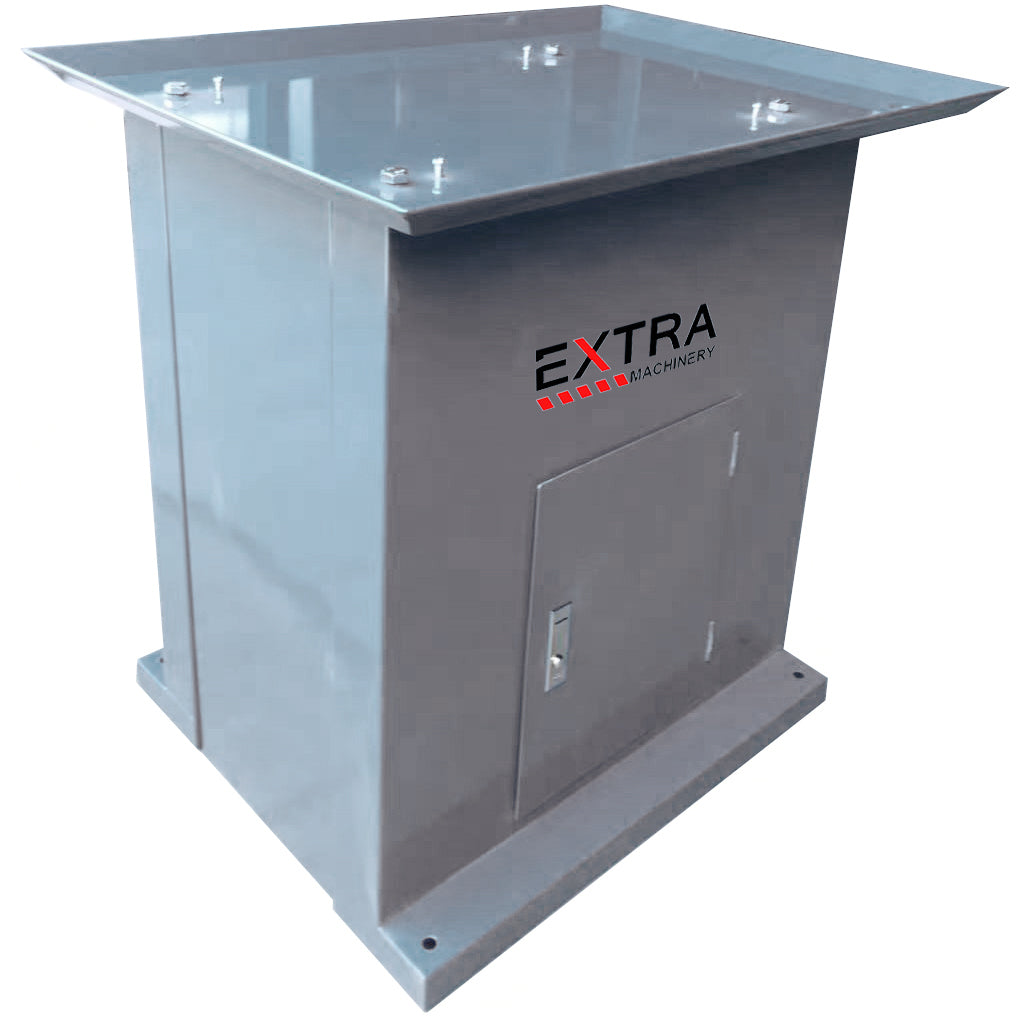

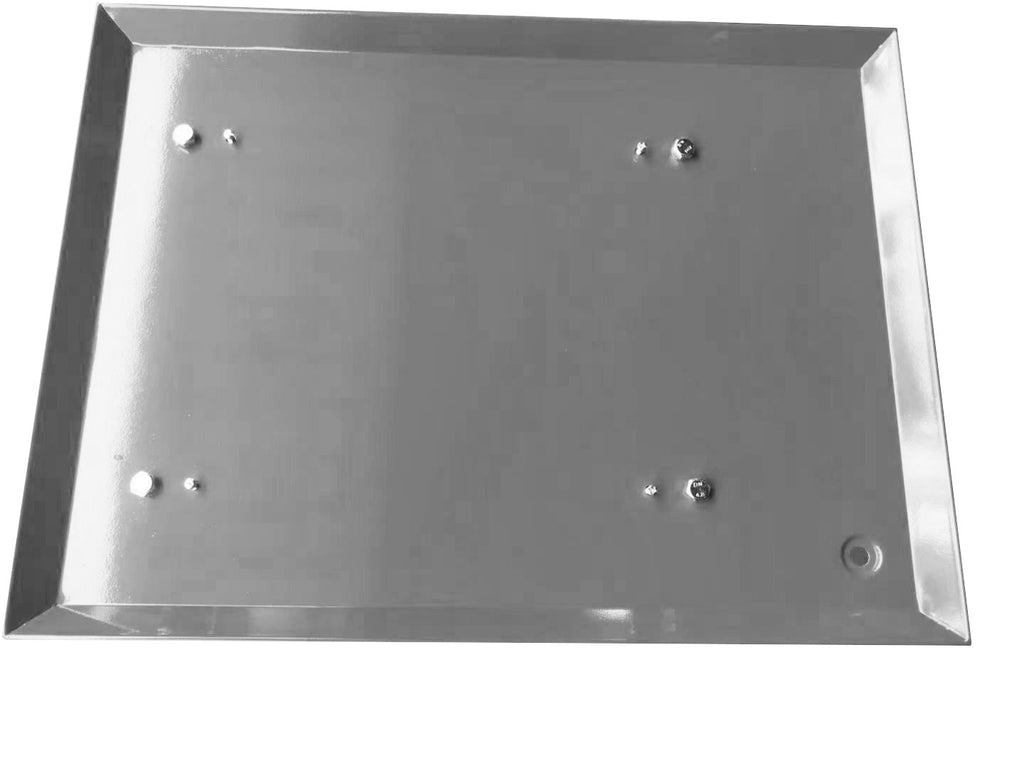

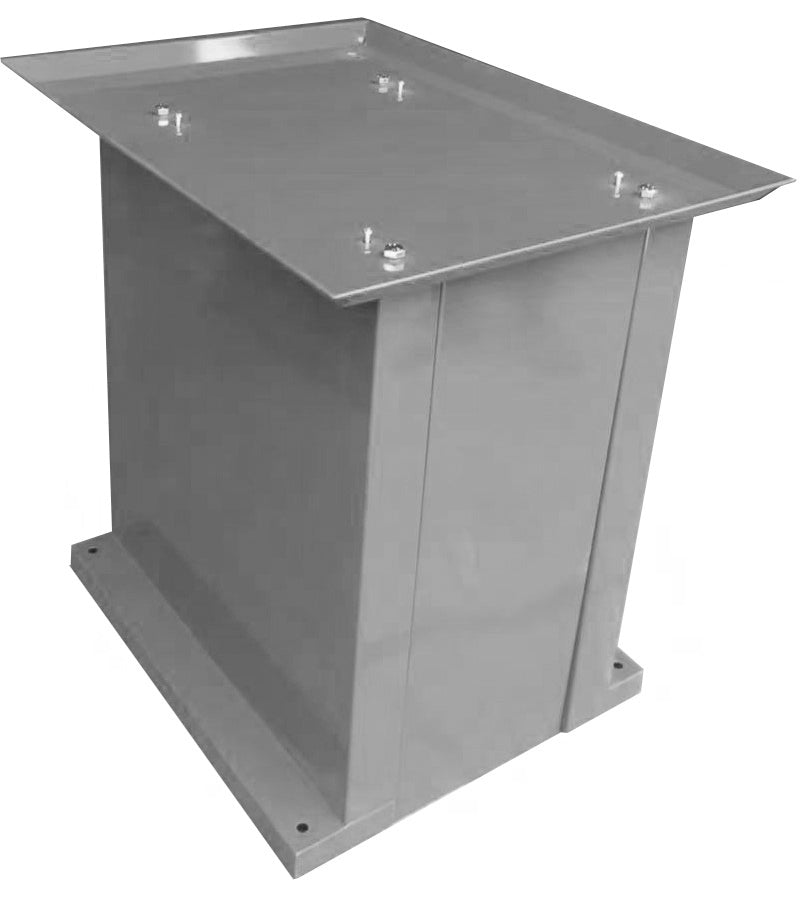

    • INCLUDE STAND M145A

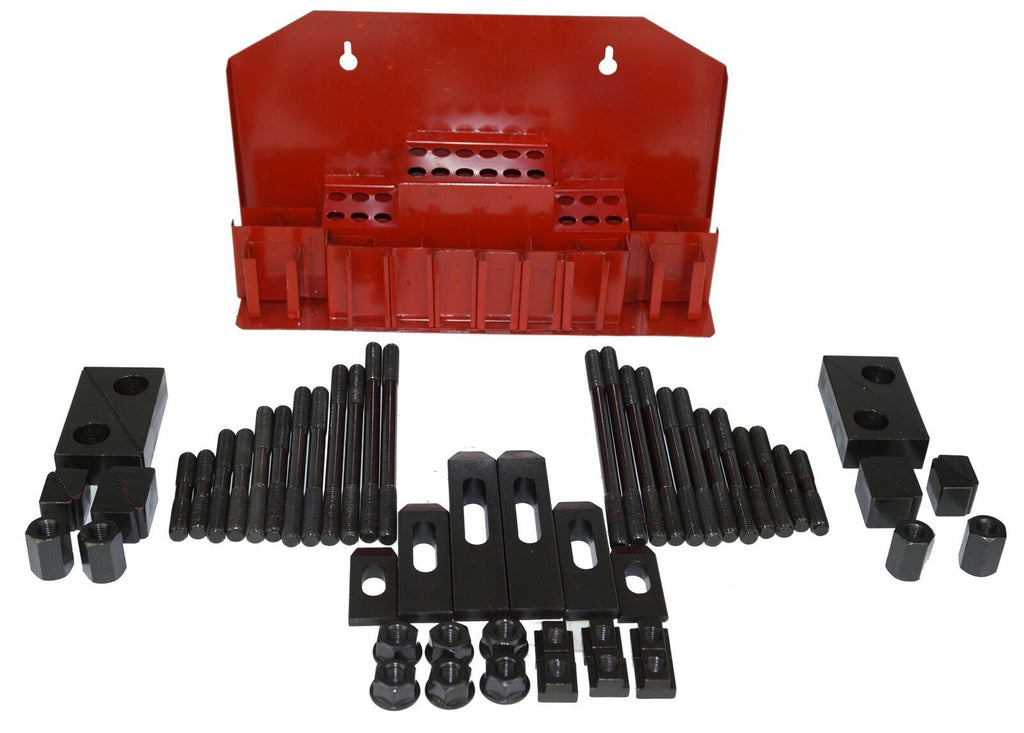

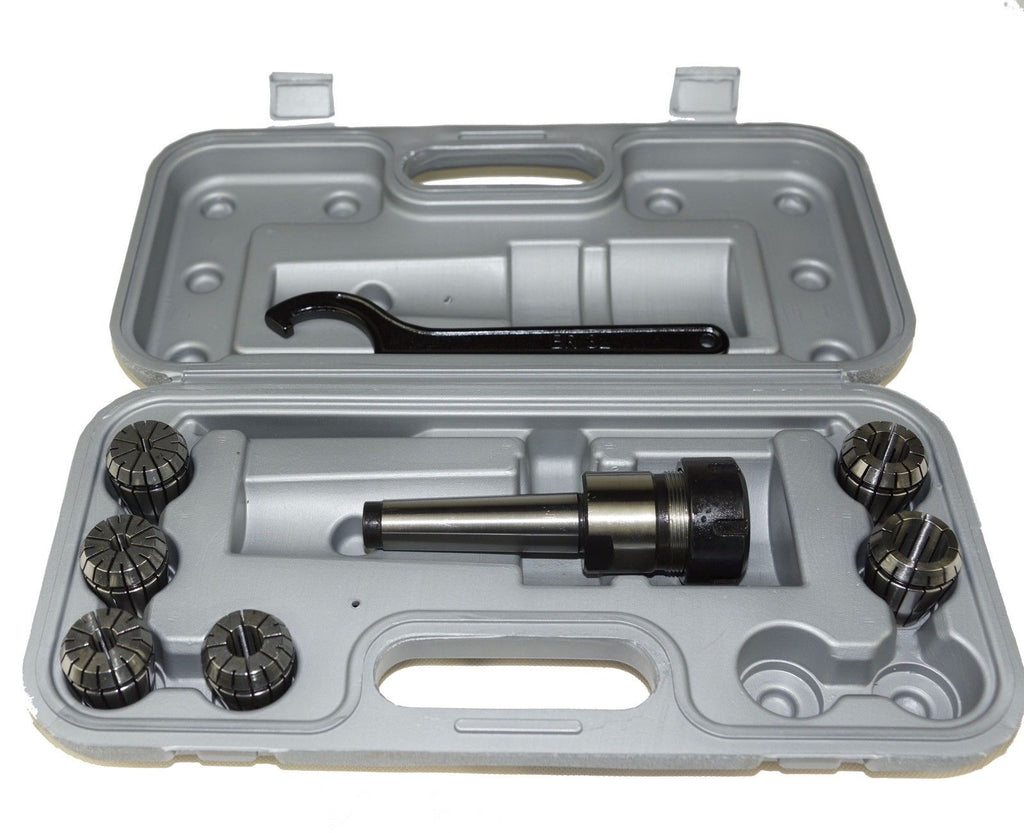

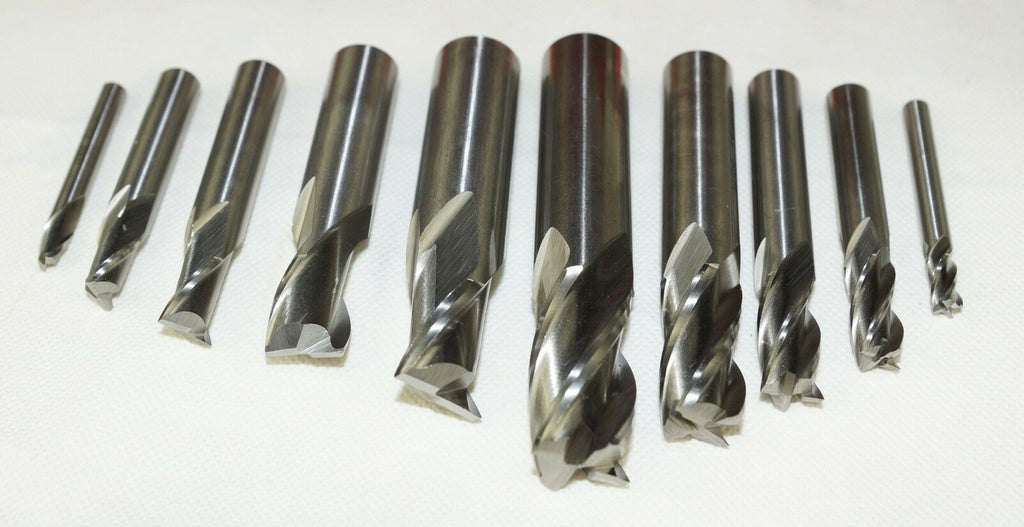

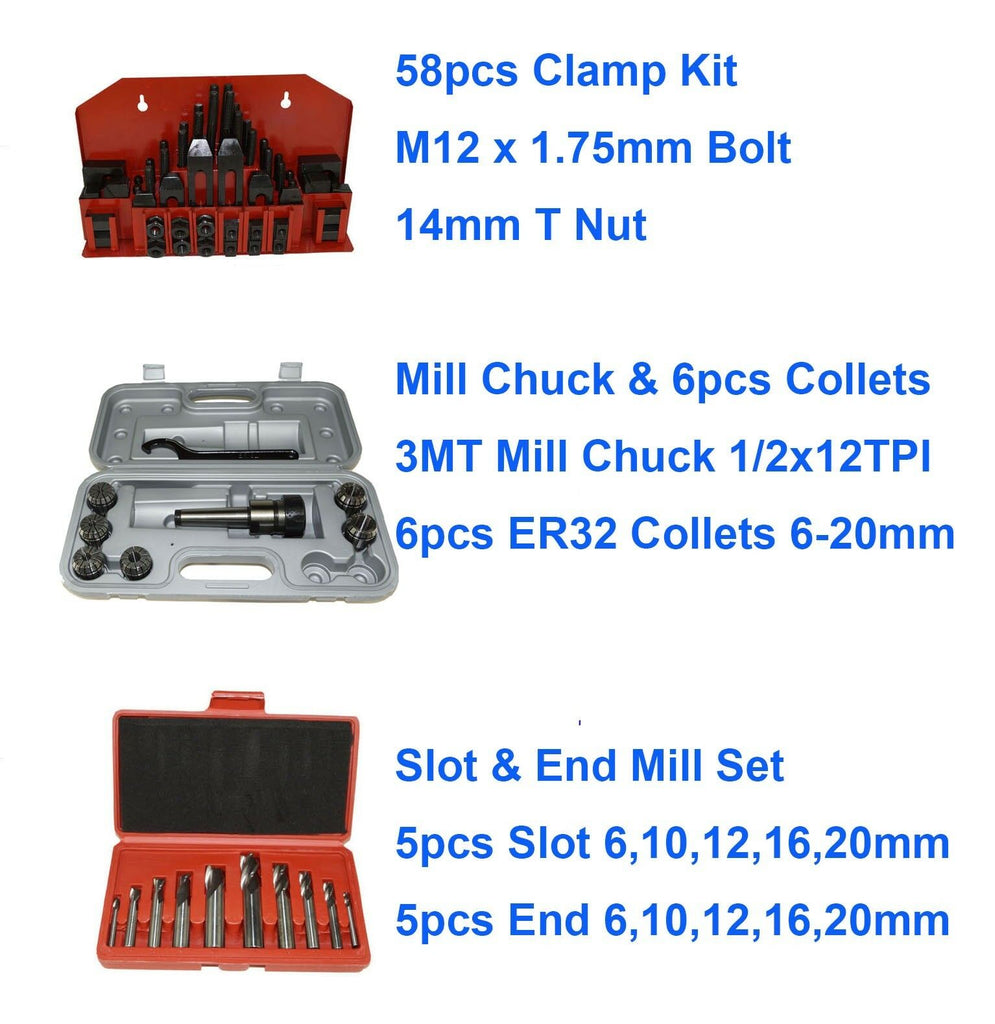

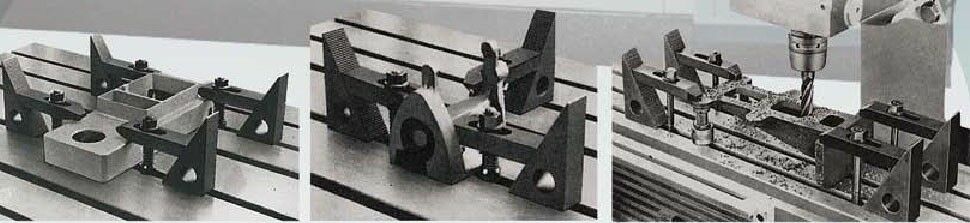

    • INCLUDE CLAMPING KIT 58CPS,  MILL CHUCK & COLLETS & END MILL SETS

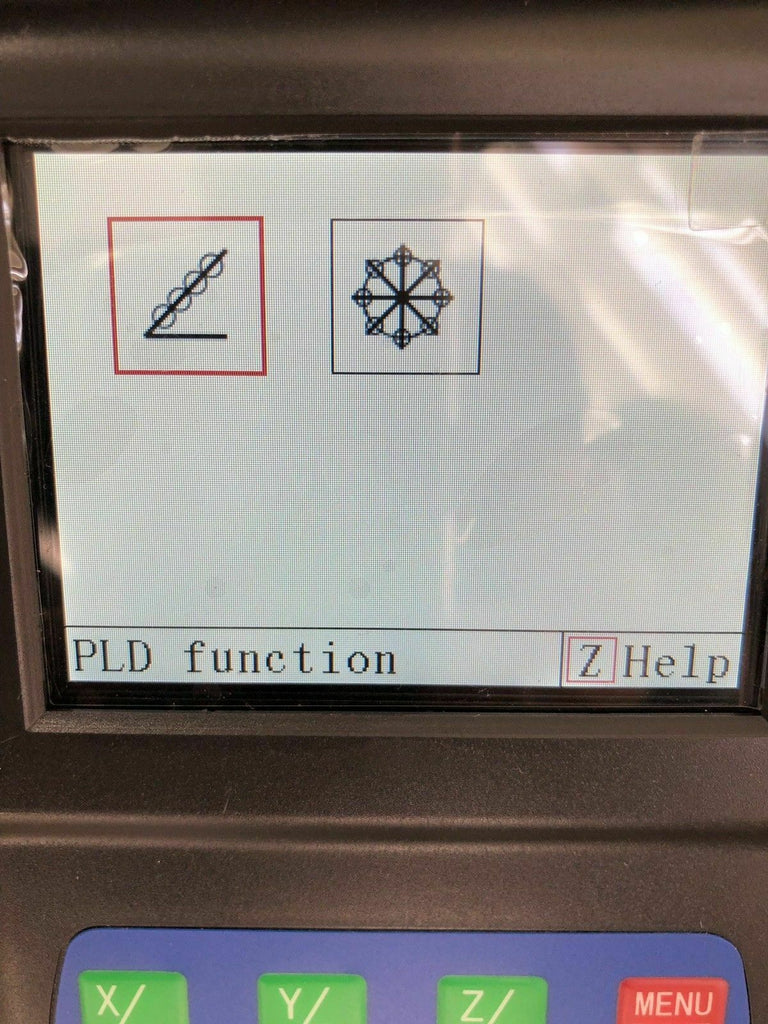

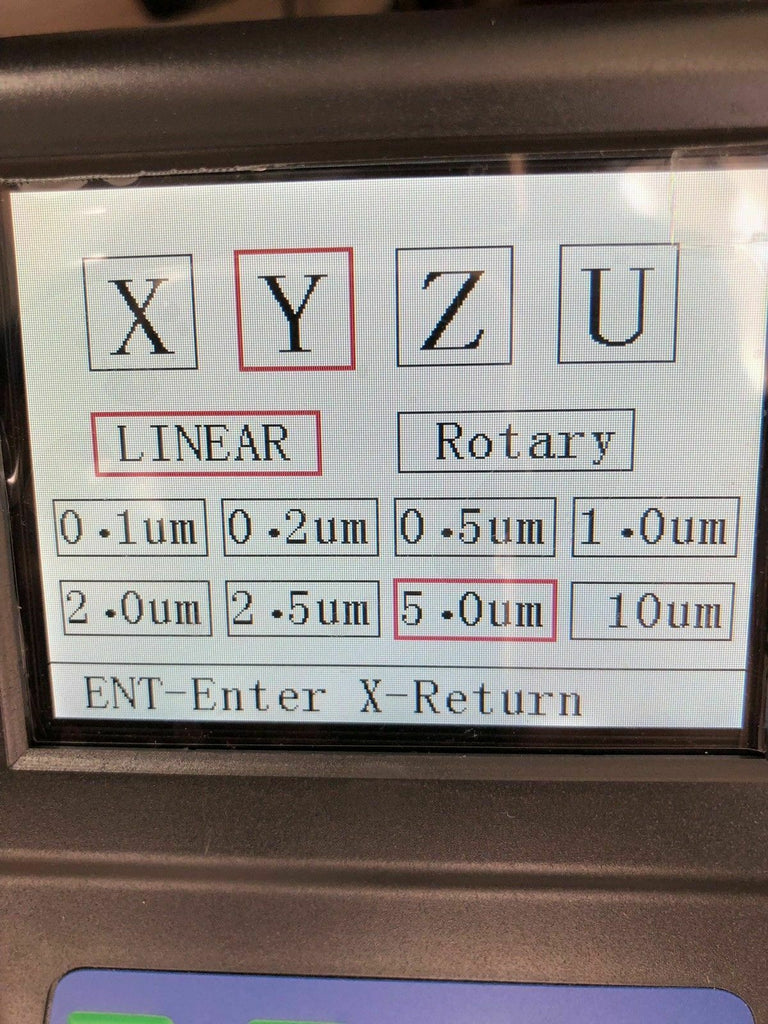

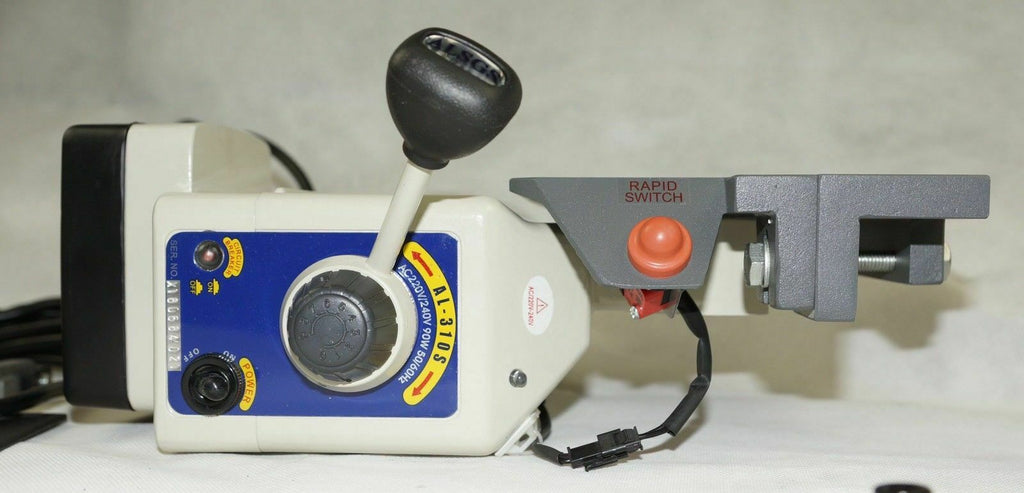

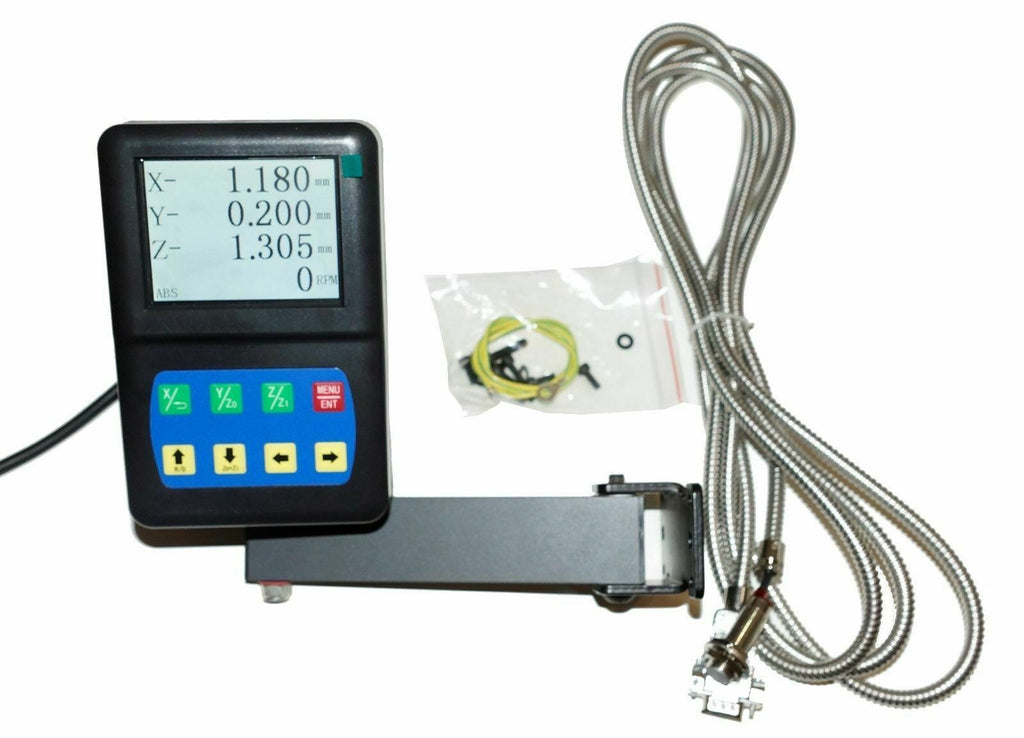

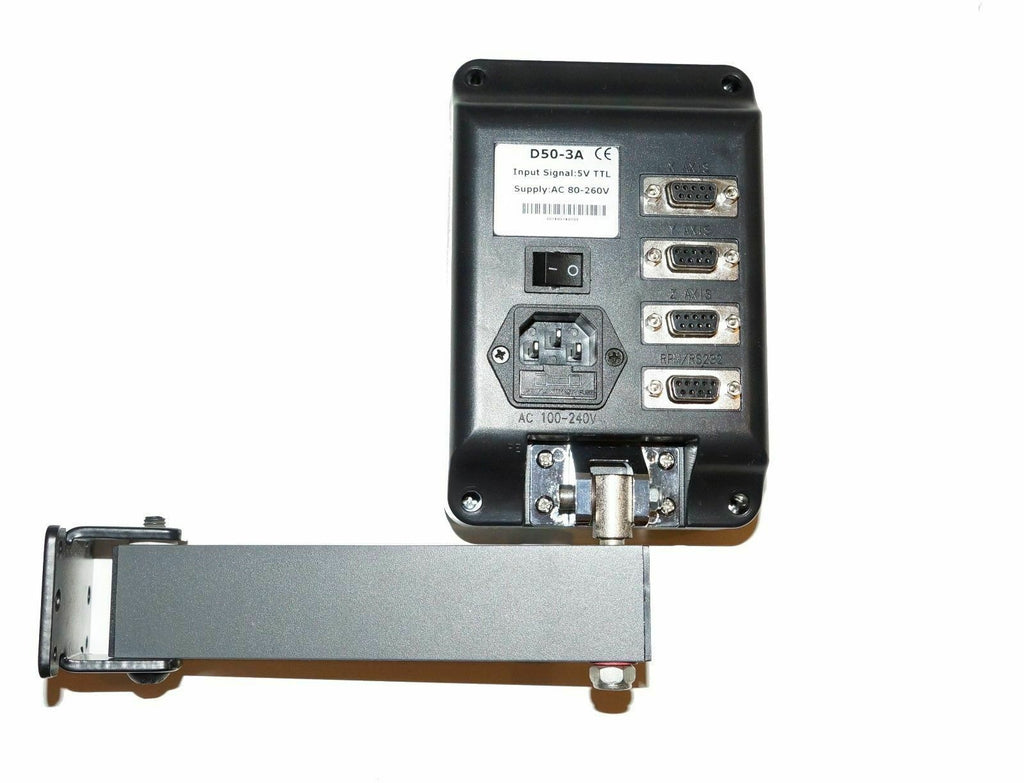

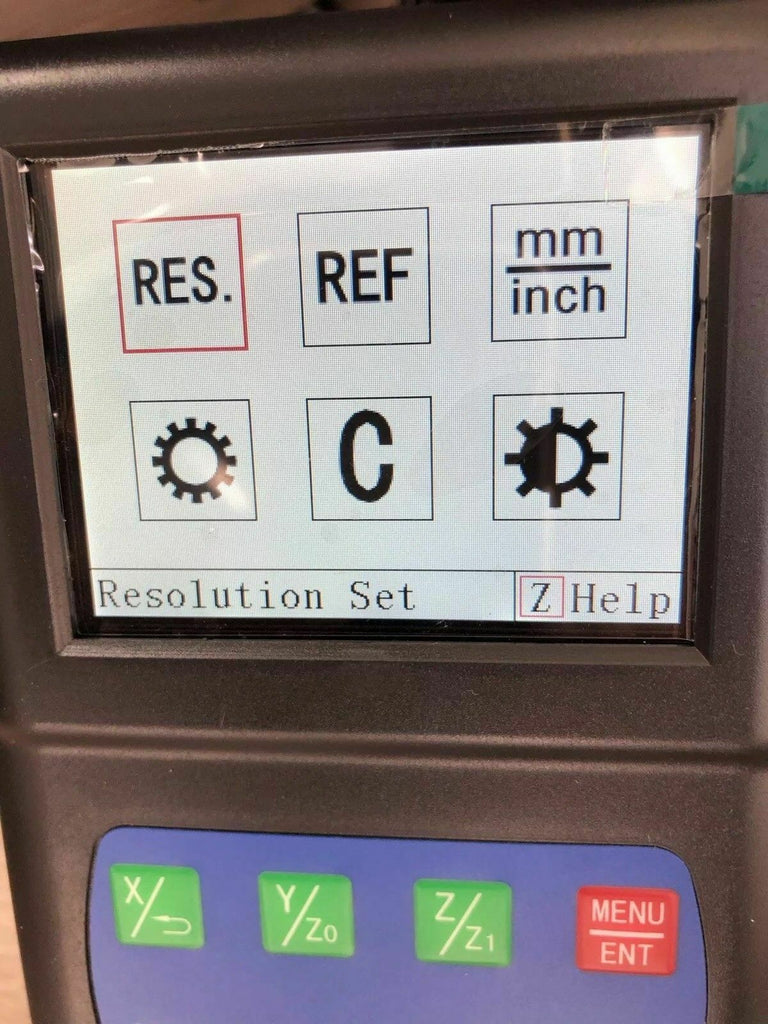

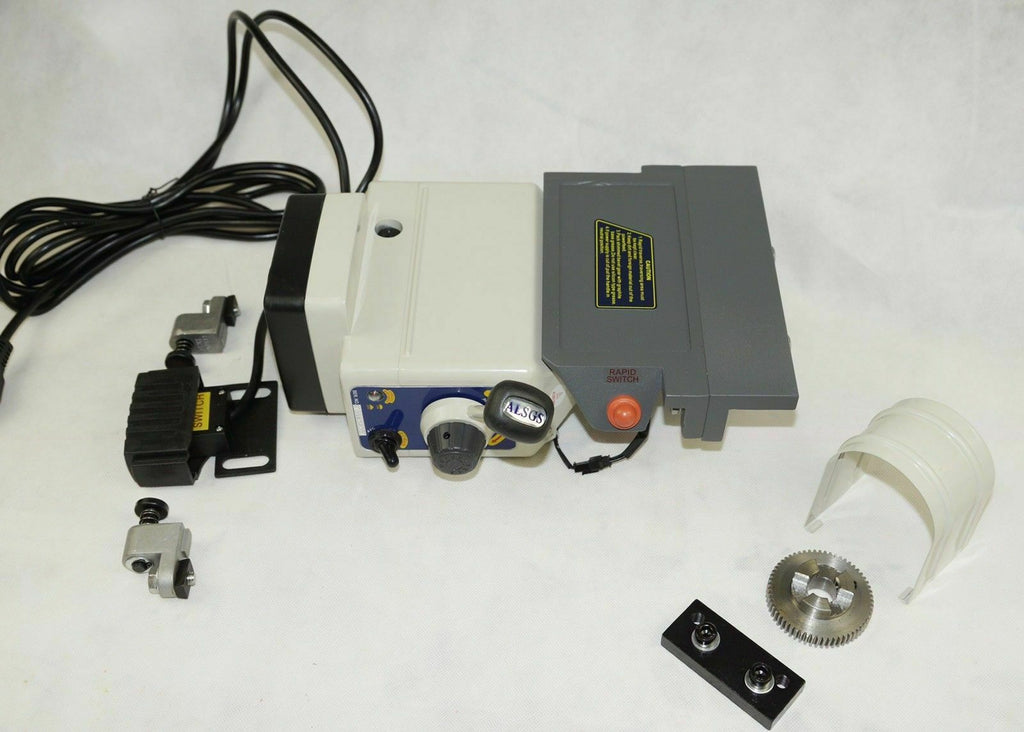

    • INCLUDE 3 AXIS LCD DRO AND LINEAR SCALES AND TABLE POWER FEED
      (NEED INSTALLATION)

  • * Note: X & Y travels maybe reduced due to digital readout scales and safety stops

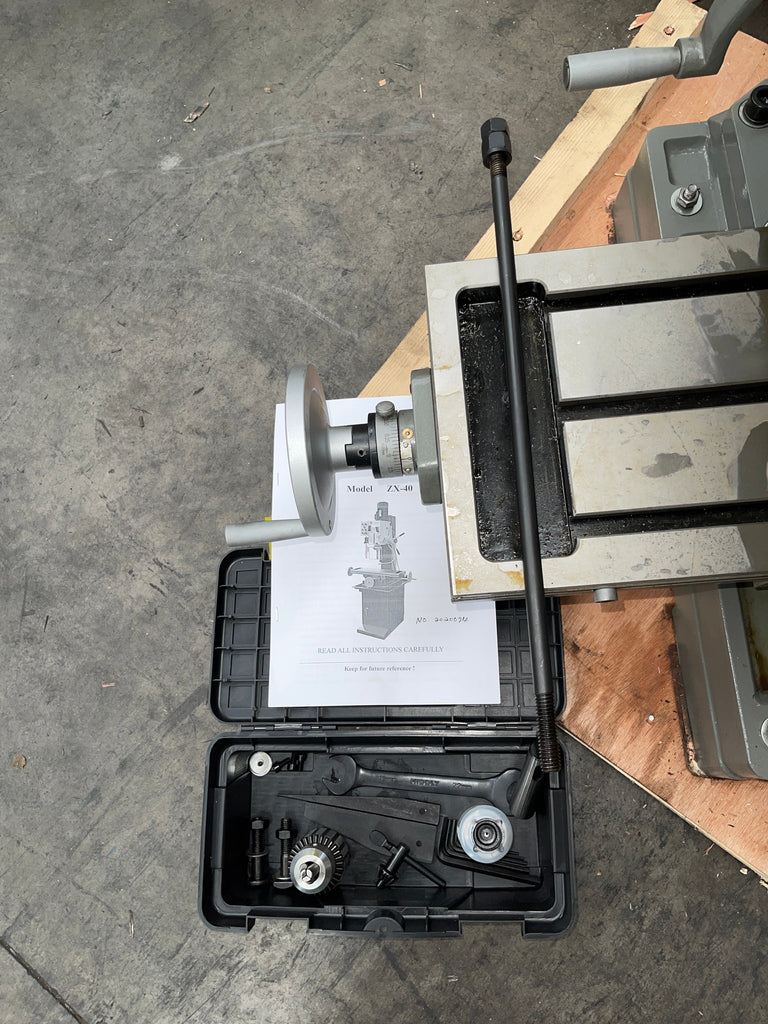

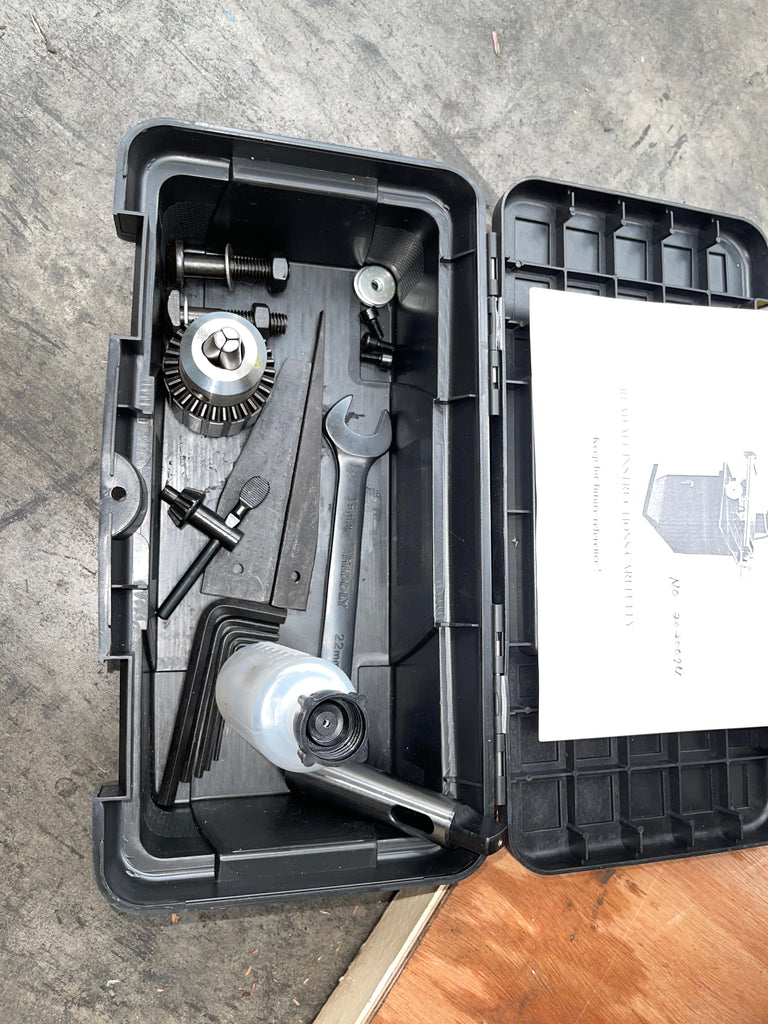

Includes
  • Digital tilting head gauge
  • Drill chuck & arbor
  • Drill sleeve – 3MT – 2MT

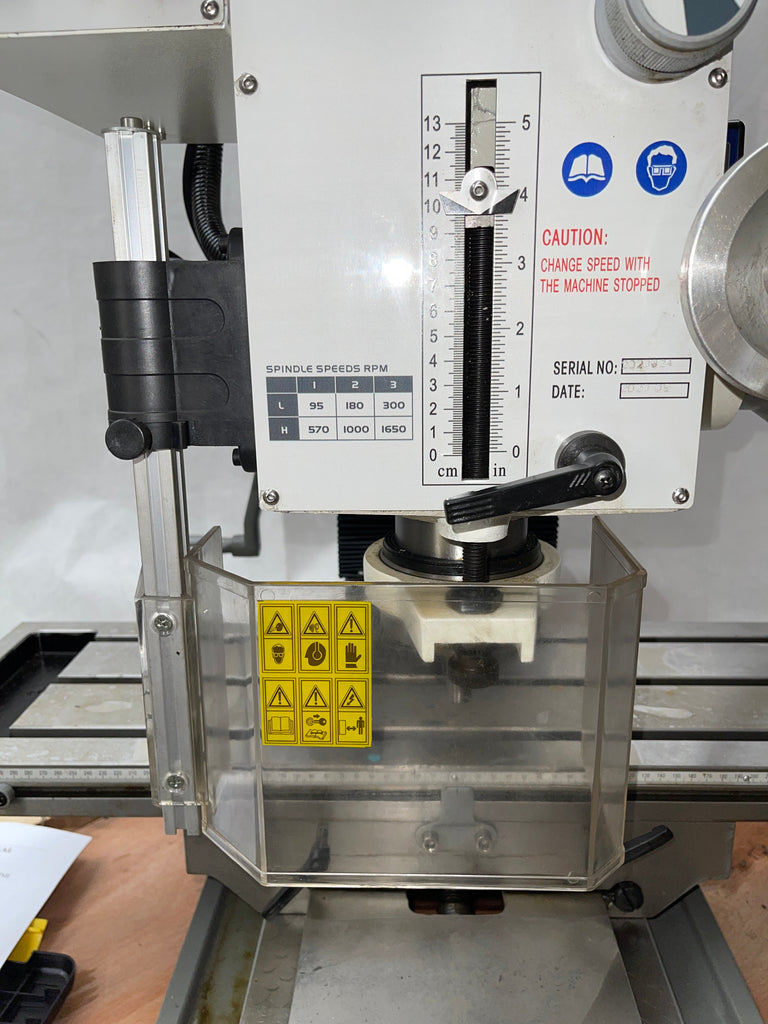

  • Safety cutter guard
  • 1/2" x 12TPI drawbar

MODEL ZX-40
(mm)Table Size 800 x 240
Column Type Dovetail
Spindle Taper - Vertical 3MT
(mm)Longitudinal Travel (X-Axis) 540*
(mm)Cross Travel (Y-Axis) 205*
(mm)Head Travel (Z-Axis) 385
(mm)Spindle Nose to Table Surface 485
(mm)Spindle Travel / Quill Diameter 120 / 75
(mm)Spindle centre to column surface (max.) 265
Tilting Head (Left ~ Right) ±90º
(mm)Drilling Capacity 31.5
(mm)End Milling Capacity 28
(mm)Face Milling Capacity 80
(mm)T-Slot Size 14

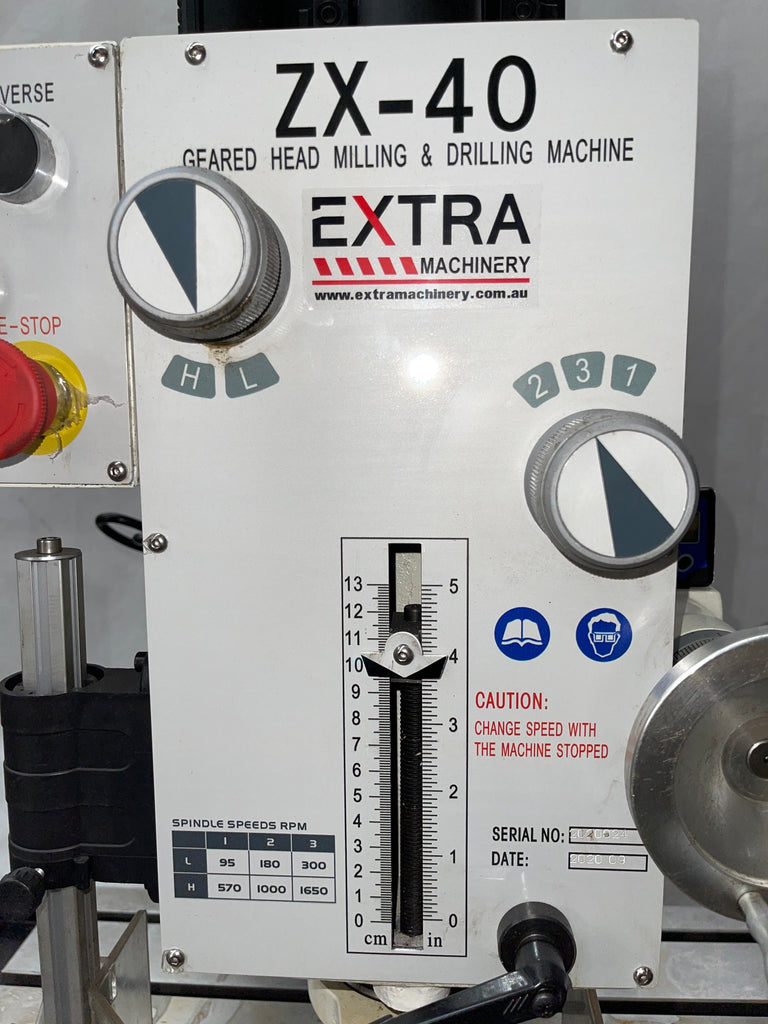

(rpm)Spindle Speeds 6 steps 95 - 1650
(kW / hp)Main Motor Power 1.5 / 2
(V / amp)Voltage / Amp 240 / 10
(cm)Shipping Dimensions (L x W x H) 86 x 76 x 115
(kg)Weight (Net) 325
