T-25 Industrial Geared Head Drilling Machine (Sweden Design) Incl Keyless Drill Chuck & Drill Vice
STOCKS COMING IN END NOV

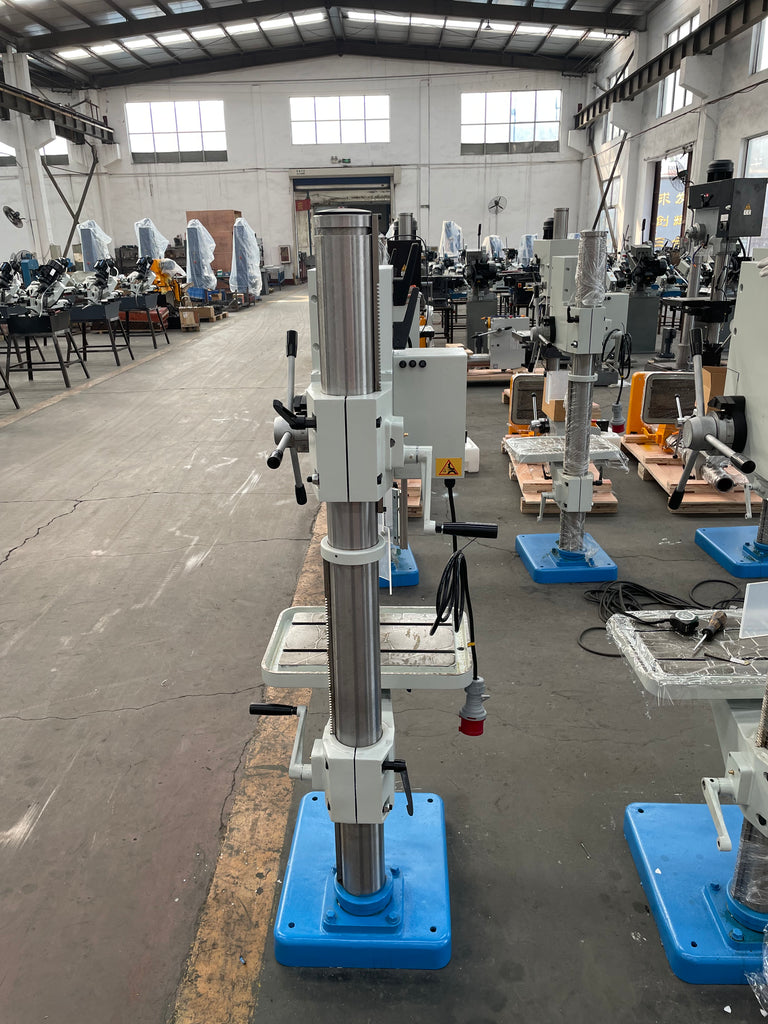

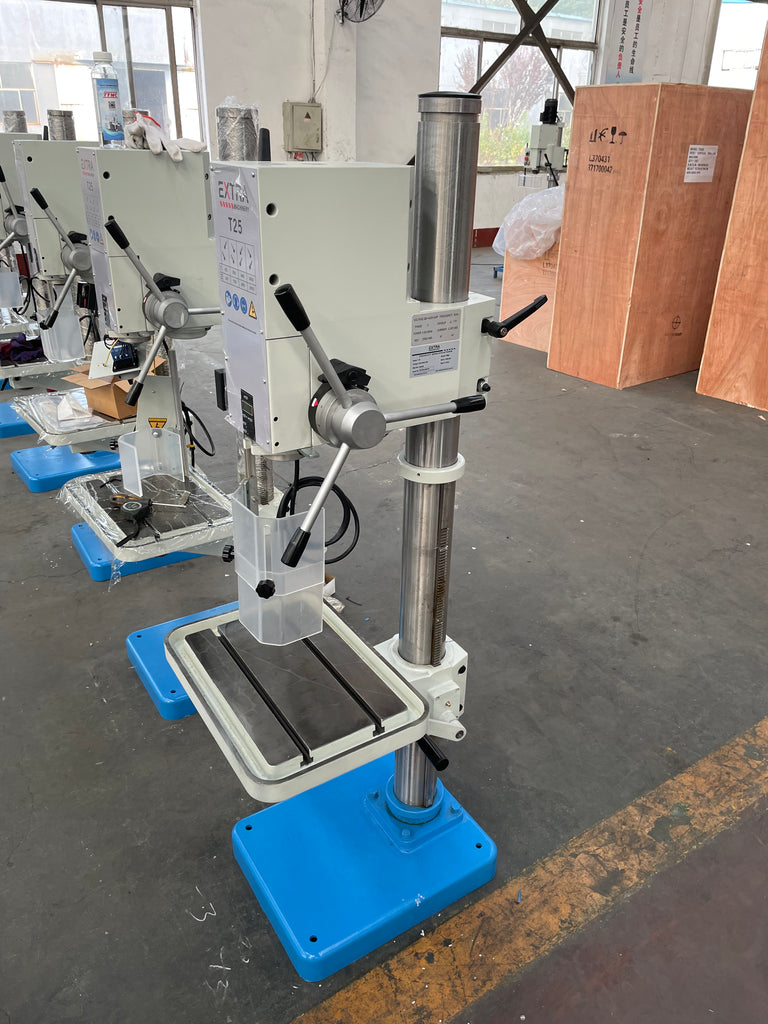

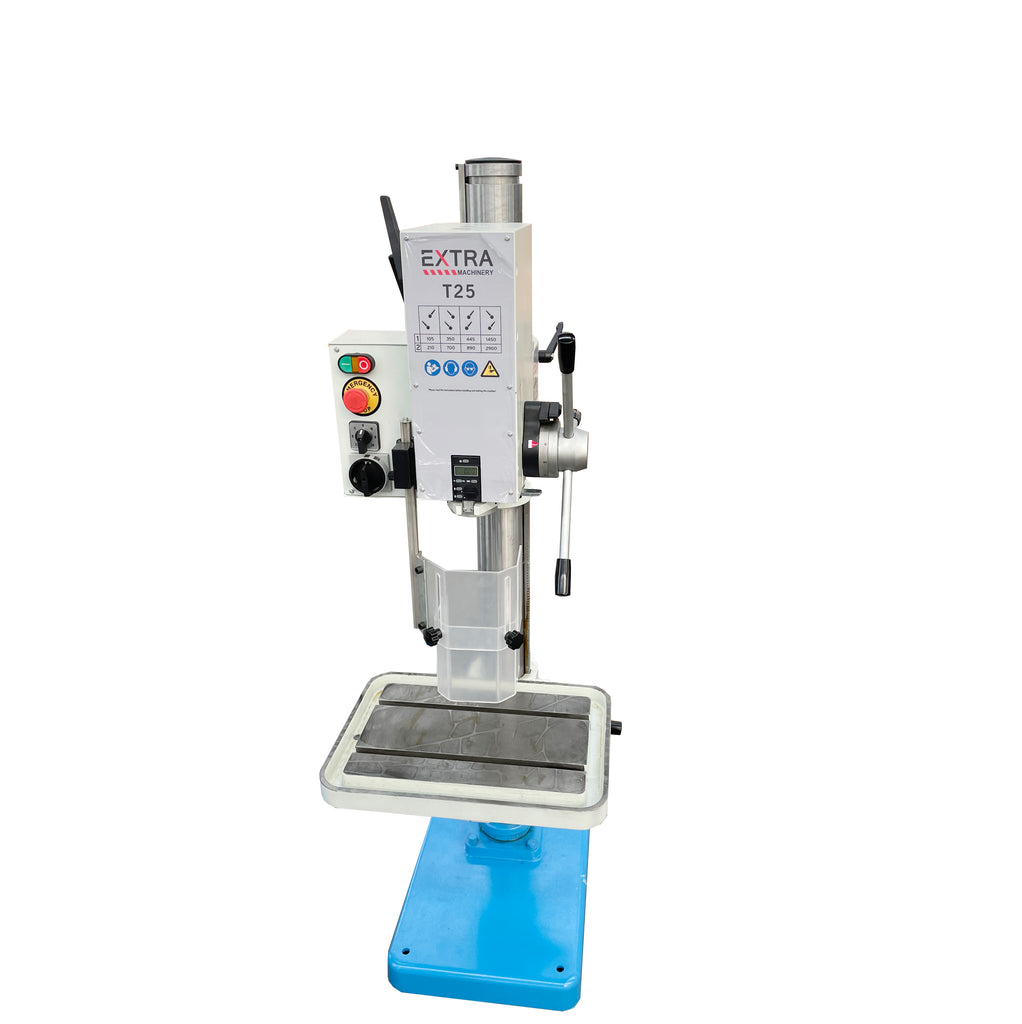

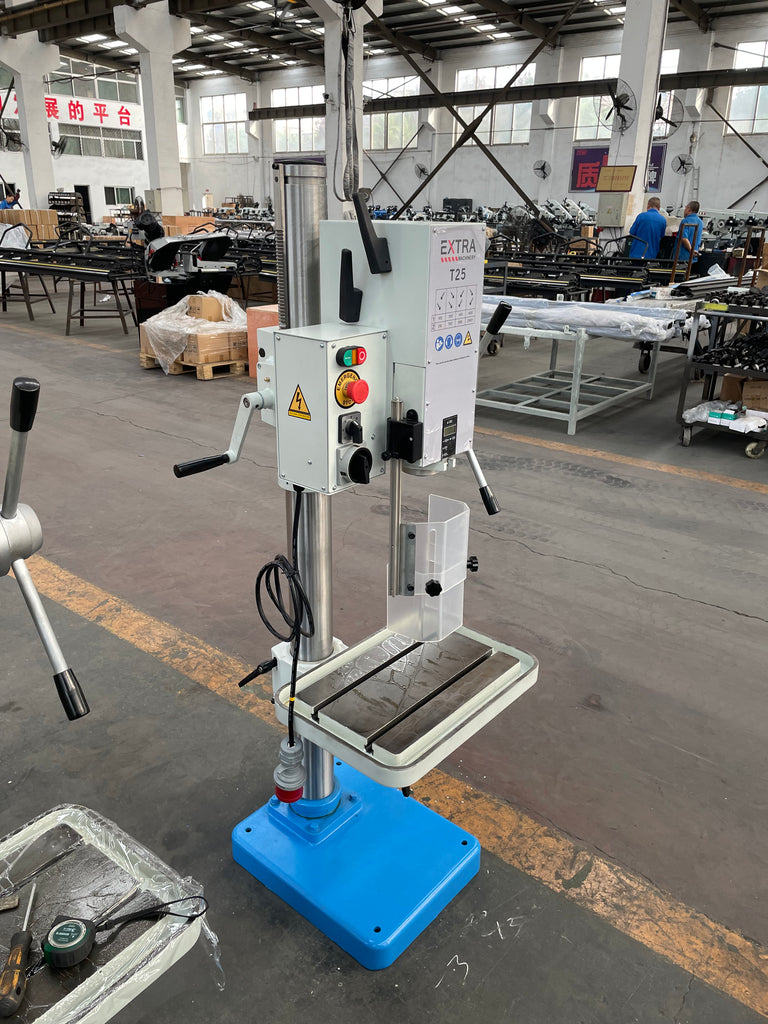

T-25 Industrial Geared Head Drilling Machine
This machine was designed in Sweden more than 60 years ago. It is still the most popular industrial gear head drilling machine all over Europe. 3 morse taper spindle is driven by gears rather than belt pulley. Highest speed is up to 2900rpm.
Features
- 31.5mm drilling capacity
- Helical gears driven with quiet & smooth operation
- 8 Steps of spindle speed 105-2900rpm
- European type interlock spindle guard which can be extended
- 2 speed motor with Forward/Reverse running
- Rack & Pinion adjustment of headstock
- Rack & pinion adjustment of table
- Heavy duty column with thick wall provides rigidity
- Quick drill arbor ejected lever
- Digital Display of drill depth
- T-slotted worktable rotates 360 degrees

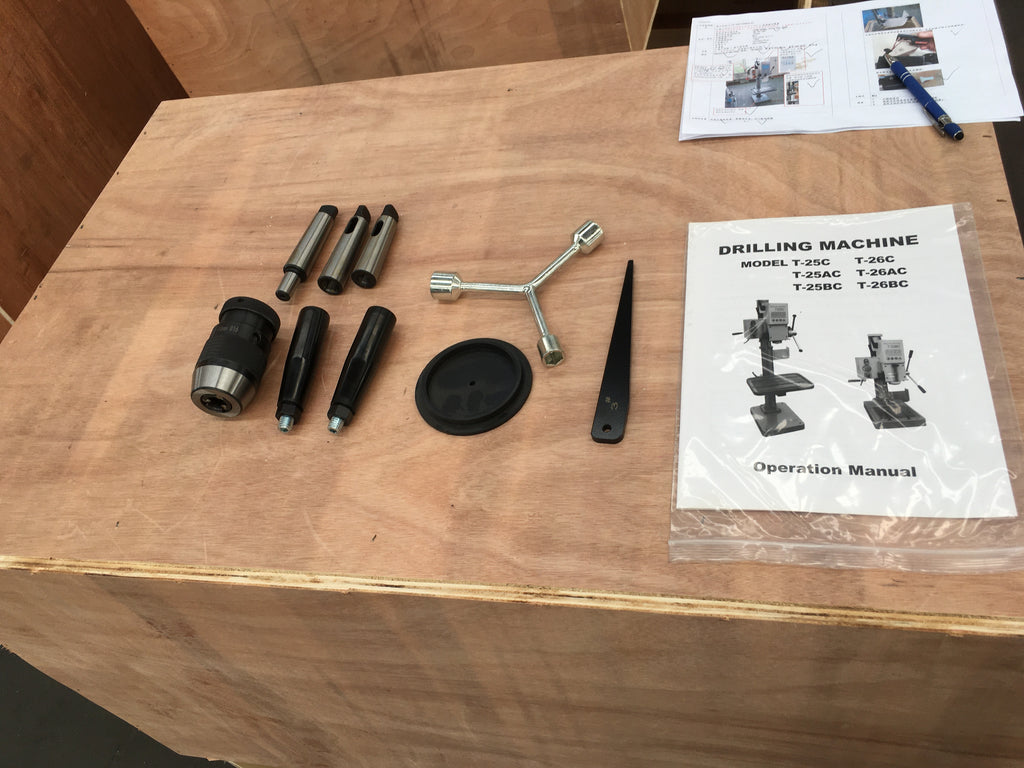

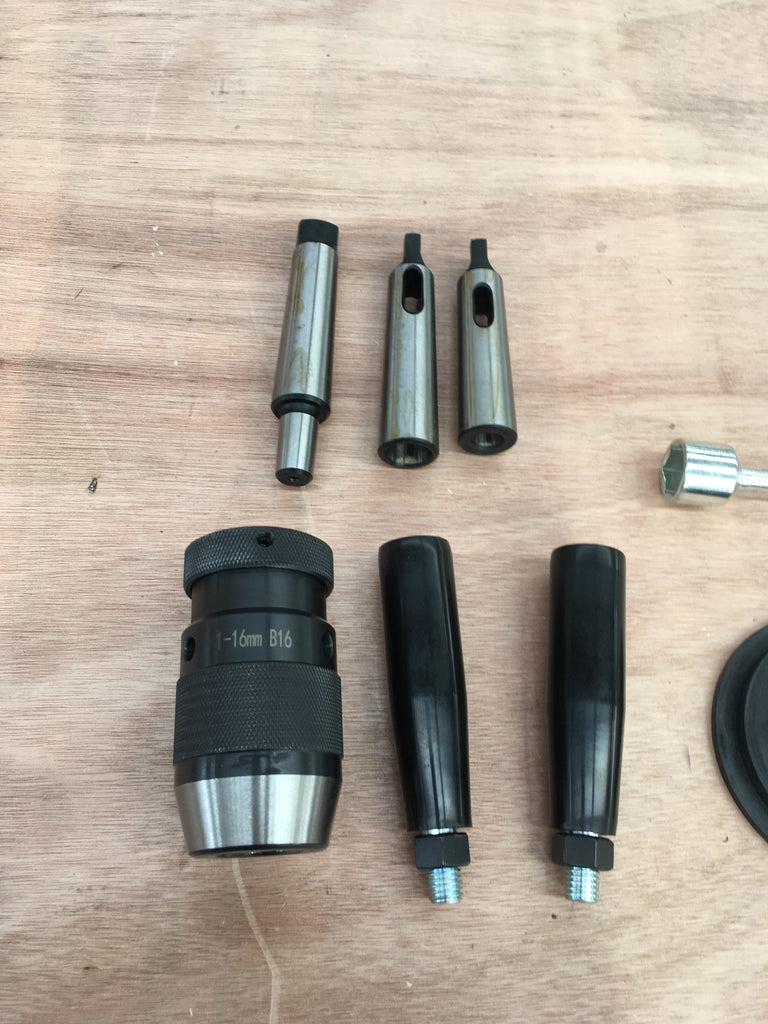

- Incl Keyless drill chuck

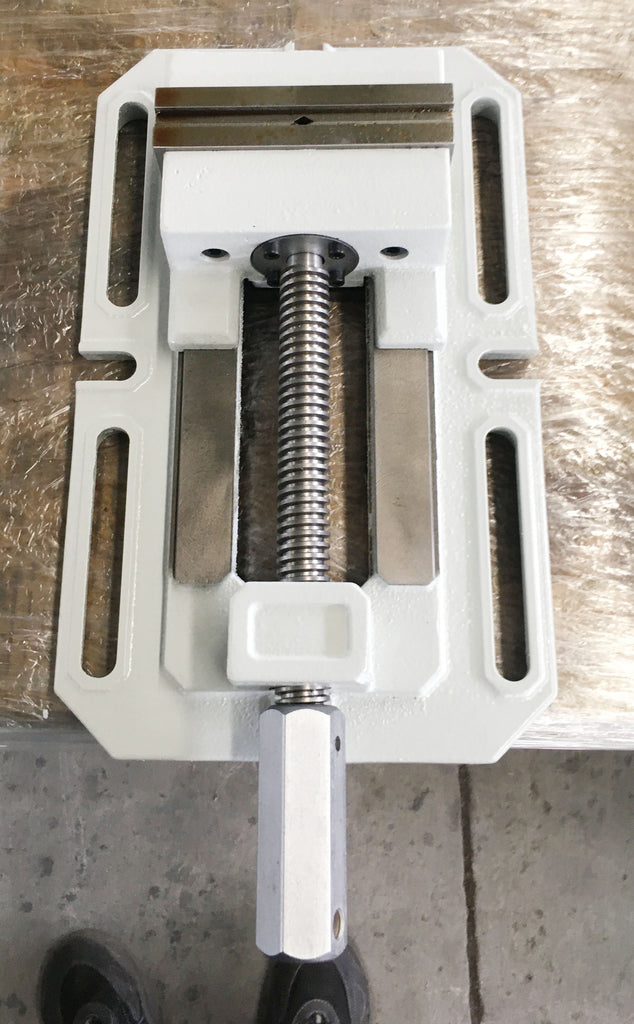

- Incl drill vice
| Model | T-25 |
| Max. drilling dia. | 31.5 |
| Spindle travel | 125mm |
| Tapping capacity in steel/case iron | M10/M16 |
| Morse taper | MT3 |
| Motor power (2speed) | 0.65kW/0.9kW |
| Spindle speed | 105-210-350-445-700-890-1450-2900 |
| Packing size | 167x57x72cm |
| N.W./G.W. (approx) | 200/240kg |
