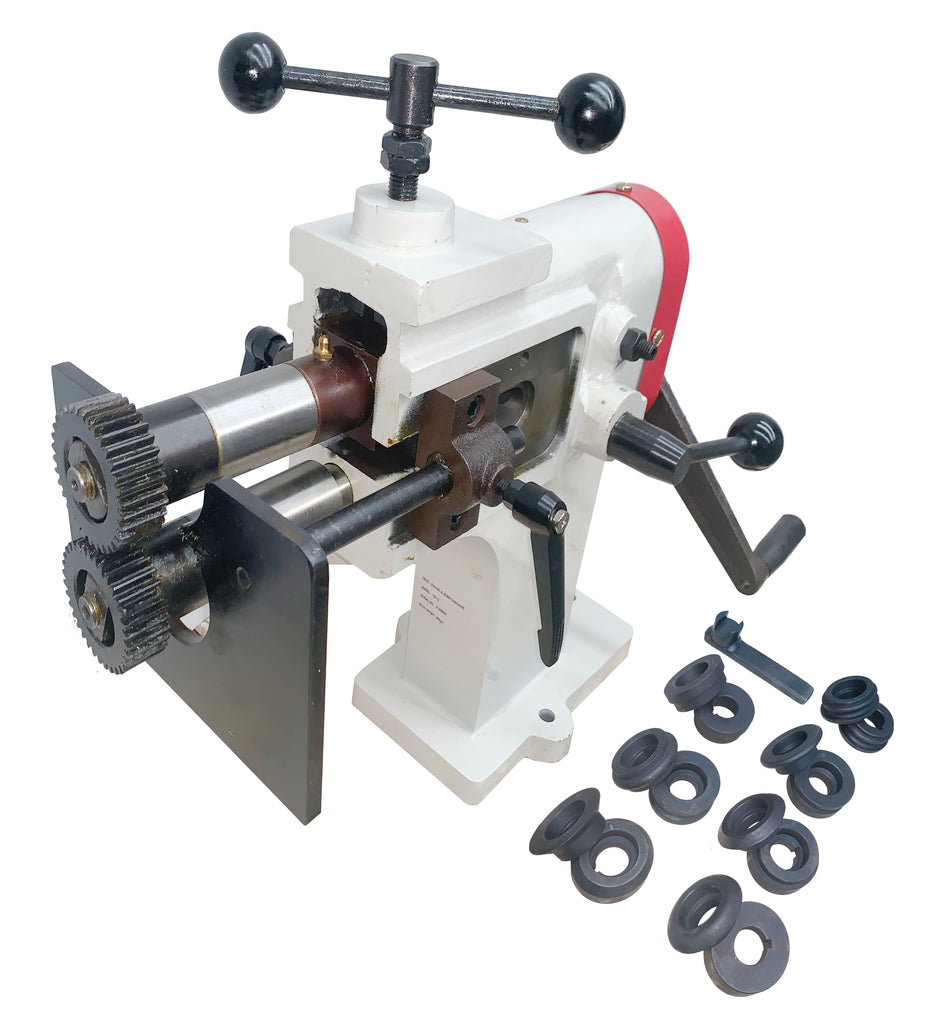

TB-12 Manual Swage & Jenny Machine 1.2mm capacity

Extra Machinery Pty Ltd

$750.00

SKU: S642

1.2mm Mild Steel Thickness Capacity

Includes 8 Sets Of Rolls
Features
  • Heavy duty cast iron machine body to provide good rigidity.
  • Adjustable throat depth guide
  • Quick cam adjustment of bottom shaft to align the rolls
  • Mild steel capacity is rated on hot rolled material with 250MPA
Includes

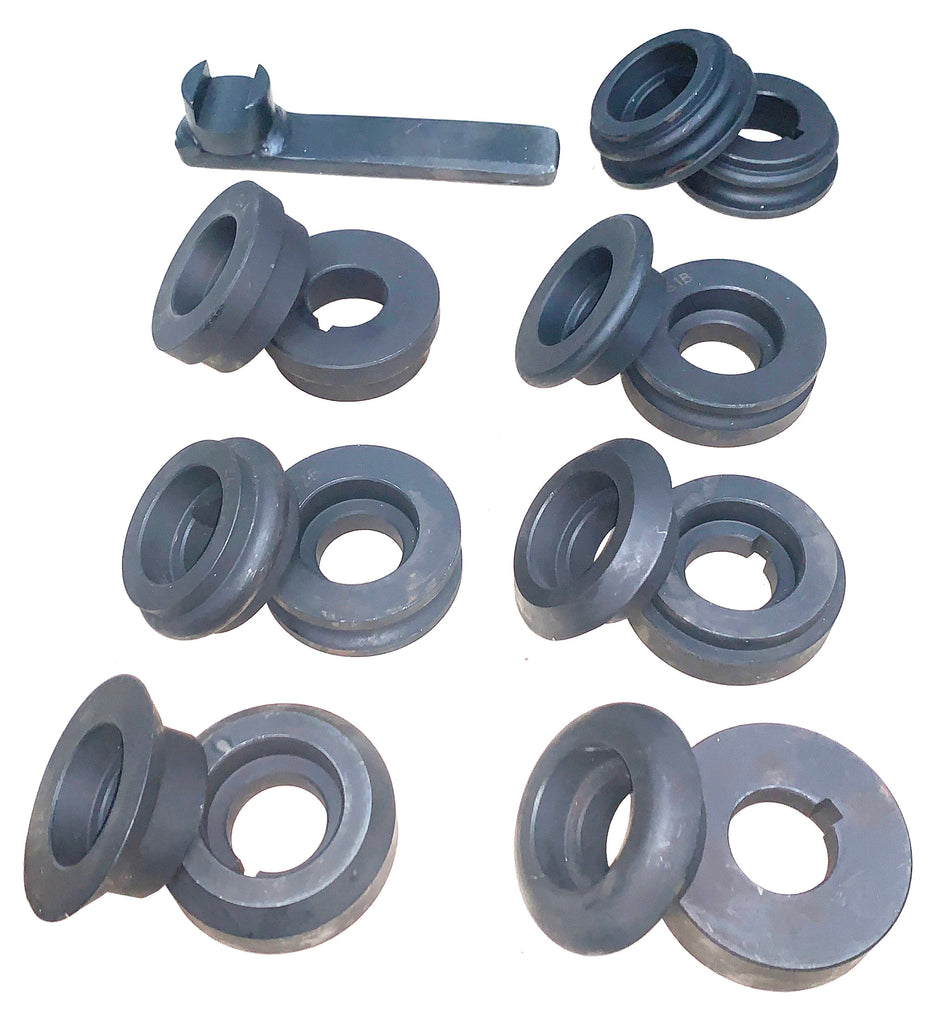

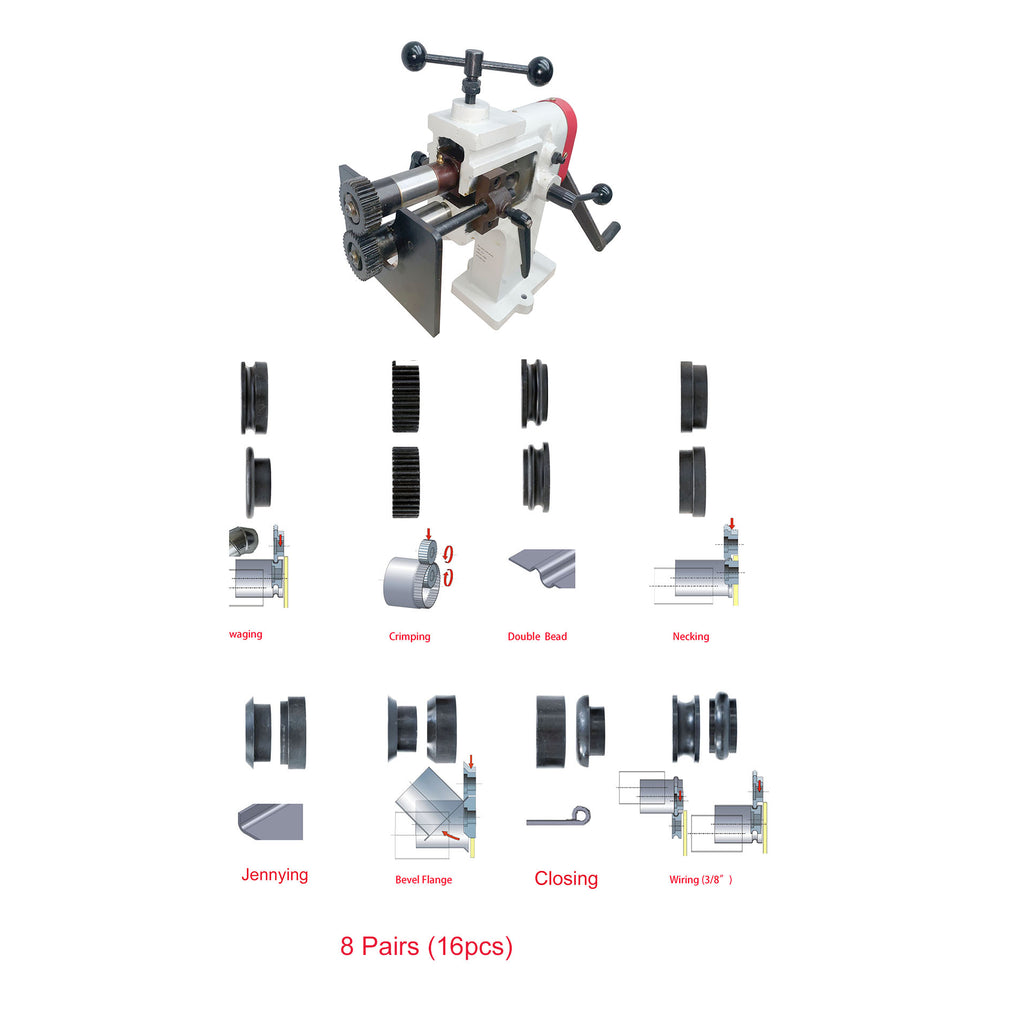

  • 8 sets of rolls:

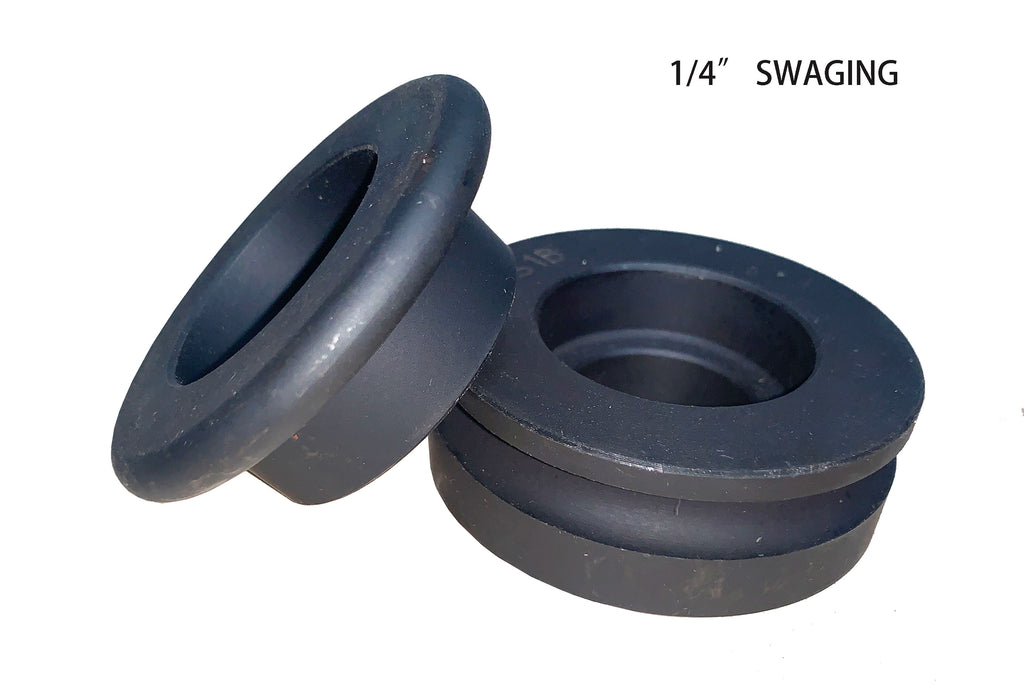

  • 1 x S1 Swaging
  • 1 x S2 Crimping
  • 1 x S3 Double Bead
  • 1 x S4 Necking
  • 1 x E1 Cutting
  • 1 x E2 Bevel Flange
  • 1 x E3 Right Angle
  • 1 x E4 Wiring


Mild Steel - Thickness Capacity 1.2 / 18  (mm / Gauge)
Aluminium - Thickness Capacity 1.2 / 18 (mm / Gauge)
Throat Depth Maximum 240 mm
Roll Diameter 62 mm

Net Weight : 56kg
