Race 2-machine package Incl TB-3 Manual Tube & Pipe BenderW/1", 1-1/2" & 1-3/4" Dies & RPS-76 Belt Notching Linisher

Extra Machinery

$2,500.00

SKU: S712RACER

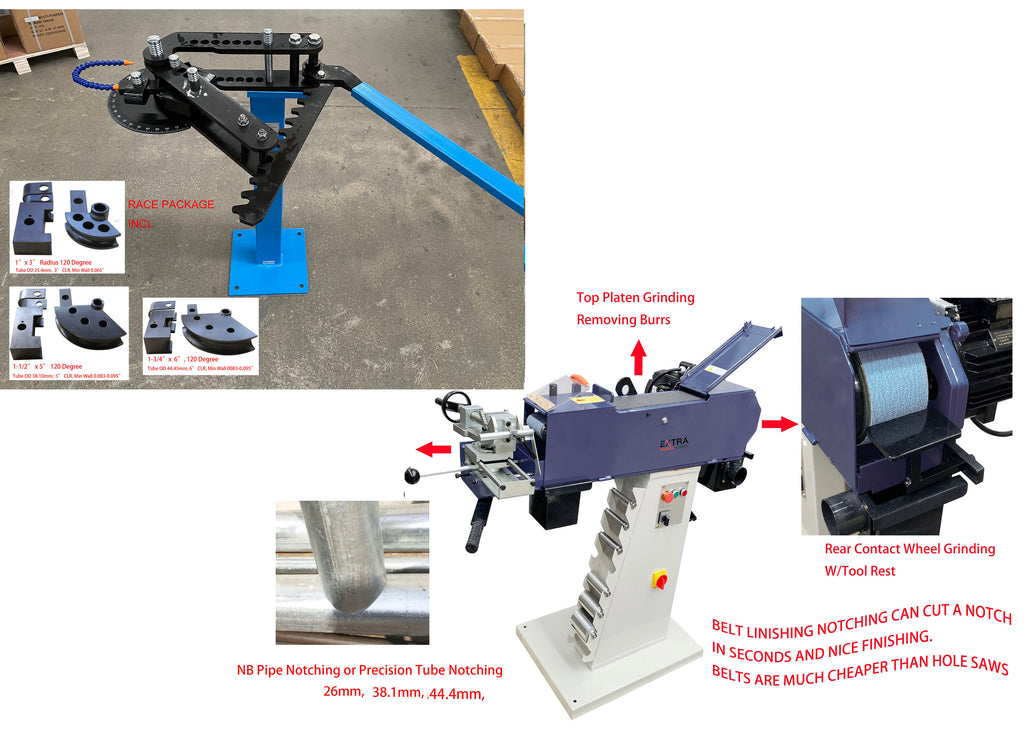

Race 2-machine Package incl 2 machines.  Bending + Notching+Grinding

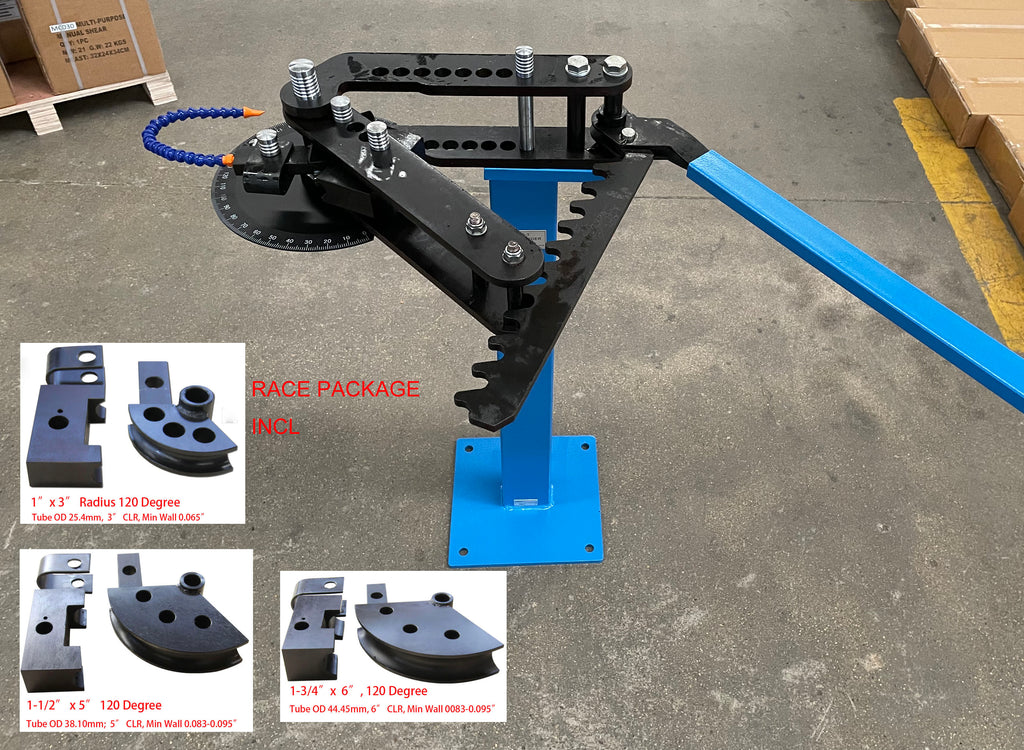

TB-3 Tube Bender W/ 1" (25.4mm), 1-1/2" (38.1mm) 1-3/4" (44.4mm) x 120 degree dies

RPS-76 Notching Belt Linisher 3 Working Station W/ 26mm, 38.1mm and 44.4mm Rollers

TB-3 is a mechanical bender targeted at race car builders who wanted an affordable bender which still produced high quality bends

RUGGED ALL STEEL CONSTRUCTION

LARGE CAPACITY - max. 2" OD tube dies.

INCL 120 DEGREE TUBE BENDING DIES

1"(OD 25.4mm) X 3";

1-1/2"(OD 38.1mm) X 5";

1-3/4" (OD 44.45mm) X 6"

EASY OPERATION - TB-3 uses a high-ratio ratchet mechanism to allow you to bend larger tubing sizes comfortably without assistance. Dies can be changed in under 30 seconds. Bend times are typically in the 30-60 second range for 1" O.D. and above tubing using the ratchet mechanism.

DEGREE POINTER - Standard  on TB-3 is a quick adjust degree indicator plate. Simply loosen the lower nut, rotate the degree wheel to zero degrees and using finger force only, tighten in position.

    NEWLY DESIGNED FOLLOW BARS - made from aluminum material to prevent scratching of expensive material. and easy for tube/pipe sliding into dies.





    Pipe & Tube Notcher - Linisher RPS-76

    PLEASE NOTE CONTROL PANEL MAY VARY ON SINGLE PHASE MACHINE.

    PHOTOS SHOW 3 PHASE MACHINE WITH 2 SPEED MOTOR WITH HIGH/LOW SWITCH

    DESIGNED IN HOLLAND FOR YEARS.
    Ø20 - 76mm OD Tube & Ø15 - 65mm NB Pipe

    3 Working Station:  Front Notcher, Top Platern Grinding,  Rear Contact Wheel Grinding

    Tube Capacity (OD) - Mild Steel

    20 - 76mm

    Pipe Capacity (NB) - Mild Steel

    15 - 65mm

    Belt Size

    100 x 2000mm

    Belt Speed

    2800rpm

    Motor Power

    2.2KW

    Voltage

    240V-50ZH- Single phase W/15Amp Plug

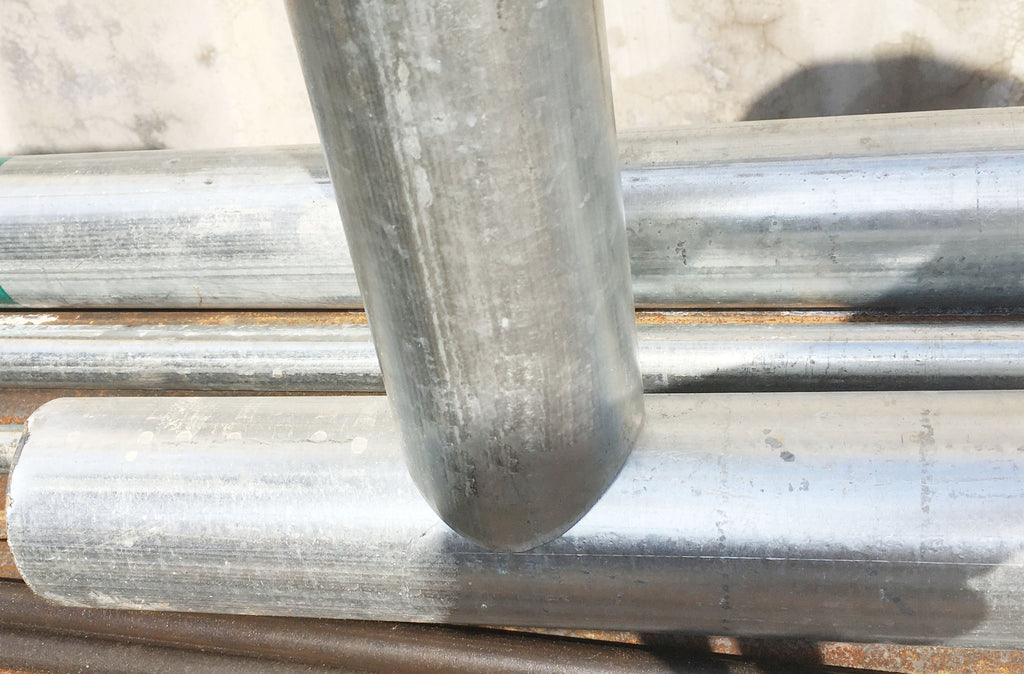

    • Tube notching capacity Ø20-76mm OD
    • NB pipe notching capacity Ø15-65mm

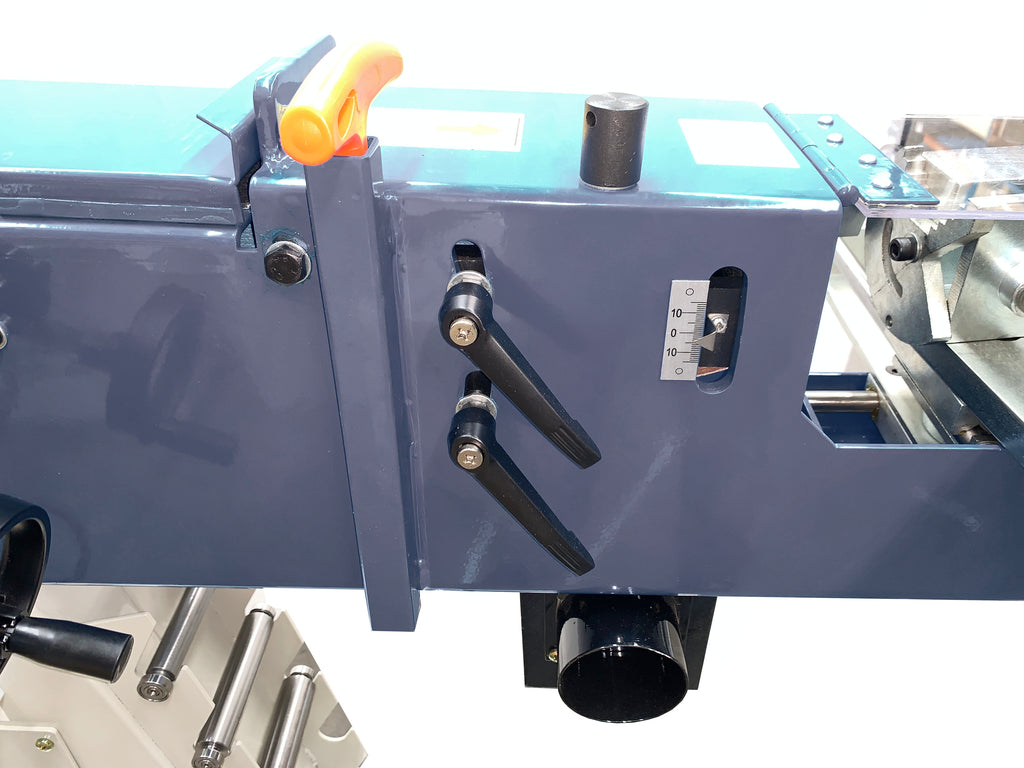

    • Quick action compound vice swivels from 30-90º
    • Speical designed vice jaws for holding round or square material
    • Heavy leadcrew drives the vice, ensures firm holding of workpiece.
    • Wide and clear eye shield
    • Graphite pad under top platern to reduce friction
    • Spring balanced clamping device allows for continuous belt tension
    • Quick change of grinding rolls – no tools required
    • Solid pedestal stand with built-in  rack for 7 sets rollers
    • 2 x Ø76mm dust extraction outlets
    • Powerful 3hp, 240V motor with overload protection
    • Includes 1 roller suitable  26mm, 38.1mm a,d 44.4mm & 1 x linishing belt (photos show optional rollers 6 sizes for option)
