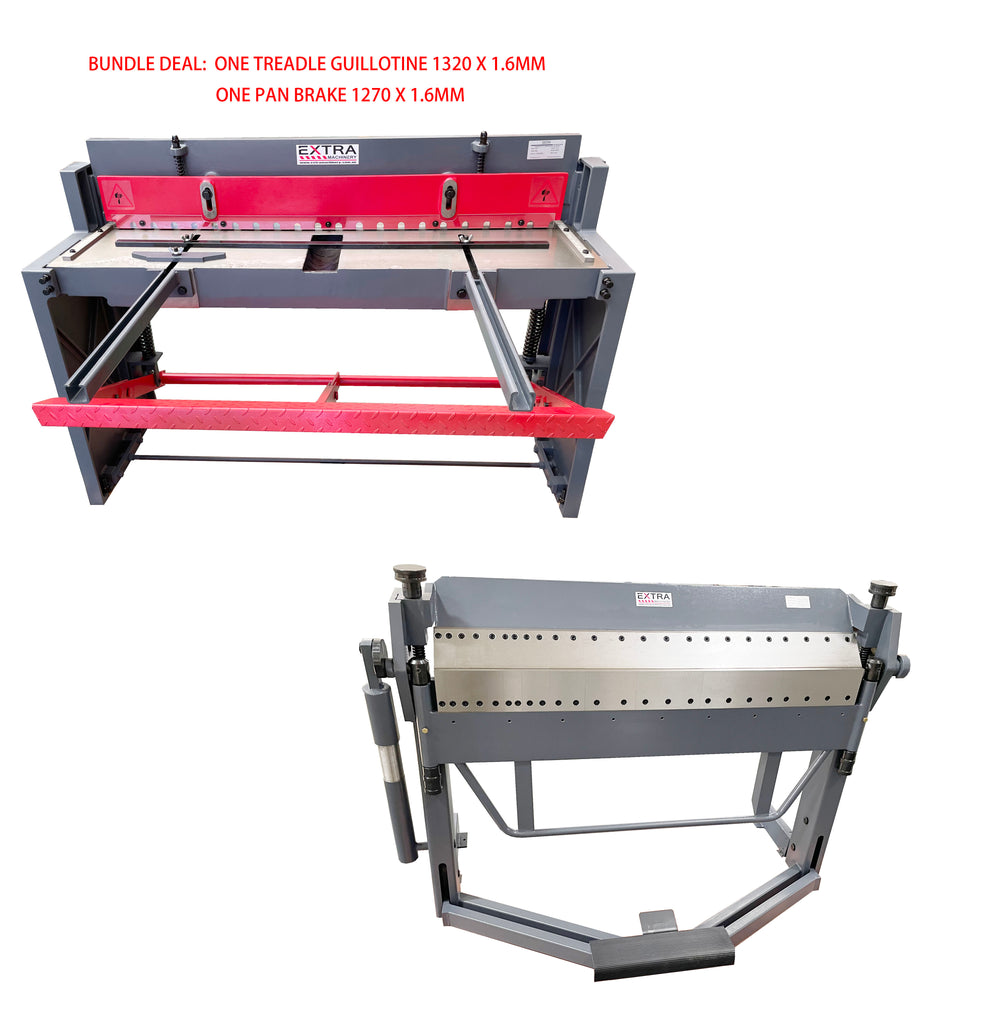

Package of TG412 Manual Treadle Guillotine 1320 x 1.5mm & B1260A Manual Pan Brake 1270x1.6mm
Bundle Deal :
One TG412 Treadle Guillotine 1320 x 1.5mm
One B1260A Manual Pan Brake 1270 x 1.6mm
TG412 has been manufactured in our factory since 1986. We are the biggest manufacturer of such treadle guillotines in China, and the biggest supplier to USA.
FEATURES:
- 1320 x 1.5mm cutting capacity ( mild steel rated on hot rolled with 250Mpa)
- Heavy cast-iorn body with foot control
- Steel foot pedal that extends full width of machine, easy to operate.
- Reversable upper blade with two cutting edges
- Spring activated material hold down
- front stop and angle guide are quickly adjusted by wing nuts on the top of the stops
- Backgauge arms have micro-adjusting stops that allow you to fine tune your cut length
BS-1260A manual pan brake was designed in 1968 in Thisted Denmark, and known for being among the most accurate and dependable in Europe. The Denmark company cooperated with us in 2002 for production of a range of manual pan brakes since 2002.
FEATURES:
- 1270 x 1.6.0mm capacity （Mild steel capacity is rated on hot rolled material with 250MPA）
- Bending angle: 0° – 135°
- Foot operated clamping keeps both hands free for better control of material
- Counter-balanced telescope spring makes apron bending effortlessly
- Segmented clamping fingers, bending fingers can bending reversely and complicated profile.
- Two knurled handles for easy setup of clamp pressure according to different material and thickness
- Two knurled handles for easy adjustment of bending radius according to different material and thickness
-
Adjustable angle stop for repetitive bends
- Interchangeable finger segments for wide variety of box & pan sizes
25, 30, 35, 40, 45, 50, 75, 100, 150, 200, 200, 250, 270mm
***colour may vary subject to different batch of production.
