Wood Lathe Chuck 4.5" Self Centering Scroll W/5 types of jaws & M33X3.5

Extra Machinery Pty Ltd

$300.00

SKU: W4501

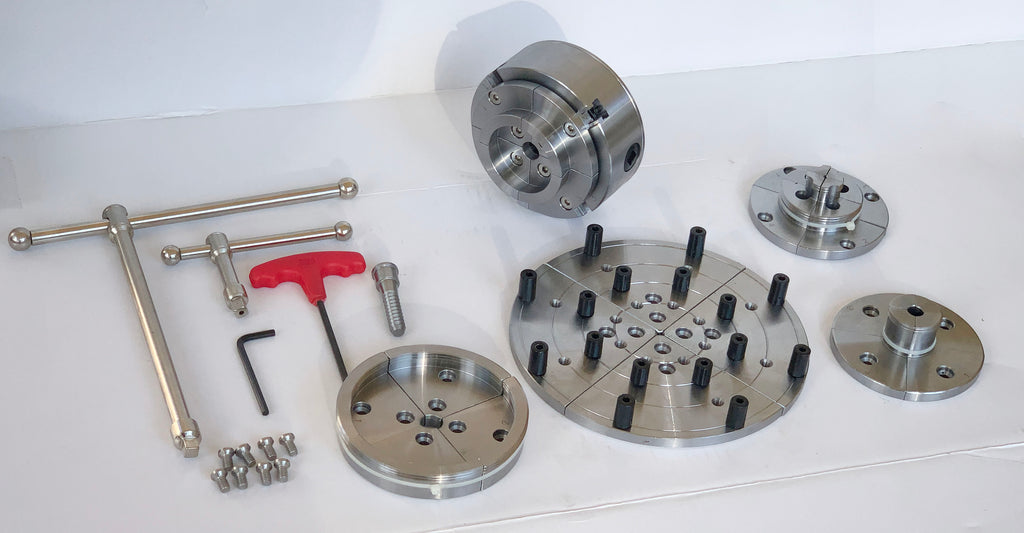

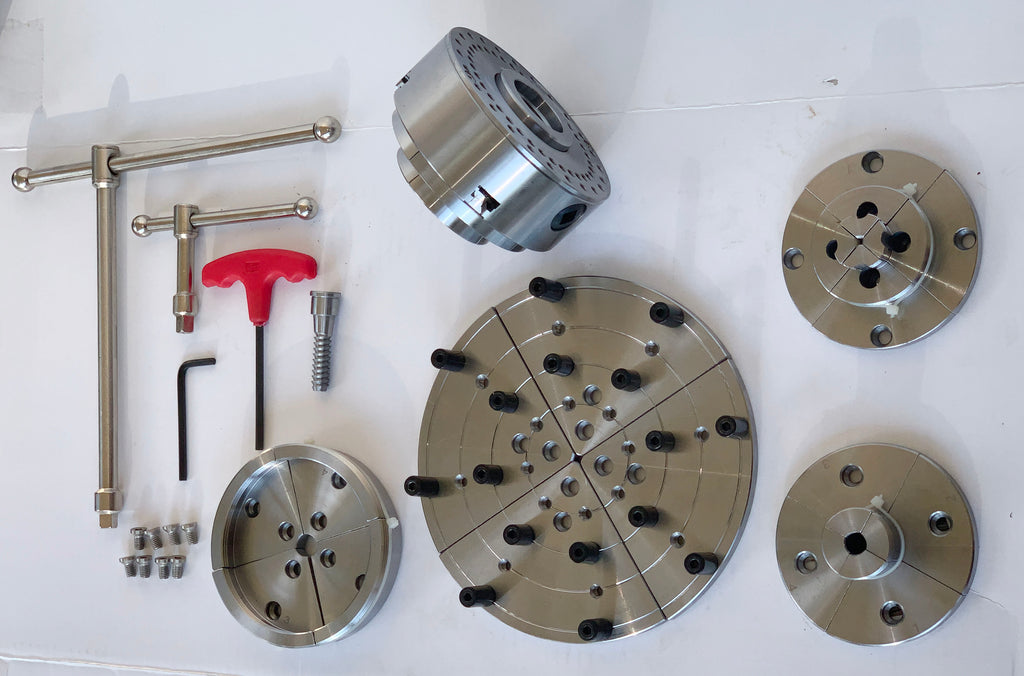

This deluxe wood chuck package includes a scroll chuck with various kinds of jaws to provide a variety of clamping needs for your wood turning projects.



4.5" chuck body, suit wood lathe swing diameter 500mm or below.

Designed in Australia, High precision

4 Jaw self centering scroll chuck, all jaws move together

Grip Internally and externally

Supply one wood screw

Indexing back plate

Direct thread inside chuck body M33 X 3.5

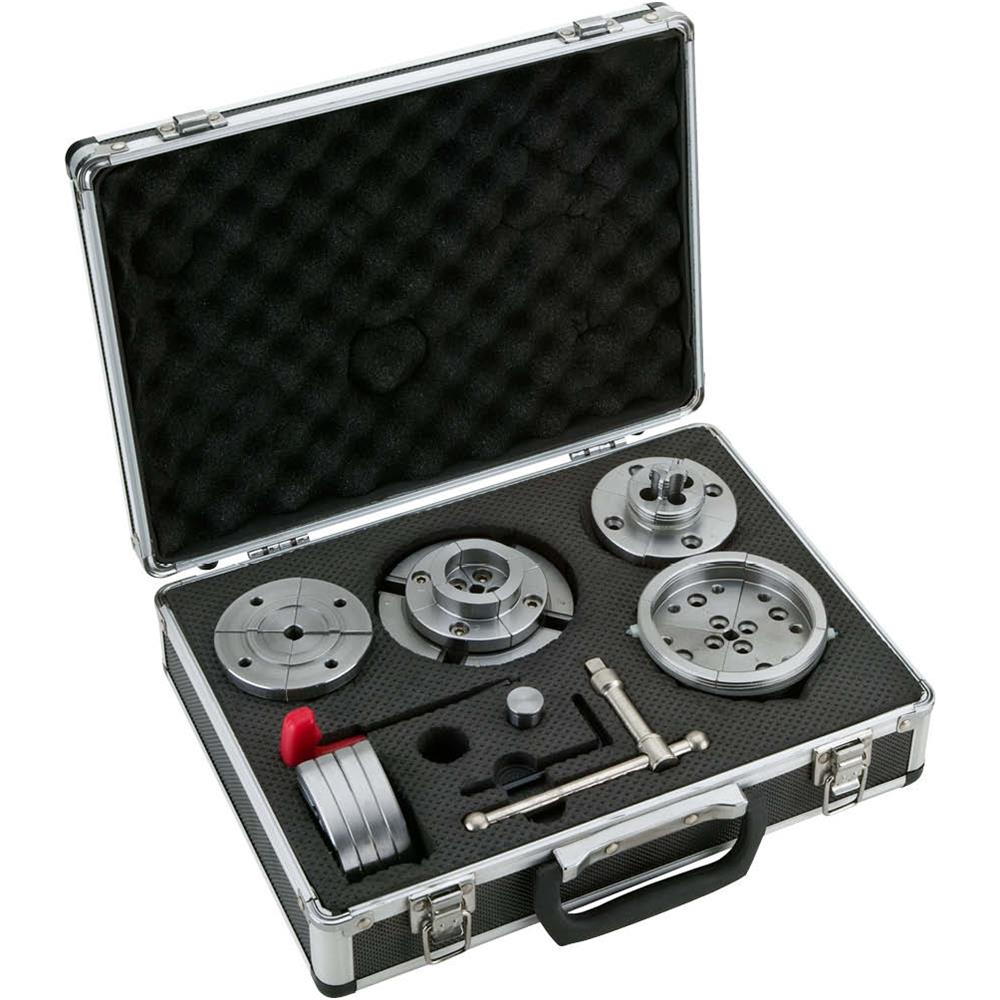

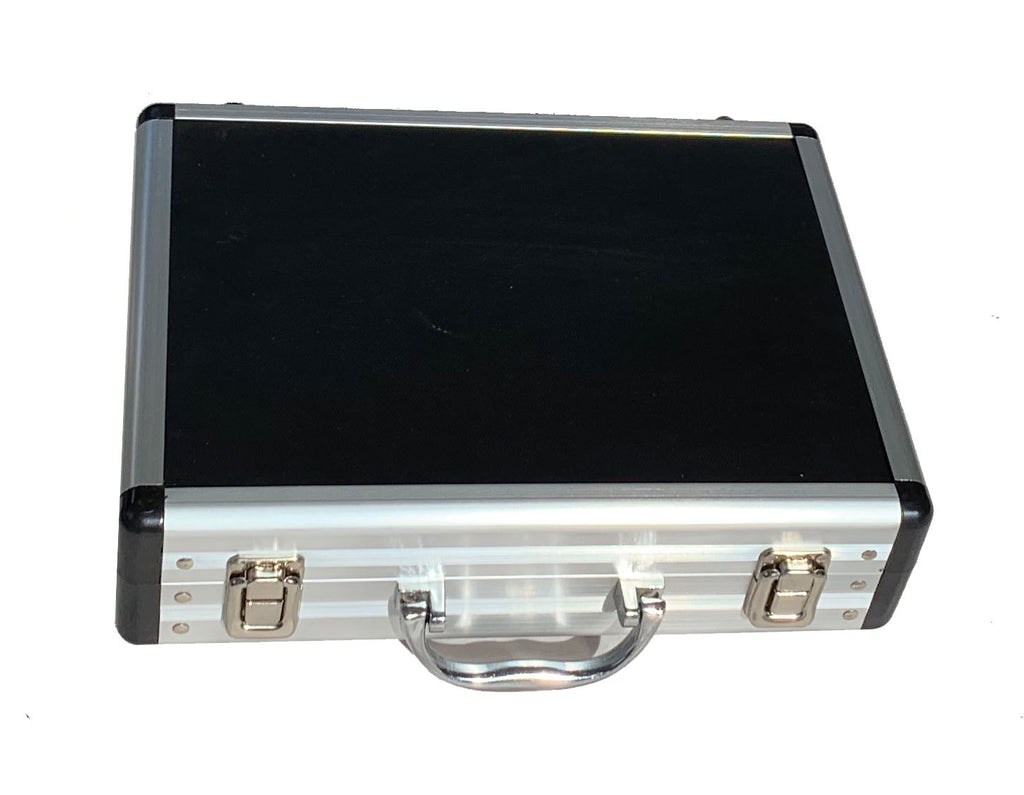

C/W  Aliminum Box

Chuck Body Diameter.................................. 4 1⁄2"

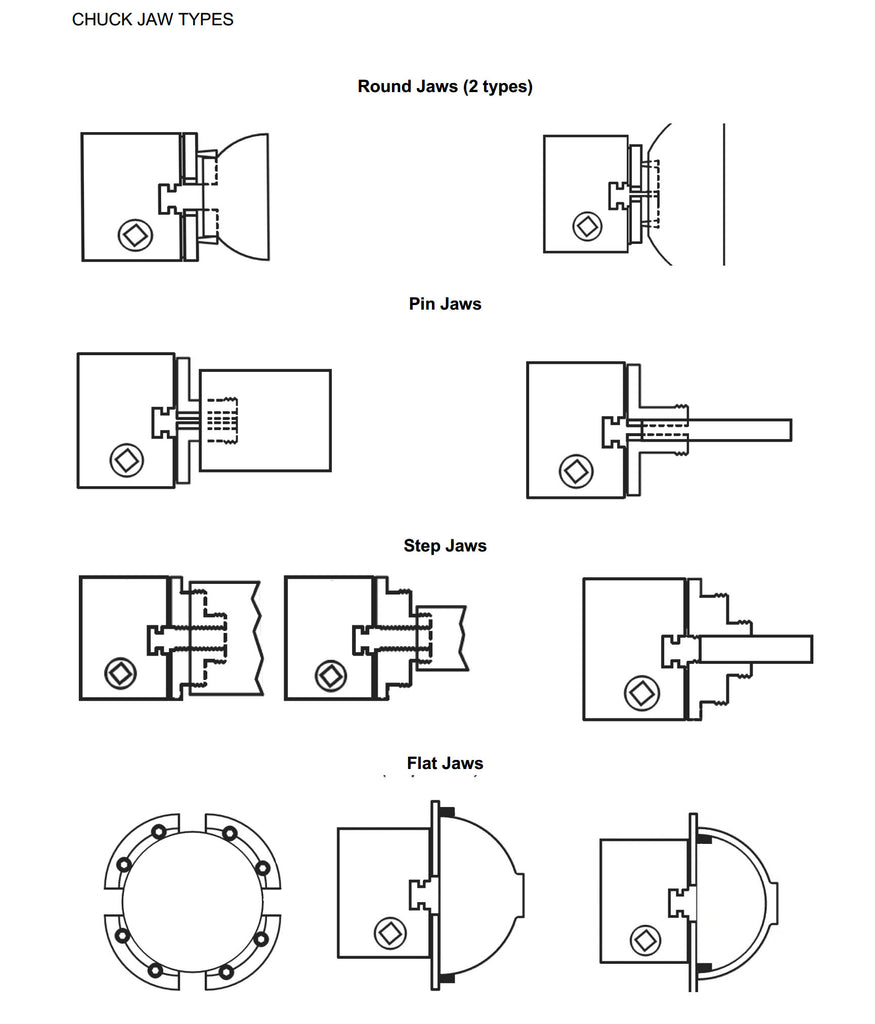

Outside Grip Range:

— #1 Step Jaws........................... 3⁄32"– 1 3⁄8"

— #2 Round Jaws........................... 2"–3 1⁄8"

— #3 Round Jaws....................... 3 3⁄4"–4 7⁄8"

— Pin Jaws.................................... 3⁄8"–1 5⁄8"

Inside Grip Range:

— #1 Step Jaws (Upper Step)......... 1"–2 1⁄4"

— #1 Step Jaws (Lower Step)..... 2 1⁄8"–3 3⁄8"

— #2 Round Jaws....................... 2 5⁄8"–3 3⁄4"

— #3 Round Jaws....................... 4 3⁄8"–5 1⁄2"

— Pin Jaws.................................. 11⁄4"–2 1⁄2"

Flat Jaws Maximum Outside Diameter......... 7 5⁄8"

Flat Jaws Minimum Inside Diameter............ 2 5⁄8"

Woodworm Screw Required Hole....... 5⁄16" x 1 1⁄4"
