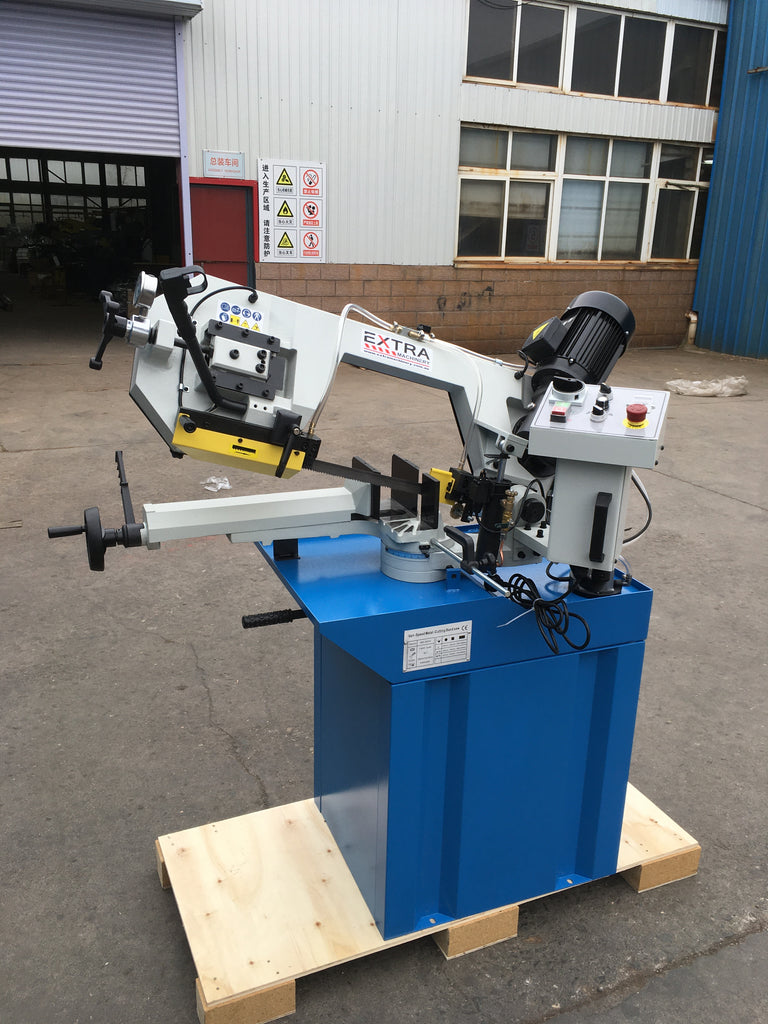

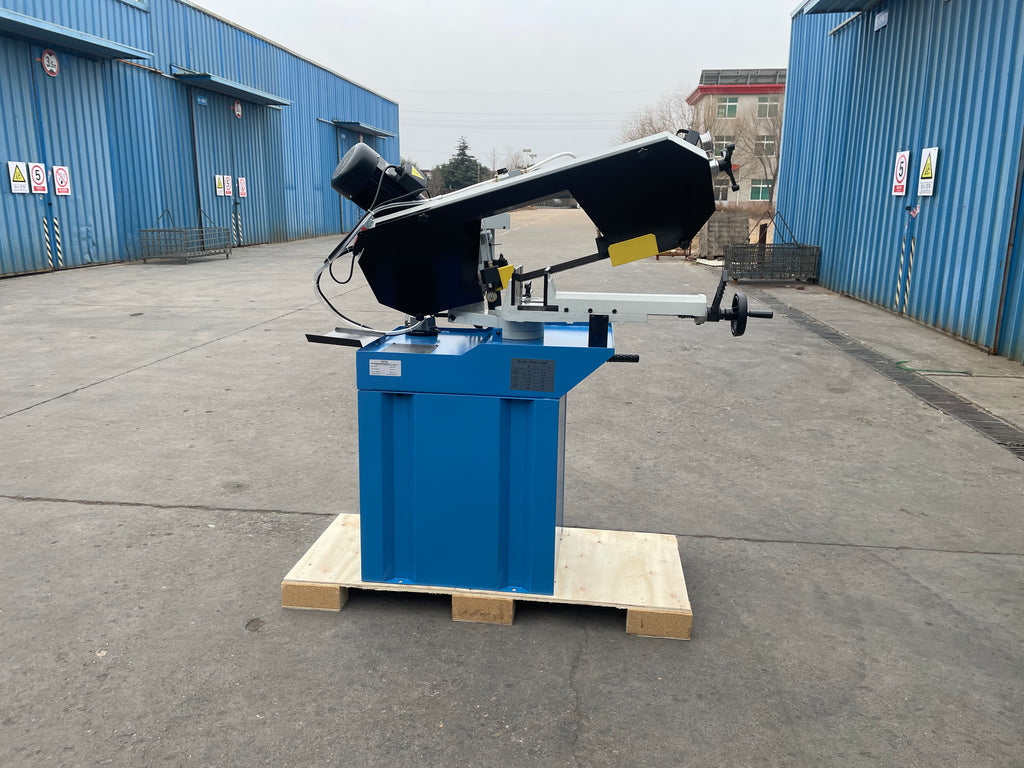

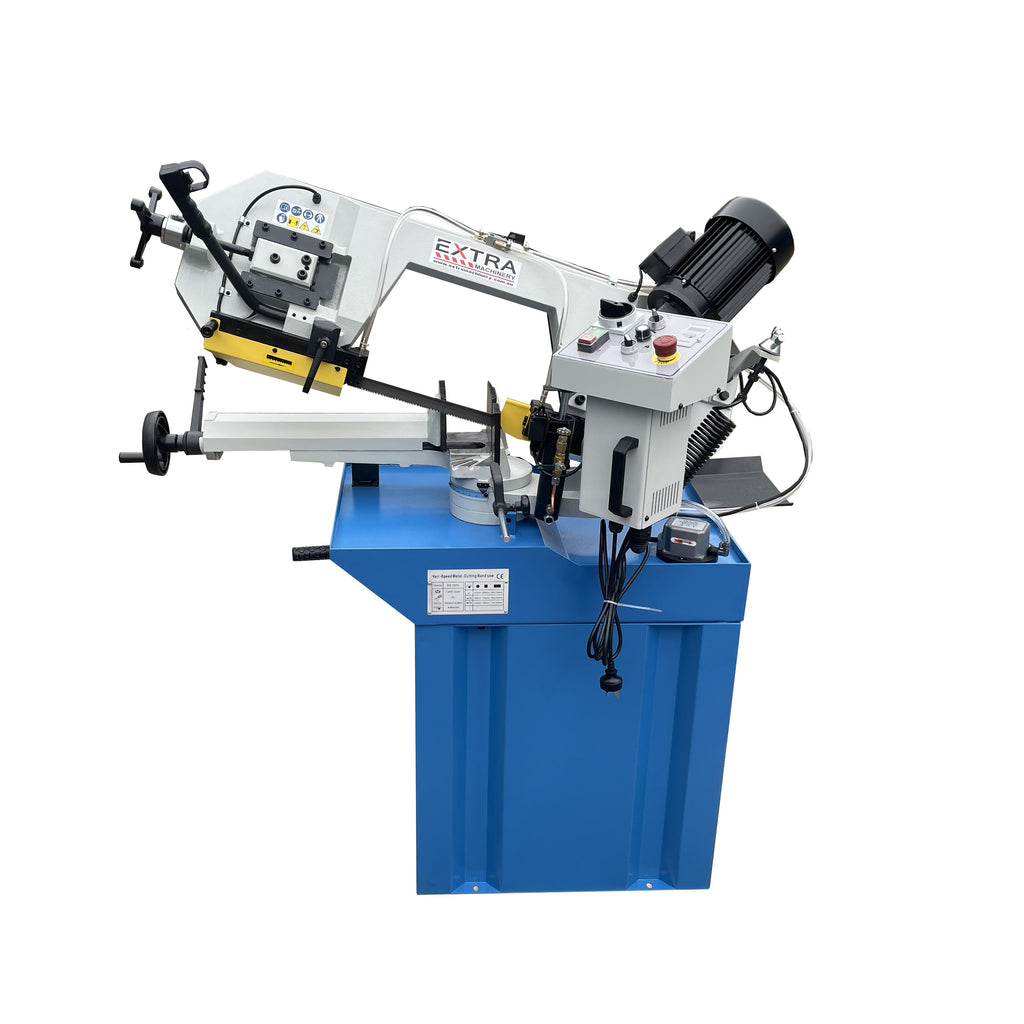

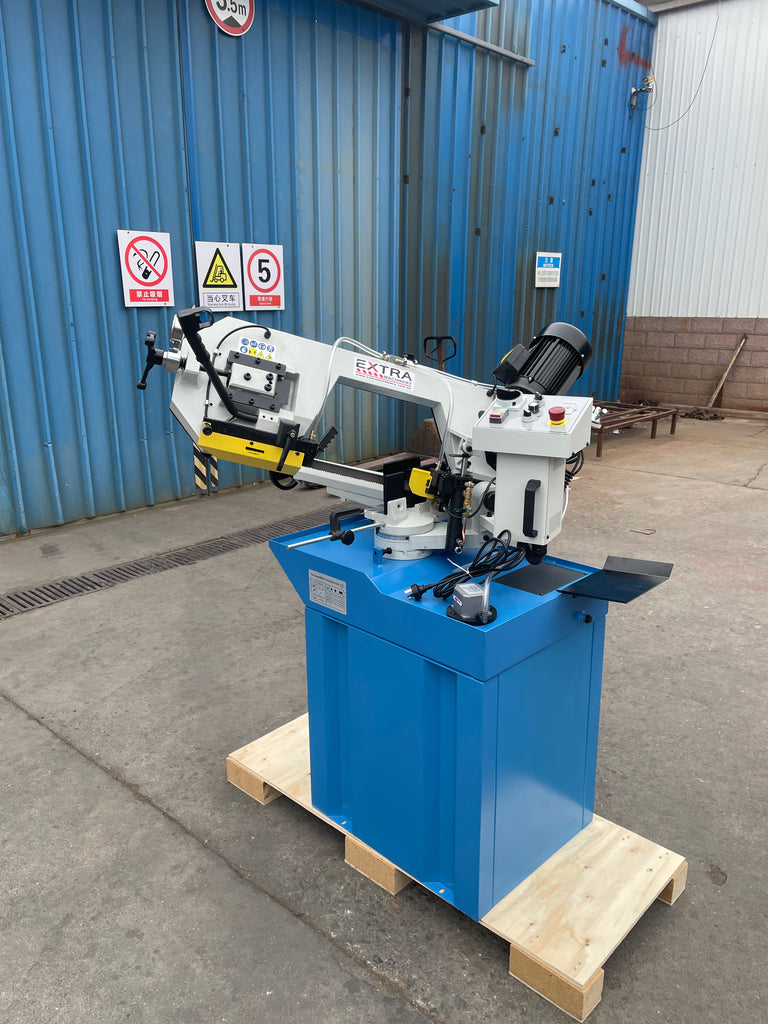

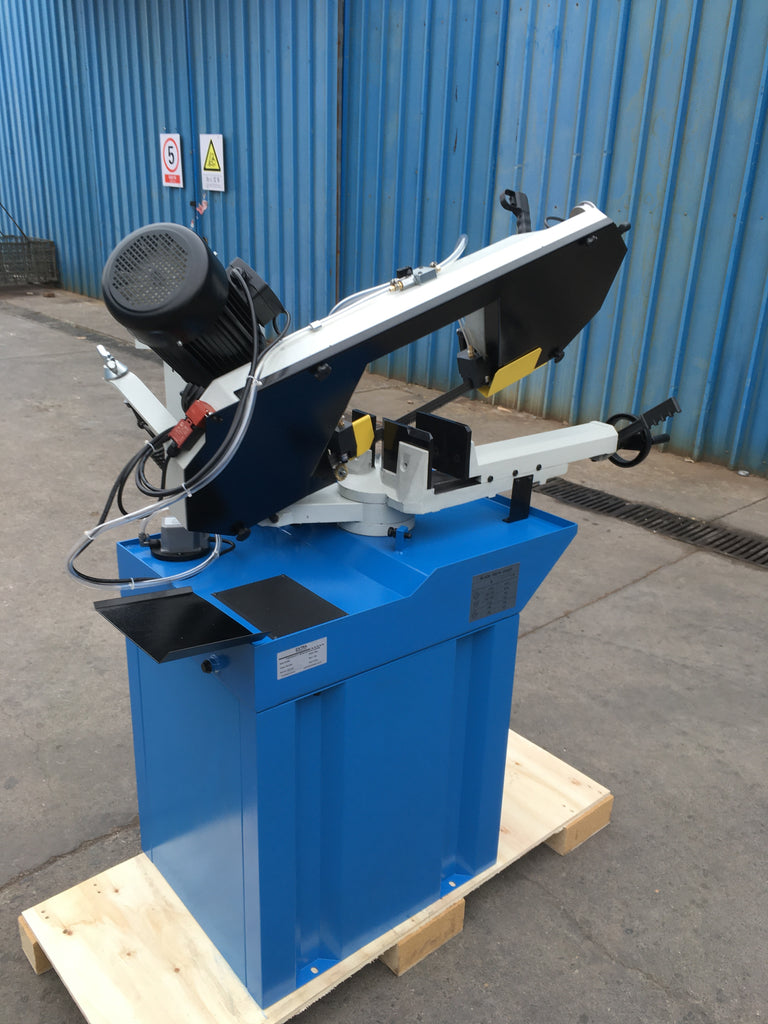

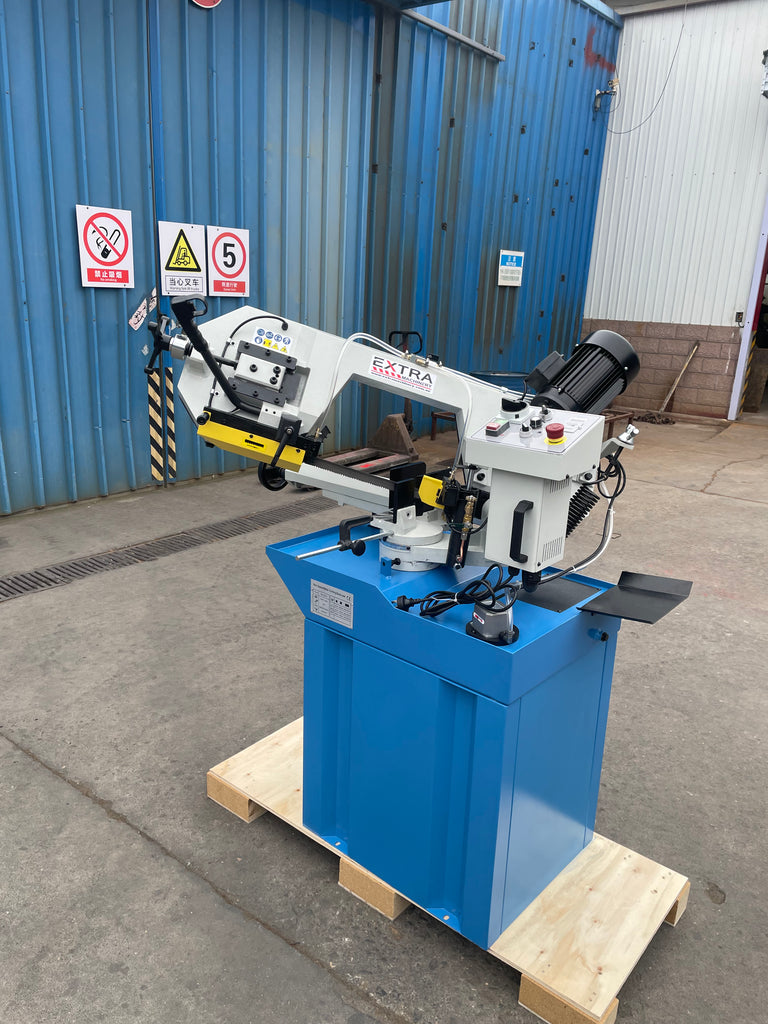

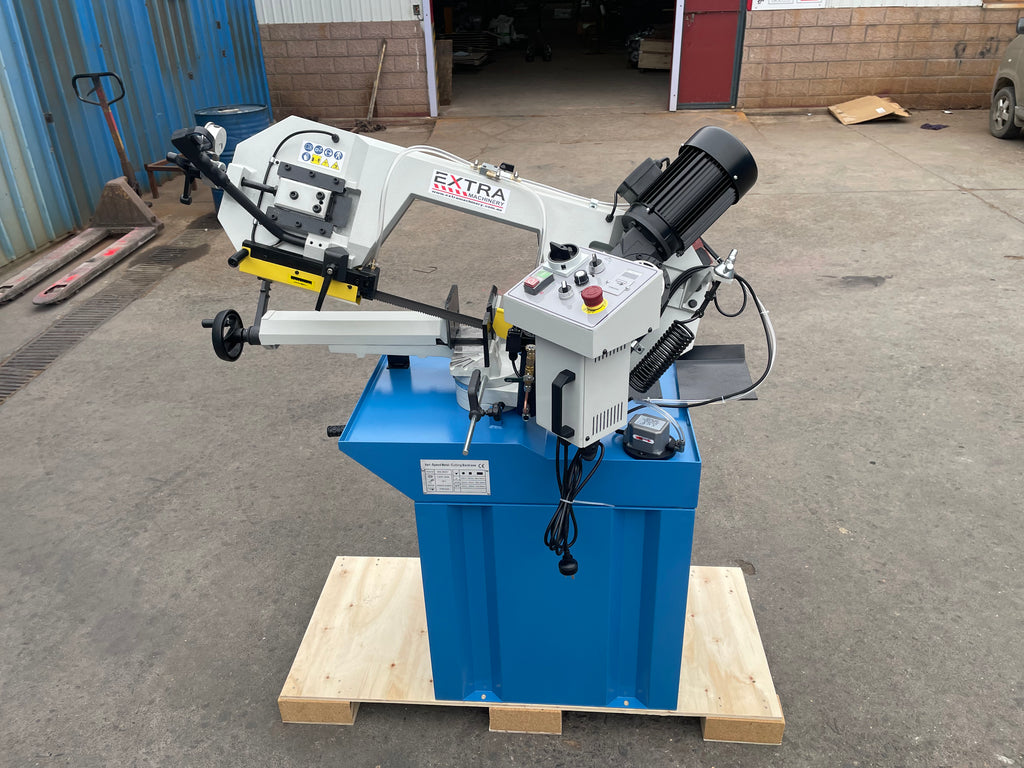

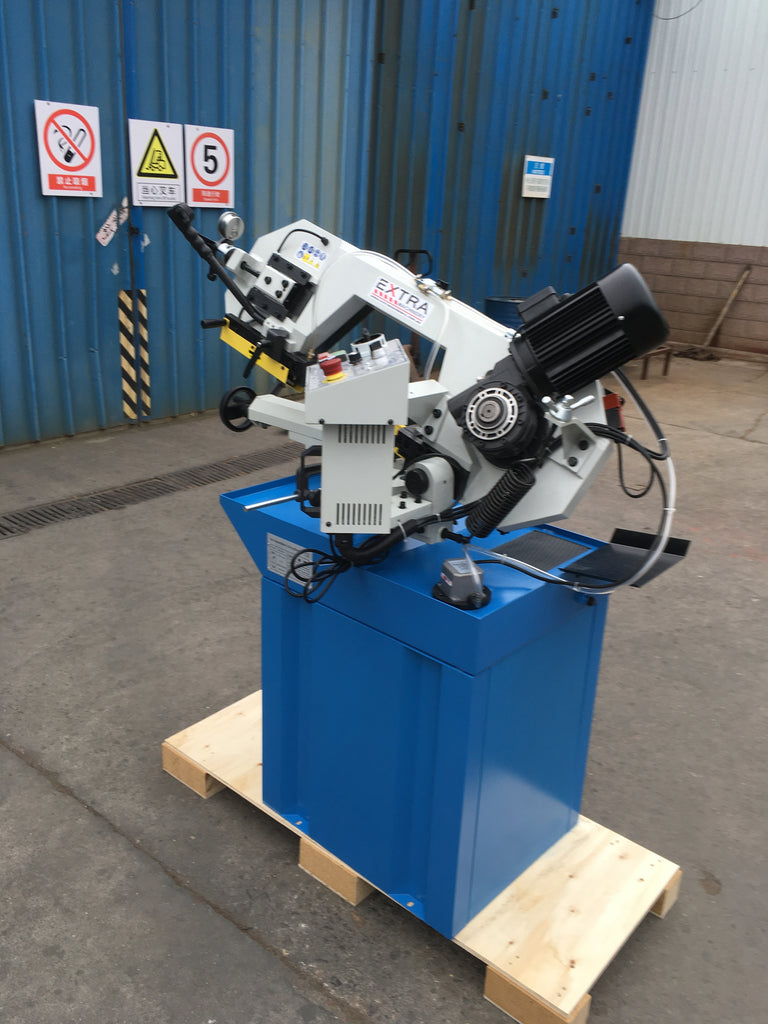

BS-260V - Swivel Head Metal Cutting Band Saw Variable speed 260x 150mm (W x H) Rectangle Capacity
No.1 Popular Metal Cutting Bandsaw In Europe
BS-260V Industrial VFD Variable speed 5-90mpm, Mitre Cut to 60 degree
- 260 x 150mm rectangular capacity

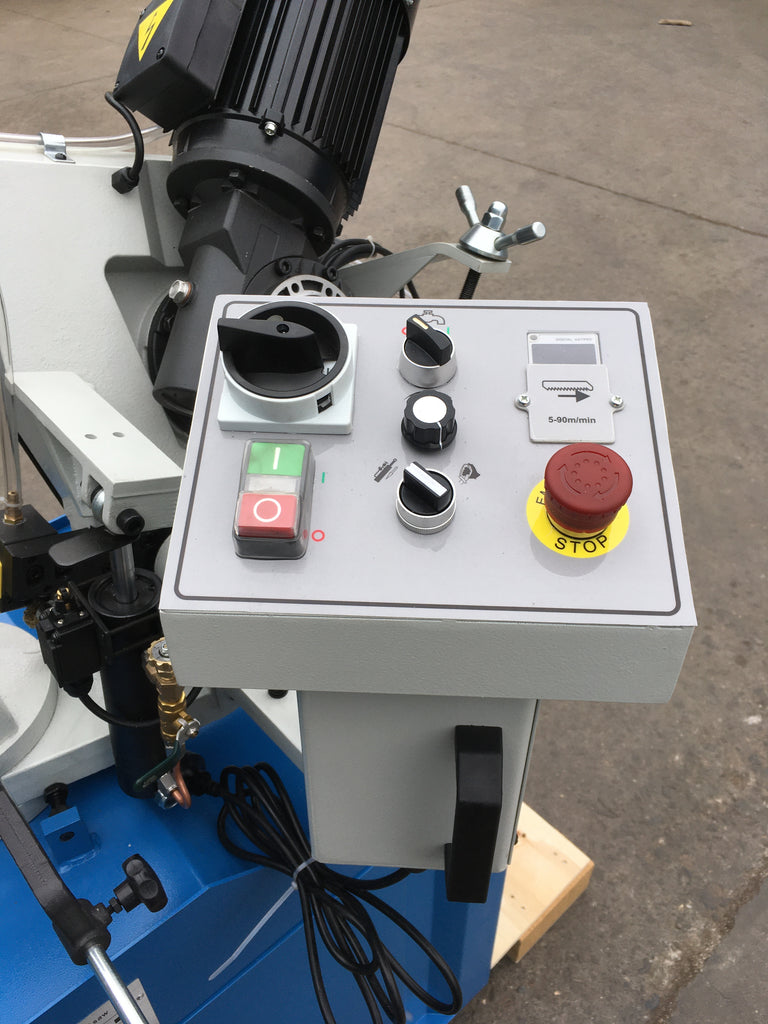

- Electronic variable blade speed, Industrial VFD controlled
- Digital saw speed display
- 1.5KW big ratio gear reduction motor provides big torque

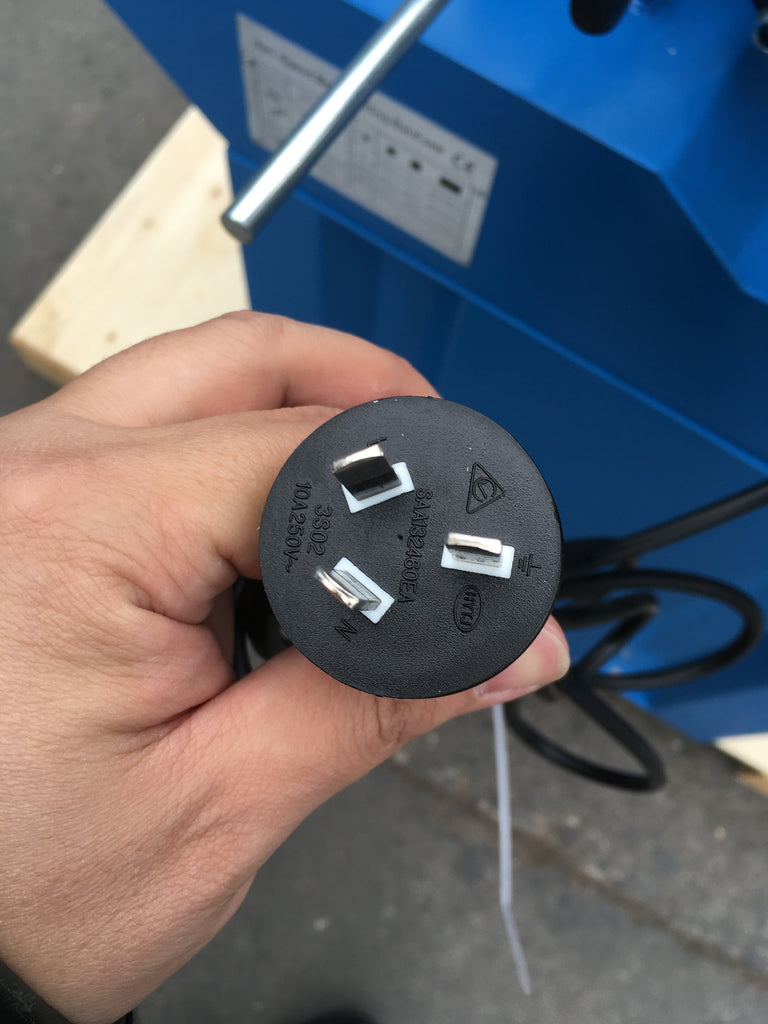

- 240V-50HZ-Single Phase 10Amp Plug
- Two cutting mode
Manual cutting with trigger switch handle

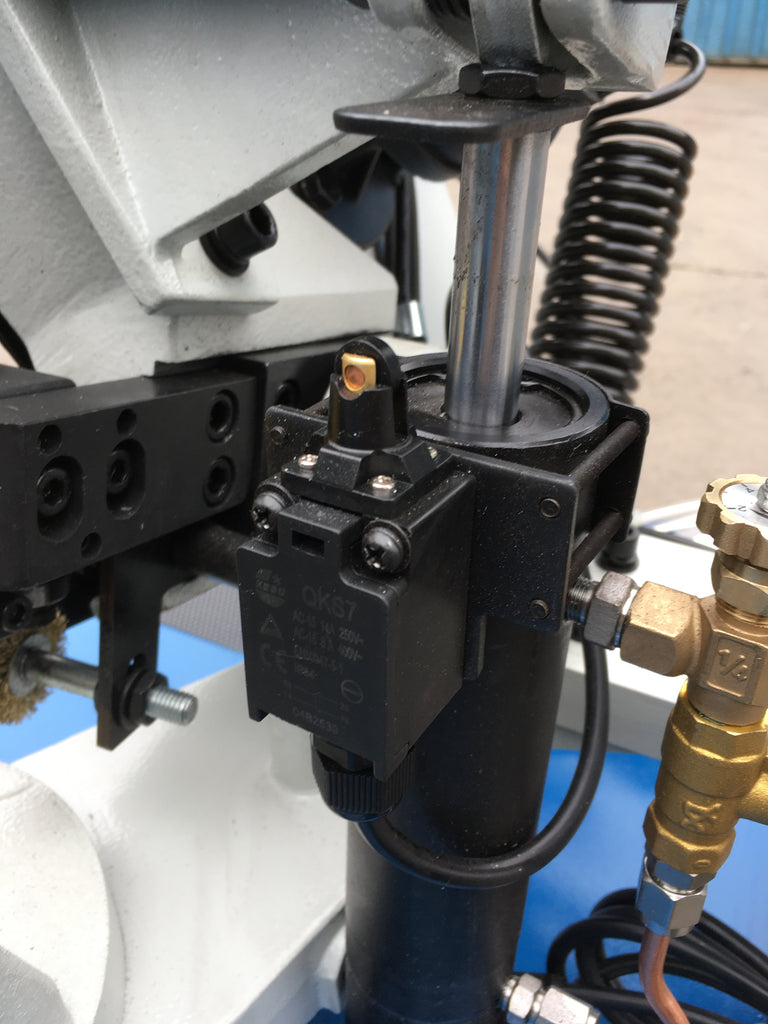

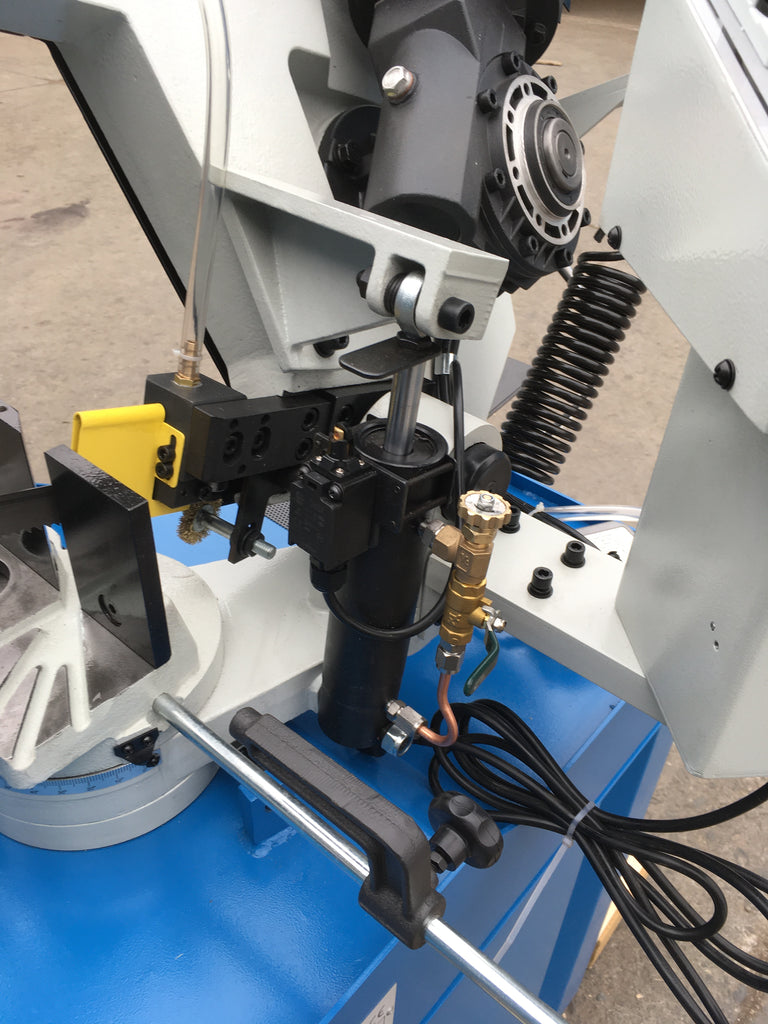

Auto cutting with adjustable hydraulic down feed with auto stop switch - Quick action clamping vice lever for quick workpiece lock & release

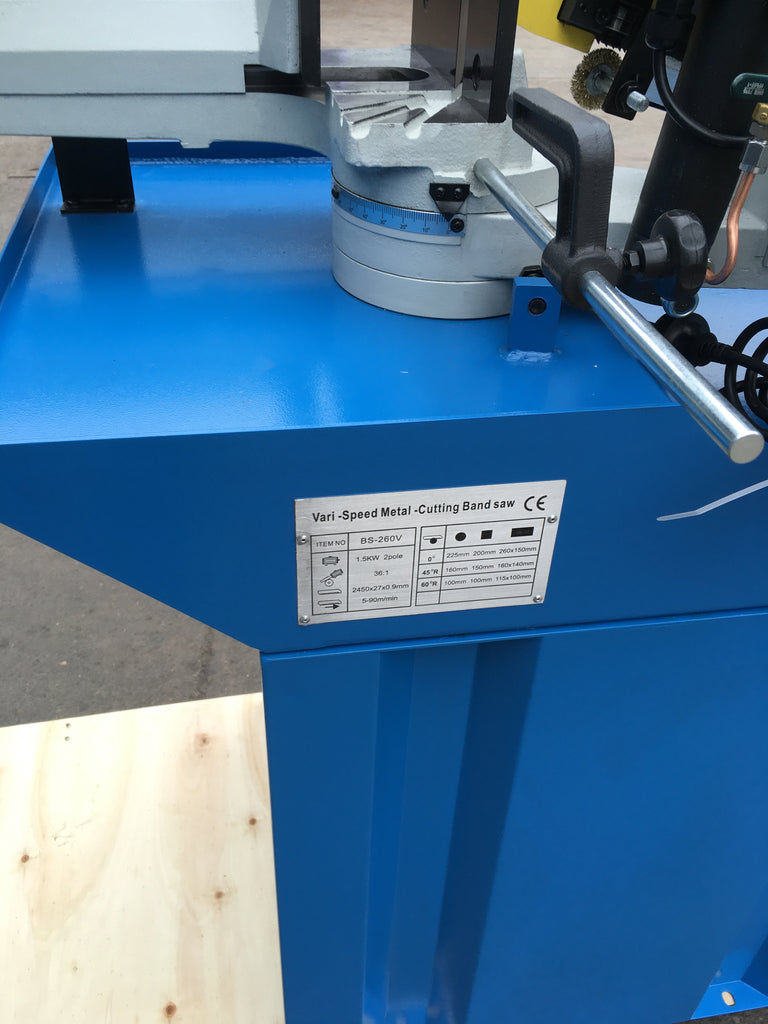

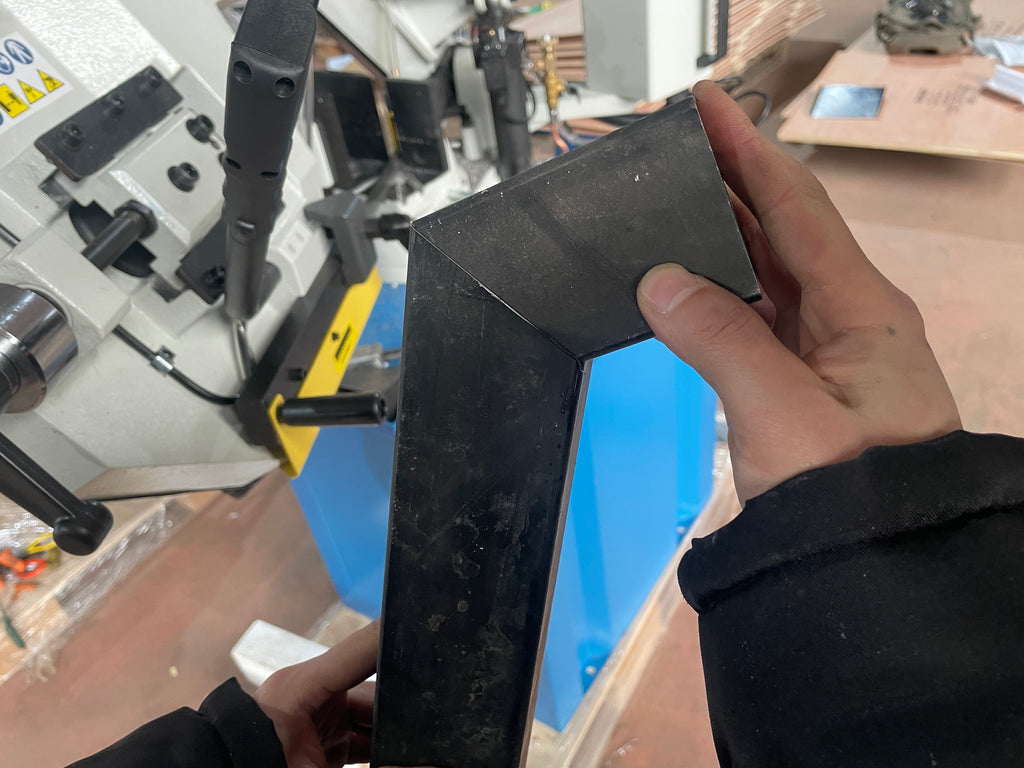

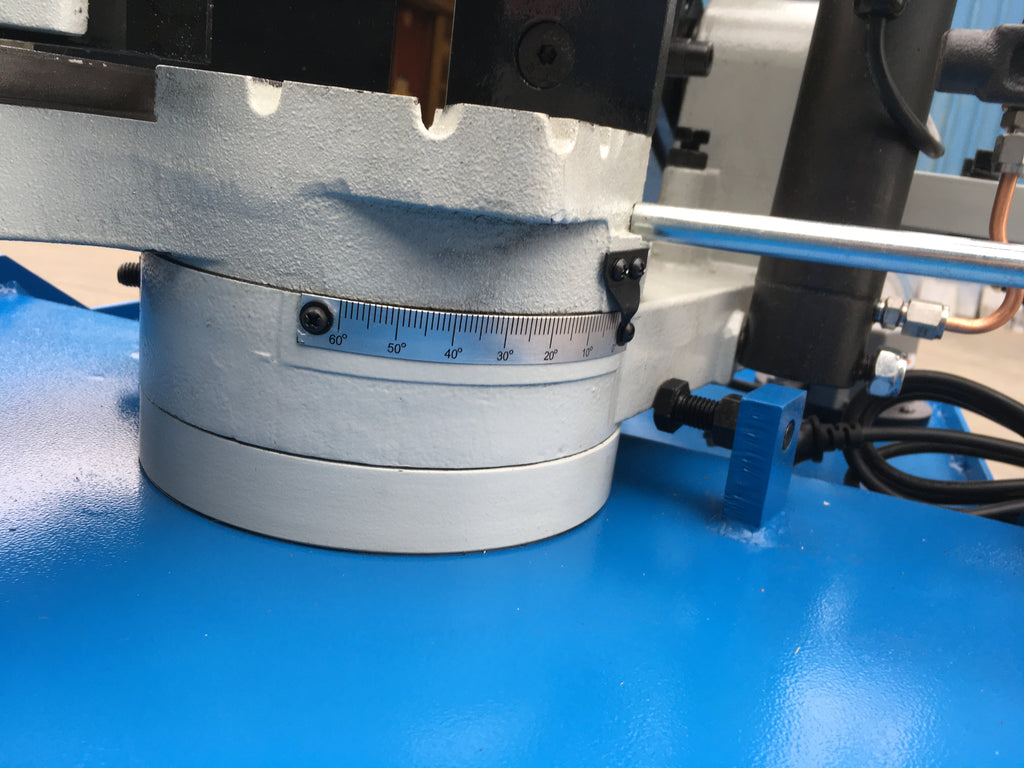

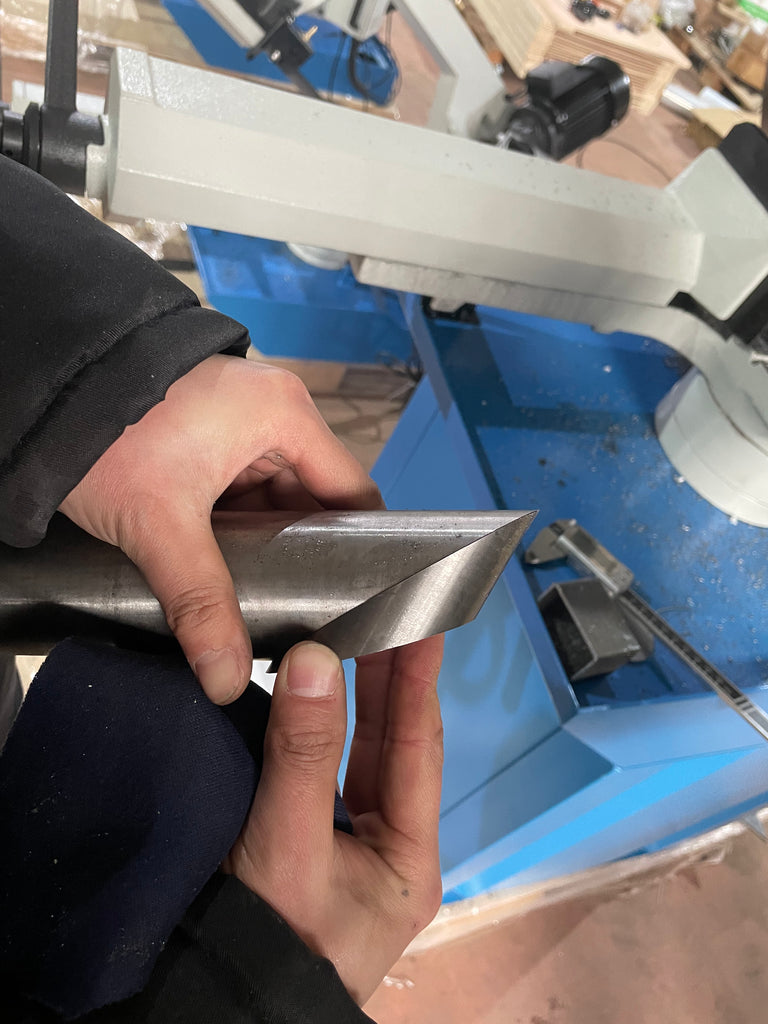

- Saw head swivel to 60º in right side

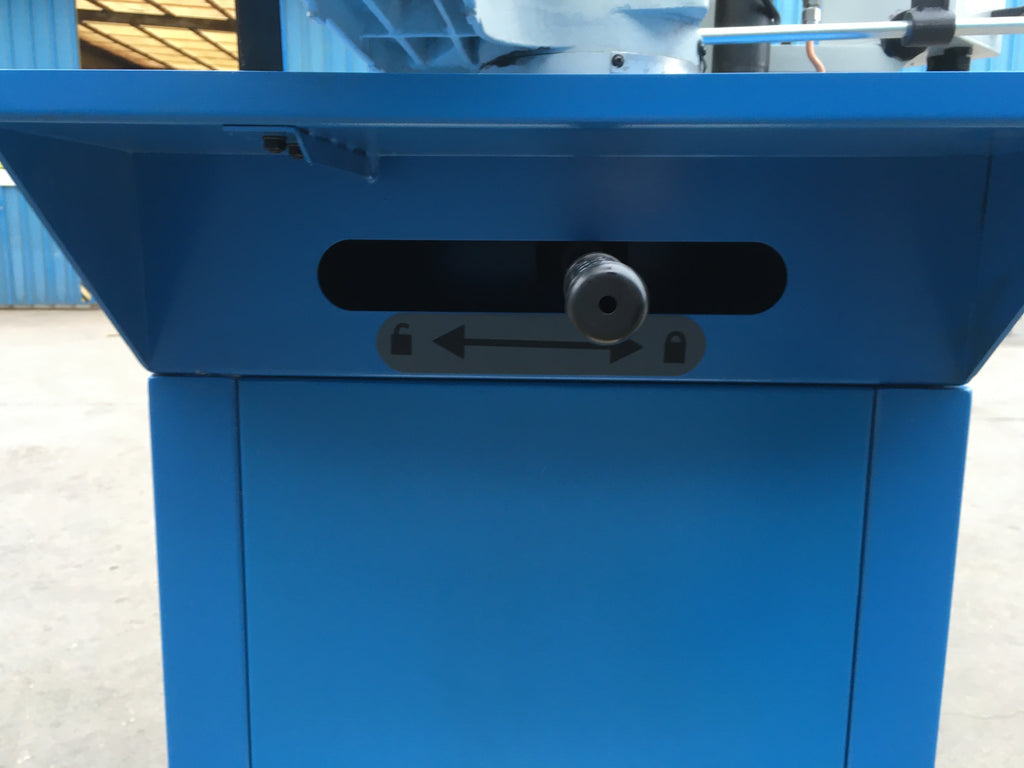

- Quick lock & release Handle for saw swivel head

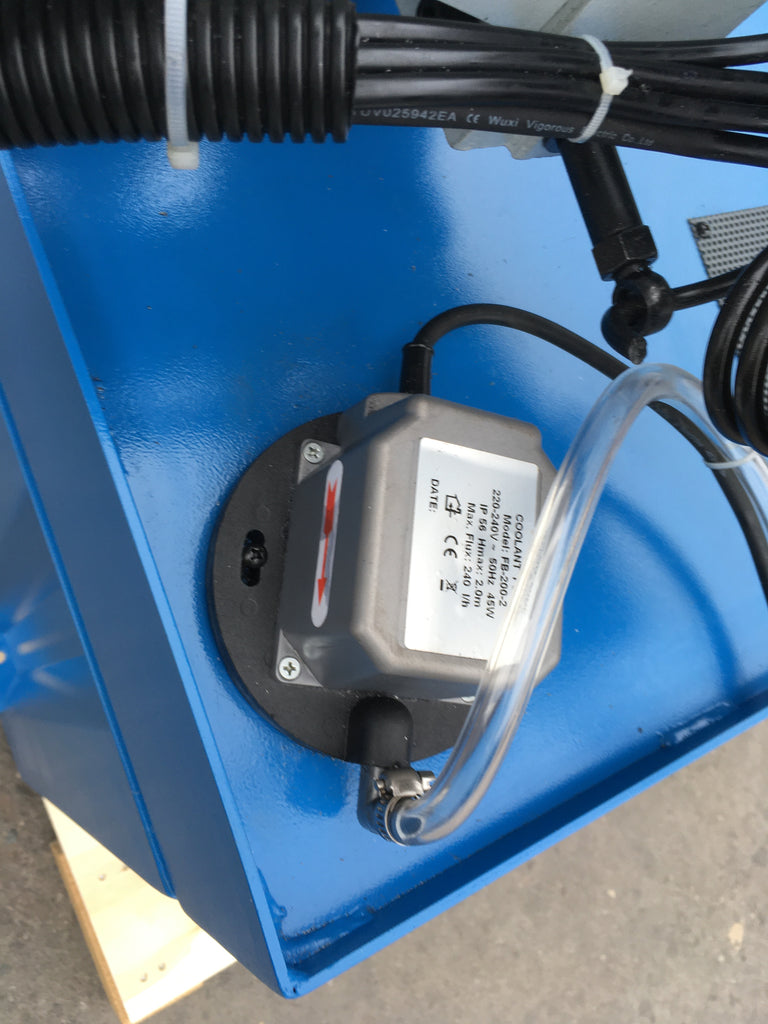

- Coolant system included

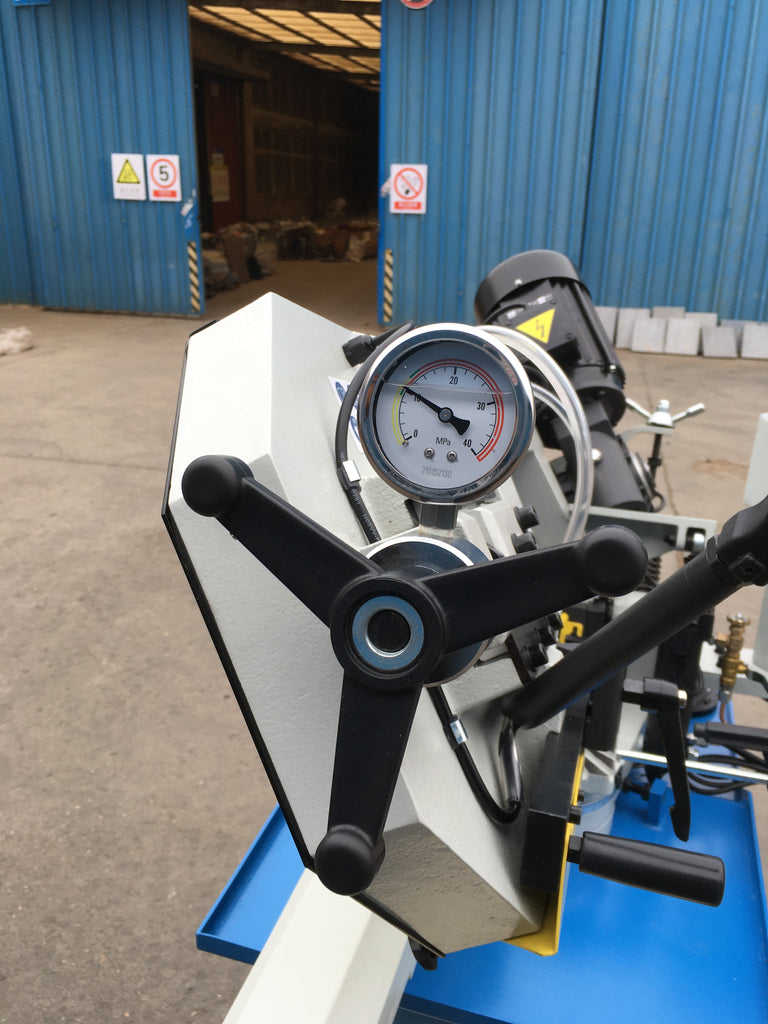

- Easy use blade tension system with saw tension gauge
- Adjustable cutting length stop

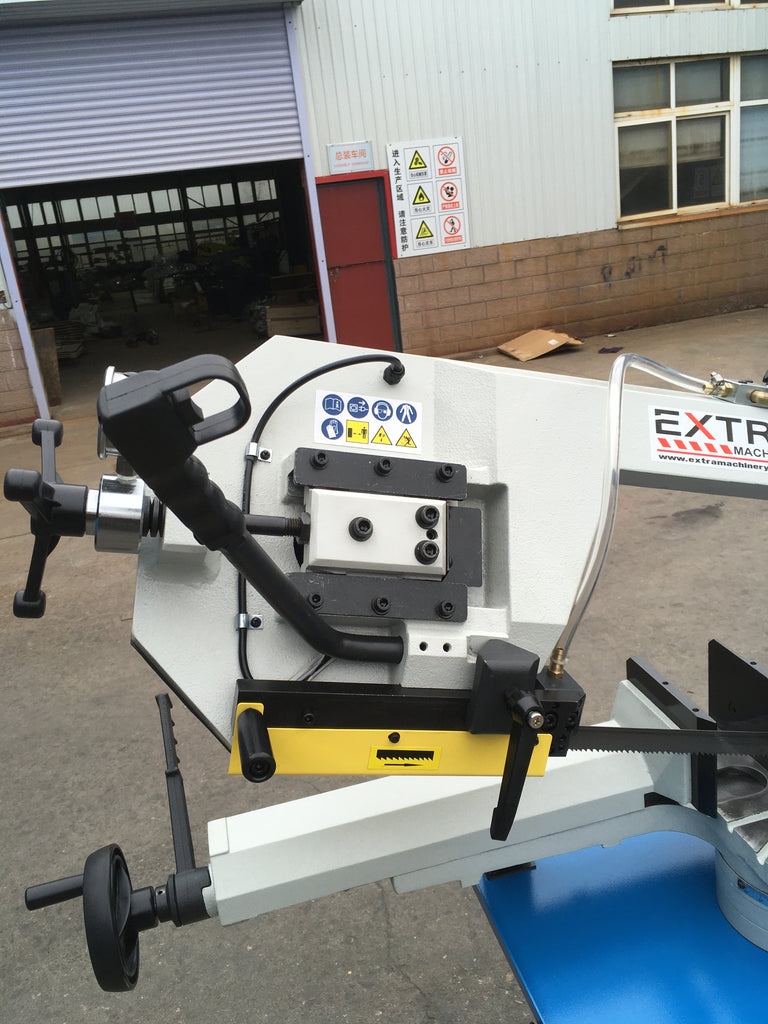

- Blade guide rollers are adjustable

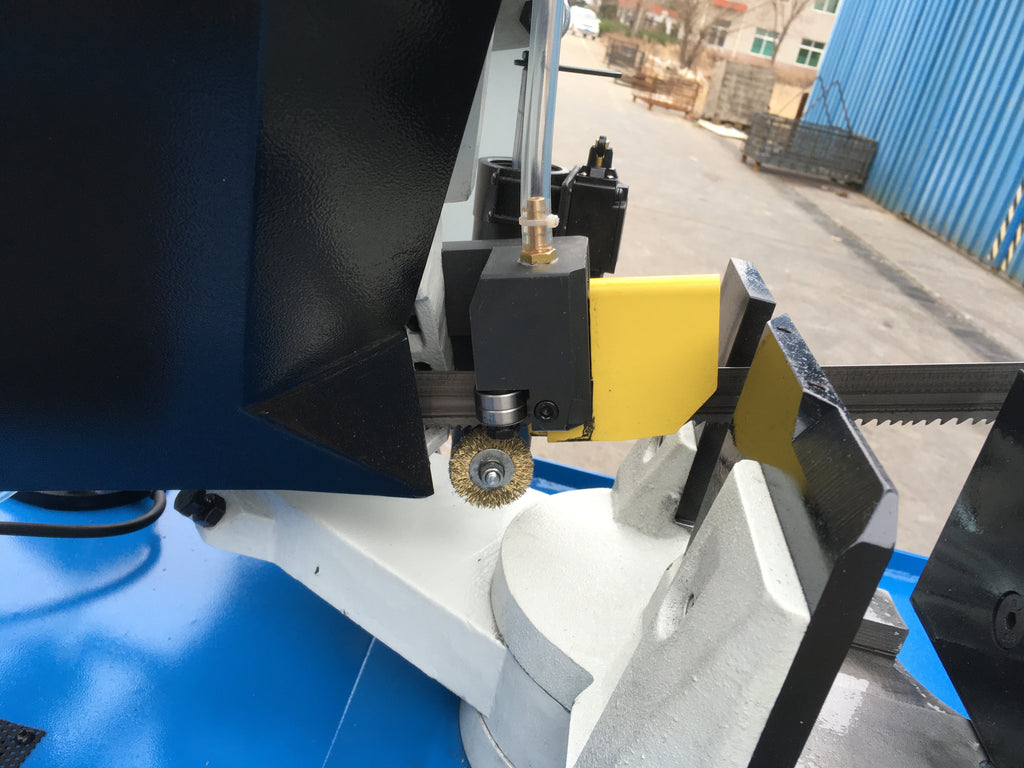

- Blade cleaning brush included
- Machine stand included
Specifications
|
BS-260V |
0° |
30° |
45° |
60° |
|
Round (mm) |
225 |
200 |
160 |
100 |
|
Square (mm) |
200 |
190 |
150 |
100 |
|
Rectangular (mm) |
260x150 |
210x140 |
160x140 |
115x100 |
Main Motor 1.5KW
Power supply: 240V-50HZ, Single Phase 10Amp
Saw Speed: 5-90mpm
Saw Blade: 2450x27x0.9mm
Net Weight: 200kg (Approx.)
