Extra Machinery Pty Ltd

$1,500.00

SKU: S505

← Previous Product Next Product →

Our metal bandsaws are made by the biggest manufacturer in the world, which OEM for Mac, Femi and many other top brands.   Quality casting parts,  CNC machined parts guarantee modular assembling and high quality of the complete machines.



  • 205mm diameter round capacity
  • 215 x 205mm (W x H) rectangular capacity

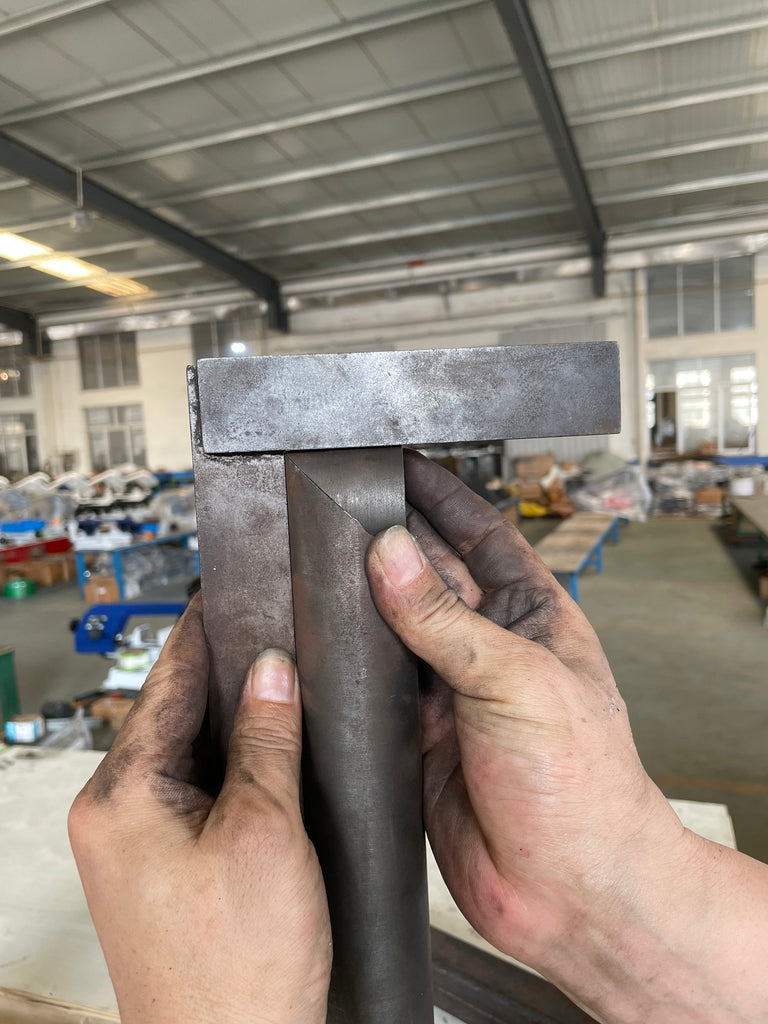

  • Dual Mitre cutting up to 45º  with swivelling head bow
  • Hydraulic down feed with adjustable feed rate suitable for multi-applications
  • Main NVR switch for safety at power cutoff
  • Auto cutting stop with a limit switch
  • Material length stop is adjustable for repeat cutting
  • Built in coolant system with flow control valve
    Separate on/off switch to control coolant easily
  • 1.5HP 240V Single Phase Motor With 10amp 3-pin plug
  • Blade guide rollers are adjustable
  • Wire wheel brush is fitted to clean blade at cutting
  • 4 steps of belt pulley provides 4 cutting speed 22-33-45-65MPM
  • Moves on wheels for portability.

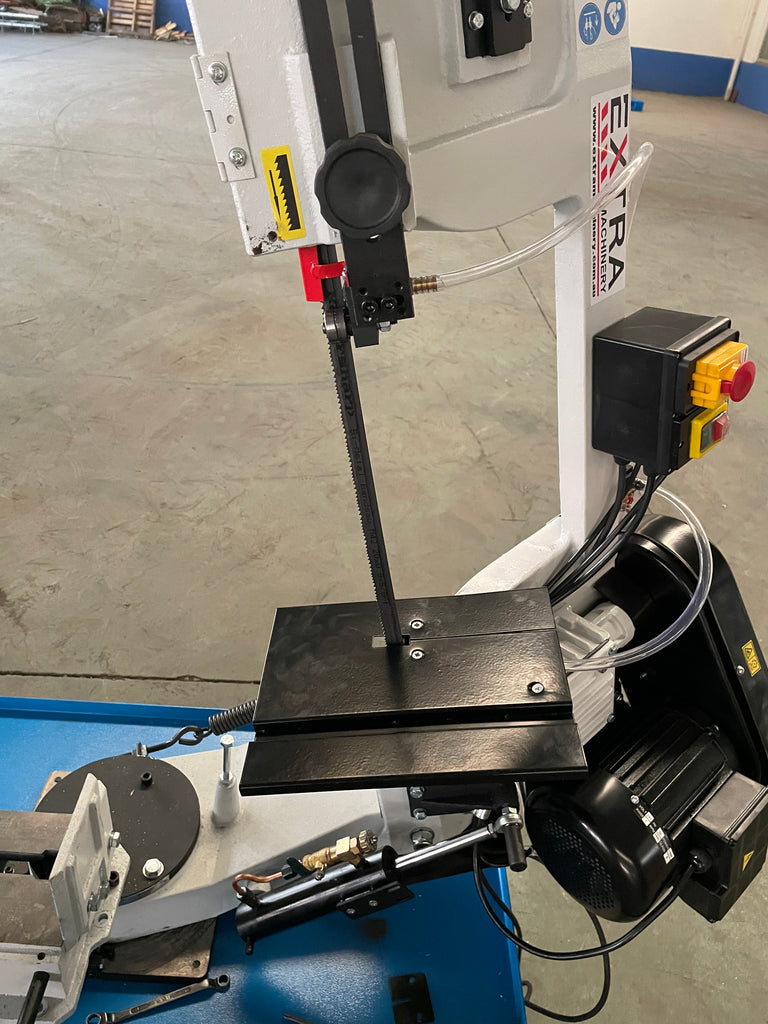

  • Vertical cutting table is included as standard

Model

BS-8DR

Capacity

Circular @ 90°

205mm



Rectangular @90°

215 x 205mm



Circular @45° Left

150mm



Rectangular @45° Left

100 x 200mm



Circular @45° Right

140mm



Rectangular @45° Right

140 x 90mm

Blade speed

@50Hz

22-33-45-65 MPM







Blade size

20x0.9x2360mm

Motor power

 1.1KW 1.5HP(1PH)

Drive

V-belt

Packing size

129x73x115cm

N.W./G.W.

185/238 kg
