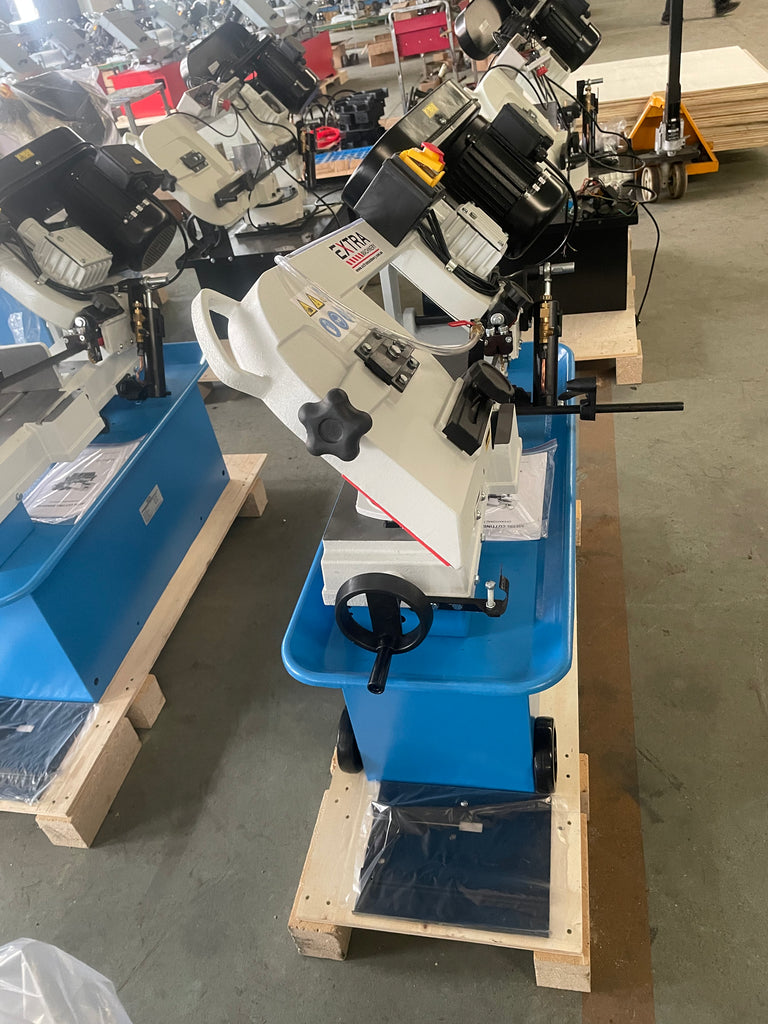

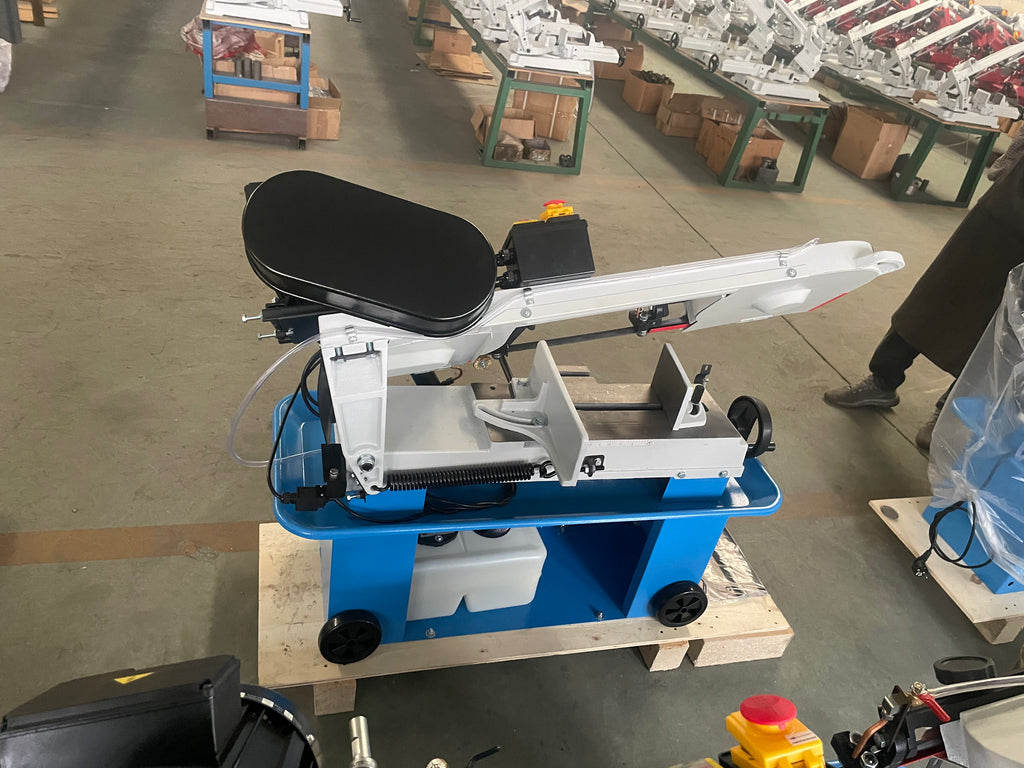

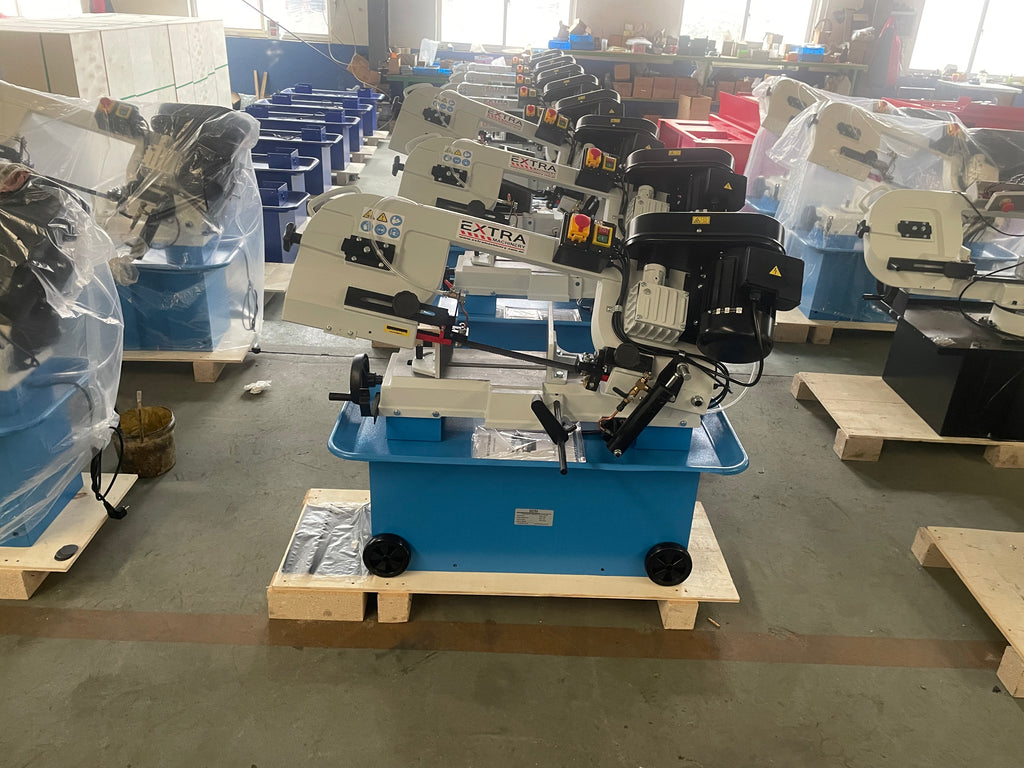

BS-7L Metal Cutting Band Saw - 310 x 180mm (W x H) rectangular capacity, Swivel Vice 45 Degree
STOCKS COMING IN END NOV 2025
Our metal bandsaws are made by the biggest manufacturer in the world, which OEM for Mac, Femi and many other top brands. Quality casting parts, CNC machined parts guarantee modular assembling and high quality of the complete machines.

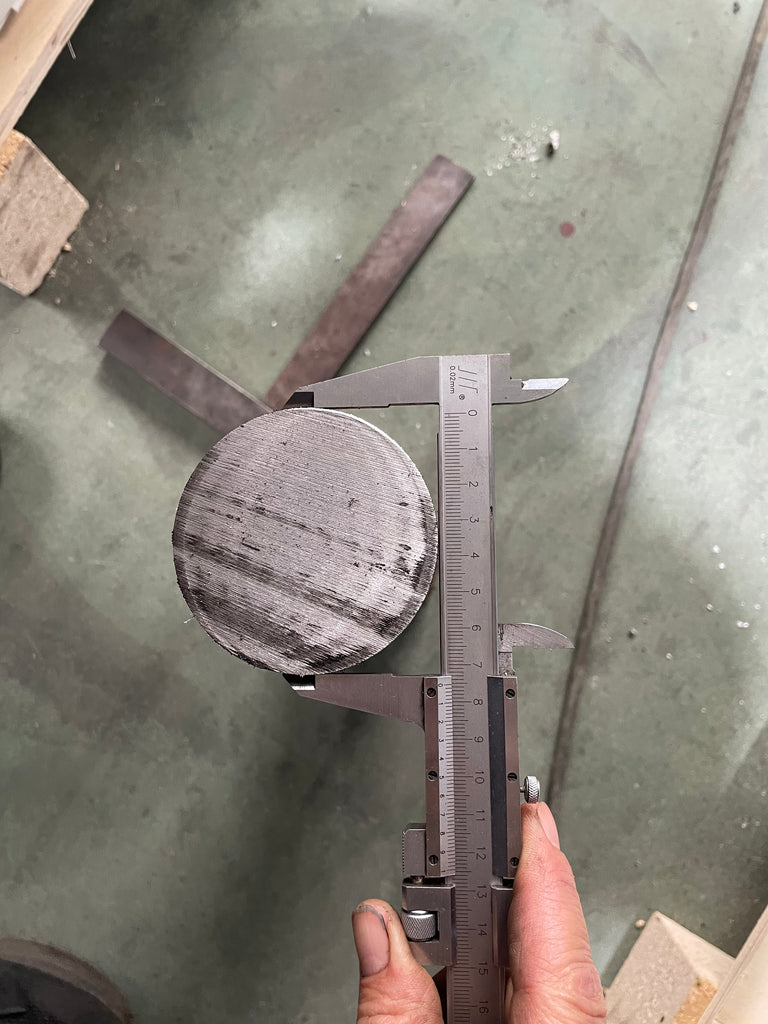

- 180mm diameter round capacity
- 310 x 180mm (W x H) rectangular capacity
- Hydraulic down feed with adjustable feed rate suitable for multi-applications
- Auto cutting stop with a limit switch
-
Mitre Vice Swivels to 45º
- Material length stop is adjustable for repeat cutting
- Built in coolant system with flow control valve

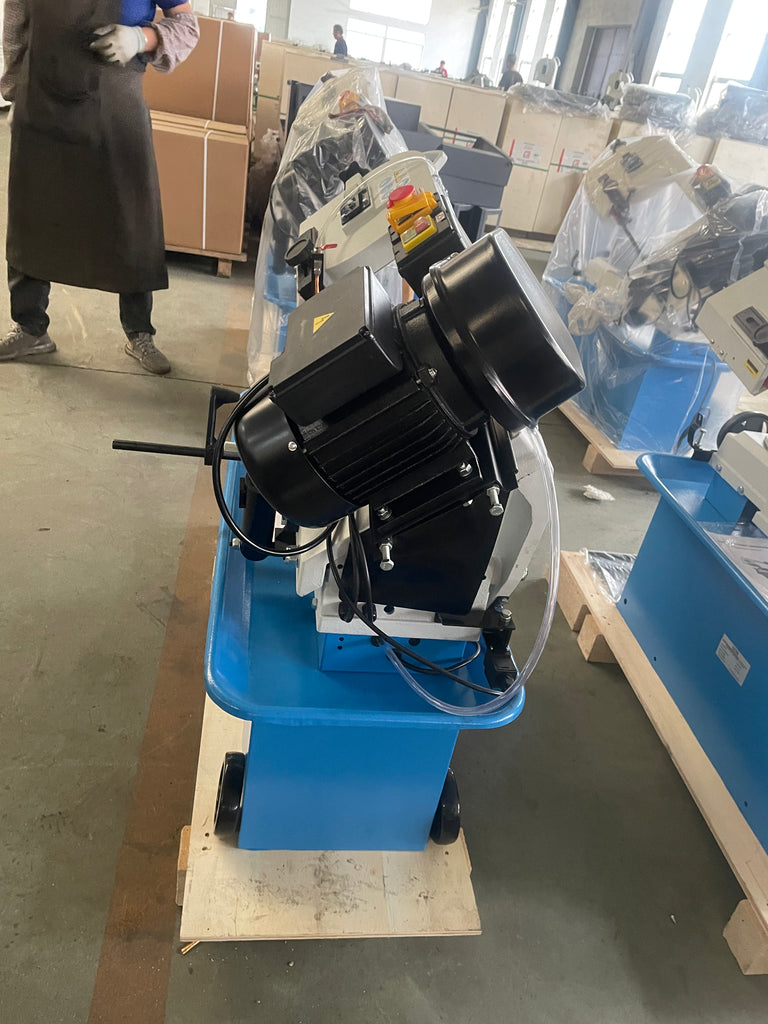

- 1.5HP 240V Single Phase Motor With 10amp 3-pin plug
-
Blade guide rollers are adjustable
- Wire wheel brush is fitted to clean blade at cutting
-
4 steps of belt pulley provides 4 cutting speed 22-33-45-65MPM
-
Include vertical cutting table
- Moves on wheels for portability.
|
Model |
BS-712N |
|
|
Cut Circular @90° |
180mm |
|
|
Cut Rectangular @90° |
310 x 180mm |
|
|
Cut Circular @45° |
110mm |
|
|
Cut Rectangular @45° |
180 x 110mm |
|
|
|
|
|
|
Blade speed @50Hz |
22,34,49,64 MPM |
|
|
Blade size |
20x0.9x2362mm |
|
|
Motor power |
1.1KW 1.5HP(1PH) 240v |
|
|
Drive |
V-belt |
|
|
Packing size |
125x51x115cm |
|
|
N.W./G.W. |
140/180kg |
|
