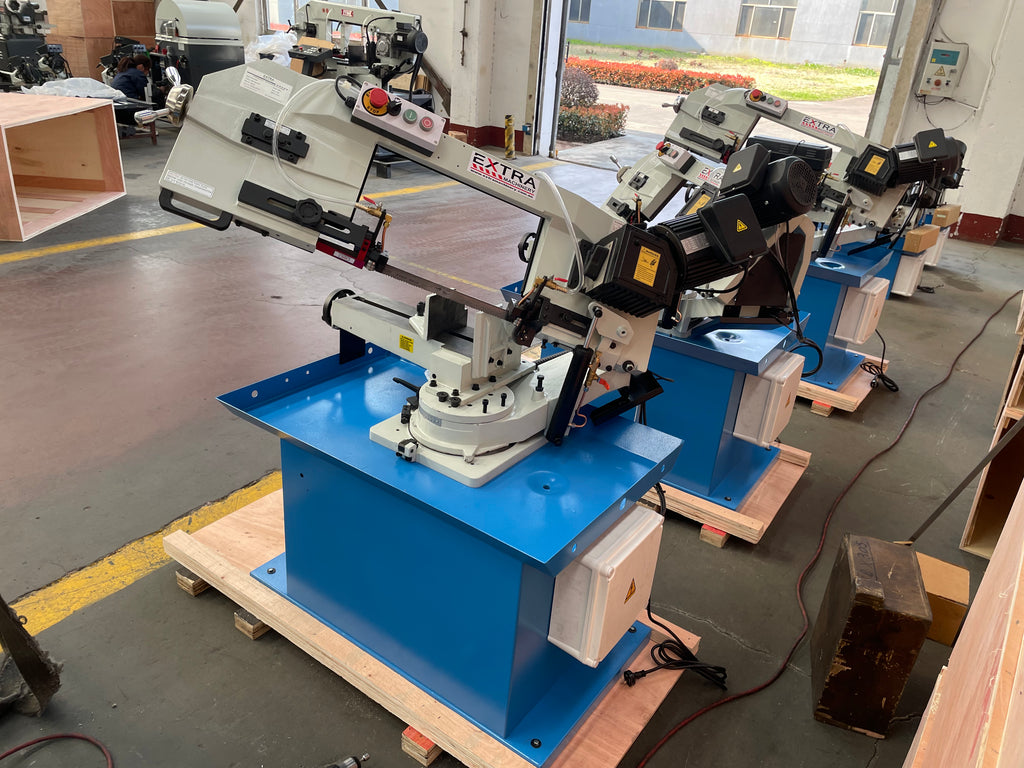

BS-912GDR Metal Cutting Band Saw -Gear Driven, Dual Swivel Head Bow 45 Degree

BS-912GDR Metal Cutting Band Saw -Gear Driven, Dual Swivel Head Bow 45 Degree
BS-912GDR Metal Cutting Band Saw -Gear Driven, Dual Swivel Head Bow 45 Degree BS-912GDR Metal Cutting Band Saw -Gear Driven, Dual Swivel Head Bow 45 Degree BS-912GDR Metal Cutting Band Saw -Gear Driven, Dual Swivel Head Bow 45 Degree

Extra Machinery Pty Ltd

$3,150.00

SKU: S510

← Previous Product Next Product →


Our metal bandsaws are made by the biggest manufacturer in the world, which OEM for Mac, Femi and many other top brands.   Quality casting parts,  CNC machined parts guarantee modular assembling and high quality of the complete machines.


  • 229mm diameter round capacity
  • 305 x 178mm (W x H) rectangular capacity

  • Dual Direction Mitre cutting up to 45º  with swivelling head bow

  • Hydraulic down feed with adjustable feed rate suitable for multi-applications
  • Auto cutting stop with a limit switch
  • Hand wheel clamp vice
  • Material length stop is adjustable for repeat cutting
  • Built in coolant system with flow control valve
  • 1.5HP 240V Single Phase Motor With 10amp 3-pin plug
  • Blade guide rollers are adjustable
  • Wire wheel brush is fitted to clean blade at cutting
  • Strong Gear Driven provides 3 cutting speed 39-66-82MPM
  • .
    Model BS-912GDR
    Cut circular @90° 229mm (9")
    Cut rectangular @90° 178x305mm (7"x12")
    Cut circular @45° 150mm (6")
    Cut rectangular @45° 127x150mm (5"x6") (short )
    90 x 205mm (long)
    Blade speed @50HZ 39, 66, 82 MPM
    Blade size 27x0.9x2655mm
    Motor Power 1.1kW  1.5HP  240V
    Drive Gear
    Packing size 160x76x125 cm
    N.W./G.W. 250/318 kg
